Geminis Republic Lagun GE-1000 HOLLOW SPINDLE ENGINE LATHES

Price on Request

Make:: Geminis

Model:: Republic Lagun GE-1000

Year:: 1988

Ref #:: 178467

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

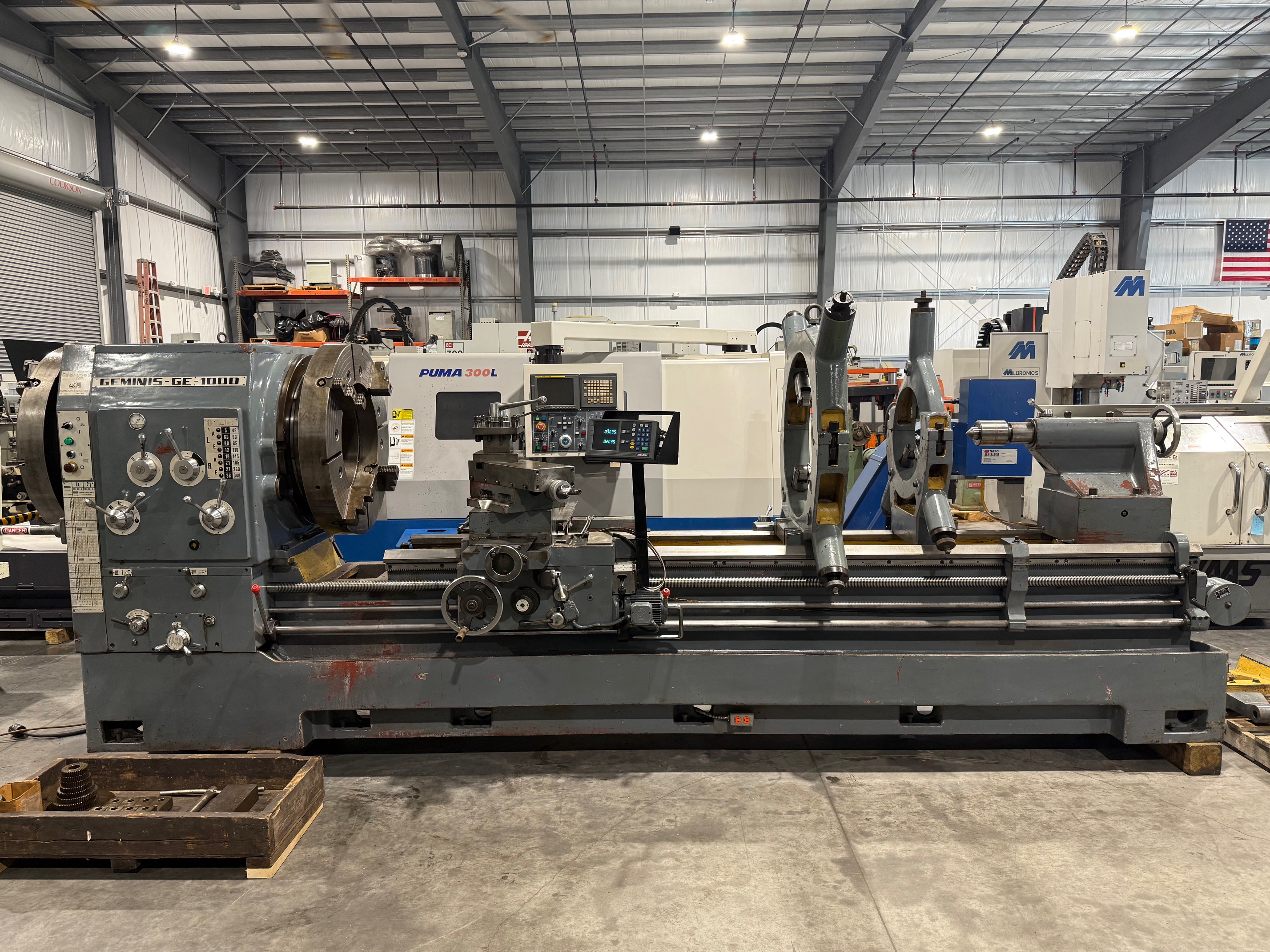

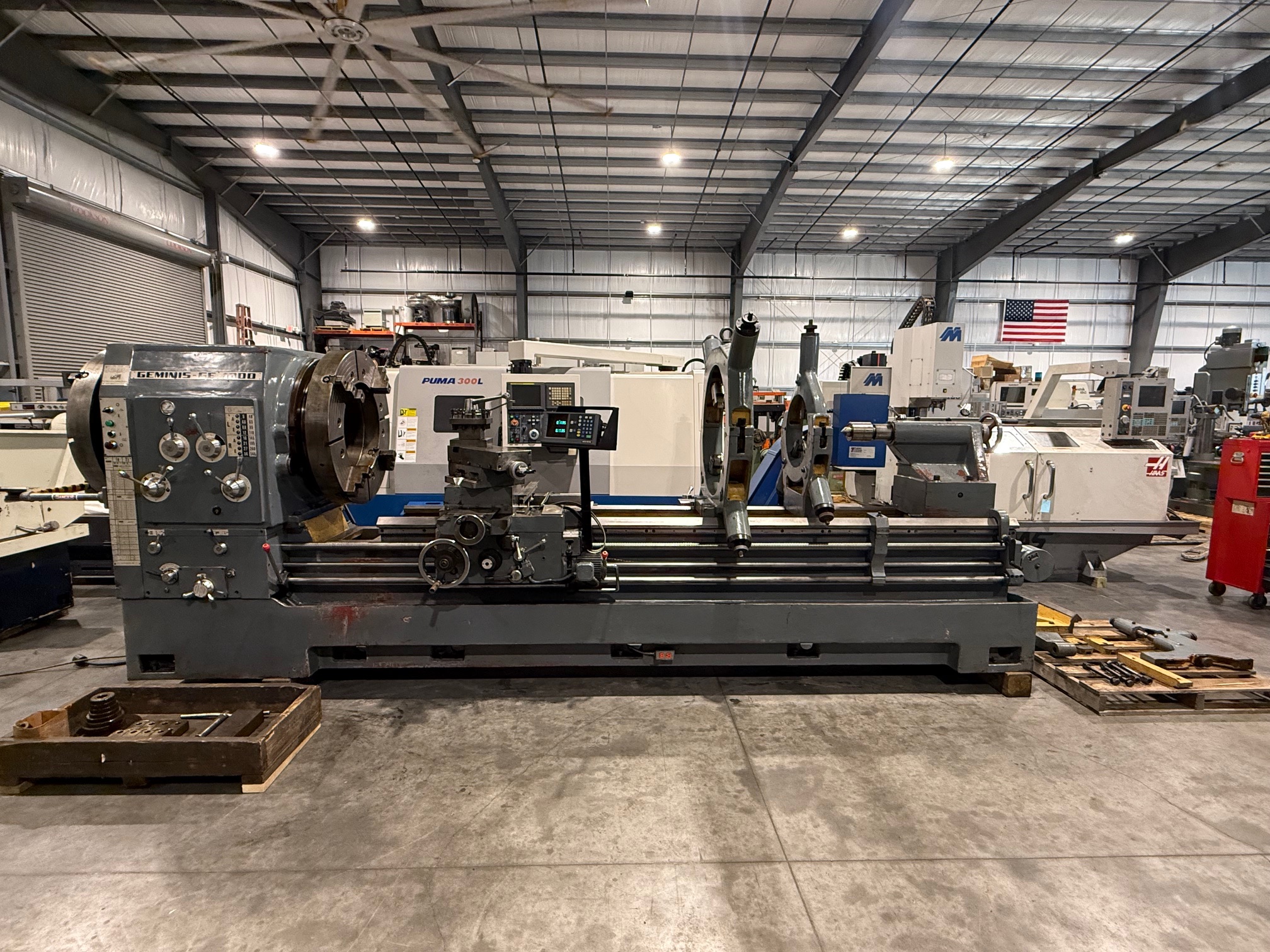

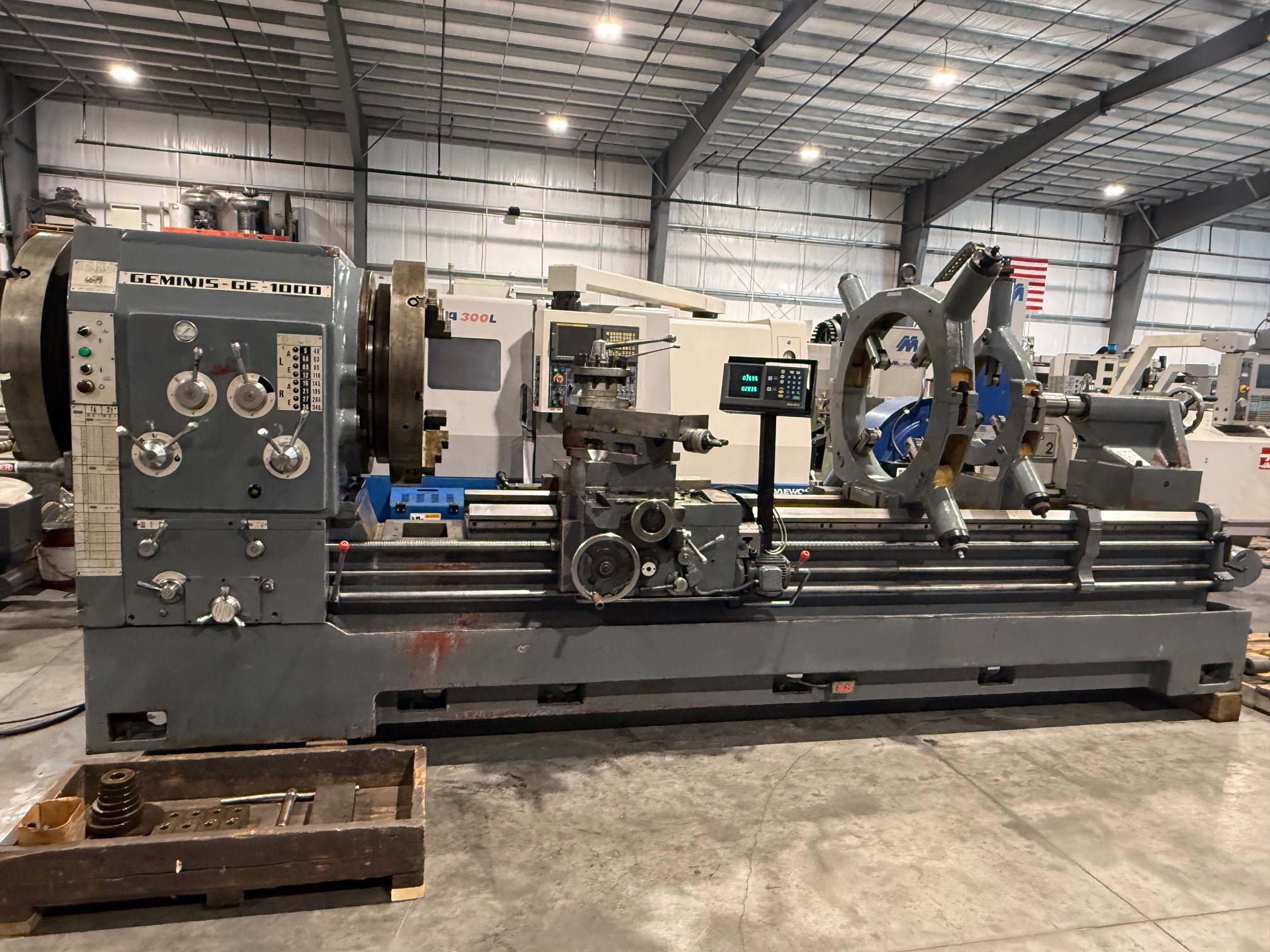

39"/48" X 120" GEMINIS REPUBLIC LAGUN
HOLLOW SPINDLE ENGINE LATHE
MODEL: GE-1000, NEW: 1988

SPECIFICATIONS:
SWING OVER BED WAYS ................. 39-3/8"
SWING IN GAP ........................ 48-3/4"
SWING OVER CROSS SLIDE .............. 28-3/8"
LENGTH OF GAP ....................... 13-3/8"
DISTANCE BETWEEN CENTERS ............ 120"
SPINDLE BORE ........................ 20.25"
SPINDLE SPEEDS ...................... 5 – 340 RPM
BED WIDTH ........................... 21-5/8"
TAILSTOCK QUILL TRAVEL .............. 12"
TAILSTOCK QUILL TAPER ............... #6 MORSE
INCH THREADING ...................... 1 – 56 TPI
MM THREADING ........................ 0.5 – 30 MM
MACHINE WEIGHT ...................... 20,000 LBS.
MACHINE DIMENSIONS .................. 220" X 85" X 90" H

EQUIPPED WITH
REPUBLIC LAGUN GEMINIS
20-1/4" BIG BORE

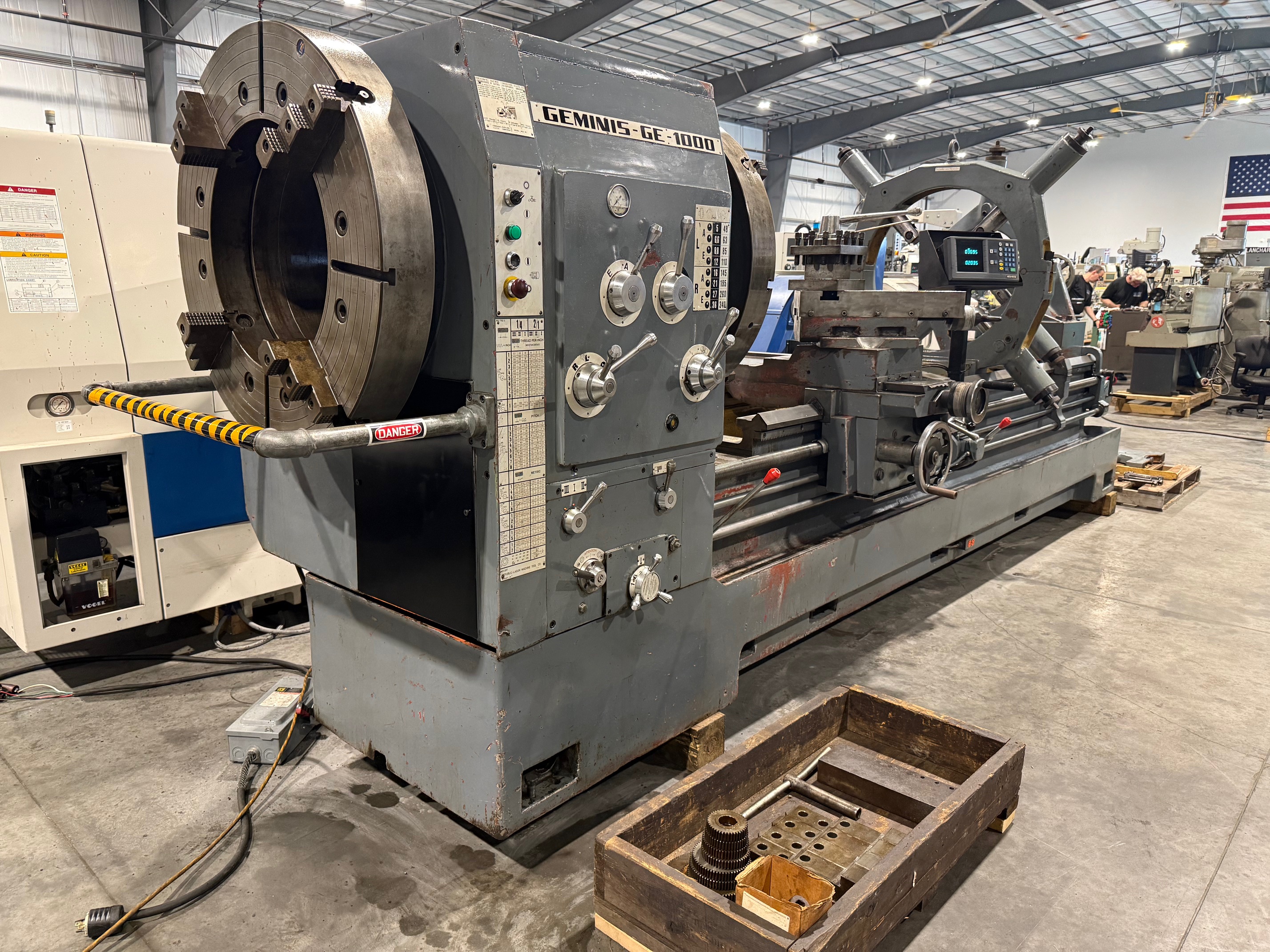

(2) 35" 4 JAWS CHUCKS
30-1/2" CAPACITY STEADY REST
17" CAPACITY STEADY REST
FOLLOW REST
POWER RAPIDS ON CARRIAGE
TAPER ATTACHMENT & EXTRA GUIDE BLOCK
LIVE CENTER
4 WAY TOOL POST
CHANGE GEARS
COOLANT PUMP WITH BUILT IN RESERVOIR

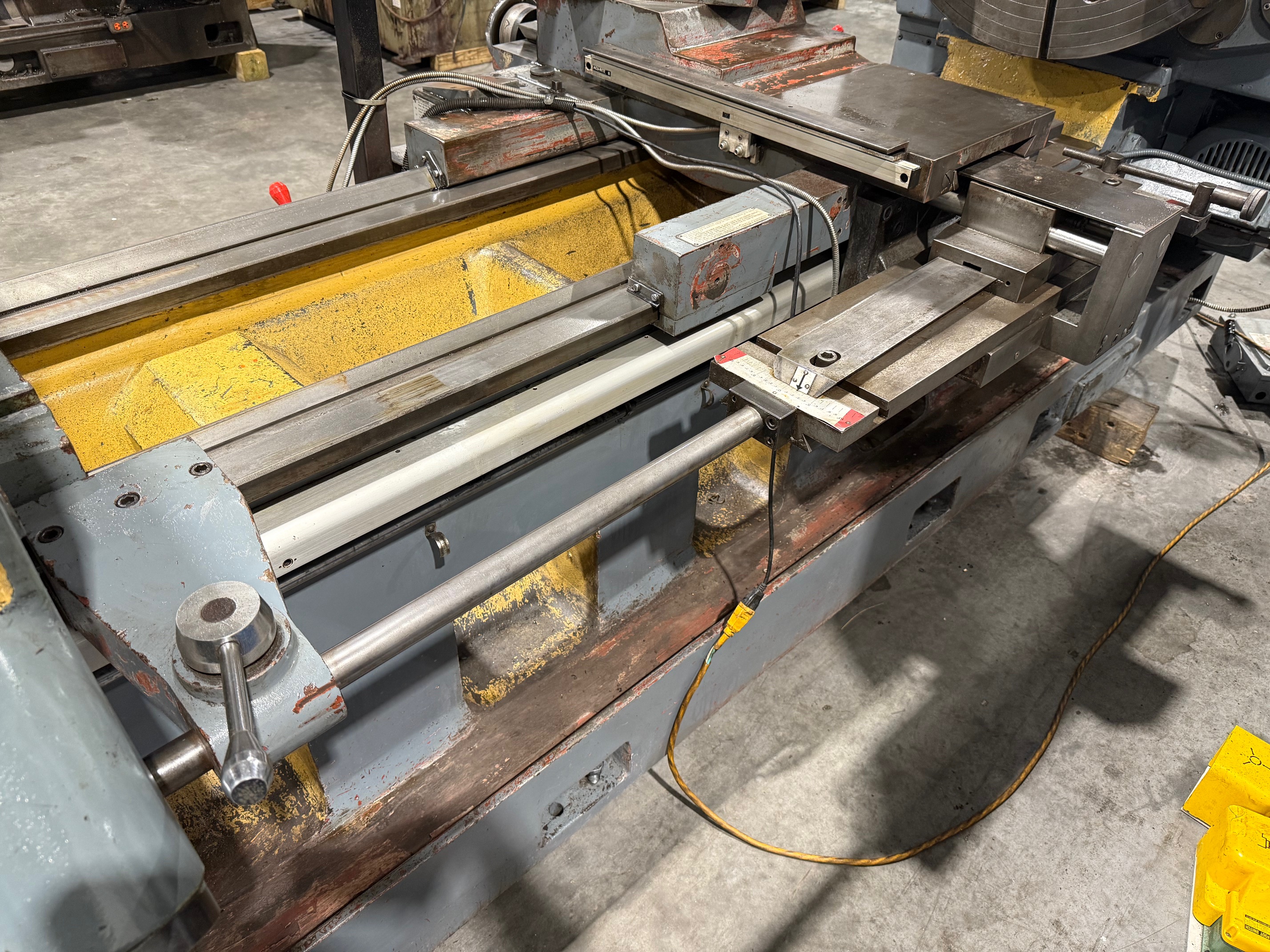

ACURITE 2 AXIS DRO DIGITAL READ OUT
30 H.P. MOTOR

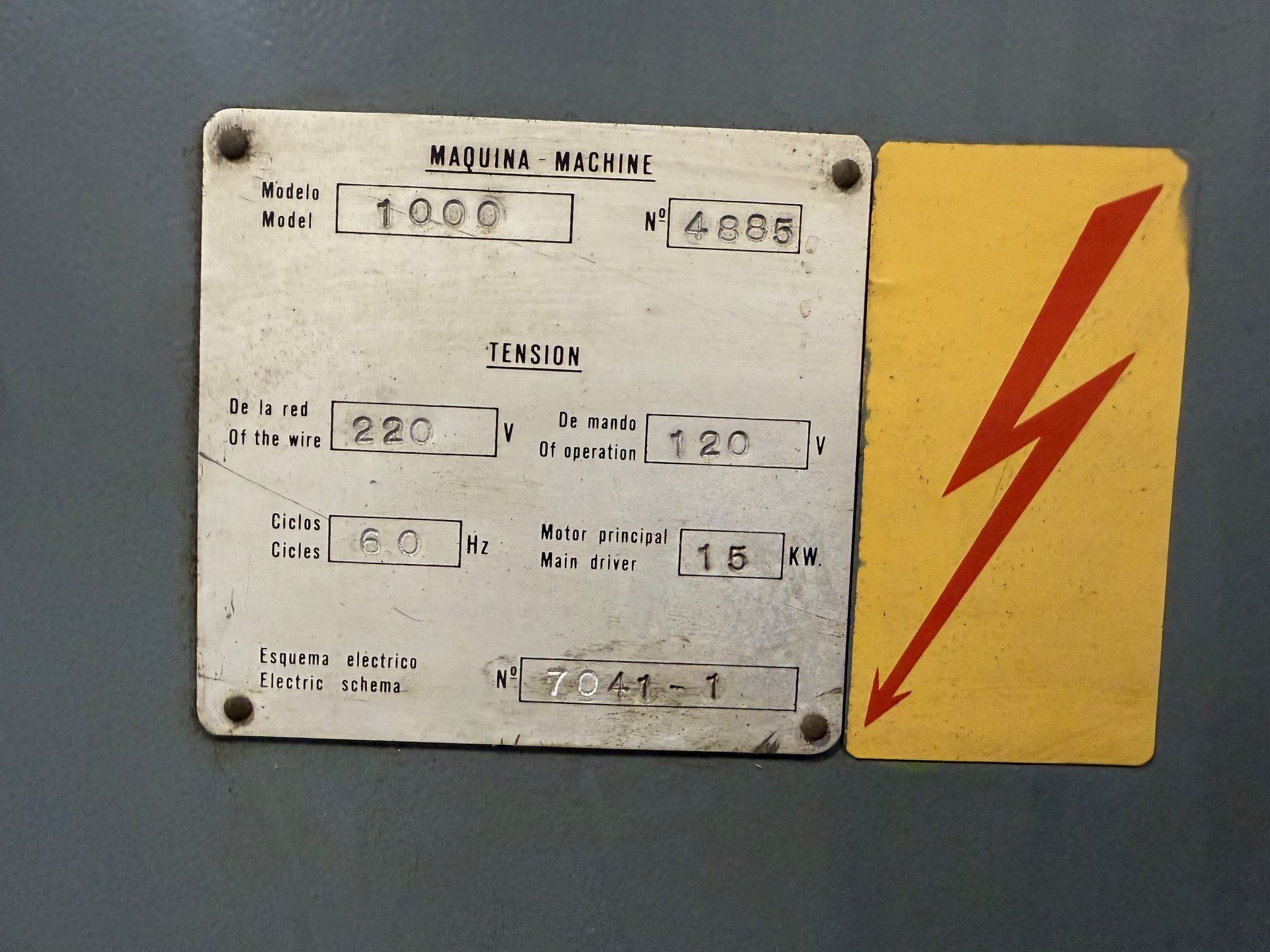

MACHINE IS WIRED FOR 220 VOLT / 3 PHASE / 60 H.Z.
