Giddings & Lewis ChipMaster, 1983, RIGHT ANGLE BASE, (2) BOX TABLES RADIAL ARM DRILLS

$10,500

Make:: Giddings & Lewis

Model:: ChipMaster, 1983, RIGHT ANGLE BASE, (2) BOX TABLES

Year:: 1983

Ref #:: 178998

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

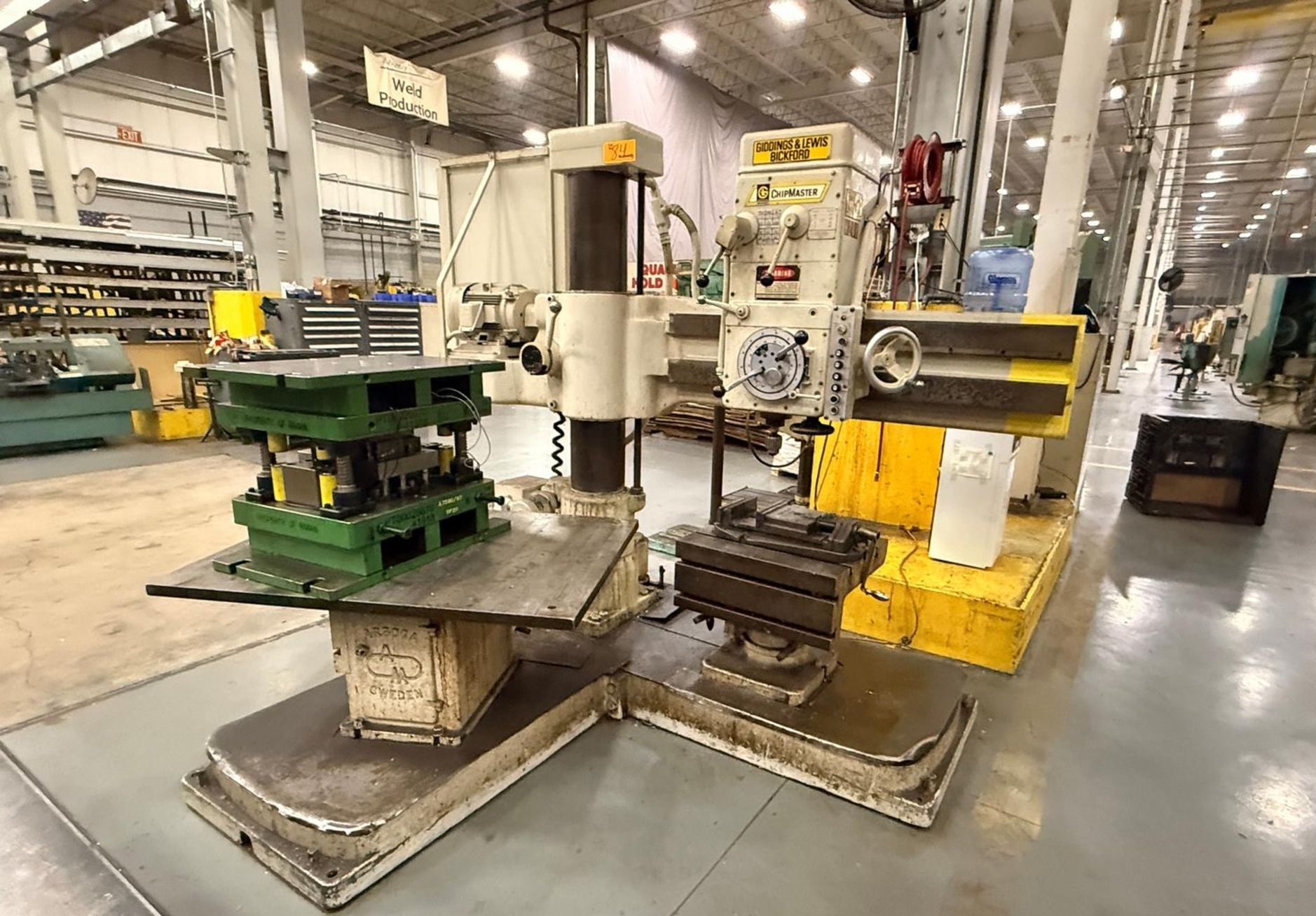

4' X 9" GIDDINGS & LEWIS BICKFORD RADIAL DRILL
WITH ADDITIONAL RIGHT ANGLE BASE

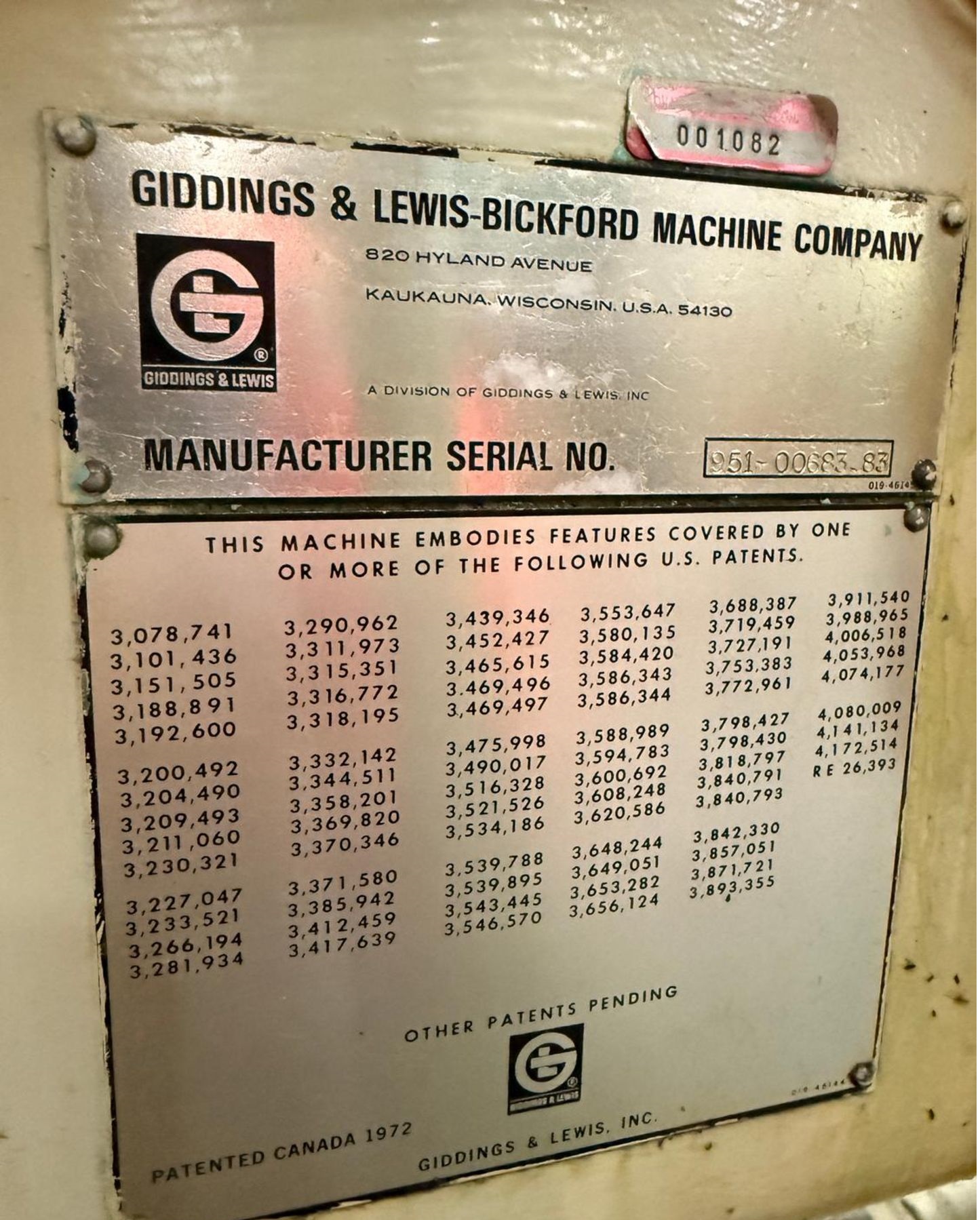

MODEL: CHIPMASTER, S/N: 951-00683-83,  NEW: 1983

SPECIFICATIONS:
MAXIMUM DISTANCE SPINDLE TO COLUMN .. 55"
COLUMN DIAMETER ..................... 9"
FACE OF COLUMN TO CENTER OF SPINDLE . 10-1/2" MIN
VERTICAL TRAVEL OF ARM ON COLUMN .... 28-1/4"
DISTANCE SPINDLE TO BASE MAX/MIN .... 53"/15"
WORKING SURFACE OF BASE ............. 30" X 53"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 10"
TAPER IN SPINDLE .................... #4 MT
SPINDLE FEEDS (4) ................... 2, 4, 7 & 10 IPR
SPINDLE SPEEDS-(9) .................. 60 TO 1,200 RPM
DRILLING CAPACITY ................... 1-1/2"
TAPPING CAPACITY .................... 3/4"
BORING CAPACITY ..................... 3-5/8"
APPROXIMATE WEIGHT .................. 6,000 LBS

EQUIPPED WITH:
  * SPINDLE HAS POWER FEED
  * TAPPING BY SWITCH & PUSH BUTTON
  * POWER ELEVATION OF ARM ON COLUMN

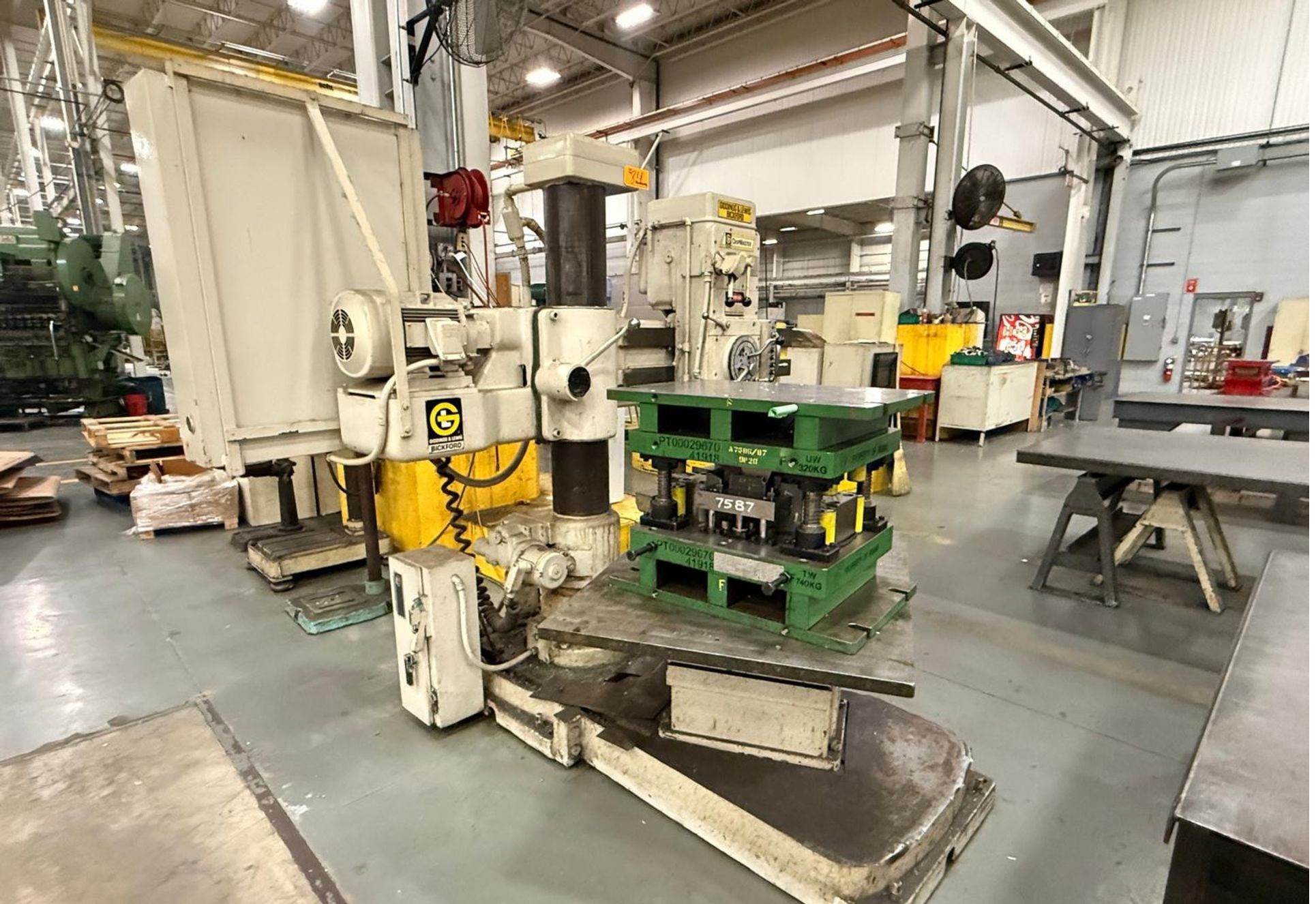

  * RIGHT ANGLE BASE
  * T-SLOTTED BASES

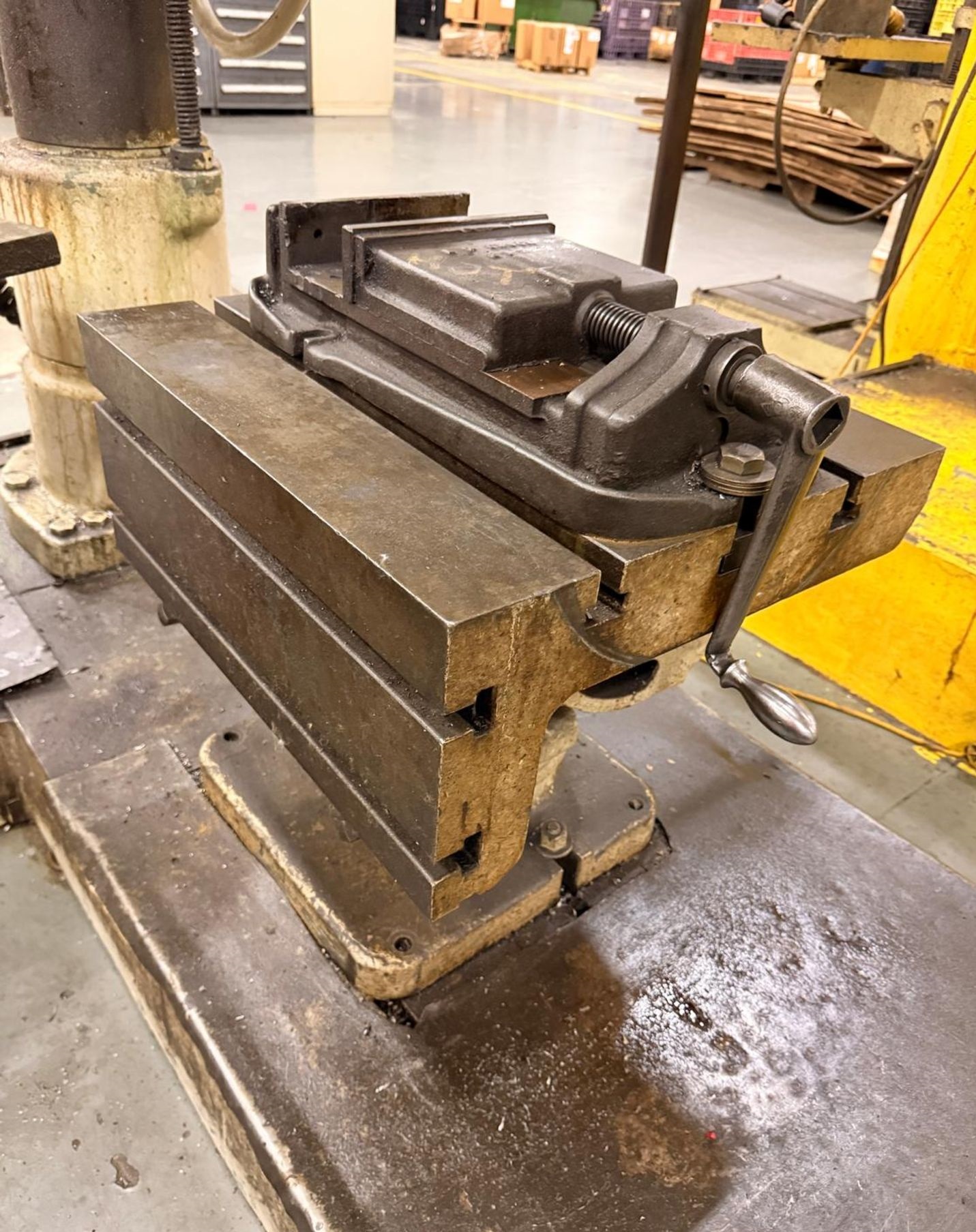

  * UNIVERSAL BOX TABLE

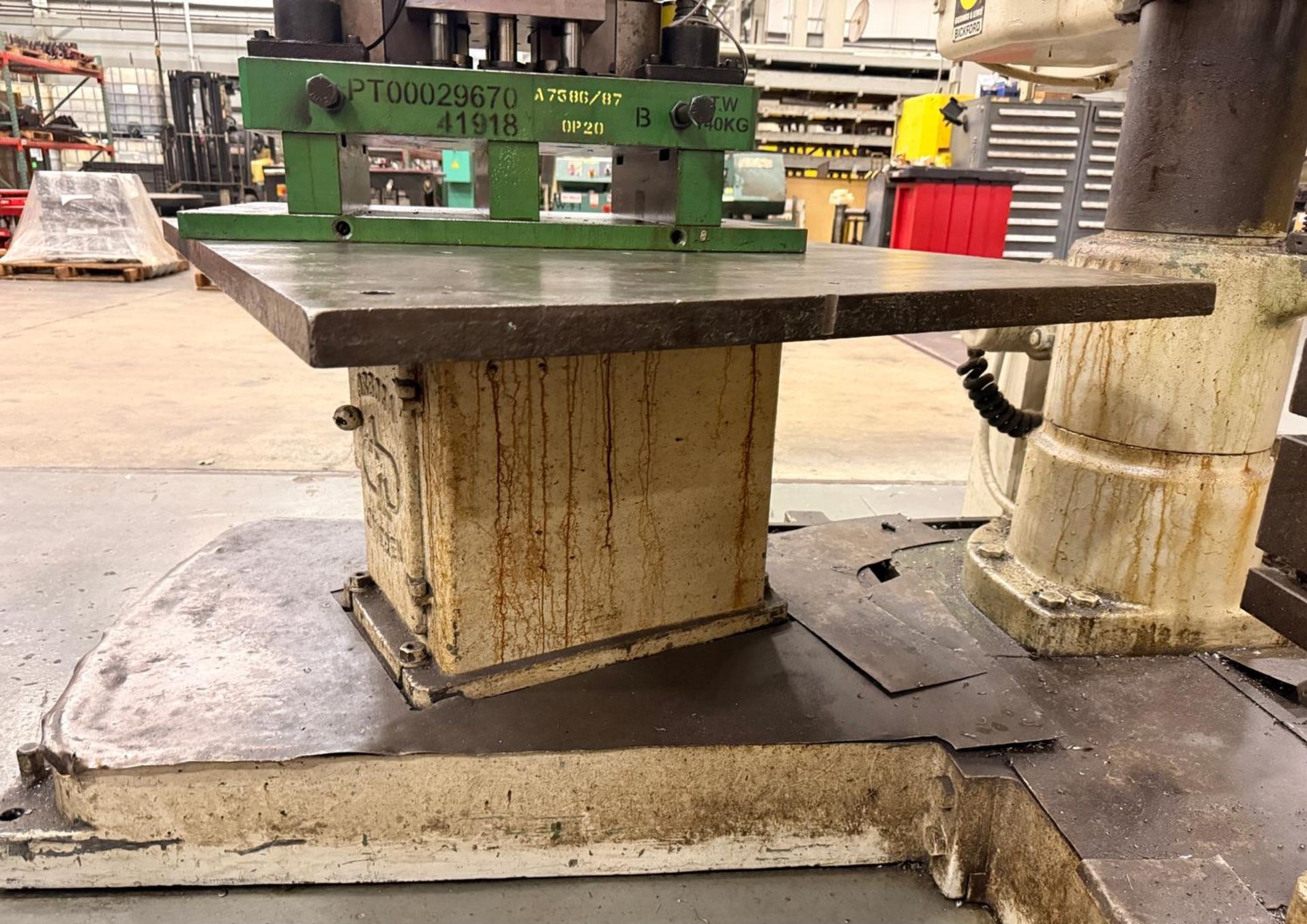

  * T-SLOTTED BOX TABLE MADE BY "ARBOGA"
  * COOLANT SYSTEM
  * 5 HORSEPOWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
