GMC GMM-949V VERTICAL MILLS - VERTICAL MILLING MACHINES

$3,950

Make:: GMC

Model:: GMM-949V

Year:: 2000'S

Ref #:: 163752

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

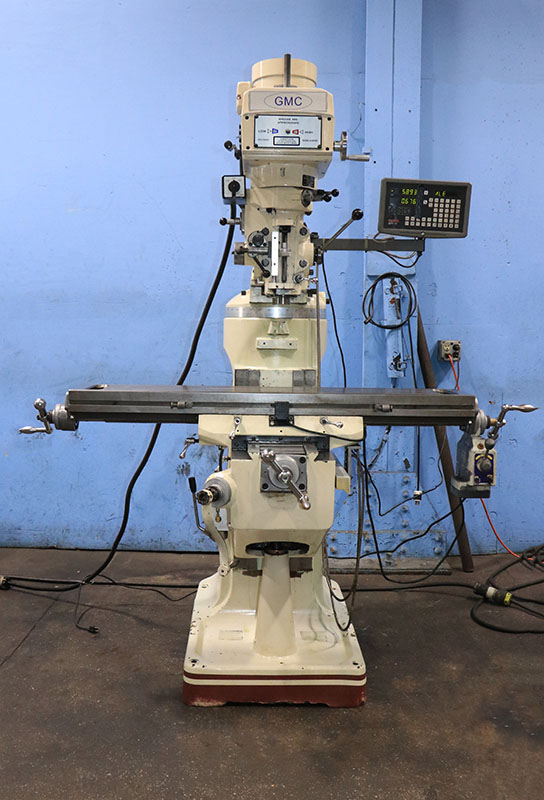

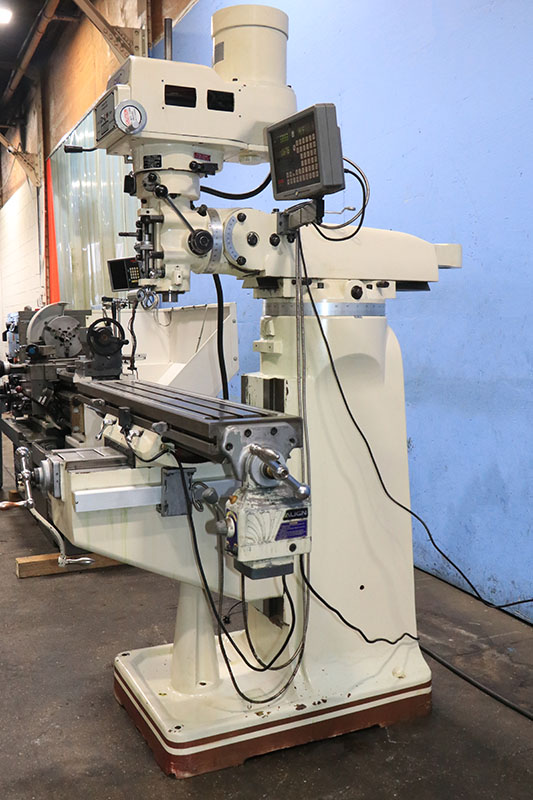

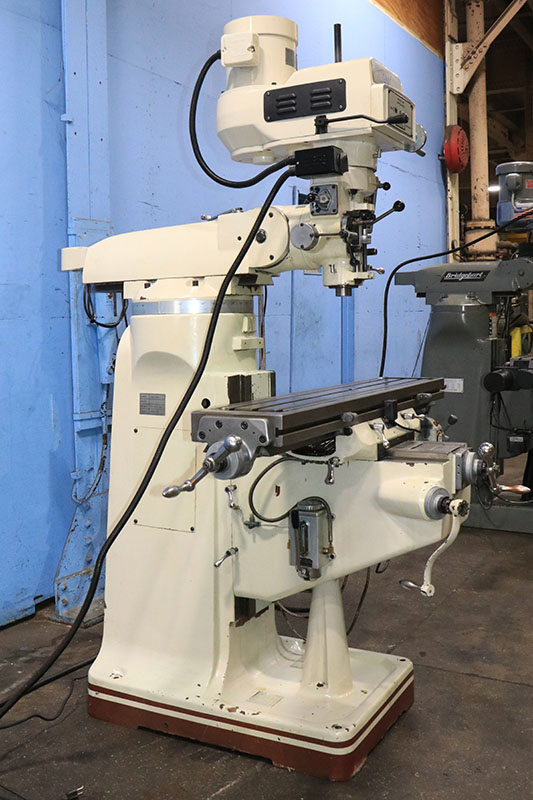

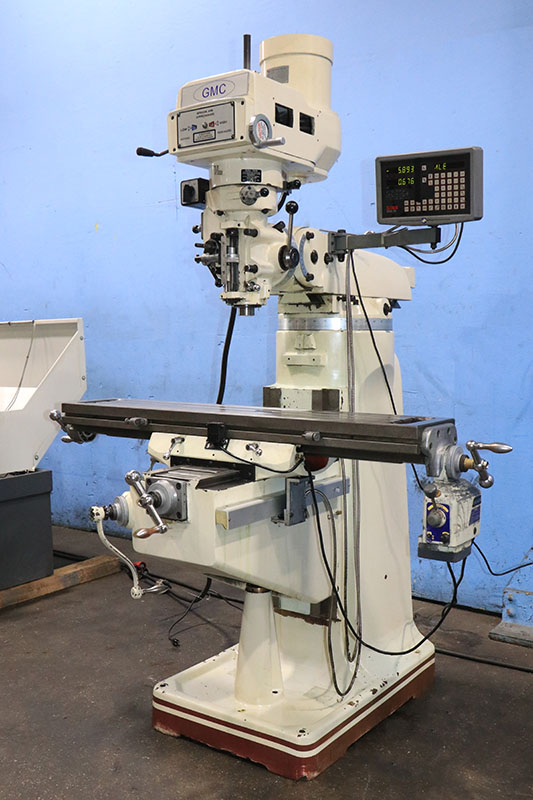

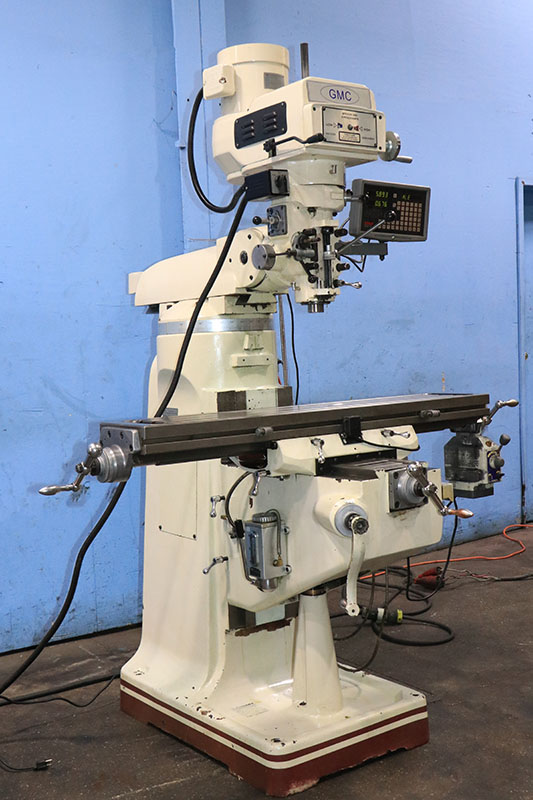

GMC VERTICAL MILLING MACHINE

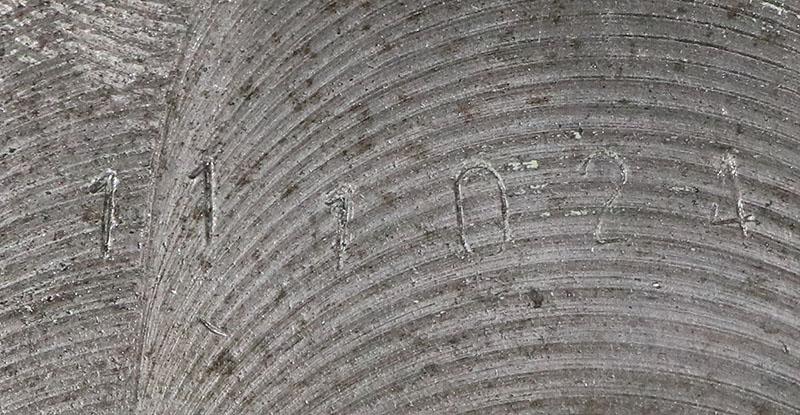

MODEL: 949V, S/N: 111024, NEW: 2000'S

SPECIFICATIONS:

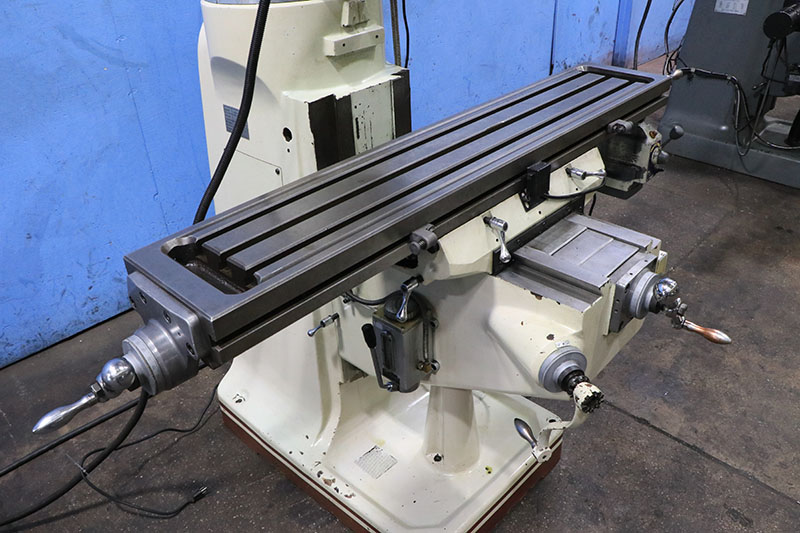

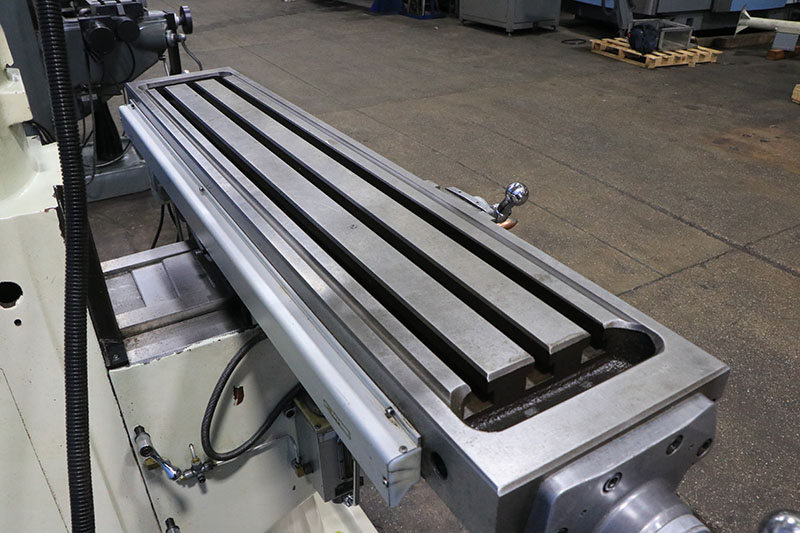

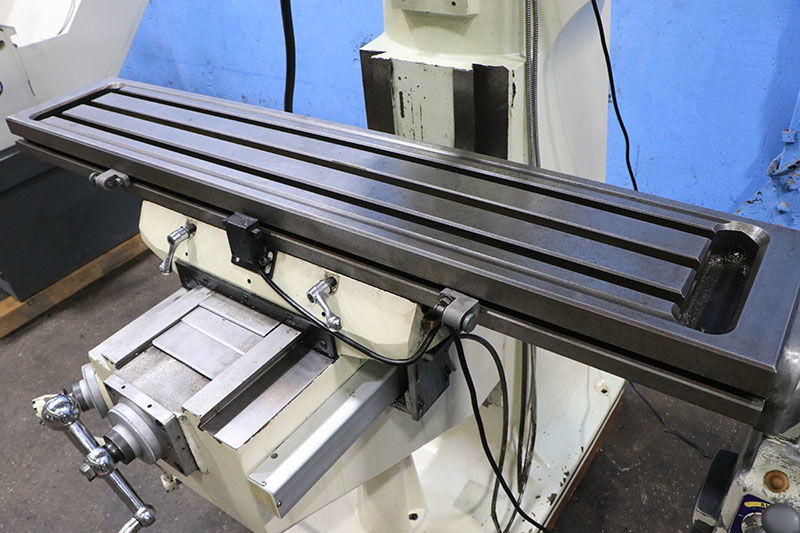

TABLE SIZE ........................... 9" X 49"
NUMBER OF T-SLOTS .................... 3
LONGITUDINAL TABLE TRAVEL ............ 35-1/2"
CROSS TRAVEL ......................... 12"
QUILL TRAVEL ......................... 5"
KNEE TRAVEL .......................... 17"
RAM TRAVEL ........................... 12"
MAXIMUM TABLE LOAD ................... 850 LBS
HEAD TILT:
    LEFT & RIGHT ..................... 90 DEG
    FRONT & BACK ..................... 35 DEG

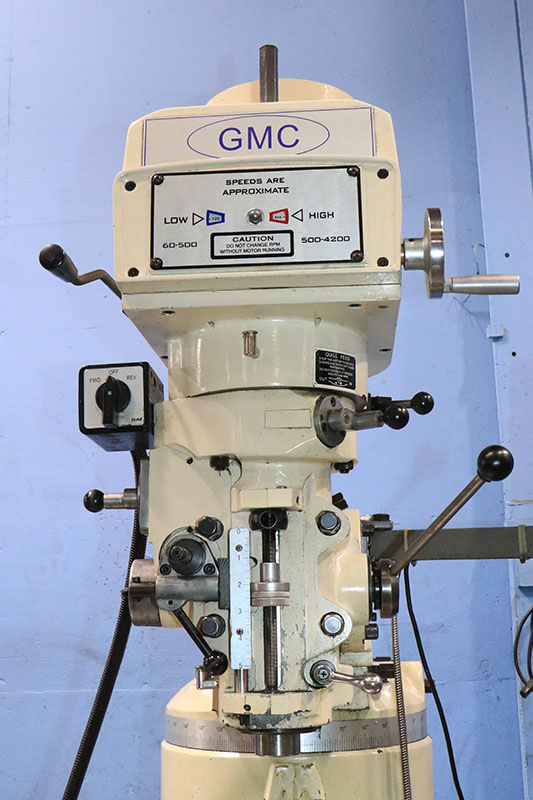

INFINITELY VARIABLE SPEED RANGE ...... 70 - 4,300 RPM
POWER QUILL FEEDS (3) ................ .0015, .003, .006 IPR
SPINDLE TAPER ........................ R-8
MAX COLLET CAPACITY .................. 3/4"
APPROXIMATE WEIGHT ................... 2,650 LBS

EQUIPPED WITH:
SINO TWO AXIS DIGITAL READOUT

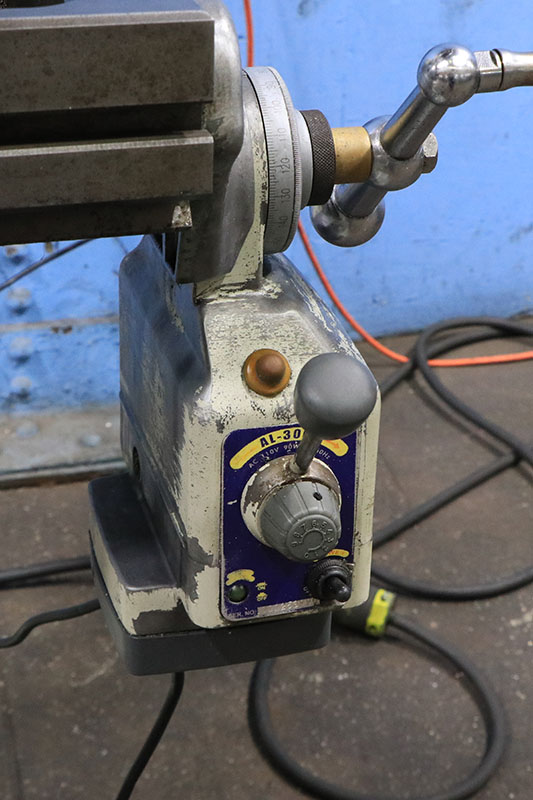

POWER TABLE FEED

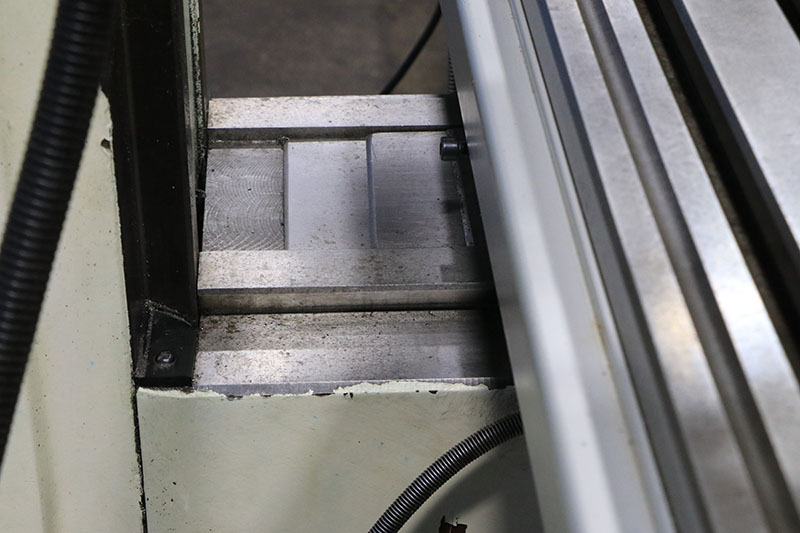

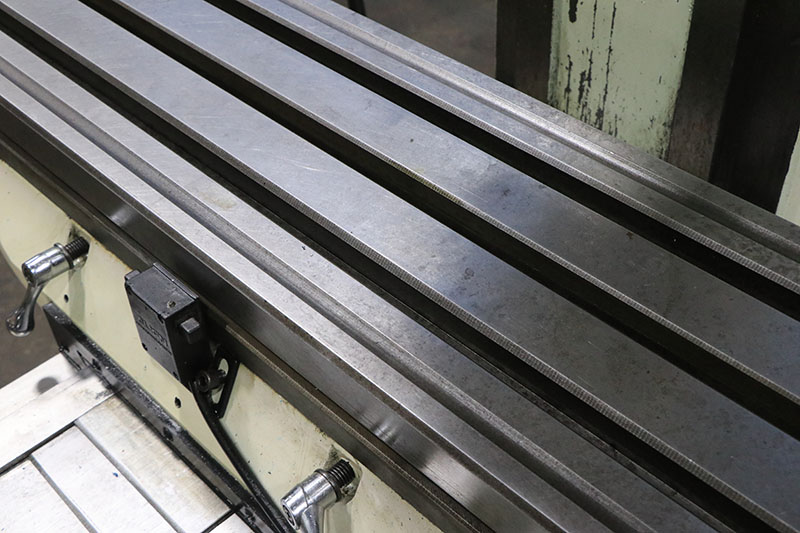

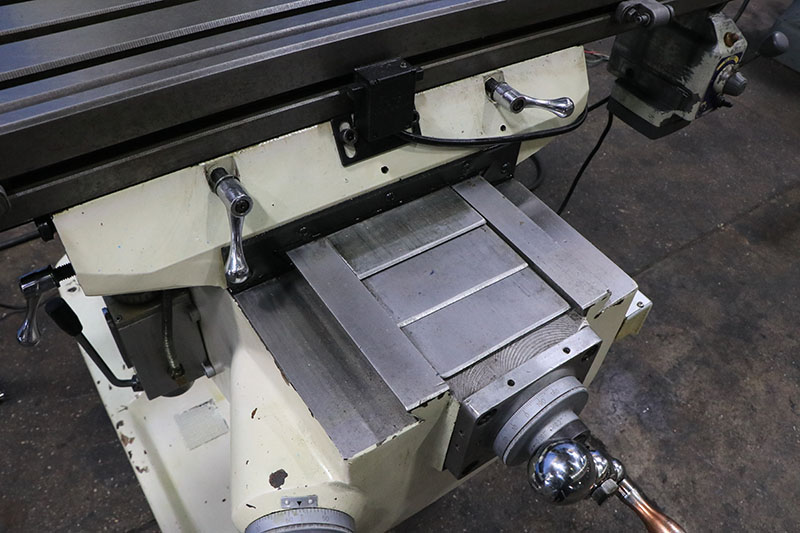

HARDENED WAYS

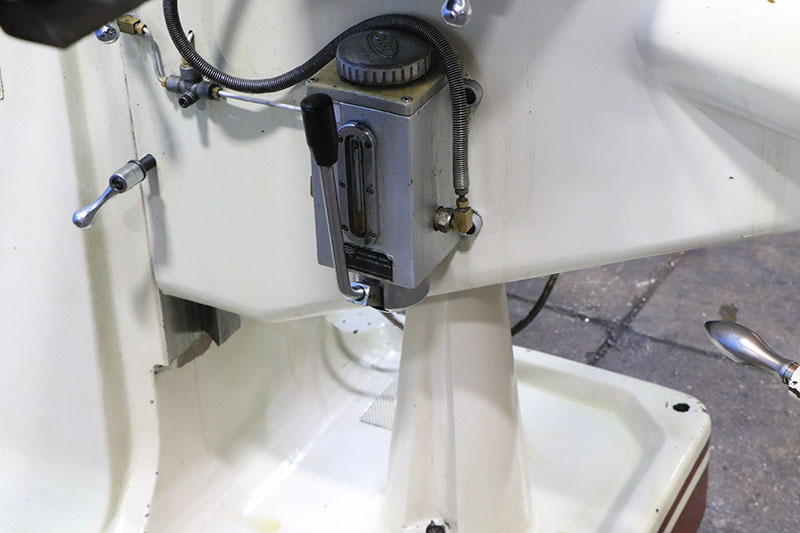

ONE-SHOT LUBE

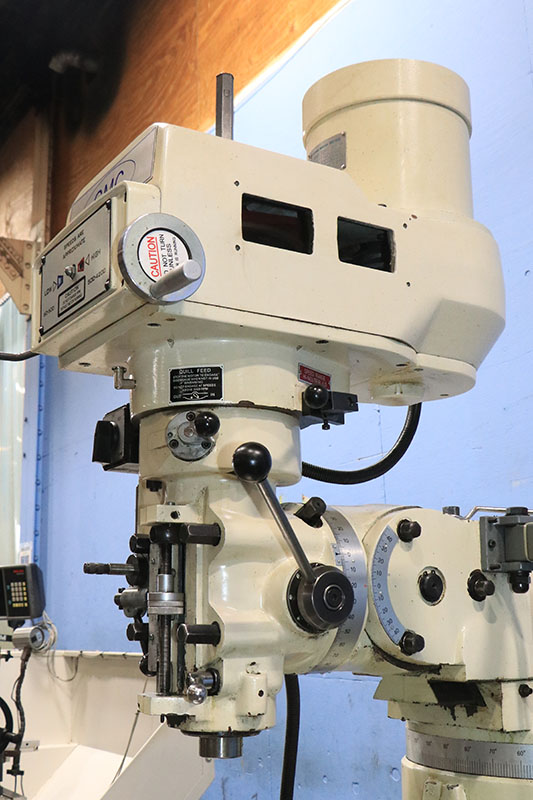

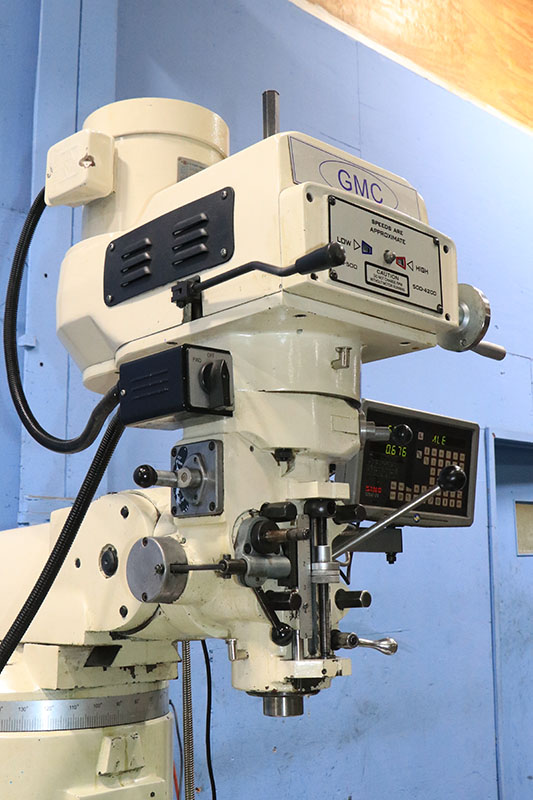

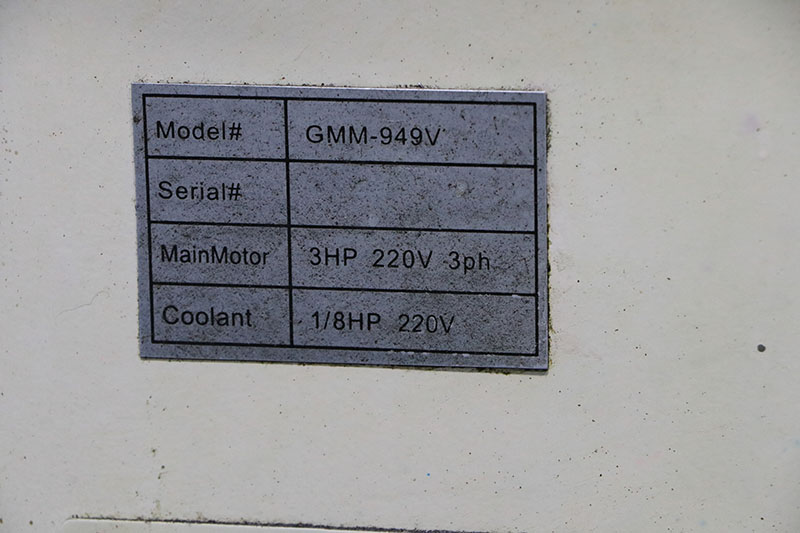

3 HP 220/440 VOLT 3 PHASE MILLING HEAD

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
