GMC HPB-3305 CNC NEW PRESS BRAKES

$19,850

Make:: GMC

Model:: HPB-3305 CNC

Year:

Ref #:: 161667

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

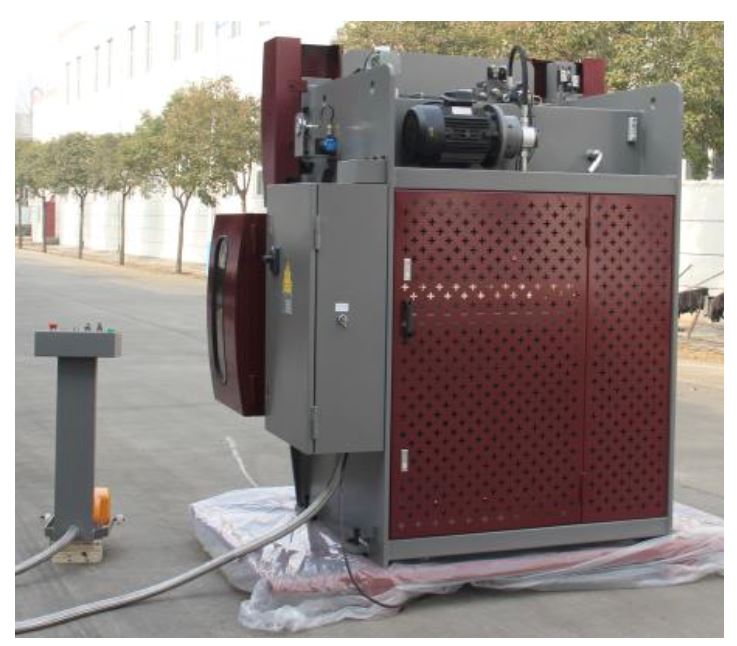

NEW GMC 33 Ton x 5'(5'3") HYDRAULIC PRESS BRAKES
MODEL: HPB-3305CNC

Standard Features for GMC Hydraulic Press Brake
ISO 9001 certified
Meet OSHA and CE safety standard
Easy-to-use programmable Estun E21 control
Easy programming, stores 40 programs
Estun E21 control keep a pice count for large production run
Japan Yaskawa drive
Precision ball screws for 24” back gauge
Germany Rexroth  hydraulic system
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with E21 screen, control panel and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts

Standard Equipment for GMC Hydraulic Press Brake

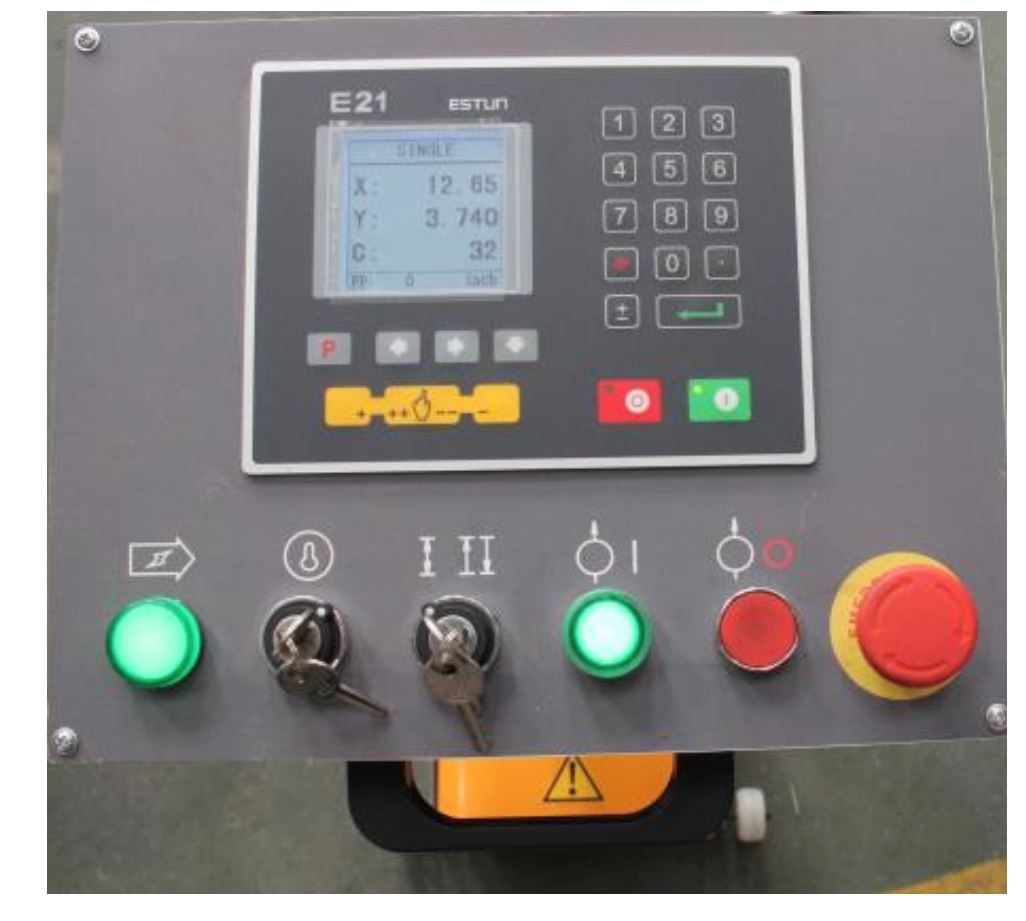

Estun E21, 2 Axis Controller
( 2 )  24” front support arms

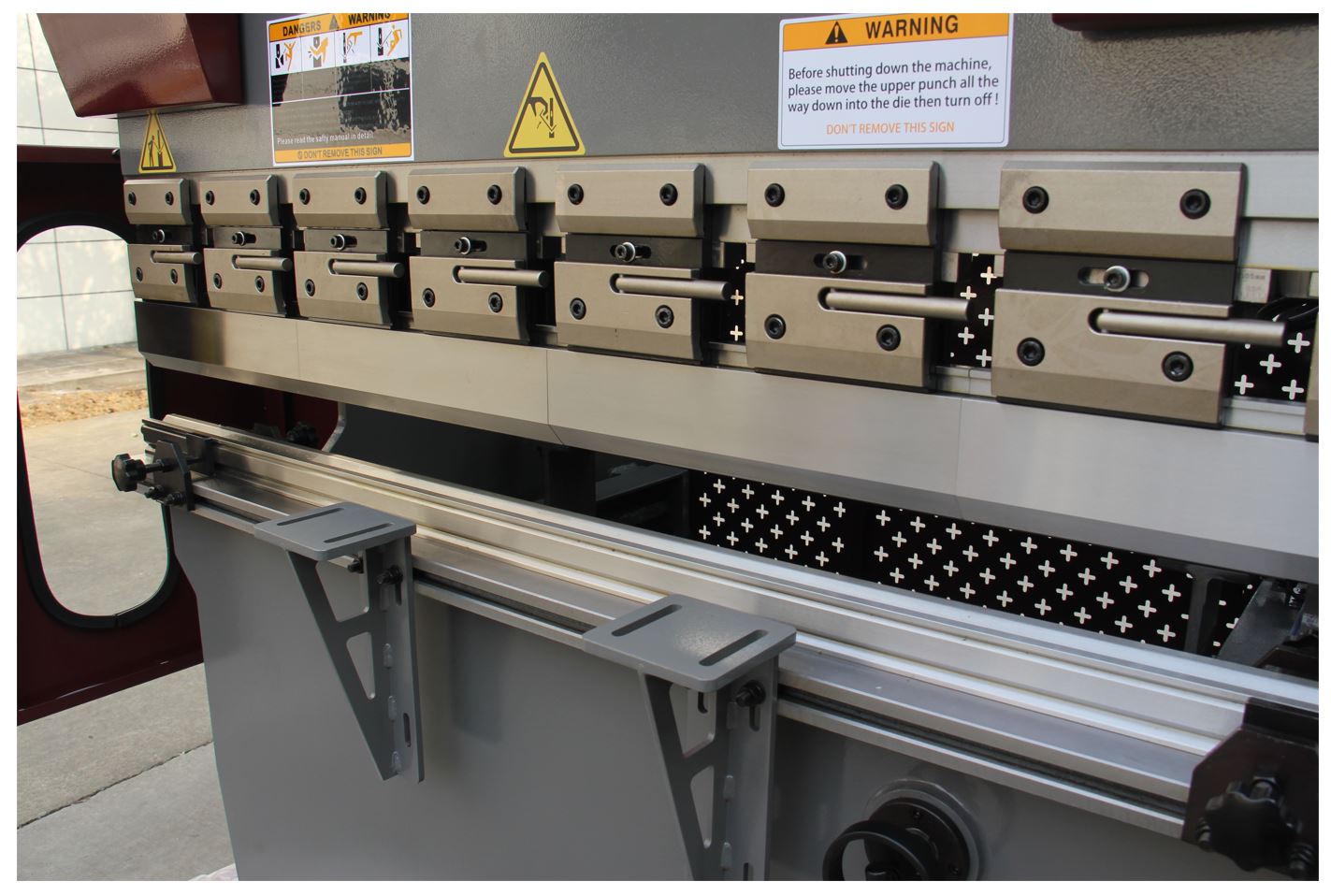

Quick release segmented ( American Style Tooling ) punch holder
Full Length Gooseneck Punch HRC 50  Full Length Vee Die with 6 assorted sizes  HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard

Optional Equipment for GMC Hydraulic Press Brake
Custom Tooling, Made in the USA
On-site training,by GMC one day: $4995.00

Note : Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only

Specifications:
Maximum pressure: 33 Tons
Bending length capacity: 63” (5’3”)
Distance between uprights (housing): 51”
Ram Stroke travel: 4"
Cylinder travel adjustment, max: 2"
Table width: 6”
Distance between table and ram: 13-1/4”
Throat Depth: 8”
Back Gauge Distance: 21”
Back Gauge Repeatability: .008”
Y Axis Repeatability: .008”
Approach speed, inch / second: 3/5"
Bending speed , inch / second: 0.39"
Return speed , inch / second: 2.75"
Main motor: 7-1/2 HP, 220V or 208V, 3phase
motor for back gauge: 1/2 HP, 220V or 208V, 3phase
motor for bending angle setting: 1/2HP, 220V or 208V, 3phase
Hydraulic oil tank capacity: 25 Gal.
Machine weight , LBS:  5,350 LBS
Machine size, L x W x H: 91x56x87”



Specifications are subject to change without notice.
