GMC PL-20E *Taiwan Made* PITTSBURG TYPE LOCK FORMING MACHINE

Price on Request

Make:

GMC

Model:

PL-20E *Taiwan Made*

Year:

NEW

Ref #:

143810

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

---

NEW "GMC" PITTSBURG TYPE LOCK FORMING MACHINE

MODEL: PL-20E

Made in Taiwan



STANDARD FEATURES:

ISO 9001 certified

1.5 hp heavy duty AC main motor, 110v

Heavy welded all steel construction for maximum rigidity

Standard Pittsburg attachment

Standard power flange attachment, double seam roll, and drive cleat roll

ACME side can be operated at same time

Heavy duty caster wheels for easy moving

One year warranty for parts



SPECIFICATIONS:

Capacity ........................ 20 to 26ga.

Depth of pocket ................. 5/16"

Feeding speed ................... 32 FPM

Main motor ...................... 2 hp, 110v

Weight .......................... 458 lbs.

Dimensions ...................... 36"L x 23"W x 43"H

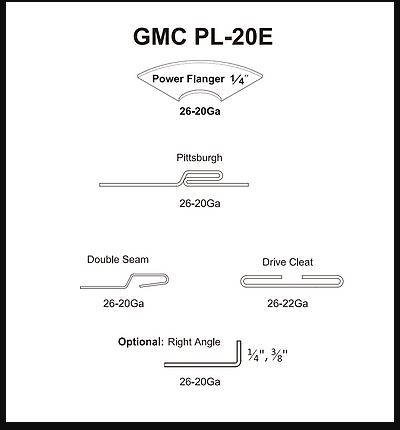

STANDARD EQUIPMENT:

Pittsburg attachment #PA-20E, installed

Power flange attachment #FA-20E, installed

Drive cleat roll #DCR-20E, installed

Double seam roll #DSR-20E, installed



OPTIONAL ACCESSORIES (CALL FOR PRICING):

Right angle roll #RAR-20E
