Greenlee 520P CRIMPING & BEADING MACHINE

Price on Request

Make:: Greenlee

Model:: 520P

Year:

Ref #:: 179127

Or call us for a quote at (973) 497-7500 or send us an email at sales@machineryvalues.com

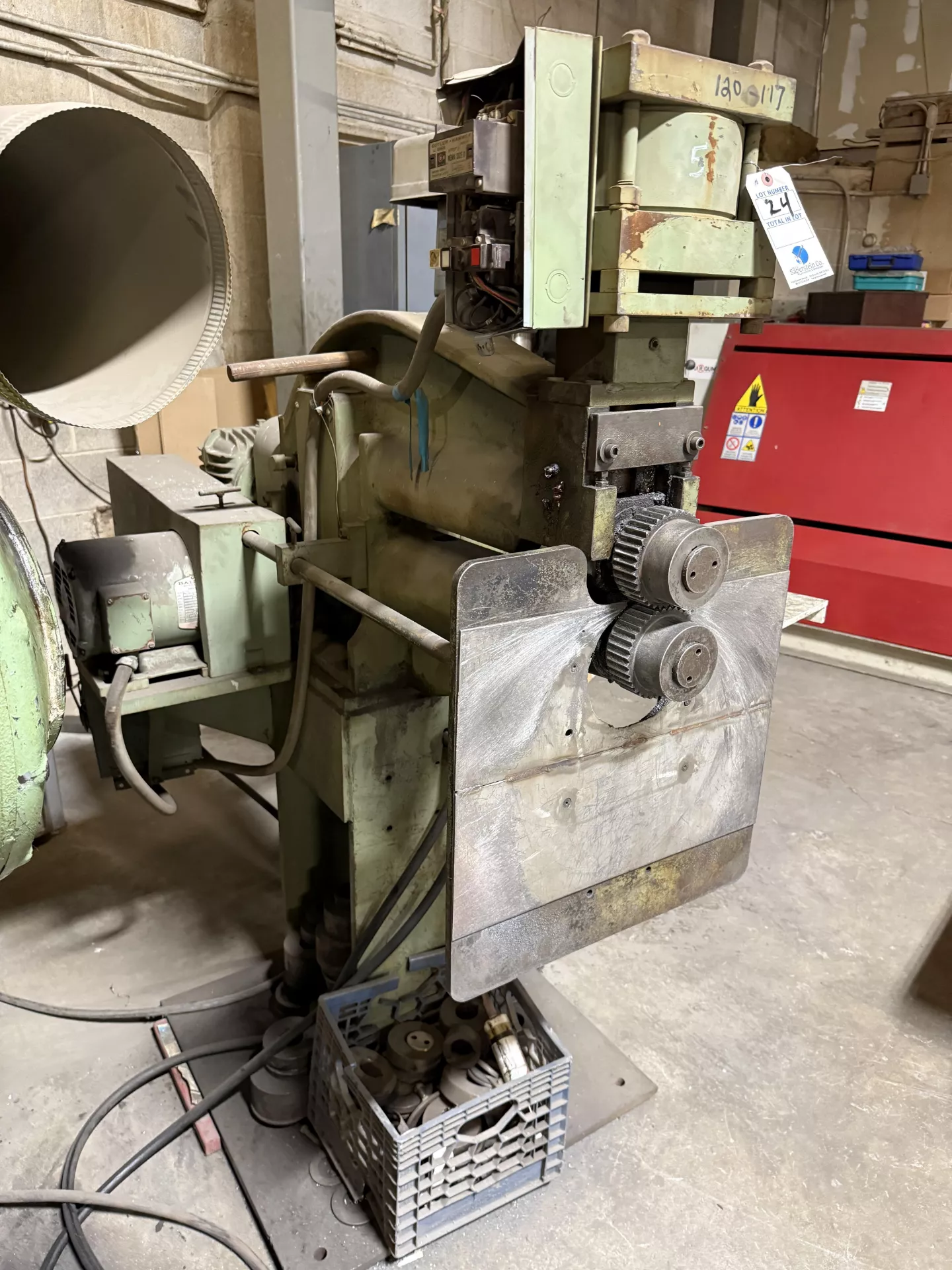

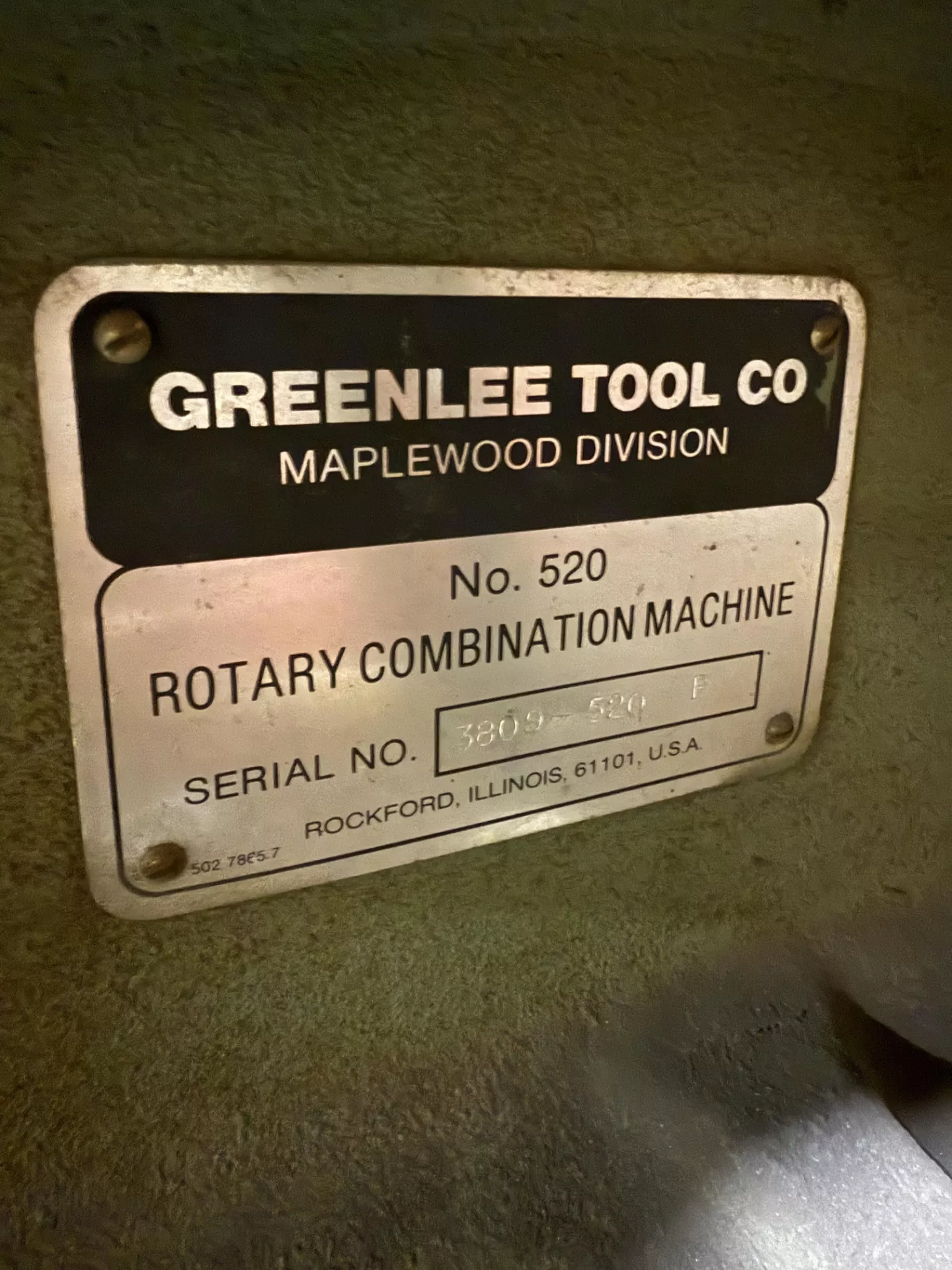

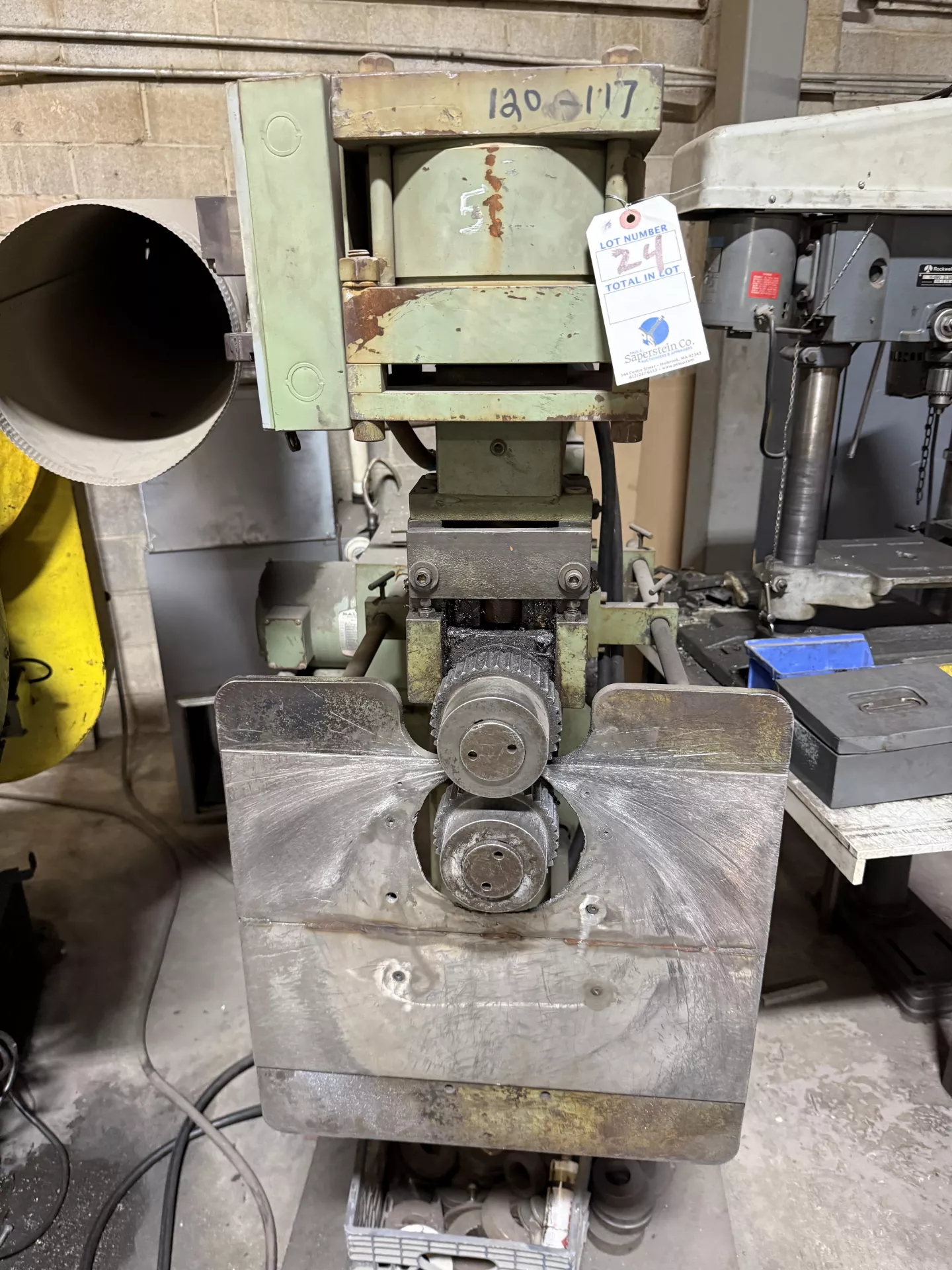

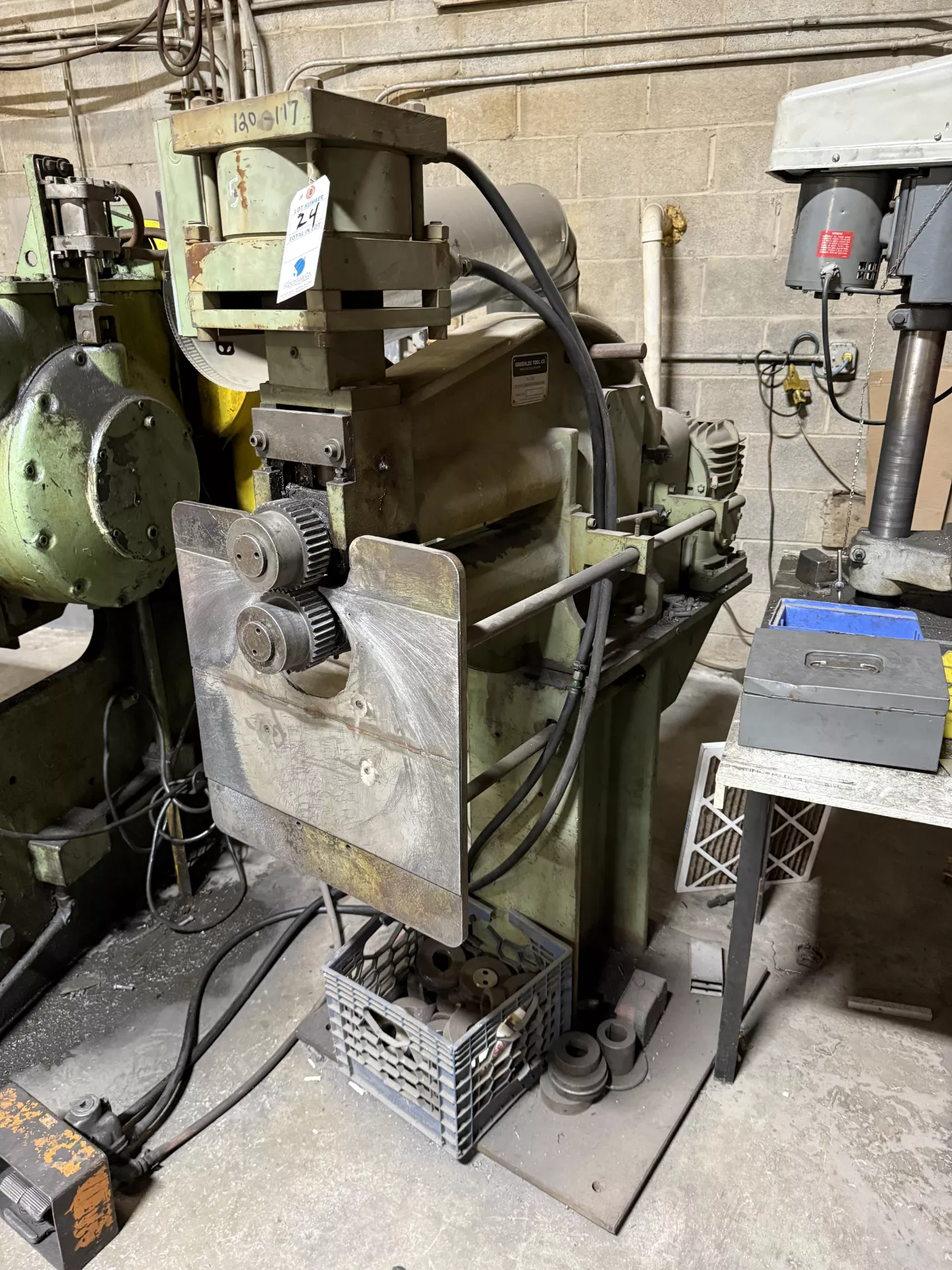

GREENLEE / MAPLEWOOD ROTARY COMBINATION MACHINE
 MODEL 520-P        S/N 3809        Year

Capacity 10 gauge (mild steel)
Throat Depth 20"
Forming Speed 0 - 24 fpm (variable)
Distance Between Shaft Centers 4.25"
Diameter of Roll Shafts 1.75"

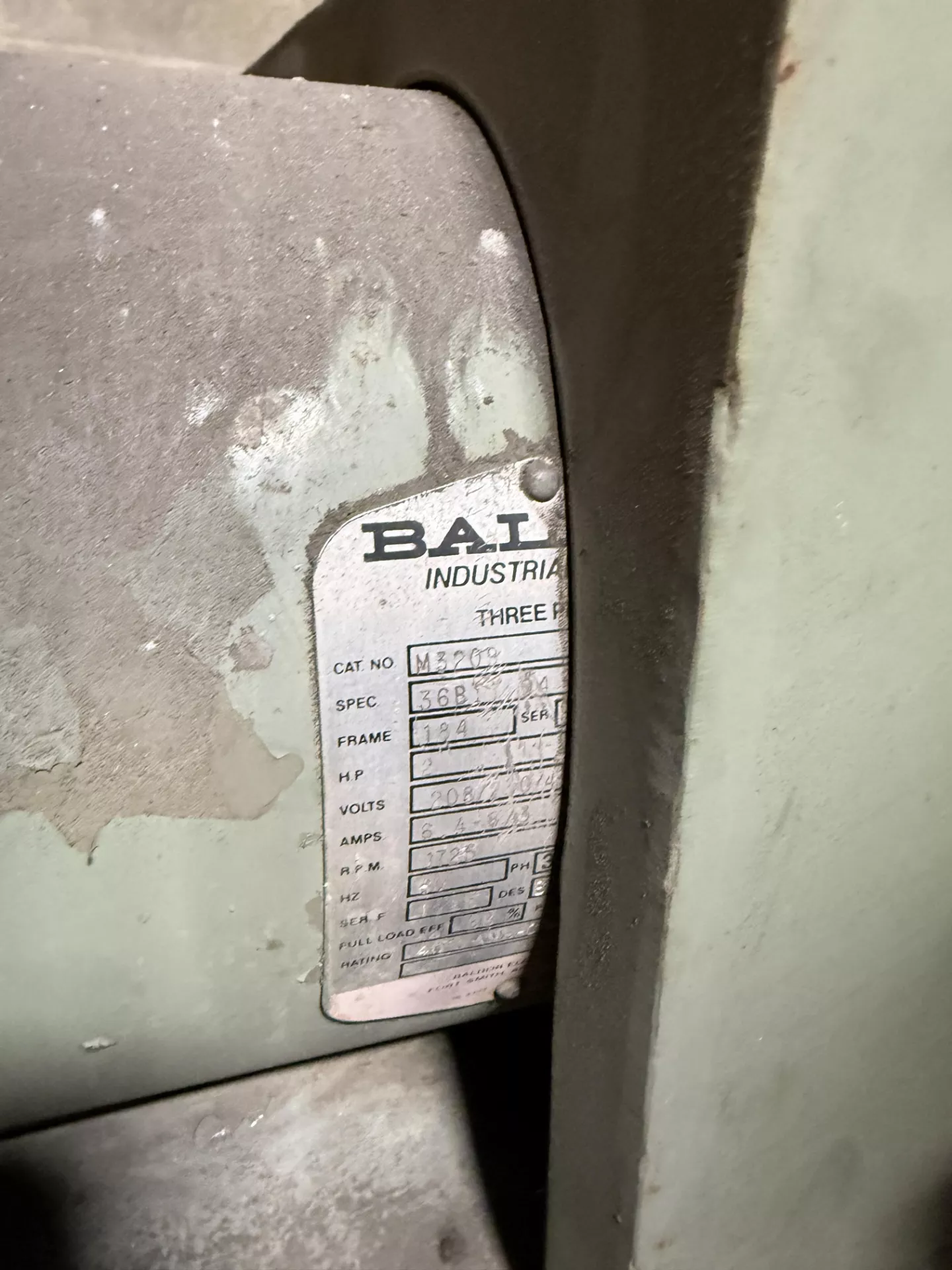

Motor 2 hp
Work height 53 1/2" (w/ bolt on risers)
Air supply 90 psi
Base plate 28" lr x 30" fb
Risers 8 3/4" I-beams (bolted on)
Dimensions 28" lr x 56" fb x 75" high
Weight 2,000 lbs

Machine is equipped with
- Air lift upper roll
- Vari-speed drive
- Adjustable work rest
