Haas CM-1 5-Axis, NextGen, TRT70 Tbl, 50,000 RPM VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Haas

Model:: CM-1 5-Axis, NextGen, TRT70 Tbl, 50,000 RPM

Year:: 2020

Ref #:: 179585

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

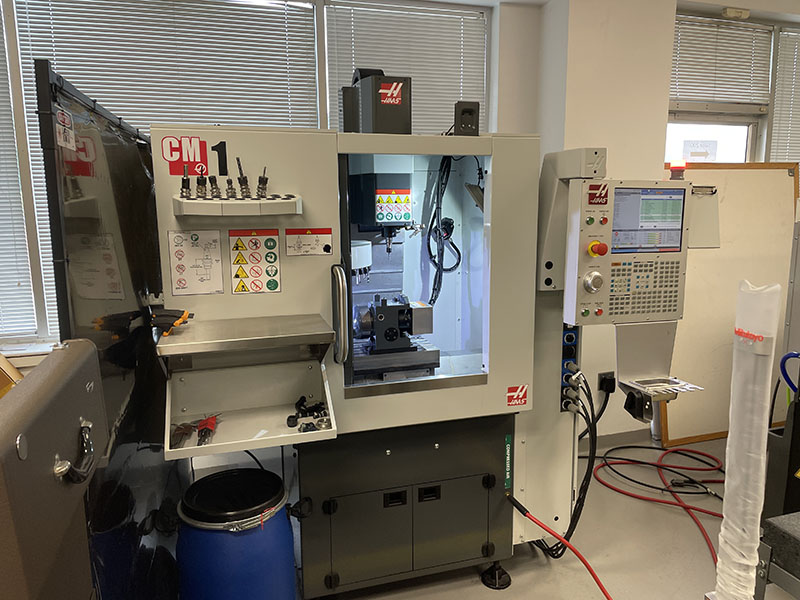

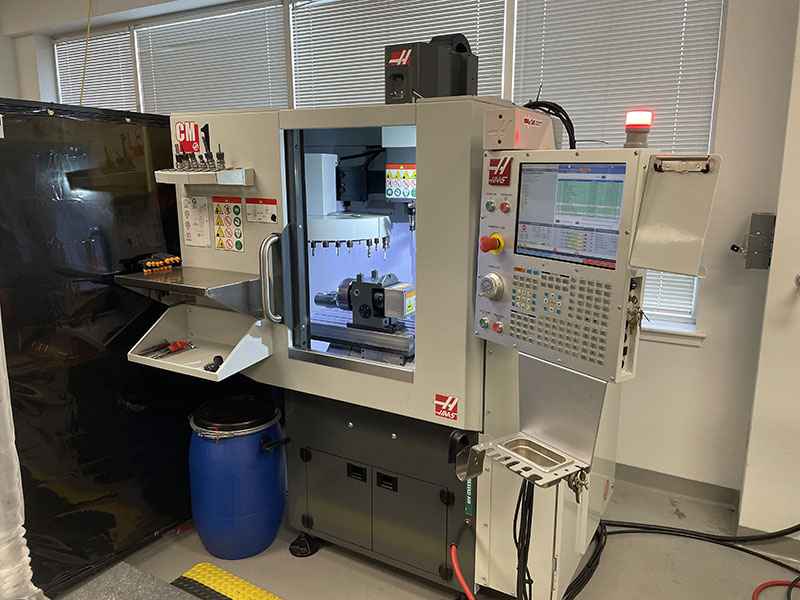

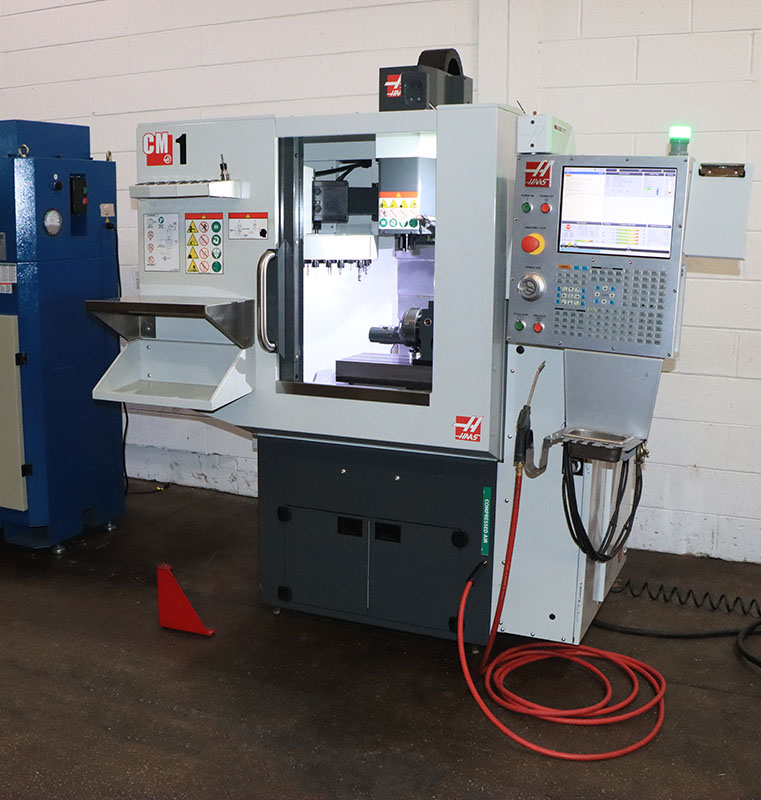

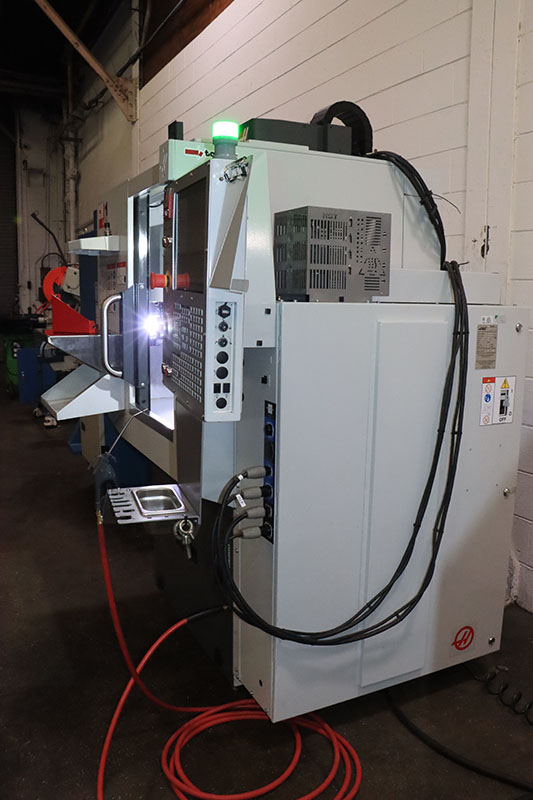

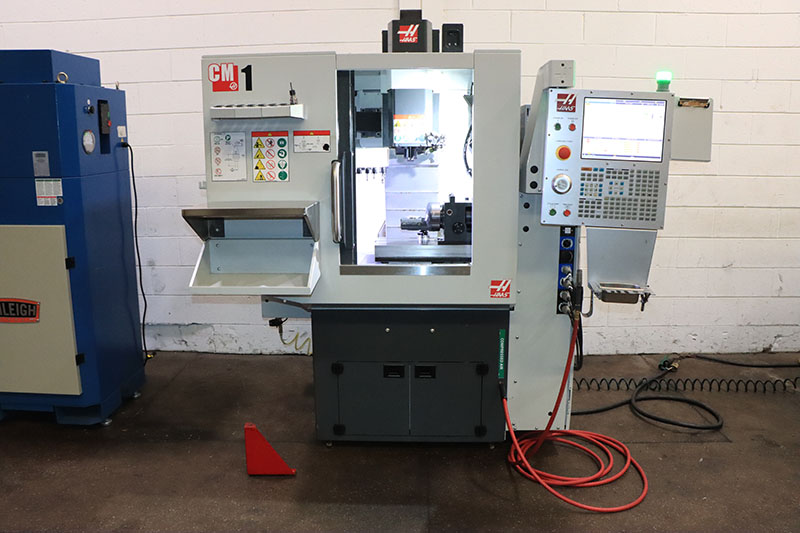

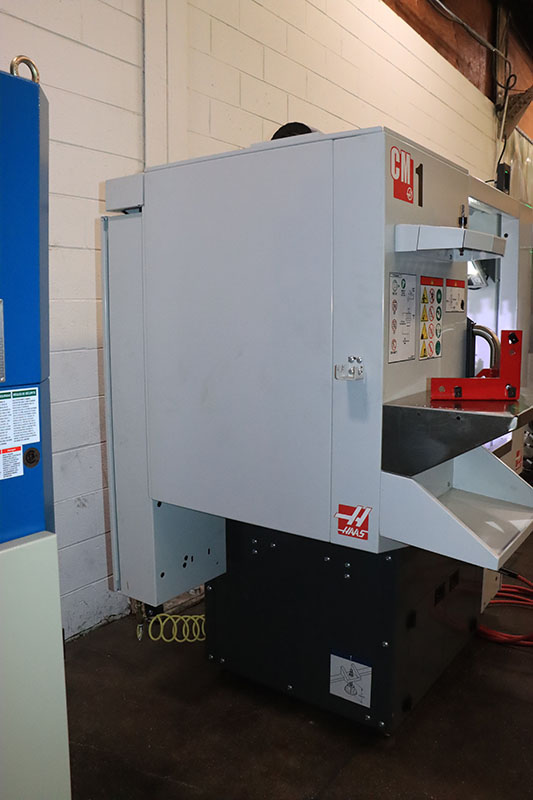

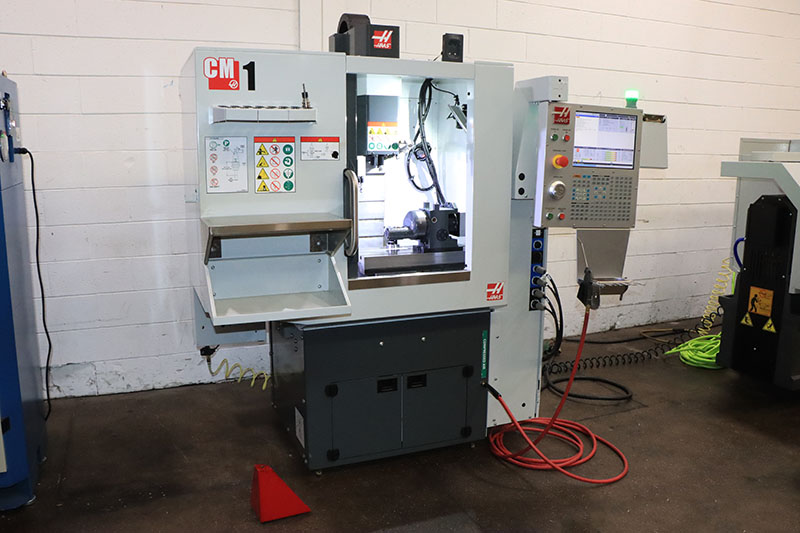

HAAS COMPACT MILL
5-AXIS MACHINING CENTER
MODEL: CM-1 w/TRT70 TABLE

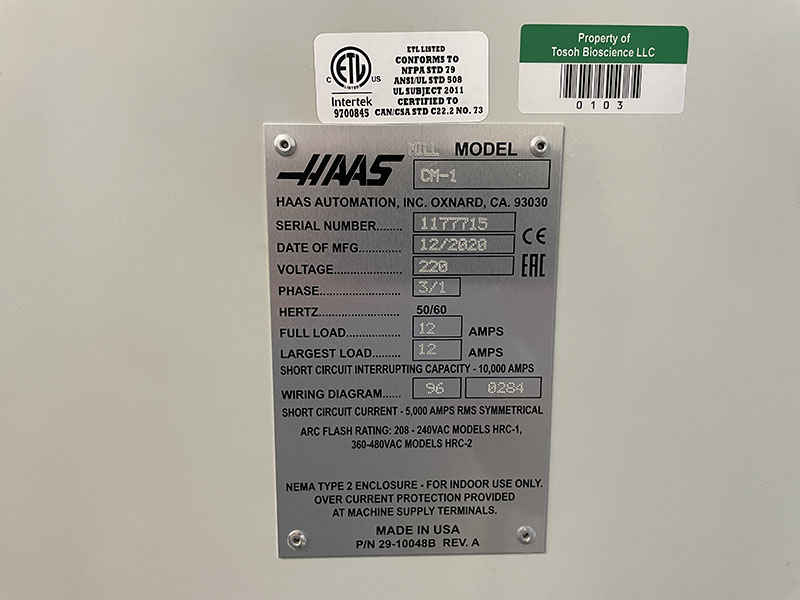

S/N: 1177715, MFG: 2020

SPECIFICATIONS:
TABLE DIMENSIONS ...................... 22.5" X 10"
TABLE LOAD CAPACITY ................... 150 LBS.
X - AXIS TRAVEL ....................... 12"
Y - AXIS TRAVEL ....................... 10"
Z - AXIS TRAVEL ....................... 14"
SPINDLE NOSE TO TABLE ................. 2.6" - 16.6"
SPINDLE SPEED ......................... 50,000 RPM
MAIN MOTOR ............................ 5 HP
SPINDLE TAPER ......................... ISO/20
RAPID TRAVERSE ........................ 757 IPM
MAX. CUTTING .......................... 500 IPM

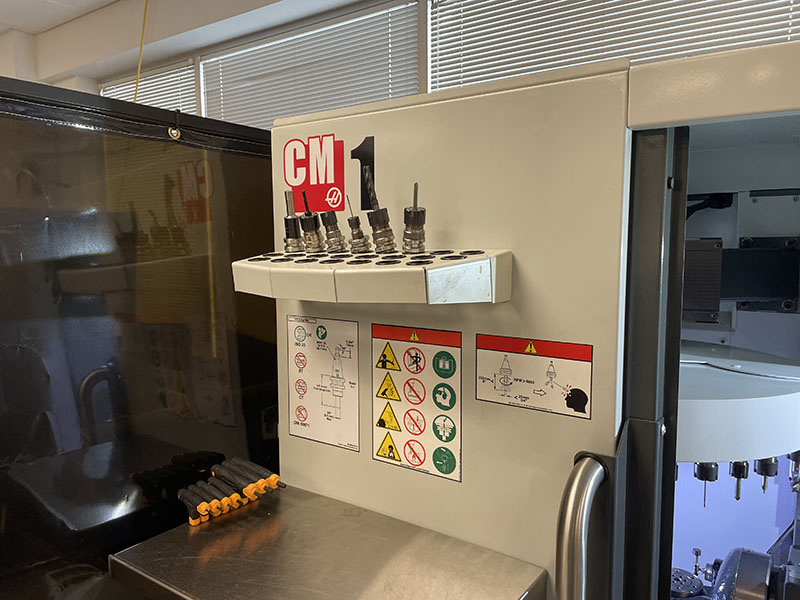

TOOL CHANGER .......................... 36 ATC
MAX. TOOL DIAMETER  ................... 2.3"
MAX. TOOL WEIGHT ...................... 5 LBS.
TOOL CHANGE TIME....................... 3.2 SECS
APPROXIMATE MACHINE WEIGHT ............ 2500 lbs.

EQUIPPED WITH:

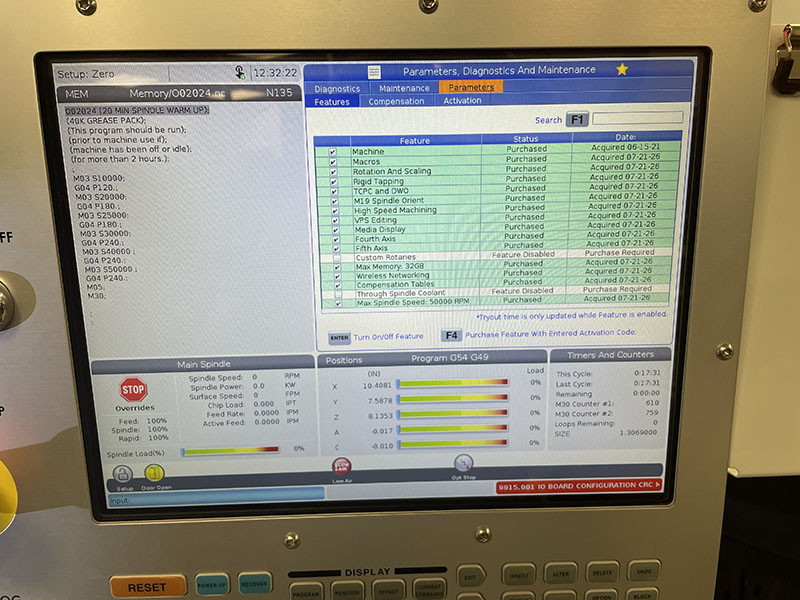

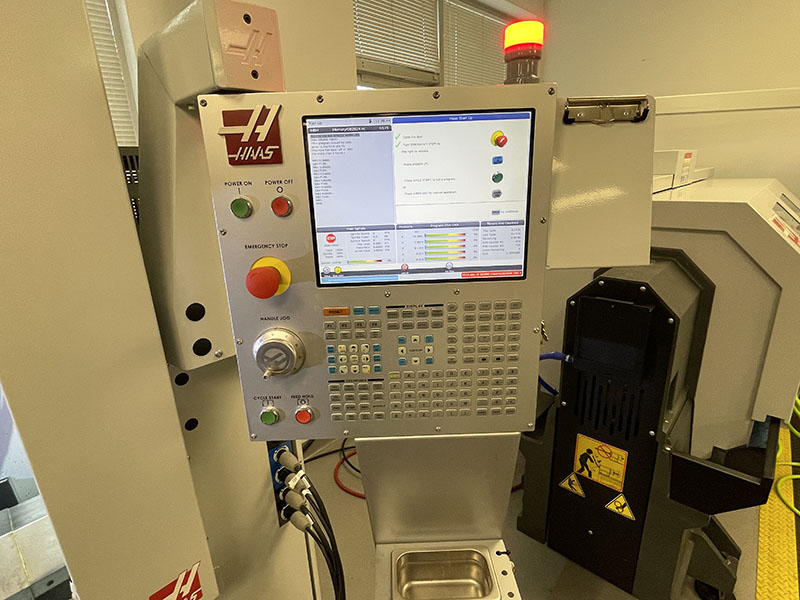

HAAS NEXTGEN 5-AXIS CONTROL:
  HIGH SPEED MACHINING, ROTATION & SCALING, MACROS,
  RIGID TAPPING, DYNAMIC WORK OFFSET & TOOL CENTER POINT
  MEDIA DISPLAY M-CODE, VISUAL PART PROG. (VPS EDITING)

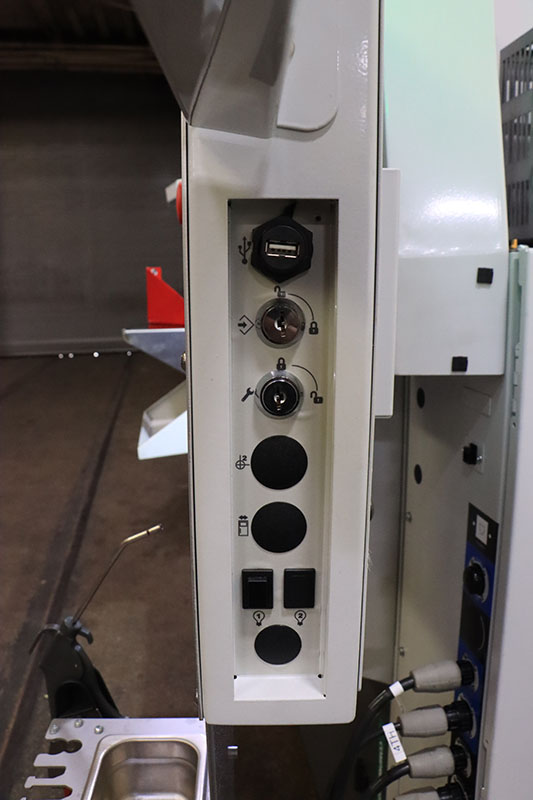

  ETHERNET, USB PORT, 32GB MEMORY, WIFI CAMERA
  HAAS CONNECT:REMOTE MONITORING, WIFI CONNECTION

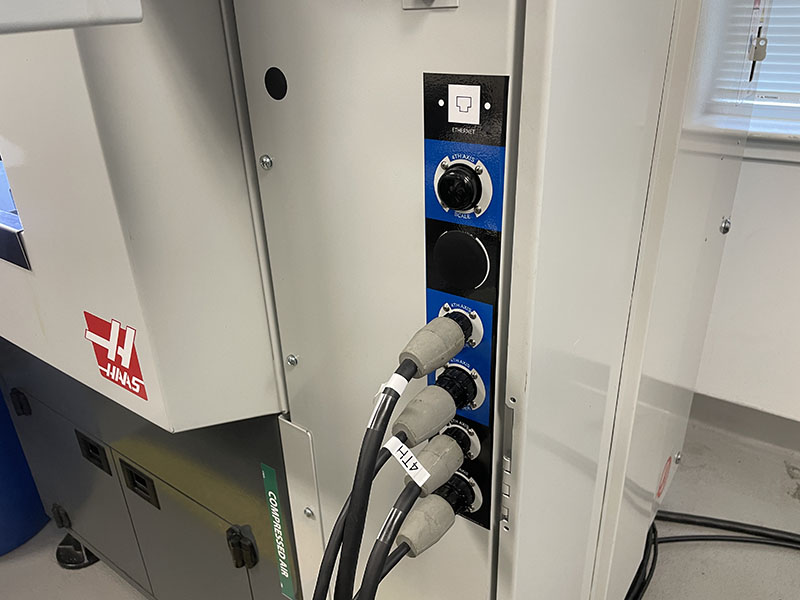

4TH & 5TH AXIS DRIVES & WIRING

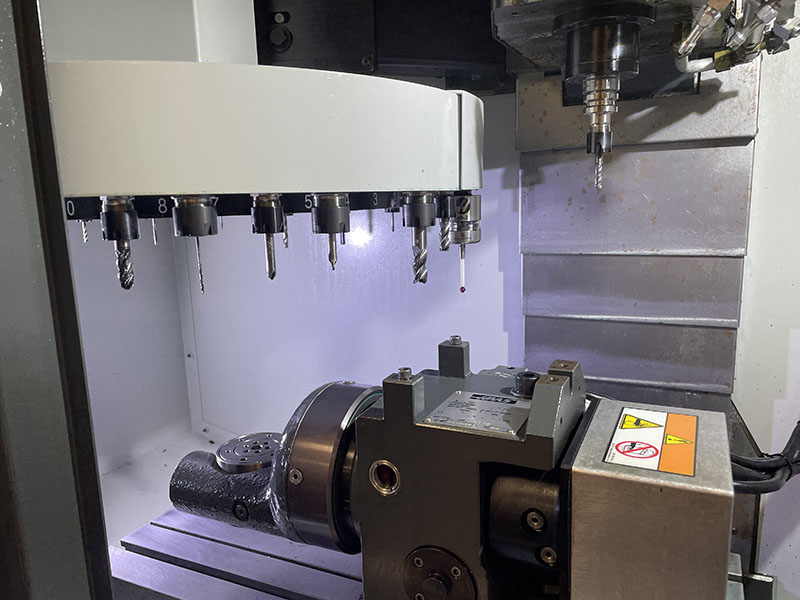

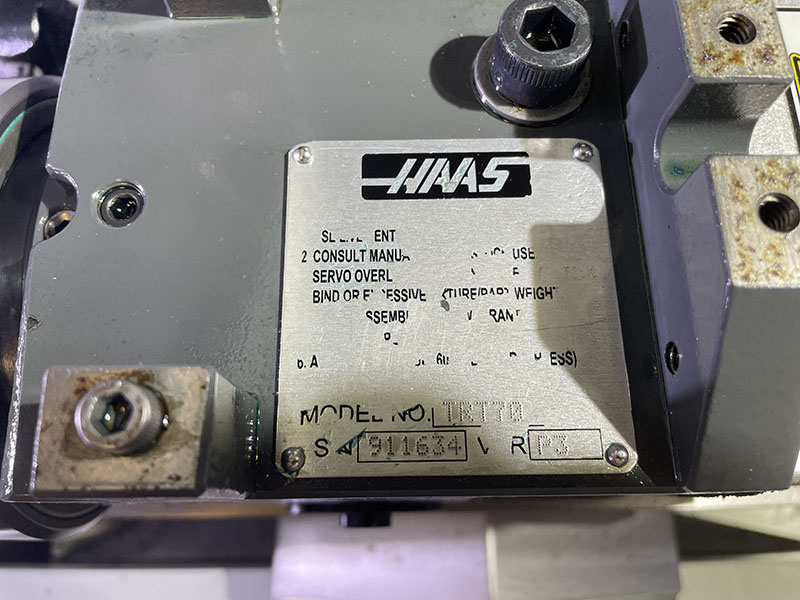

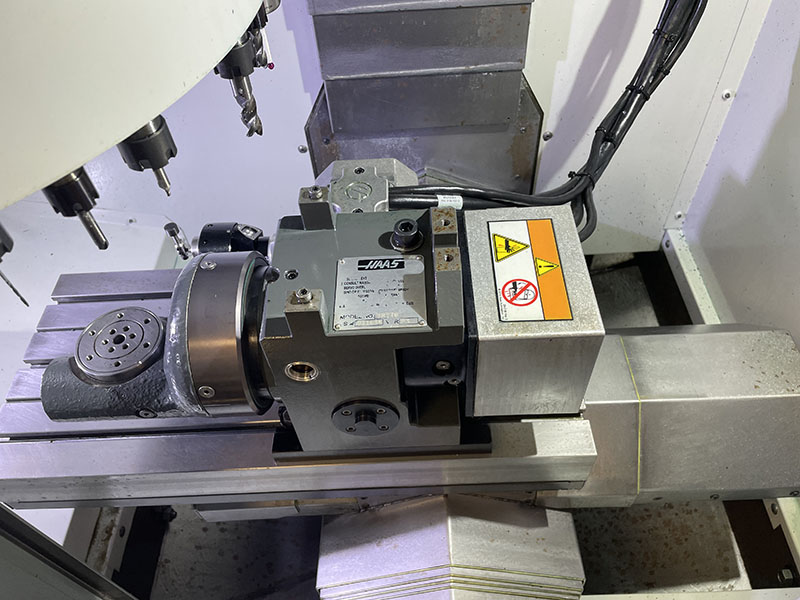

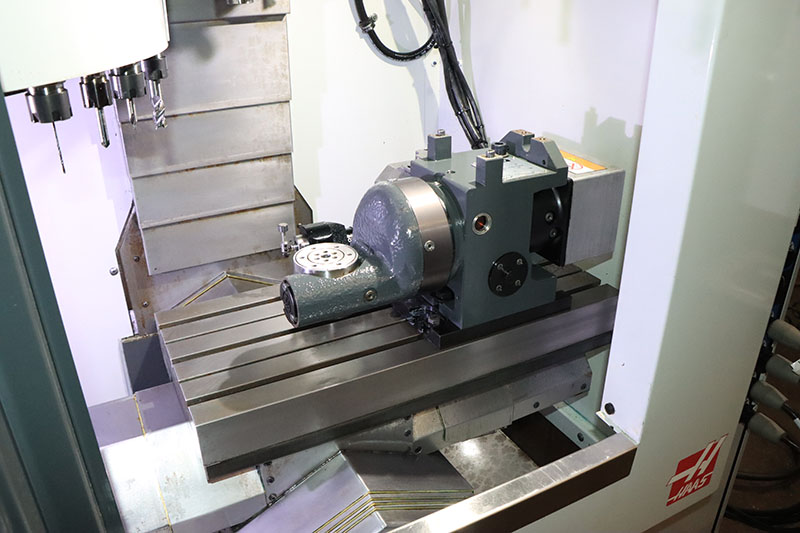

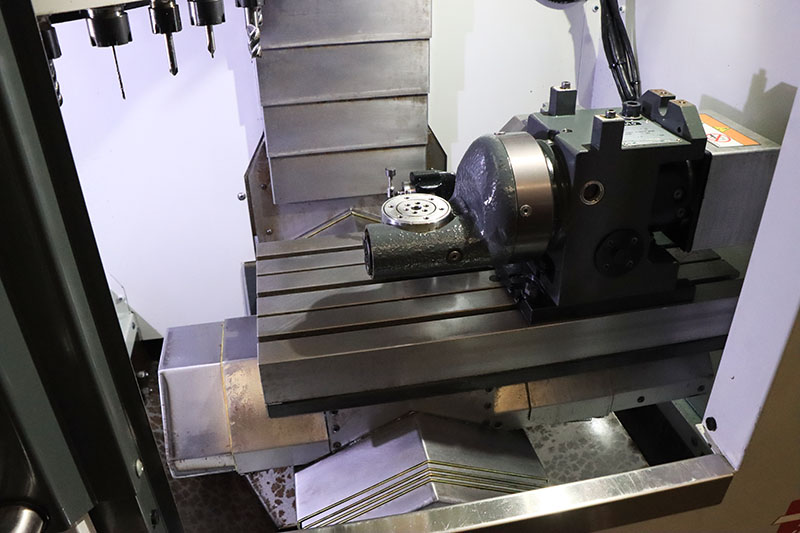

HAAS TRT70 DUAL AXIS TILTING ROTARY TABLE

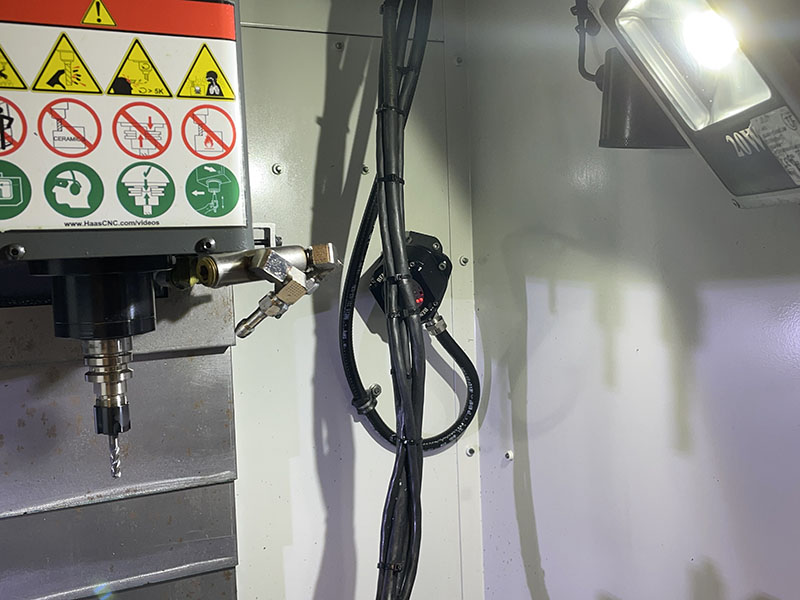

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

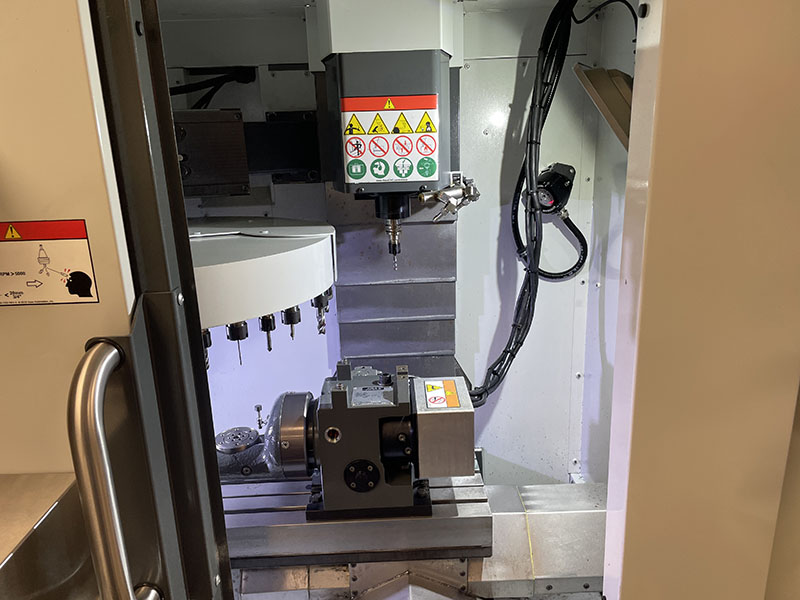

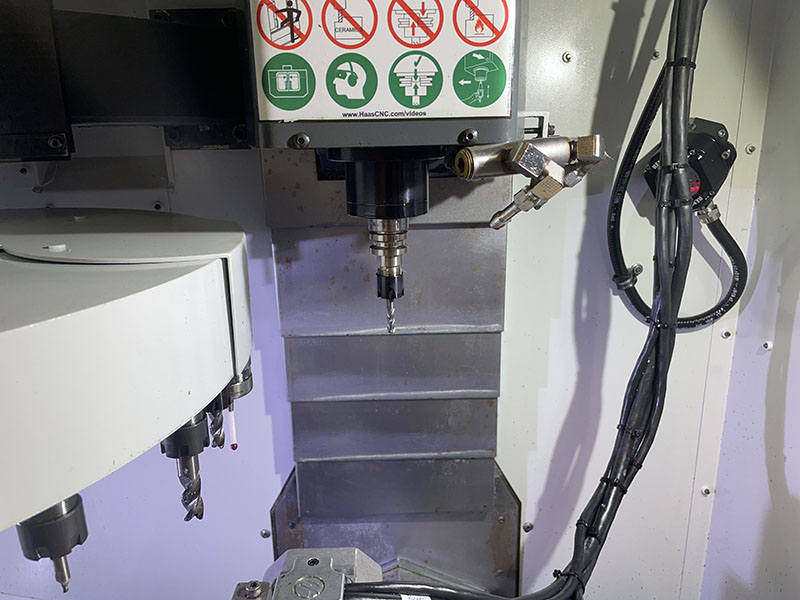

50,000 RPM SPINDLE (ISO 20 TAPER)
36 STATION AUTOMATIC TOOL CHANGER
WINDOW AIR BLAST

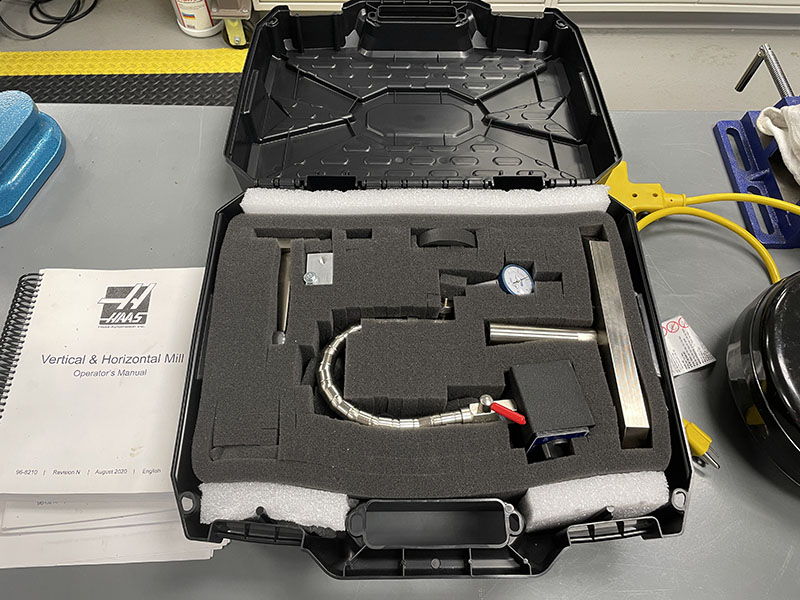

ASSORTMENT OF TOOLHOLDERS & TOOLING
REPLACEMRNT COST, AS EQUIPPED $155,000

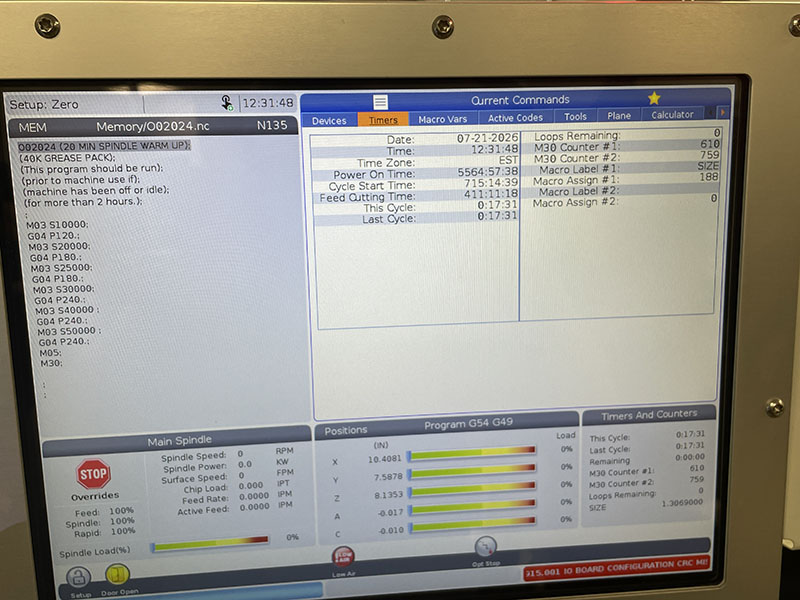

AS OF AUGUST 2026 CUTTING TIME 411 HOURS
MACHINE IS IN LIKE NEW CONDITION!
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
