Haas DT-1 w/Midaco Pallet Changer & HRT Rotary Tbls CNC DRILL & TAP MACHINES

$34,500

Make:: Haas

Model:: DT-1 w/Midaco Pallet Changer & HRT Rotary Tbls

Year:: 2012

Ref #:: 178909

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

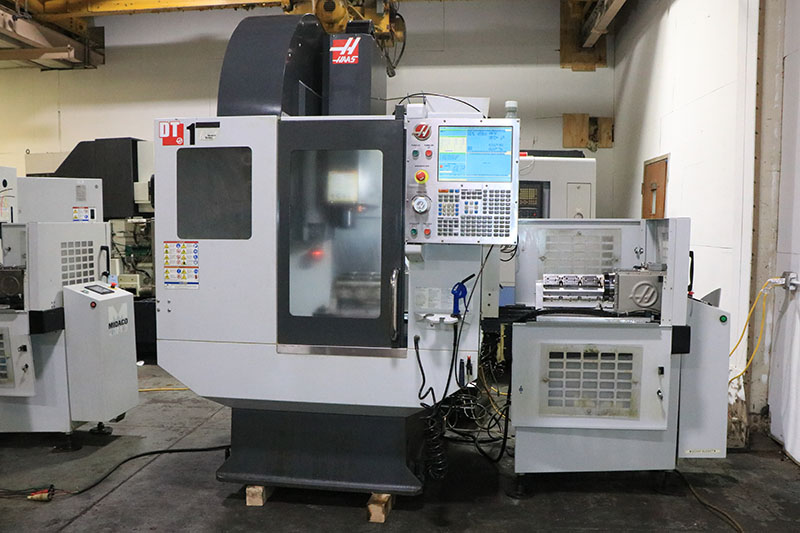

HAAS CNC DRILL TAP/MILL CENTER
MODEL: DT-1,  S/N: 1093833, NEW: 2012

SPECIFICATIONS:
X-AXIS TRAVEL.......................... 20" / 508mm
Y-AXIS TRAVEL.......................... 16" / 406mm
Z-AXIS TRAVEL.......................... 15.5" / 394mm
TABLE SIZE............................. 26" X 15"
MAX WEIGHT ON TABLE.................... 250 LBS
SPINDLE SPEED.......................... 12,000 RPM
SPINDLE MOTOR.......................... 15 HP
MAX TAPPING SPEED...................... 5,000 RPM
MAX RAPIDS............................. 2,400 IPM
MAX CUTTING............................ 1,200 IPM
TOOL CHANGER CAPACITY.................. 20 + 1
SPINDLE TAPER.......................... BT-30
MACHINE SIZE: 107" W, 124" L WITH COOLANT TANK, 103" TALL

EQUIPPED WITH:

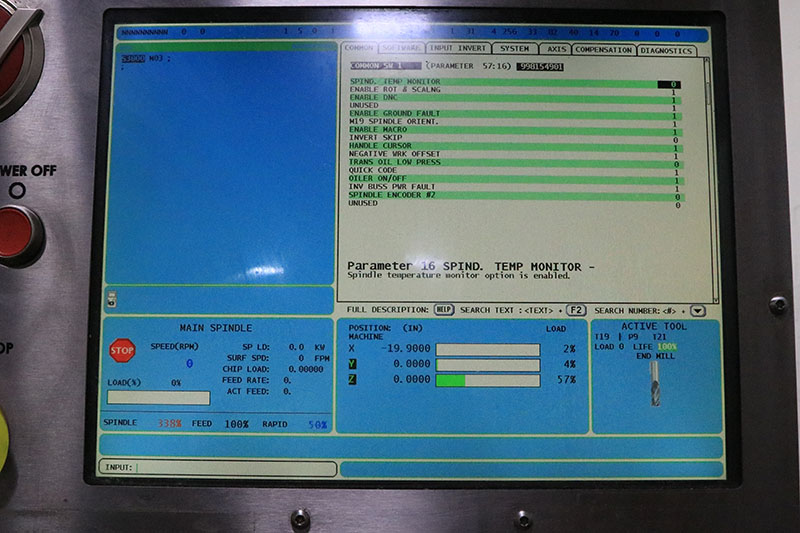

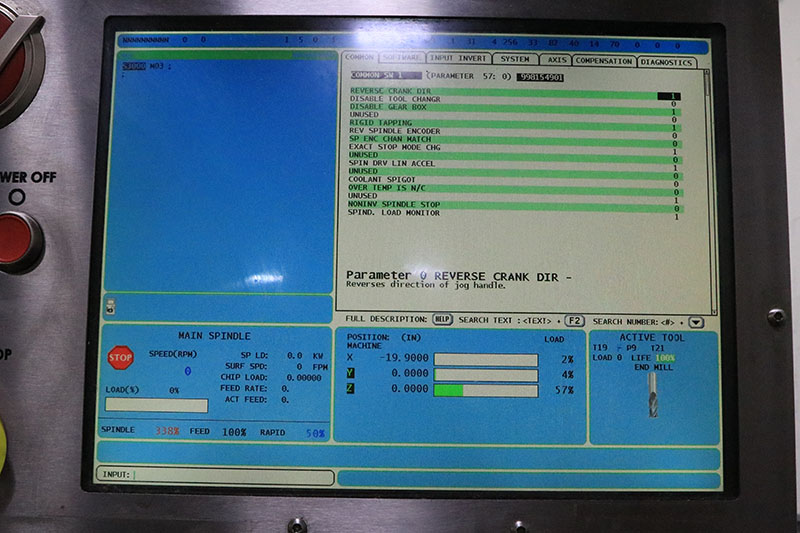

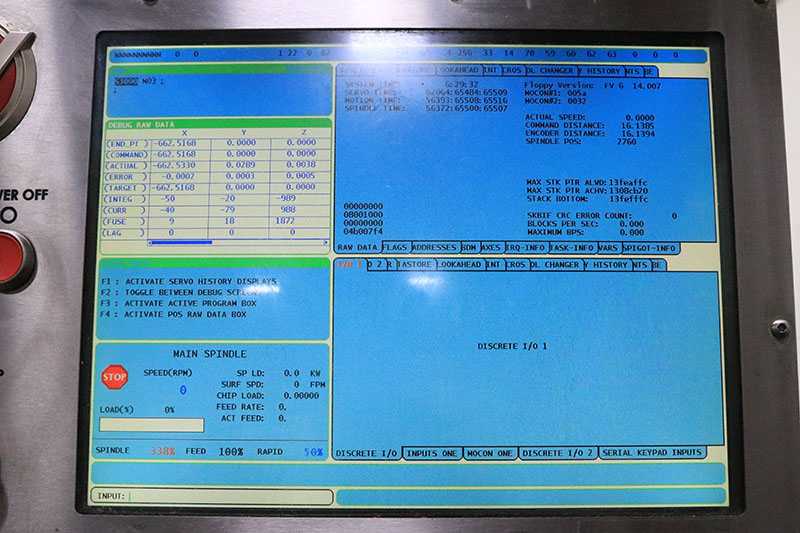

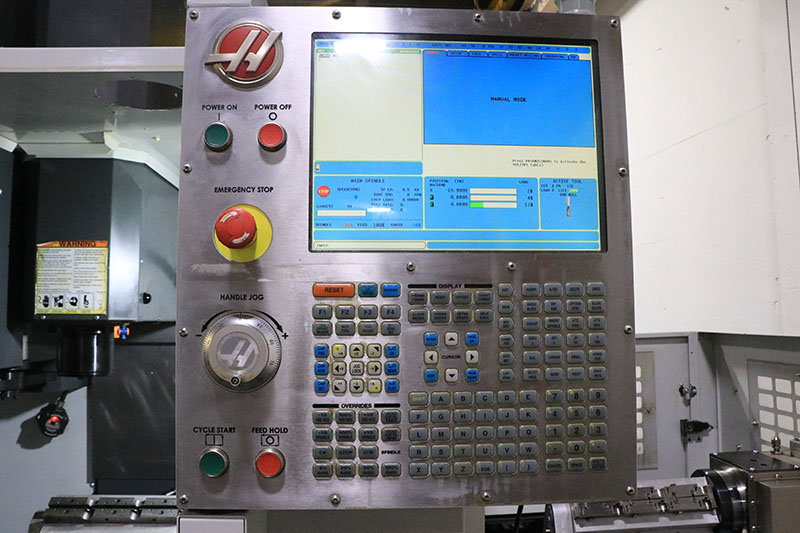

* HAAS CNC CONTROL
   ROTATION & SCALING, DNC, QUICK CODE, M19 SPINDLE ORIENT,
   MACROS, INTUITIVE PROGRAMMING, ADVANCED TOOL MGMT,
   SPINDLE LOAD METER
* RIGID TAPPING
* USB PORT

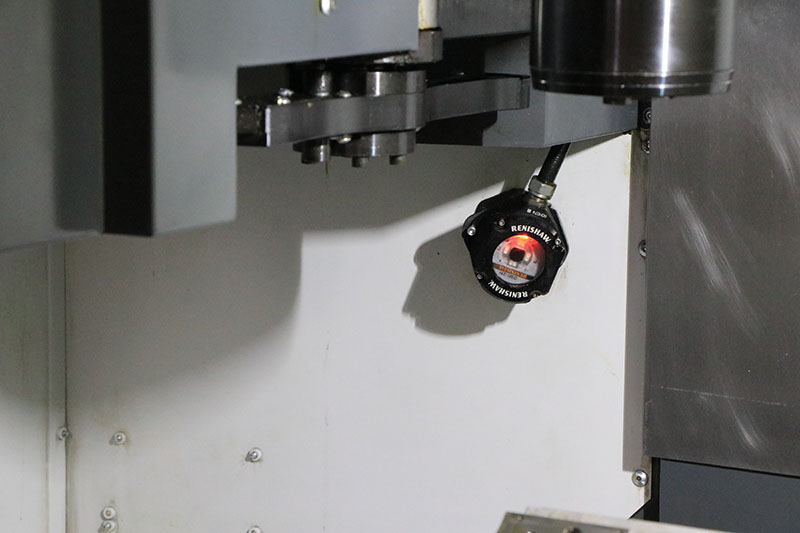

* (WIPS) WIRELESS INTUITIVE PROGRAMMING SYSTEM
      PROBE TOOL & TOUCH SETTER REQUIRED

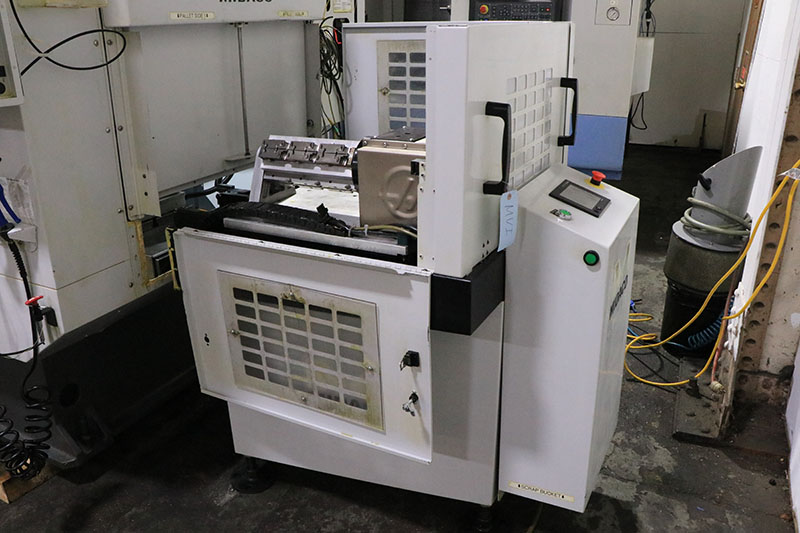

* MIDACO MODEL: ADT-1SD PROGRAMMABLE DUAL PALLET CHANGER
     PALLET SIZE 22" x 15"

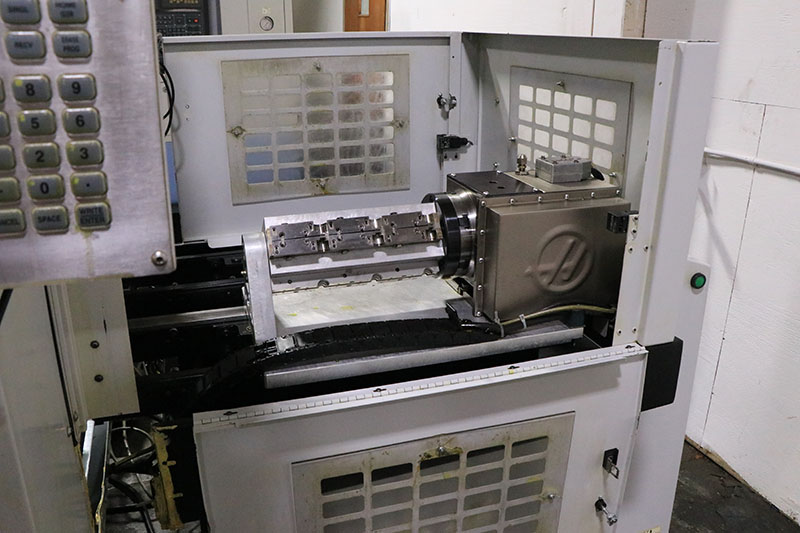

* (2) HAAS MODEL: HRT 160SP ROTARY TABLES

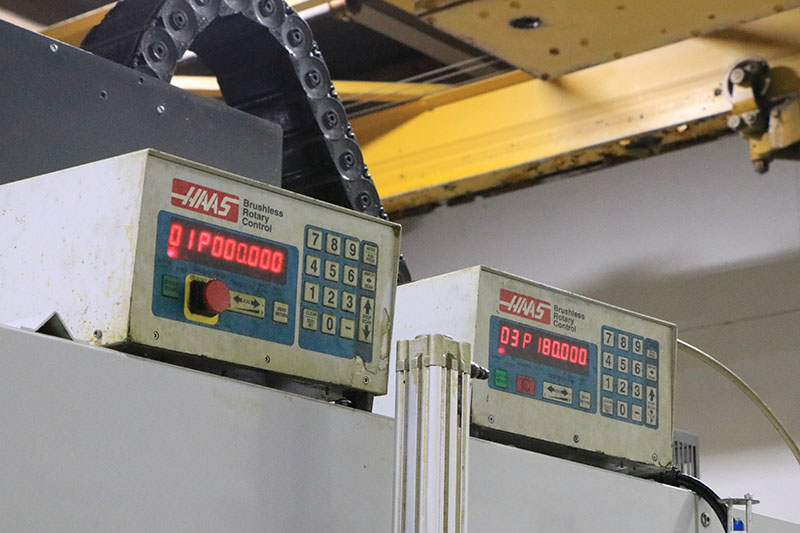

       w/ HAAS INDEPENDENT ROTARY CONTROLS
* (2) TOOLING BLOCK SYSTEMS w/ A-FRAME SUPPORT & MOUNTING BLOCK
* FIRE SUPRESSION SYSTEM

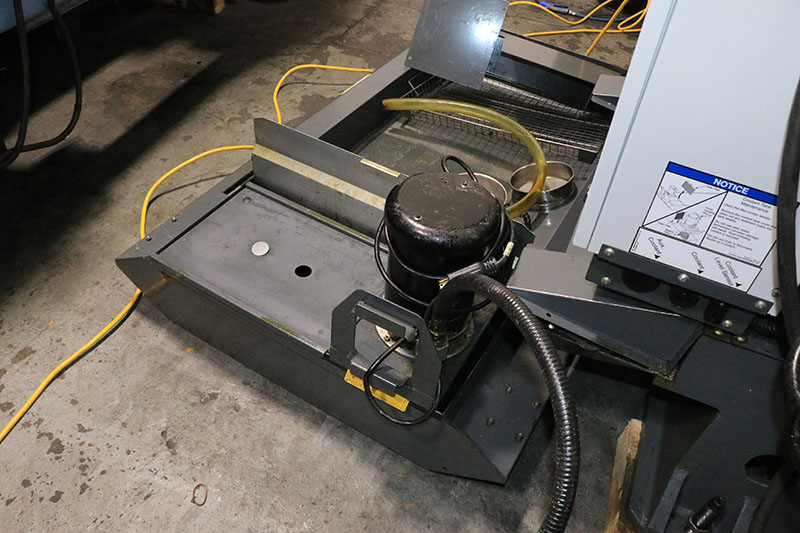

* COOLANT SYSTEMS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
