Haas UMC-750SS w/Midaco 19 Pallet Changer, CTS, WIPS, UNIVERSAL 5-AXIS MACHINING CENTER

Price on Request

Make:

Haas

Model:

UMC-750SS w/Midaco 19 Pallet Changer, CTS, WIPS,

Year:

2016

Ref #:

179331

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

---

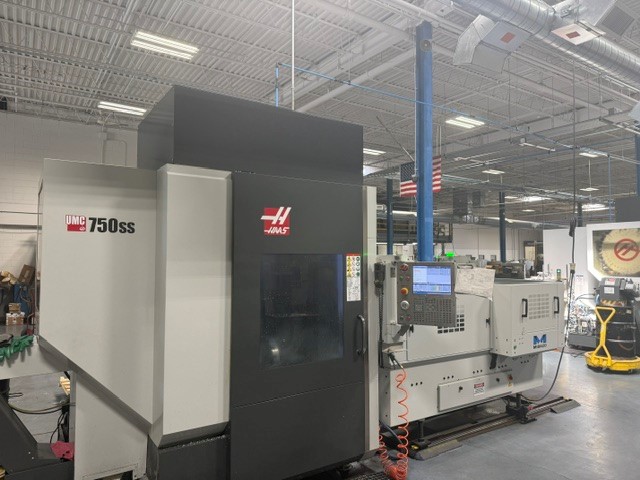

HAAS 5-AXIS CNC UNIVERSAL

MACHINING CENTER

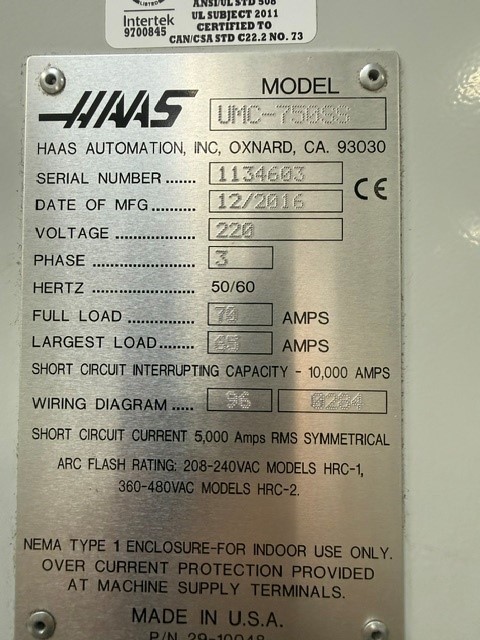

MODEL: UMC750SS,   NEW: 2016



SPECIFICATIONS:

PLATTER WORKING SURFACE ........ 19.7"

DISTANCE SPINDLE NOSE TO TABLE . 4"MIN - 24"MAX

MAX TABLE LOAD ................. 660 LBS

X-AXIS TRAVEL .................. 30" / 762mm

Y-AXIS TRAVEL .................. 20" / 508mm

Z-AXIS TRAVEL .................. 20" /508mm

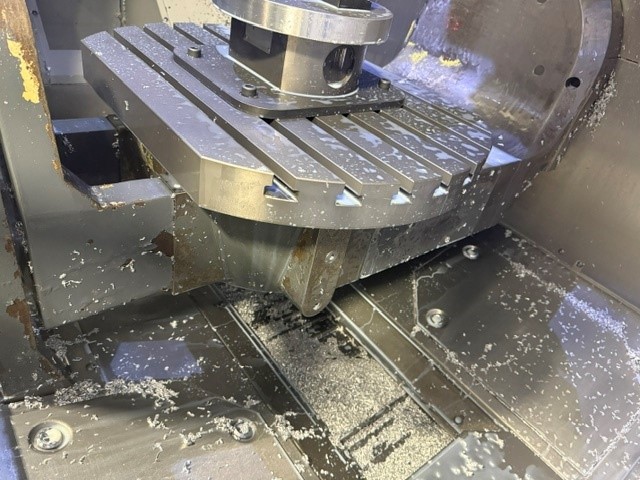

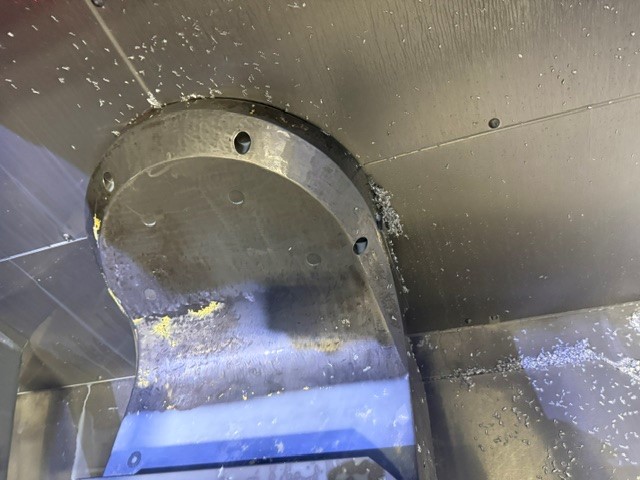

A-AXIS TRUNNION TILT RANGE ..... +120 TO -35 DEGREES

C-AXIS TABLE ROTATION POSITION . 360,000 DEGREES

RAPID TRAVERSE X/Y/Z ........... 1,200 IPM

SPINDLE SPEEDS ................. 50 - 15,000 RPM

SPINDLE TAPER .................. CT40

SPINDLE MOTOR .................. 30 HP

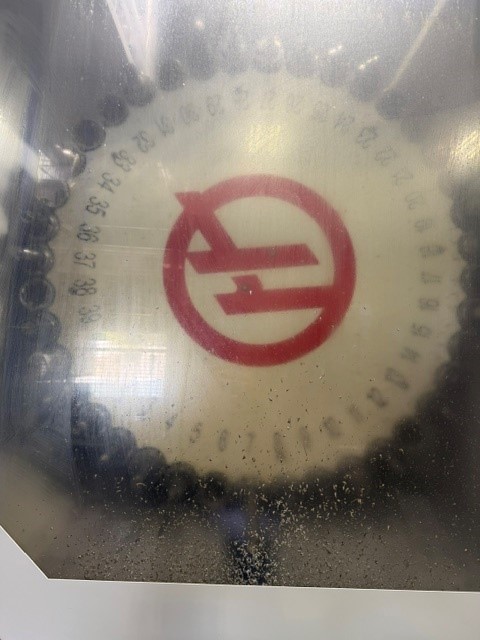

TOOL MAGAZINE CAPACITY ......... 40 ATC

ELECTRICS ...................... 230/3/60

APPROXIMATE WEIGHT ............. 20,000 LBS



EQUIPPED WITH:

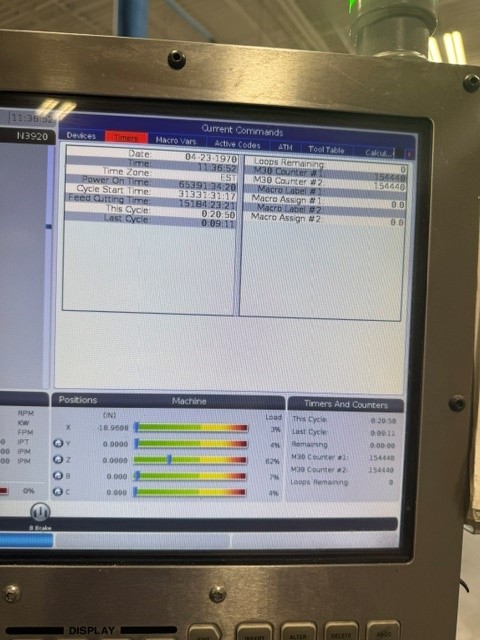

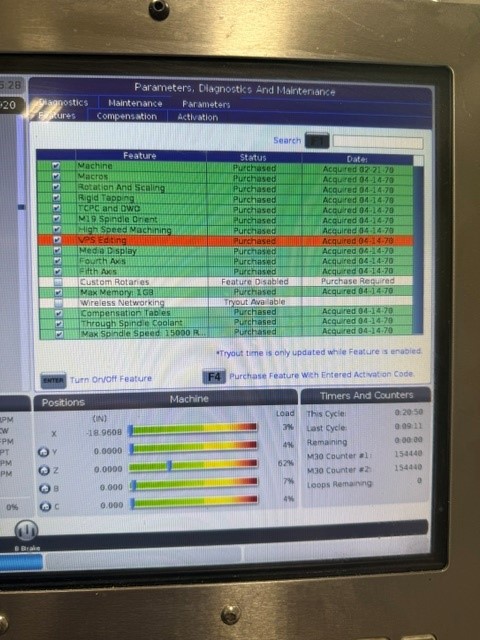

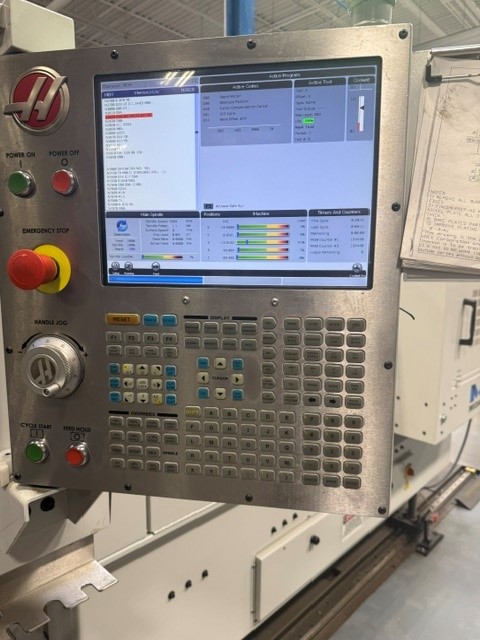

HAAS 5-AXIS NEXTGEN CONTROL:

   HIGH SPEED MACHINING, SPINDLE ORIENT, ROTATION & SCALING,

   VPS EDITING, MACROS, RIGID TAPPING, TCPC & DWC,

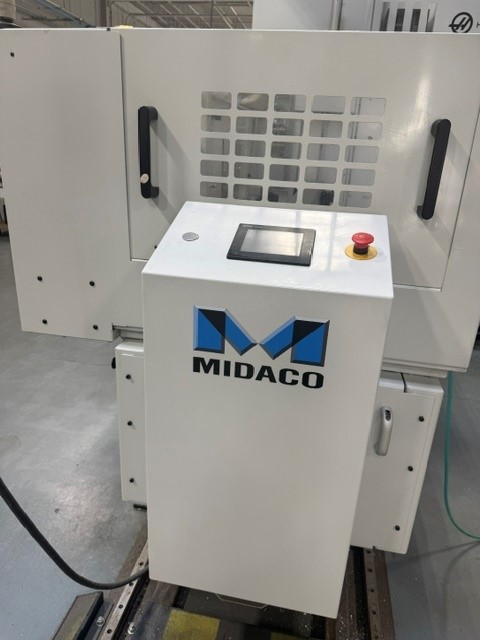

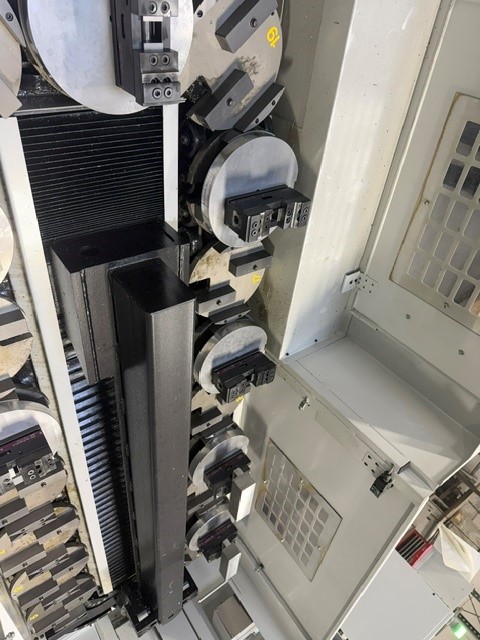

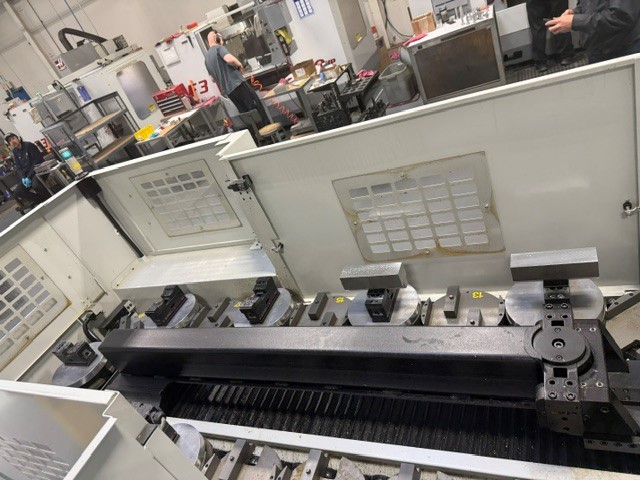

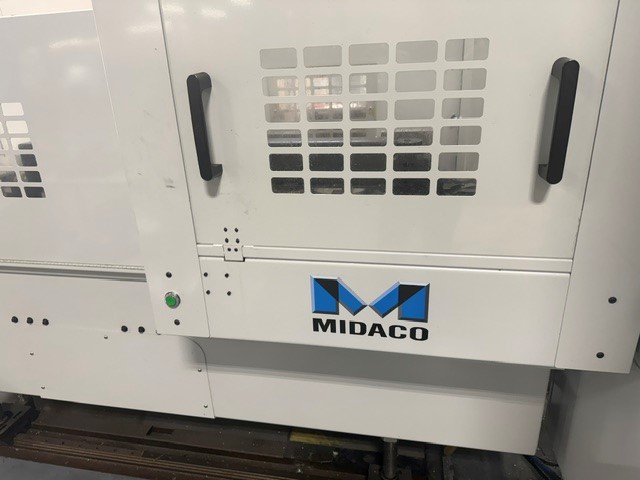

MIDACO 19 PALLET CHANGER SYSTEM - $140,000 OPTION

REMOTE JOG HANDLE

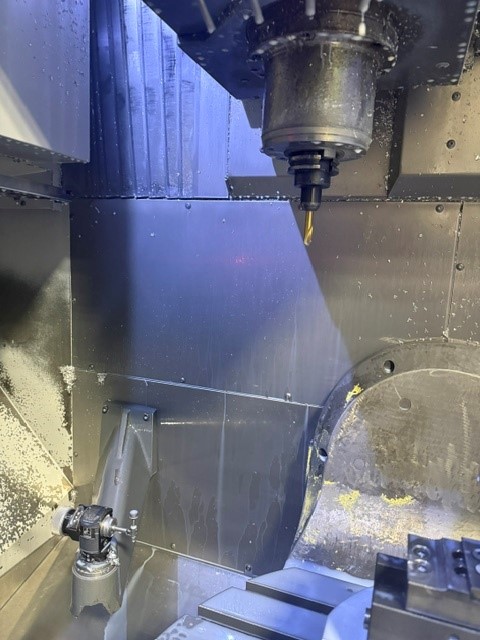

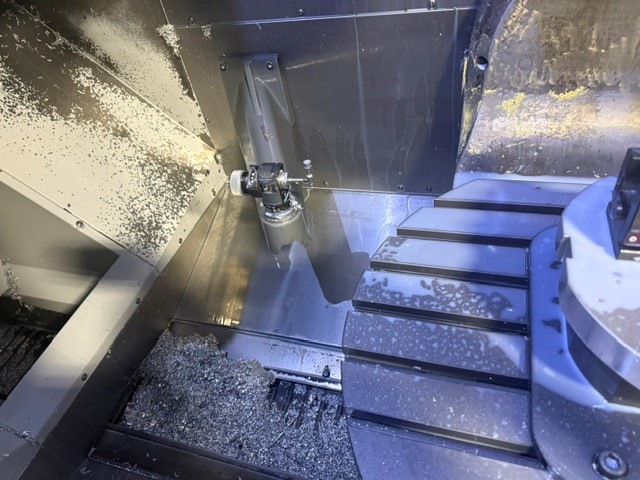

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

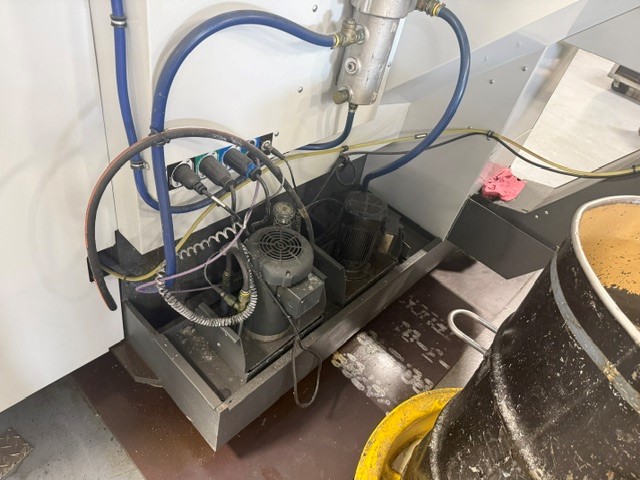

COOLANT THROUGH SPINDLE

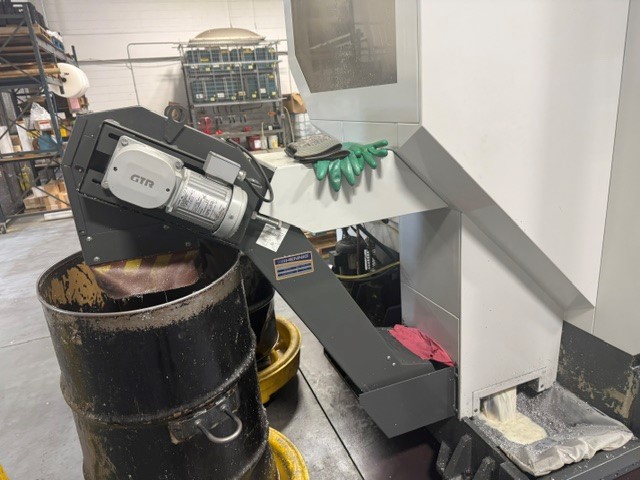

HENNIG BELT CHIP CONVEYOR



INSPECT UNDER POWER IN A NORTH EAST PLANT

THE AUTOMATION YOU HAVE HAVE BEEN LOOKING FOR!
