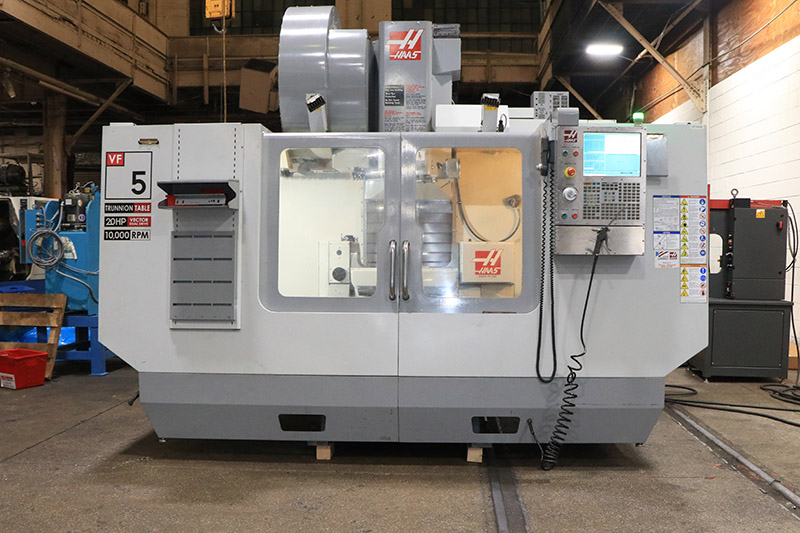

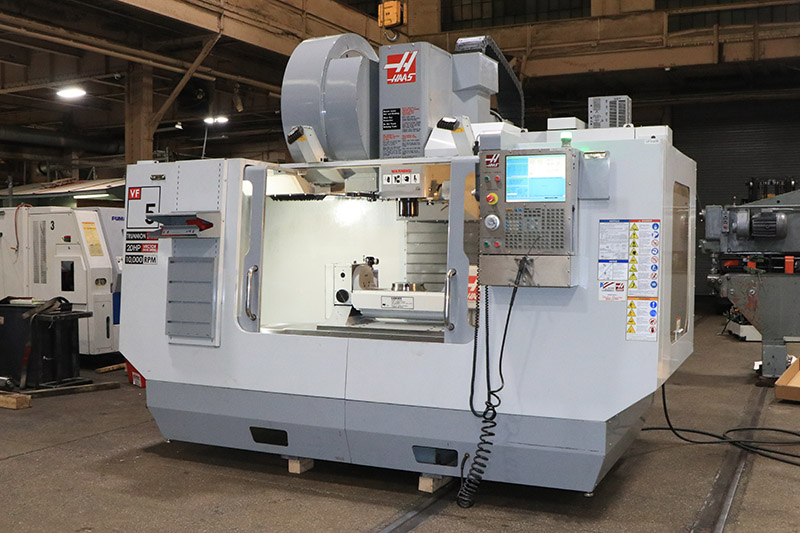

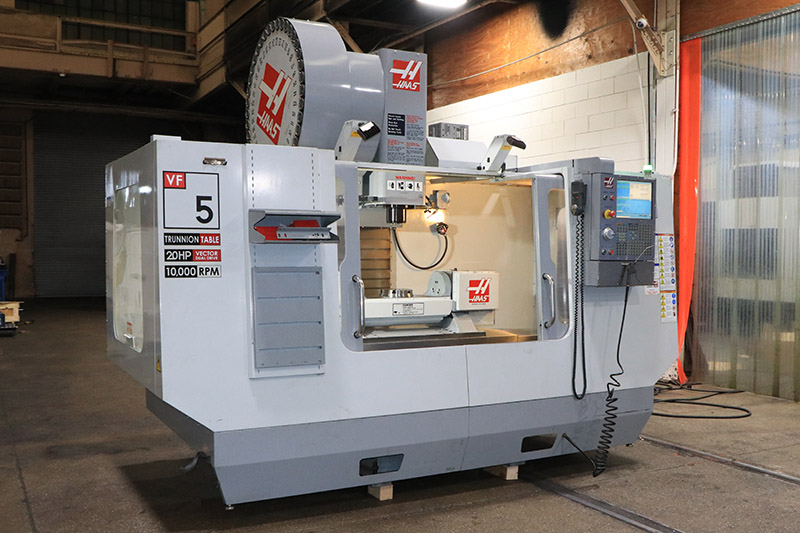

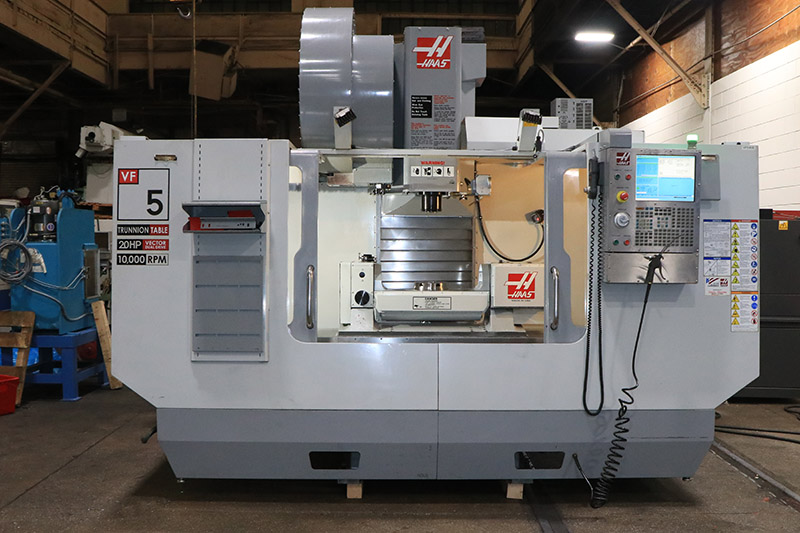

Haas VF-5D/40TR UNIVERSAL 5-AXIS MACHINING CENTER

$89,500

Make:: Haas

Model:: VF-5D/40TR

Year:: 2009

Ref #:: 161893a

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

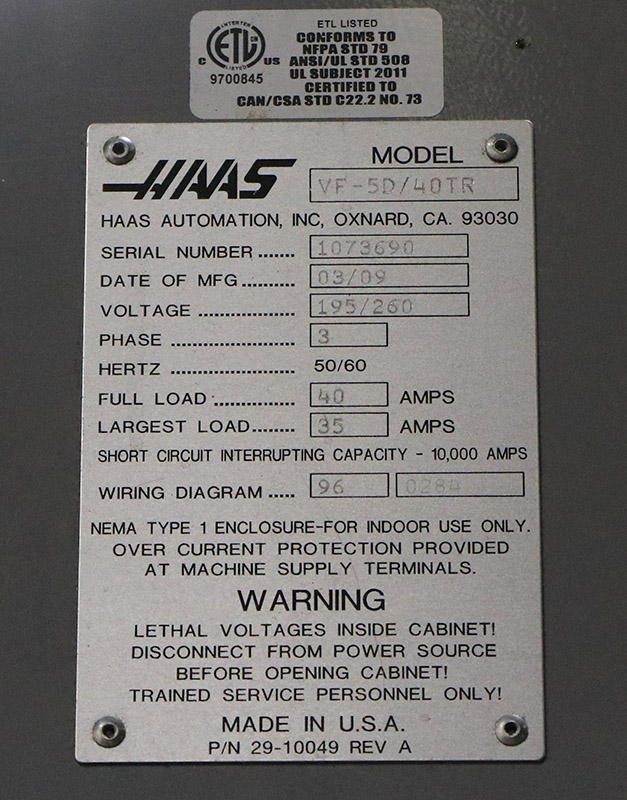

HAAS VERTICAL MACHINING CENTER
MODEL VF-5D/40TR,  NEW: 2009

SPECIFICATIONS:
TRAVELS
X-AXIS ......................... 50"
Y-AXIS ......................... 26"
Z-AXIS ......................... 25"
A-AXIS TILT .................... + OR - 120 DEGREES
B-AXIS ROTATION ................ 360 DEGREES
PLATEN DIAMETER ................ 8.3"
MAXIMUM WEIGHT ON PLATTEN ...... 200 LB
TABLE DIMENSIONS ............... 52" x 23"
MAX WEIGHT ON TABLE ............ 4,000 LBS
SPINDLE SPEED RANGE ............ 0 - 10,000 RPM
SPINDLE MOTOR .................. 20 HP

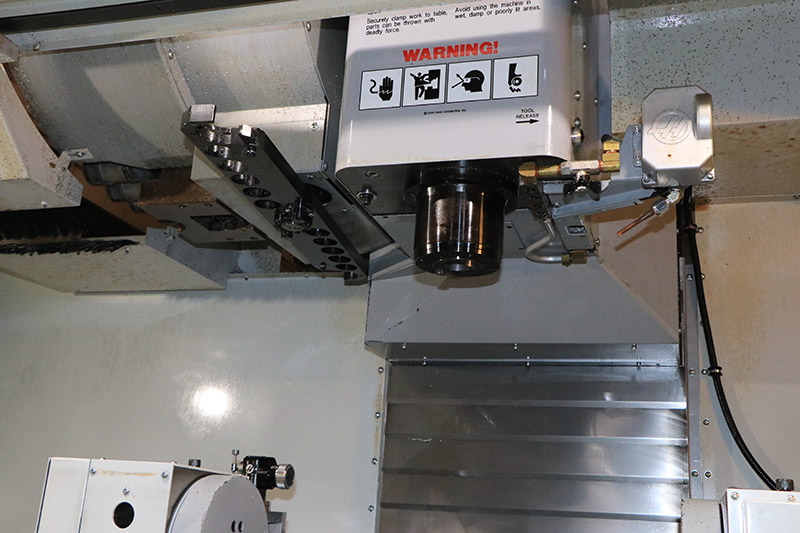

SPINDLE TAPER .................. CT#40
TOOL CHANGER ................... 40 POSITION

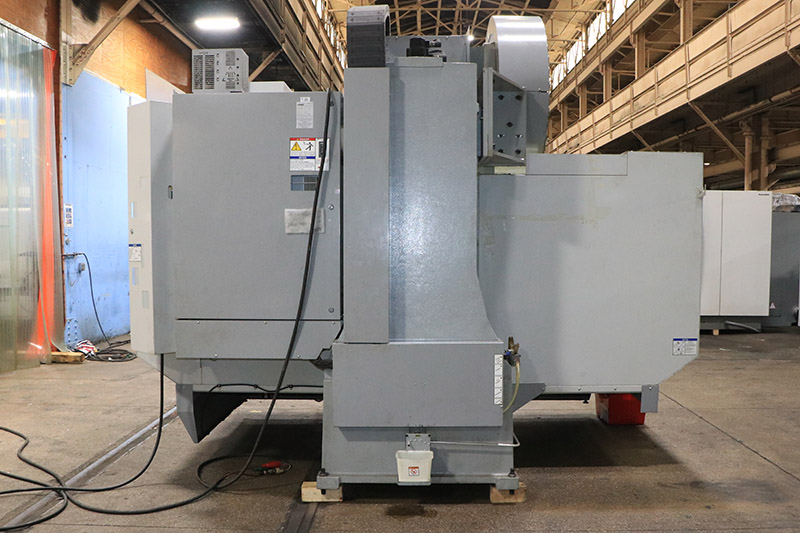

APPROXIMATE MACHINE DIMENSIONS . 139"L x 102"W x 115"H
APPROXIMATE MACHINE WEIGHT...... 16,500 LBS


EQUIPPED WITH:

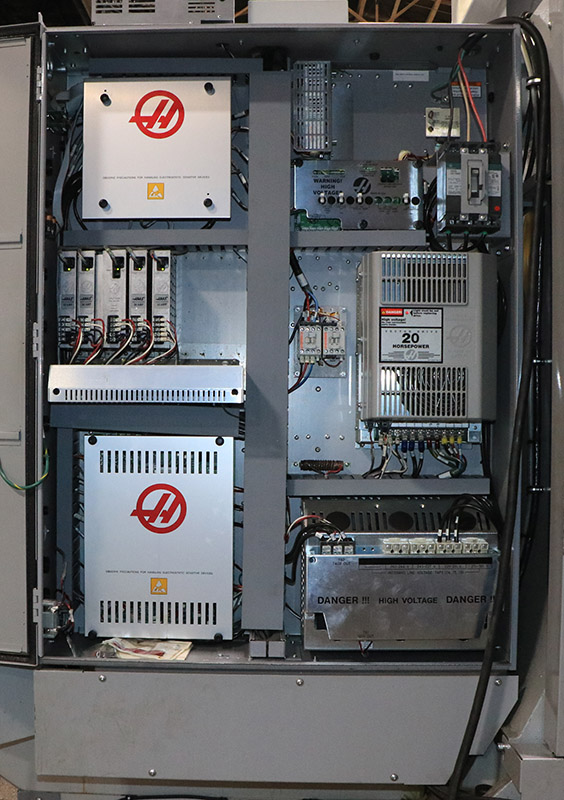

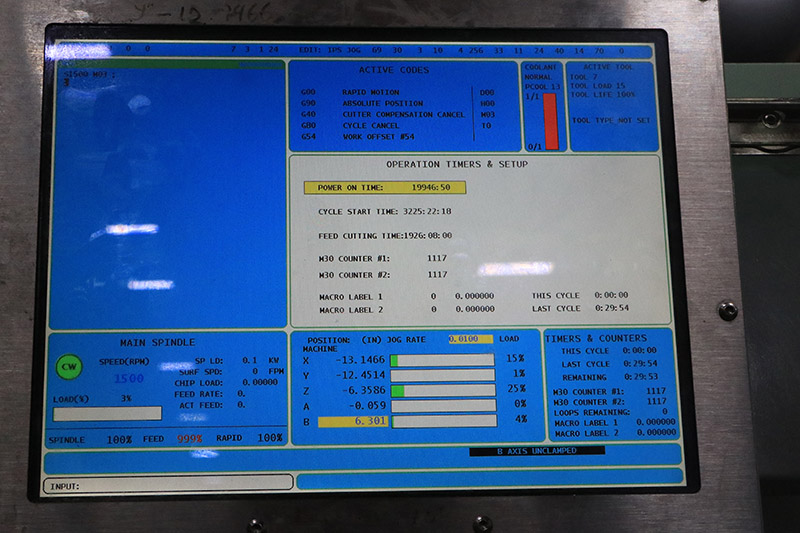

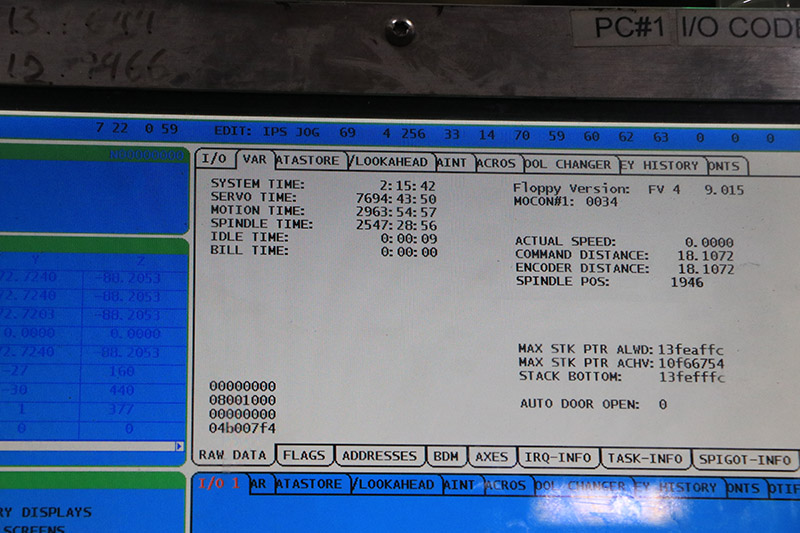

- HAAS 5-AXIS CONTROL (DRIVES & WIRING)

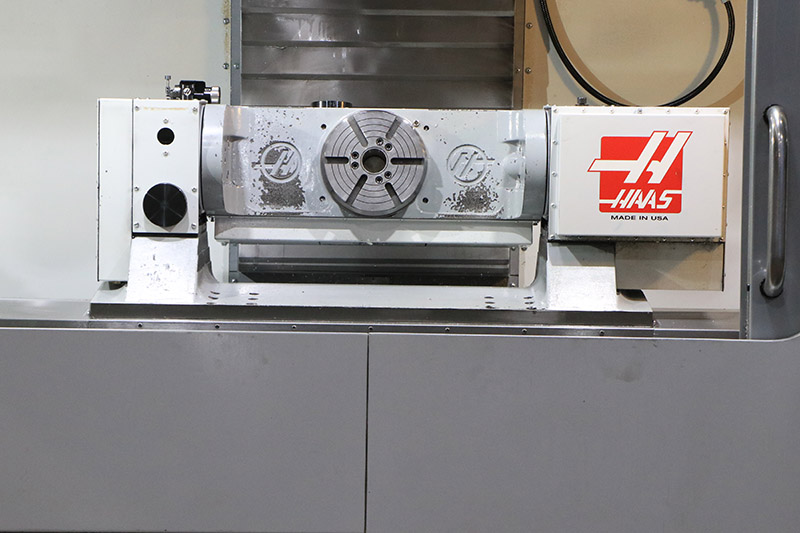

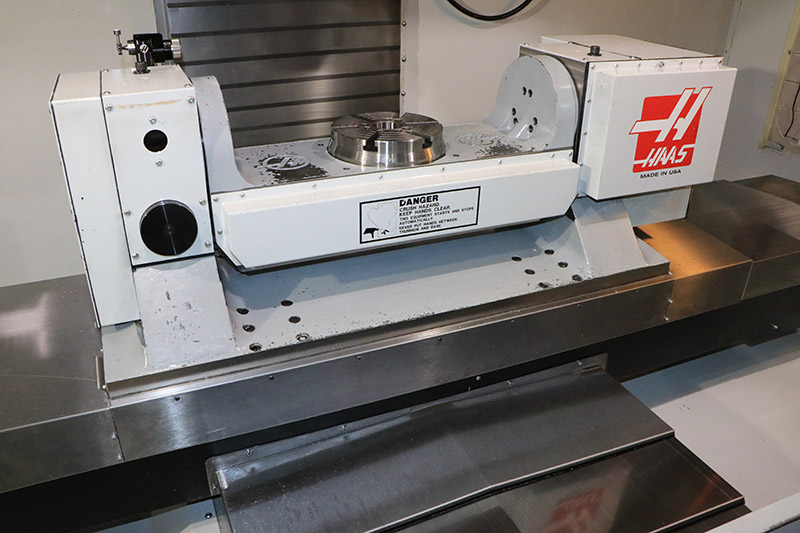

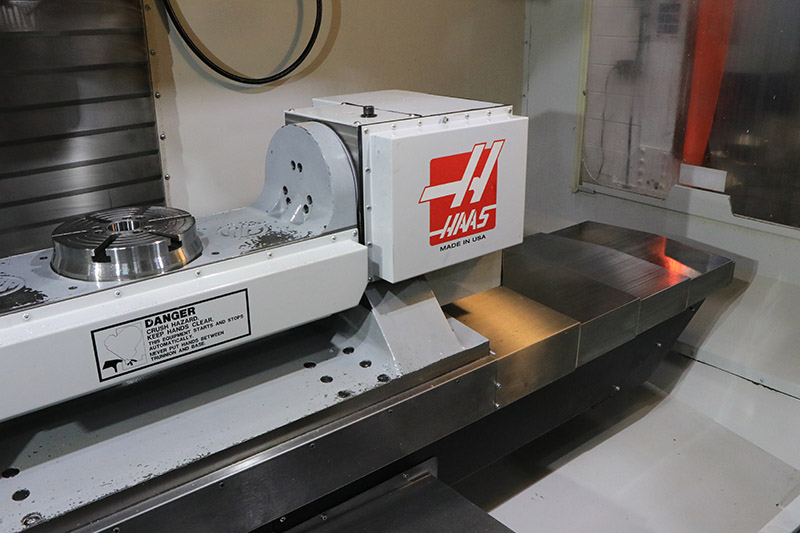

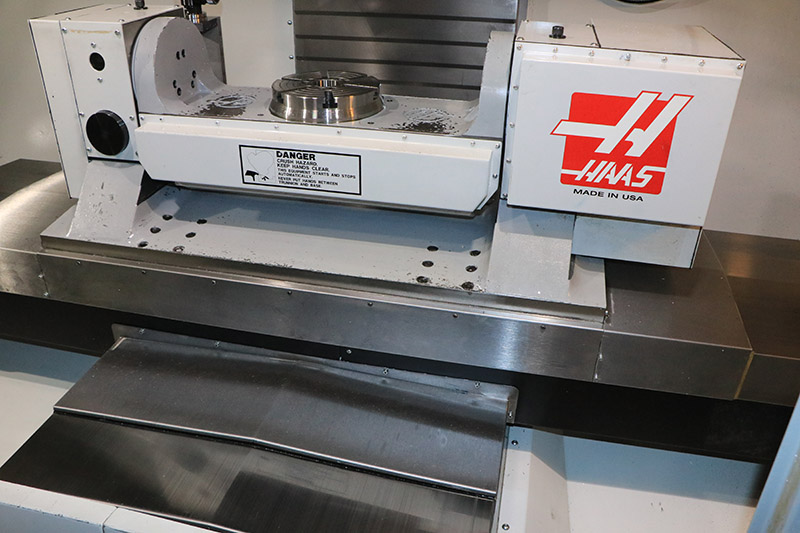

- TRUNNION TABLE 2-AXIS

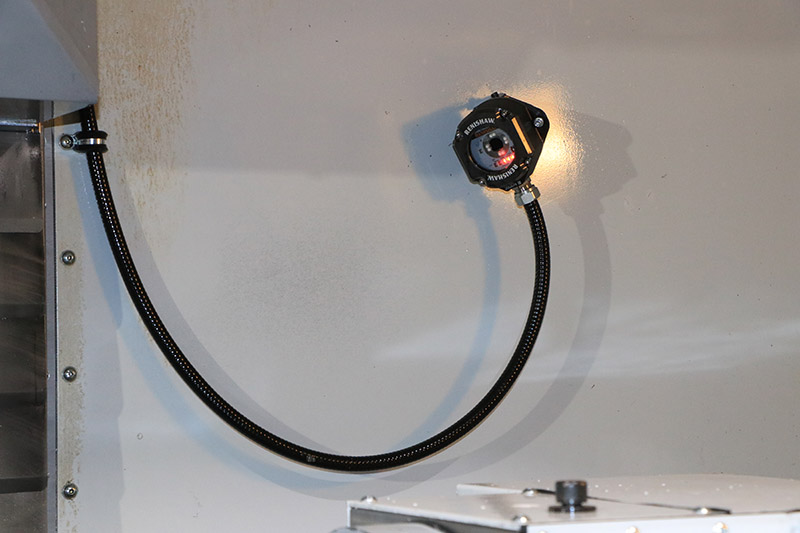

- WIRELESS PROBING SYSTEM
- CHIP AUGER

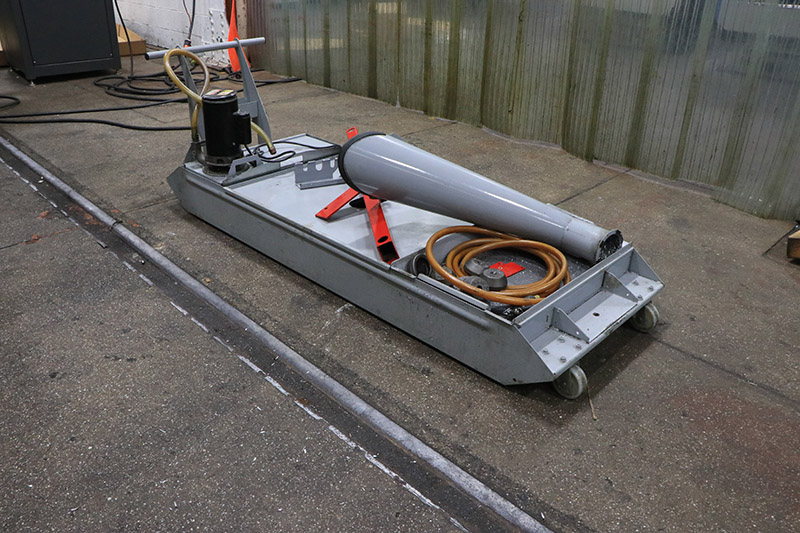

- COOLANT SYSTEM
- PROGRAMMABLE COOLANT
- RIGID TAP
