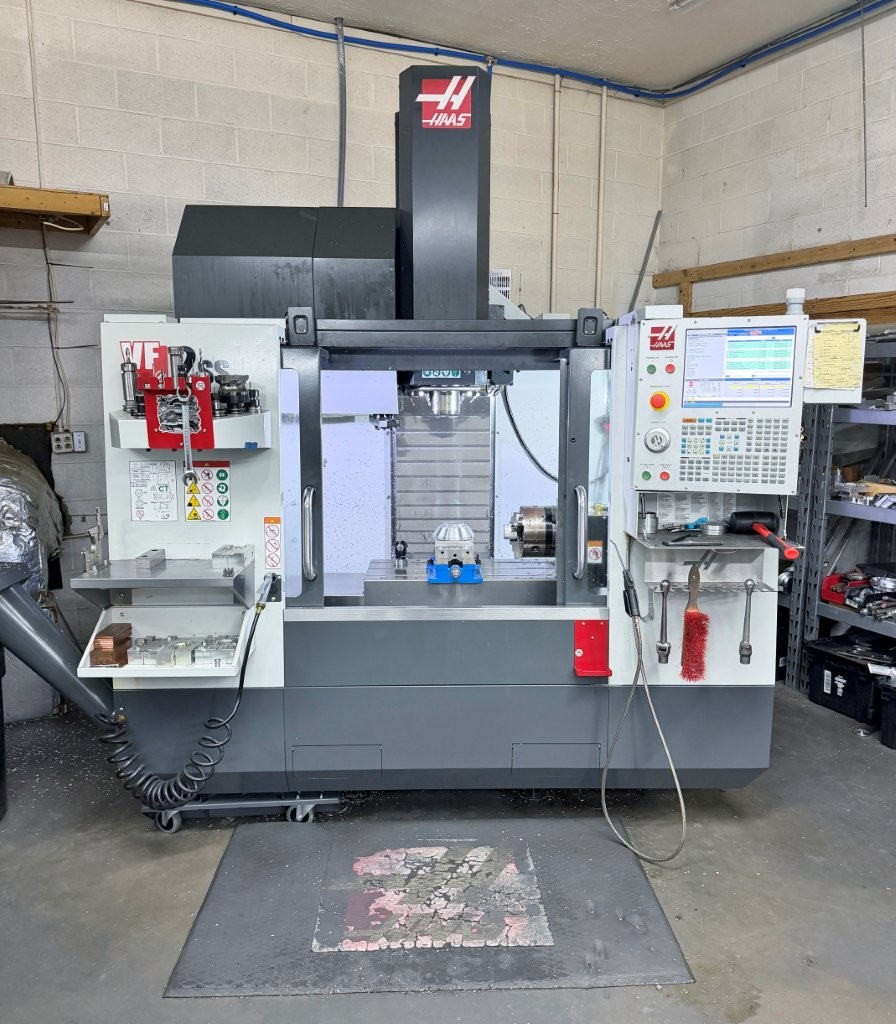

Haas VF2SS NextGen Control, 15,000 RPM VERTICAL MACHINING CENTERS. VMC's

Price on Request

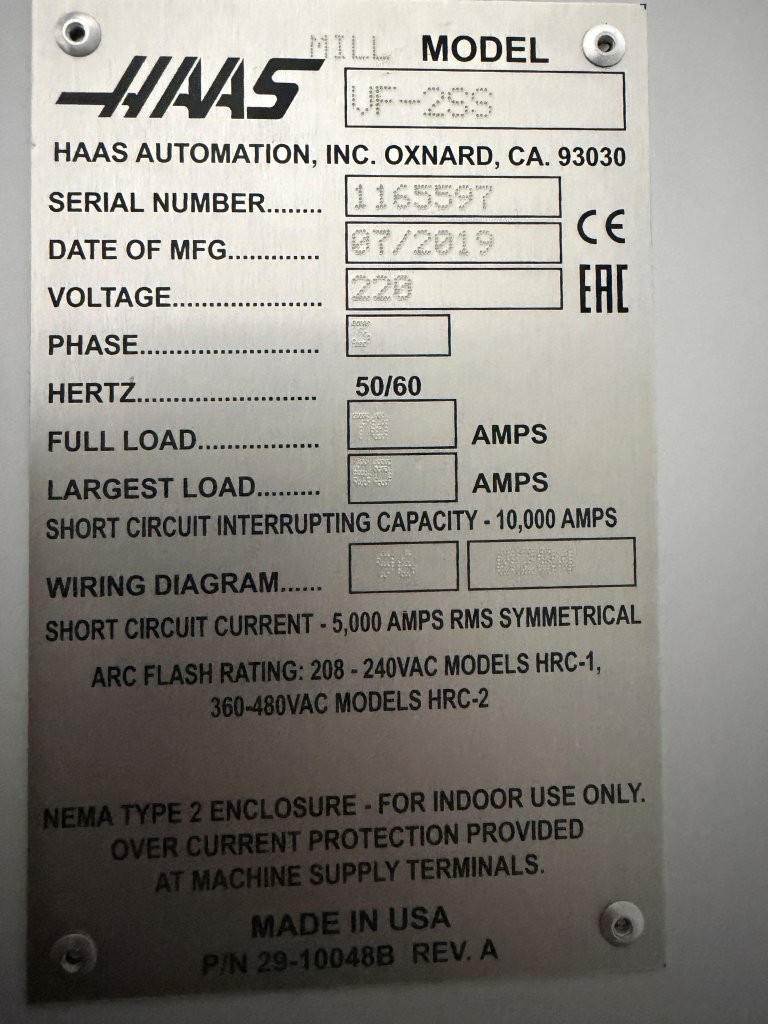

Make:: Haas

Model:: VF2SS NextGen Control, 15,000 RPM

Year:: 2019

Ref #:: 179225

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

HAAS 4-AXIS VERTICAL MACHINING CENTER
MODEL: VF2SS,   MFG: 2019

SPECIFICATIONS:
TABLE SIZE ....................... 36" x 14"
X-AXIS TRAVEL .................... 30"  762mm
Y-AXIS TRAVEL .................... 16"  406mm
Z-AXIS TRAVEL .................... 20"  508mm
SPINDLE NOSE TO TABLE MIN/MAX .... 4" - 24" 102mm - 610mm
SPINDLE SPEED .................... 15,000 RPM
SPINDLE MOTOR .................... 30 HP
SPINDLE DRIVE .................... INLINE DIRECT DRIVE
SPINDLE TAPER .................... CT 40
TOOL MAGAZINE CAPACITY ........... 30 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.0" / 12 LBS
RAPID TRAVERSE RATES ............. 1400 IPM
TABLE SIZE ....................….. 36" X 14"
TABLE LOAD CAPACITY .............. 1500 LBS
MACHINE DIMENSIONS: .............. 89" x 92" x 104"H
MACHINE WEIGHT: .................. 8,000 LBS


EQUIPED WITH:

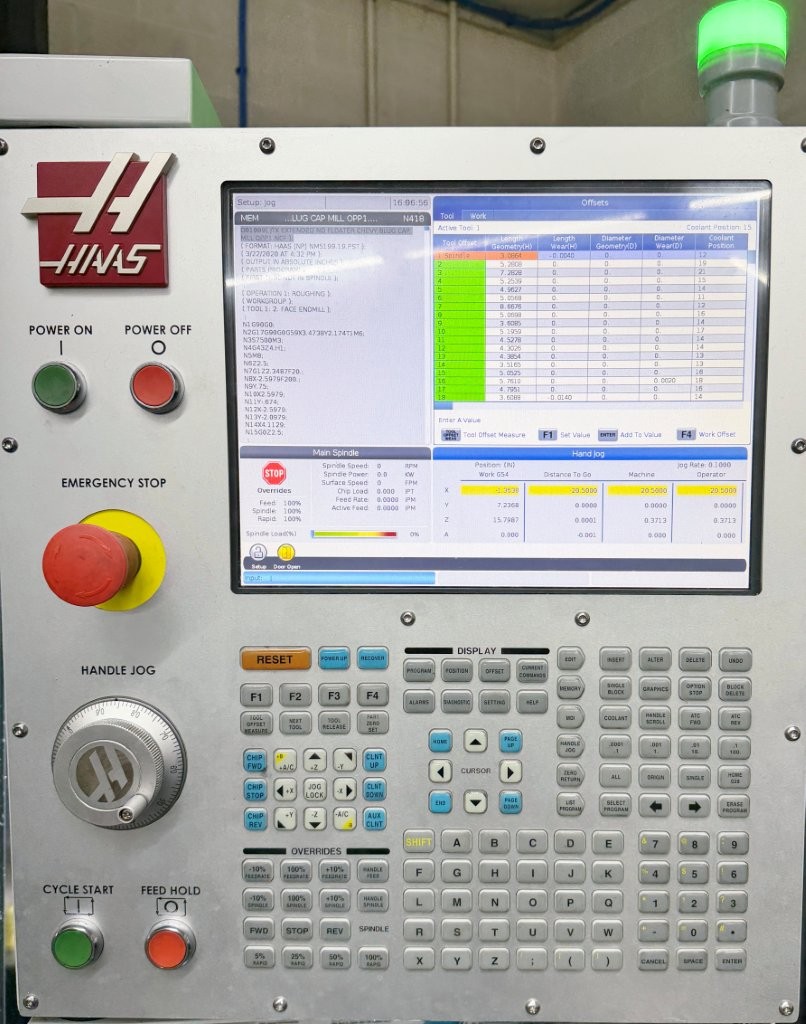

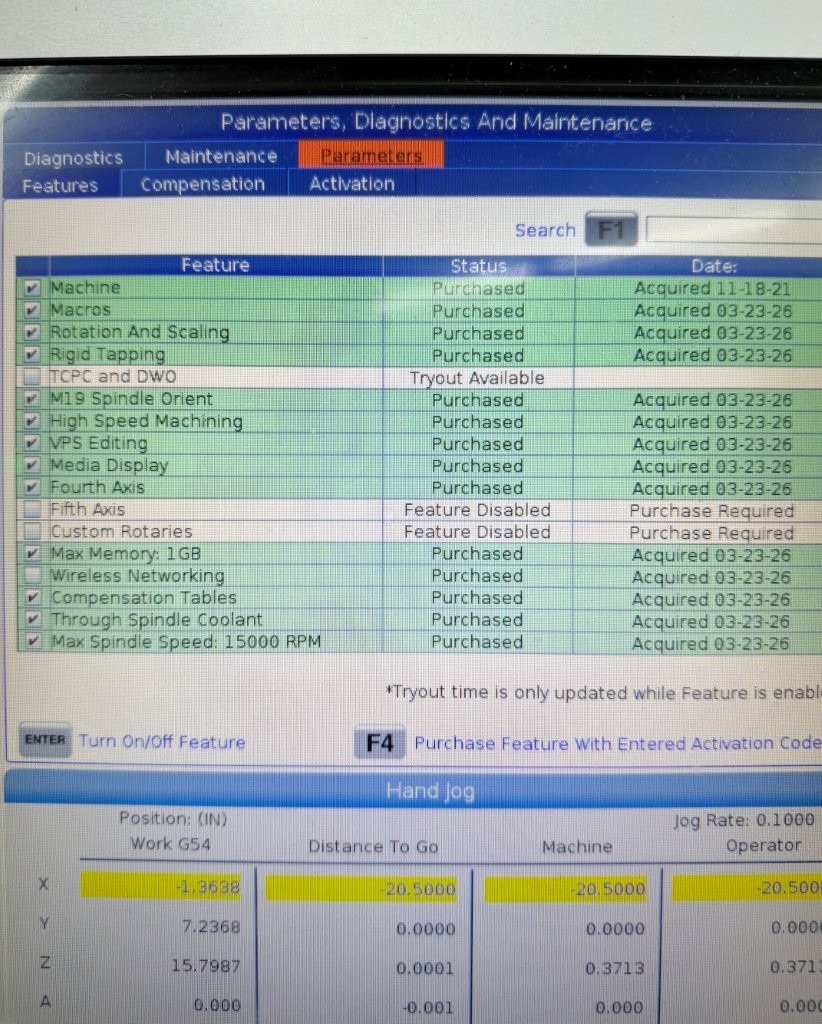

HAAS NEXTGEN CONTROL:
  RIGID TAPPING, ROTATION & SCALING, QUICK CODE,
  M19 SPINDLE ORIENTATION, HIGH SPEED MACHINING,
  INTUITIVE PROGRAMING & ADVANCED TOOL MANAGEMENT
  VISUAL PART PROGRAMMING SYSTEM, MEDIA DISPLY M-CODE
  MACROS, ETHERNET, USB PORT, 1 GB MEMORY, WIFI CONNECTION
  HAAS CONNECT:REMOTE MONITORING
4TH AXIS WIRING & DRIVE(ROTARY TABLE NOT INCLUDED)
WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
RENISHAW PART & TOOL PROBES
THROUGH SPINDLE COOLANT 300 PSI
PROGRAMMABLE COOLANT
COOLANT SYSTEM
AUXILIARY COOLANT FILTRATION SYSTEM
WINDOW AIR BLAST
AUTO DOOR
CHIP AUGER SYSTEM
30 + 1 TOOL SIDE-MOUNTED TOOL CHANGER

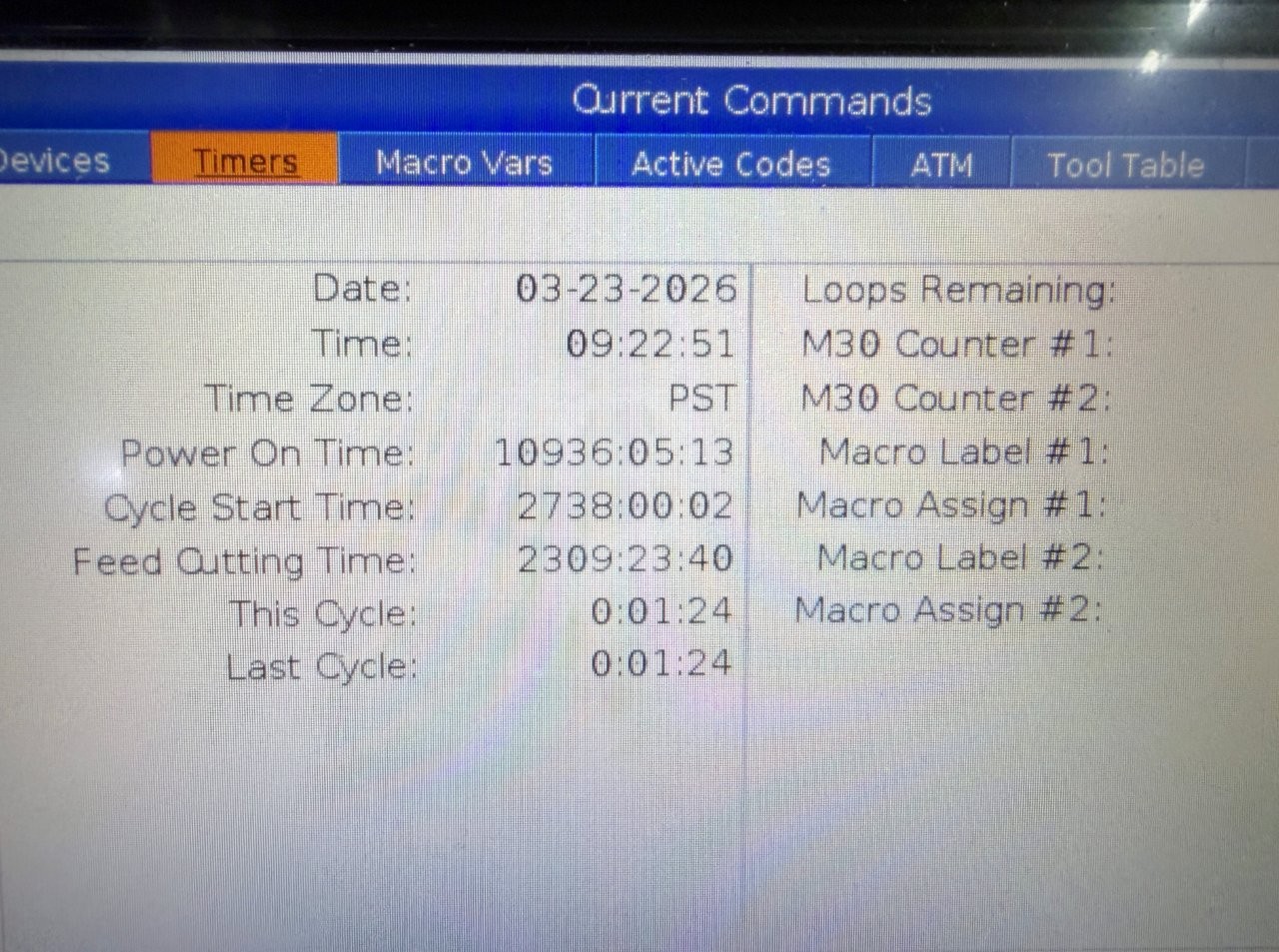

AS OF MARCH 2026, CUTTING TIME 2,309 HOURS
MACHINE CUT PRIMARILY ALUMINUM

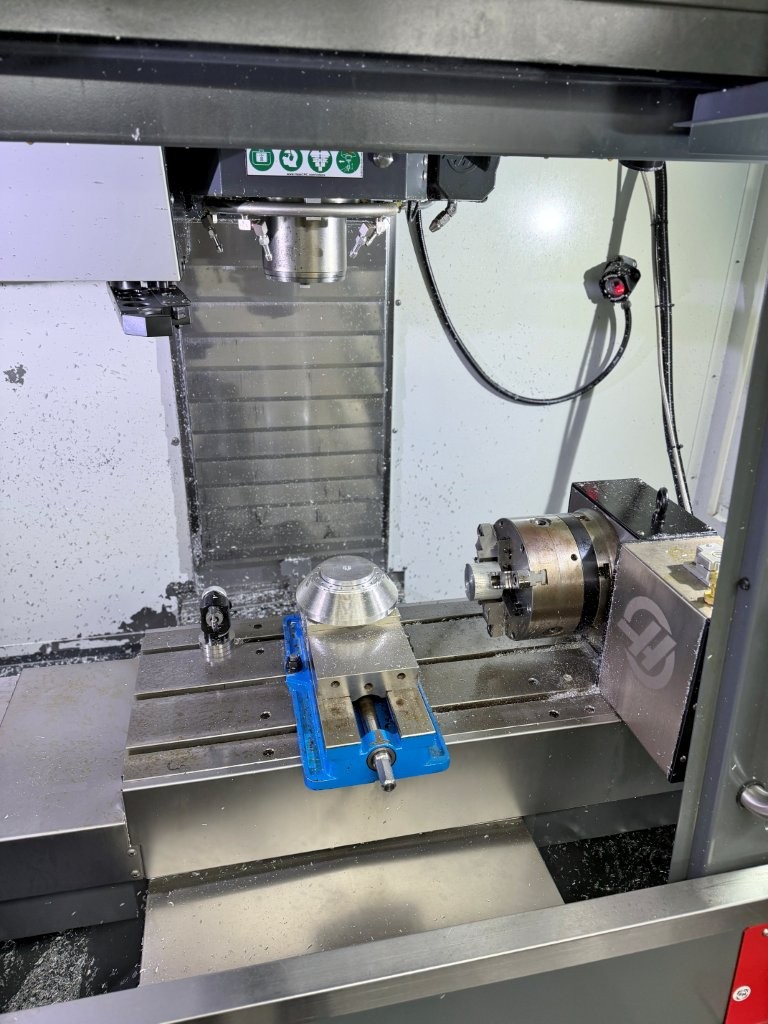

ROTARY TABLE & VICES SHOWN IN PHOTOS ARE NOT INCLUDED
