Haas VF2SSYT 5-Axis VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Haas

Model:: VF2SSYT 5-Axis

Year:: 2020

Ref #:: 178849

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

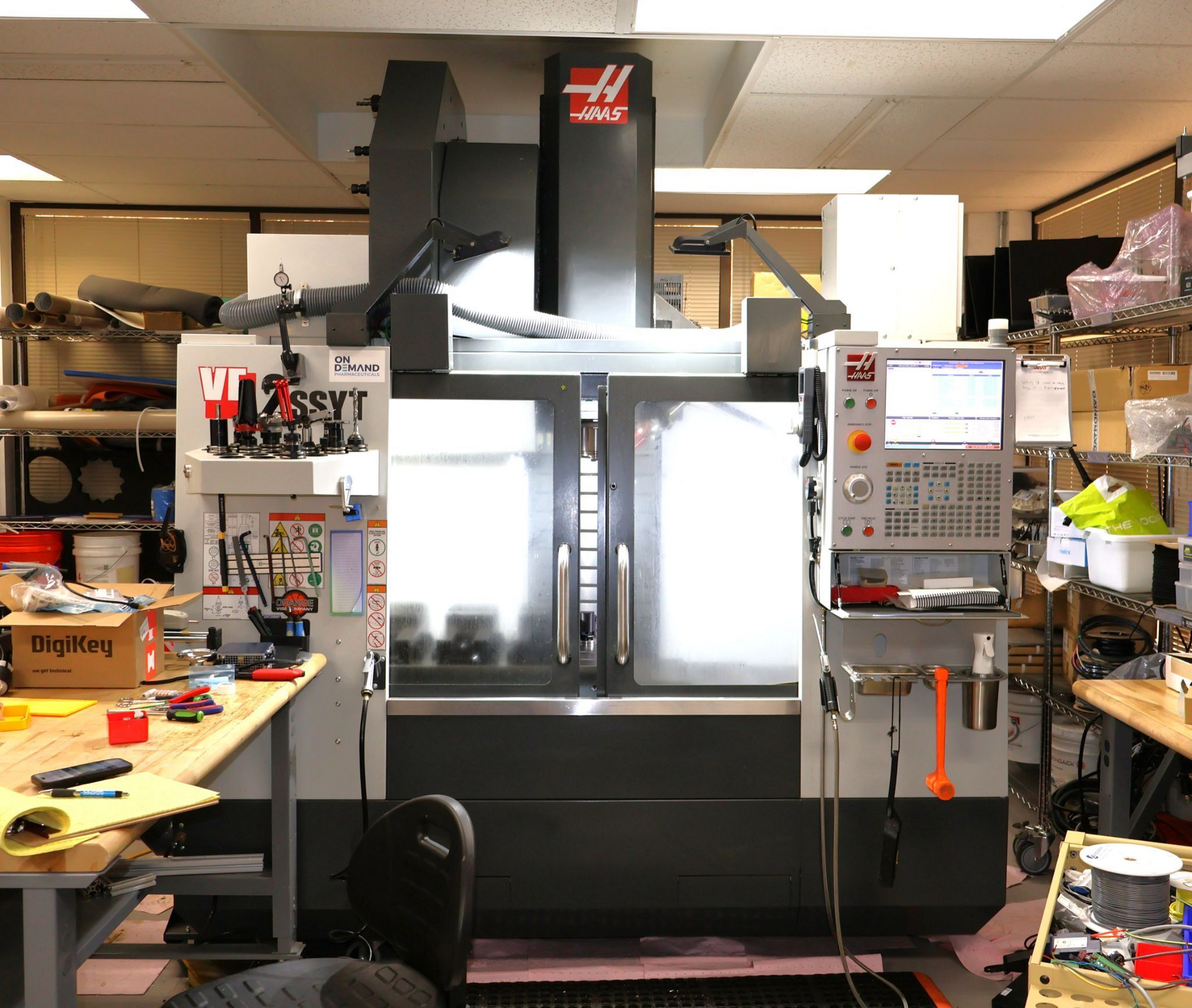

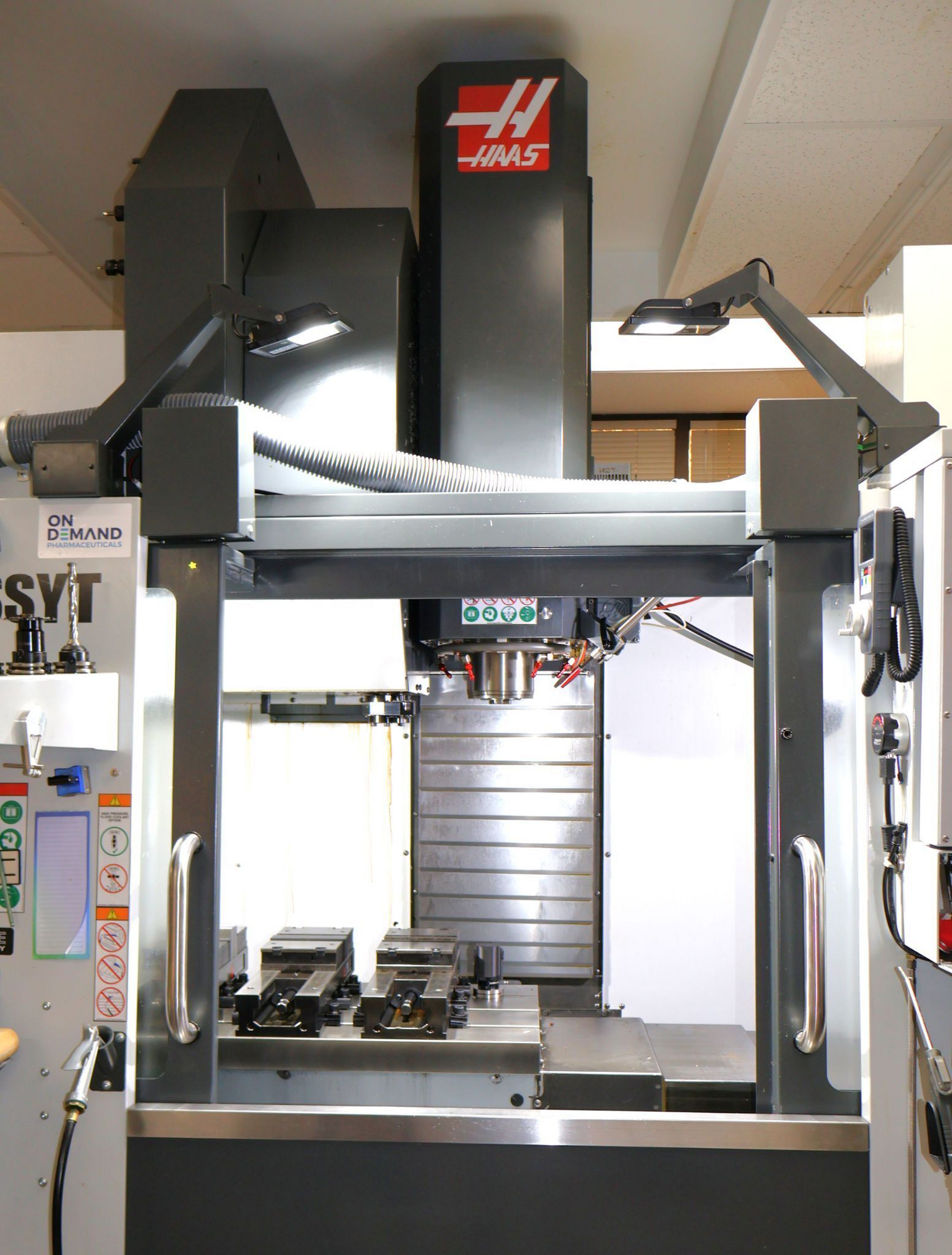

HAAS VERTICAL MACHINING CENTER
MODEL: VF2SSYT, S/N: 1176767, NEW: 2020

SPECIFICATIONS:

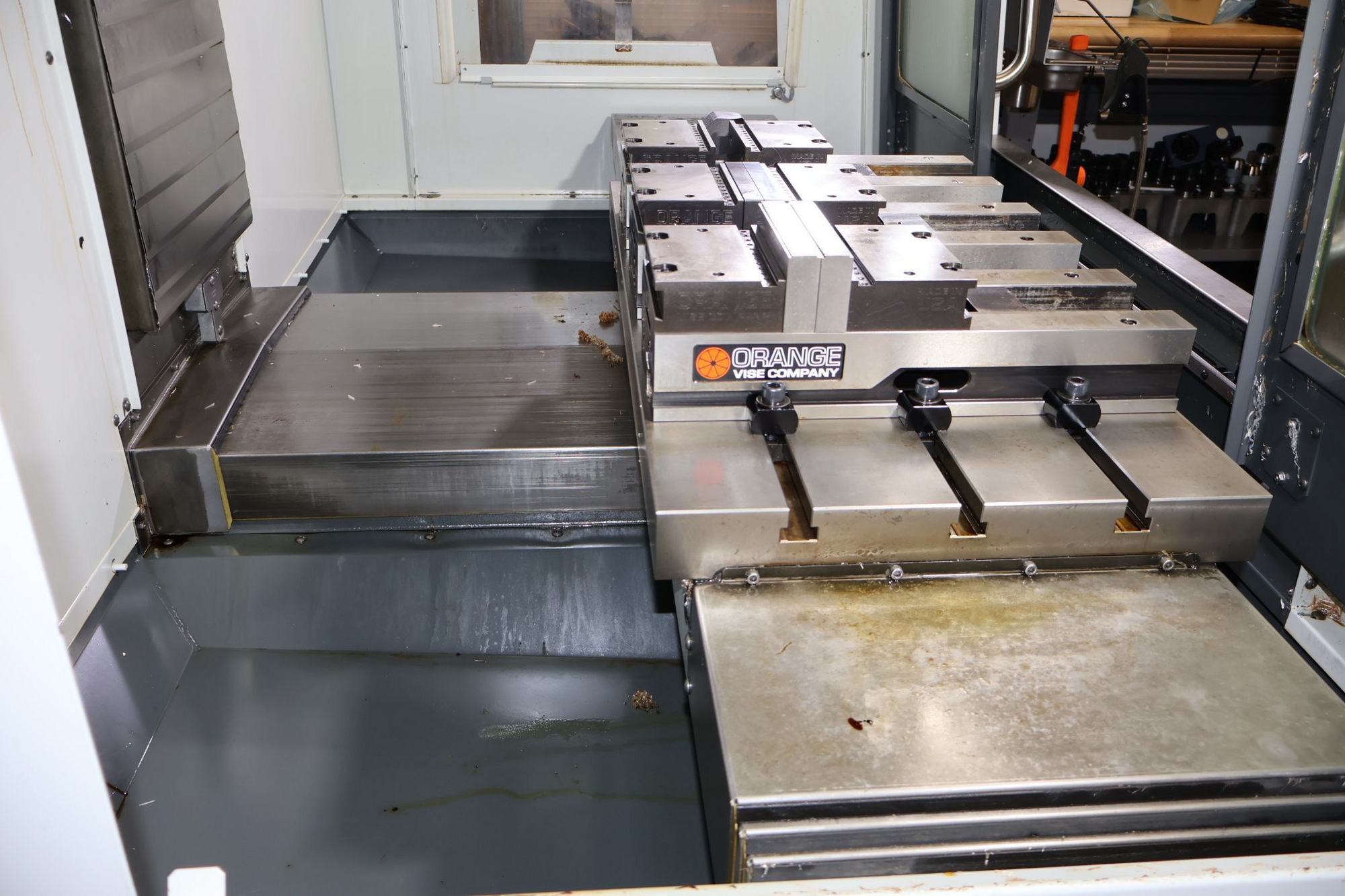

TABLE SIZE ................. 36" x 18"
X-AXIS TRAVEL .............. 30" / 762mm
Y-AXIS TRAVEL .............. 20" / 508mm
Z-AXIS TRAVEL .............. 20" / 508mm
SPINDLE SPEED .............. 15,000 RPM
SPINDLE MOTOR .............. 30 HP
SPINDLE TAPER .............. CAT 40
TOOL CAPACITY (ATC) ........ 50
RAPID TRAVERSE - X AXIS .... 1,400 IPM
RAPID TRAVERSE - Y AXIS .... 1,400 IPM
RAPID TRAVERSE - Z-AXIS .... 1,400 IPM
CUTTING FEEDRATE ........... 833 IPM
APPROXIMATE WEIGHT ......... 8,000 LBS

EQUIPPED WITH:

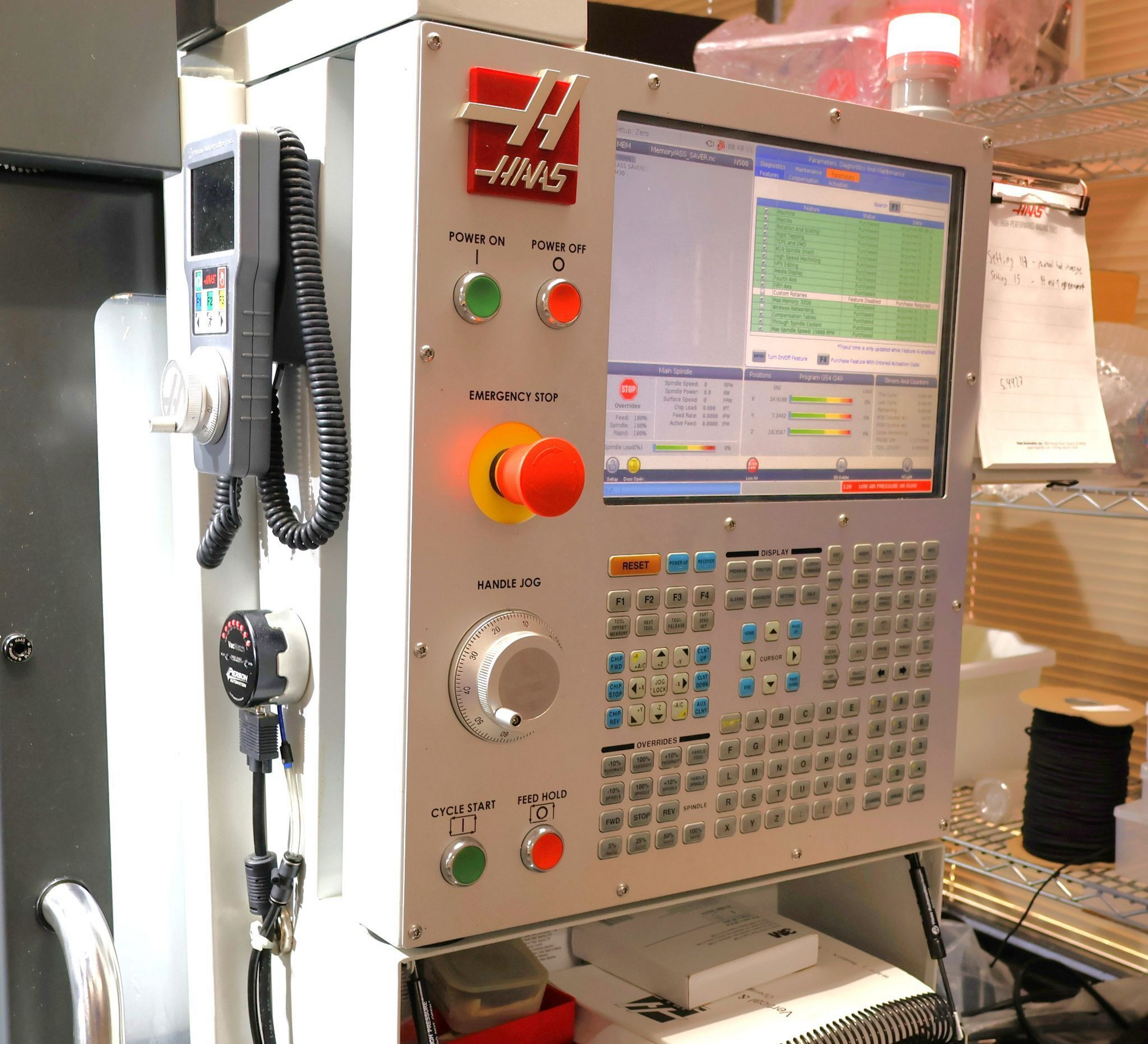

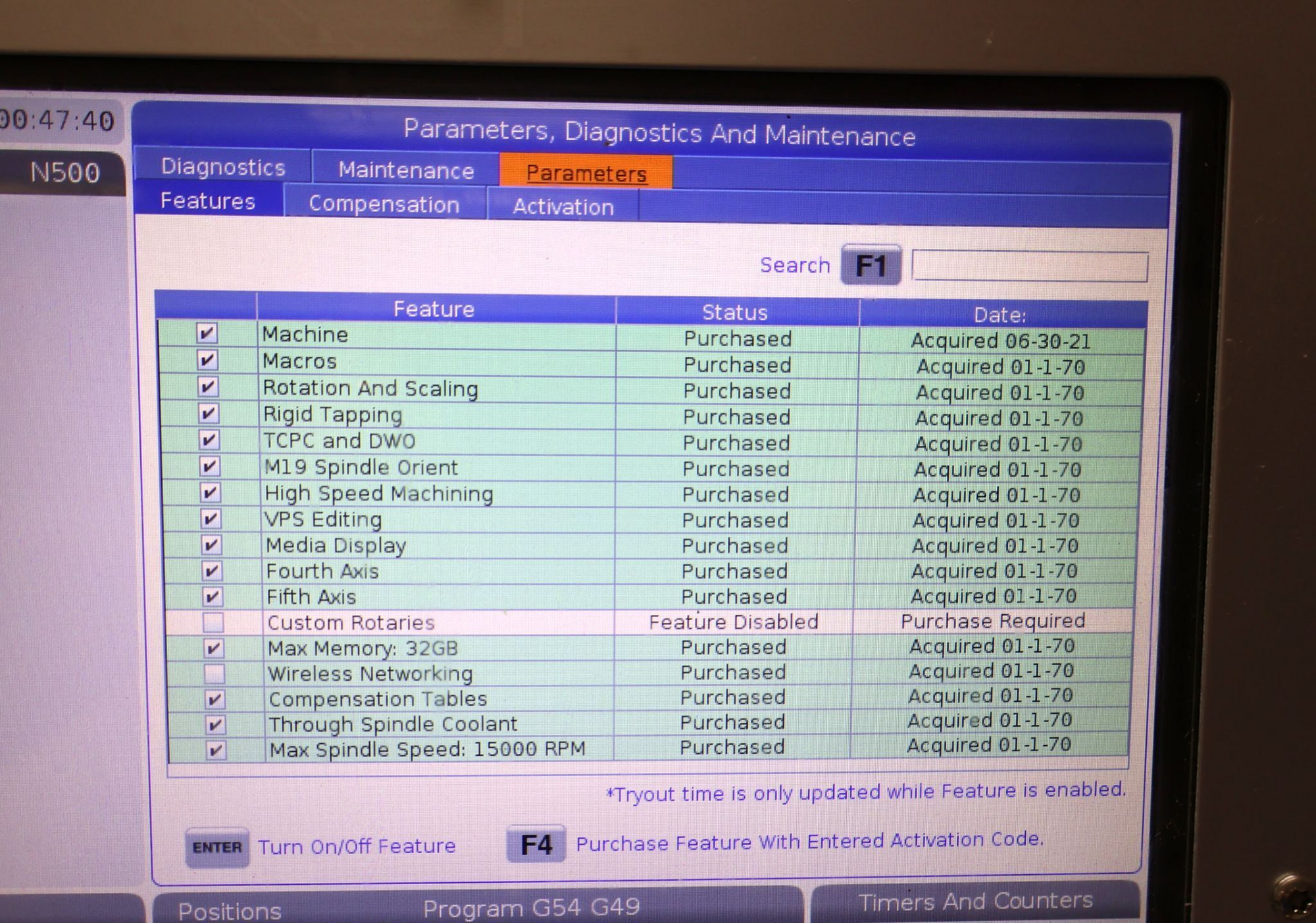

HAAS 5-AXIS CONTROL:
   MACROS, ROTATION & SCALING, RIGID TAPPING,
   M19 SPINDLE ORIENT, HIGH SPEED MACHINING, VPS EDITING
   MAX MEMORY: 32 GB, WIRELESS NETWORKING
   DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL (DWO & TCPC)

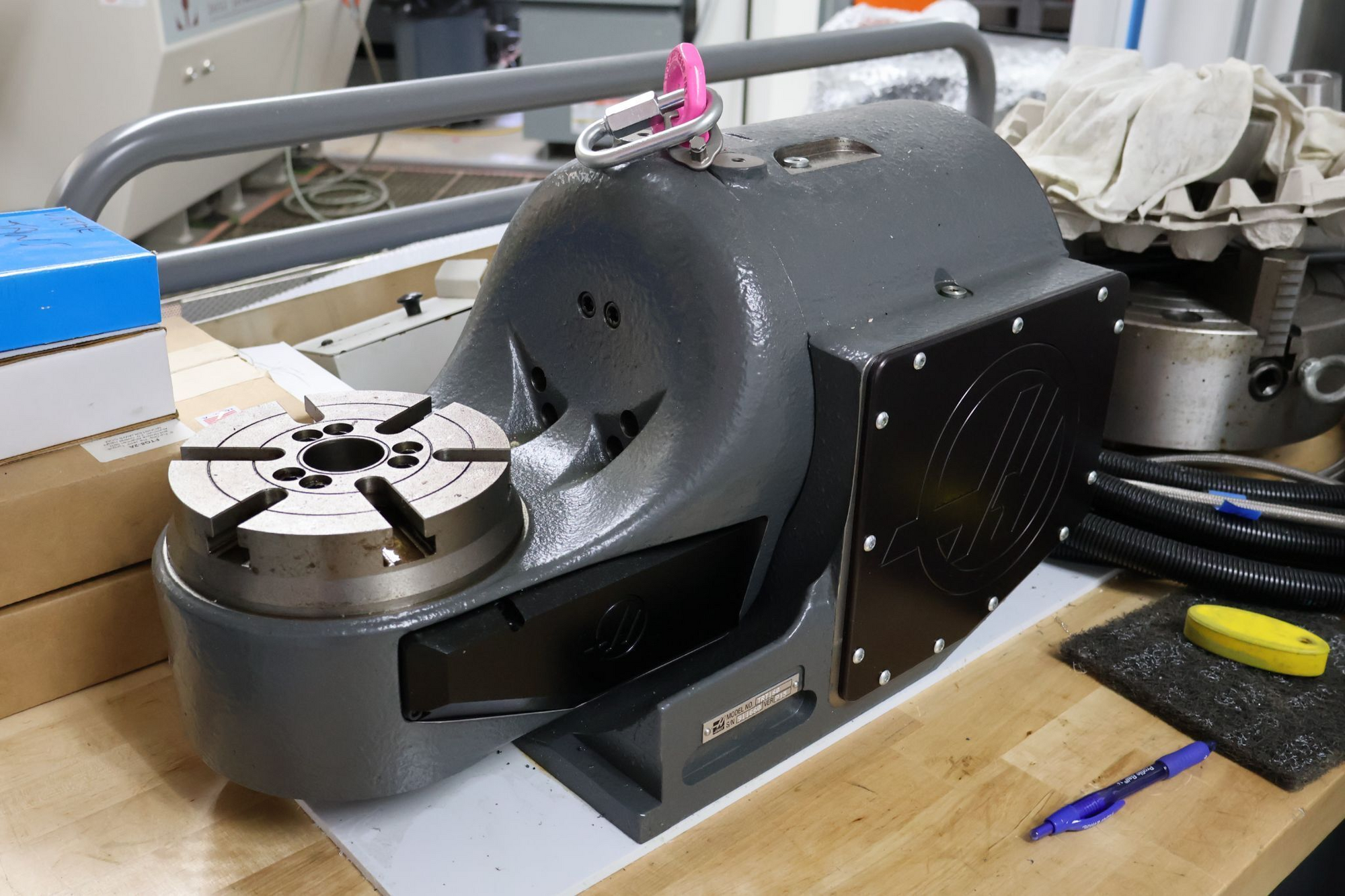

HAAS TRT-160 TRUNNION TABLE (4TH & 5TH AXIS DRIVES + WIRING)
WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
50 POSITION SIDE MOUNT AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT, 300 PSI

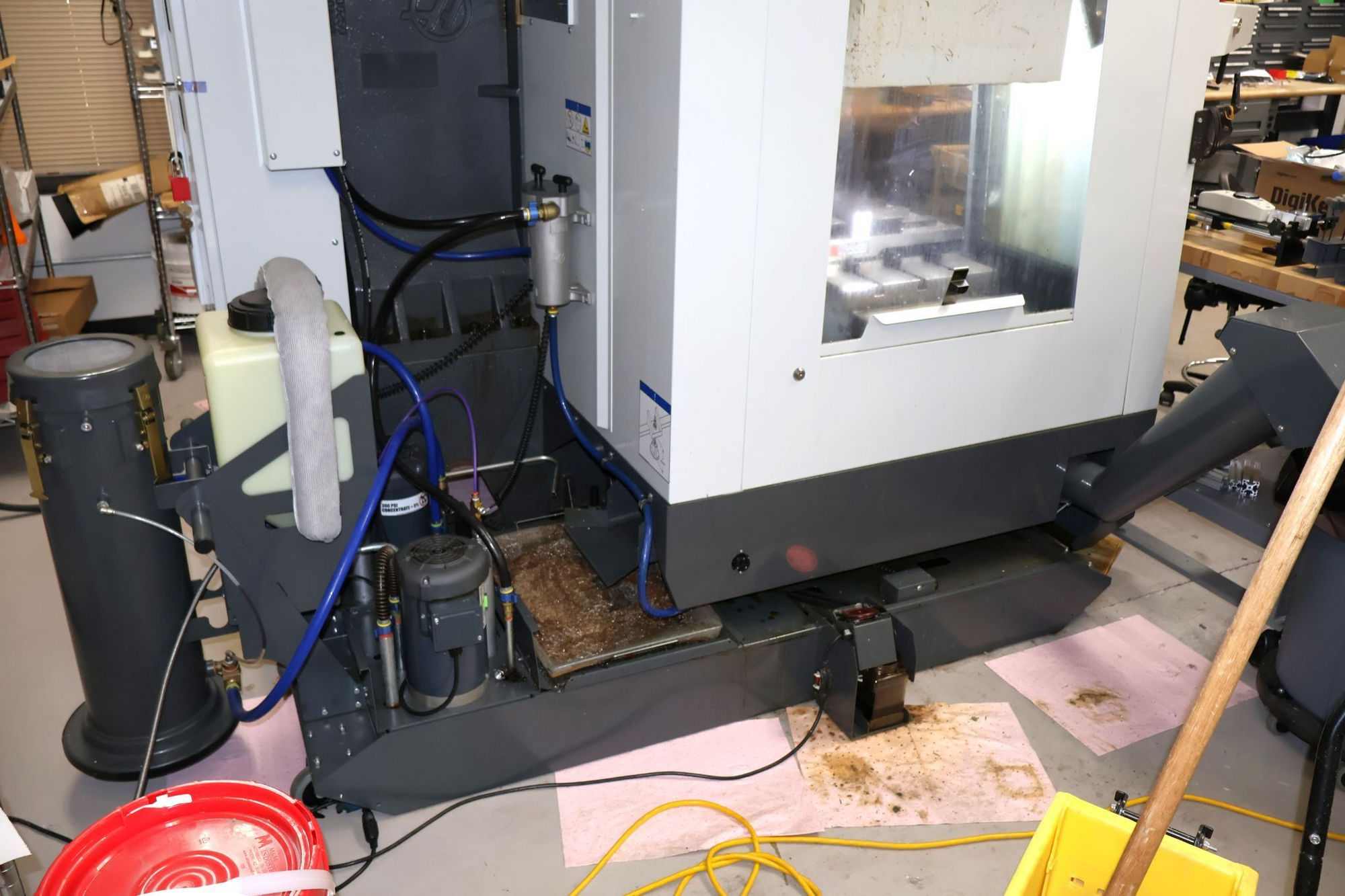

CHIP AUGER
HAAS MIST CONDENSER
AUXILIARY COOLANT FILTRATION SYSTEM
AUTOMATIC COOLANT REFILL
HIGH INTENSITY LIGHTING
AIR GUN
REMOTE JOG HANDLE

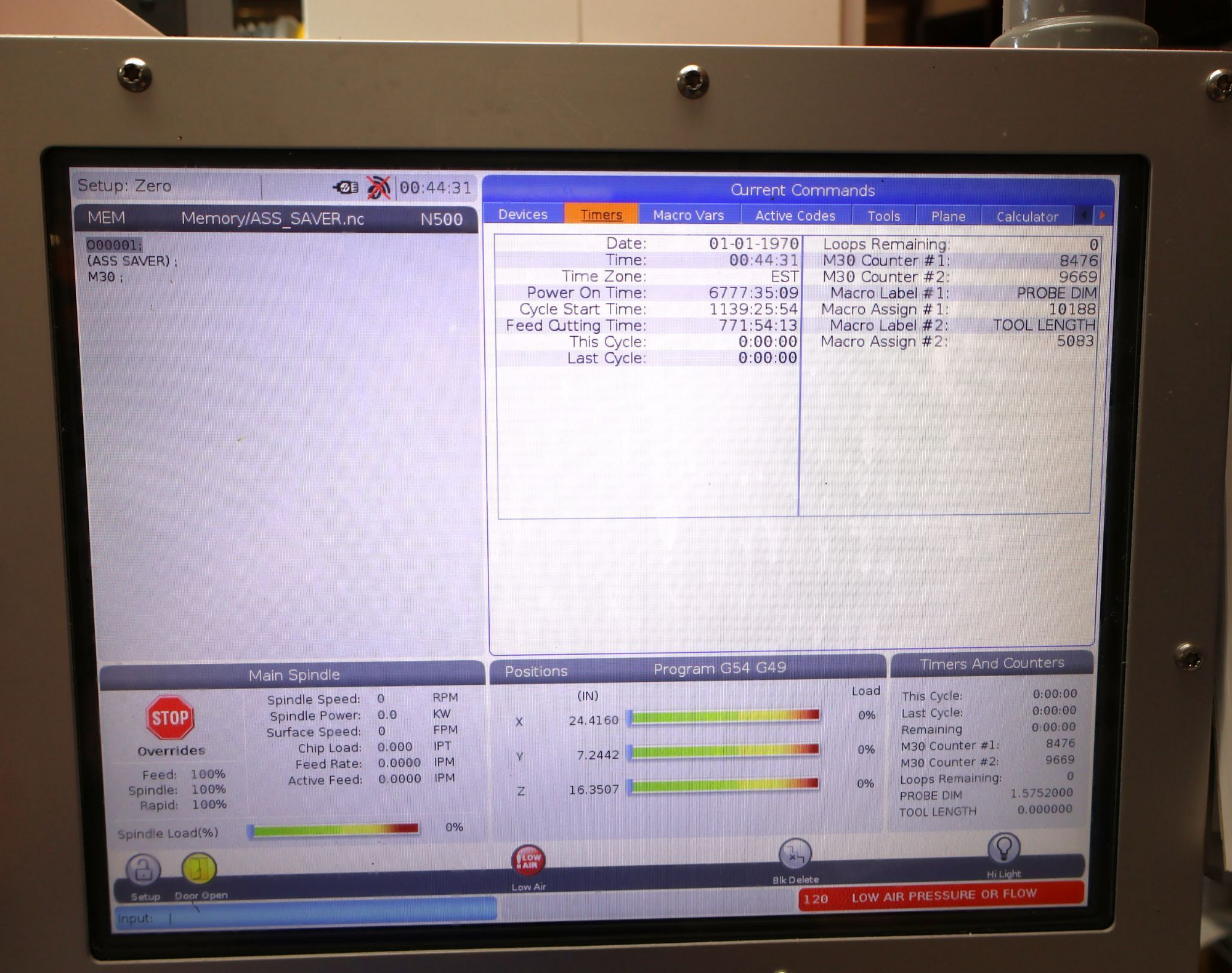

HOURS OF OPERATION AS OF OCTOBER 22, 2025:
* POWER ON TIME: 6,777 HOURS
* CYCLE START TIME: 1,139 HOURS
* FEED CUTTING TIME: 771 HOURS

HISTORY: MACHINE WAS IN A SMALL SUPPORT SHOP FOR A PRIVATELY HELD PHARMACEUTICAL COMPANY, VERY LIGHT WORK.

REPLACEMENT COST FOR ABOVE HAAS VF-2SSYT AS EQUIPPED WITH TRT-160 TRUNNION TABLE: $220,000

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
