Hardinge HC Like NEW PRECISION LATHES LIKE HARDINGE

$9,500

Make:: Hardinge

Model:: HC Like NEW

Year:: 1990

Ref #:: 179085

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

HARDINGE PRECISION CHUCKING LATHE

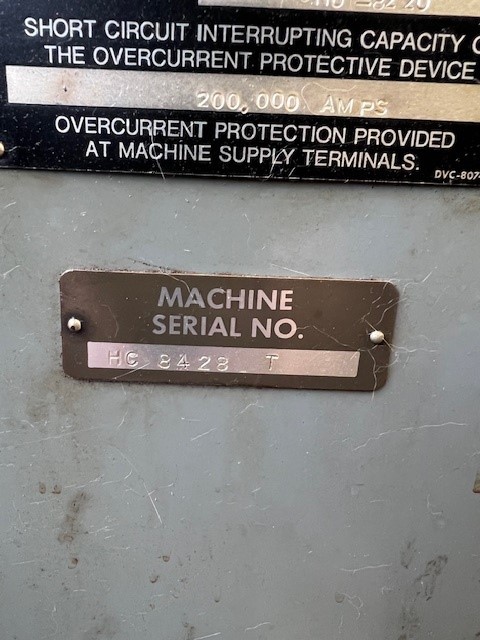

MODEL: HC, S/N: HC 8428-T, NEW: 1990

SPECIFICATIONS:
MAX FIXTURE DIAMETER ................. 9"
MAX DISTANCE FROM FACE OF TURRET
    TO SPINDLE ....................... 14"
SPINDLE CAPACITY
    WITH ROUND 5C COLLETS ............ 1-1/16"
    WITH 5C STEP CHUCKS .............. 1-1/16" TO 6"
    WITH JAW CHUCKS .................. 6"
SPINDLE TAPER ........................ HARDINGE THREADED NOSE
TRAVEL OF CROSS SLIDE ................ 4-1/2"
CROSS SLIDE POWER FEED RANGE ......... 11/32 TO 6-1/4 IPM
CARRIAGE POWER FEED RANGE ............ 1/4 TO 10 IPM
VARIABLE SPINDLE SPEEDS, (3 SELECTOR)
    LOW SPEEDS ....................... 125 - 1,100 RPM
    HIGH SPEEDS ...................... 1100 - 3,000 RPM
APPROXIMATE WEIGHT ................... 1,750 LBS.

EQUIPPED WITH:

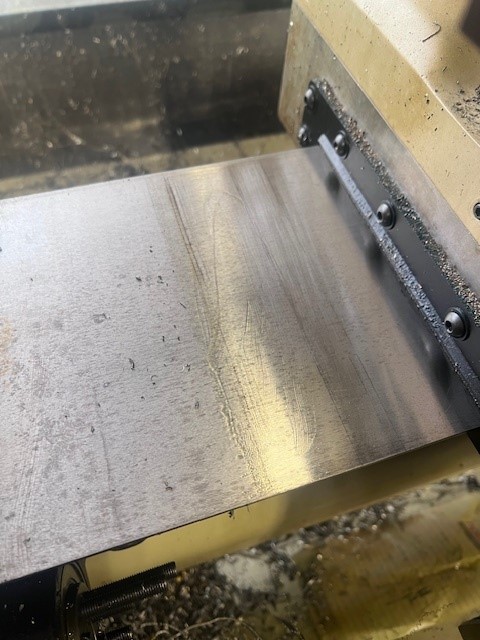

- HARDENED AND GROUND DOVETAIL BED
- LEVER-TYPE COLLET CLOSER FOR TYPE 5C COLLETS
- INDEPENDENT ELECTRICAL VARIABLE POWER FEED TO CARRIAGE
- EIGHT STATION CROSS FEEDING TURRET
- EIGHT POSITION TURRET-TYPE CARRIAGE STOP
- SELF-CONTAINED COOLANT SYSTEM
- ASSORTMENT OF TURRET TOOLS
- ASSORTMENT OF 5C COLLETS
MACHINE WIRED FOR THREE PHASE 60 CYCLE 208 VOLT OPERATION


INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   SUPERB-ORIGINAL PAINT!!
