Hardinge HLV-EM PRECISION LATHES LIKE HARDINGE

$27,500

Make:
Hardinge
Model:
HLV-EM
Year:
1985
Ref #:
178248

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

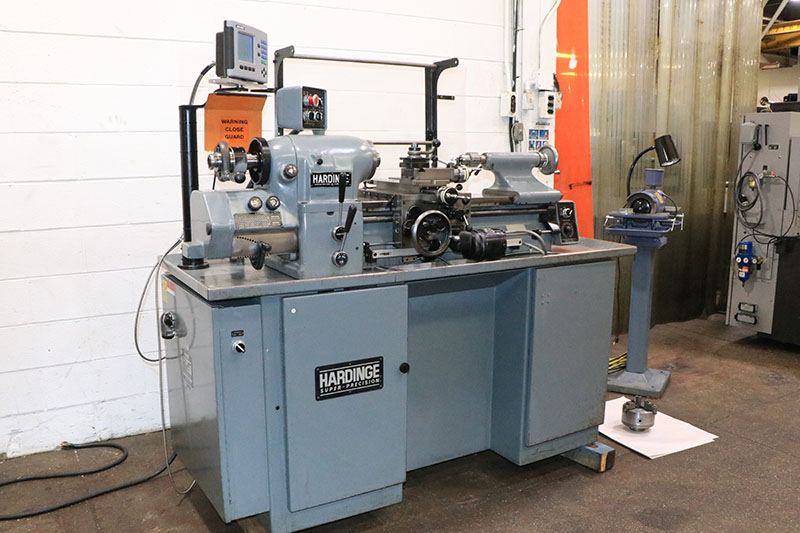

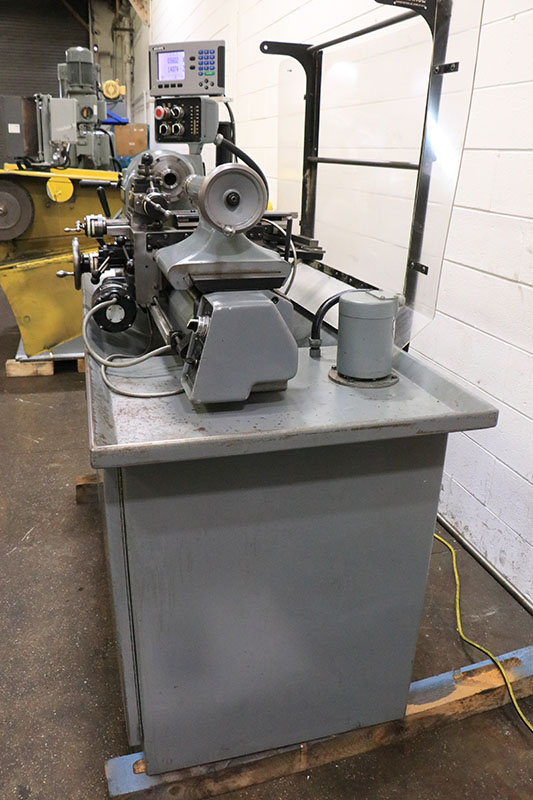

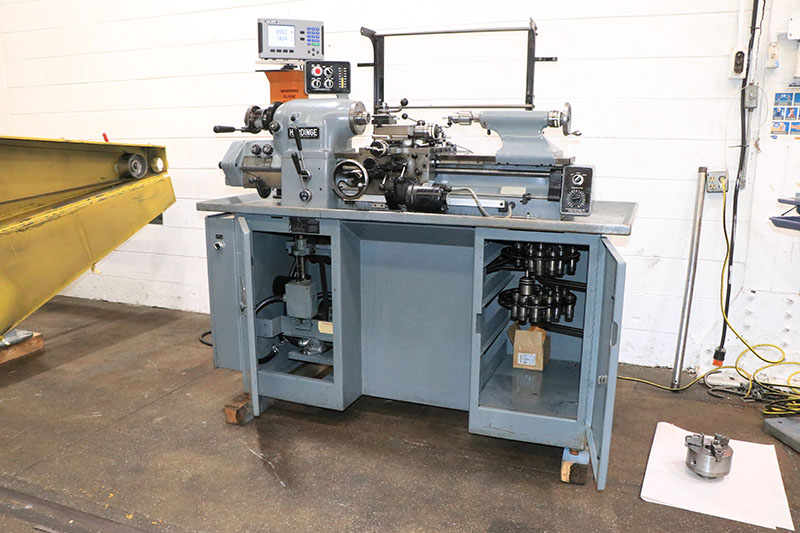

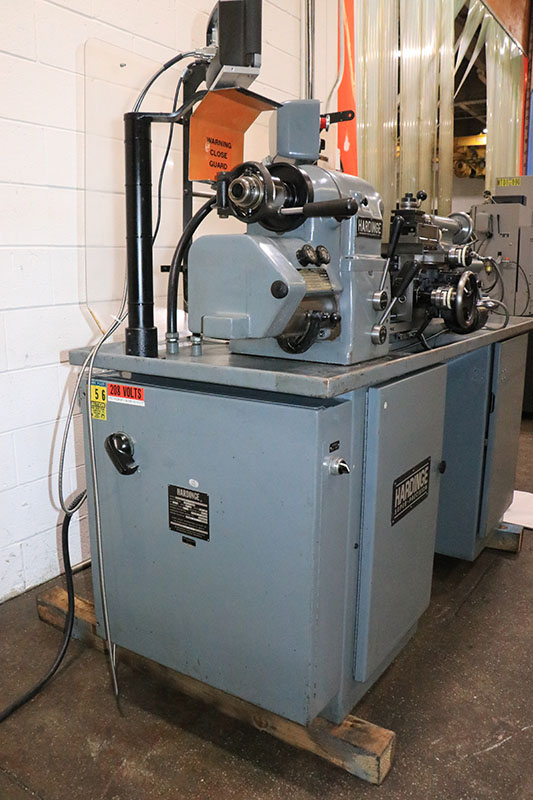

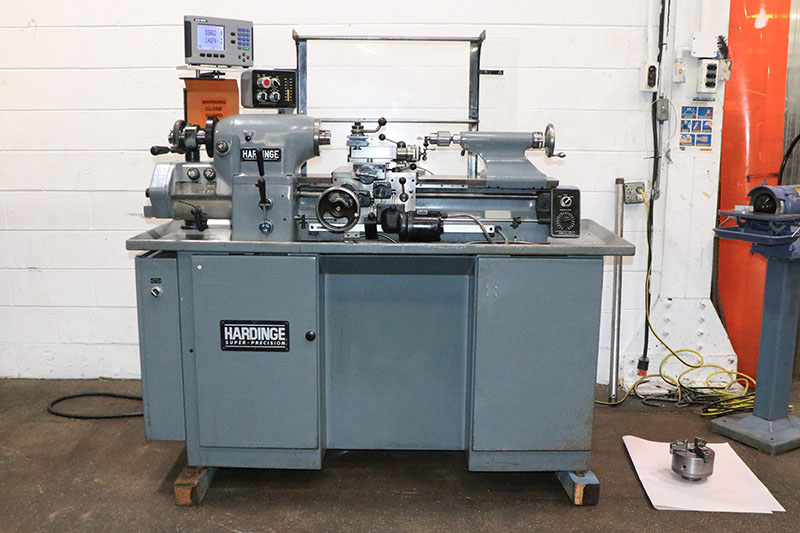

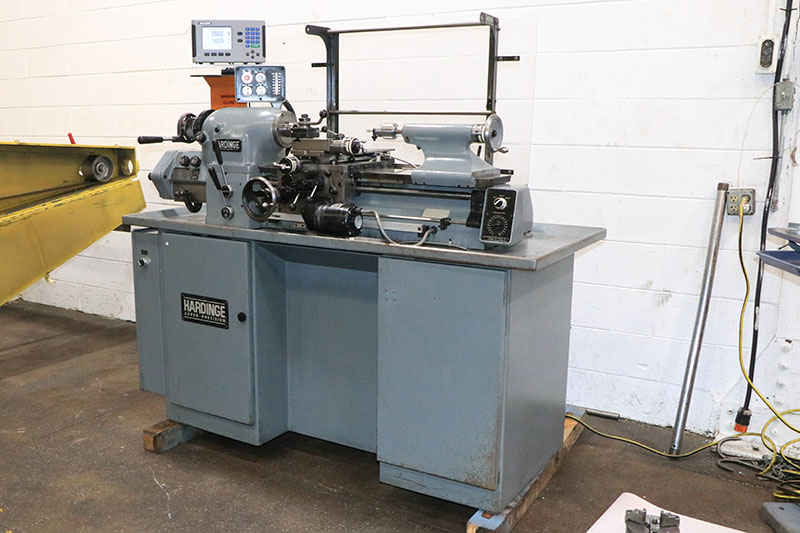

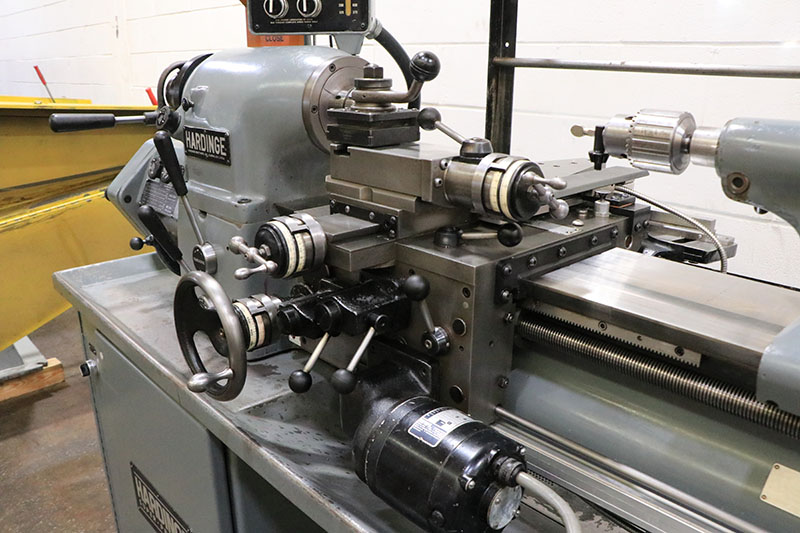

HARDINGE SUPER PRECISION TOOL ROOM LATHE

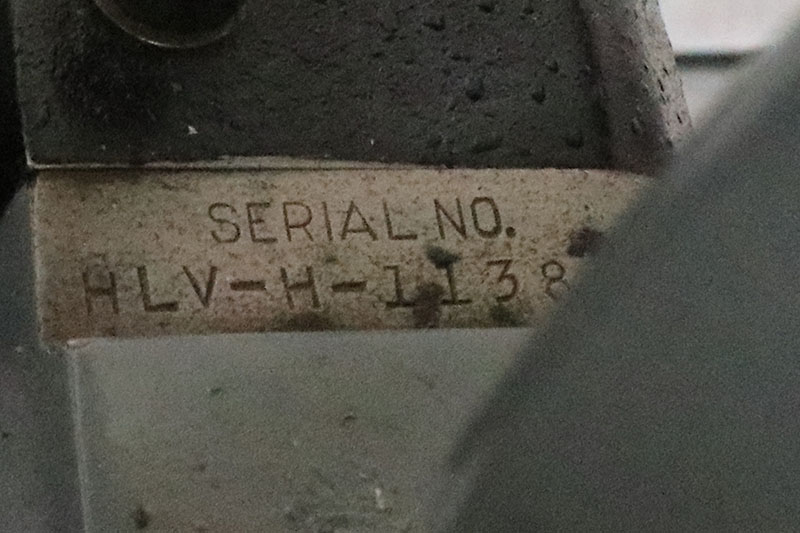

MODEL: HLV-EM, S/N: HLV-H-11386-T, NEW: 1985

SPECIFICATIONS:
SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING

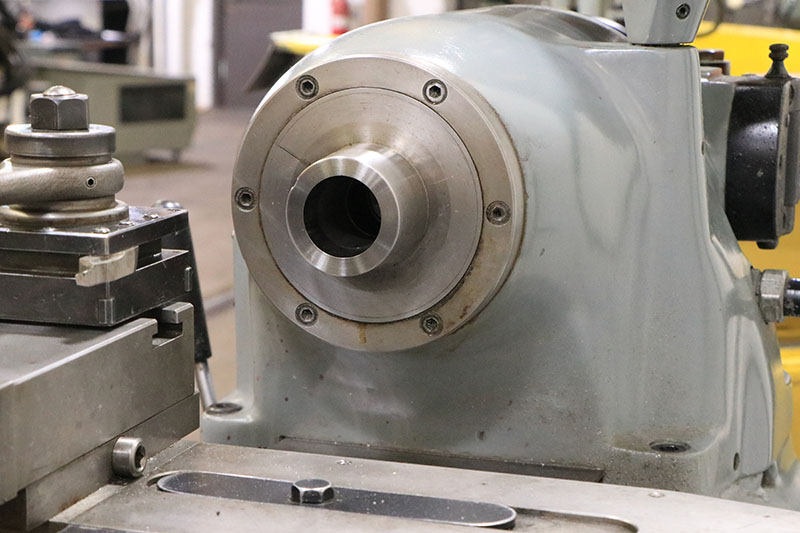

SPINDLE NOSE ......................... HARDINGE TAPERED
SPINDLE CAPACITY:
    WITH ROUND TYPE 5C COLLETS ....... 1-1/16"
WITH STEP CHUCKS ..................... 1-1/16" TO 6"
WITH JAW CHUCKS ...................... 5"
WITH EXPANDING COLLETS ............... 3"

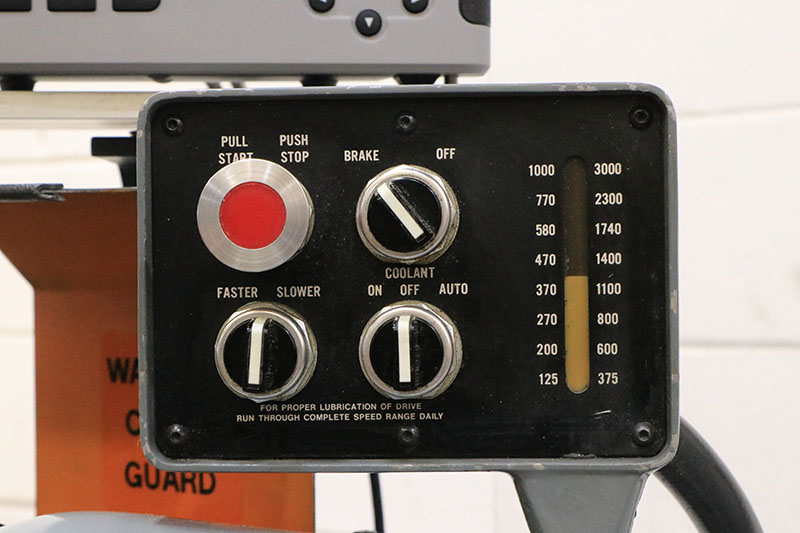

VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"
CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.

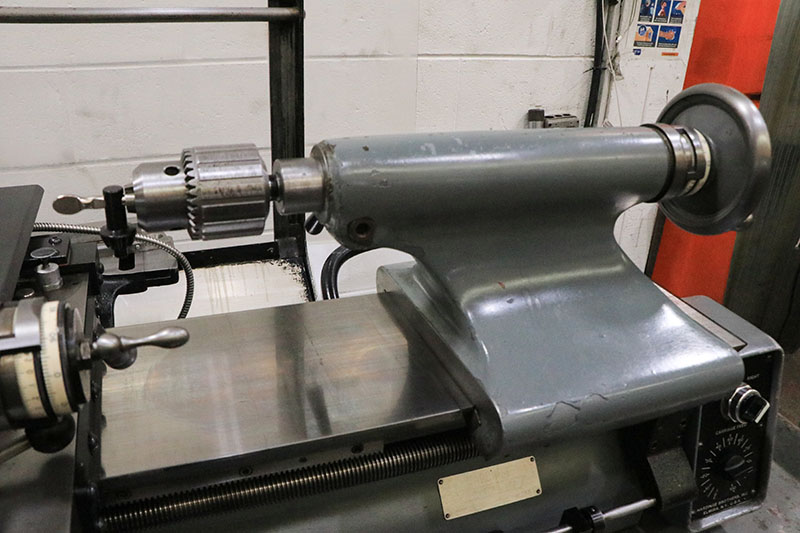

TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT
TAILSTOCK SPINDLE TRAVEL ............. 3-3/4"
INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
APPROXIMATE MACHINE DIMS ... LxWxH ... 68" x 30" x 60"
APPROXIMATE WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:

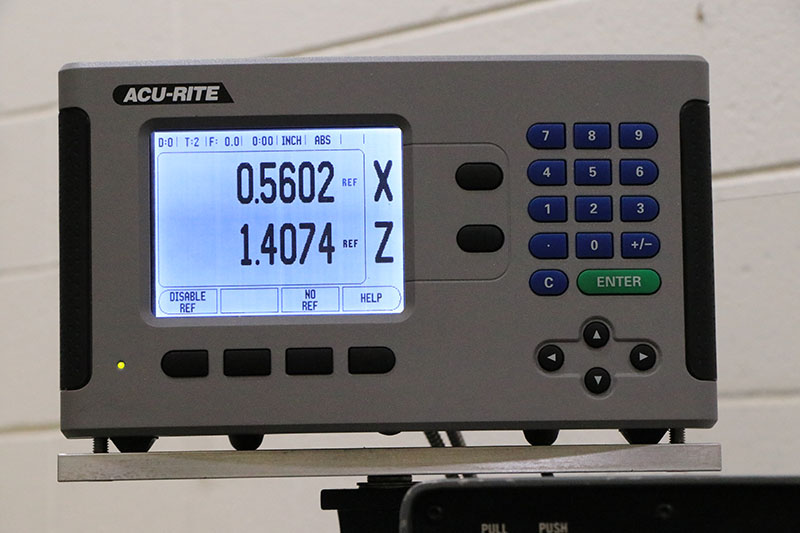

- ACU-RITE TWO AXIS DIGITAL READOUT

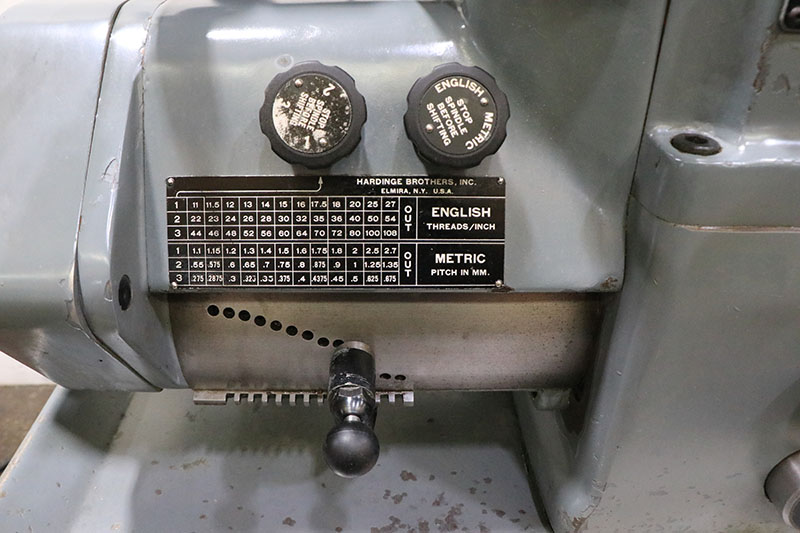

- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING
- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK

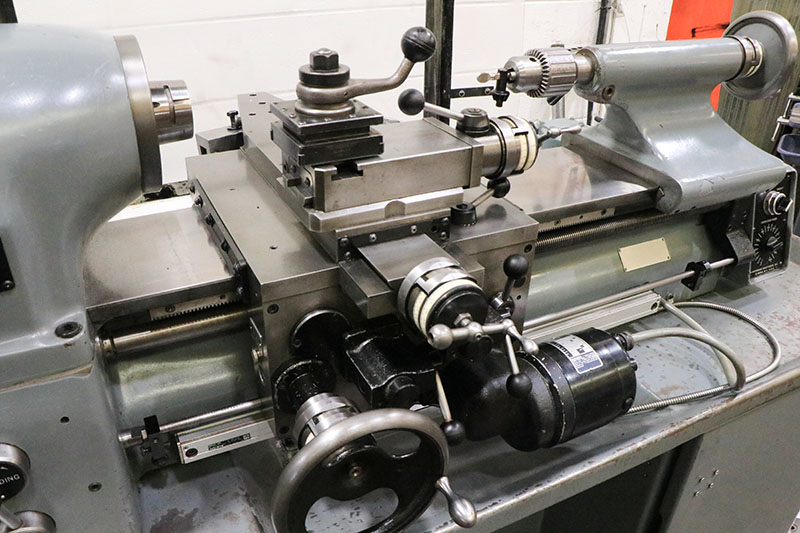

- TAPER TURNING ATTACHMENT

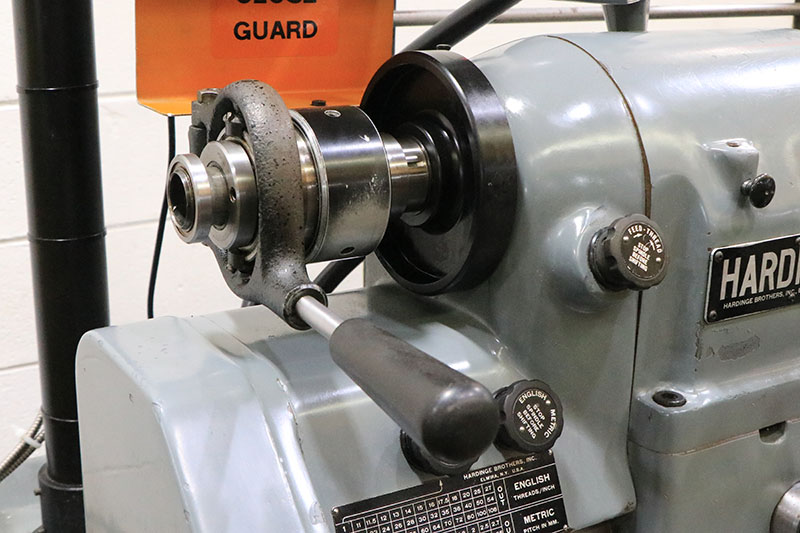

- HARDINGE BALL BEARING QUICK ACTING 5C COLLET CLOSER

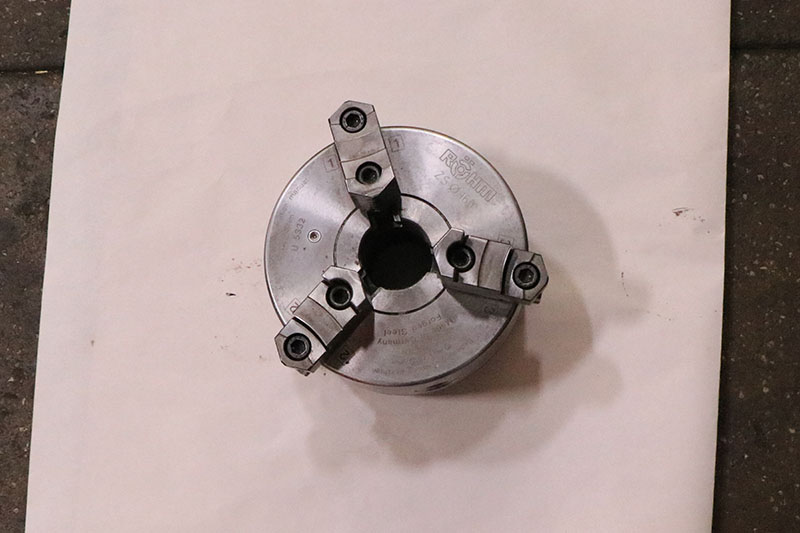

- 6" 3-JAW ROHM CHUCK

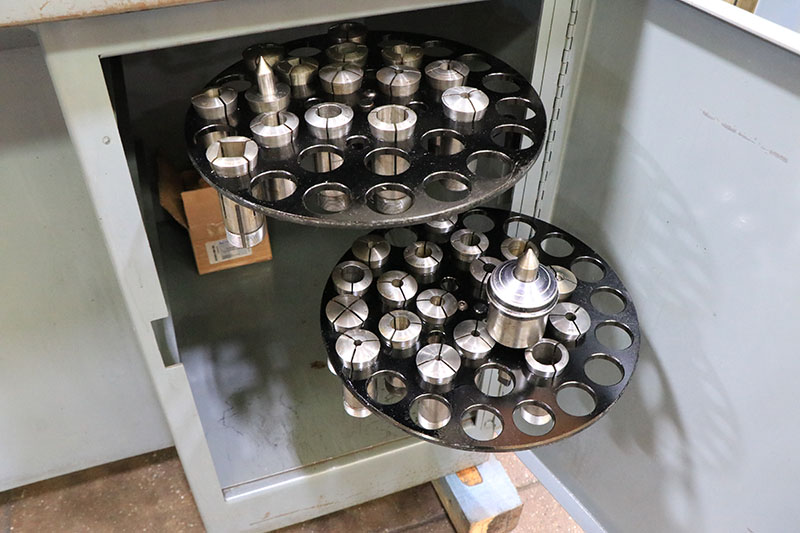

- ASSORTMENT OF 5C COLLETS
- HARDINGE FOURWAY TURRET TOOLPOST
- LIVE CENTER FOR TAILSTOCK
- 5/8" CAPACITY DRILL CHUCK FOR TAILSTOCK
- SELF-CONTAINED COOLANT SYSTEM

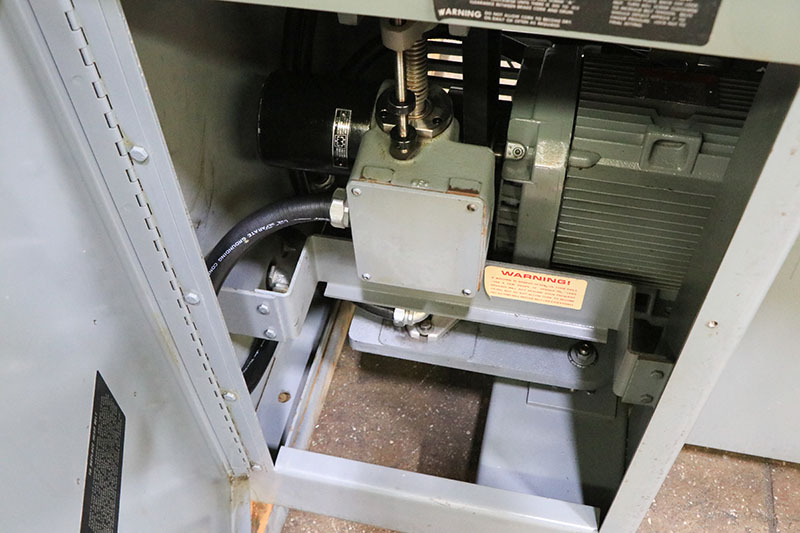

- 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.

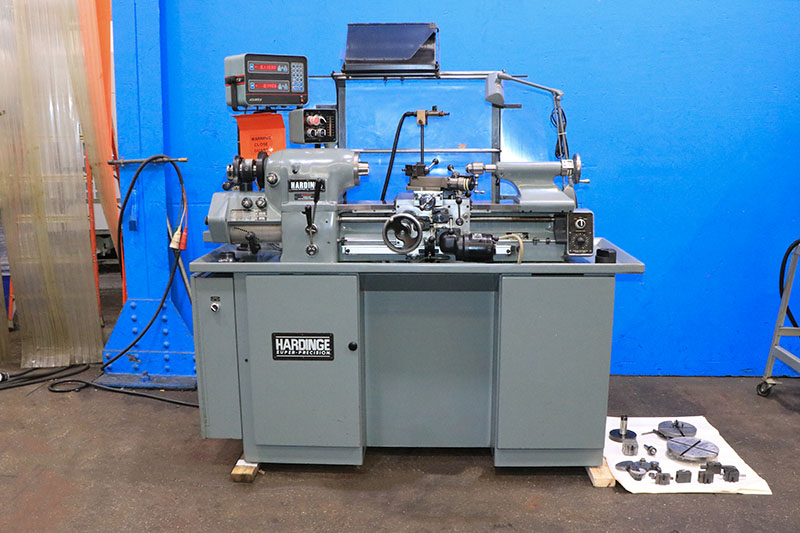

Similar Machines
