HENNINGER ZS-100, NEW 1998, MADE IN GERMANY CENTER HOLE GRINDERS

Price on Request

Make:: HENNINGER

Model:: ZS-100, NEW 1998, MADE IN GERMANY

Year:: 1998

Ref #:: 169088

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

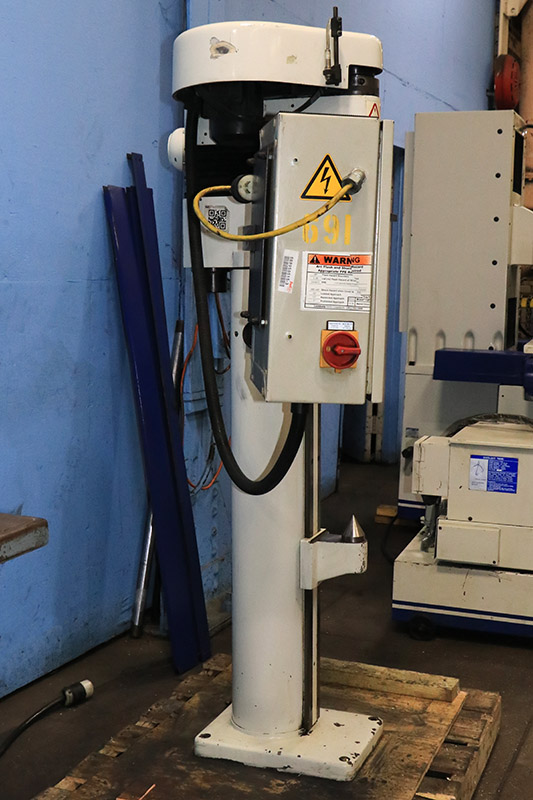

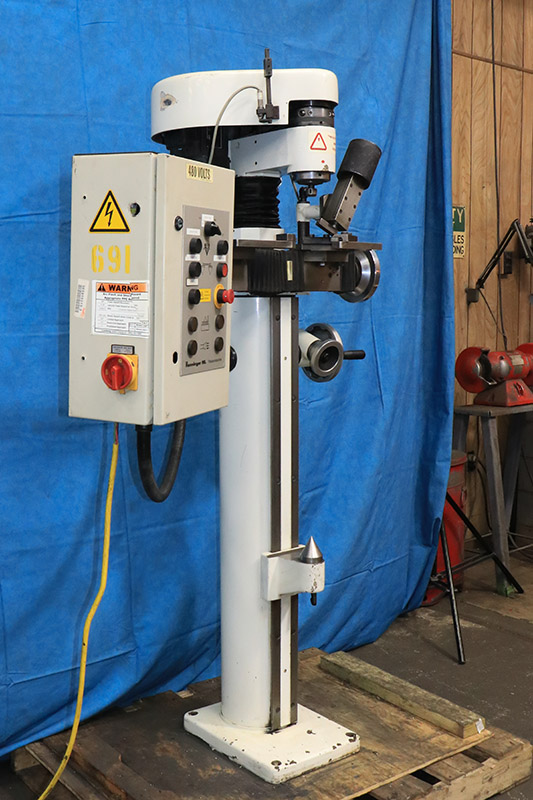

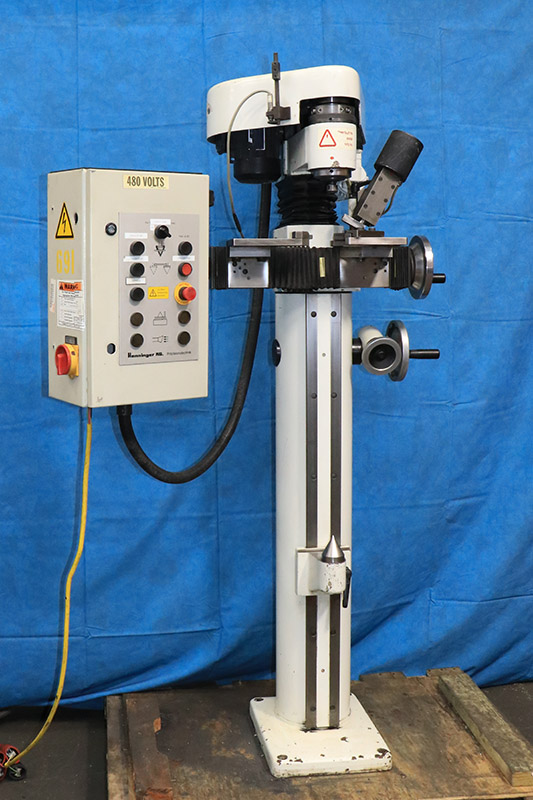

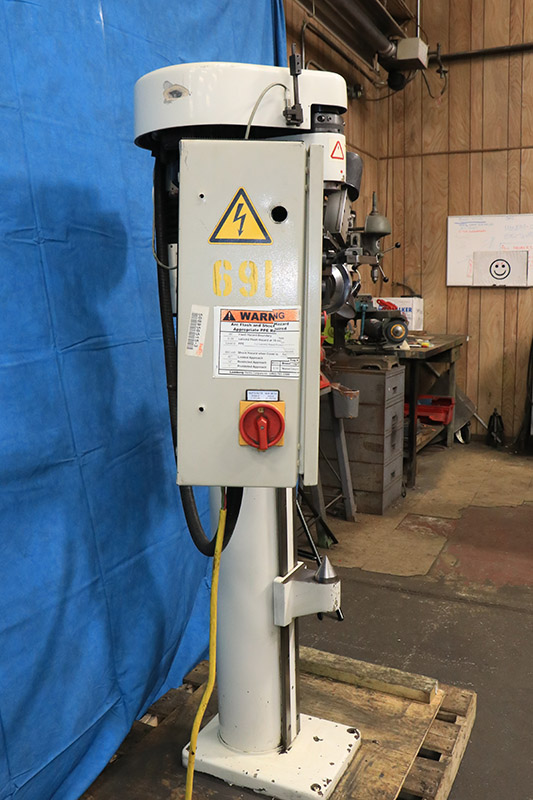

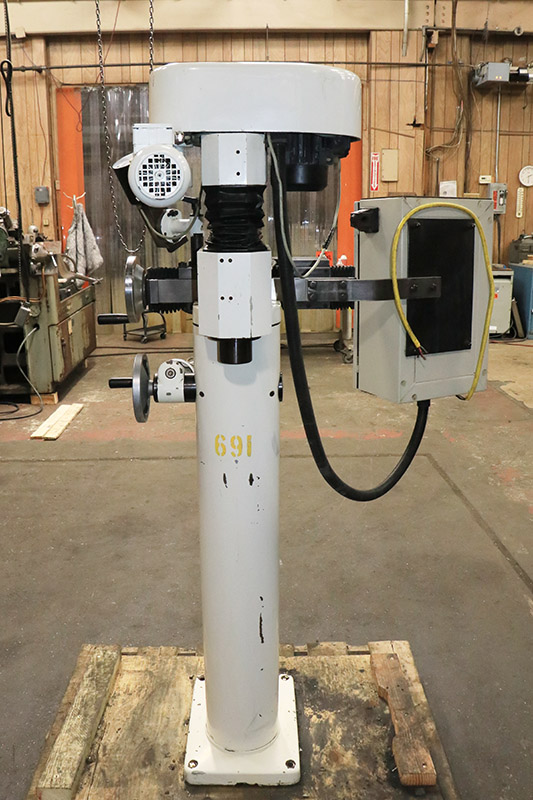

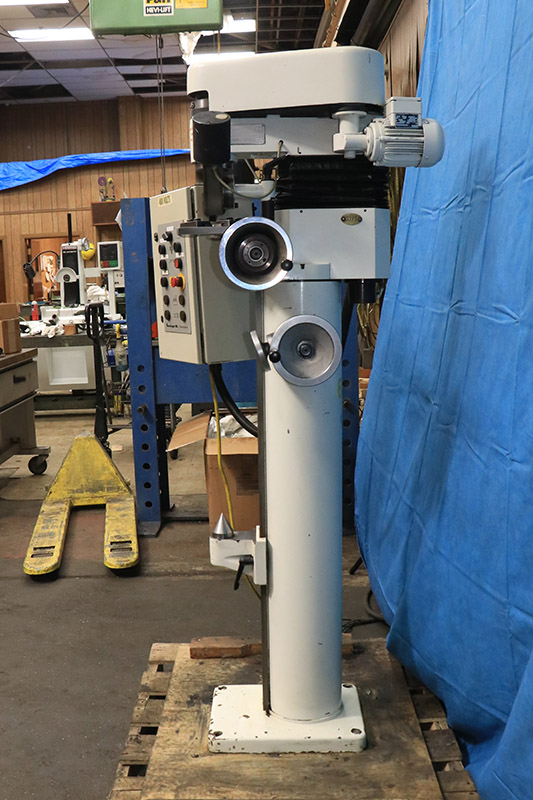

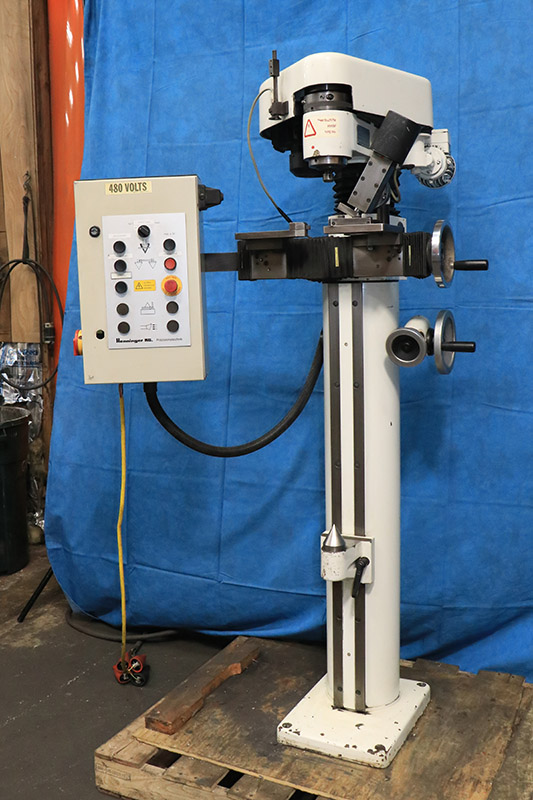

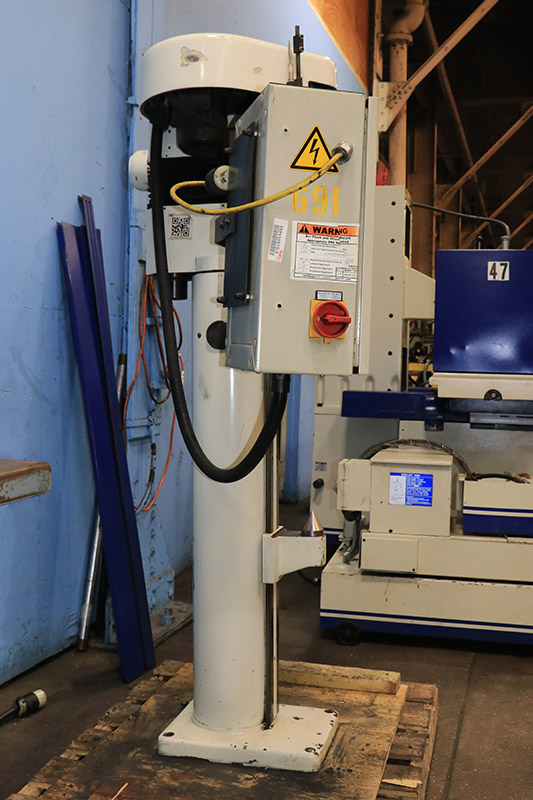

  Henninger Center Hole Grinder

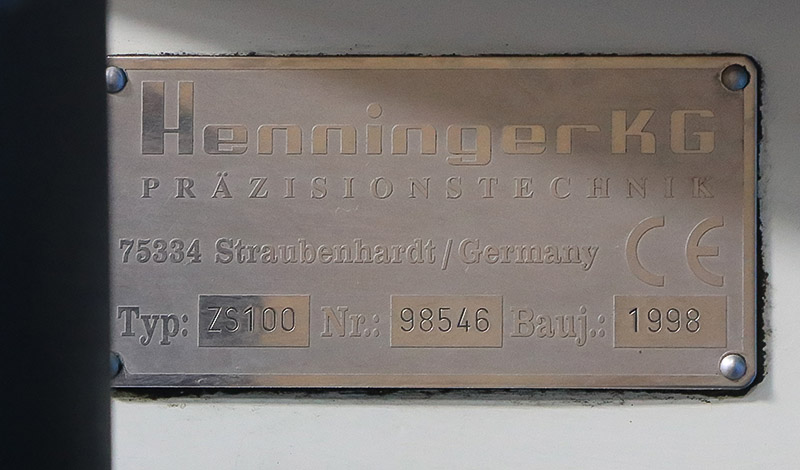

Model ZS100        S/N: 98546      New: 1998


SPECIFICATIONS:
Largest Center Bore Diameter: 70mm/2.76"
Smallest Center Bore Diameter: 2mm/.78"
Taper Angle of Center Hole: 45°-120°
Maximum Length of Workpiece: 1200mm/47.24"
Maximum Clamping Range of Vise: 100mm/3.94"
Minimum Clamping Range of Vise: 5mm/.19"
Maximum Weight of Workpiece: 190kg
Maximum Flange Diameter or Workpiece: 15"
Maximum Stroke of the Wheelhead: 150mm/3.93"
Diameter of the Grinding Stones: 10, 20, 32mm
Speed of Grinding Spindle: (2) Speeds
Eccentric Speed: 50 RPM

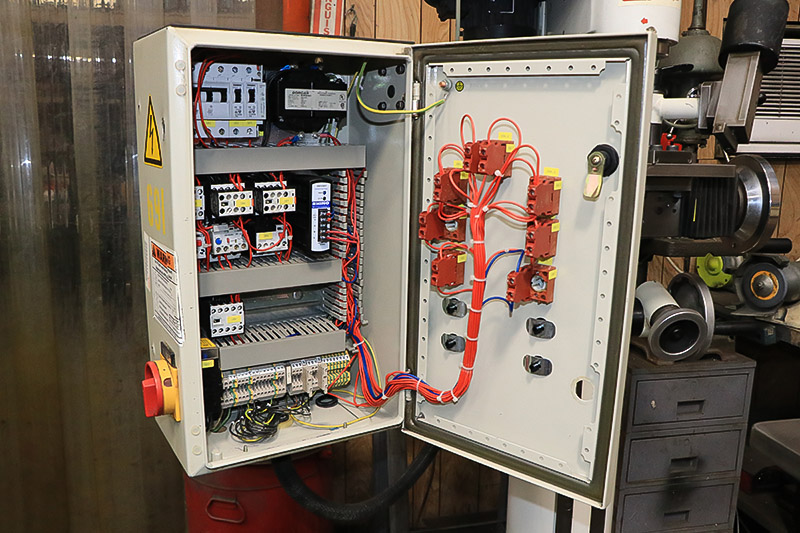

Electrics: 3 Phase, 60 Cycle, 480 Volt


EQUIPPED WITH:

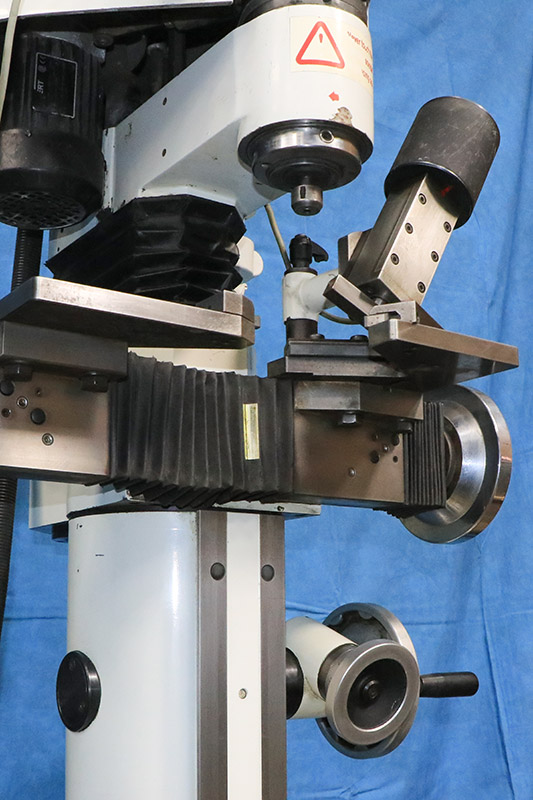

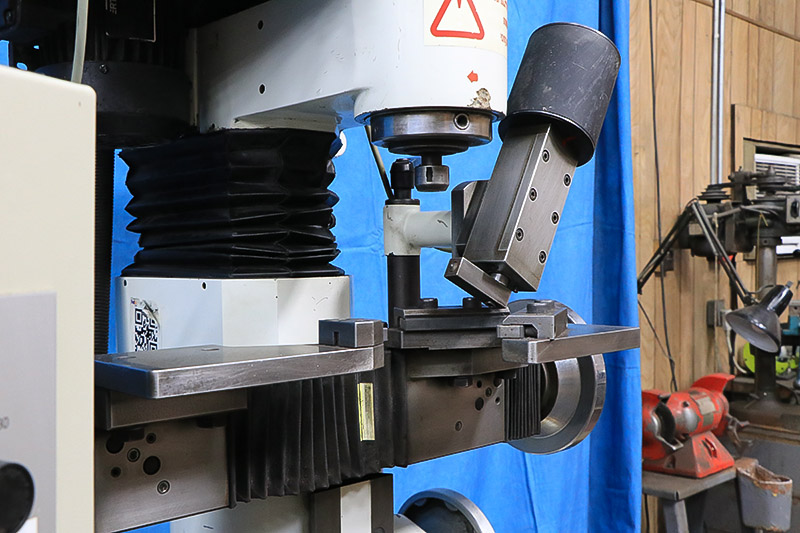

Vise Assembly, Manual setting/clamping
Universal Dresser, Mounted on R.H Side

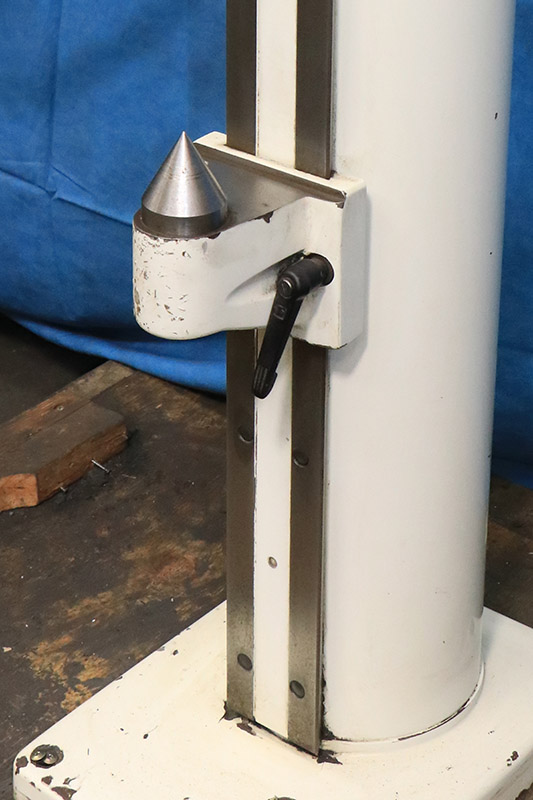

Center
Micro Adjustment of the X-Axis, for a Specific
  Offset of the Center

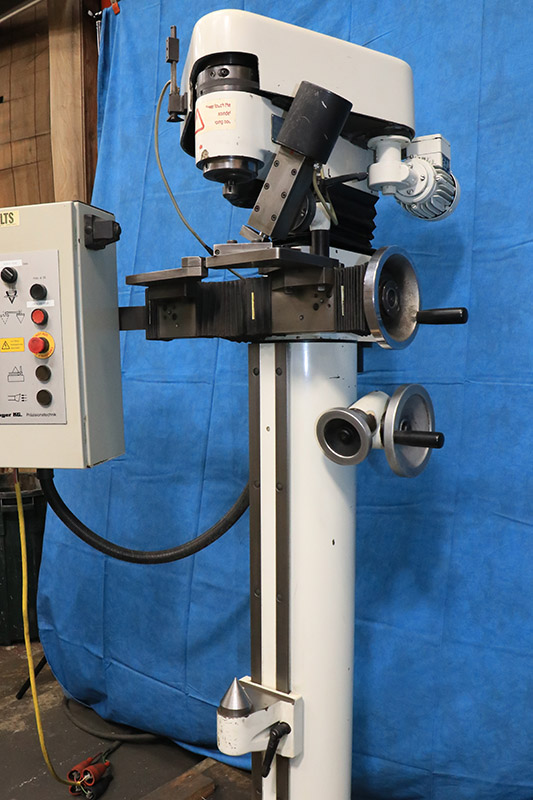

MANUAL RAISING & LOWERING OF GRINDING HEAD

  LINK TO VIDEO UNDER POWER https://youtu.be/gyG9SSX5pDI?si=qwCgTrgbMXdmJmLm


** Inspect Under Power in our Harrison, NJ Warehouse **
** Superior Condition & Appearance **
