Hitachi-Seiki HT25D CNC TURNING CENTERS - CNC LATHES

$9,500

Make:: Hitachi-Seiki

Model:: HT25D

Year:: 1988

Ref #:: 151999

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

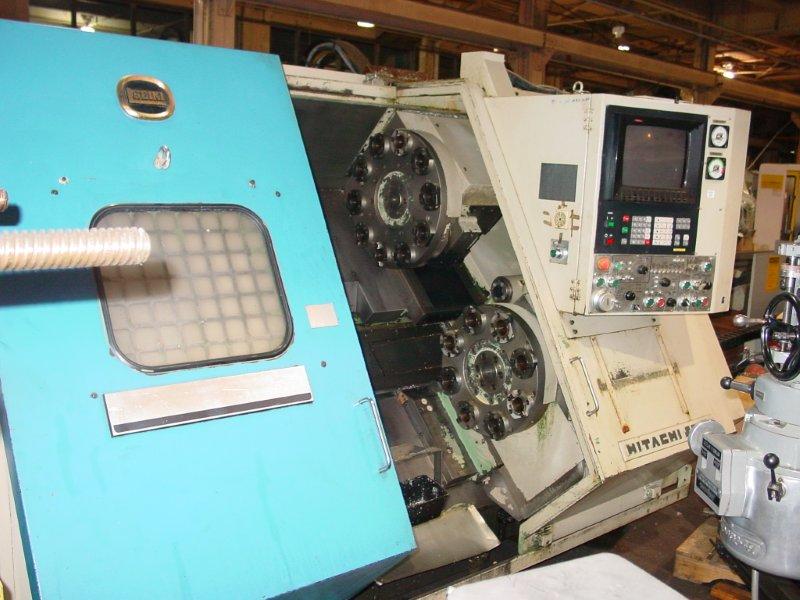

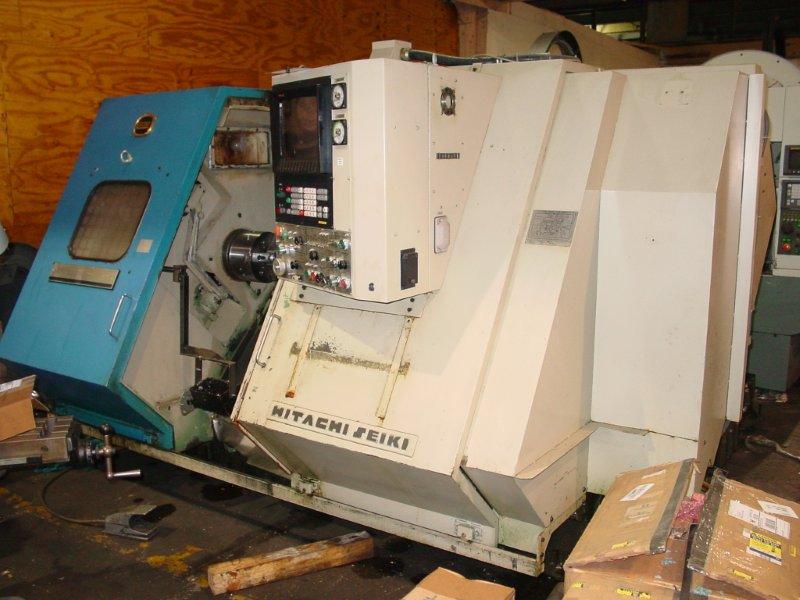

										HITACHI SEIKI 4-AXIS CNC LATHE
 MODEL: HT-25D      NEW: 1988

 SPECIFICATIONS:
 MAX. SWING OVER BED ............... 20" (510mm)
 CHUCK SIZE STANDARD ............... 10" (255mm)
 SHAFT LENGTH ...................... 24" (600mm)
 BAR CAPACITY ...................... 2.5" (63mm)
 SPINDLE NOSE ...................... A2-8
 HOLE THRU SPINDLE ................. 2.8" (70.5mm)
 SPINDLE SPEED ..................... 20-3600 RPM
 RAPID TRAVERSE X/Z ................ 315/472 IPM
 X-AXIS TRAVEL,UPPER ............... 8.5" (215mm)
 Z-AXIS TRAVEL,UPPER ............... 24.4" (620mm)
 TOOL STATIONS,UPPER ............... 10 KV STYLE
 TOOL SIZE ......................... 1" (25mm)
 X-AXIS TRAVEL,LOWER ............... 8.5" (215mm)
 Z-AXIS TRAVEL,LOWER ............... 24.4" (620mm)
 TOOL STATIONS,LOWER ............... 8 KV STYLE
 TOOL SIZE OD/ID ................... 1" (25mm)/1.5" (40mm)
 TAILSTOCK QUILL STROKE ............ 3.9" (100mm)
 TAILSTOCK SPINDLE DIAMETER ........ 3.5" (90mm)
 TAILSTOCK SPINDLE TAPER ........... MT#5
 MAIN MOTOR ........................ 35HP AC (26kw)
 APPROX. WEIGHT .................... 12,760lbs. (5800kg)

 EQUIPPED WITH:

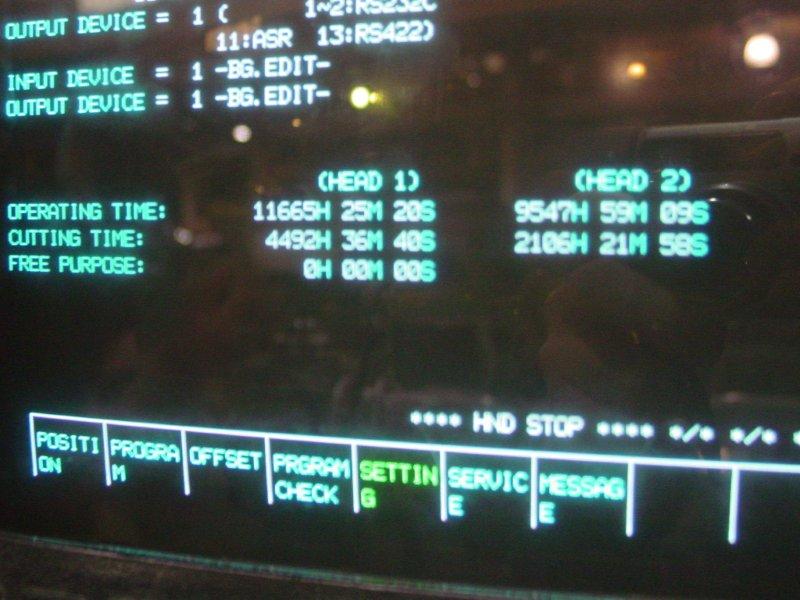

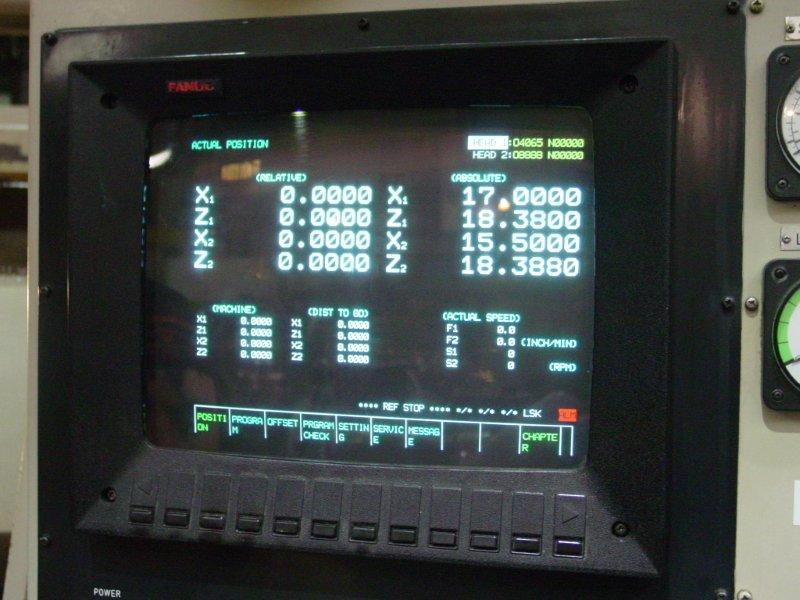

  - FANUC 11TT CNC CONTROL
  - RED CAP SERVOS

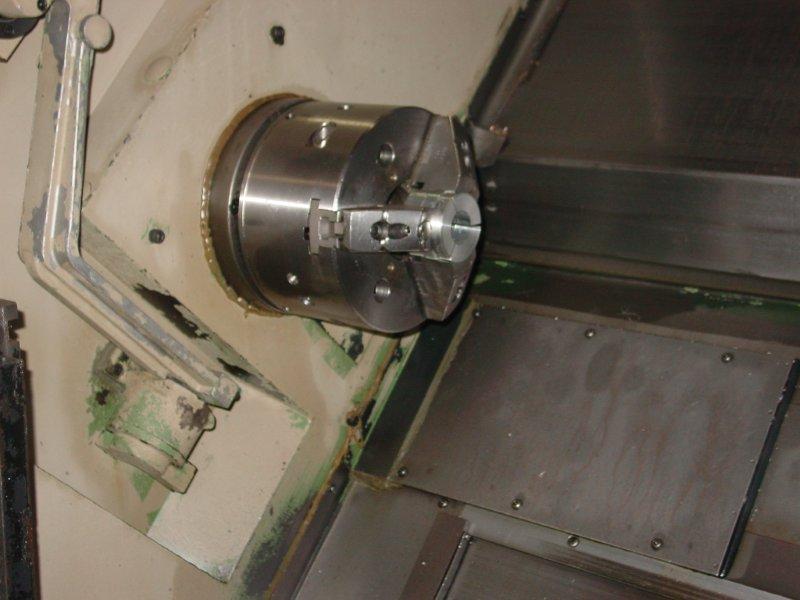

  - 10" 3-JAW HYD. CHUCK
  - Q-SETTER

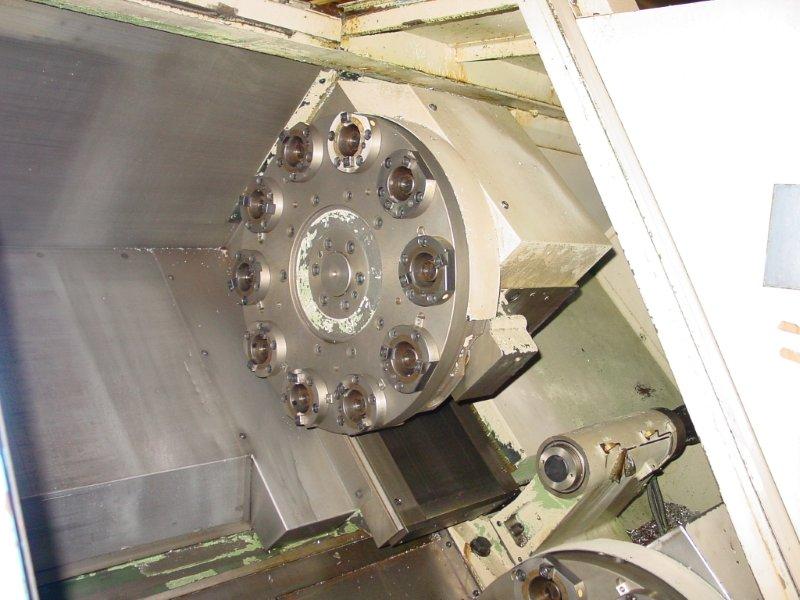

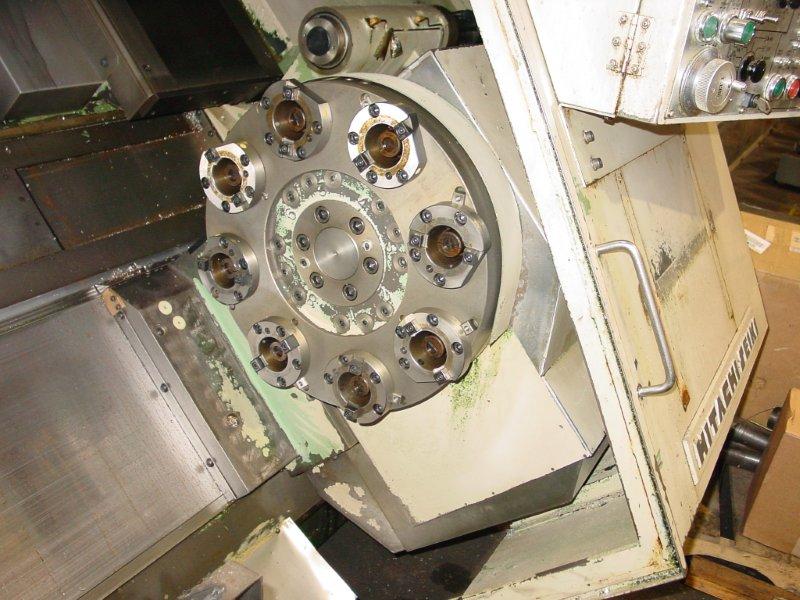

  - 10 POSITION UPPER & 8 POSITION LOWER TURRETS
  - TAILSTOCK
  - CHIP CONVEYOR

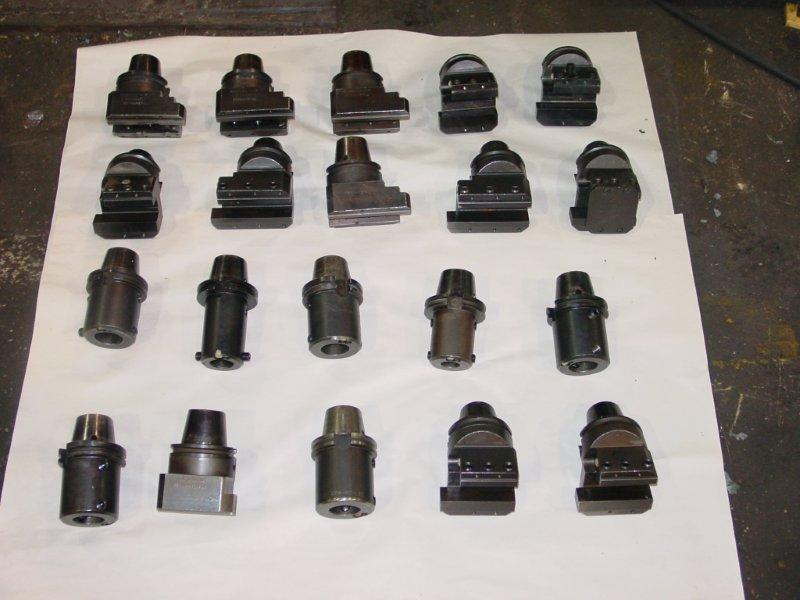

  - ALL AVAILABLE TOOLHOLDERS
  - ALL AVAILABLE MANUALS
