HONOR SEIKI VL-100C CNC VERTICAL BORING MILLS & VERTICAL TURRET LATHES

Price on Request

Make:: HONOR SEIKI

Model:: VL-100C

Year:: 2012

Ref #:: 178587

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

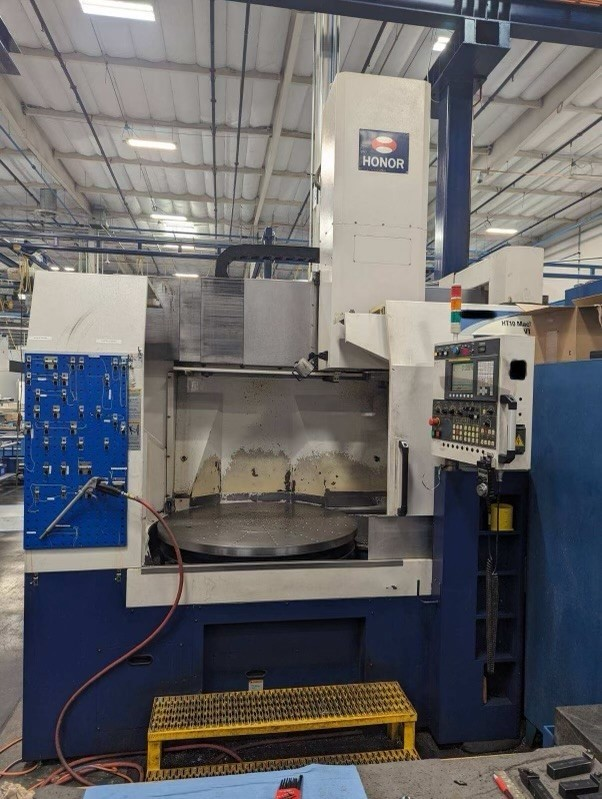

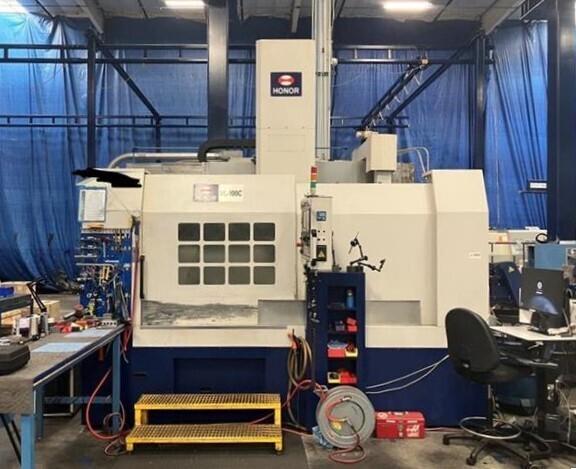

HONOR SEIKI CNC VERTICAL BORING MILL,
MODEL: VL-100C, NEW: 2012

SPECIFICATIONS:
X-AXIS ........................ 31.5"
Z-AXIS ........................ 23.6"

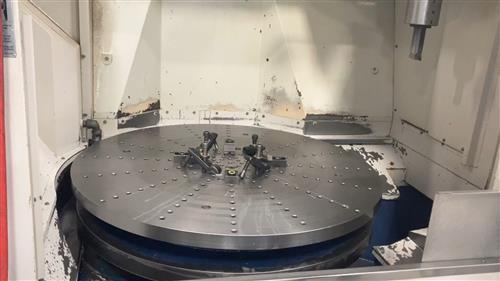

TABLE DIA ..................... 40"
MAX SWING (ON BED) ............ 47.24"
MAX TURNING DIAMETER .......... 43.3"
MAX HEIGHT UNDER RAIL ......... 31.52"
CHUCK SIZE .................... 40"
MAX. TABLE LOAD ............... 7,716 LB
RPM ........................... 400 RPM
ATC ........................... 12
DIMENSIONS .................... 129" X 111" X 144"
WEIGHT ........................ 21,100 LBS

EQUIPPED WITH:

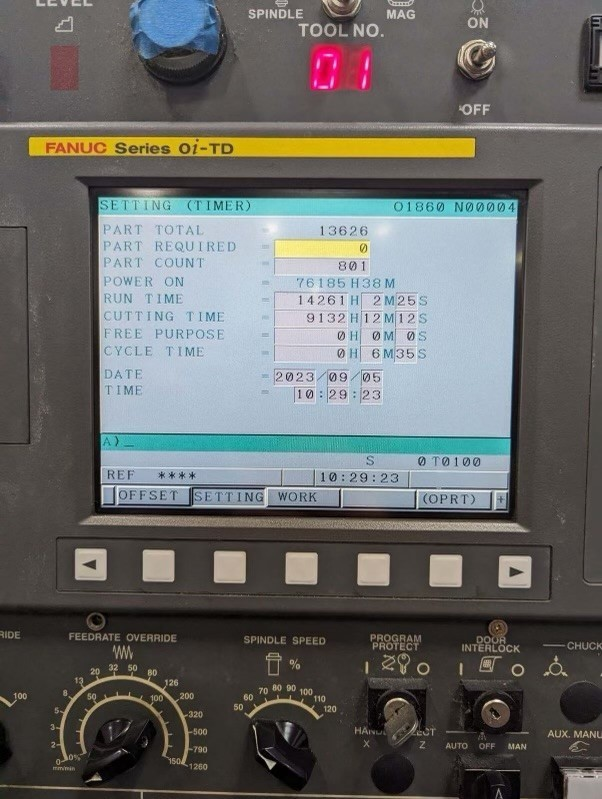

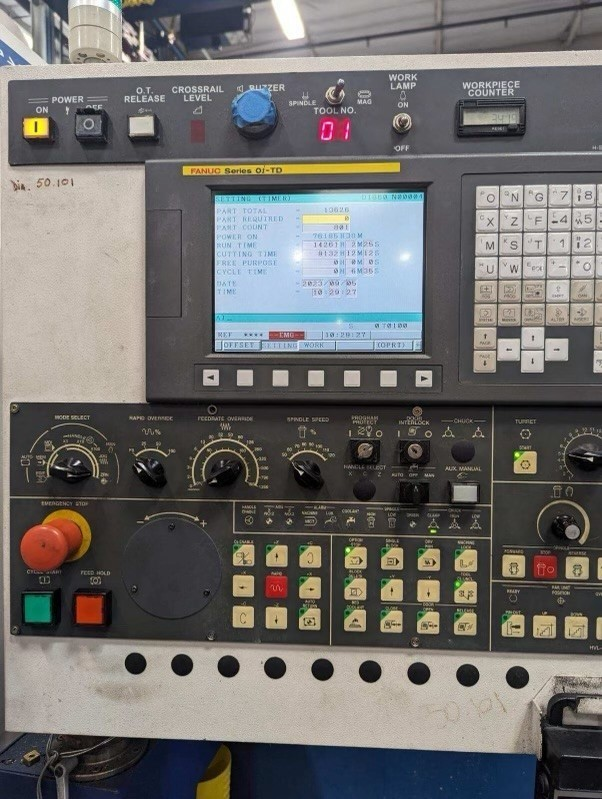

- FANUC SERIES OI-TD CNC CONTROL
- 4 JAW CHUCK AND DRILLED & TAPPED FACE PLATE

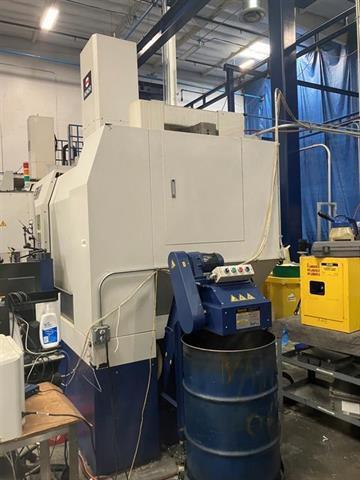

- CHIP CONVEYOR
- COOLANT SYSTEM
