Hyd-Mech H14-A Programmable Saw HORIZONTAL BAND SAWS

$39,500

Make:: Hyd-Mech

Model:: H14-A Programmable Saw

Year:: 2023

Ref #:: 179218

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

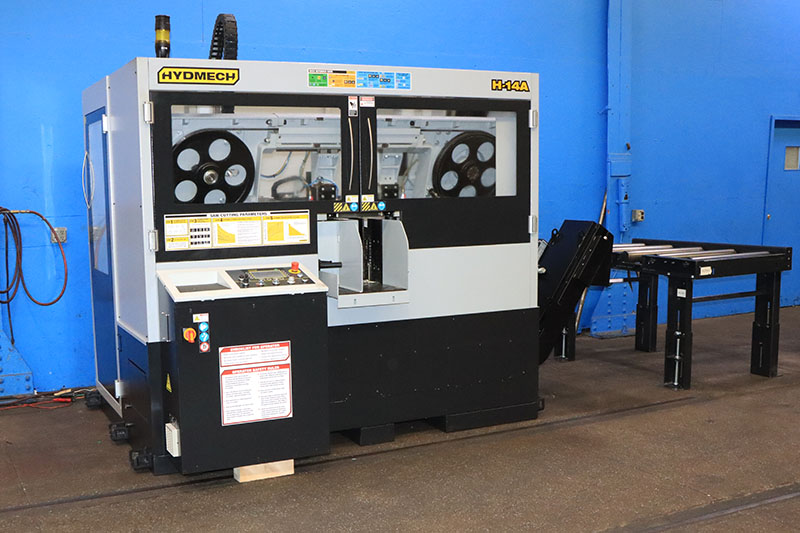

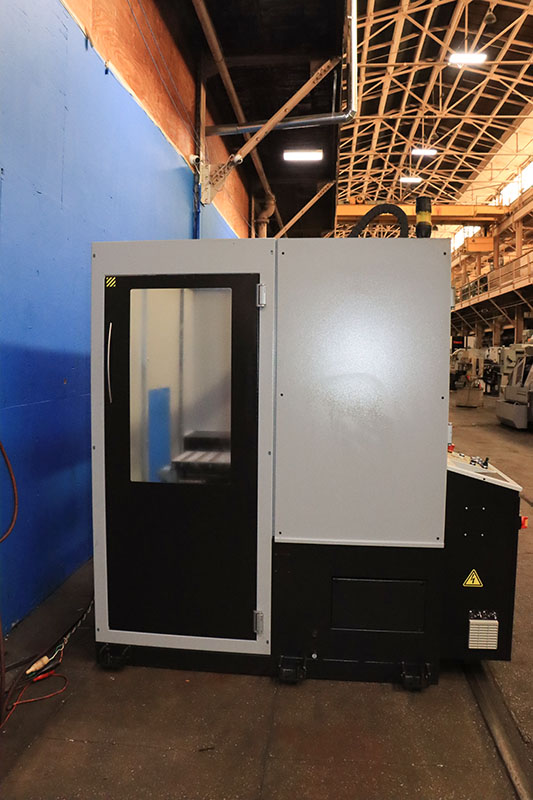

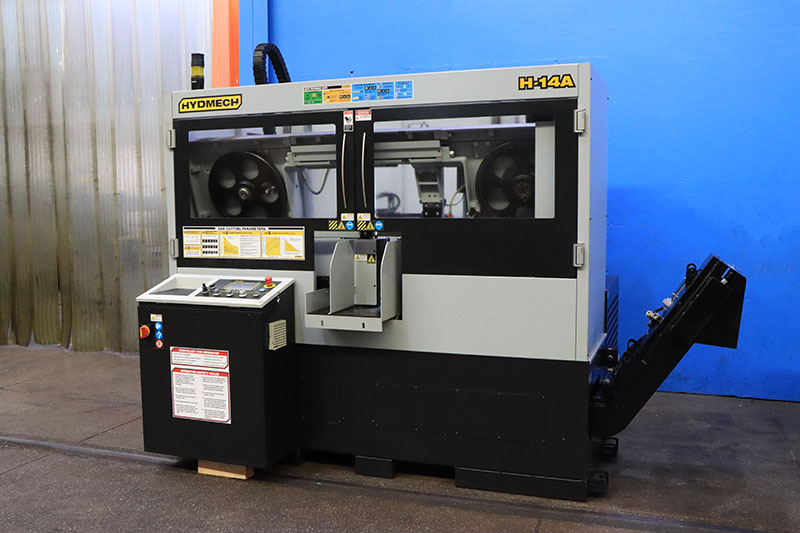

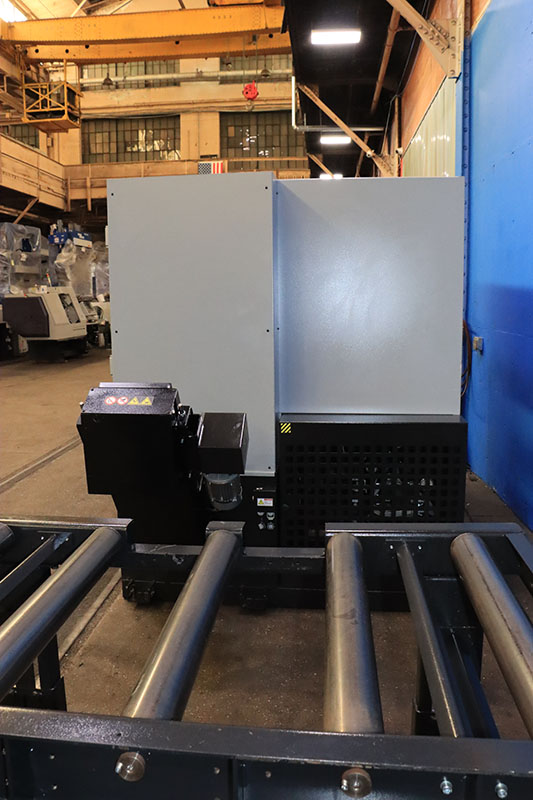

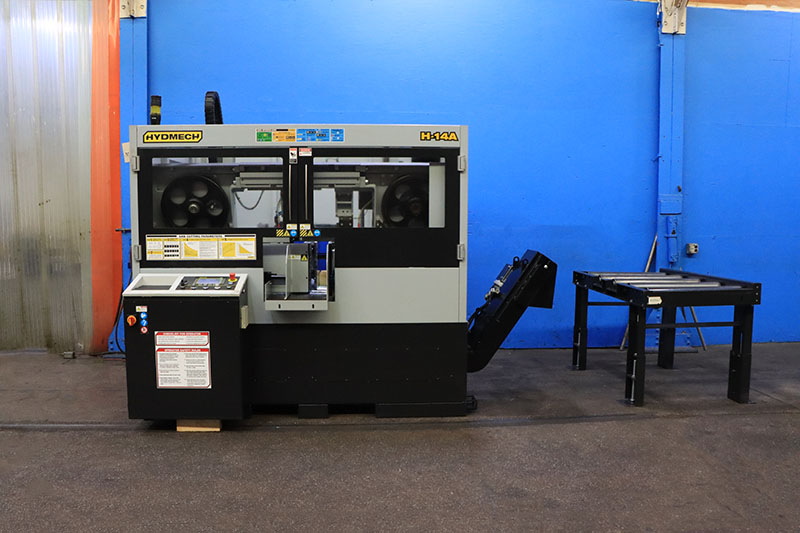

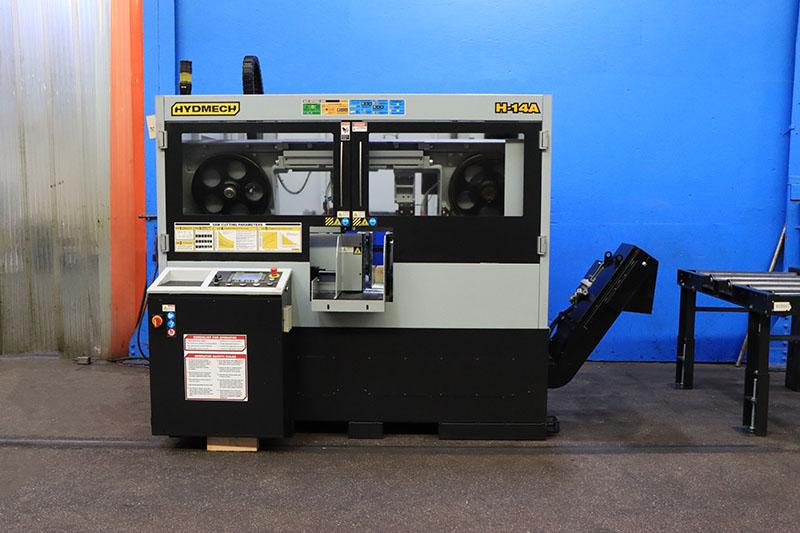

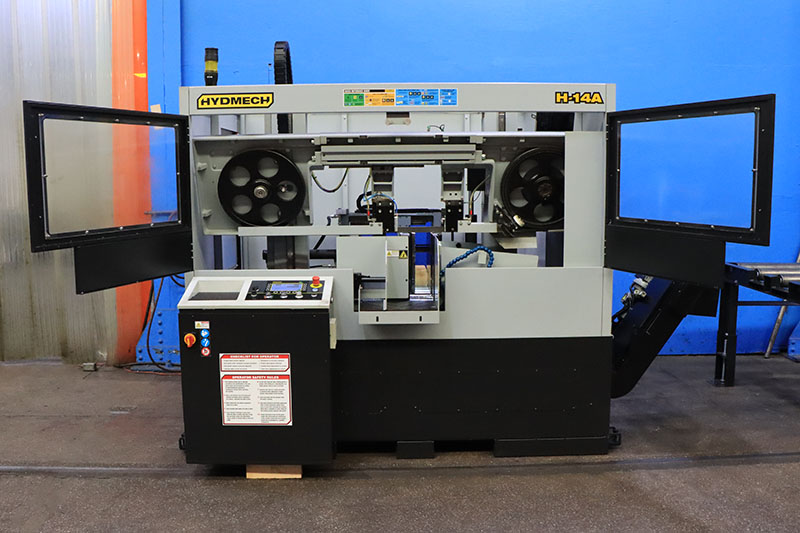

HYD-MECH AUTOMATIC HORIZONTAL BANDSAW
MODEL H-14A, S/N: 5-02-23-595-SB-T3, NEW: 2023

SPECIFICATIONS:
CAPACITY: SQUARE ..................... 14" X 14"
          ROUND ...................... 14"
BLADE SIZE ...................... 15'2"L x 1-1/4"W x .042" THICK
BLADE SPEED (VARIABLE) ............... 49 TO 377 SFM
BLADE DRIVE........................... 8.85 HP
TABLE HEIGHT.......................... 34"
MAXIMUM WORK LOAD..................... 3,300 LBS
BLADE WHEEL DIAMETER ................. 19"
SHUTTLE STROKE ....................... 0 - 24"
APPROXIMATE MACHINE WEIGHT ........... 6,250 LBS

 EQUIPPED WITH:
  -SINGLE STROKE WITH MULTI INDEXING

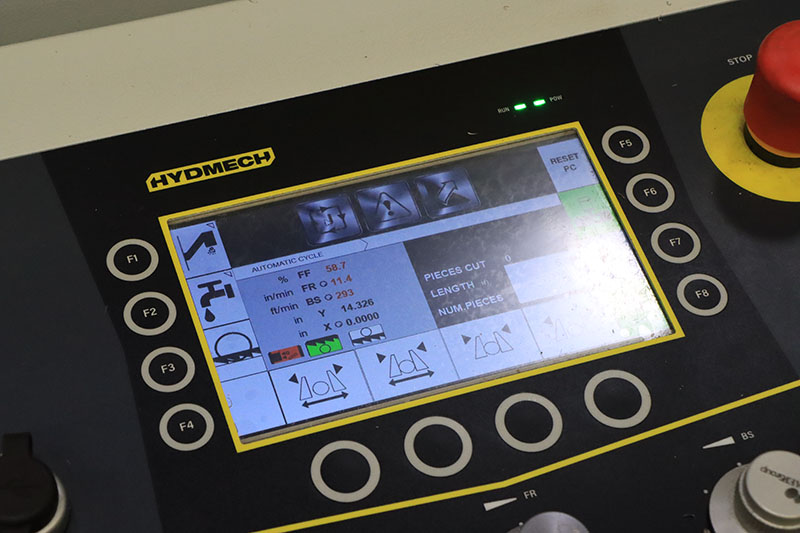

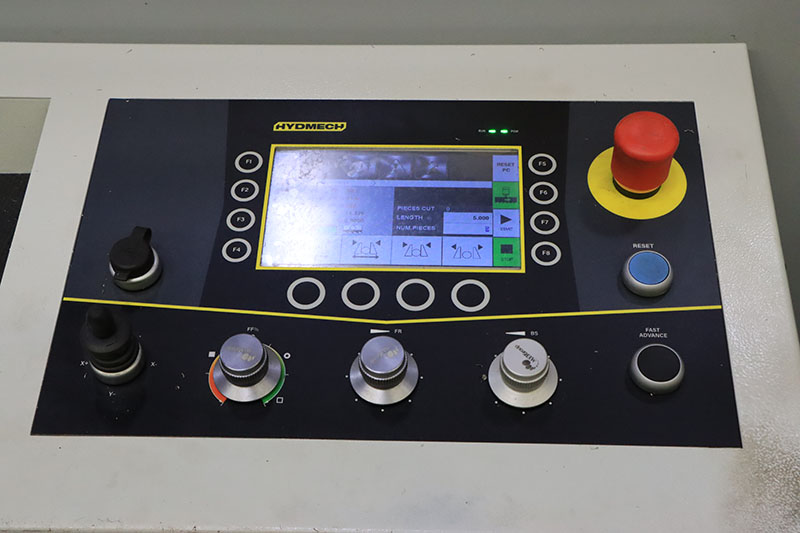

  - PLC CONTROL FOR PROGRAMMING NUMBER & LENGTHS OF CUTS.
      MULTIPLE INDEXING OF VICES CAN BE PROGRAMMED
      FOR LONGER PIECES
  - SHORT REMNANT OPTION 0.98"
  - HYDRAULIC BLADE TENSION
  - AUTOMATIC CHIP REOMVAL

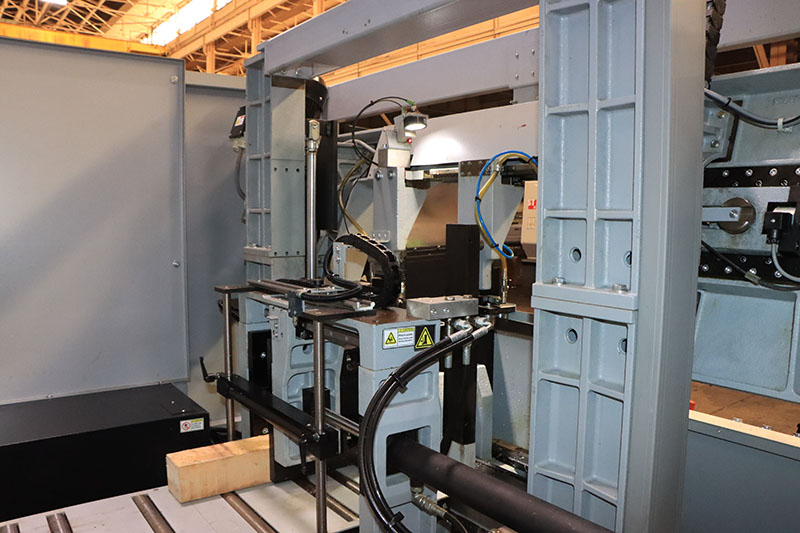

  - THE MACHINE HEAD IS GUIDED ALONG TWO VERTICAL COLUMNS

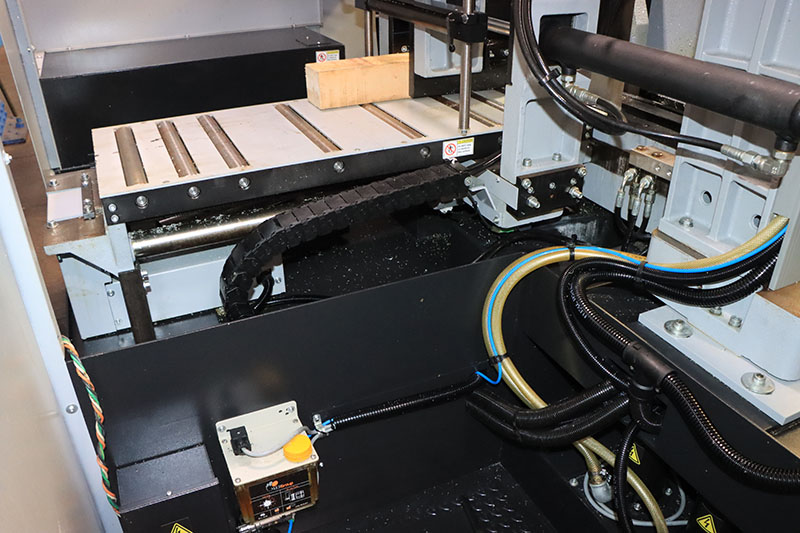

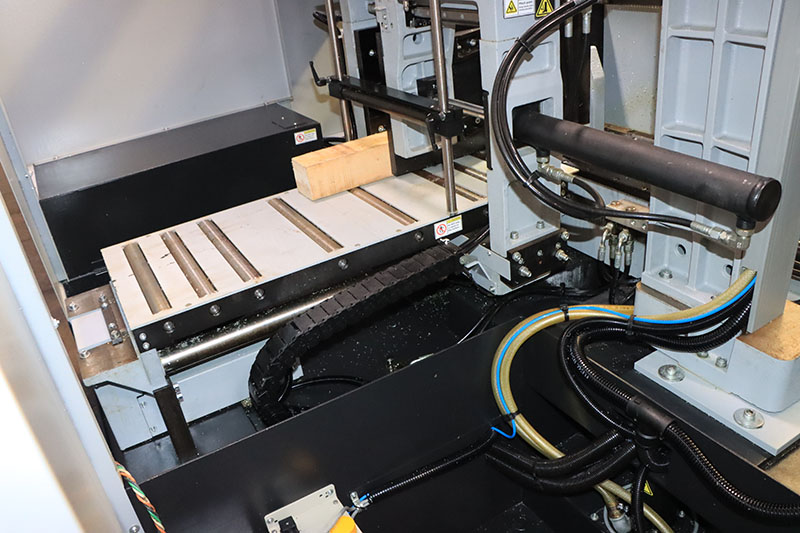

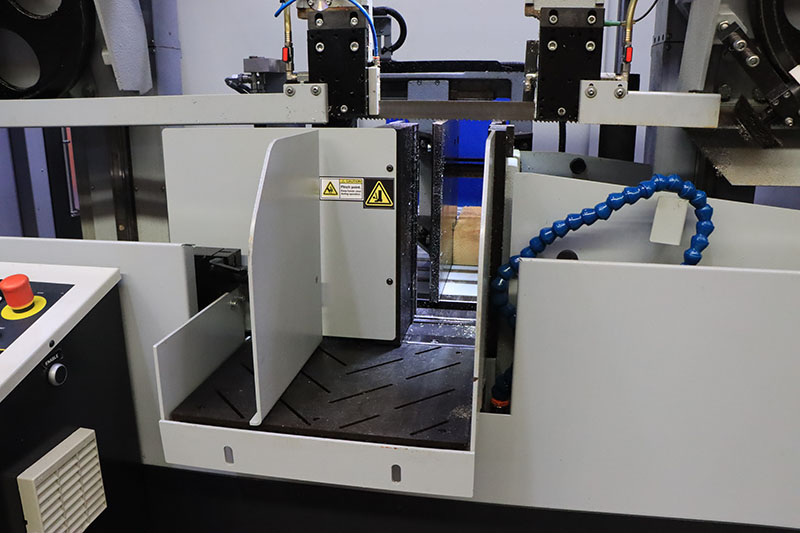

  - SPLIT FRONT VISE
  - MIST COOLANT SYSTEM OPTION
  - COOLANT SYSTEM
  - POWERED CHIP BRUSH

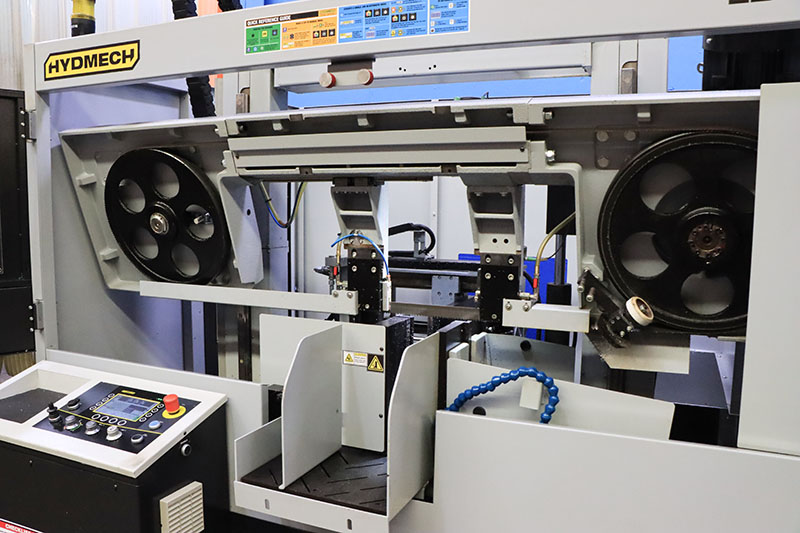

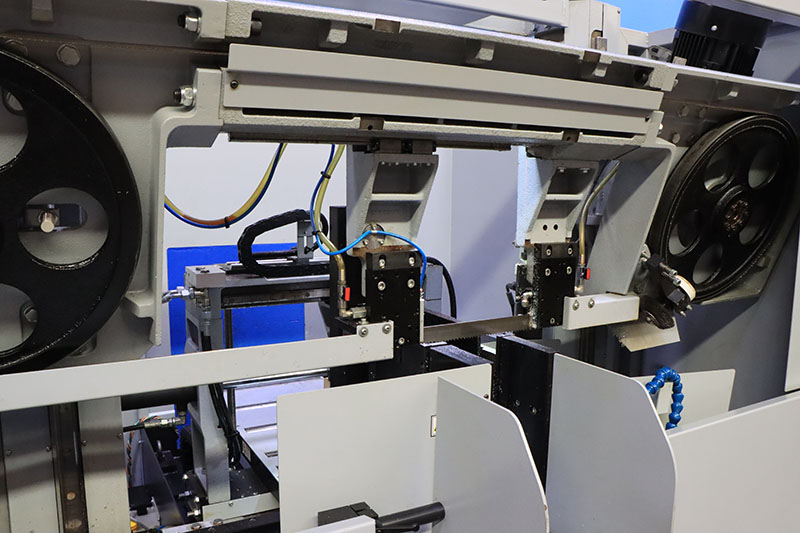

  - HEAVY DUTY CAST IRON GUIDE ARMS

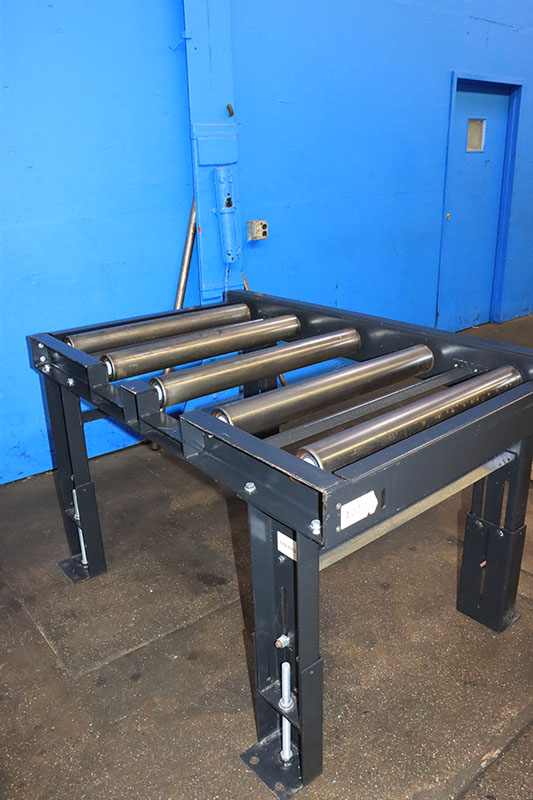

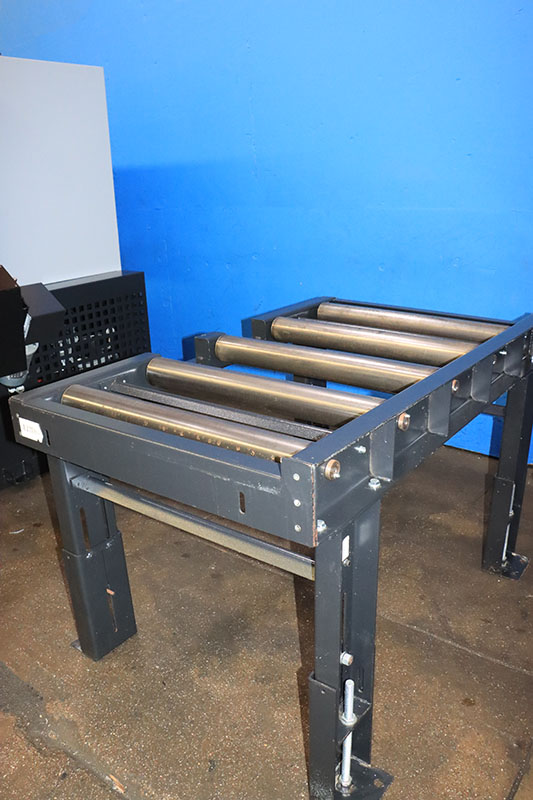

  - 5' OF CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ****  LIKE NEW  ****
