Hyundai-Wia KF5600 VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Hyundai-Wia

Model:: KF5600

Year:: 2018

Ref #:: 179019

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

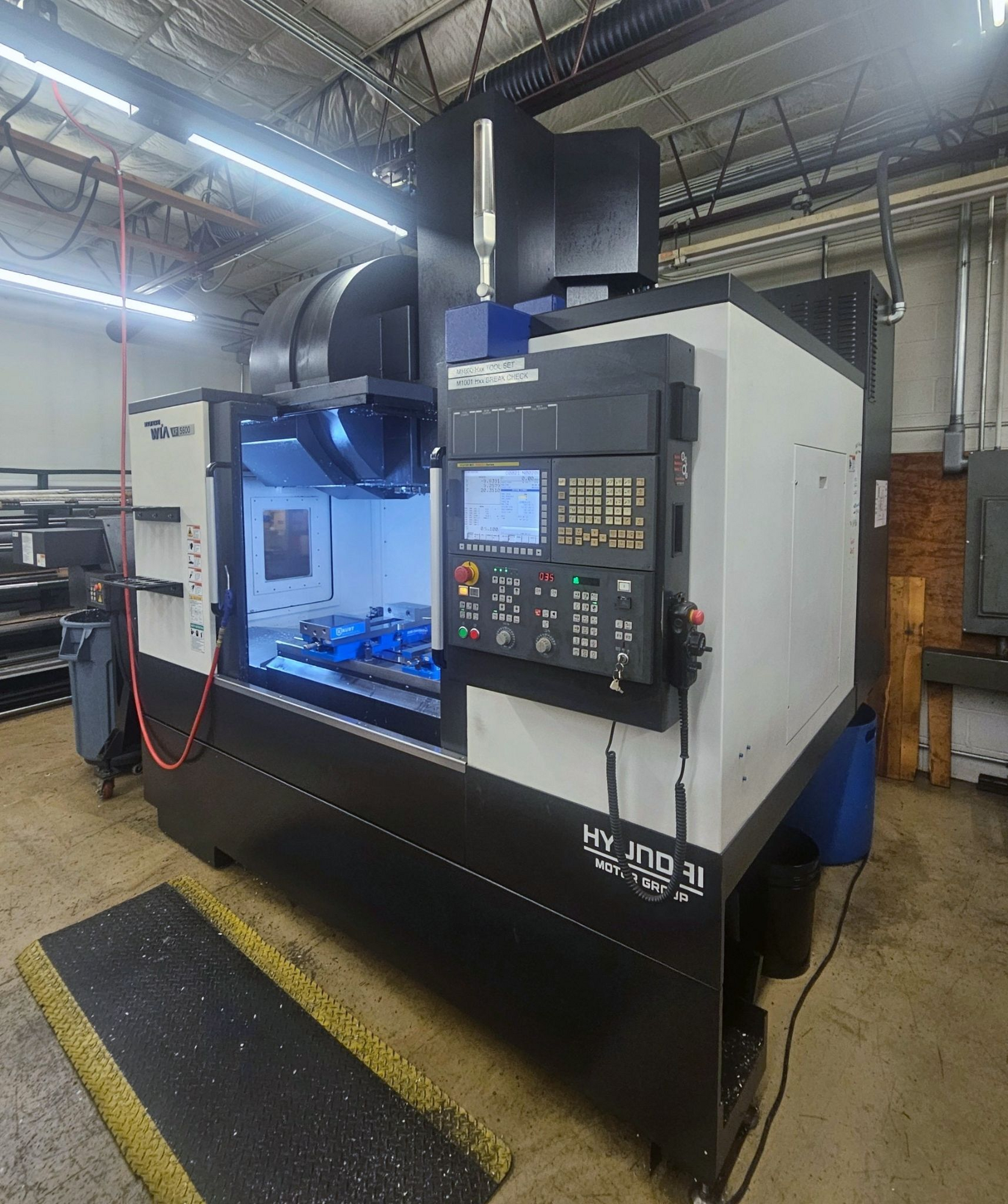

HYUNDAI WIA MACHINING CENTER
MODEL: KF5600, NEW: 2018

SPECIFICATIONS:
TABLE LENGTH ..................... 49.2"
TABLE WIDTH ...................... 22"
TABLE CAPACITY ................... 2,200 lb
X-AXIS TRAVEL .................... 43.3"
Y-AXIS TRAVEL .................... 22"
Z-AXIS TRAVEL .................... 20.5"
SPINDLE SPEED .................... 12,000 RPM
SPINDLE MOTOR .................... 25 hp
SPINDLE TAPER .................... CAT 40
TOOL CAPACITY (ATC) .............. 40
RAPID TRAVERSE - X AXIS .......... 1,575 in/min.
RAPID TRAVERSE - Y AXIS .......... 1,575 in/min.
RAPID TRAVERSE - Z-AXIS .......... 1,417 in/min.

EQUIPPED WITH:

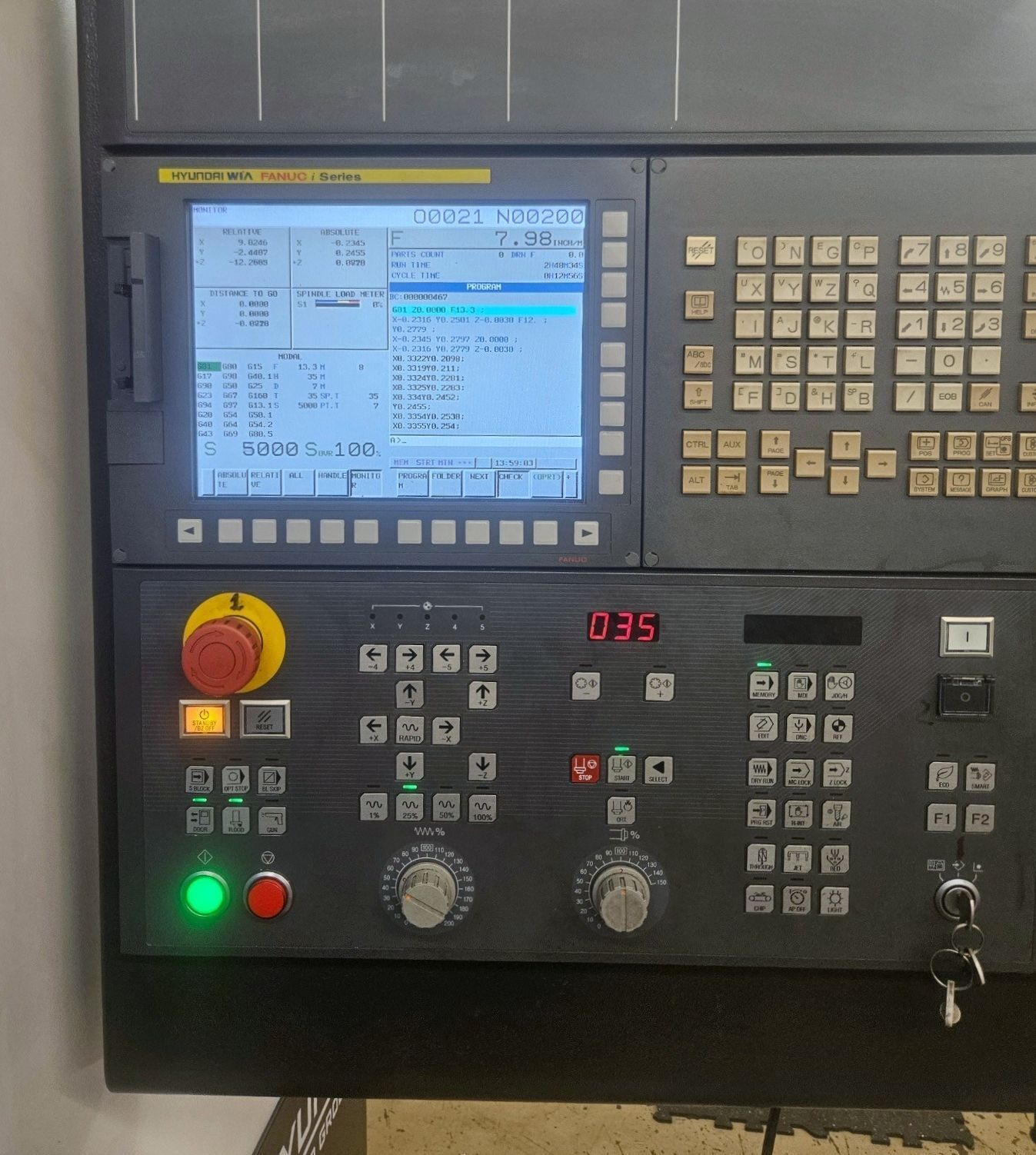

FANUC 0i-MF CONTROL
THROUGH-SPINDLE COOLANT (290 PSI)

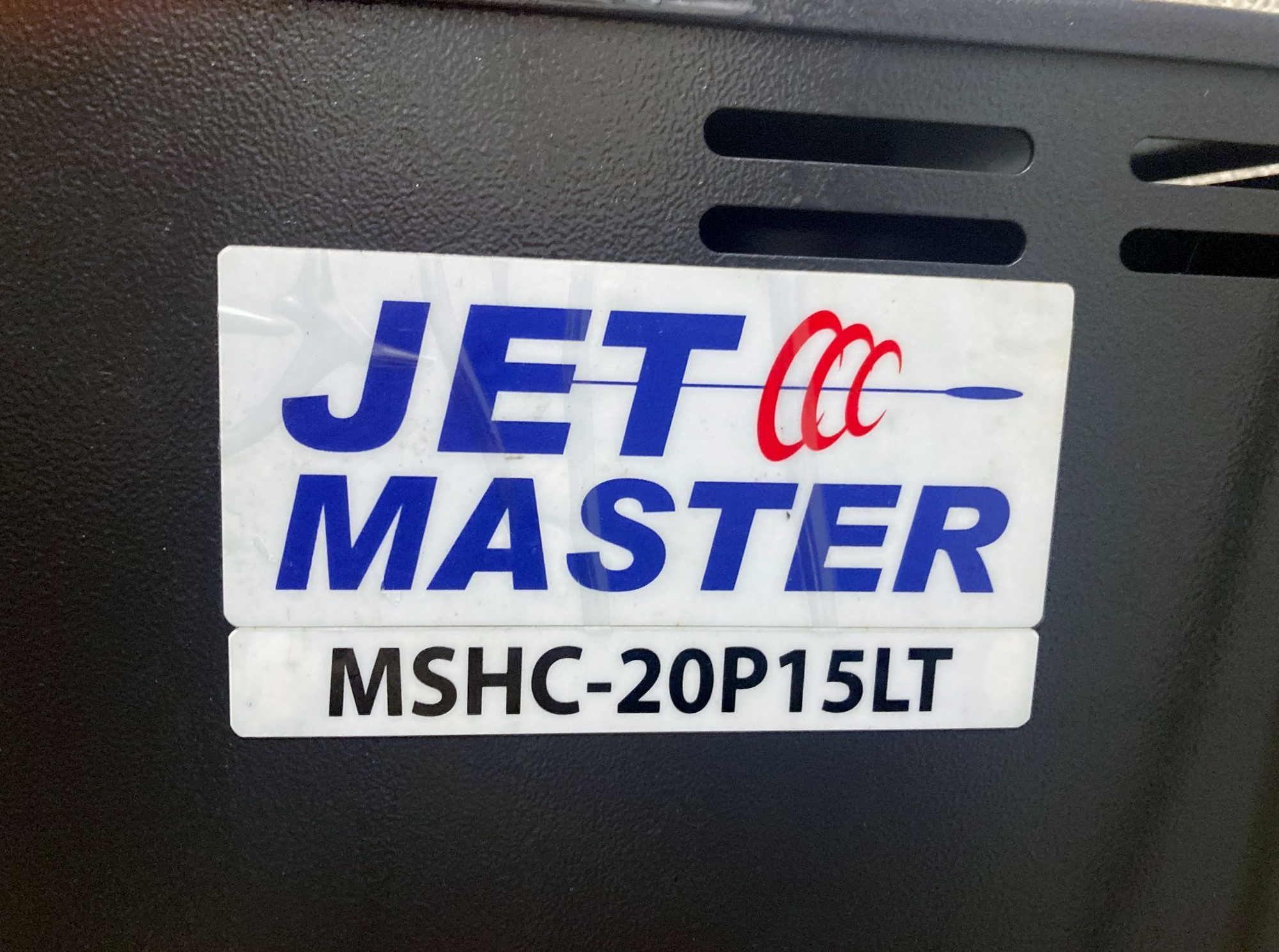

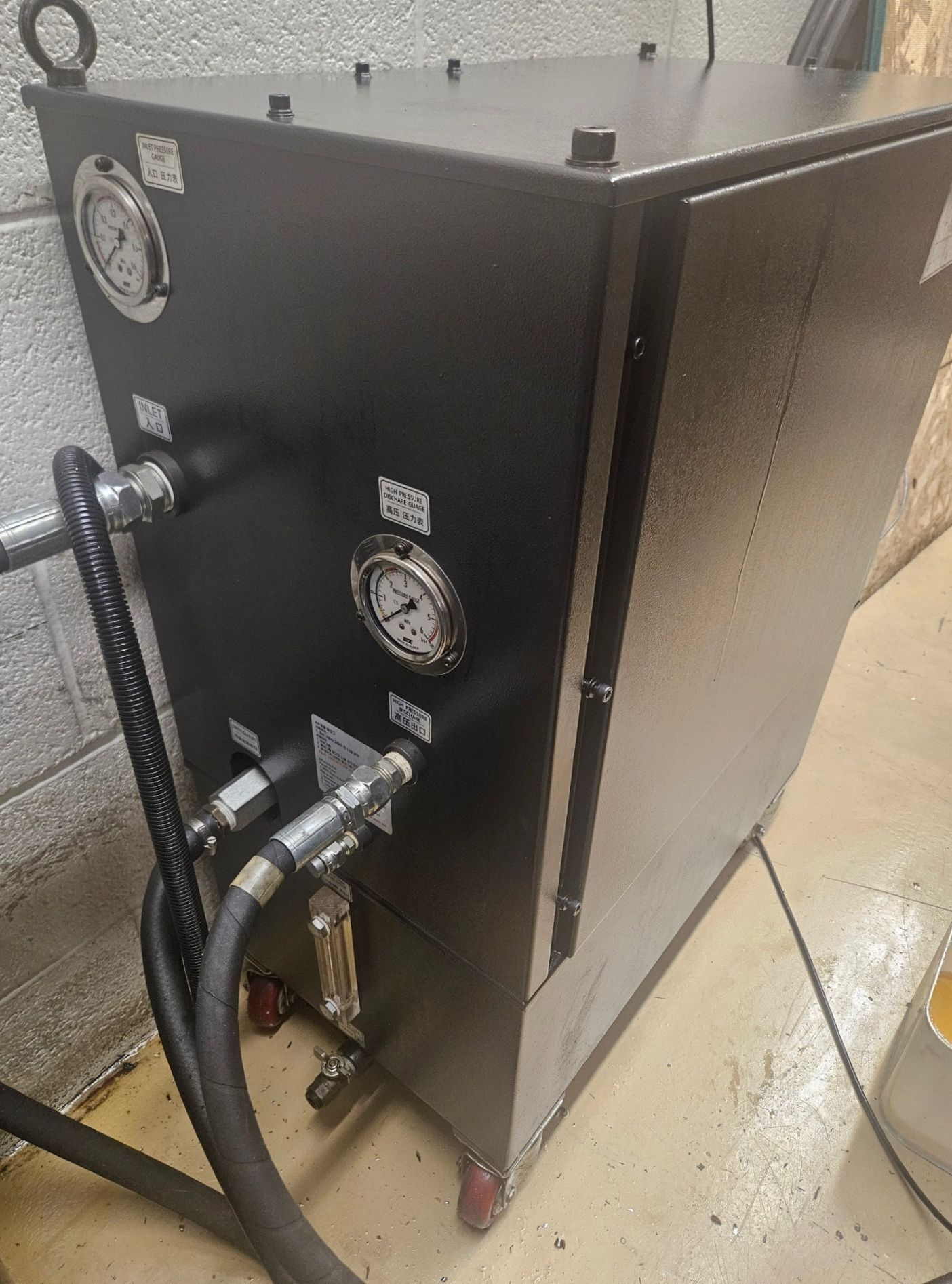

JET MASTER HIGH-PRESSURE COOLANT UNIT

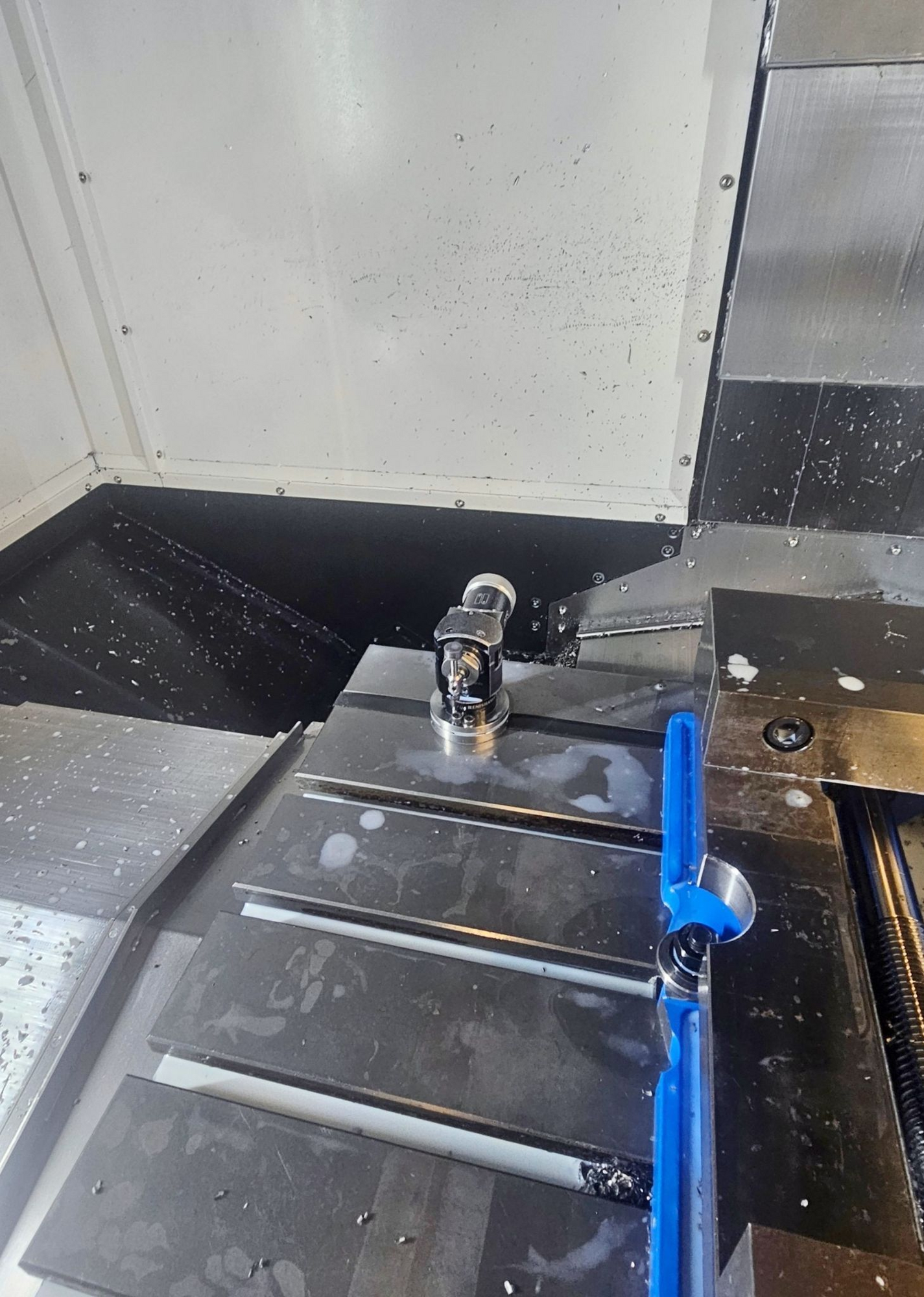

RENISHAW PROBING SYSTEM
12,000 RPM SPINDLE
40 TOOL POSITIONS
CHIP CONVEYOR
SPINDLE CHILLER
AICC II (200 BLOCK LOOK-AHEAD)
RIGID TAPPING

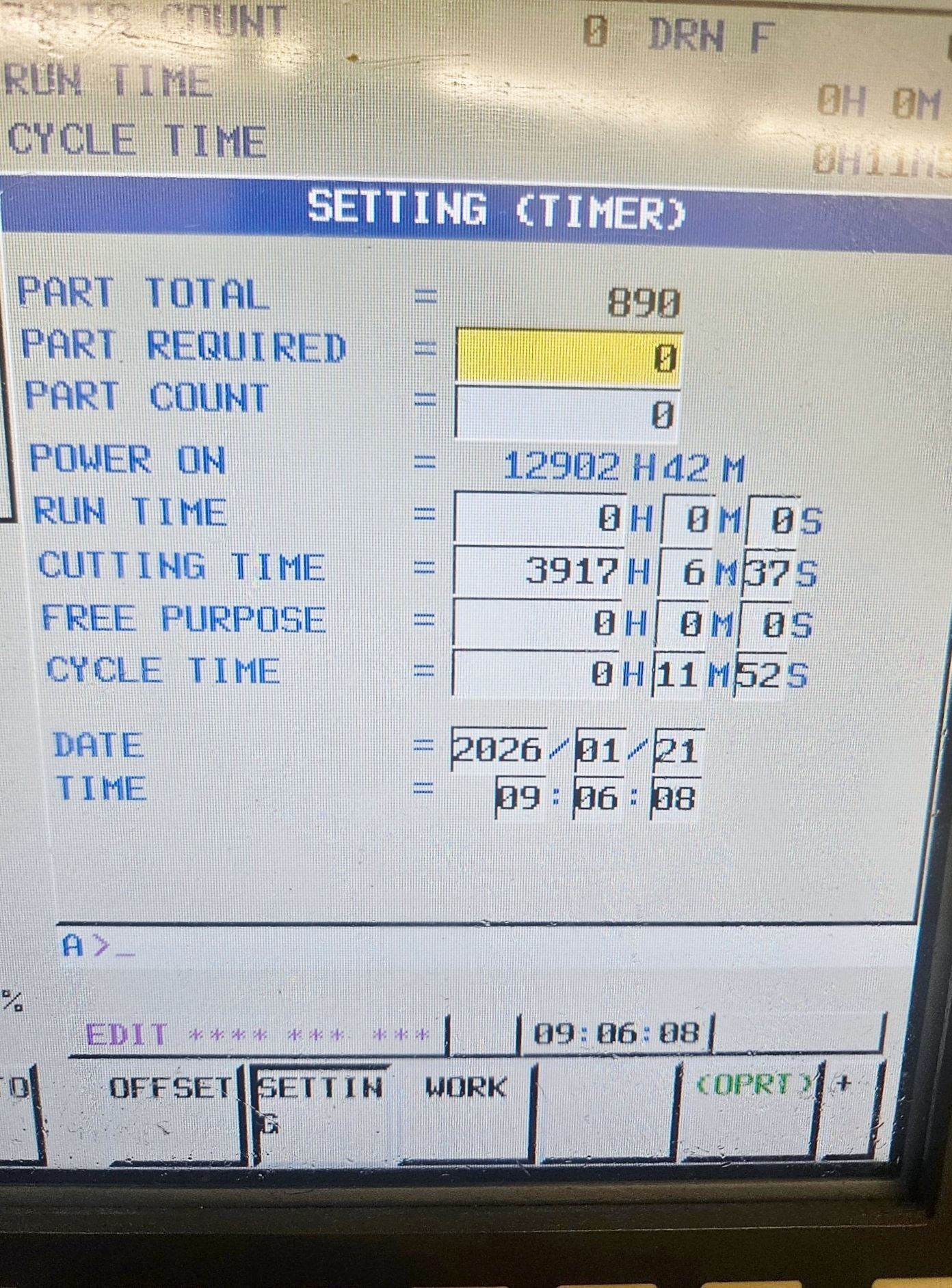

** AS OF JANUARY 2026, CUTTING TIME – 3,917 HOURS
** MACHINE CUT PRIMARILY 316 STAINLESS
** FULL REPLACEMENT COST, AS EQUIPPED - $140,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

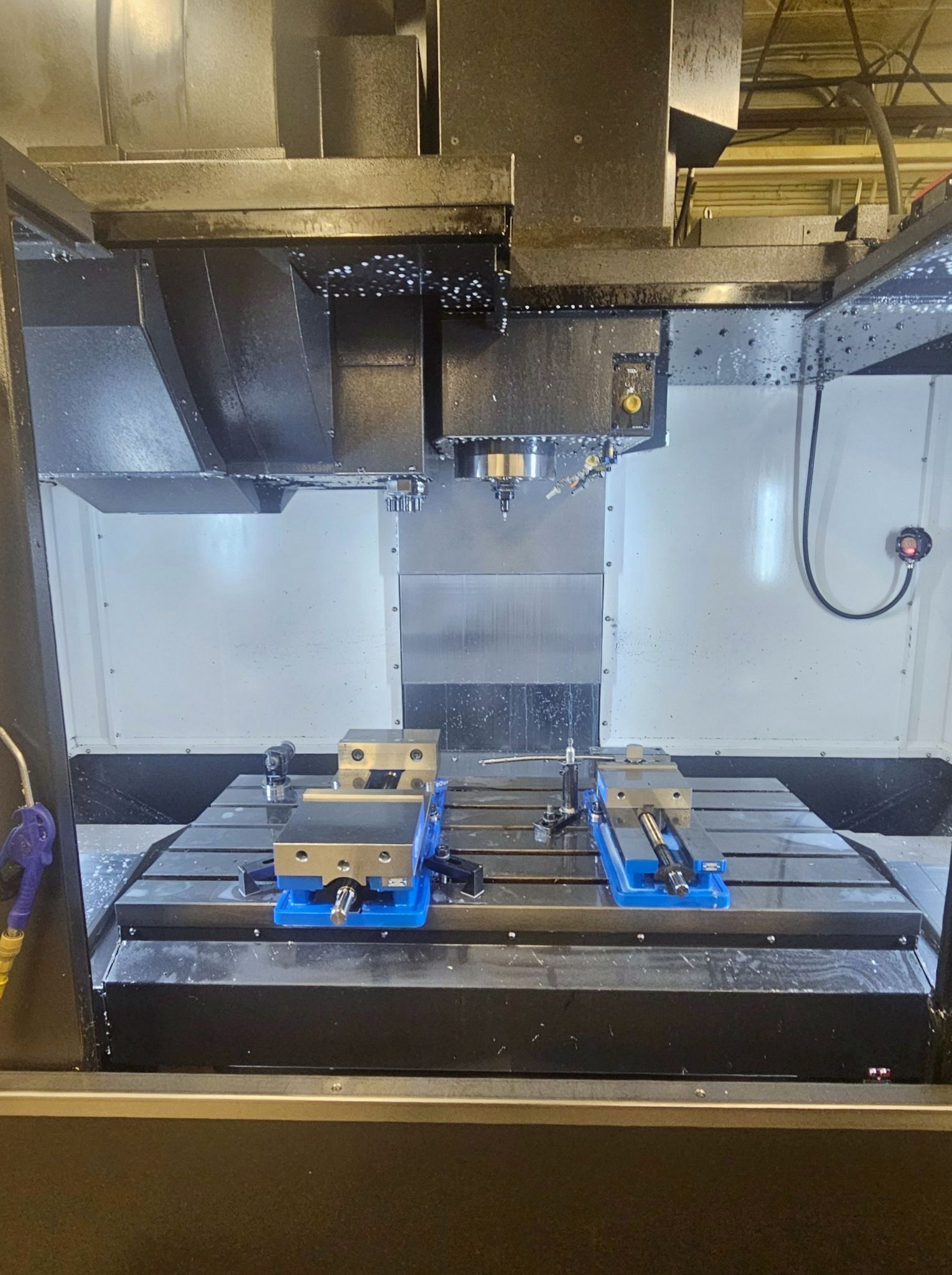

** VICES SHOWN ON THE TABLE ARE NOT INCLUDED WITH THE MACHINE
