Jet JVM-836-3 VERTICAL MILLS - VERTICAL MILLING MACHINES

$3,500

Make:: Jet

Model:: JVM-836-3

Year:: 2019

Ref #:: 178733

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

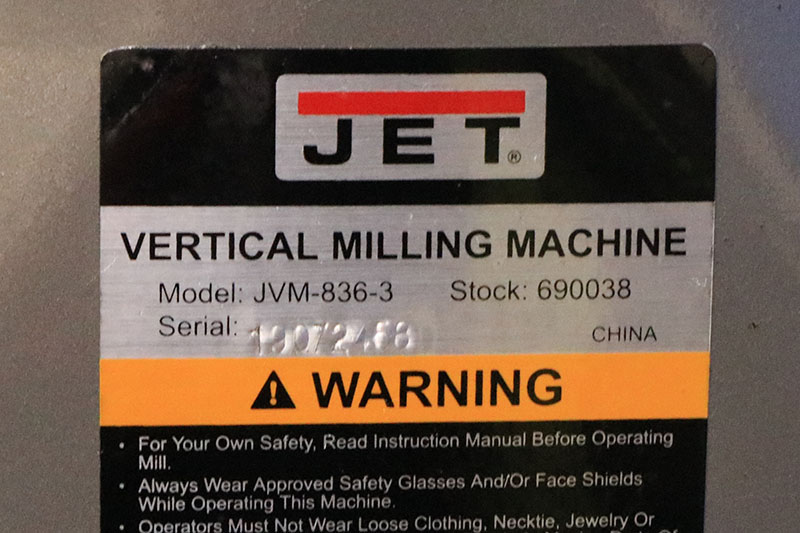

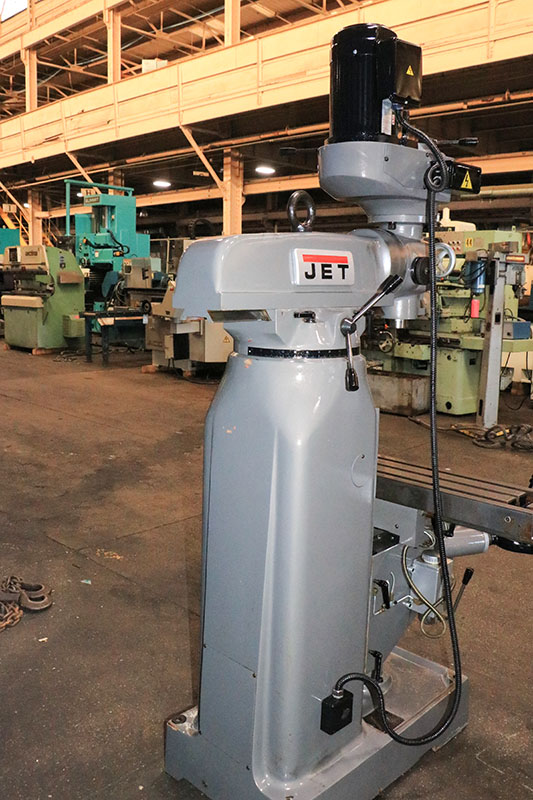

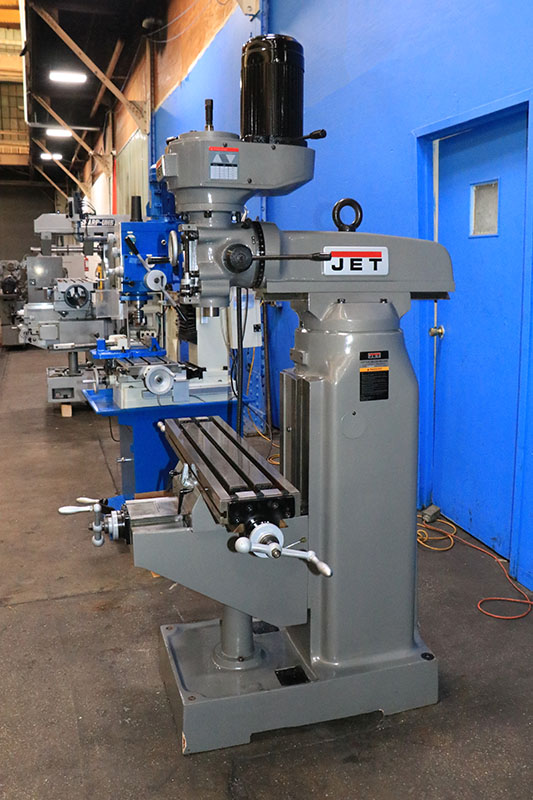

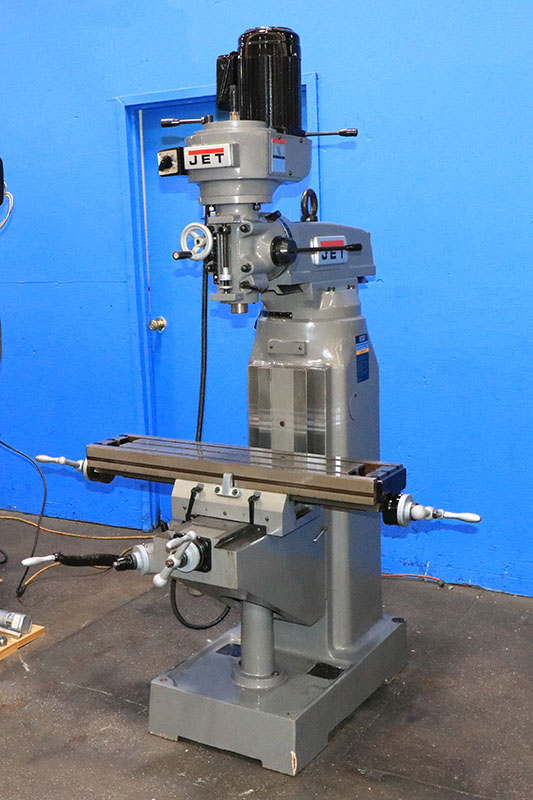

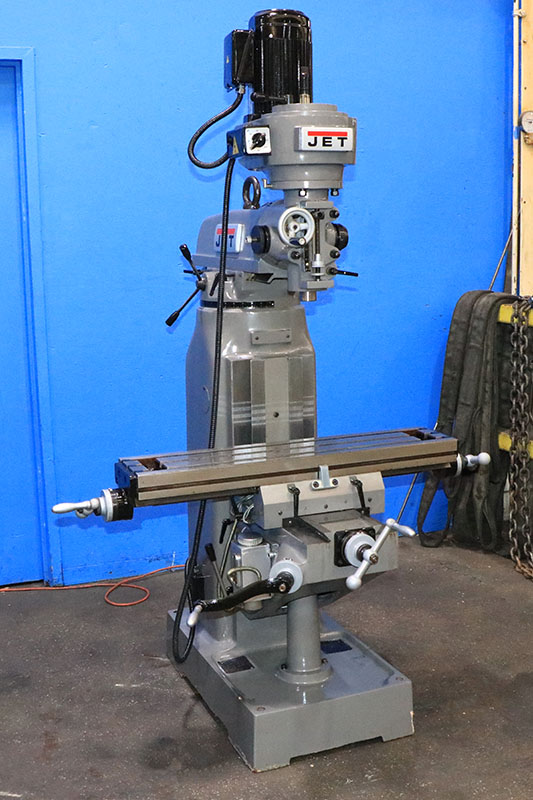

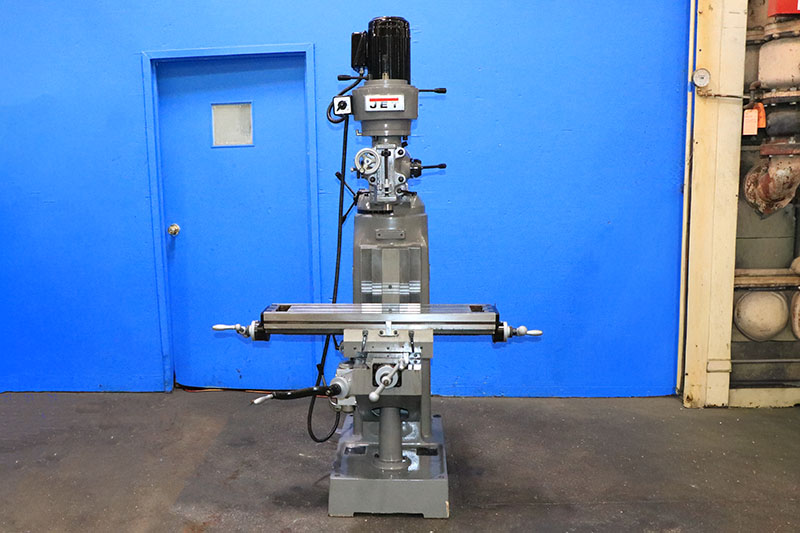

JET VERTICAL MILLING MACHINE

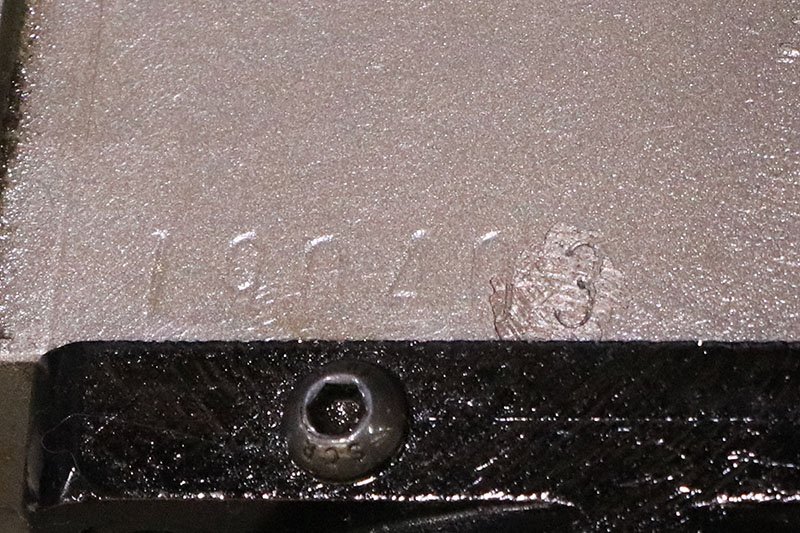

MODEL: JVM-836-3, S/N: 1902458,  NEW: 2019

SPECIFICATIONS:

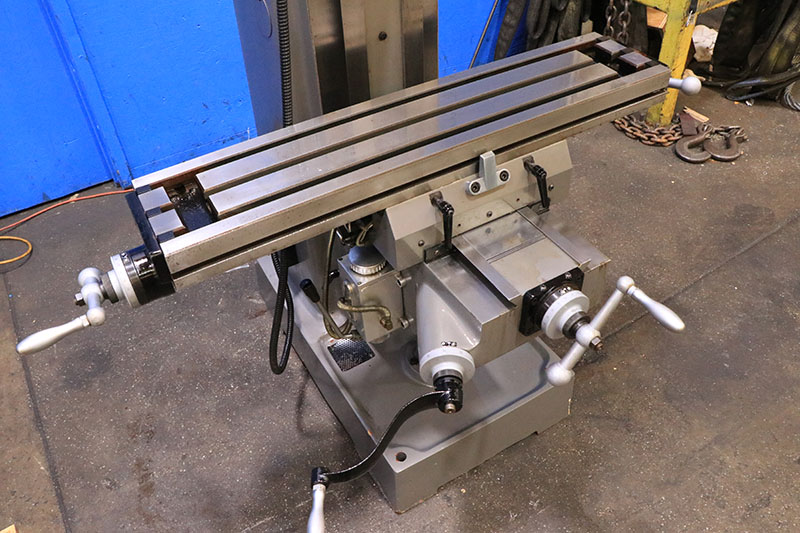

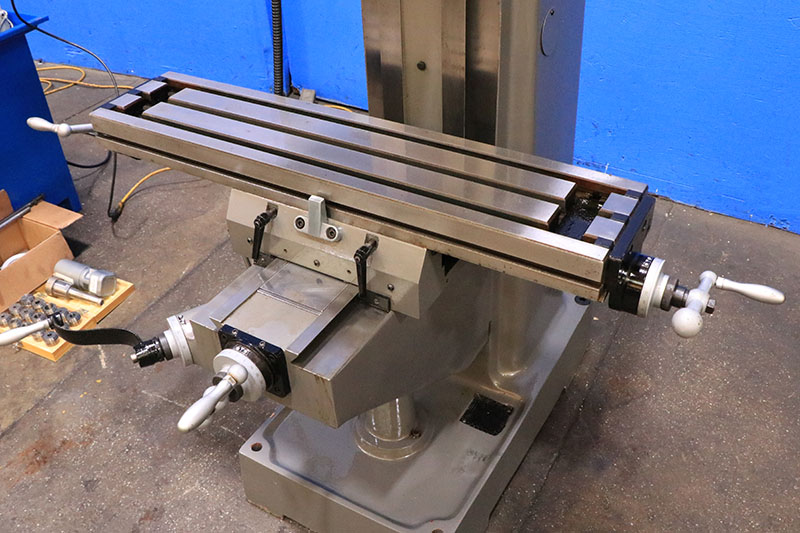

TABLE SIZE ............................ 7-7/8" X 36"

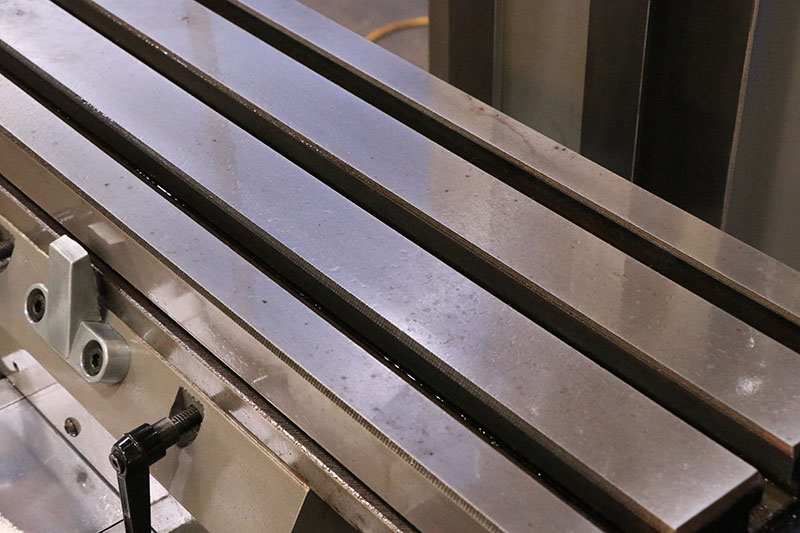

NUMBER OF T-SLOTS ..................... 3
LONGITUDINAL TABLE TRAVEL ............. 22.25"
SADDLE TRAVEL ......................... 9.5"
QUILL TRAVEL .......................... 5"
KNEE TRAVEL ........................... 14-1/2"
RAM TRAVEL ............................ 10-1/2"
TAB LOAD CAPACITY ..................... 500 LBS.
HEAD TILT, LEFT & RIGHT ............... 90 DEGREES
SPINDLE SPEED RANGE (10) .............. 120 - 1,550 RPM
SPINDLE TAPER ......................... R-8
APPROXIMATE WEIGHT .................... 1,600 LBS

EQUIPPED WITH:
HARDENED & GROUND DOVETAIL WAYS
MEEHANITE CASTING

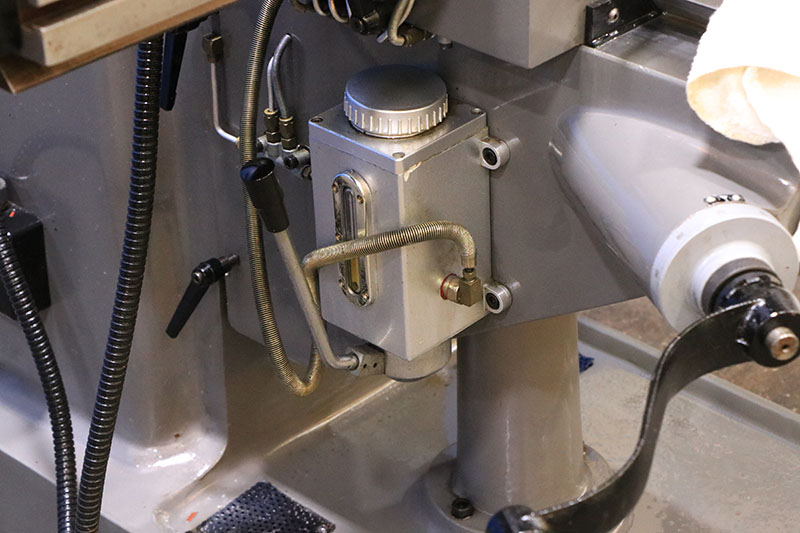

ONE-SHOT LUBRICATION SYSTEM

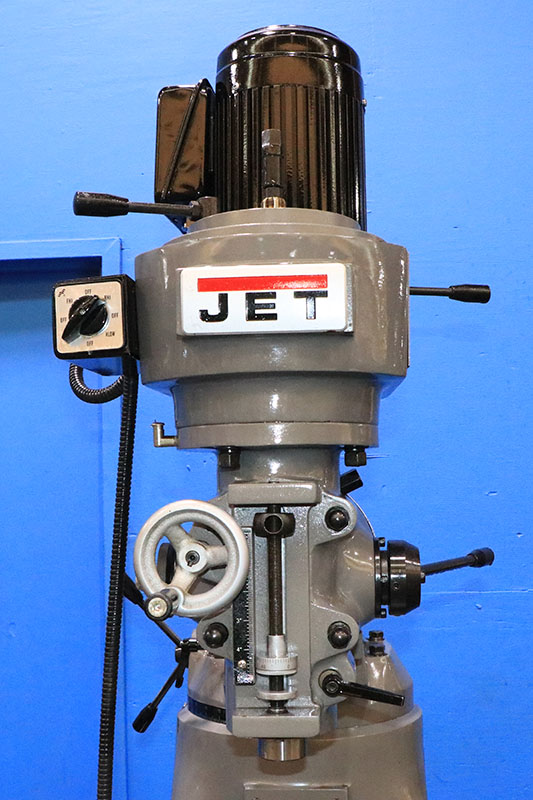

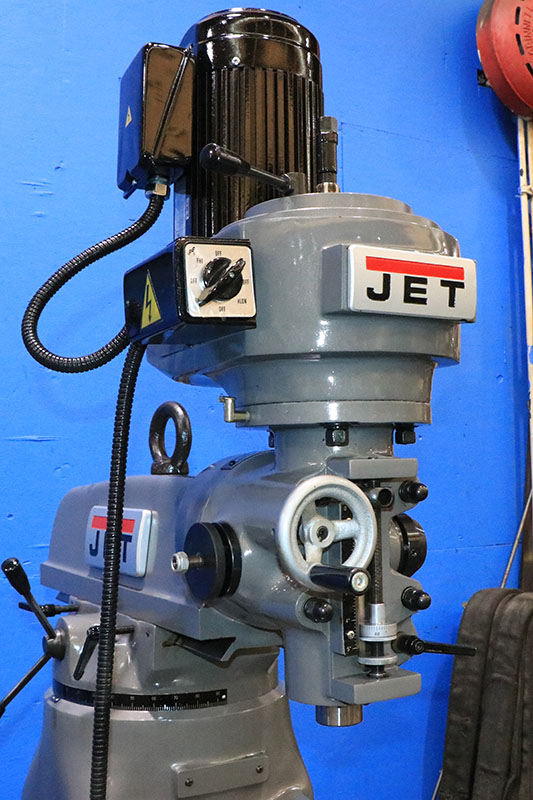

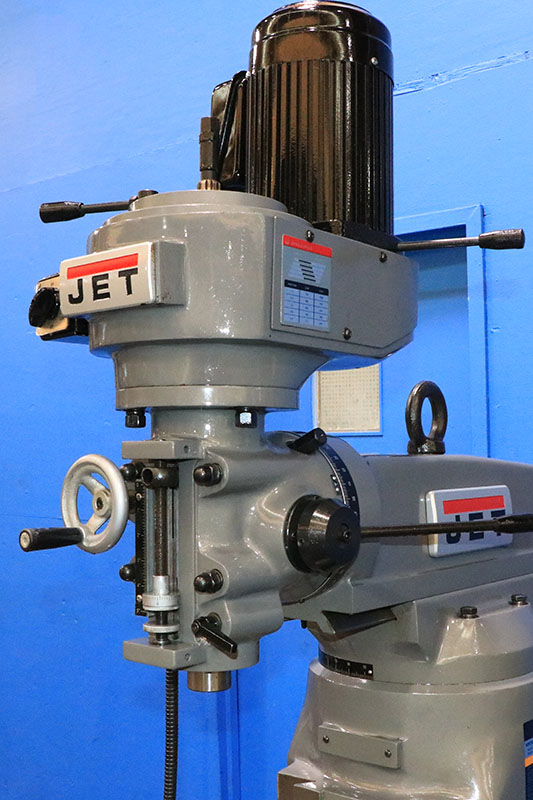

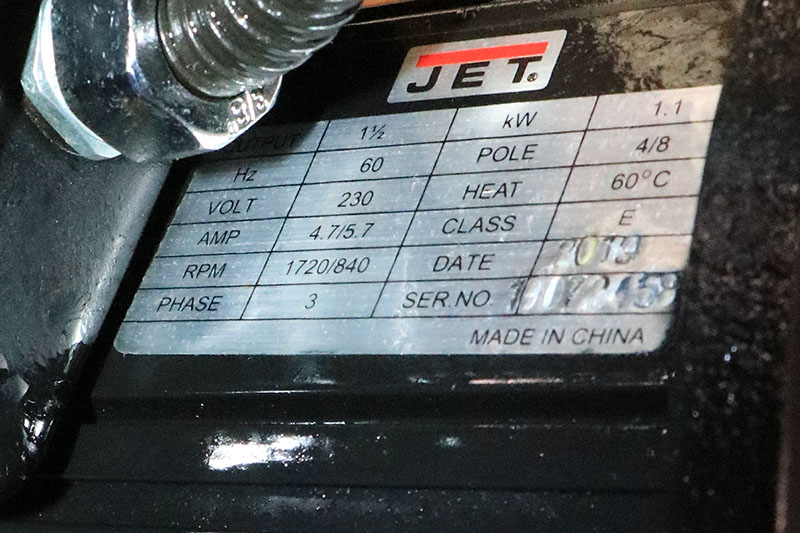

1.5 HORSE POWER MILLING HEAD

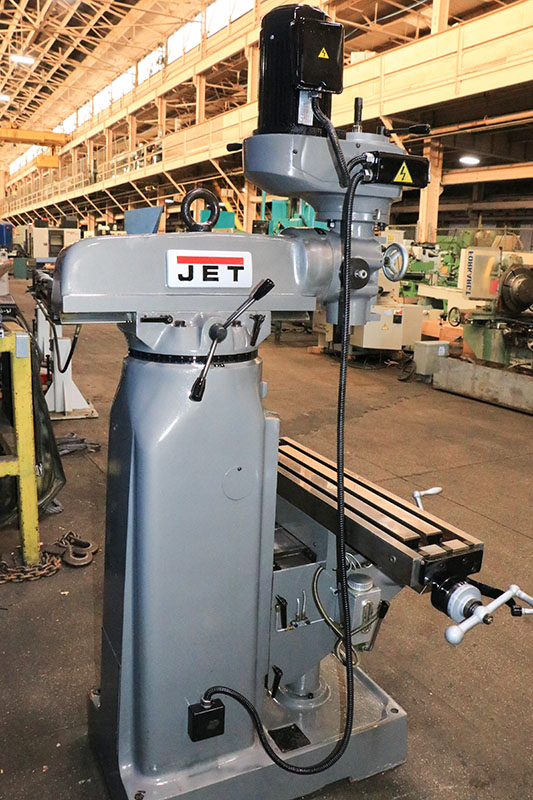

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
