KDM KTM-12/16(F) Live Milling C-Axis CNC VERTICAL BORING MILLS & VERTICAL TURRET LATHES

Price on Request

Make:: KDM

Model:: KTM-12/16(F) Live Milling C-Axis

Year:: 2009

Ref #:: 167508

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

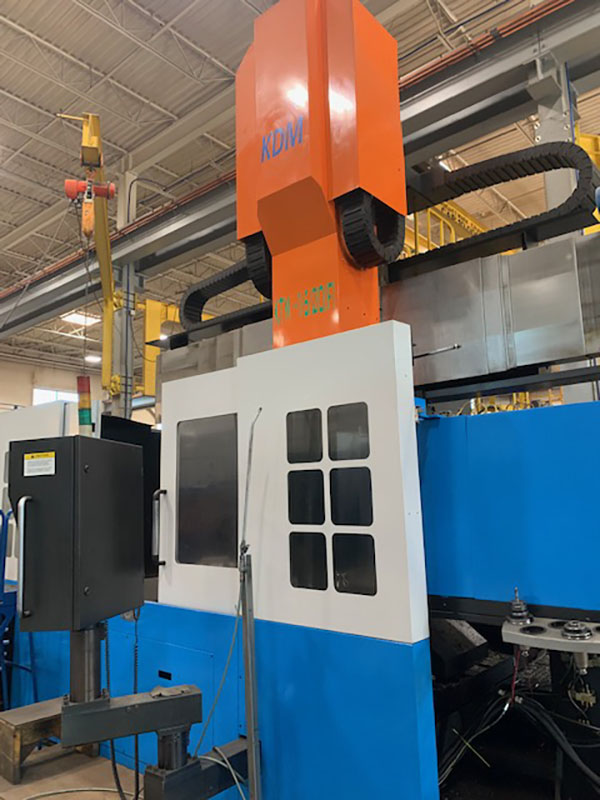

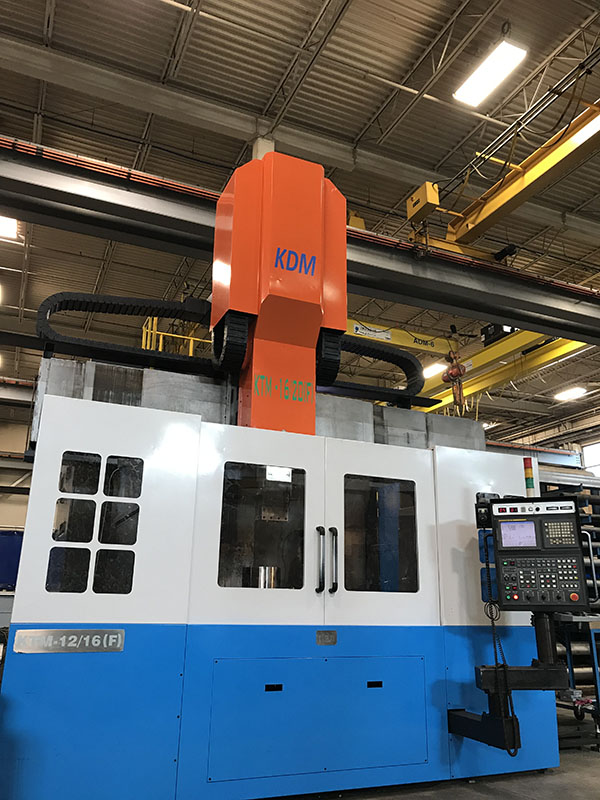

49" KD CNC VERTICAL BORING MILL
MODEL: KTM-12/16(F), NEW: 2009

TABLE DIAMETER ..................... 49.2"  1250mm
MAX SWING .......................... 65"  1650mm
MAX TURNING DIAMETER ............... 62"  1600mm
MAX TURNING HEIGHT ABOVE TABLE ..... 40"  1020mm
MAX TURNING HEIGHT WITH LIVE TOOL .. 36"  920mm
MAX WEIGHT OF WORKPIECE ............ 13,250 Lbs
VERTICAL TRAVEL OF RAM HEAD ........ 35.4"  900mm
HORIZONTAL TRAVEL OF TOOL HEAD ..... 68"  1730mm
RAM SIZE (SQUARE) .................. 9.45 X 9.45"  240mm
LIVE TOOL SPEED MAXIMUM............. 2,000 RPM
TABLE SPEEDS (2) (EACH VARIABLE)
LOW ................................ 1 - 87.5 RPM
HIGH ............................... 4 - 350 RPM
TABLE C-AXIS INDEX ................. 0.001 DEGREE
APPROXIMATE MACHINE WEIGHT ......... 55,000 LBS

EQUIPPED WITH:

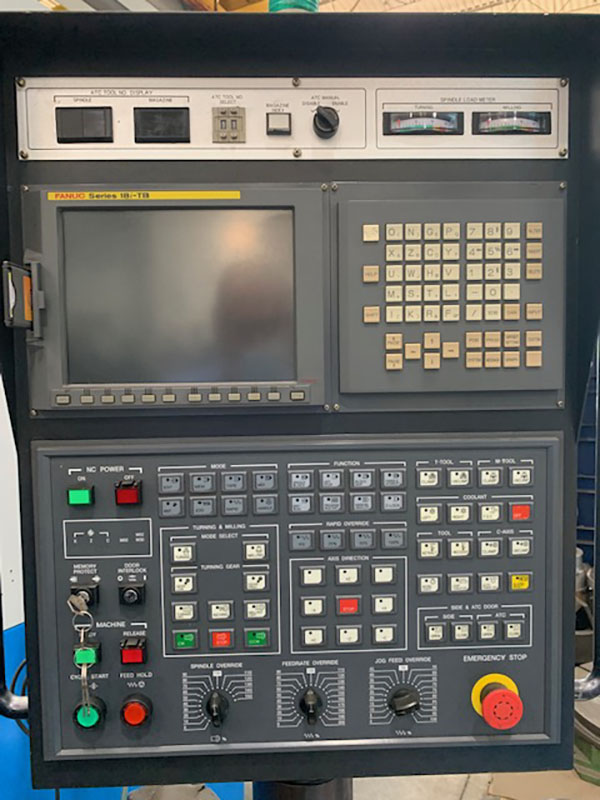

FANUC MODEL: 18iTB CNC CONTROL
LIVE MILLING SPINDLE AND C-AXIS TABLE
THROUGH SPINDLE COOLANT

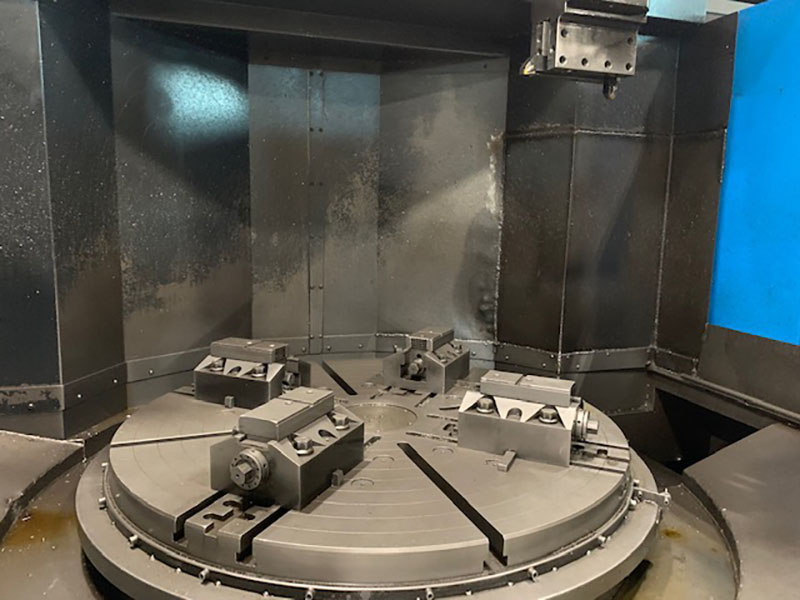

49" FACEPLATE WITH 4-TOP JAWS
12/18 KW MILLING SPINDLE DRIVE MOTOR
37/45 KW TABLE DRIVE MOTOR
