Kearney & Trecker 430TF-20 HORIZONTAL MILLING MACHINES w/ PLAIN TABLE

Price on Request

Make:: Kearney & Trecker

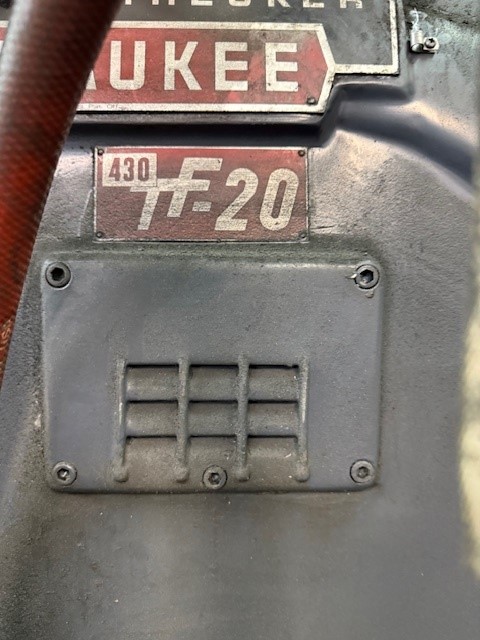

Model:: 430TF-20

Year:: 1970

Ref #:: 178434

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

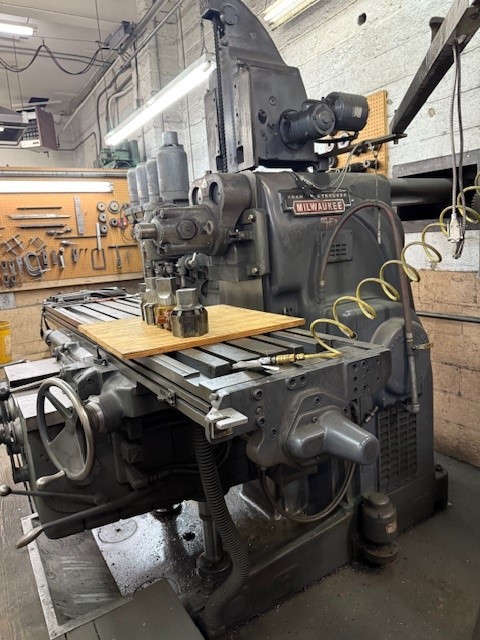

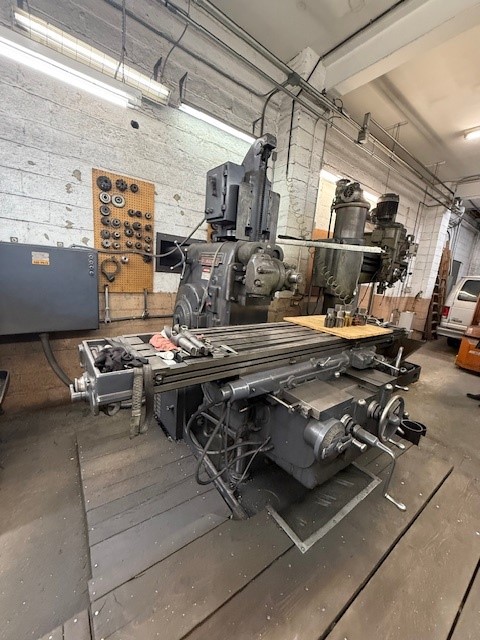

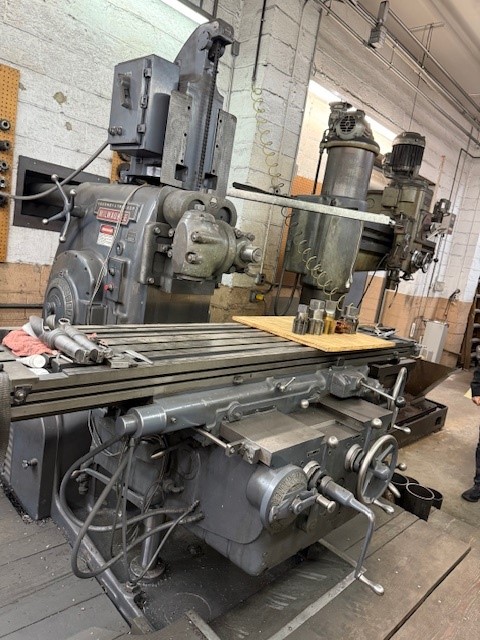

KEARNEY & TRECKER HORIZONTAL MILLING MACHINE

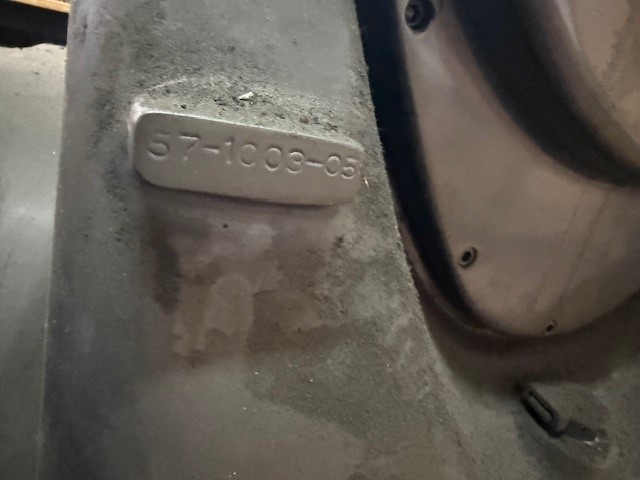

MODEL: #430 TF-20, S/N: 57-1003-05, NEW: 1970
W/DOUBLE SWIVEL VERTICAL ATTACHMENT

SPECIFICATIONS:
TABLE WORKING SURFACE .................. 19-1/2" X 88"
RANGE, LONGITUDINAL .................... 42"
CROSS .................................. 14"
VERTICAL, KNEE ......................... 21"
TAPER IN HORIZONTAL & VERTICAL SPINDLES. #50 N.S.T.

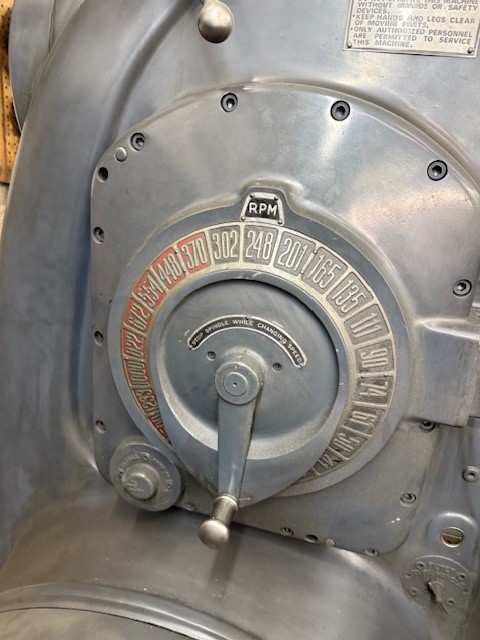

HORIZONTAL SPINDLE SPEEDS (24) ......... 15 - 1,500 R.P.M
LONGITUDINAL AND CROSS FEEDS (32) ...... 3/8 TO 90 I.P.M.
VERTICAL KNEE FEEDS (32) ............... 1/8 TO 30 I.P.M.
RAPID TRAVERSE RATE
    LONGITUDINAL AND CROSS ............. 150 I.P.M.
    VERTICAL ........................... 50 I.P.M.
APPROXIMATE DIMENSIONS ................. 64" X 114" X 100" HIGH
APPROXIMATE WEIGHT ..................... 16,500 LBS.

EQUIPPED WITH:
- DOUBLE SWIVEL HIGH SPEED MILLING HEAD
  #40 TAPER, 25 - 2000 RPM
- RAPID PARKING ATTACHMENT-MOTORIZED SELF CONTAINED
    UNIT ON TOP OF MACHINE COLUMN, PARKS HEAD INTO WORKING
    POSITION OR CLEAR OF HORIZONTAL MILLING AREA
- MONO-LEVER AND AUTOMATIC CYCLE TABLE CONTROL
- WIDE KNEE DESIGN
- TWIN SCREW ARRANGEMENT FOR VERTICAL MOVEMENT AND SUPPORT
    OF KNEE

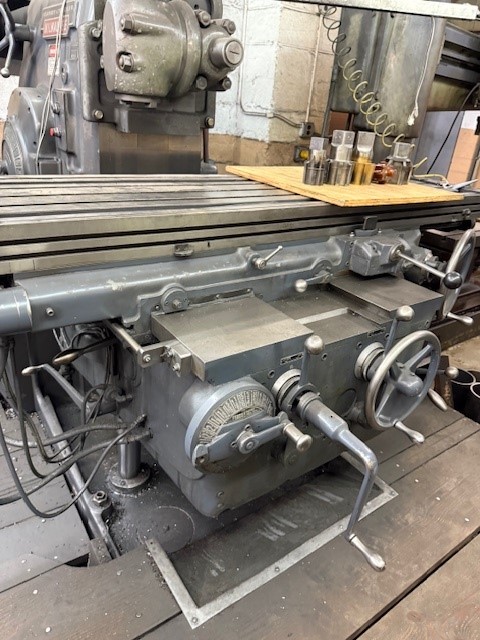

- FRONT LOCATED HANDWHEEL FOR LONGITUDINAL TABLE TRAVEL IN
    ADDITION TO STANDARD LEFT SIDE HANDWHEEL
- DUAL LEFT REAR LOCATED HANDWHEELS FOR KNEE AND SADDLE TRAVEL
- AUTOMATIC BACKLASH ELIMINATOR
- SELF-CONTAINED COOLANT SYSTEM
- 5 HORSE POWER INDIVIDUAL FEED & RAPID TRAVERSE MOTOR
- 30 HORSE POWER HORIZONTAL SPINDLE MOTOR
