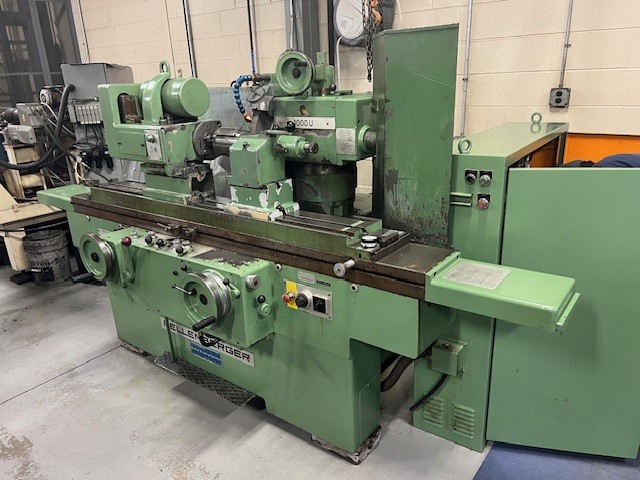

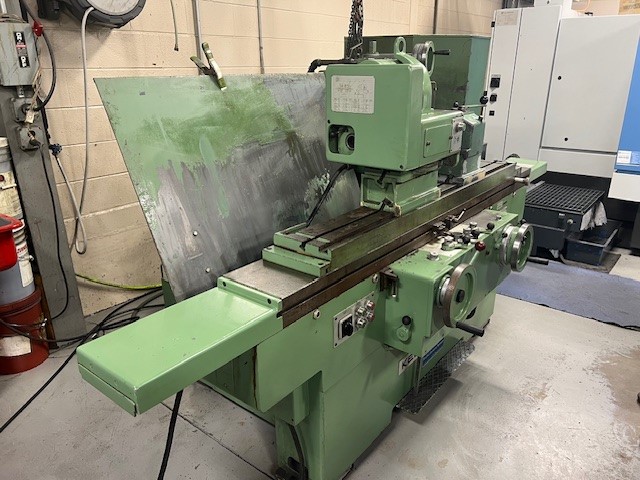

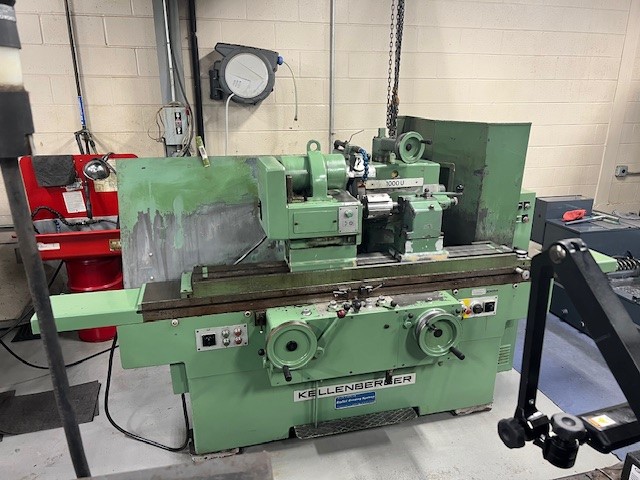

Kellenberger 1000U, 1982, FULL AUTO CYCLE, I.D., IN PLANT UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 1000U, 1982, FULL AUTO CYCLE, I.D., IN PLANT

Year:: 1982

Ref #:: 179173

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

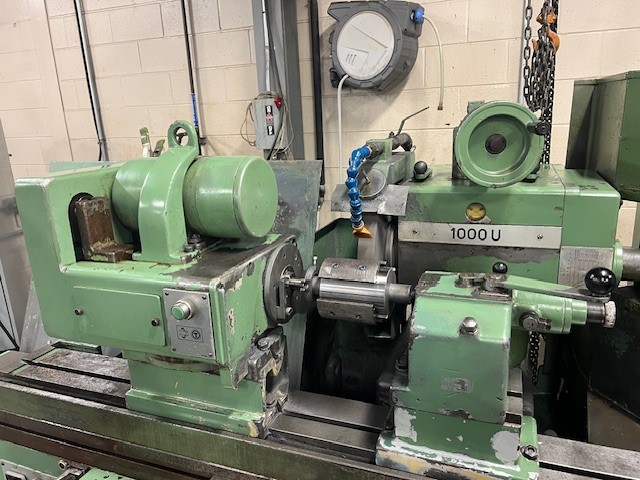

         19.8" x 40" KELLENBERGER "SWISS"
SUPER-PRECISION UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER


** PRESENTLY EQUIPPED WITH FACTORY RISERS **


** MACHINE CAN BE EQUIPPED TO GRIND O.D.,
     I.D & FACE GRINDING TASKS **

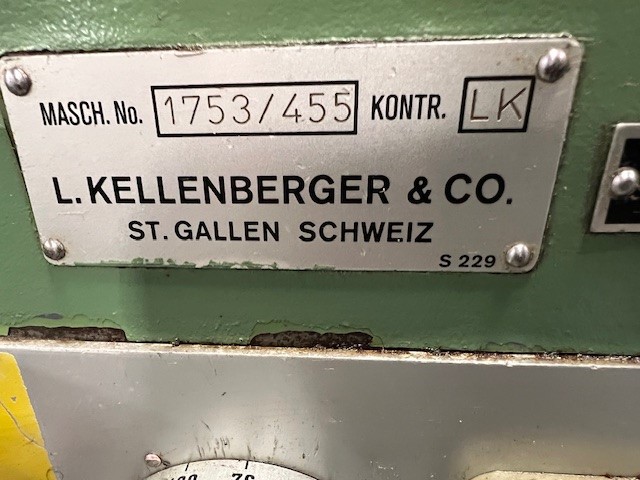

MODEL: 1000U      S/N:  1753/455       MFG. 1982

DISTANCE BETWEEN CENTERS ............ 39- 3/8"
DISTANCE BETWEEN CENTERS WITH
   TAILSTOCK OVERHANGING ............ 47- 1/4"

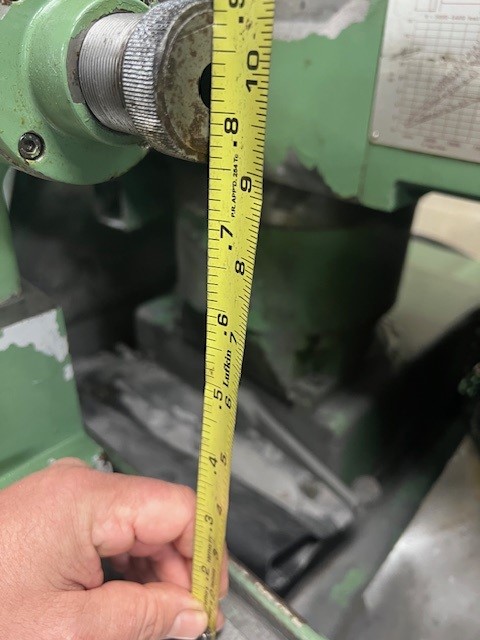

HEIGHT OF CENTERS,
   WITH REMOVABLE RISERS ............ 9- 27/32"
STANDARD SWING WITHOUT RISERS ....... 9.8"
PRESENT SWING WITH 100mm RISERS
   THAT ARE WITH THE MACHINE ........ 19.8"

TABLE:
LONGITUDINAL TABLE TRAVEL ........... 51- 13/16"
LONGITUDINAL TABLE TRAVEL PER
  TURN OF HANDWHEEL:
  COARSE ............................ 25/32"
  FINE .............................. 3/32"
LONGITUDINAL TABLE SPEED, HYD. ...... 0.6 - 240" IPM
TABLE SWIVELS ....................... 9°
REVERSING DWELL ..................... 0 TO 5 SECONDS
GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE ........ 0.0002"
  AUTOMATIC FEED, MAXIMUM ........... 0.036"
  AUTO. INFEED PER TABLE REVERSAL ... 0.00005" TO .0012"
  INFEED FOR PLUNGE GRINDING ........ 0.00004" TO .002"
  MICROMETER STOP, 1 GRADUATION .... 0.00005"

UNIVERSAL GRINDING SPINDLE HEAD:
  MOVEMENT OF WHEEL SLIDE ........... 11-1/4"
  HYDRAULIC RAPID WHEEL SLIDE,
   ADVANCE/RETRACTION STROKE ........ 1-37/64"
  GRINDING WHEEL SPEEDS (4) ... 1500, 1700, 2200& 3600 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING ......................... 16" x 2" x 5"
  GRINDING WHEEL (FACE GRINDING) .... 10" x 3/4" x 3"
  SWIVEL OF GRINDING HEAD
  WITH LOCKING EVERY 90° ............ 270°
  VERTICAL MOTION OF GRINDING
   SPINDLE HEAD, HEIGHT OF CENTERS .. 4-59/64" TO 13-25/32"

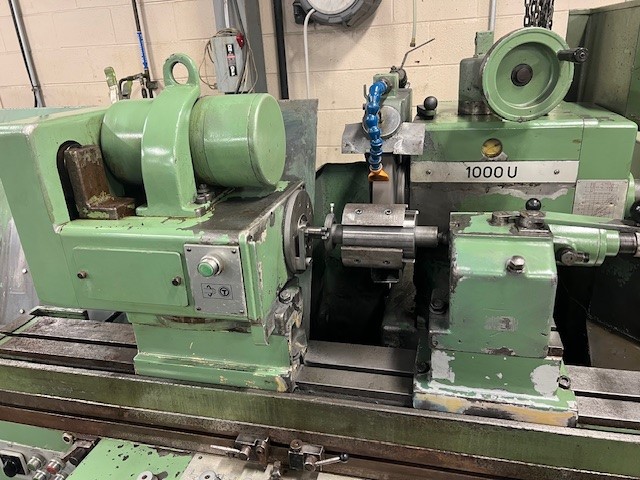

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS .. 10 - 400 RPM
  WORKHEAD SWIVELS .................. 360°
  INSIDE TAPER OF WORK SPINDLE ...... #5MT

APPROXIMATE FLOOR SPACE REQUIRED .... 106" x 64" x 66"H
APPROXIMATE MACHINE WEIGHT .......... 6,500 LBS

MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION

-4 HP WHEEL HEAD MOTOR, ALL THREE SPINDLES
   ARE DRIVEN BY THIS MOTOR
-"ZUMBACH" VARIABLE SPEED SYSTEM FOR THE WORKHEAD
-WORKHEAD SPINDLE IS BOTH "LIVE" & "DEAD"


EQUIPPED WITH:

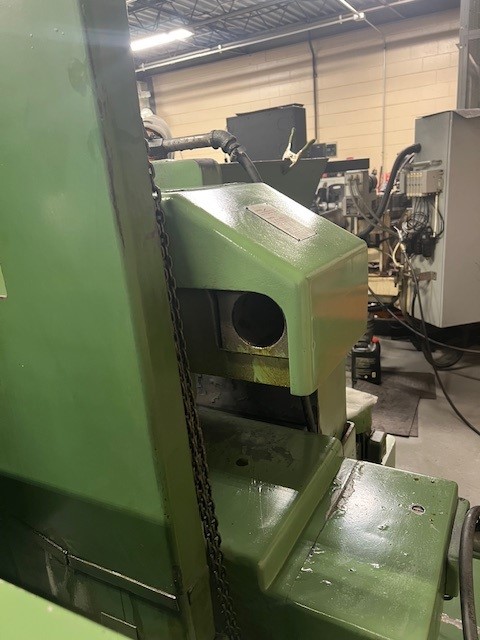

SWING AROUND I.D. GRINDING ATTACHMENT
I.D. GRINDING SPINDLE PROVIDED, NOT SHWON IN PHOTOS
ADJUSTABLE CENTER HEIGHT FEATURE
SPECIAL NOTE:
THIS MACHINE IS PRESENTLY SET UP FOR 19.8"
 SWING, WITH FACTORY RISERS.

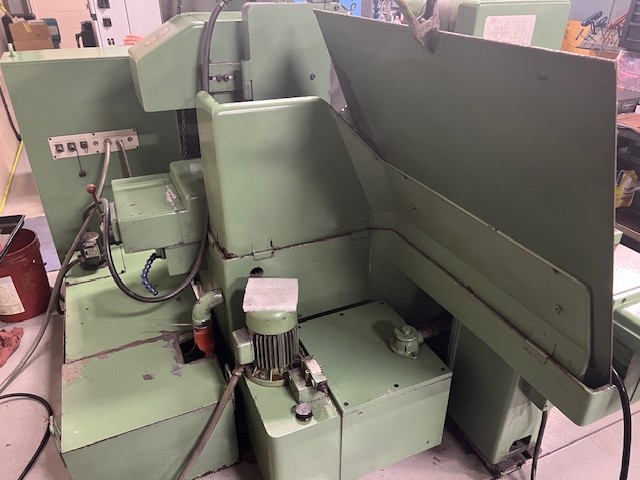

COOLANT SYSTEM

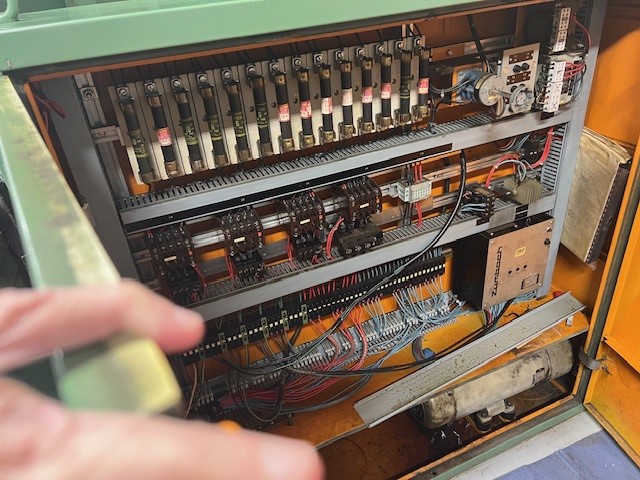

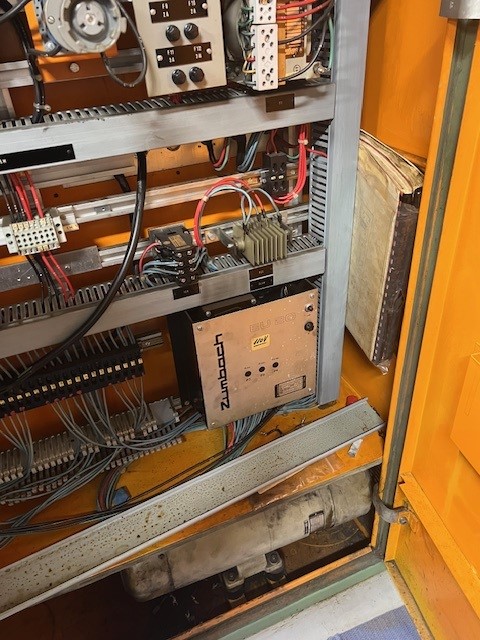

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS




** INSPECT UNDER POWER IN OUR CUSTOMER'S SHOP -
    IN SOUTHERN NEW JERSEY **
** SUPERB CONDITION & APPEARANCE **
