Kellenberger 600 U-175, 1982, SWING AROUND ID., FACING ATT. UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 600 U-175, 1982, SWING AROUND ID., FACING ATT.

Year:: 1982

Ref #:: 178799

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

  13.8" x 24"  KELLENBERGER MODEL 600U-175
            "MADE IN SWITZERLAND"
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER


SPECIAL NOTE:
SWING CAN BE INCREASED TO A MAXIMUM OF 19.8"
  BY ADDING COPIES OF KELLENBERGER FACTORY
  RISER BLOCKS.  WE HAVE THESE RISER BLOCKS IN STOCK.
  PRICE IS AVAILABLE UPON REQUEST.

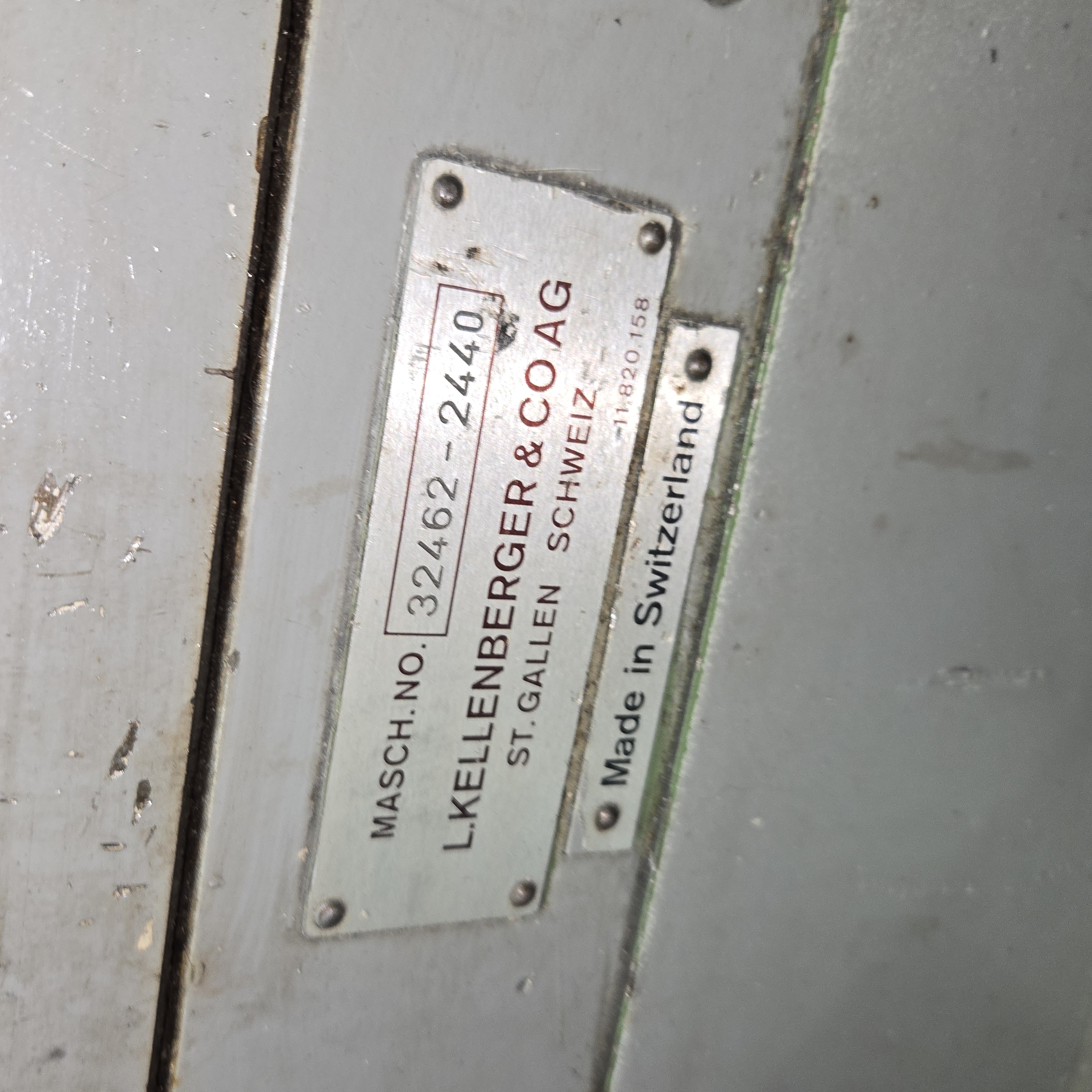

S/N: 32462-2440      NEW: 1982

CAPACITY:
SWING CAPACITY ........................... 13.8"
MAX. SWING w/ADDITIONAL RISERS ........... 19.8"
DISTANCE BETWEEN CENTERS (NOMINAL)........ 23- 5/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
  OVERHANGING ............................ 29- 1/2"

TABLE:
LONGITUDINAL TABLE TRAVEL ................ 35- 1/2"
LONGITUDINAL TABLE TRAVEL PER
  TURN OF HANDWHEEL:
  COARSE ................................. 25/32"
  FINE ................................... 3/32"
LONGITUDINAL TABLE SPEED (HYD.) ..... 0.06 TO 18' FPM
TABLE SWIVELS ............................ 11 DEGREES
REVERSING DWELL ........................ 0 TO 5 SECONDS
GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE ............. 0.0002"
  AUTOMATIC FEED, MAXIMUM ................ 0.035"
  AUTO INFEED PER TABLE REVERSAL .. 0.00005" TO .0012"
  INFEED FOR PLUNGE GRINDING ........ 0.00004" TO .002"
  PLUNGE GRINDING: INFEED SPEED ... 10 TO 1000 uIN/SEC
  MICROMETER STOP, 1 GRADUATION .......... 0.00005"

UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF WHEEL SLIDE ..... 11-1/4"
  HYDRAULIC RAPID WHEEL SLIDE
   ADVANCE/RETRACTION STROKE ............. 1-9/16"
  GRINDING WHEEL SPEEDS (4) 1500, 1700, 2200& 3600 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING .......................... 16" X 2" X 5"
  GRINDING WHEEL (SURFACE GRINDING)... 10" X 3/4" X 3"
  SWIVEL OF GRINDING HEAD
   W/LOCKING EVERY 90 DEGREES ........... 270 DEGREES

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS ..... 10 - 400 RPM
  WORKHEAD SWIVELS ..................... 360 DEGREES
  INSIDE TAPER OF WORK SPINDLE ......... #5MT

APPROXIMATE FLOOR SPACE REQUIRED .... 102" X 64" X 66"H
APPROXIMATE MACHINE WEIGHT ............... 6,000 LBS

MACHINE FEATURES:
HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
SPARKOUT TIMER
DUAL LEFT-HAND & RIGHT-HAND WHEEL MOUNTING

EQUIPPED WITH:
- SWING AROUND INTERNAL GRINDING ATTACHMENT
- (1) INTERNAL GRINDING SPINDLE
- 16" O.D. WHEEL
- FACE GRINDING ASSEMBLY (R.H. WHEEL)
- 4-JAW CHUCK & BACK PLATE, WITH ADAPTOR
- WHEEL DRESSER
- STANDARD WORKHEAD W/DUAL LIVE & DEAD WORKHEAD
   SPINDLE
- 4 H.P. WHEELHEAD MOTOR
- COOLANT SYSTEM
- MACHINE IS PRESENTLY WIRED FOR 3/60/440-460 VOLTS

SPECIAL NOTE:
SWING CAN BE INCREASED TO A MAXIMUM OF 19.8"
  BY ADDING COPIES OF KELLENBERGER FACTORY RISER
  BLOCKS.  WE HAVE THESE RISER BLOCKS IN STOCK.
  PRICE IS AVAILABLE UPON REQUEST.


** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
