Kellenberger 600U, 1982, RISERS, I.D. ATT., AUTO CYCLE, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Kellenberger

Model:: 600U, 1982, RISERS, I.D. ATT., AUTO CYCLE,

Year:: 1982

Ref #:: 178326

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

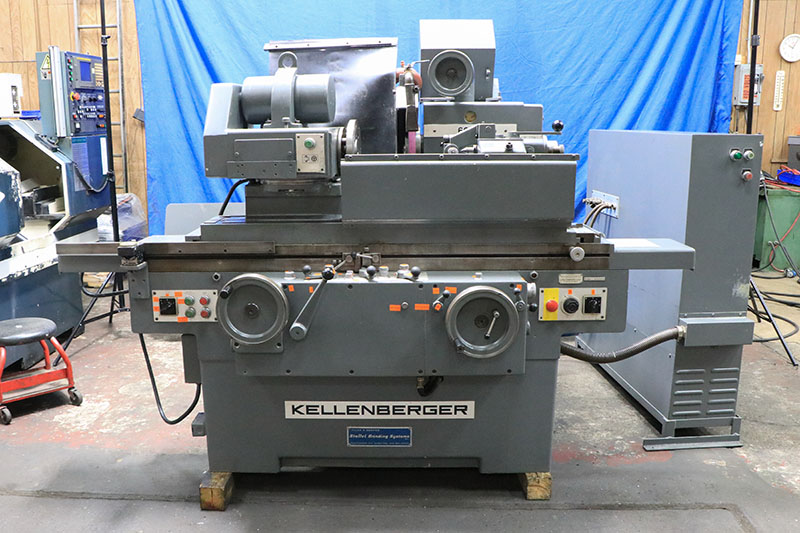

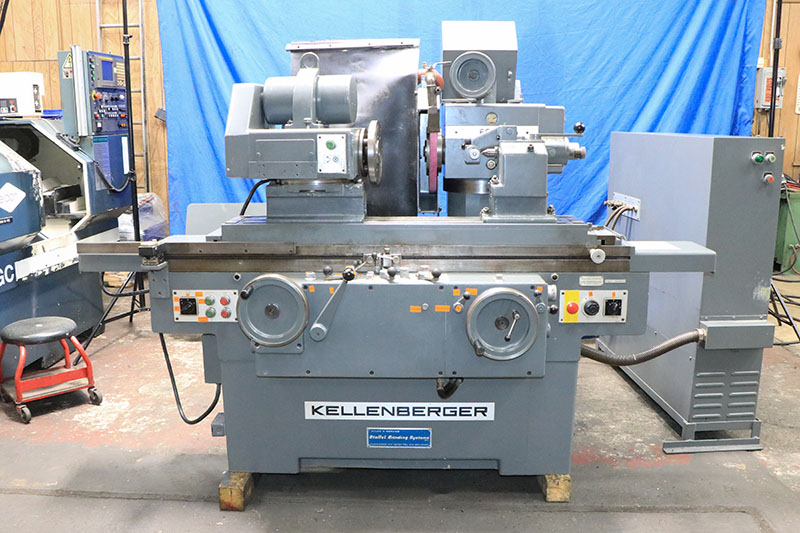

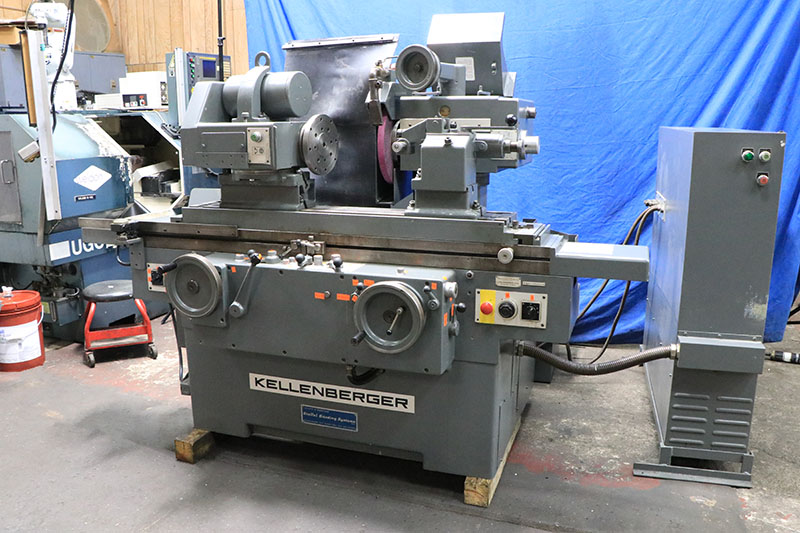

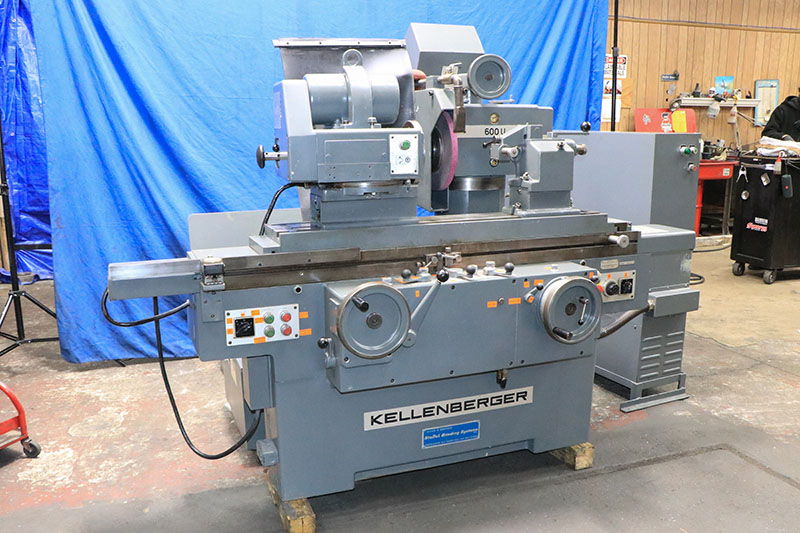

        17.8" x 24" KELLENBERGER
      "SWISS" -  "HIGH PRECISION"
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

   THIS MACHINE HAS 4" FACTORY RISERS,
          IT CAN SWING 17.8"

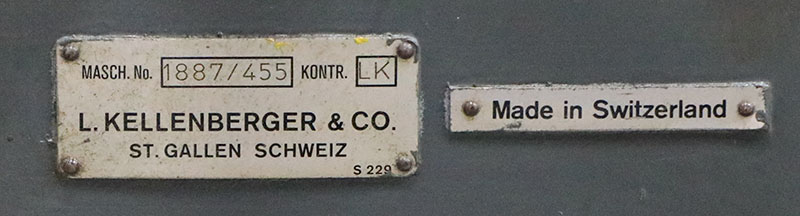

MODEL:  600U       S/N: 1887/455       NEW: 1982


MAX. SWING w/4" FACTORY RISERS ............ 17.8"
DISTANCE BETWEEN CENTERS (NOMINAL)......... 23- 5/8"
DISTANCE BETWEEN CENTERS W/TAILSTOCK
  OVERHANGING ............................. 29- 1/2"

TABLE:
LONGITUDINAL TABLE TRAVEL ................. 35- 7/16"
LONGITUDINAL TABLE TRAVEL PER
  TURN OF HANDWHEEL:
  COARSE .................................. 0.8"
  FINE .................................... 0.1"
LONGITUDINAL TABLE SPEED (HYDRAULIC) ...... 0 TO 20' FPM

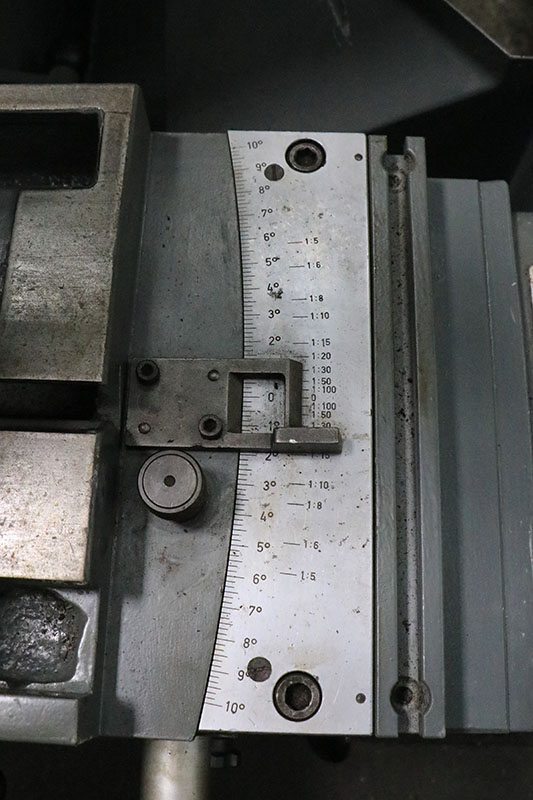

TABLE SWIVELS ............................. 11 DEGREES
REVERSING DWELL ........................... 0 TO 5 SECONDS

GRINDING WHEEL INFEED:
  1 GRADUATION OF FEED SCALE .............. 0.0002"
  AUTOMATIC HYDRAULIC INFEED, ............. 0 TO 0.037"
  AUTO INFEED PER TABLE REVERSAL .......... 0.00004" TO 1.18"
  PLUNGE GRINDING: INFEED SPEED ........... 0.00001 TO .0001 IN/S
  MICROMETER STOP, 1 GRADUATION ........... 0.00005"

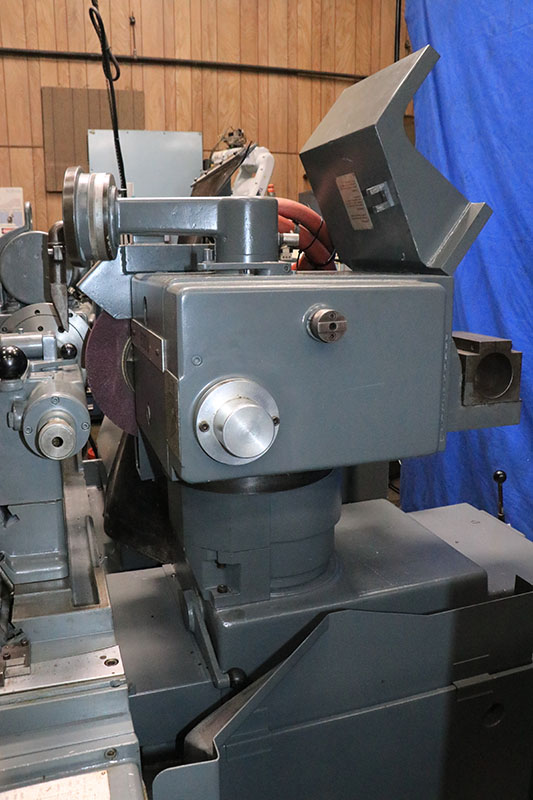

UNIVERSAL GRINDING SPINDLE HEAD:
  TRANSVERSE MOVEMENT OF WHEEL SLIDE ...... 8- 21/32"

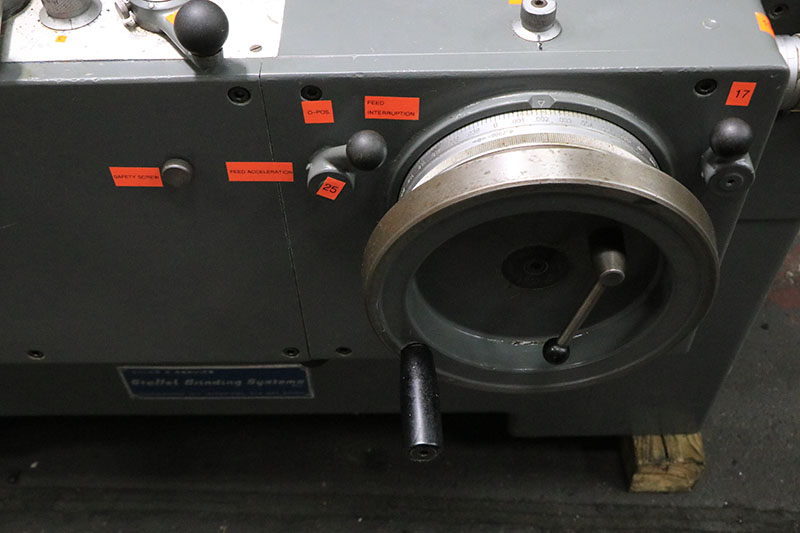

  INFEED PER REV. OF HANDWHEEL:  COARSE ... 0.3"
                                 FINE ..... 0.04"
  HYDRAULIC RAPID WHEEL SLIDE
   ADVANCE/RETRACTION STROKE .............. 1-9/16"
  GRINDING WHEEL SPEEDS ................... 1500, 1700, 2200 RPM
  GRINDING WHEEL FOR CYLINDRICAL
   GRINDING ............................... 16" X 2" X 5"
  GRINDING WHEEL (SURFACE GRINDING)........ 9" X 1/2" X 3"
  SWIVEL OF GRINDING HEAD
   W/LOCKING EVERY 90 DEGREES ............. 270 DEGREES

WORKHEAD:
  INFINIT. VARIABLE SPINDLE SPEEDS ........ 6 - 600 RPM
  WORKHEAD SWIVELS ........................ 360 DEGREES
  INSIDE TAPER OF WORK SPINDLE ............ #5MT

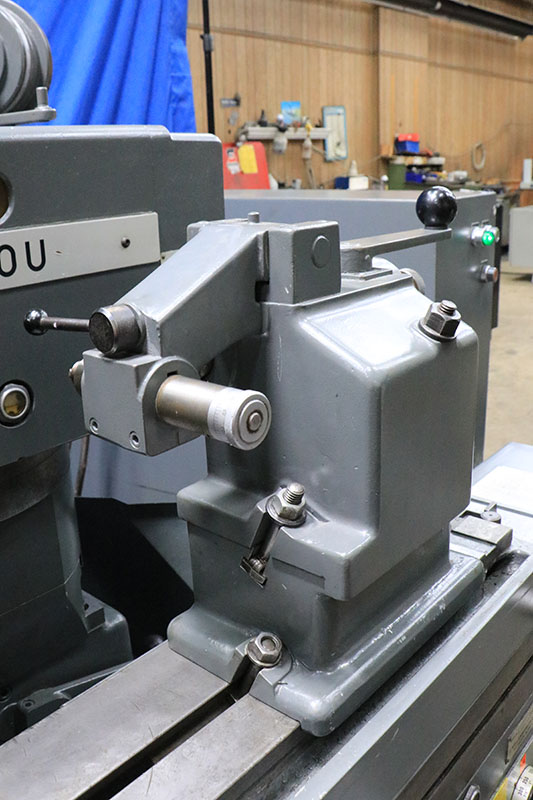

TAILSTOCK:
  INSIDE TAPER OF SPINDLE ................. #4MT
  STROKE OF SPINDLE ........................ 1- 3/16"

APPROXIMATE FLOOR SPACE REQUIRED .......... 102" X 64" X 66"H
APPROXIMATE MACHINE WEIGHT ................ 6,000 LBS

MACHINE FEATURES:

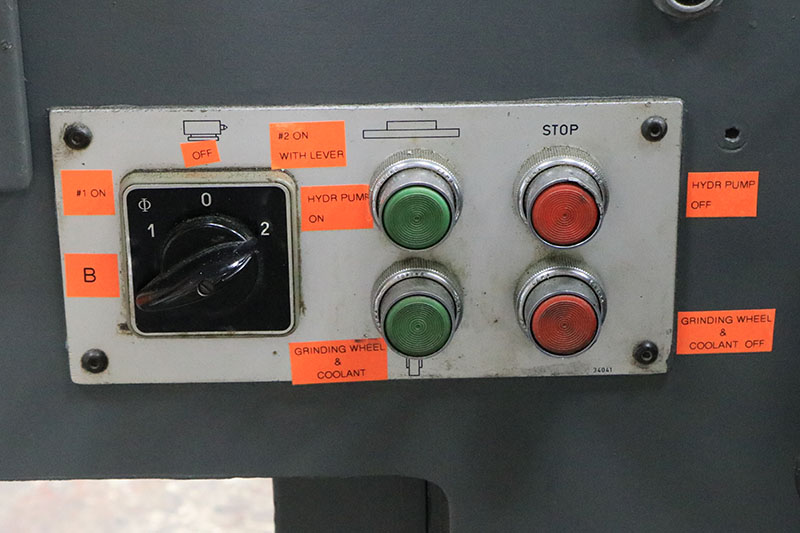

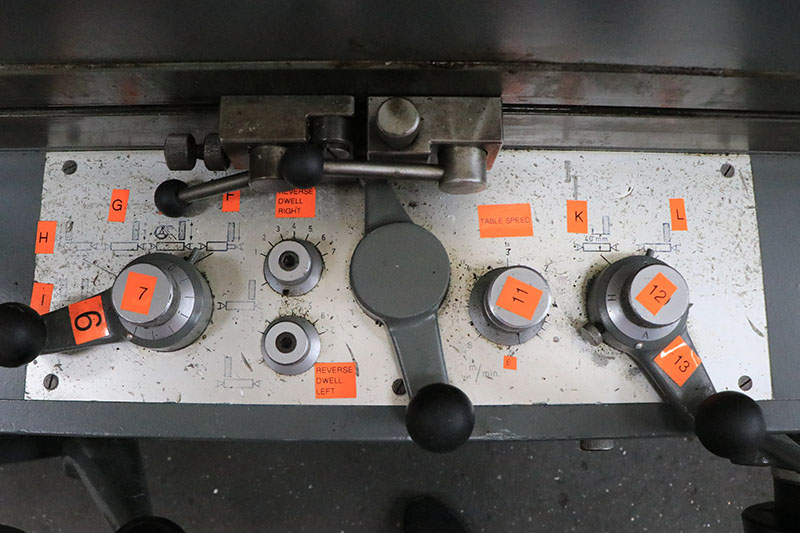

HYDRAULIC OPERATION FEATURING:
-SINGLE LEVER CONTROL
-INFINITELY VARIABLE TABLE TRAVERSE
-AUTOMATIC INFEED
-PLUNGE INFEED
-RAPID WHEEL ADVANCE & RETRACTION
SPARKOUT TIMER


EQUIPPED WITH:
- 17.8 SWING, WITH 4" FACTORY ISSUE RISERS
   FROM KELLENBERGER

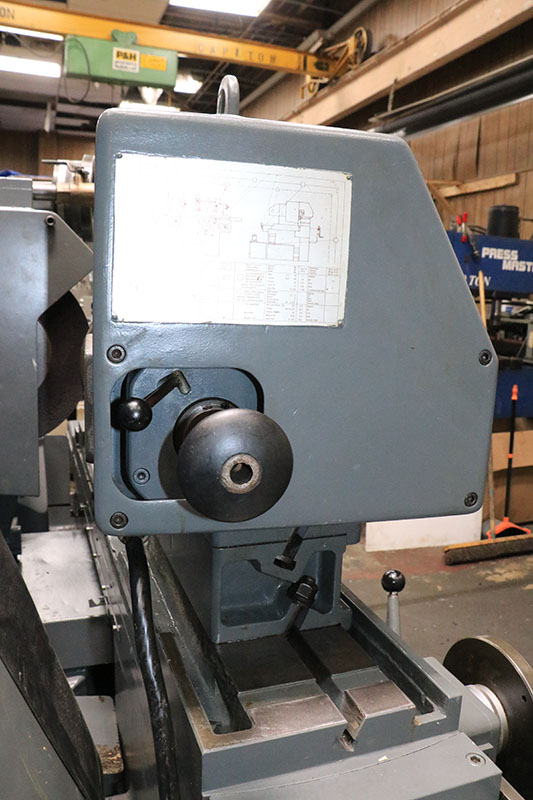

- ADJUSTABLE RISE & FALL MECHANISM OF WHEELHEAD
   BY TURN OF HANDWHEEL

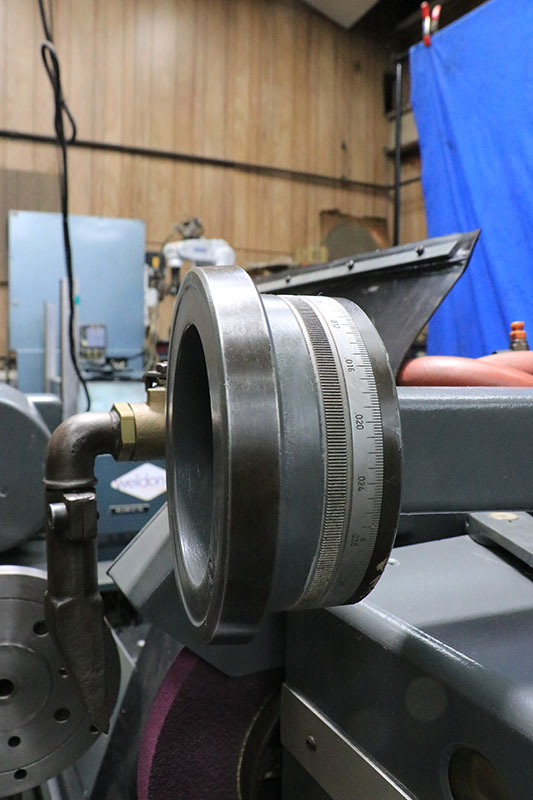

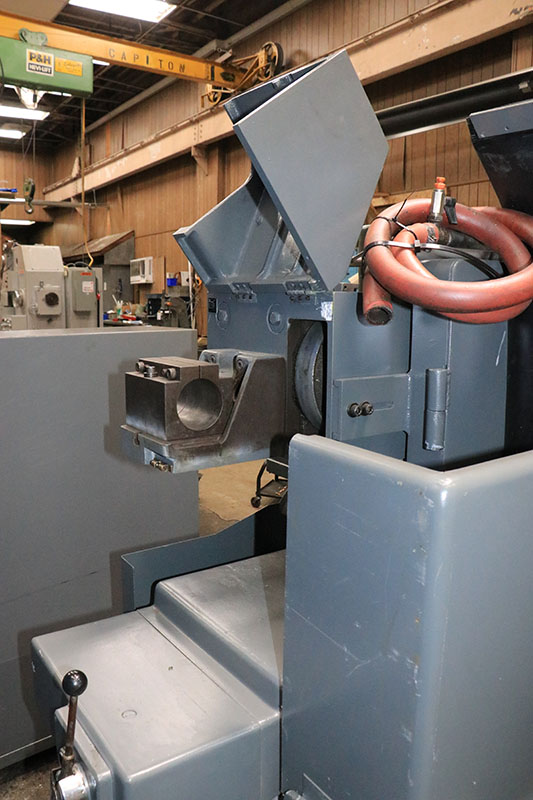

- SWING AROUND INTERNAL GRINDING ATTACHMENT,
- I.D. SPINDLE PROVIDED WITH THE MACHINE
- 16" O.D. WHEEL

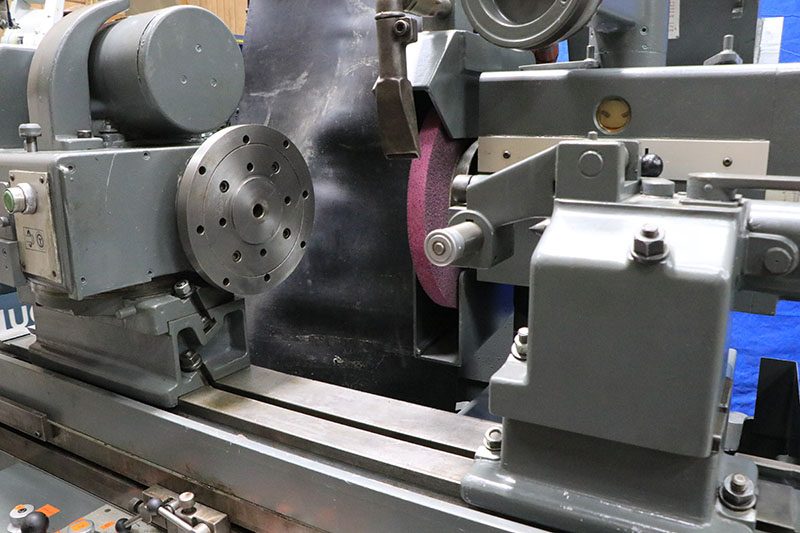

- WORKHEAD W/DUAL LIVE & DEAD WORKHEAD SPINDLE
- ELECTRONIC VARIABLE SPEED DRIVE, PROVIDING FOR
   INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
- 4 H.P. WHEELHEAD MOTOR

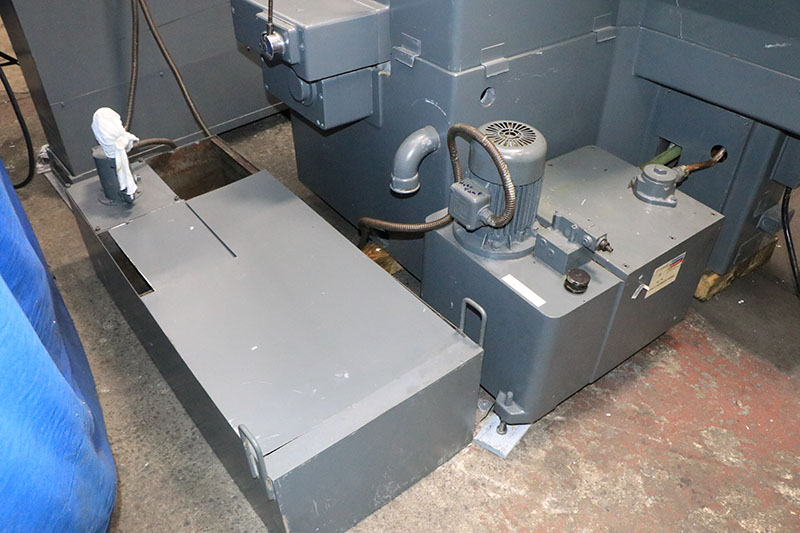

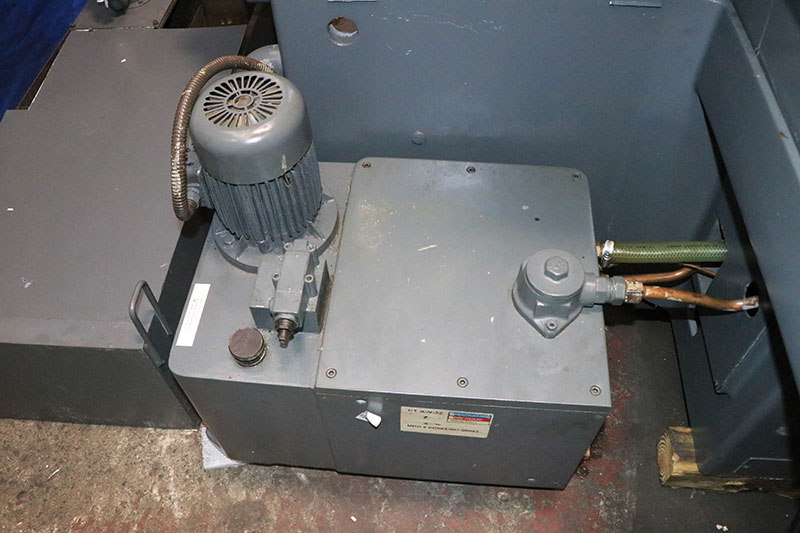

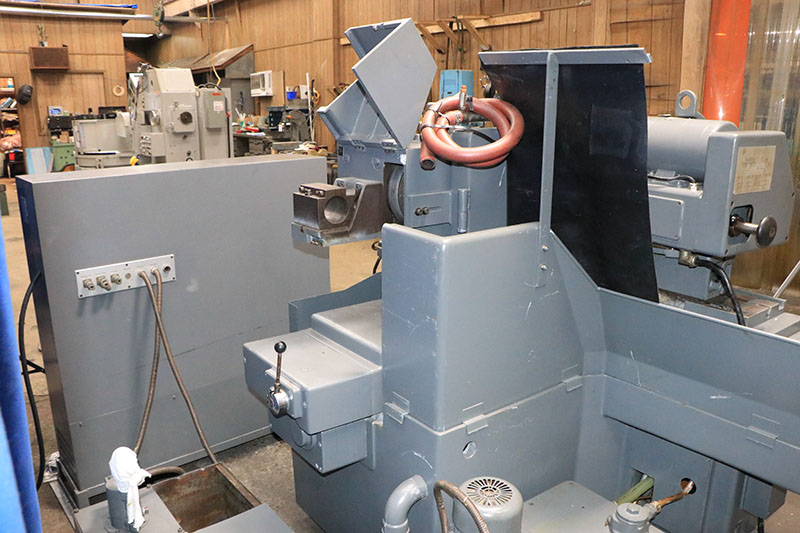

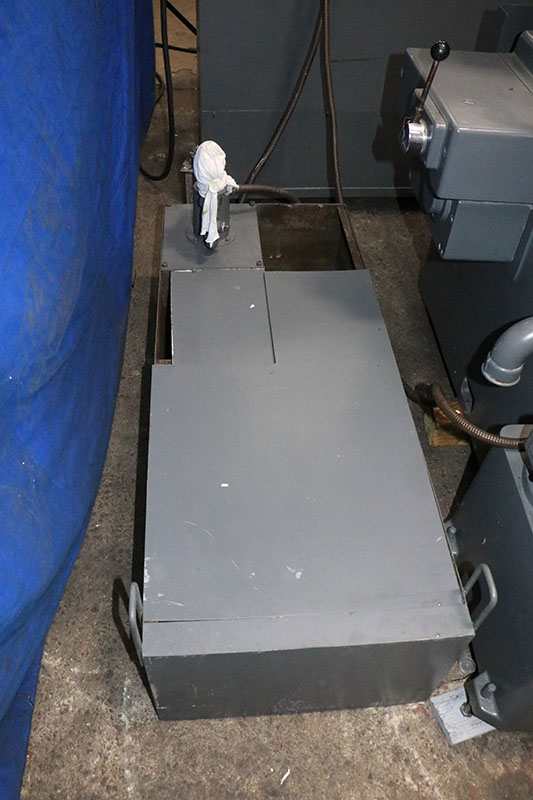

- COOLANT TANK & PUMP, BASIC SYSTEM
- LEVELLING PADS

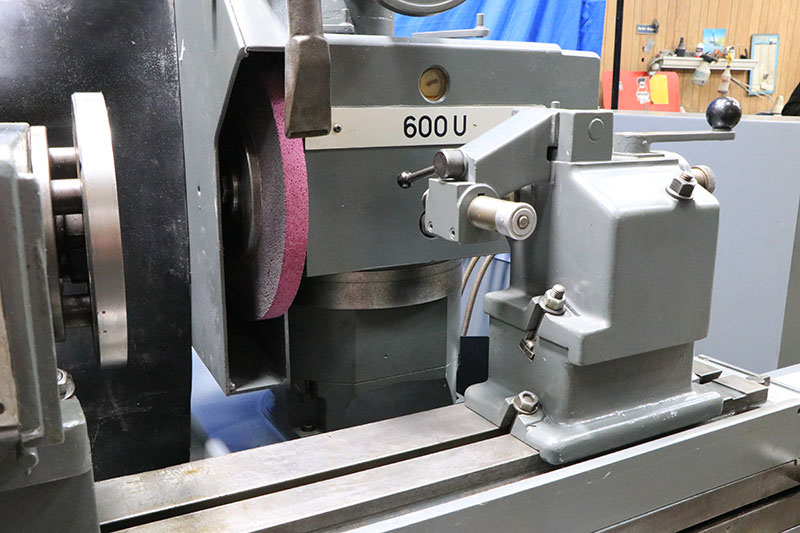

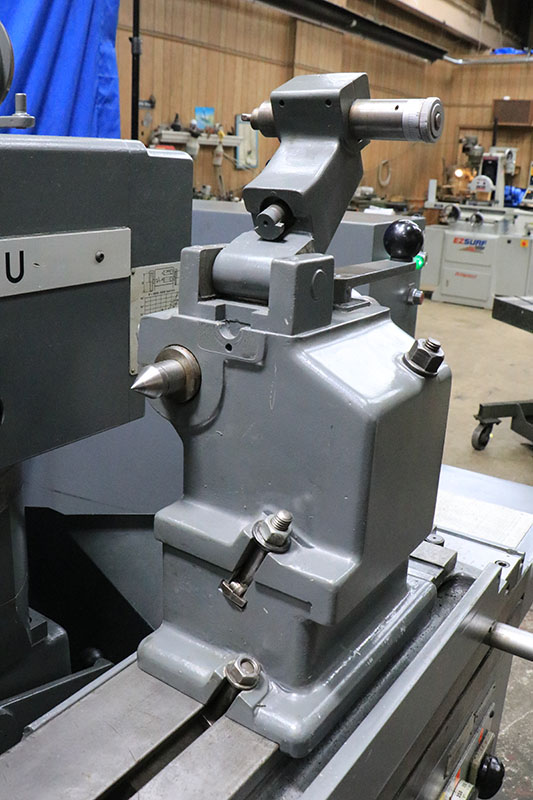

- SWING BACK DIAMOND DRESSER, MOUNTED ON THE TAILSTOCK
- DRAW BAR FOR USE WITH A CHUCK OR FACE PLATE
- FACE PLATE

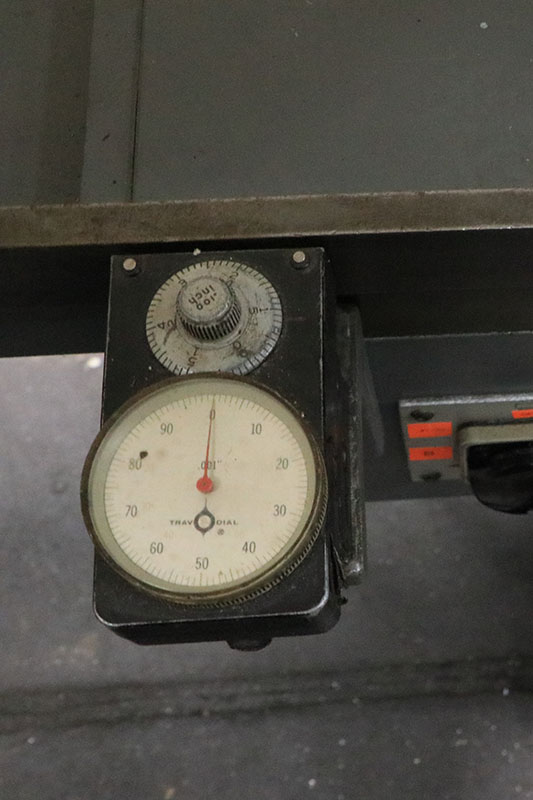

- "TRAVADIAL" ANALOG INDICATOR, FOR THE TABLE MOVEMENT

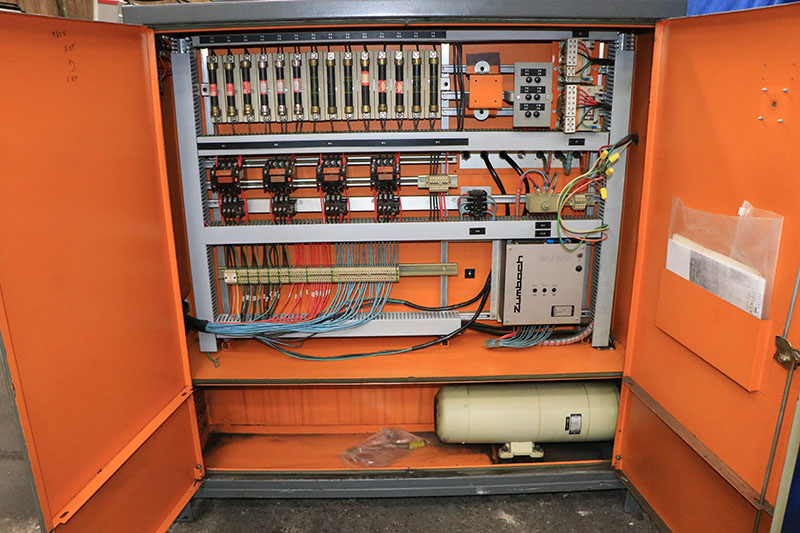

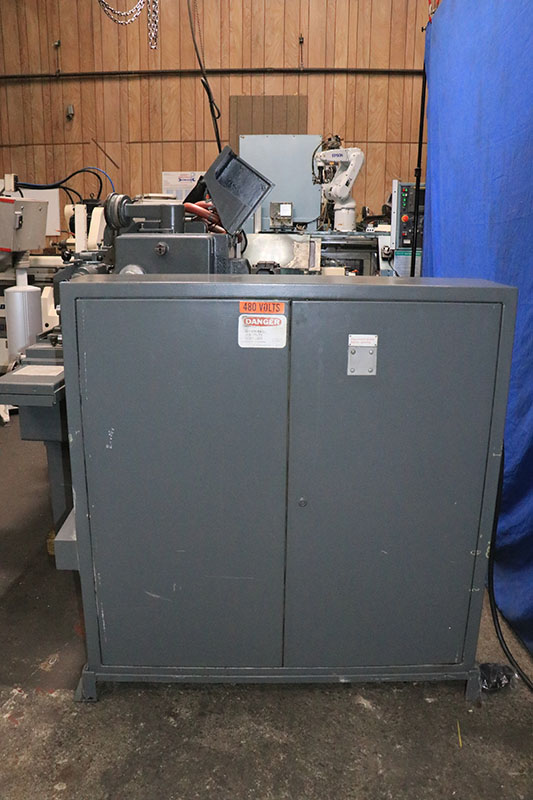

- MACHINE IS PRESENTLY WIRED FOR 3/60/480 VOLTS

SPECIAL NOTE:
THIS MACHINE HAS BEEN SERVICED BY OUR STAFF
 AND IS AVAILABLE FOR DELIVERY! **

LINK TO VIDEO: https://youtu.be/ZQLofhqWfo8?si=iuW1AV1yG4gqsCsE

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
