Kingston HD-26160 4" Hole, Taper ENGINE LATHES

Price on Request

Make:: Kingston

Model:: HD-26160 4" Hole, Taper

Year:: 1997

Ref #:: 178473

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

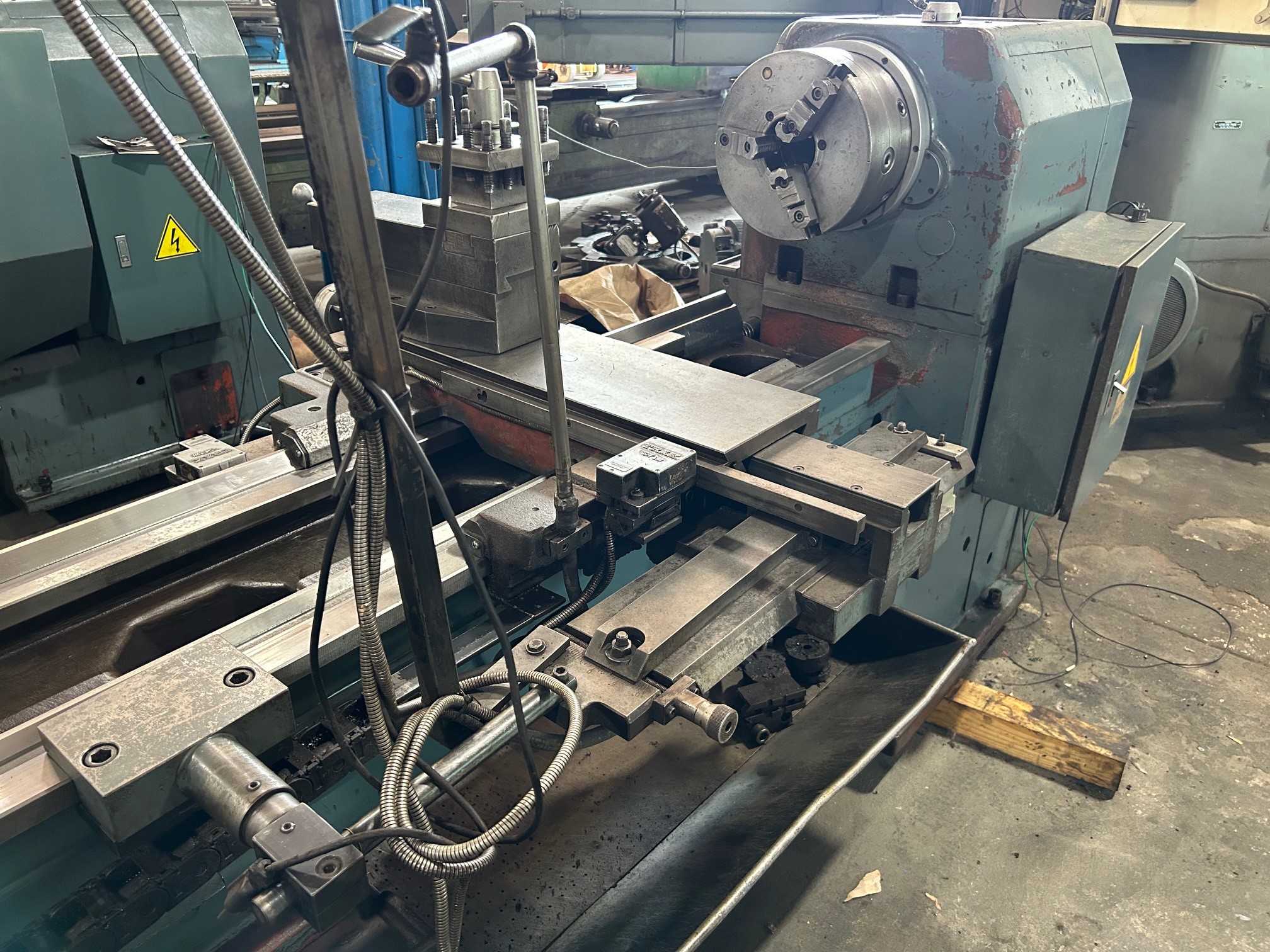

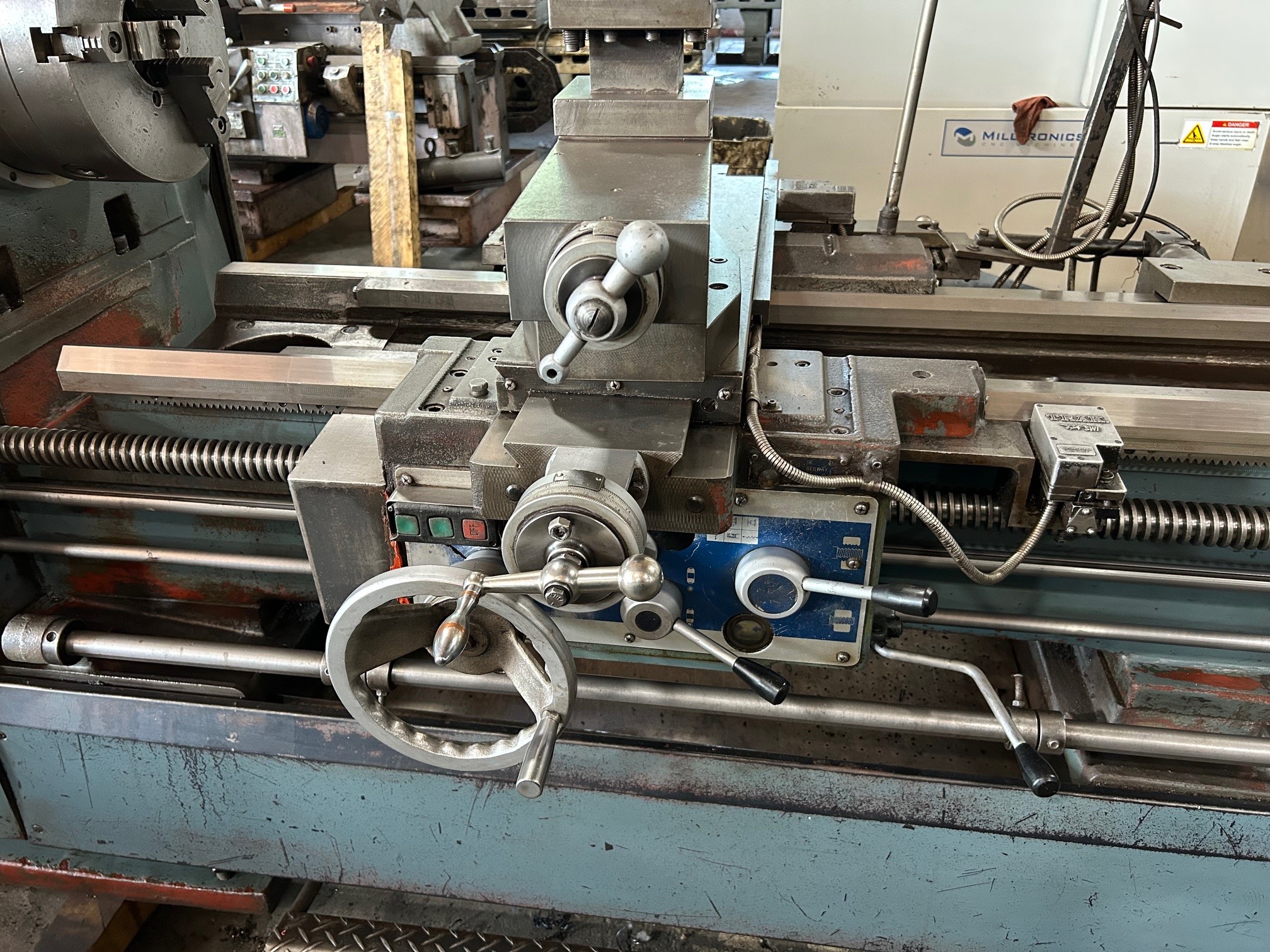

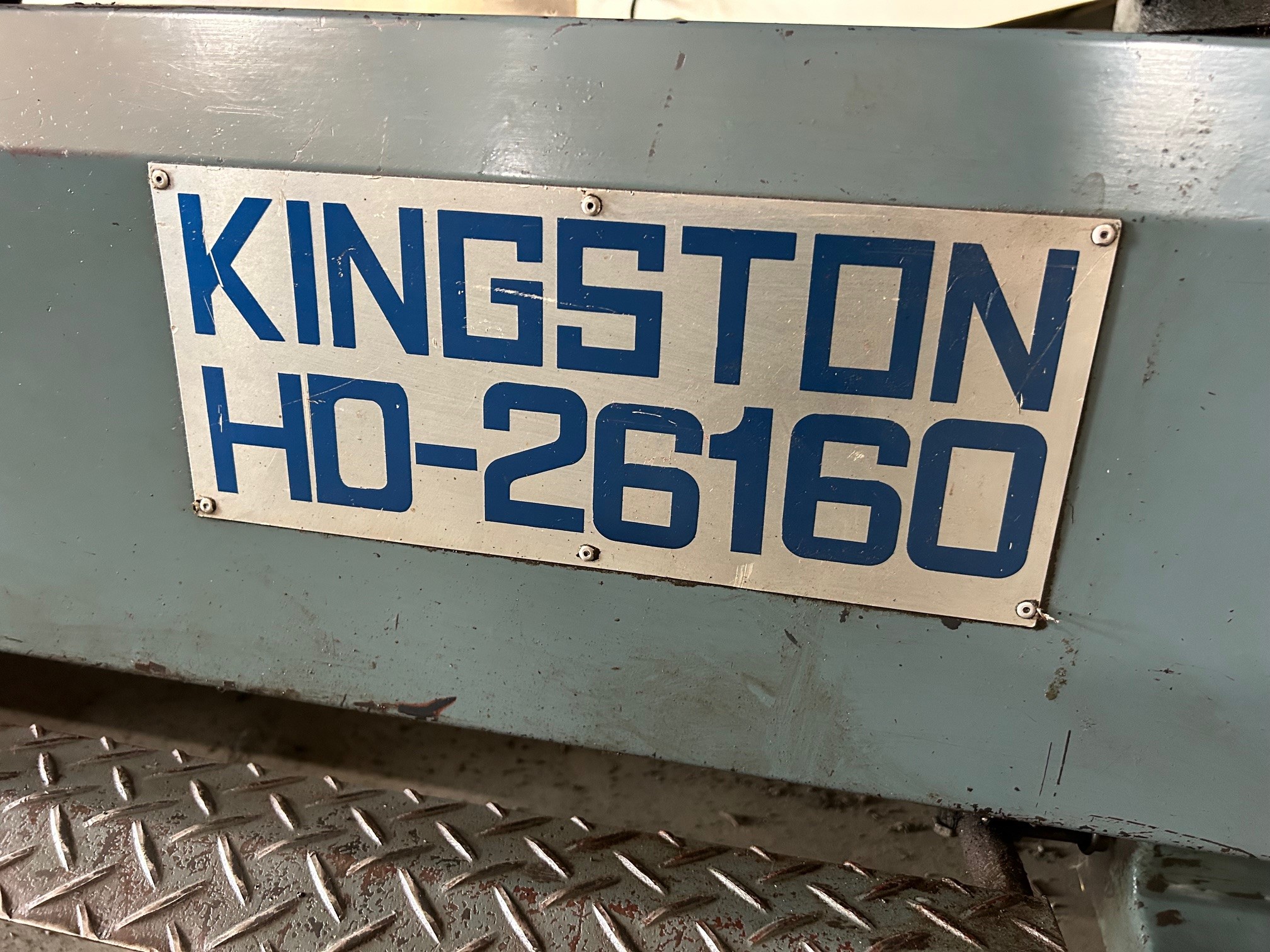

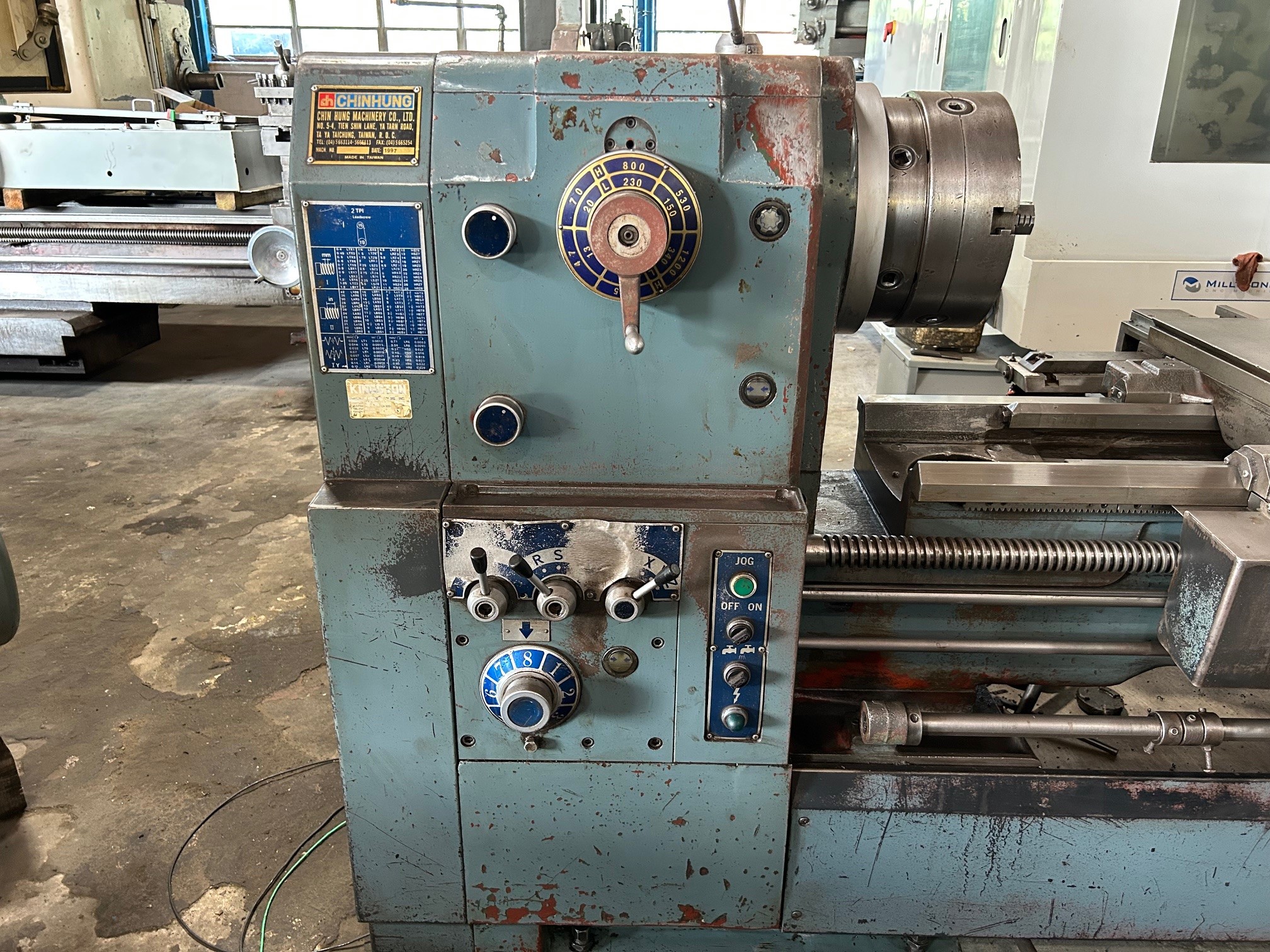

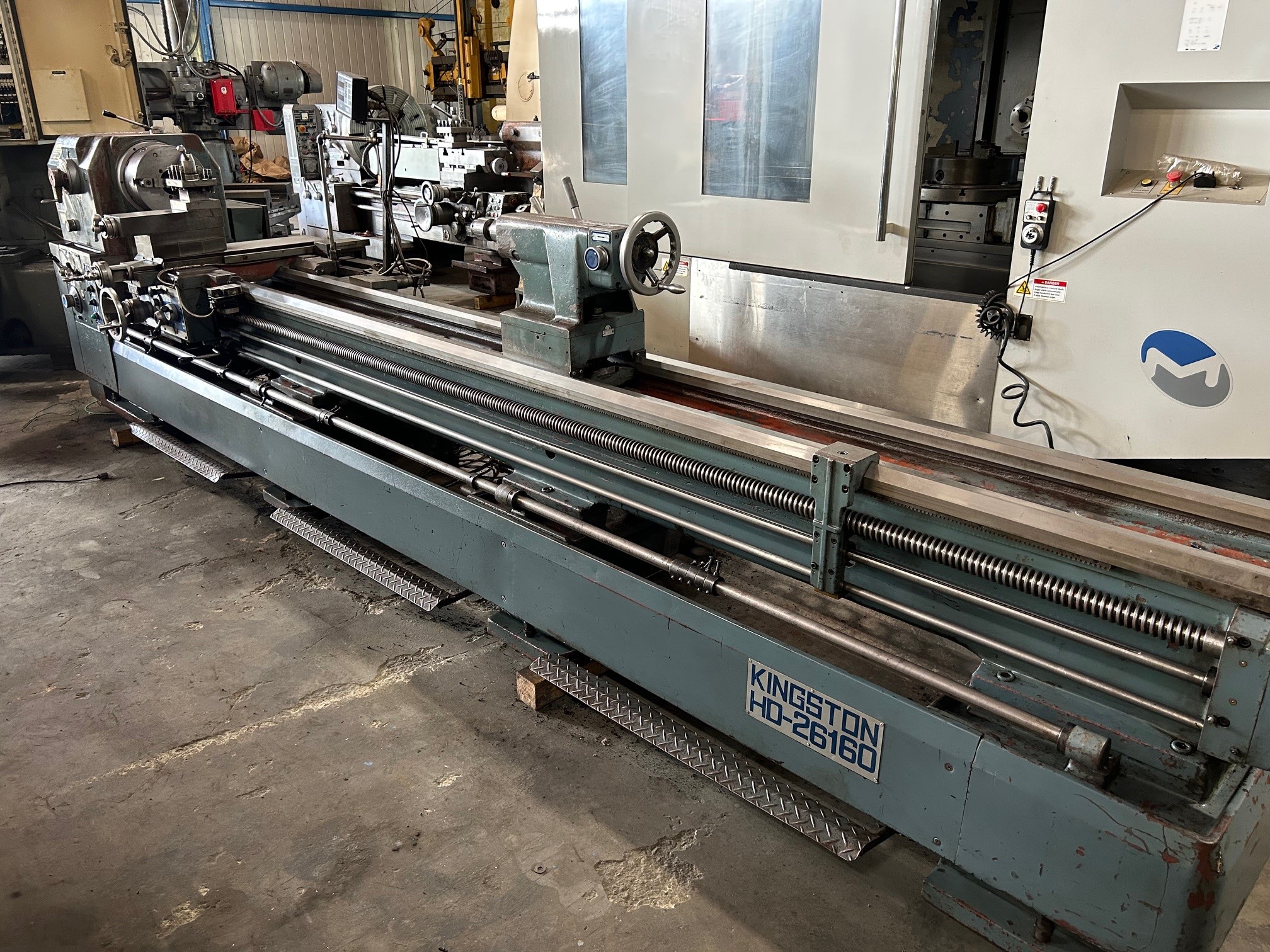

26"/35" X 160" KINGSTON GAP BED ENGINE LATHE
MODEL: HD26160,  S/N: CH97626,  YEAR: 1997

SPECIFICATIONS:
SWING OVER BED........................ 26"
SWING OVER CROSS SLIDE................ 17-1/2"
SWING IN REMOVABLE GAP................ 35-1/8"
SPINDLE NOSE CAMLOCK.................. D1-11"
HOLE THROUGH SPINDLE.................. 4-1/16"
DISTANCE BETWEEN CENTERS.............. 160"
SPINDLE SPEED RANGE (12).............. 13 - 1200 RPM
LONGITUDINAL FEED RANGE ............. .0012" - .039" IPR
CROSS FEEDS HALF OF LONGITUDINAL SETTING
ENGLISH THREADING RANGE .............. 1 - 42 TPI
METRIC THREADING RANGE ............... .2 - 14 M
TAILSTOCK SPINDLE DIAMETER............ 2-15/16"
TAILSTOCK SPINDLE TRAVEL.............. 7"
TAILSTOCK SPINDLE TAPER............... #5MT
APPROXIMATE FLOOR SPACE............... 55"W x 217"L
APPROXIMATE WEIGHT.................... 8,500 LBS.

EQUIPPED WITH:

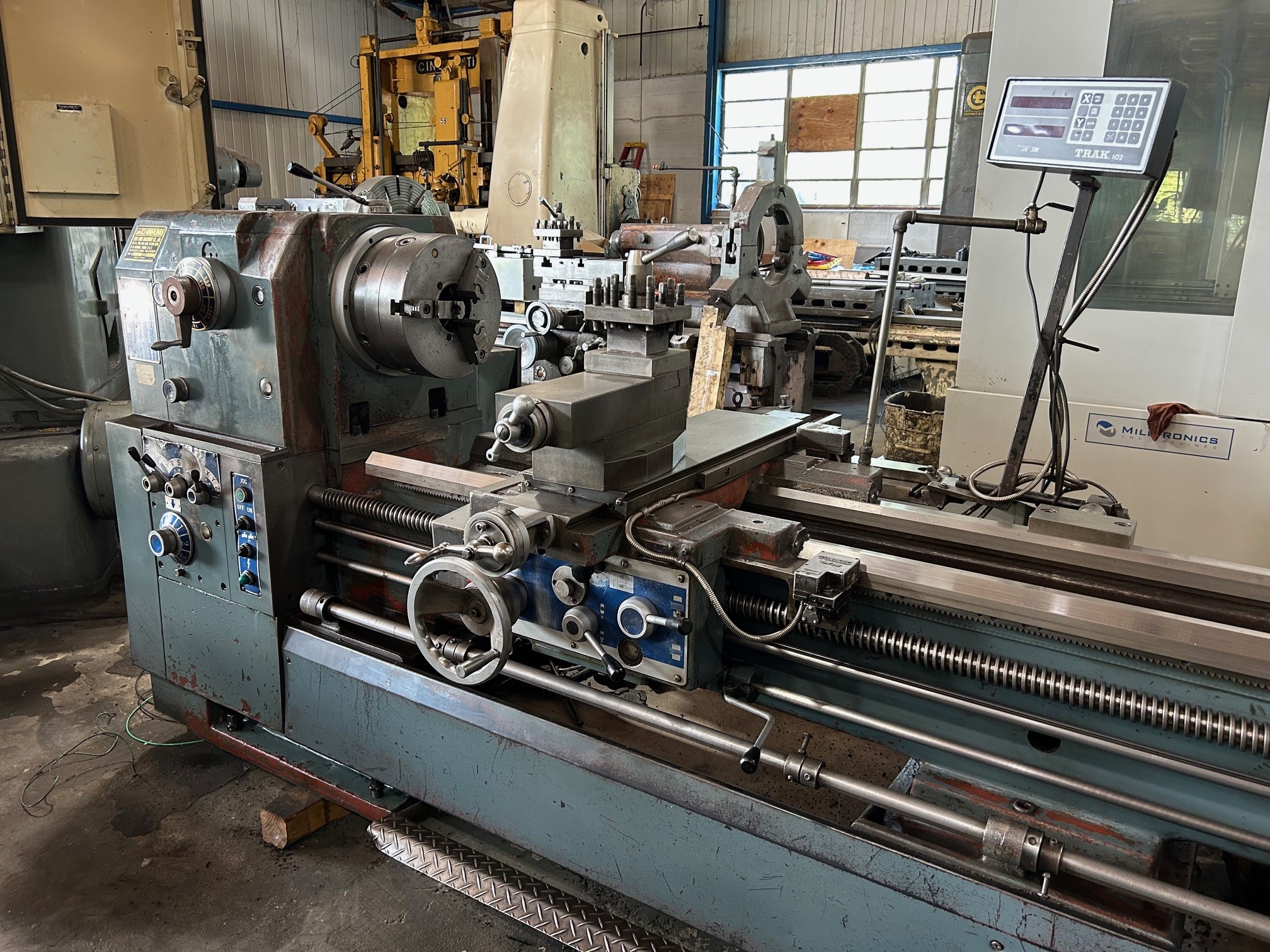

 - TRAK TWO AXIS DIGITAL READOUT
 - TAPER TURNING ATTACHMENT
 - 4-JAW CHUCK
 - 3-JAW CHUCK
 - 16" CAPACITY ROLLER TYPE STEADY REST
 - 10" CAPACITY ROLLER TYPE STEADY REST
 - FOURWAY TOOLPOST
 - 3/4" CAPACITY DRILL CHUCK
 - THREAD DIAL INDICATOR

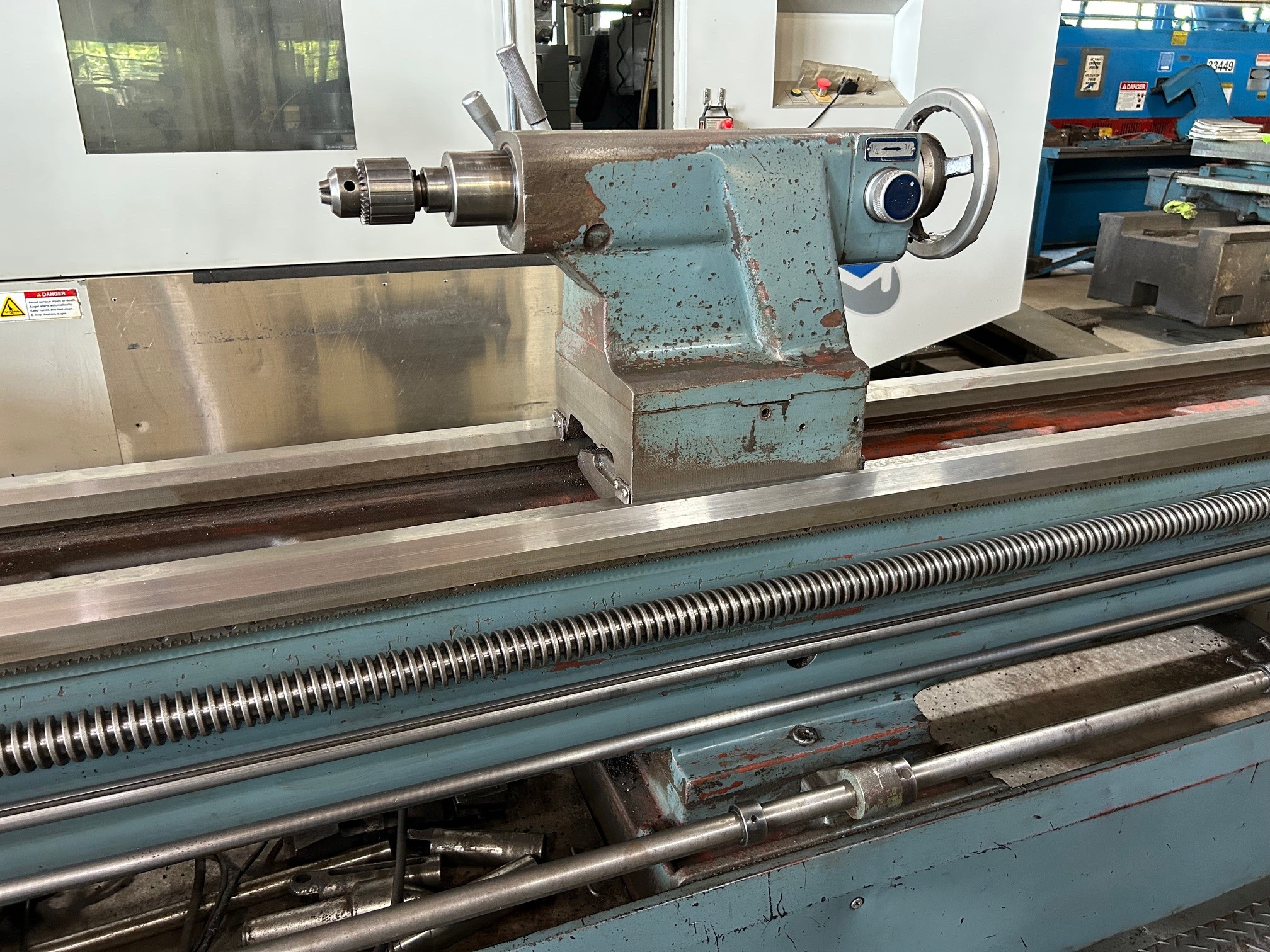

 - TWO SPEED TAILSTOCK
 - COOLANT SYSTEM WITH REMOVEABLE CHIP PANS
 - FOOT BRAKE
 - RAPID TRAVERSE

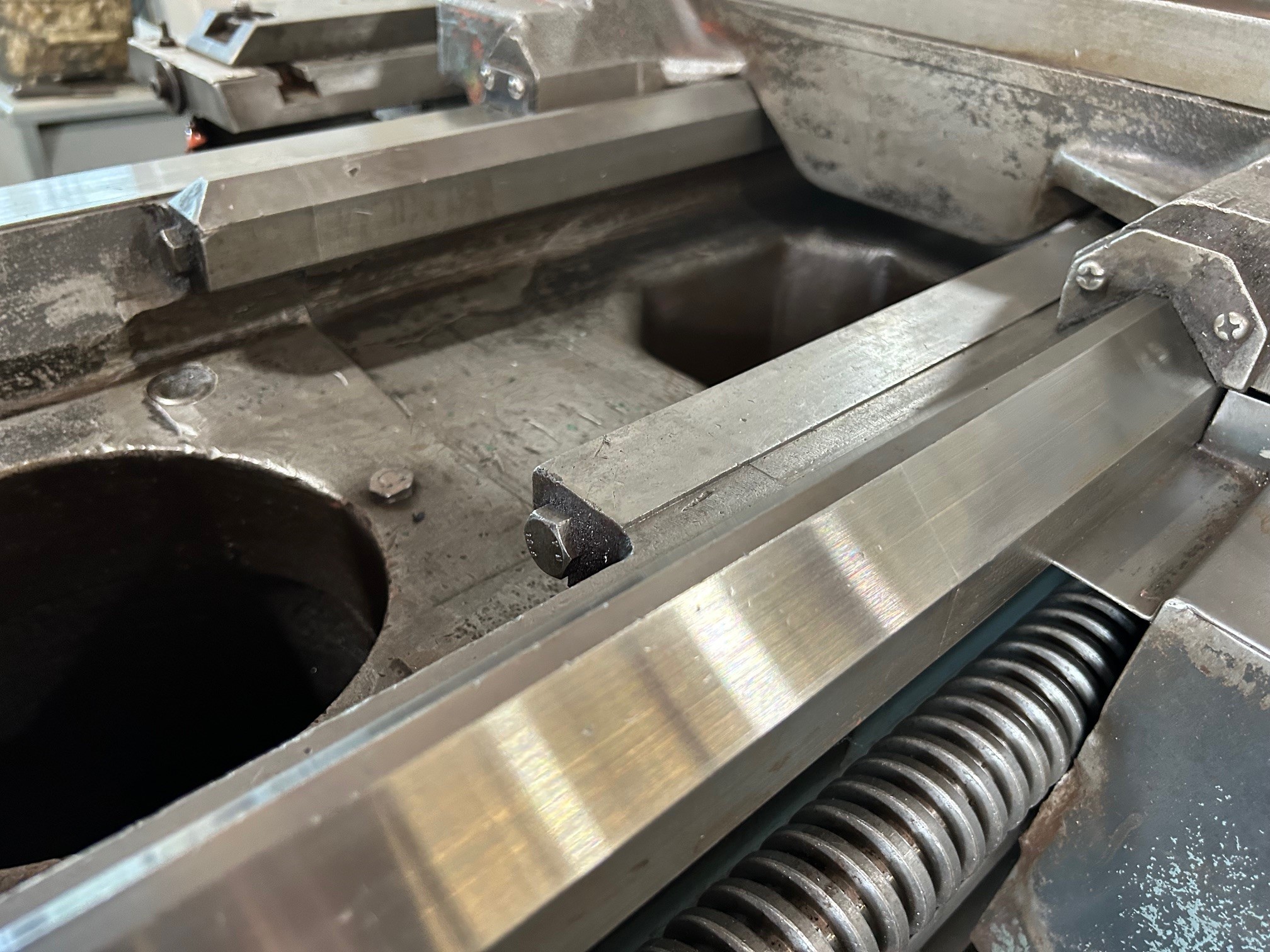

 - HARDENED & GROUND BEDWAYS
 - 10 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
