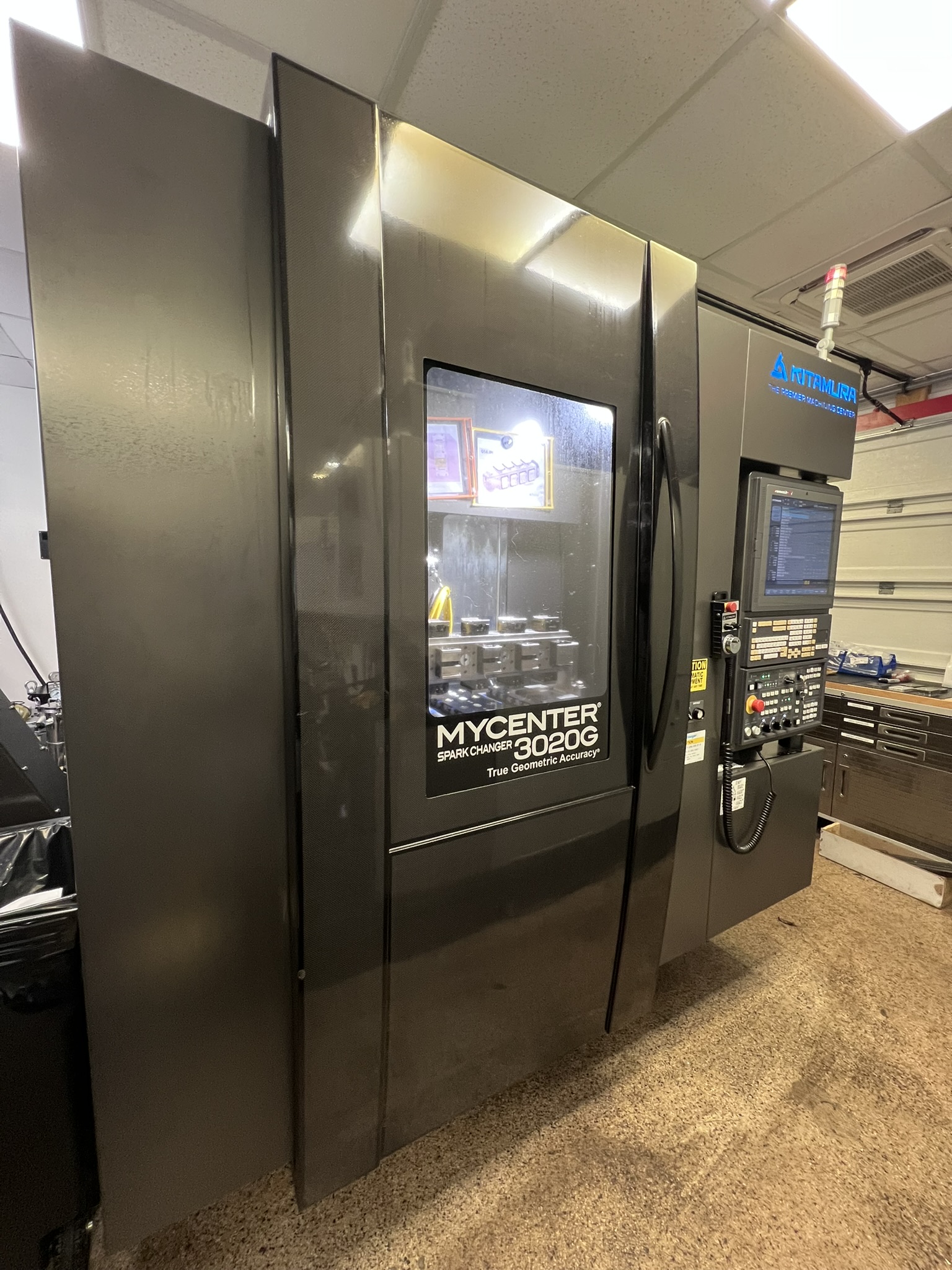

Kitamura Mycenter 3020G Sparkchanger 4-Axis VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Kitamura

Model:: Mycenter 3020G Sparkchanger 4-Axis

Year:: 2025

Ref #:: 179298

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


KITAMURA 4-AXIS VERTICAL MACHINING CENTER
MODEL: MYCENTER 3XG SPARKCHANGER, NEW: 2025
WITH BUILT IN ROTARY PALLET CHANGER

SPECIFICATIONS:
TABLE SIZE (2 PALLETS) .............. 19.7" X 33.9"
MAXIMUM TABLE LOAD .................. 440 LBS
NUMBER OF PALLETS ................... 2
APC CHANGE TIME ..................... 9.3 SECONDS
TRAVELS:
X-AXIS .............................. 30" / 762mm
Y-AXIS .............................. 17.9" / 510mm
Z-AXIS .............................. 18.1" / 510mm
DISTANCE FROM TABLE TOP
  TO SPINDLE NOSE ................... 4.9" TO 25"
DISTANCE FROM TABLE CENTER TO COLUMN
  SLIDEWAY .......................... 12.4" - 32.5"
SPINDLE TAPER ....................... CAT 40
SPINDLE SPEED ....................... 40 TO 15,000 RPM
TOOL STORAGE CAPACITY ............... 30 TOOLS
RAPID FEED (X,Y / Z AXIS) ........... 1,969 IPM / 1,417 IPM
MAX CUTTING FEED, X,Y,Z ............. 1,417 IPM
MACHINE DIMENSIONS:
REQUIRED SPACE ...................... 137" W X 142" D
MACHINE HEIGHT ...................... 119.6"
MACHINE NET WEIGHT .................. 17,000 LBS

EQUIPPED WITH:
ARUMATIC MODEL: Mi 4-AXIS CONTROL:
   SSS (SUPER SMOOTH SURFACE)
   COMPLEX CONTOURING & MOLD APPLICATIONS
   HIGH SPEED MACHINING,
   1680 BLOCK LOOK AHEAD & 2,800 BLOCKS/SEC PROCESSING SPEED
   1280 METERS OF MEMORY, 8GB DATA SERVER
   MACROS, RIGID TAPPING, MIRROR, 3-D COORIDANTE CONVERSION
   USB MEMORY INTERFACE & MUCH MUCH MORE
RENISHAW TOOL PROBE
HIGH PRESSURE COOLANT THROUGH THE SPINDLE
TSUDAKOMA 4-TH AXIS ROTARY TABLE MODEL: RWA-160R
AUTOMATIC PALLET CHANGER - 2 STATION ROTARY STYLE
SCREW TYPE CHIP AUGERS & CHIP CONVEYOR
BOX WAYS
CONTACT SURFACES ARE EXTENSIVELY HAND SCRAPED

INSPECT UNDER POWER IN PLANT
LIKE NEW CONDITION
