Landis 2R, 1971, ORIGINALLY FROM THE NAVY!, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Landis

Model:: 2R, 1971, ORIGINALLY FROM THE NAVY!,

Year:: 1971

Ref #:: 164042

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

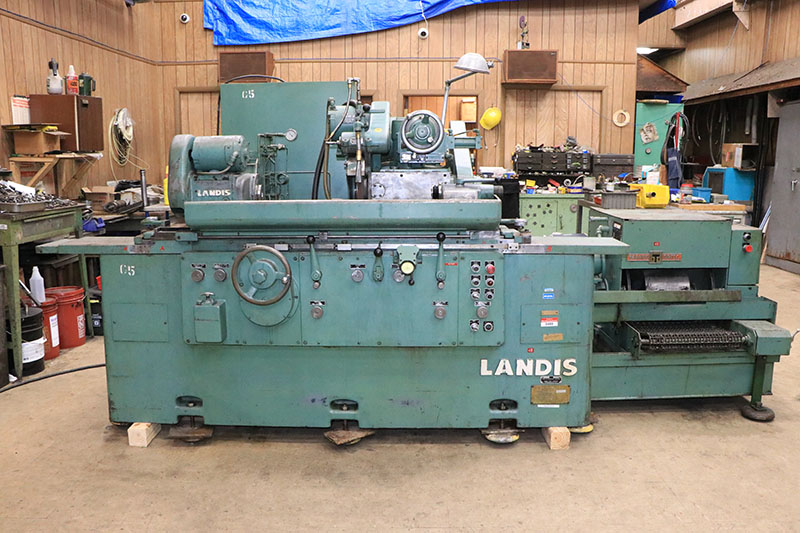

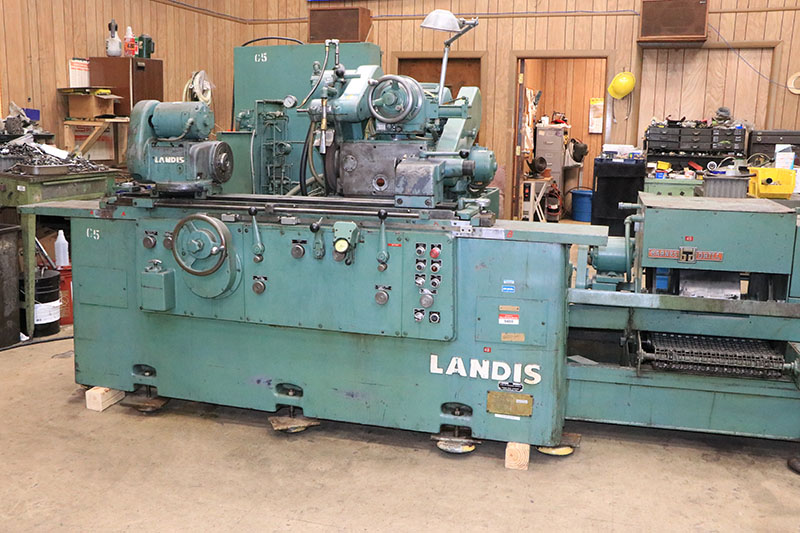

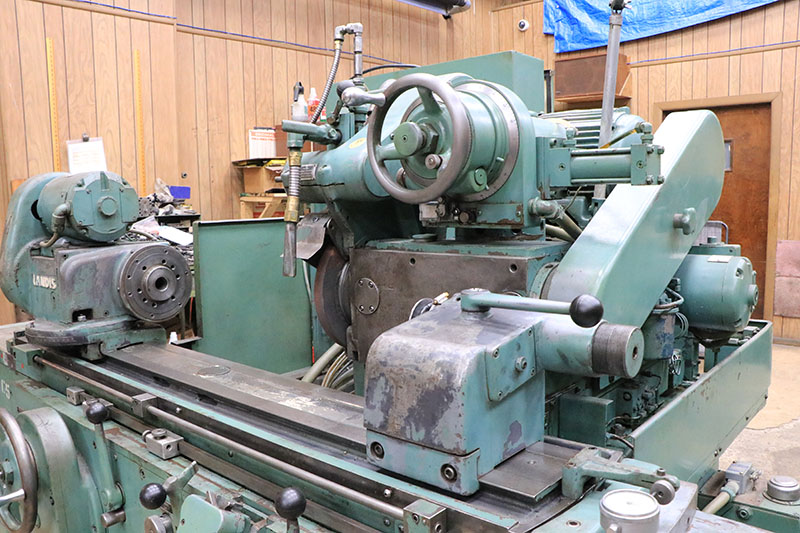

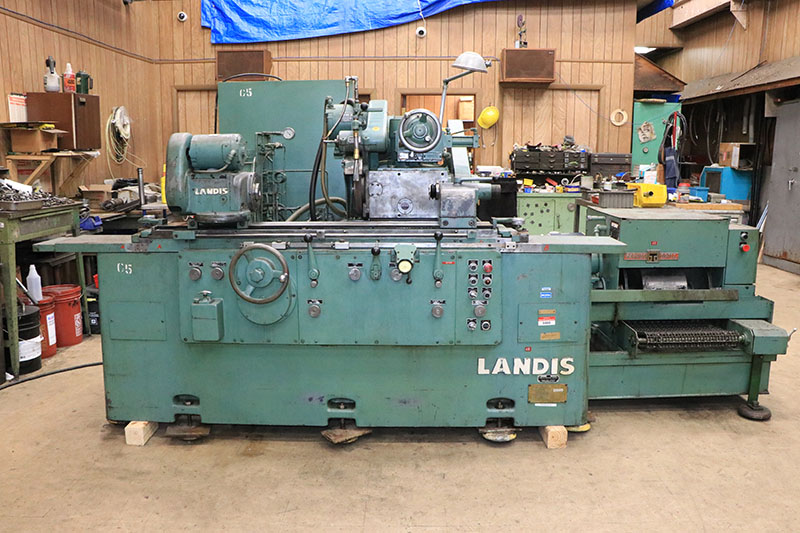

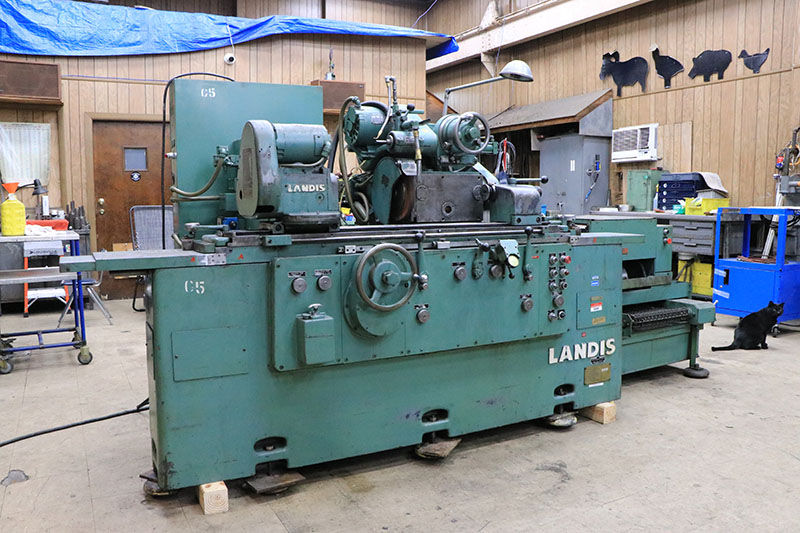

   10" X 36" LANDIS UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** HOUR METER READS 2,963 HOURS ON! **

MODEL: 2R       S/N: 833-87       NEW: 1971

MAXIMUM SWING OVER TABLE................. 10-31/32"
DISTANCE BETWEEN CENTERS................. 36"
MINIMUM DIAMETER WHEEL TO GRIND TO
ZERO DIAMETER WORK ON CENTERS............ 9"

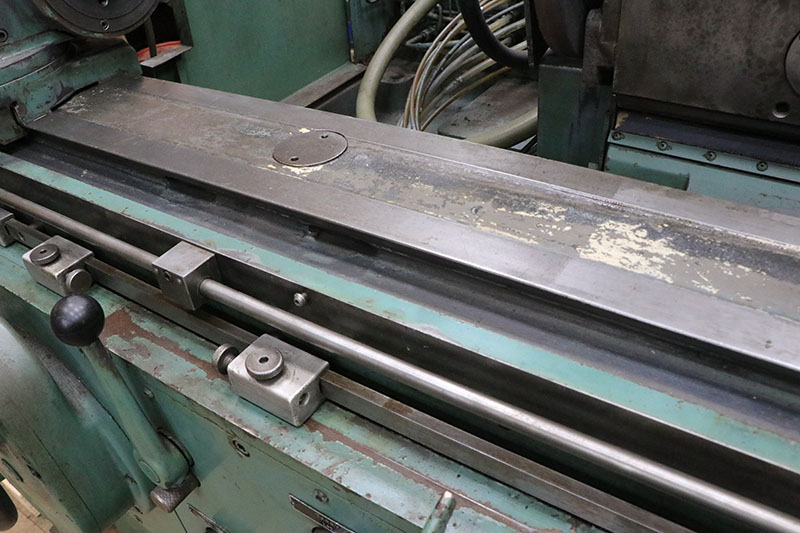

TABLE:
SWIVEL TABLE GRADUATED (IN. PER FOOT).... 3-1/2"
SWIVEL TABLE GRADUATED (DEG. INCLUDED
ANGLE)................................... 16°

  WORK CARRIAGE:
TRAVERSE SPEED........................... 2 TO 240 I.P.M.
TRAVERSE PER TURN OF HANDWHEEL: SLOW..... 0.100"
                               FAST...... 1.000"

GRINDING ................................ 12" DIA. x 1"W x 5"
SWIVEL RANGE: UPPER...................... 180°
LOWER.................................... 60° CW
                                          30° CCW
(2) GRINDING WHEEL SPINDLE SPEEDS........ 1720-2185 R.P.M.
MAX./MIN. DISTANCE WHEEL CENTERLINE
TO WORK CENTERLINE....................... 15-1/2"/1-1/2"
WORK DIAMETER REDUCTION PER REVOLUTION
  OF HANDWHEEL........................... 0.100"
AUTOMATIC INFEED @ TABLE REVERSAL,
  ON DIA., HYDRAULIC INFEED MACHINE ..... 0.0002" TO .004"
AUTOMATIC PLUNGE INFEED ................. YES
RAPID (POWER) WHEELHEAD STROKE .......... 1- 1/2"

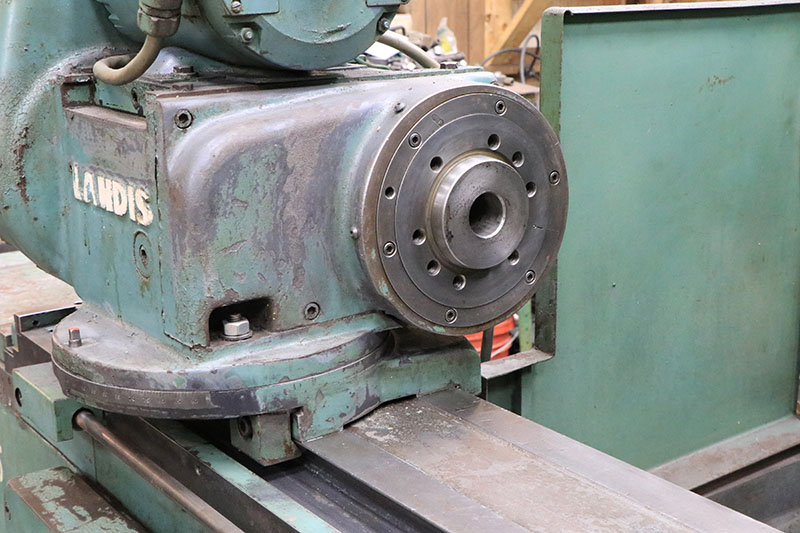

  MOTORIZED WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD............. 30-150 RPM AND
                                          120-600 RPM
WORKHEAD TAPER........................... #10 JARNO
DIA. OF HOLE, WORKHEAD SPINDLE........... 1"
WORKHEAD SWIVEL RANGE.................... 120°
WORKHEAD SPINDLE NOSE.................... 5A-2

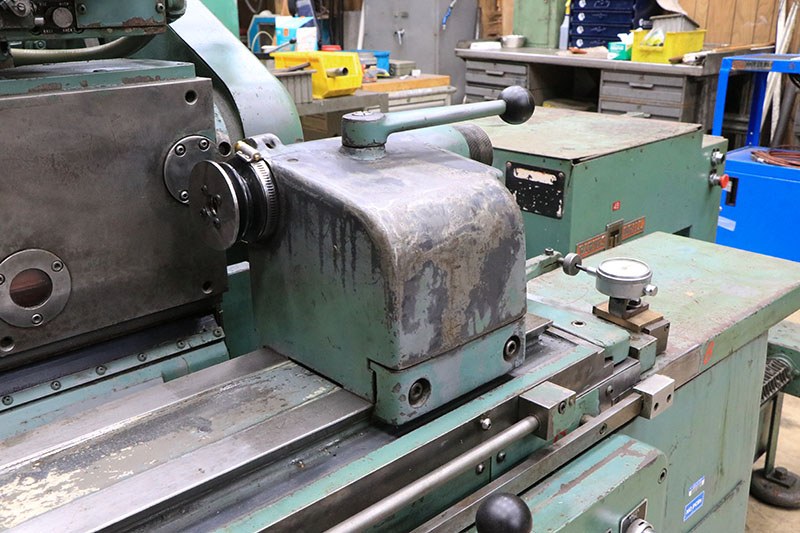

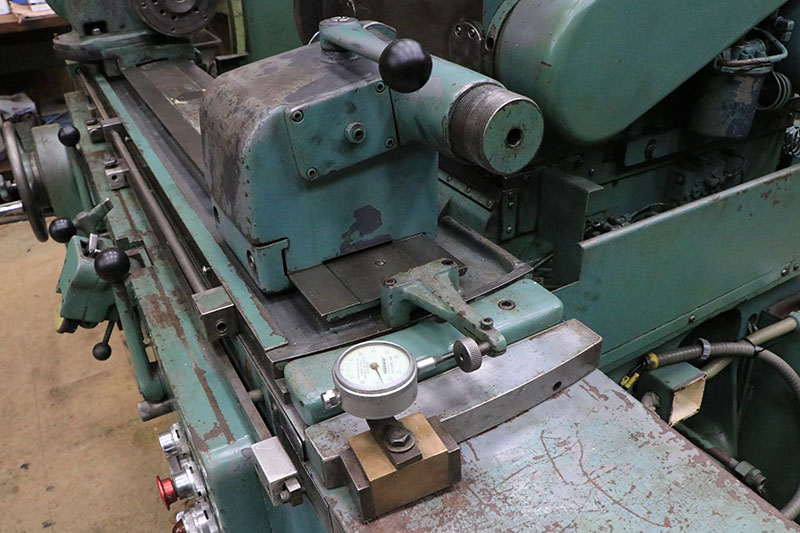

TAILSTOCK TAPER.......................... #6 JARNO

APPROX. WEIGHT .......................... 7,200 LBS.
APPROX. FLOOR SPACE REQUIRED FOR OPS. ... 64" x 129"

EQUIPPED WITH:
SWING DOWN INTERNAL GRINDING ATTACHMENT WITH LANDIS
  18,000 RPM I.D. GRINDING SPINDLE
12" x 1" x 5" GRINDING WHEEL

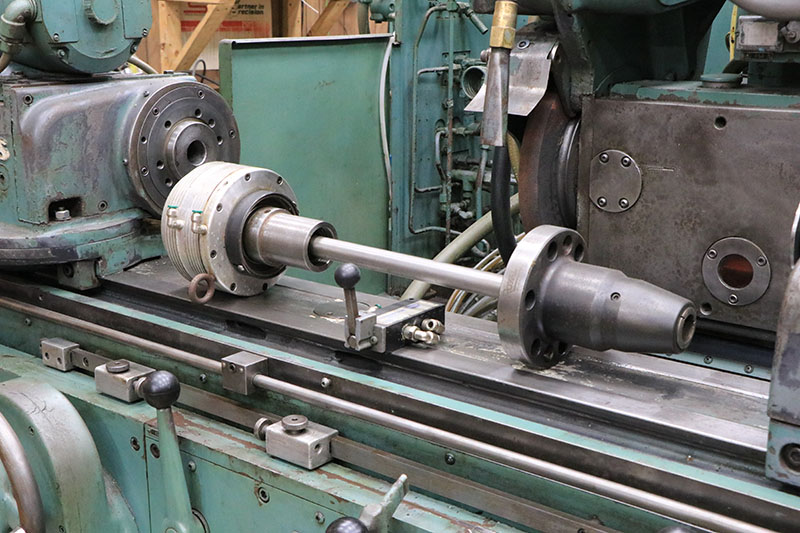

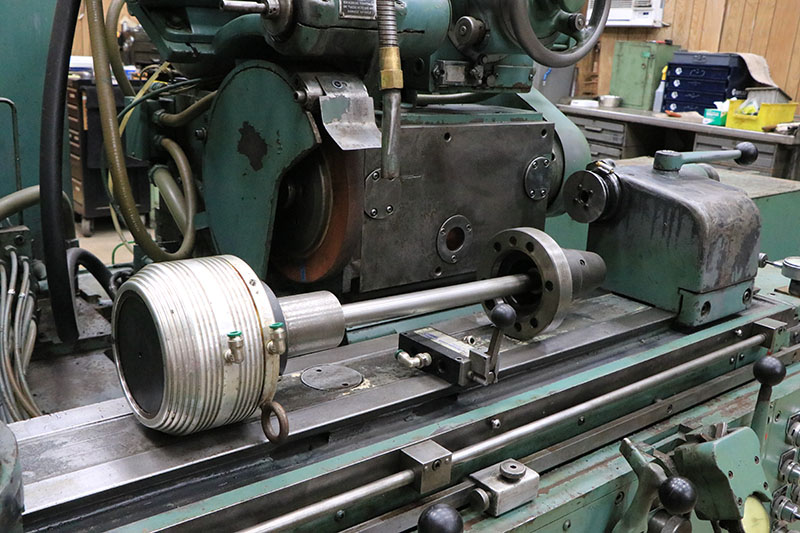

PNEUMATIC COLLET ATTACHMENT, WITH COLLET

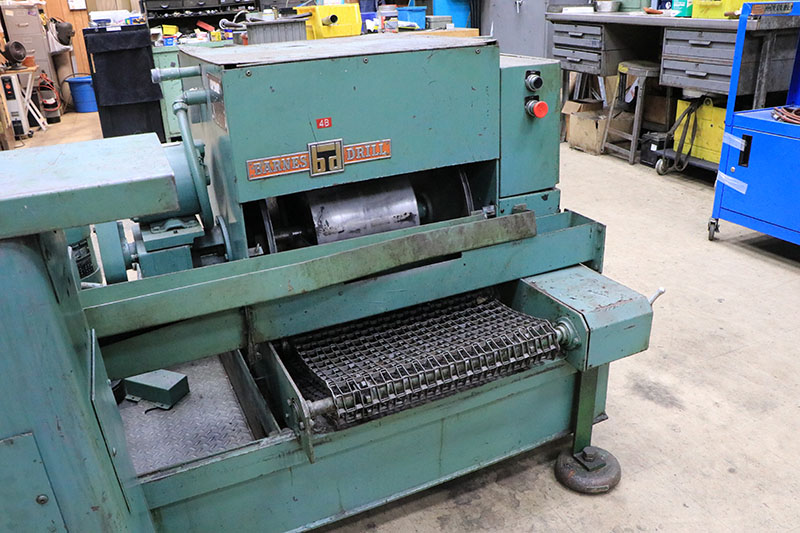

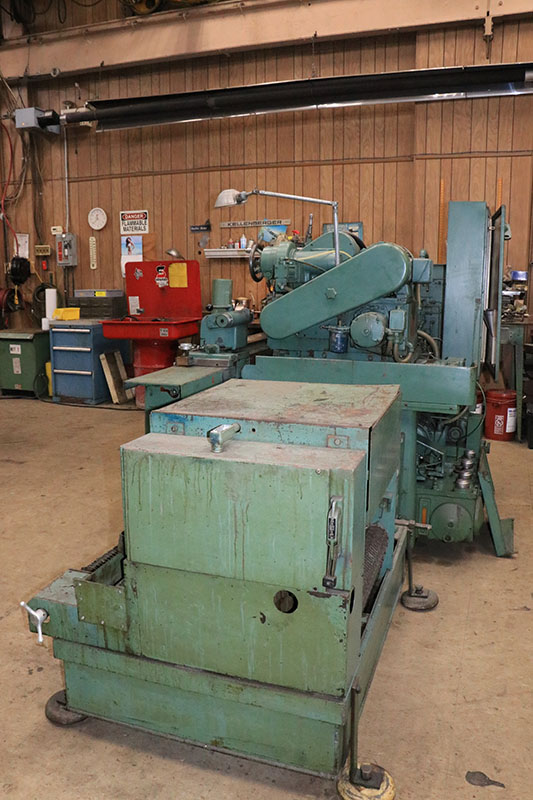

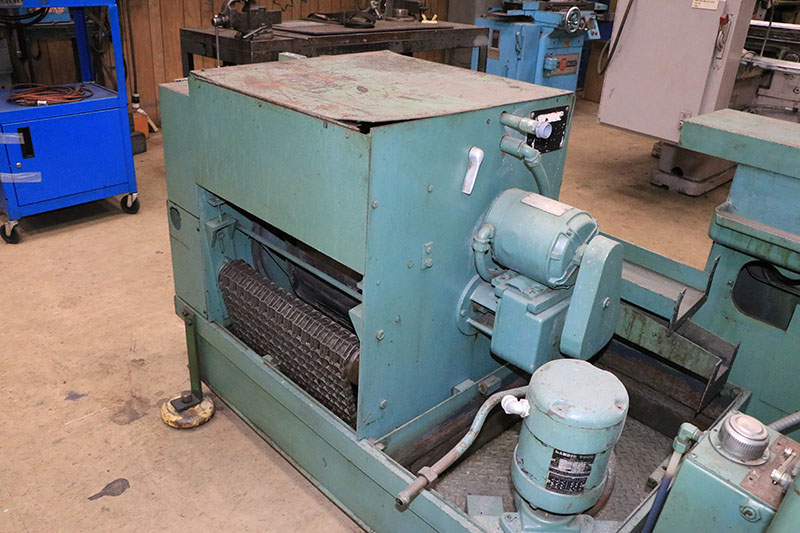

BARNES COOLANT SYSTEM, WITH BOTH
  MAGNETIC SEPARATOR & PAPER FILTRATION

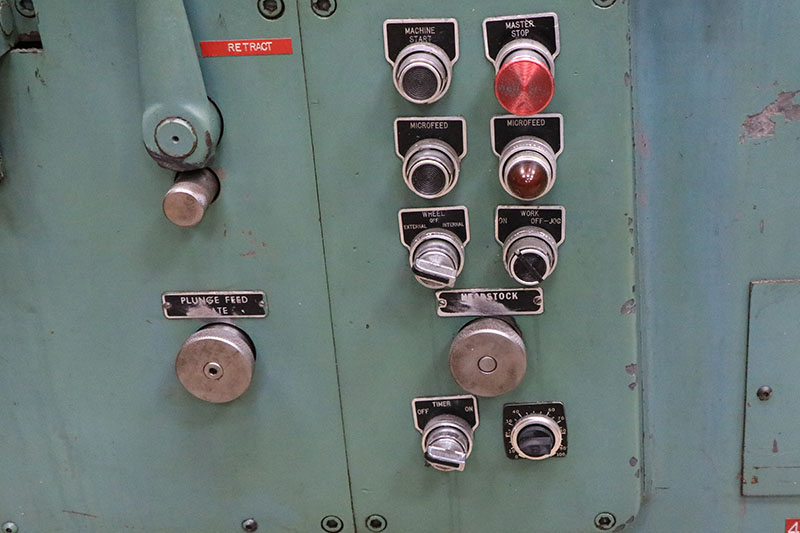

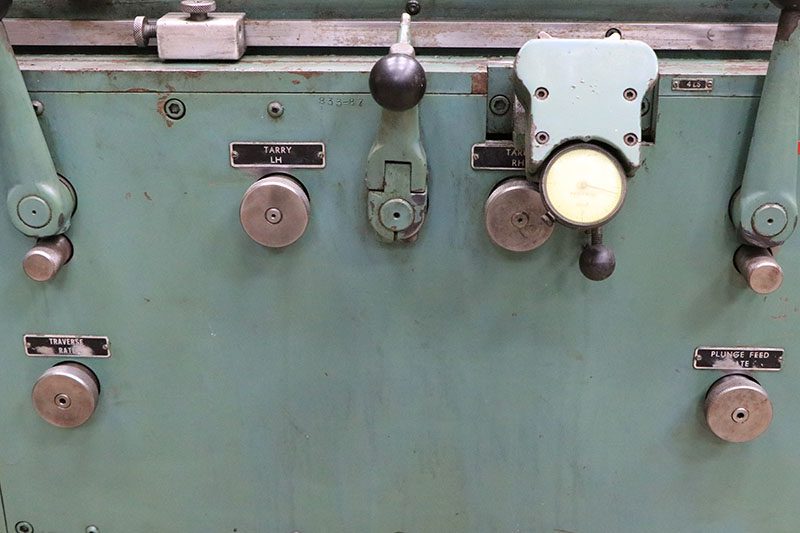

MACHINE FEATURES:

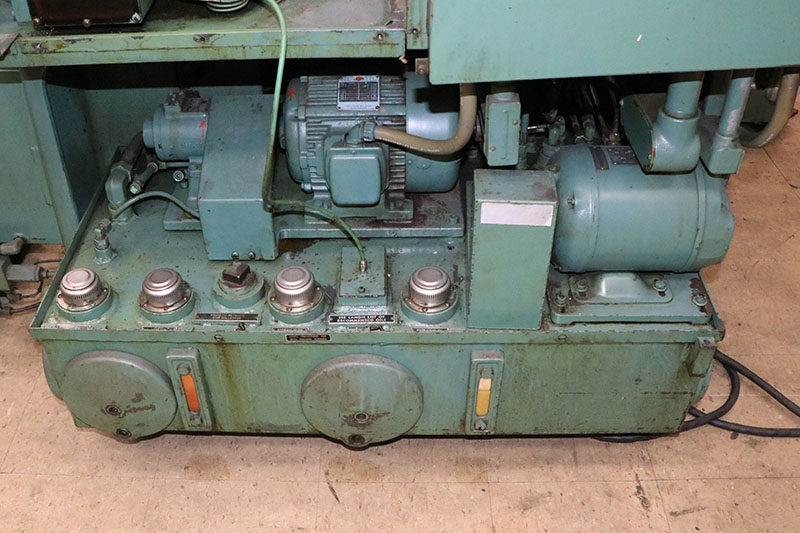

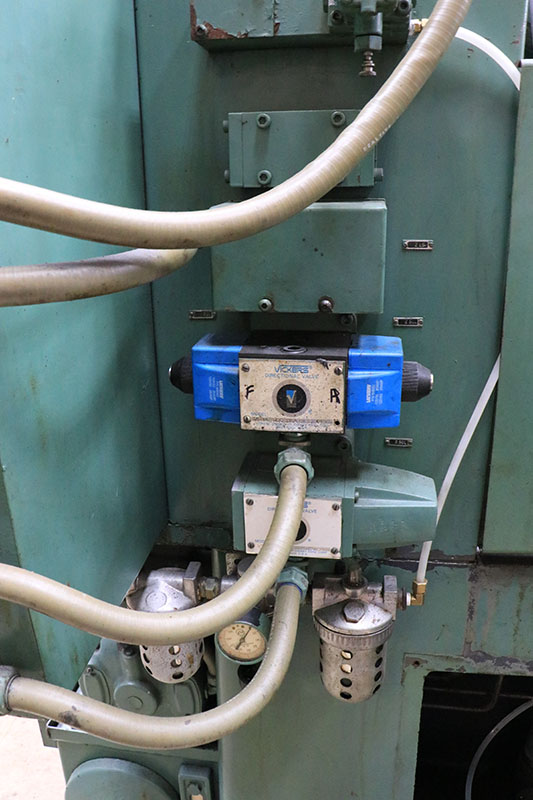

HYDRAULIC OPERATION FEATURING:
-AUTO TABLE TRAVERSE
-AUTO INFEED/PICK FEED AT TABLE REVERSALS
-AUTO PLUNGE INFEED
-POWER RAPID WHEELHEAD ADVANCE & RETRACTION
-SPARKOUT TIMER

DUAL LIVE/DEAD HEADSTOCK SPINDLE
ELECTRONIC SPEED CONTROL FOR WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM FOR WHEELHEAD
5 H.P./230-460 VOLT GRINDING WHEELEHAD MOTOR

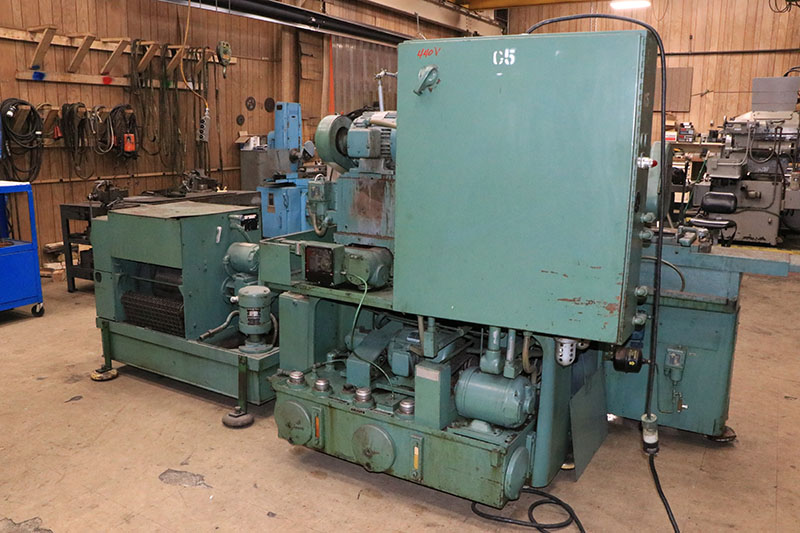

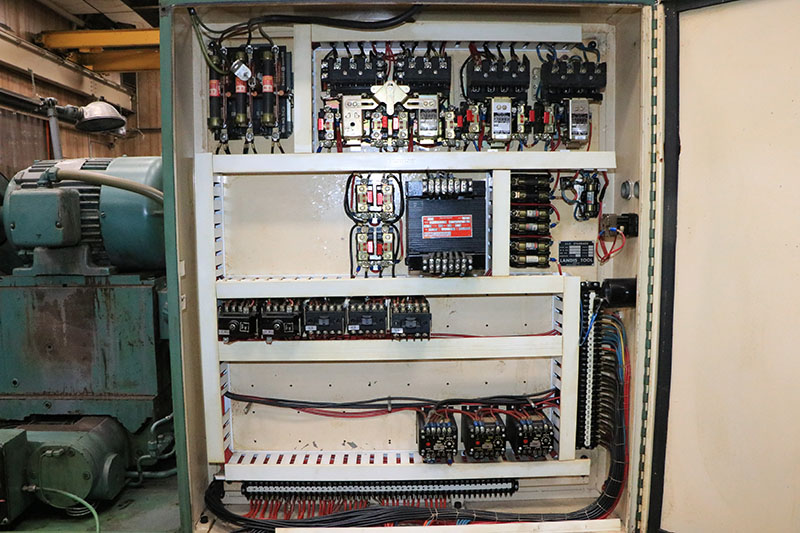

ELECTRICAL CABINET ON MACHINE, NOT SEPARATE
MACHINE IS PRESENTLY WIRED FOR 460 VOLTS/3/60 ELECTRICS

SPECIAL NOTE:
THIS MACHINE WAS ORIGINALLY FROM THE NAVY.

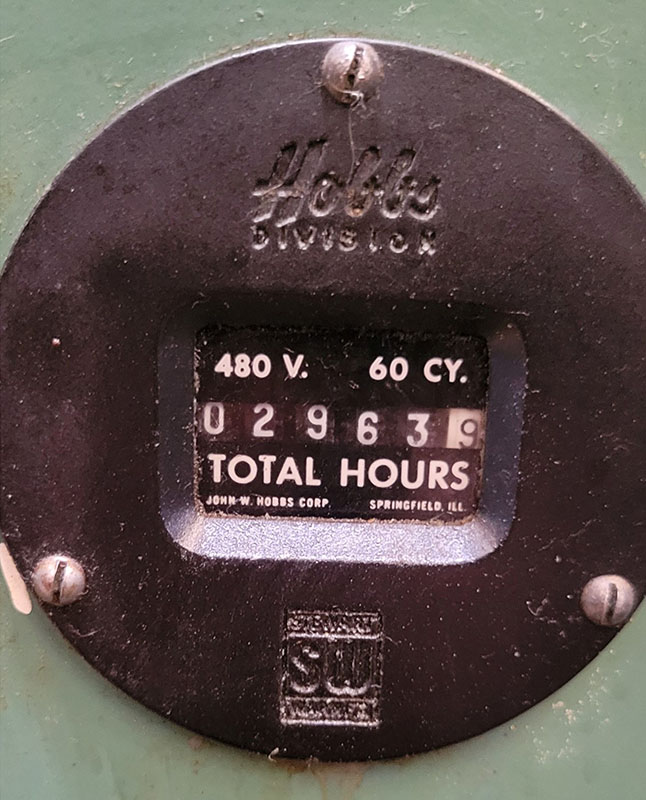

HOUR METER READS 2,963.9 HOURS ON TIME.  VERY LOW!


** INSPECT UNDER POWER IN HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **
