Landis 2R UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Landis

Model:: 2R

Year:: 1967

Ref #:: 154370

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

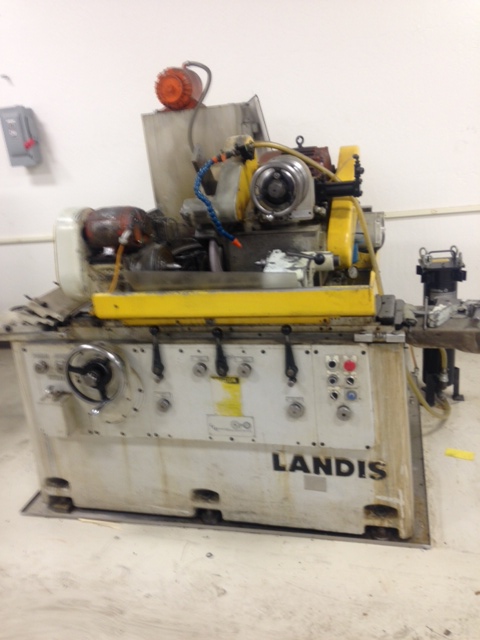

  10" X 24" LANDIS (MADE IN USA) HIGH-PRECISION
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

** HYD. TABLE TRAVERSE, AUTO INFEED, AUTO PLUNGE, RAPID
   WHEELHEAD ADVANCE & RETRACTION, & SPARKOUT TIMER **

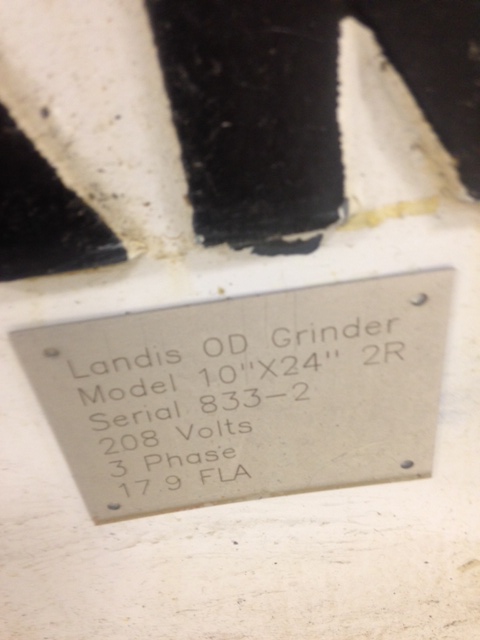

MODEL: 2R     S/N: 833-2    NEW 1967/REBUILT 2007

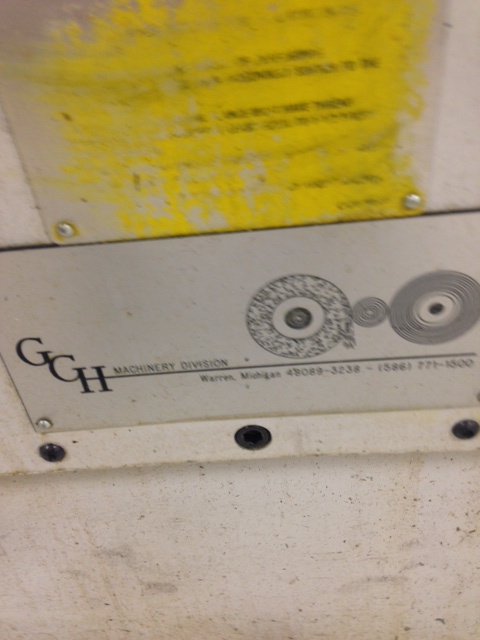

CUSTOMER BOUGHT MACHINE REBUILT FROM GCH, ACQUISITION COST WAS 60K IN 2007!

MAXIMUM SWING OVER TABLE........................ 10-31/32"
DISTANCE BETWEEN CENTERS........................ 24"

TABLE:
SWIVEL TABLE GRADUATED (IN. PER FOOT)........... 4-1/2"
SWIVEL TABLE GRADUATED
  (DEG. INCLUDED ANGLE)......................... 20 DEGREES

WORK CARRIAGE:
TRAVERSE SPEED.................................. 2 TO 240 I.P.M.
TRAVERSE PER TURN OF HANDWHEEL: SLOW............ 0.100"
                               FAST............. 1.000"

WHEELHEAD & WHEEL FEED:
STANDARD GRINDING WHEEL SIZE.................... 14" O.D. X 2"
                                                  WIDE X 5" HOLE
SWIVEL RANGE: UPPER............................. 180 DEGREES
LOWER........................................... 60 DEG. CLOCKWISE
                                                 30 DEGREES CCW
(2) GRINDING WHEEL SPINDLE SPEEDS............... 2005-2533 R.P.M.
WORK DIAMETER REDUCTION PER REVOLUTION
  OF HANDWHEEL.................................. 0.100"
WORK DIAMETER REDUCTION PER REV.
OF FINE FEED KNOB............................... 0.001"
MAXIMUM HYDRAULIC FEED ON DIAMETER.............. 0.090"
RAPID HYDRAULIC INFEED STROKE................... 1-1/2"

WORKHEAD AND TAILSTOCK:
INFINITELY VARIABLE WORKHEAD................... 30-150 RPM
                                                120-600 RPM
WORKHEAD TAPER................................. #10 JARNO
DIA. OF HOLE, WORKHEAD SPINDLE................. 1"
WORKHEAD SWIVEL RANGE.......................... 120 DEGREES
WORKHEAD SPINDLE NOSE.......................... 5A-2
TAILSTOCK TAPER................................ #6 JARNO


  APPROX. MACHINE WEIGHT ...................... 8,000 LBS.

EQUIPPED WITH:
SWING DOWN I.D. GRINDING ATTACHMENT WITH I.D. SPINDLE
FULL AUTO CYCLE:
  HYDRAULIC TABLE TRAVERSE
  AUTOMATIC INFEED PER TABLE REVERSAL
  AUTOMATIC PLUNGE INFEED MECHANISM
  POWER RAPID WHEELHEAD ADVANCE& RETRACTION
  SPARKOUT TIMER
UPPER & LOWER WHEELHEAD SWIVEL
DUAL LIVE/DEAD HEADSTOCK SPINDLE
14" DIAMETER GRINDING WHEEL
BIJUR ONE-SHOT LUBRICATION SYSTEM FOR WHEELHEAD
SELF-CONTAINED COOLANT SYSTEM IN THE BASE

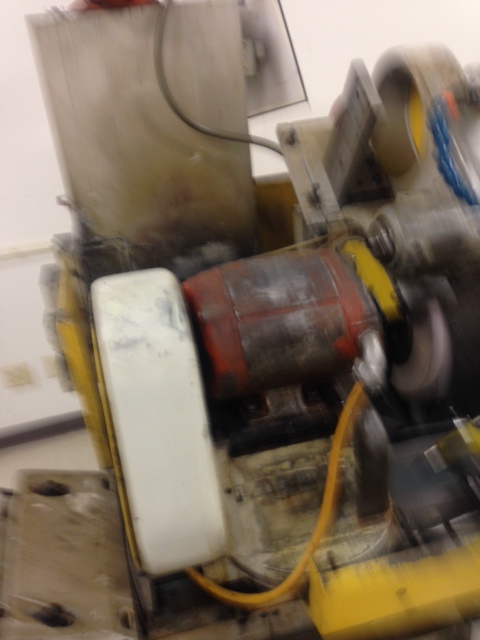

5 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR

CUSTOMER BOUGHT MACHINE REBUILT FROM GCH, ACQUISITION COST WAS 60K IN 2007!


  ** F.O.B. ARIZONA LOCATION **
**  EXCELLENT CONDITION & APPEARANCE **
