Landis CHW PLAIN CYLINDRICAL GRINDERS

Price on Request

Make:: Landis

Model:: CHW

Year:

Ref #:: 178215

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

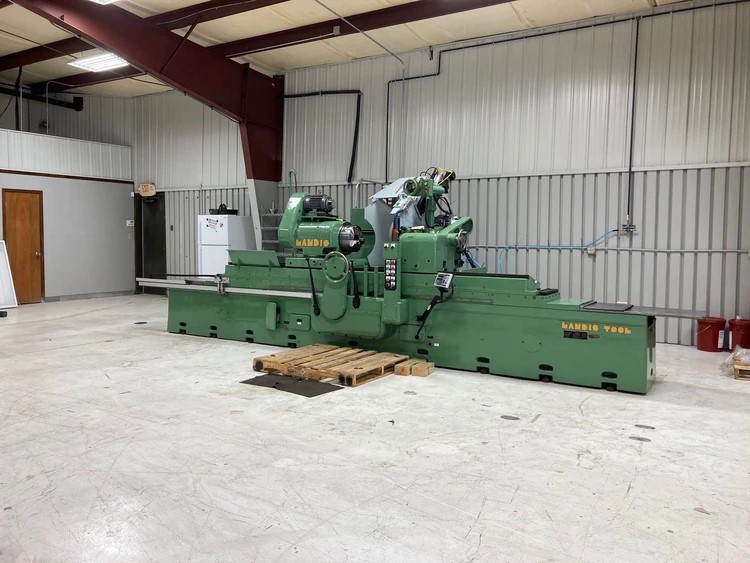

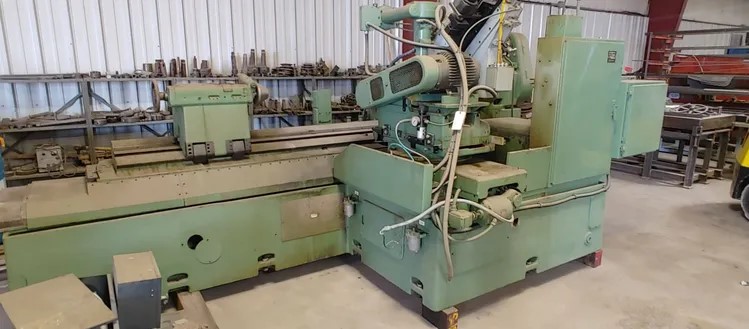

  30" x 96" LANDIS CHW CYLINDRICAL GRINDER
                 REBUILT: 2020

SPECIFICATIONS:
SIZE:................................ 30" X 96"
SWING:............................... 30"
CENTERS:............................. 96"
POWER:............................... 7.5 HP
WORKHEAD POWER:...................... 3 HP
WORKHEAD SPEED:...................... 96 RPM
GRINDING WHEL DIA.:.................. 24"
MAX WEIGHT BETWEEN CENTERS:.......... 2500 LB

GRINDING WHEEL SPEEDS:............... 1223 & 1462 RPM
HEADSTOCK SWIVEL: COUNTERCLOCKWISE:.. 90 DEGREES
CLOCKWISE:........................... 75
TABLE SPEEDS:........................ 3 - 130 IPM, VARIABLE
TABLE SWIVEL:......................... 12 DEGREES

DIMENSIONS:........................... 240" L X 102" W X 90"H
WEIGHT:............................... 25,000 LBS


EQUIPPED WITH:

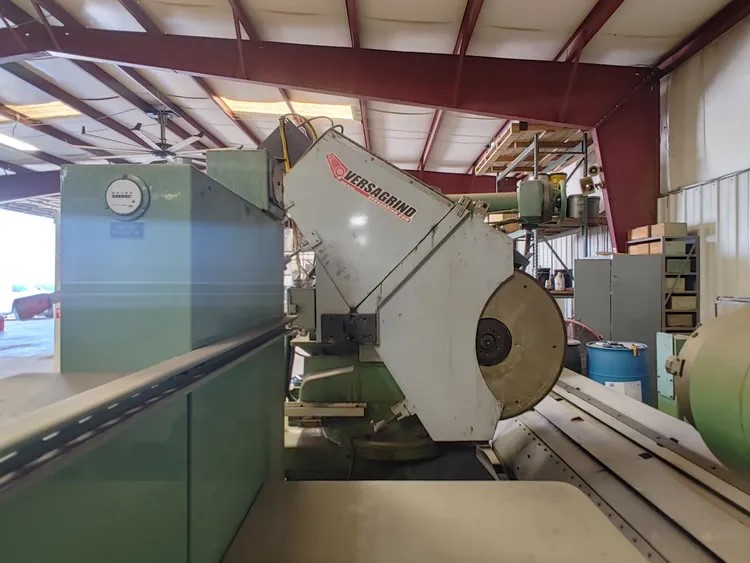

VERSAGRIND BELT ATTACHMENT, INCLUDED WITH OPTION LOAD METER ON SPINDLE
2-AXIS DIGITAL READOUT
7.5 HP VECTOR WHEEL DRIVE
GRAYMILLS PAPER FILTRATION UNIT, WITH PUMP
CHUCK ON HEADSTOCK

RECONDITIONED IN 2020 LANDIS GRINDER DETAILS: DISASSEMBLE,
CLEAN AND PAINT, FLUSH LUBE SYSTEM, INSTALL NEW LUBE FILTERS.  REPLACE ANY SEALTITE, HOSES, BEARINGS AS NEEDED.
ASSEMBLE, CHECK FOR PROPER TABLE FIT, RESET GEOMETRY/ CENTER
LINE.  POWER UP, DEBUG, CHECK FOR PROPER OPERATION
