Lansing FS-750 "T" LATHES, FACING LATHES

Price on Request

Make:
Lansing
Model:
FS-750
Year:
Ref #:
160444

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

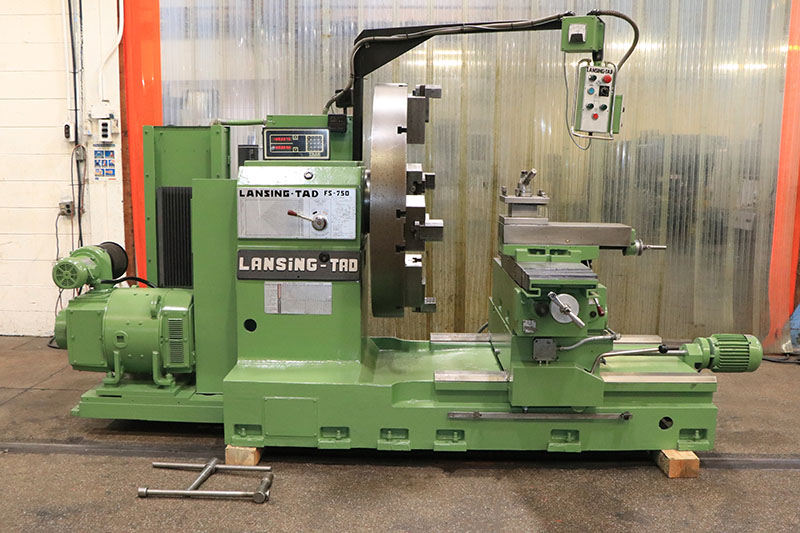

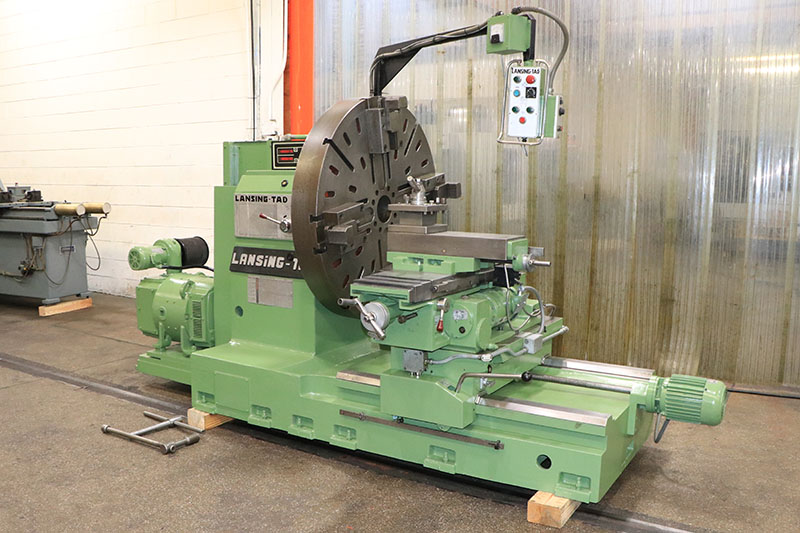

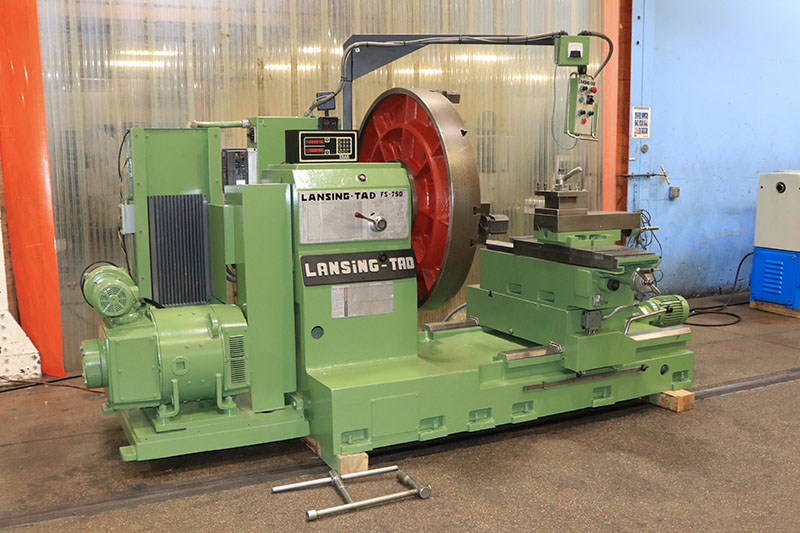

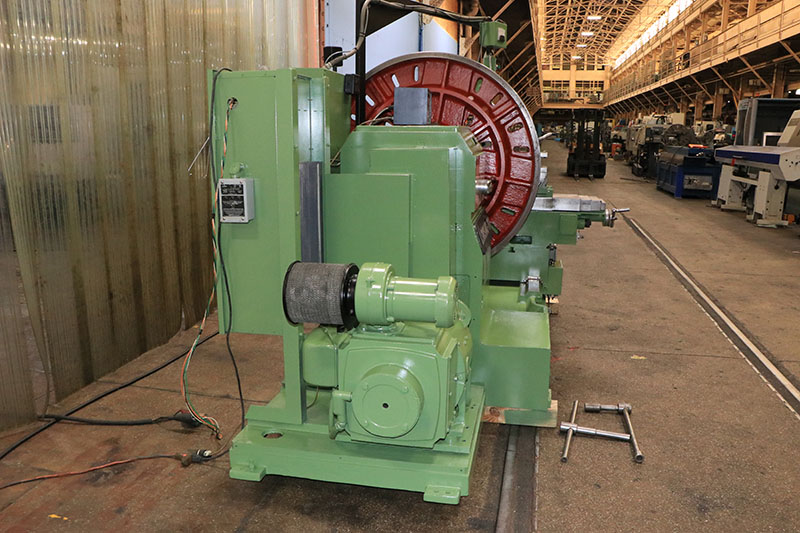

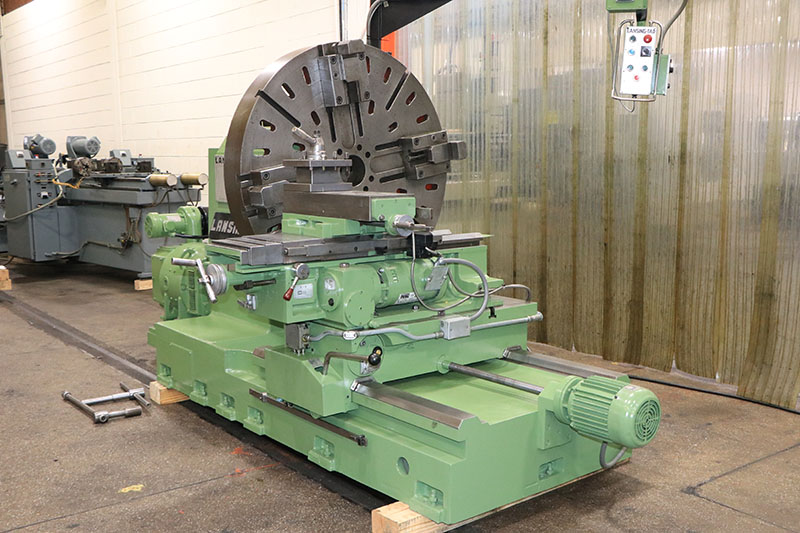

60" LANSING T-LATHE
MODEL: FS-750, NEW: 1980'S

SPECIFICATIONS:
SWING OVER BED ............................. 60"
SWING OVER CROSS SLIDE ..................... 15"
DISTANCE, FACEPLATE TO TOOLPOST ............ 40" MAX
SWIVEL OF BASE COMPOUND .................... +/- 15 DEGREES
SWIVEL OF TOOL SLIDE COMPOUND .............. 360 DEGREES

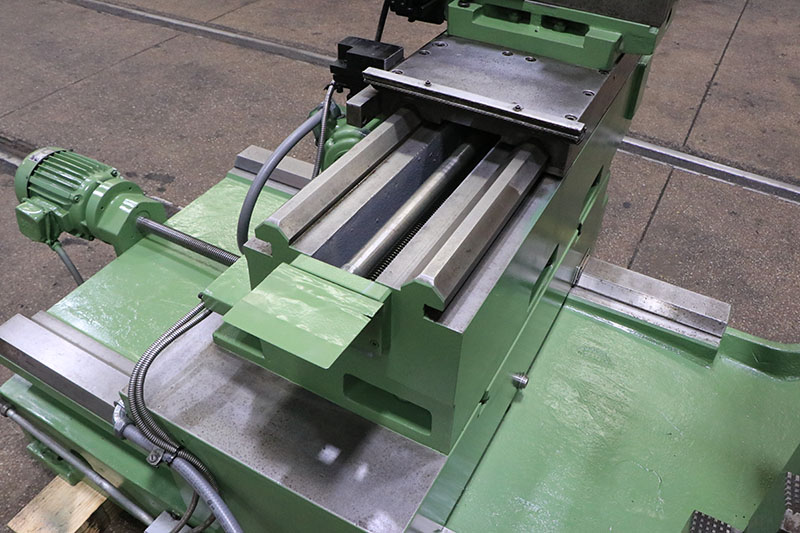

TRAVEL OF MAIN SLIDE ....................... 25"
TRAVEL OF TOOL SLIDE ....................... 14"
ADJUSTMENT OF SLIDE BASE - LEFT TO RIGHT ... 16"
SPINDLE NOSE ............................... A1-11

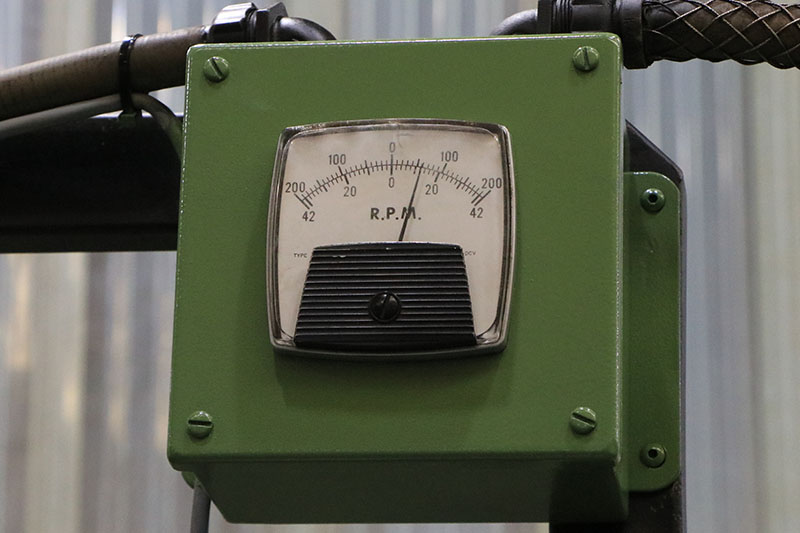

SPINDLE SPEEDS, VARIABLE ................... 6 - 200 RPM

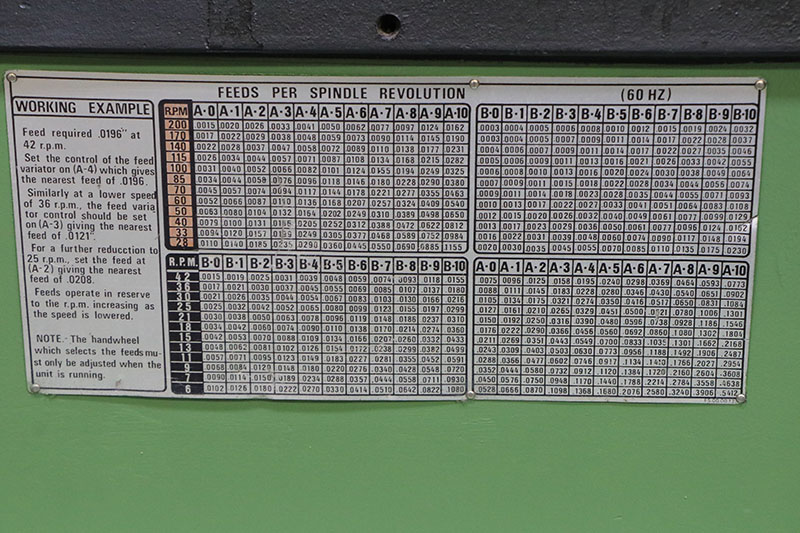

SLIDE FEED RANGE ........................... .0003 -.541 IPR
MAIN DRIVE MOTOR ........................... 20 HP

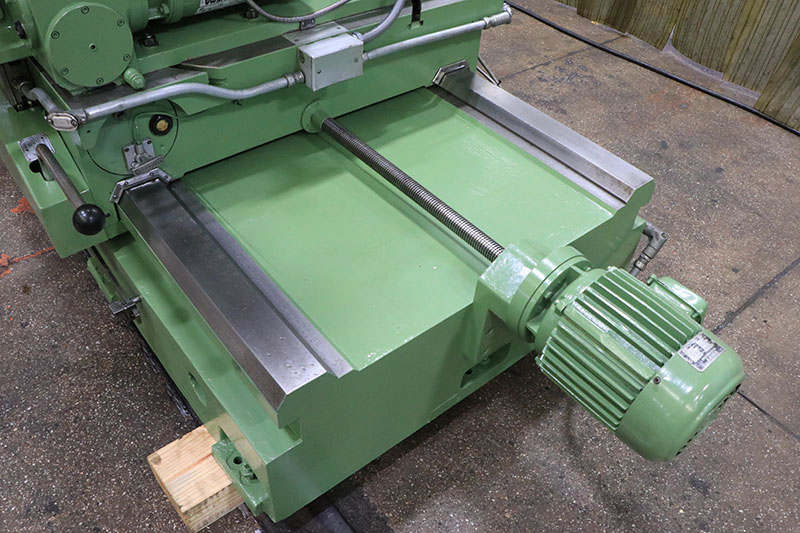

MOTOR FOR SLIDE FEEDS ...................... 1 HP
FLOOR SPACE, APPROXIMATE ................... 78" x 136"

EQUIPPED WITH:

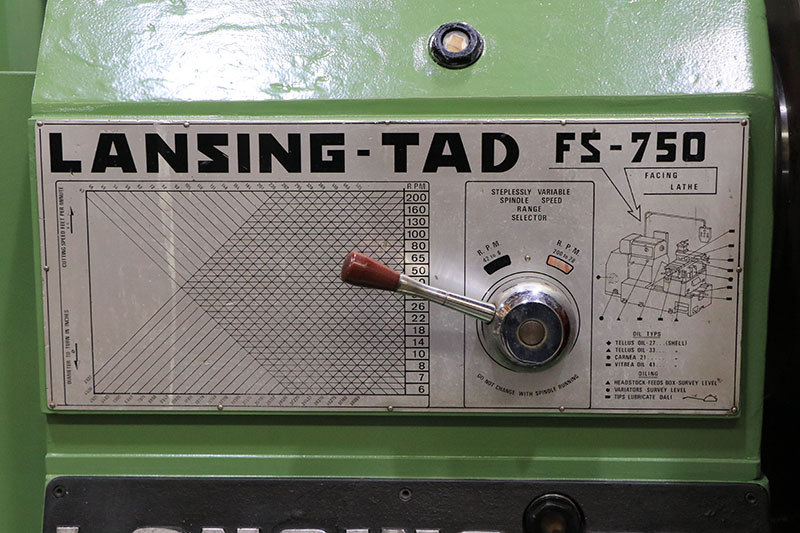

INFINTELY VARIABLE SPEED

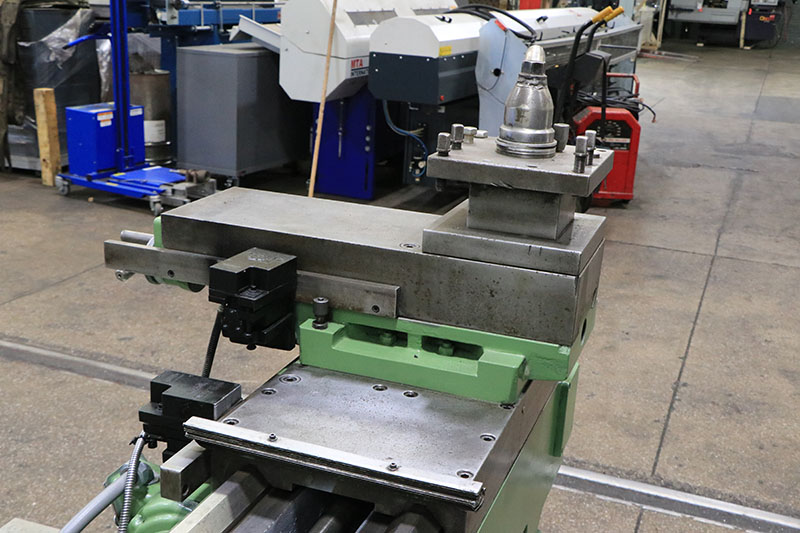

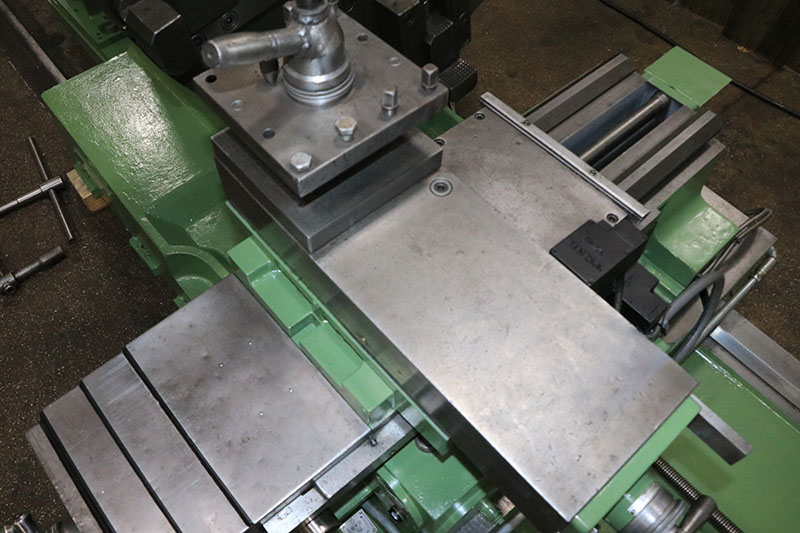

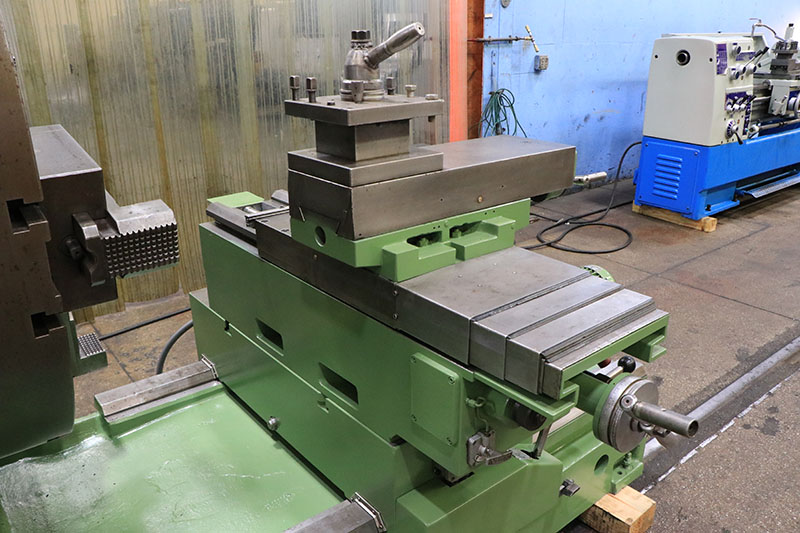

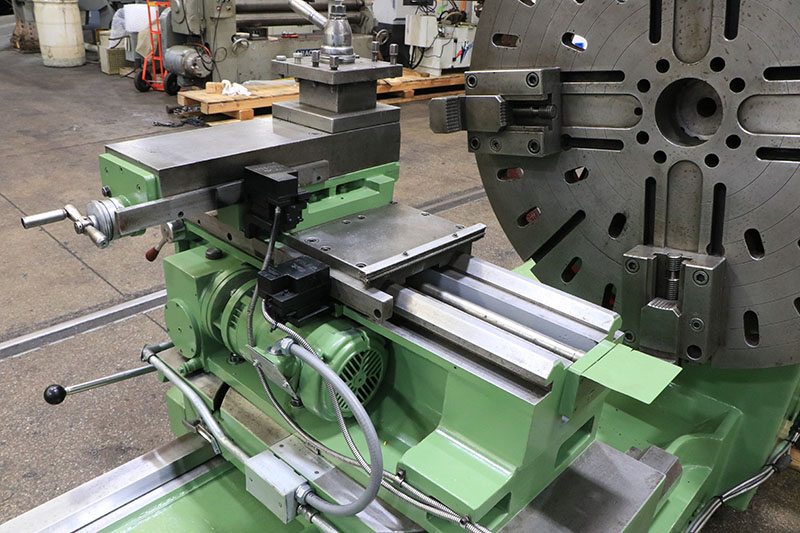

4-WAY TOOL POST

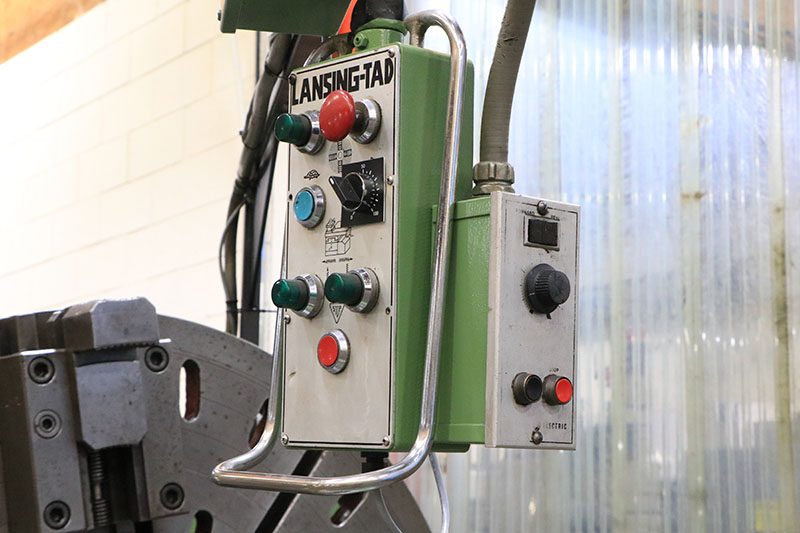

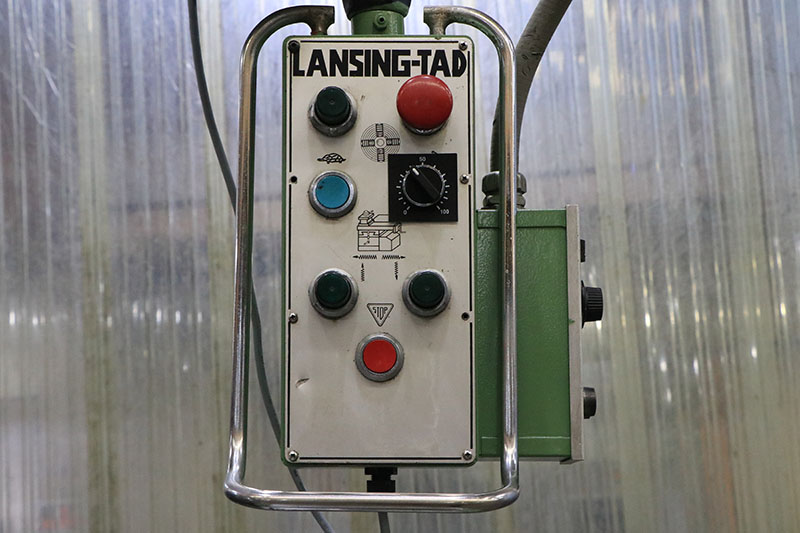

PENDANT CONTROL

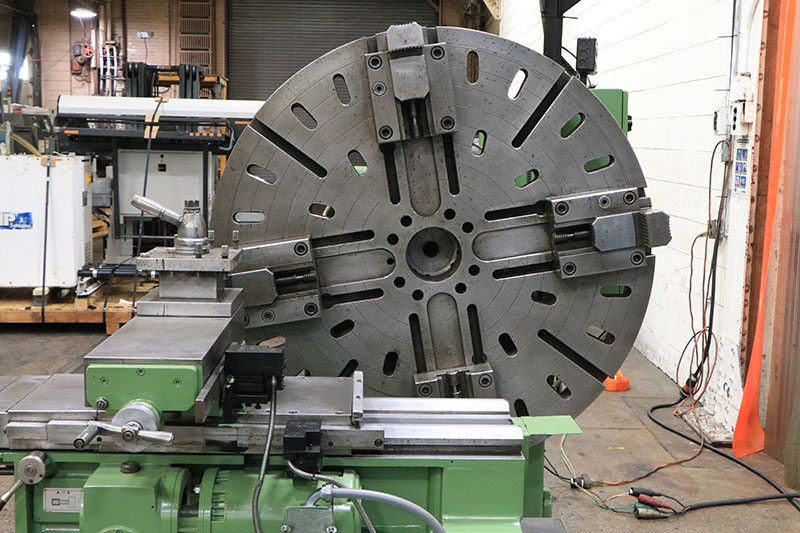

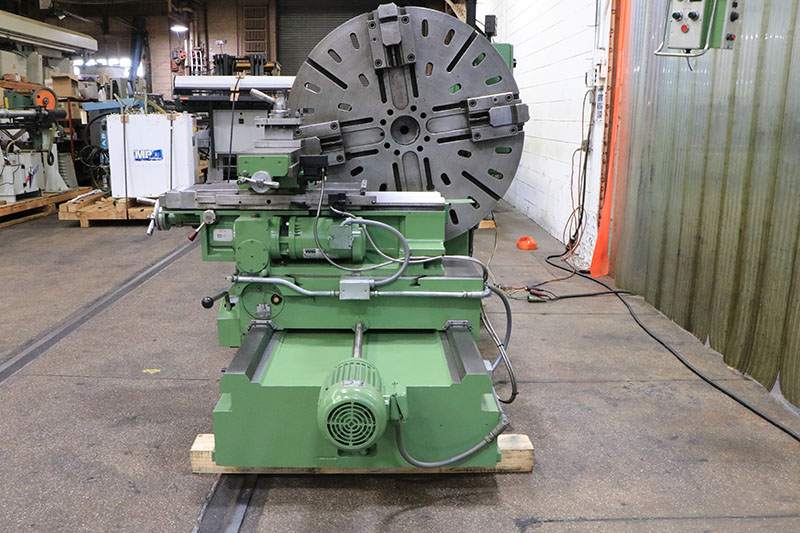

47.5" FACE PLATE PLATE WITH FOUR JAWS
20 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
