LeBlond 16" Heavy Duty 46" in Gap SLIDING BED GAP ENGINE LATHES

Price on Request

Make:: LeBlond

Model:: 16" Heavy Duty 46" in Gap

Year:

Ref #:: 178525

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

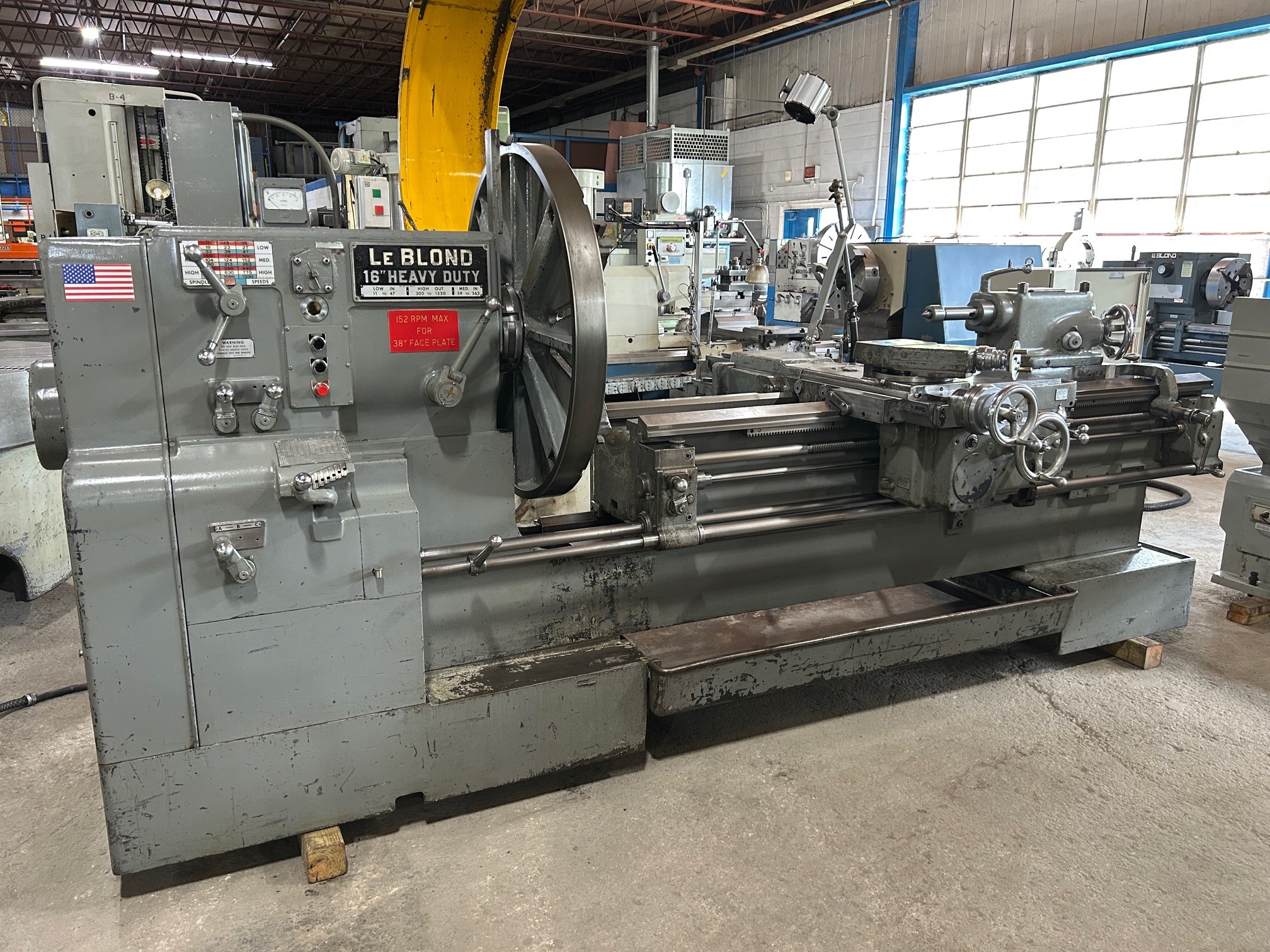

20"/46" X 72"/120" LEBLOND SLIDING BED GAP LATHE,

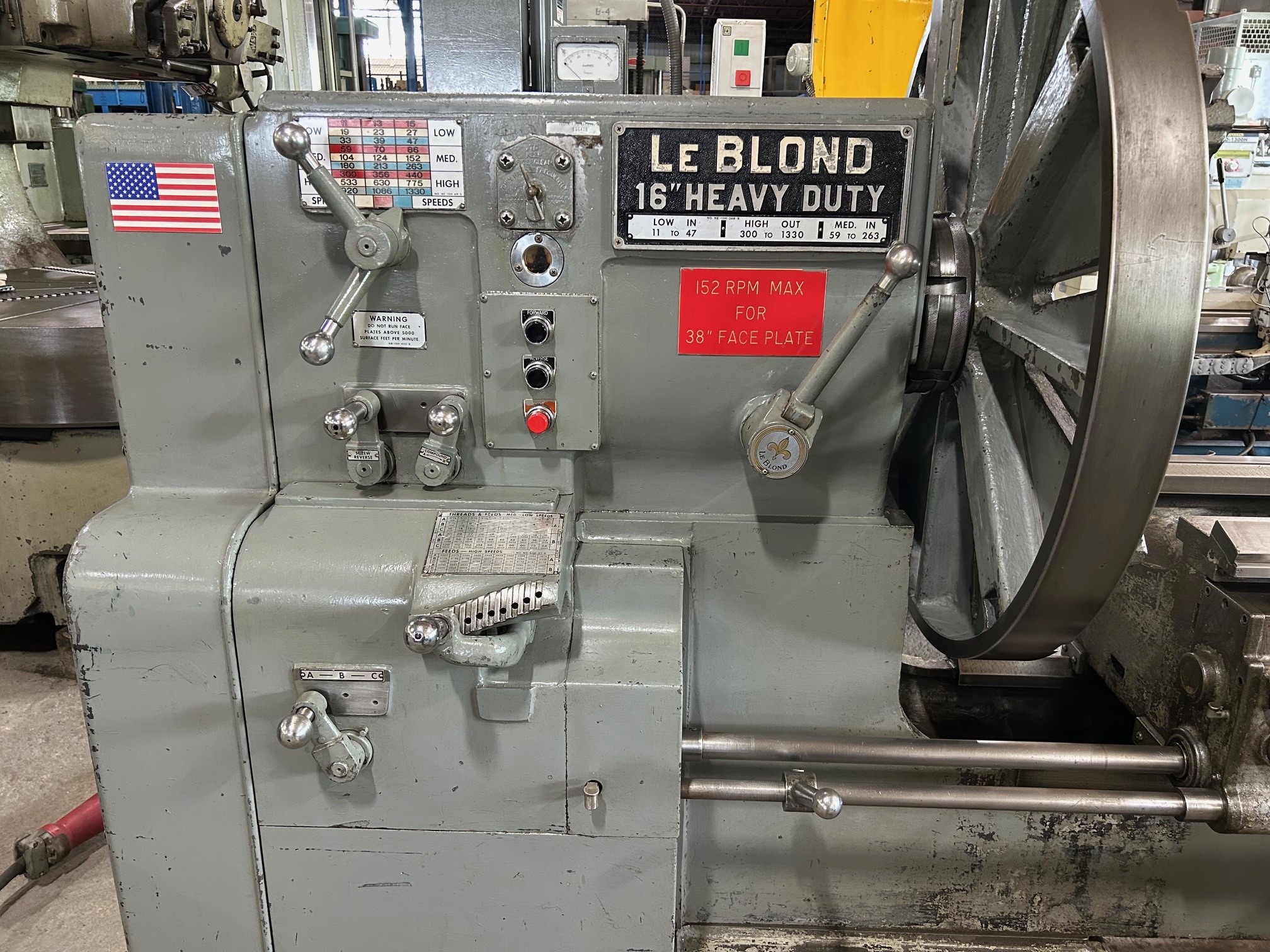

MODEL 16" HEAVY DUTY, S/N: 2NE-785

SPECIFICATIONS:
SWING OVER BED AND CARRIAGE WINGS ...... 20-1/2"
SWING OVER CROSS SLIDE ................. 12-7/8"
SWING OVER GAP ......................... 46"
DISTANCE BETWEEN CENTERS, BED CLOSED ... 72"
DISTANCE BETWEEN CENTERS, BED OPENED ... 120"
SPINDLE SPEEDS RANGE ................... 11 TO 1330 R.P.M.
SPINDLE NOSE, TAPER KEY DRIVE, SIZE .... L-2
SPINDLE BORE ........................... 2-1/4"
HEADSTOCK & TAILSTOCK SPINDLE TAPER .... #4 MORSE
FEEDS, LONGITUDINAL (48) ............... .0011 - .250 I.P.R.
THREADING RANGE (48) ................... 2 - 120 T.P.I.

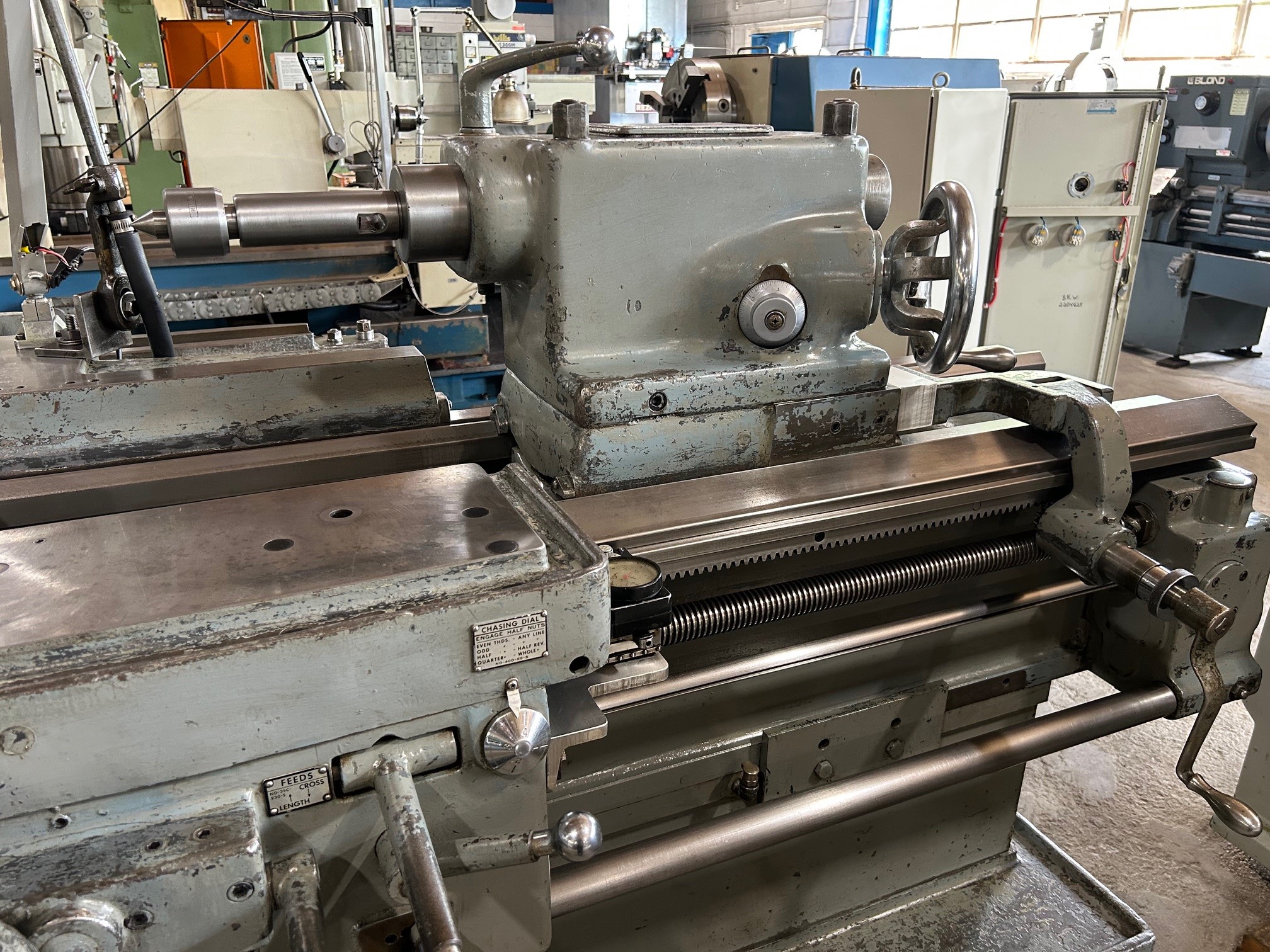

TAILSTOCK SPINDLE TRAVEL ............... 10"
APPROX FLOOR SPACE:
    WITH BED CLOSED ................ 12'7" x 87" x 78"
    WITH BED OPEN .................. 17' x 87" x 78"
APPROXIMATE WEIGHT ..................... 12,500 LBS

EQUIPPED WITH:

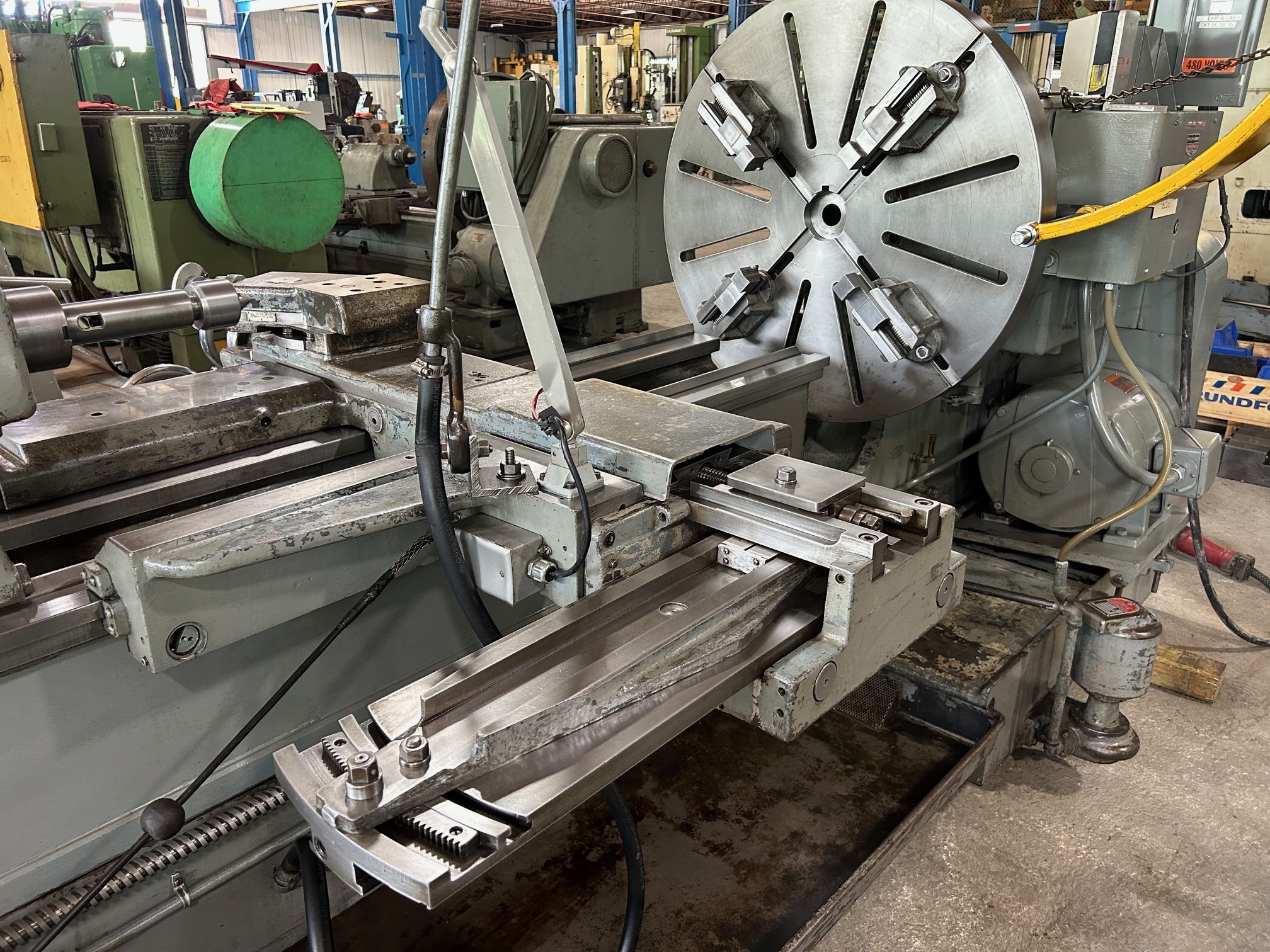

- SLIDING BED FOR INCREASED SWING AND CENTER DISTANCE

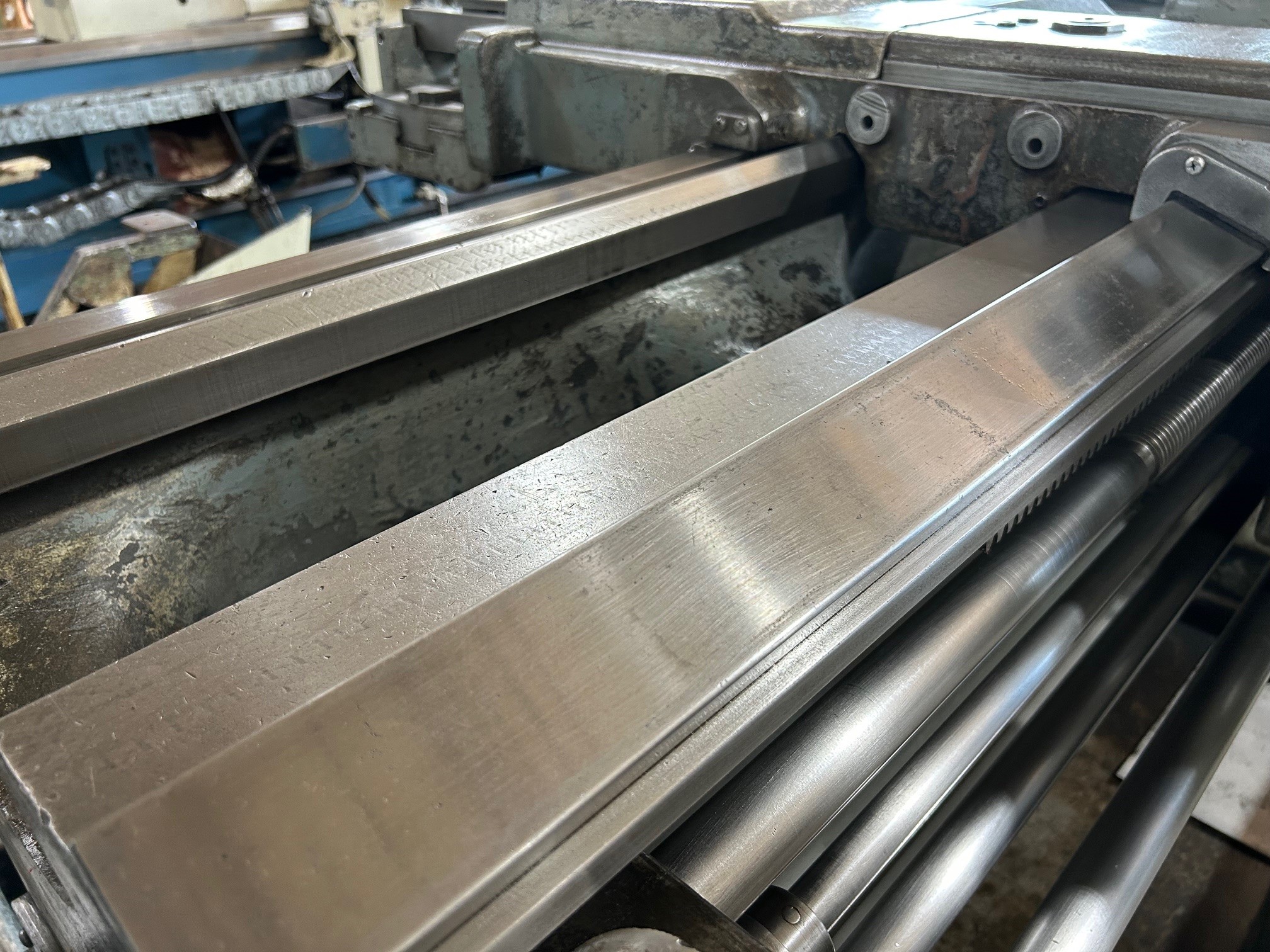

- HARDENED AND REPLACEABLE BED WAYS
- MOTORIZED POWER RAPID TRAVERSE TO CARRIAGE
- TAPER ATTACHMENT

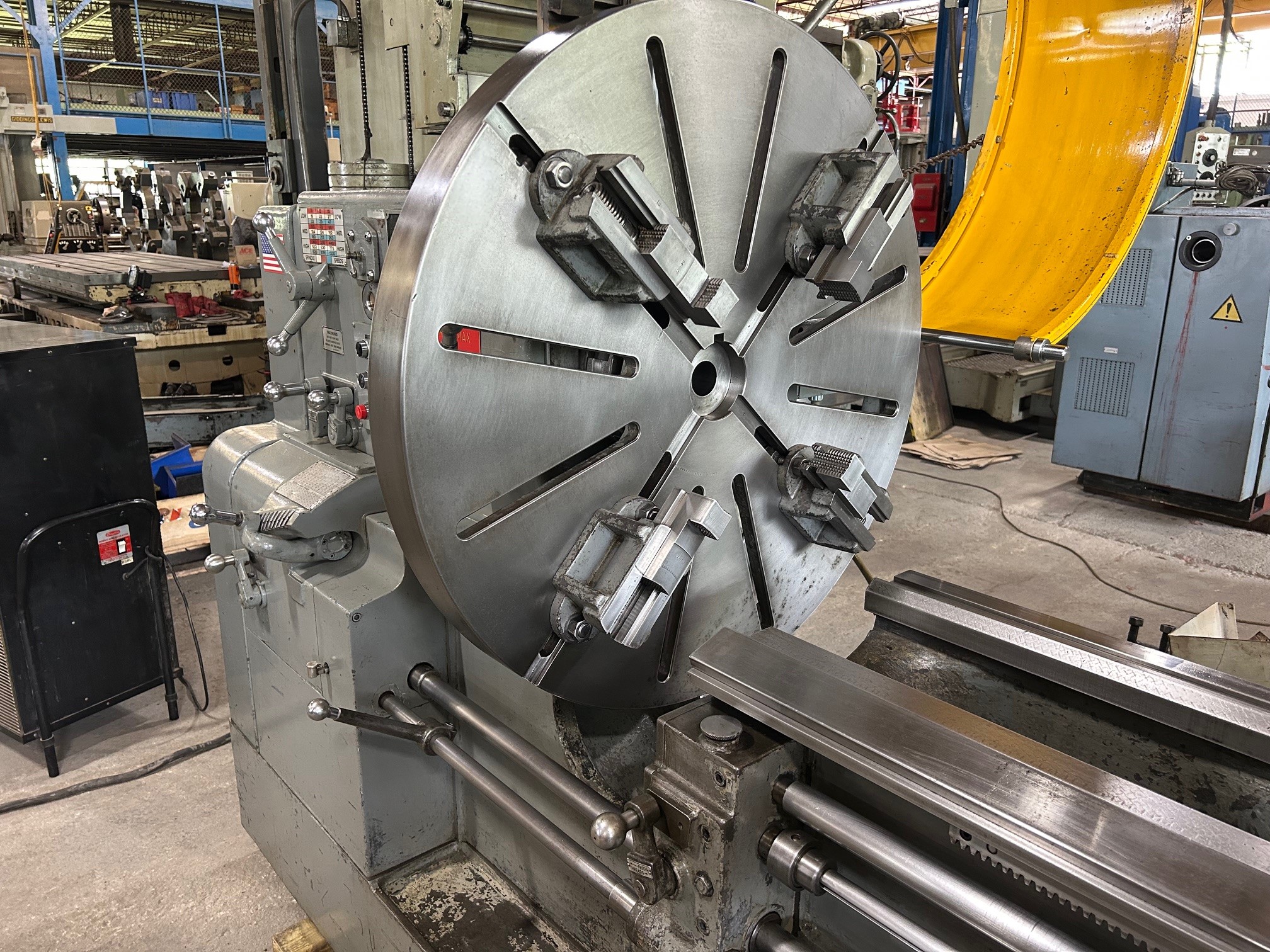

- 38" DIAMETER FACEPLATE w/4-JAWS
- THREADING DIAL
- SELF-CONTAINED COOLANT PUMP
- (1) LIVE CENTER FOR THE TAILSTOCK
- 15 HORSE POWER SPINDLE DRIVE MOTOR
