LeBlond-Makino 15" Regal Servo-Shift ENGINE LATHES

$10,950

Make:
LeBlond-Makino
Model:
15" Regal Servo-Shift
Year:
1985
Ref #:
164126

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

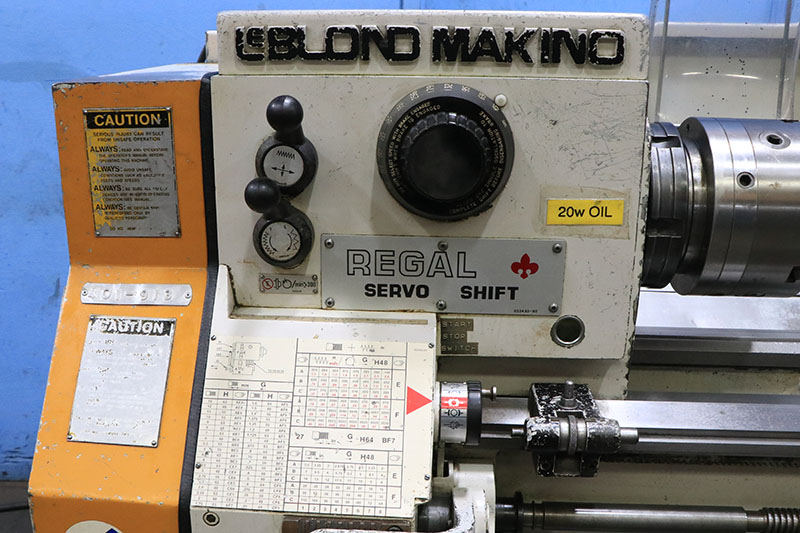

15" x 54" LEBLOND-MAKINO SERVO SHIFT ENGINE LATHE
MODEL: 15" REGAL, S/N: 14C-452, NEW: 1985

SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 54"
SPINDLE NOSE THREADED ............. L-1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 45 - 1800 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
THREADING RANGE METRIC (40) ....... 0.25 - 14 mm
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 104"L x 40"W x 51"H

EQUIPPED WITH:
INCH & METRIC THREADING CAPABILITY
8" 6-JAW TMX SET-TRU CHUCK
ALORIS MODEL: BXA QUICK CHANGE TOOLPOST
TRAV-A-DIAL FOR LONGITUDINAL CARRIAGE TRAVEL
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
HARD & GROUND REPLACEABLE BEDWAYS
MANUALS
WORKLIGHT
7-1/2 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
