Lissmac SBM-L 1500 G1S2, 2023, TOP & BOTTOM, BELT GRINDERS

Price on Request

Make:: Lissmac

Model:: SBM-L 1500 G1S2, 2023, TOP & BOTTOM,

Year:: 2023

Ref #:: 179403

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

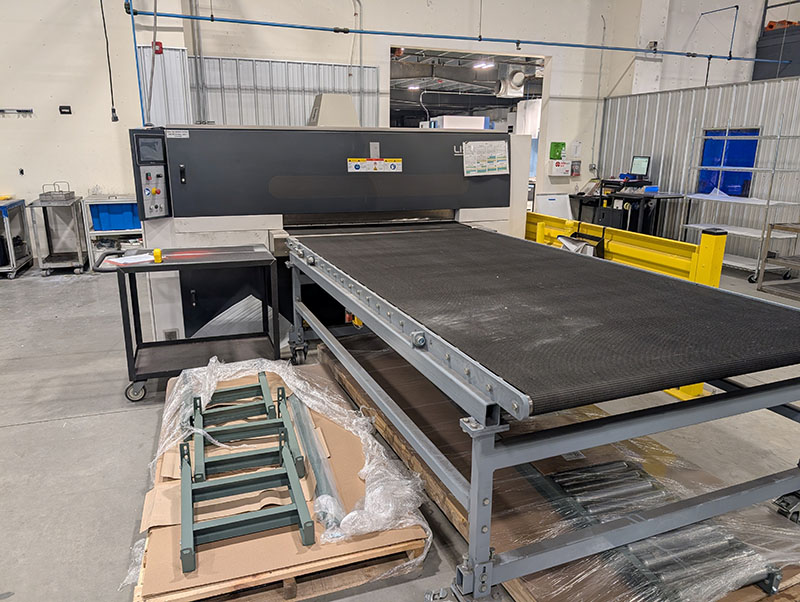

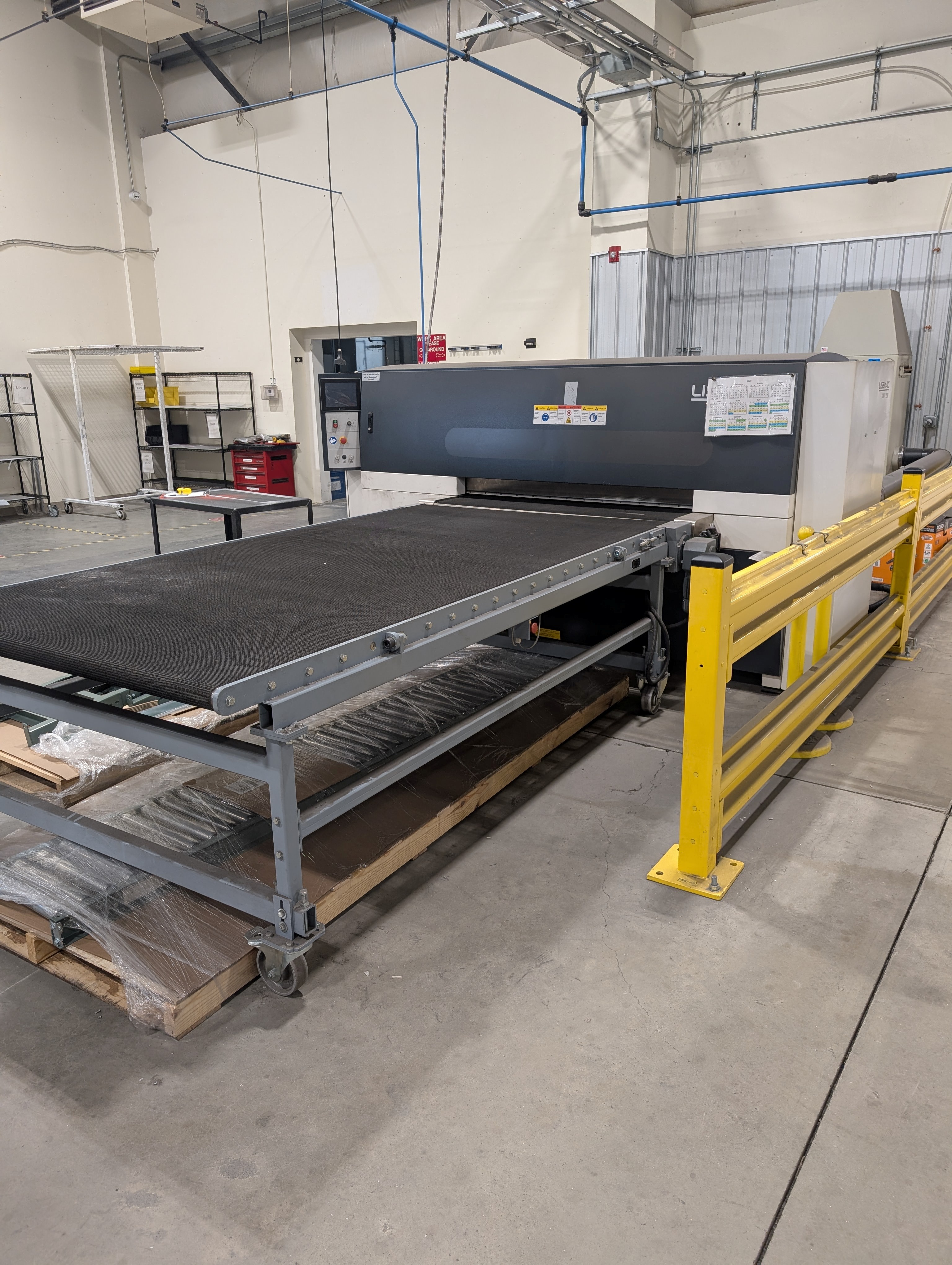

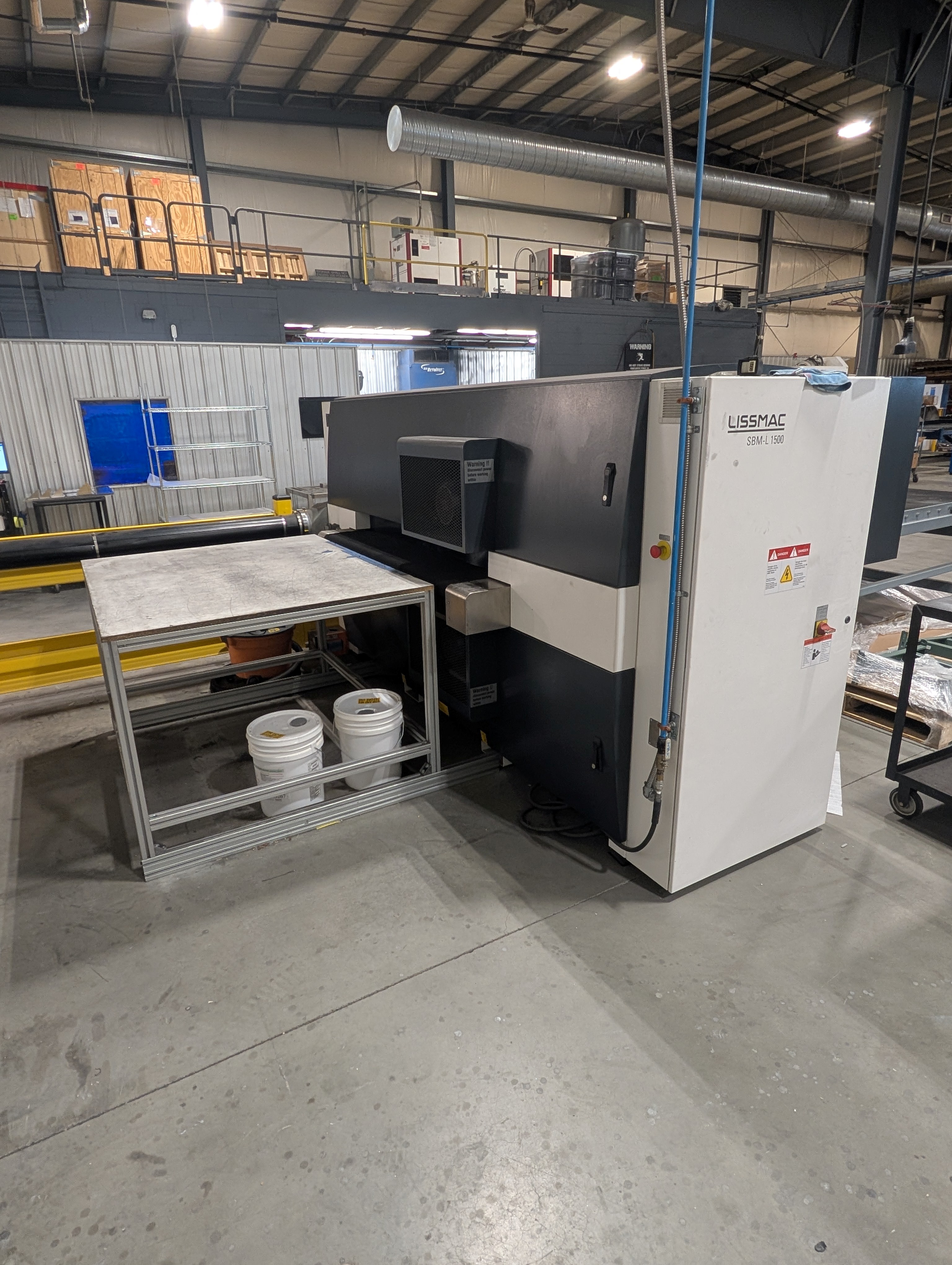

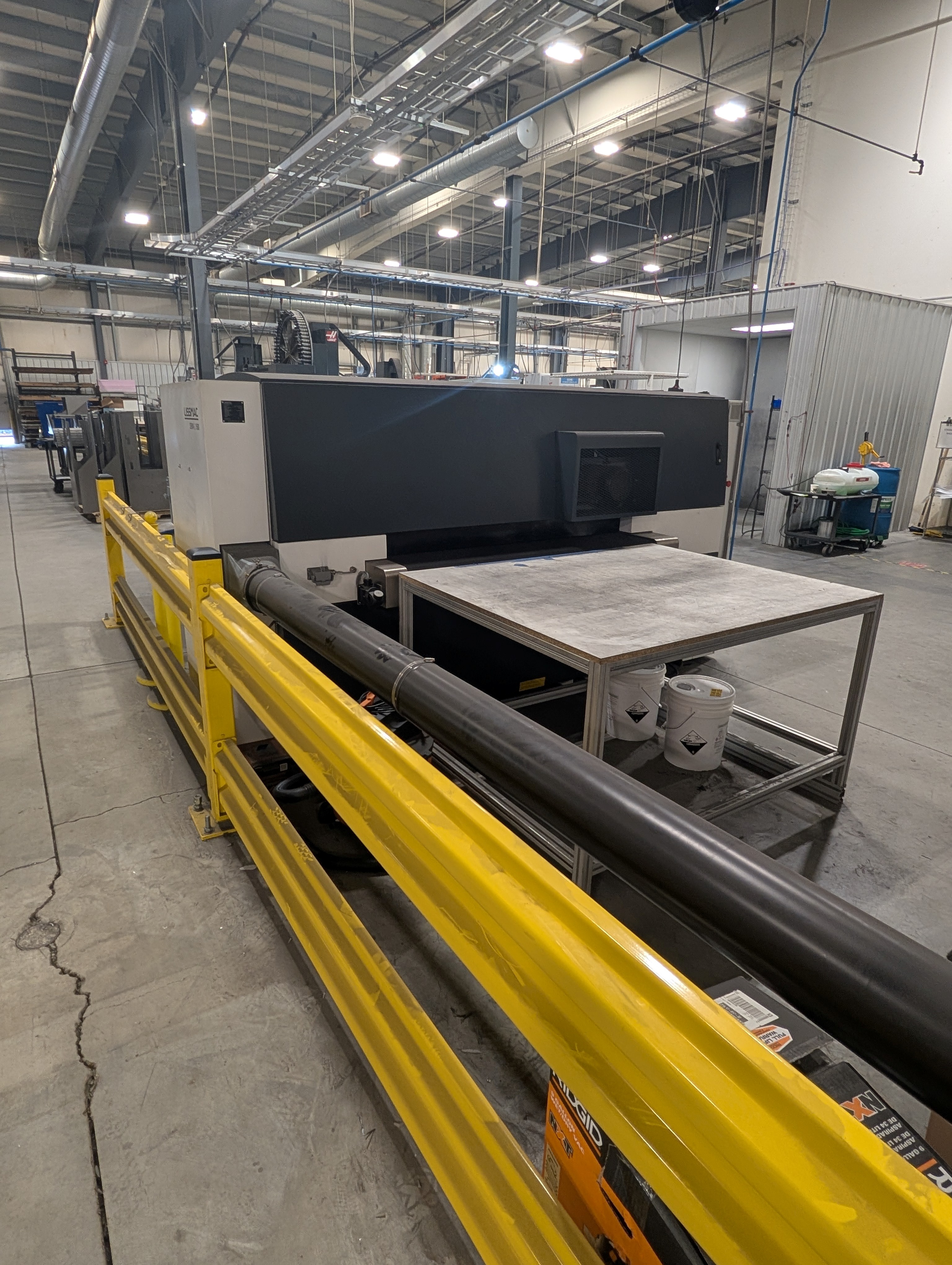

LISSMAC SBM-L-1500 G1S2,
59" WORKING WIDTH CAPACITY,
TWO-SIDED DEBURRING/EDGE
      ROUNDING MACHINE
which will process both sides of
 your parts in a single pass:
      w/S7 CONTROLS,

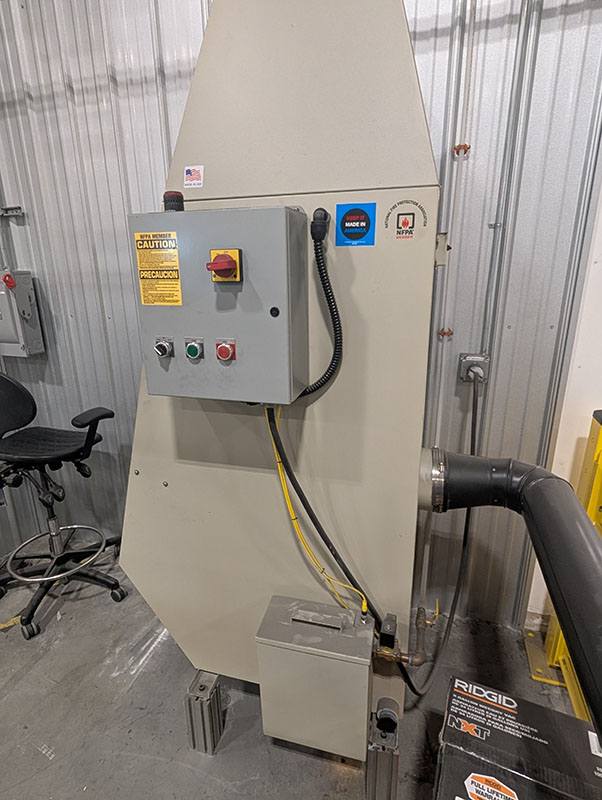

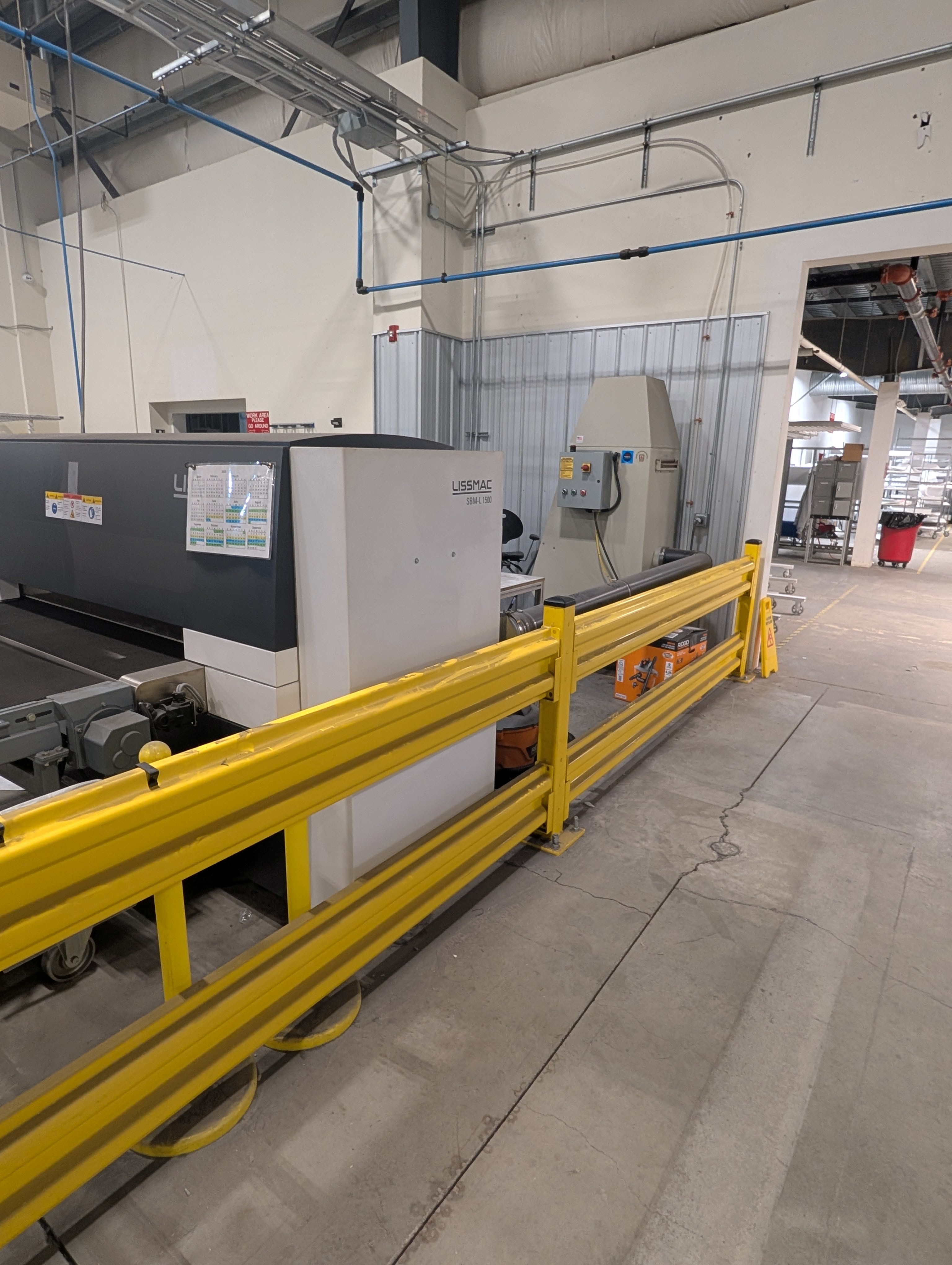

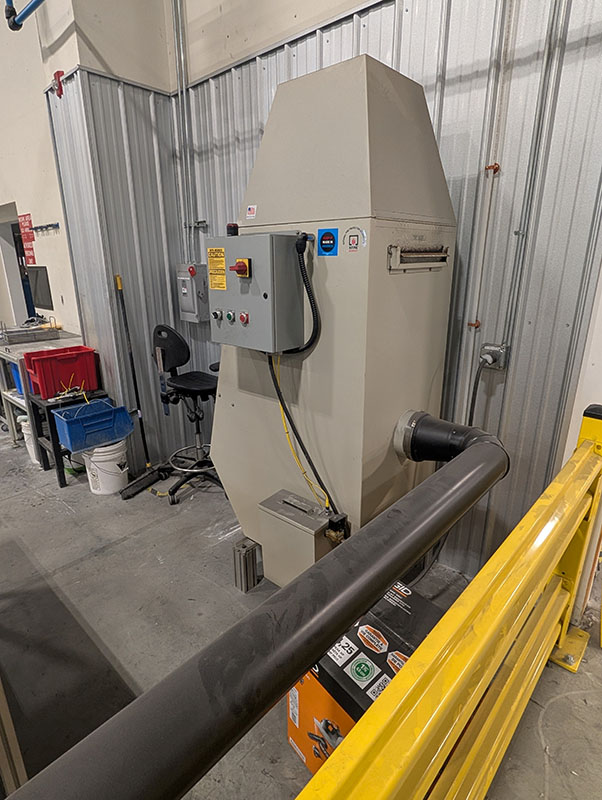

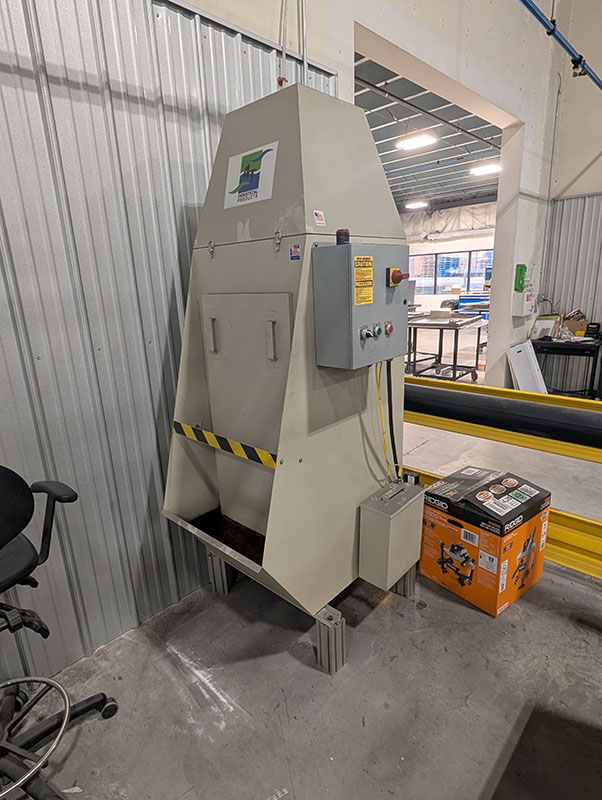

 WITH LISSMAC C5-2500
 WET DUST COLLECTOR
& A BAR CODE SCANNER!!

 IN PLANT & UNDER POWER
NEW 2023 - IN LIKE NEW CONDITION

Two-Sided Processing:
"Finishes both the top and bottom of materials
 simultaneously without the need to manually
 flip heavy parts."

Versatile Material Handling:
"Capable of processing steel, stainless steel,
 aluminum, and non-ferrous metals."

Automated Controls:
"Features intuitive touchscreen interfaces
 (e.g., 13.3" panel) and automatic wear
 compensation for edge-rounding blocks."


Working Width:
59 inches (1,500 mm)
Material Thickness
0.02" to 2.36" (0.5 mm to 60 mm) depending
 on tooling
Minimum Part Size
6.00" x 2.00"
Feed Speed
Infinitely variable, 0 to 13 ft/min
 (0 to 4 m/min)
Tool Configuration
Typically 2 grinding belts and 4 sanding
 block belts
Max Load / Weight
~660 lbs/ft (300 kg/m);
Machine weighs ~6,170 lbs (2,800 kg)

"SBM-L 1500 G1S2 is a sanding, grinding,
 and edge rounding machine that deburrs
 and grinds the edges of punched, laser
 cut, and high-definition plasma cut
 sheet metal parts up to a material
 thickness of 2 inches. It is designed
 for high volume and heavy usage.

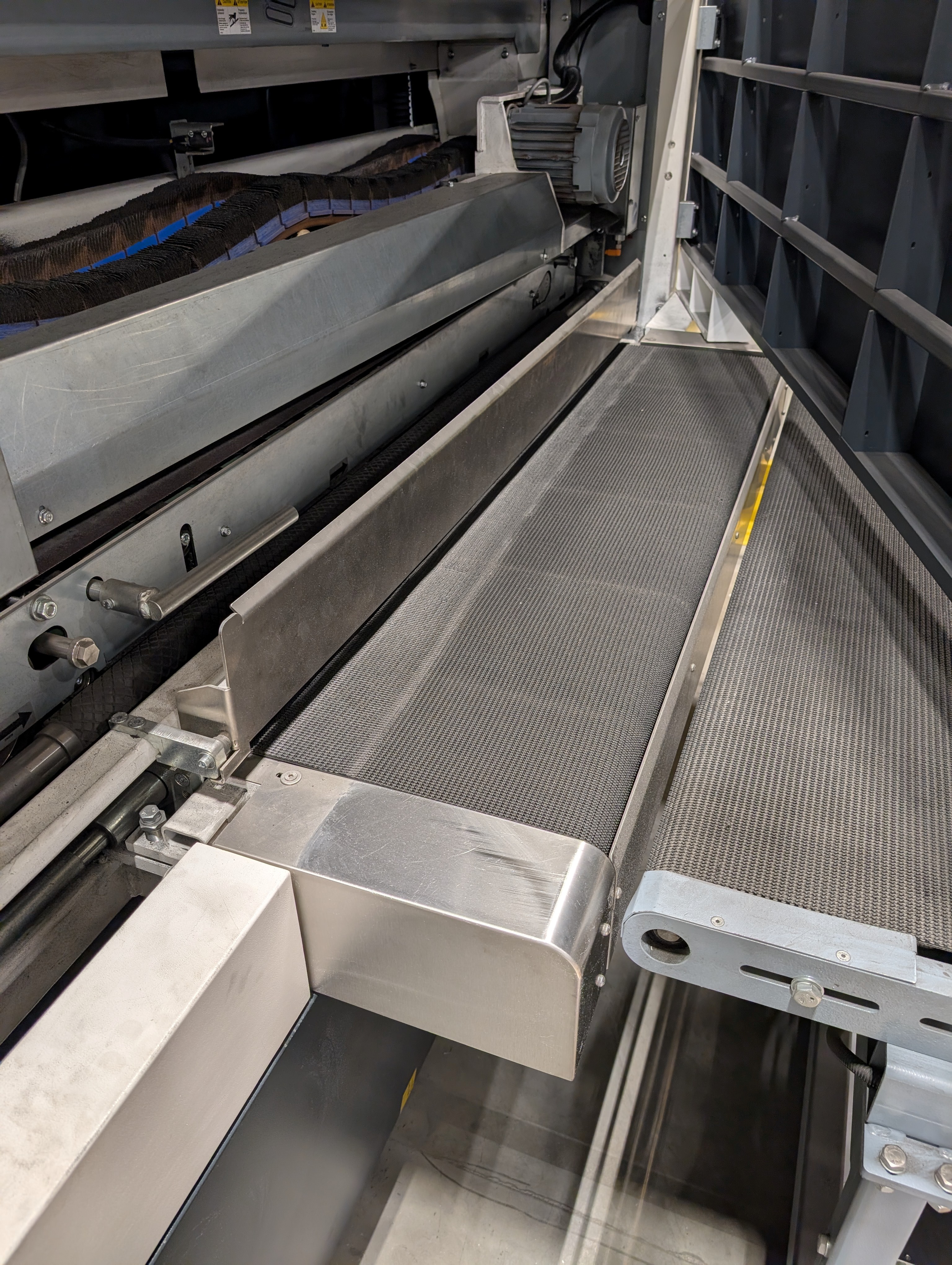

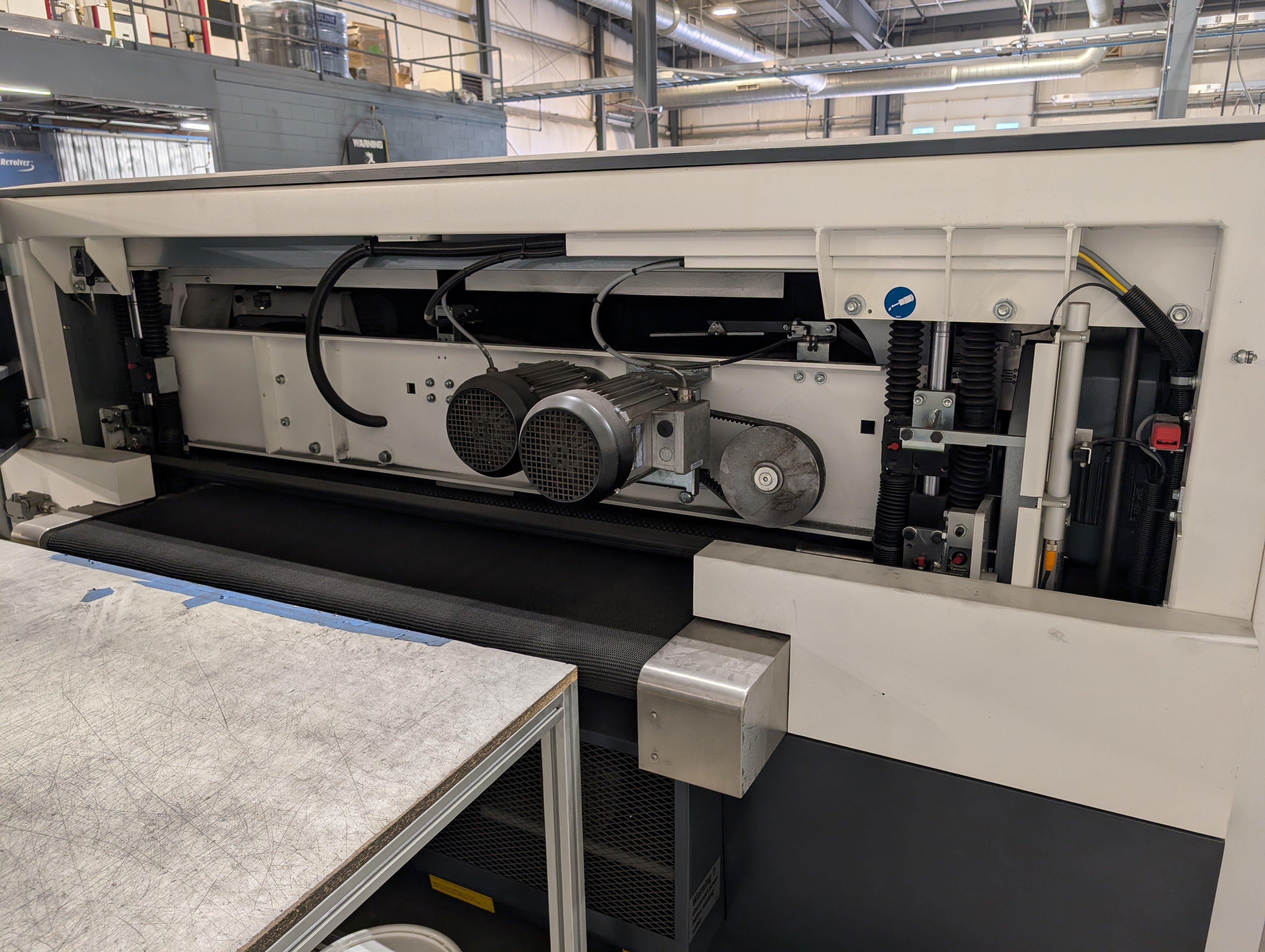

The system uses two grinding belts,
 one on top and one on the bottom,
 to remove spots and slight-to-medium
 burrs from the outside and inside

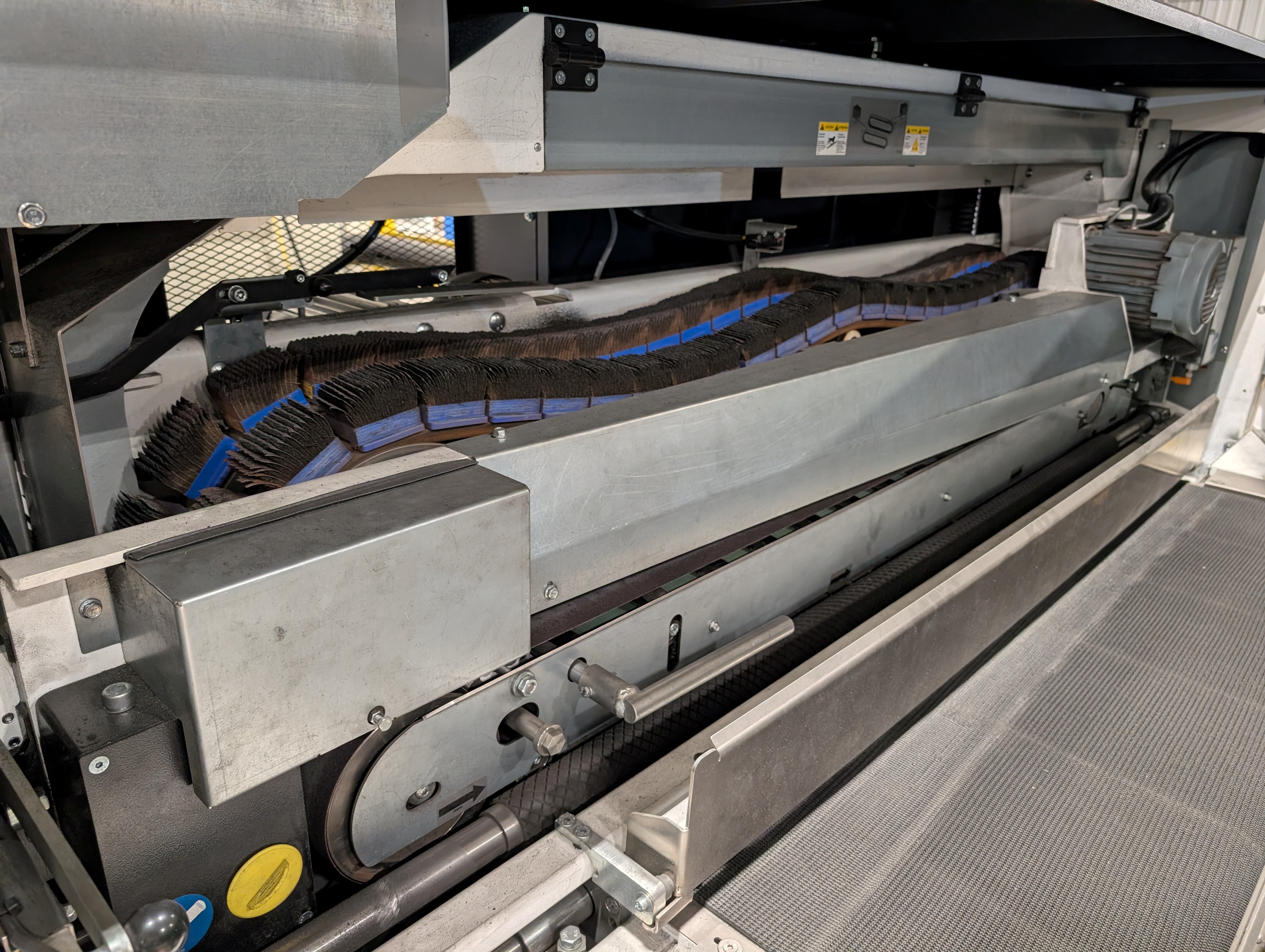

 edges of sheet metal parts. Four
 sanding block belts, two on top and
 two on the bottom, remove secondary
 burrs and round the edges of the parts.
 All inside and outside edges for the
 top and bottom of the piece are
 processed simultaneously in just one
 pass, and each working module can be
 individually engaged and adjusted
 according to the application.

The Lissmac SBM-L G1S2 includes
 automatic wear compensation for its
 edge rounding blocks by using sensors
 to detect and accommodate for uneven
 usage across the edge rounding belt.

The system features a working width
 of 59 inches (1,500 mm), a minimum
 part size of 6 inches long by 2 inches
 wide, and a variable feed speed of
 0-12 ft/min.

The Lissmac SBM-L 1500 G1S2 is the
 most popular model of Lissmac’s."
