LNS Super Hydrobar 6.32HS-4.8 BAR FEEDS

$4,950

Make:: LNS

Model:: Super Hydrobar 6.32HS-4.8

Year:: 1998

Ref #:: 157326

Or call us for a quote at (973) 497-7500 or send us an email at automatics@machineryvalues.com

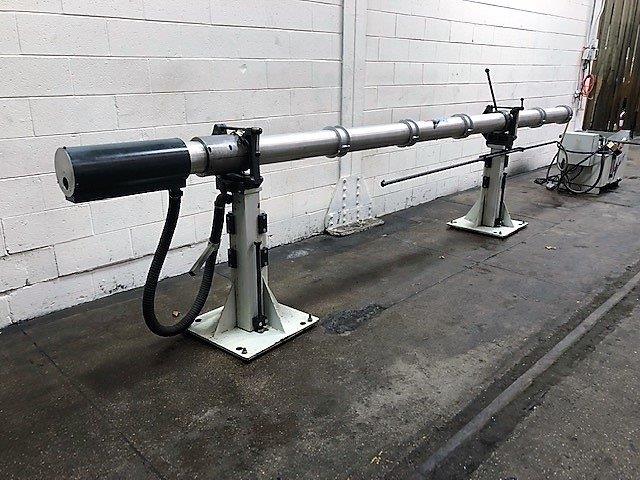

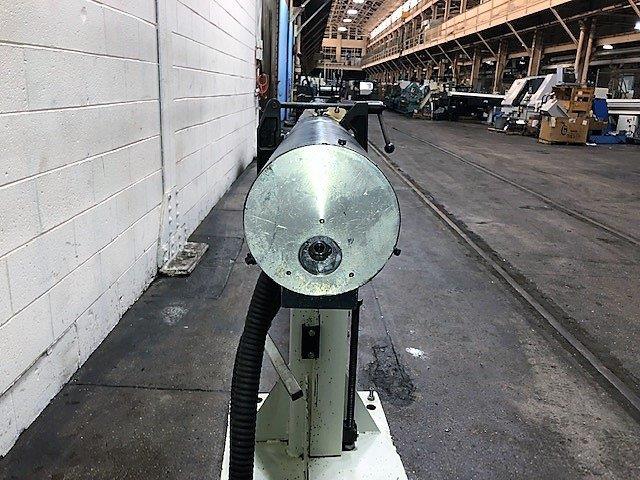

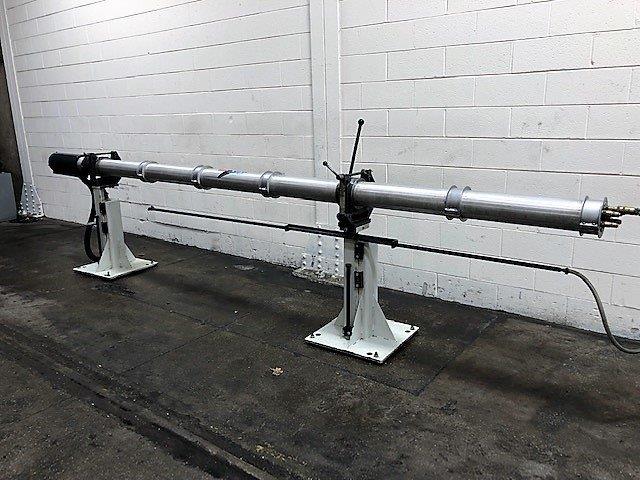

LNS 6.32HS-4.8 SUPER HYDROBAR BARFEED
NEW: 1998

General Specifications for LNS Type HYS 6.32 HS-4.8 barfeed
Consisting of:
  A three-piece aluminum profile barrel assembly containing 6 steel guide
  tubes aranged in a concentric circle with manual indexing ring at the rear,
  and an automatics centering system at the front of the tube, with an electro-
  mechanical end of bar signal.

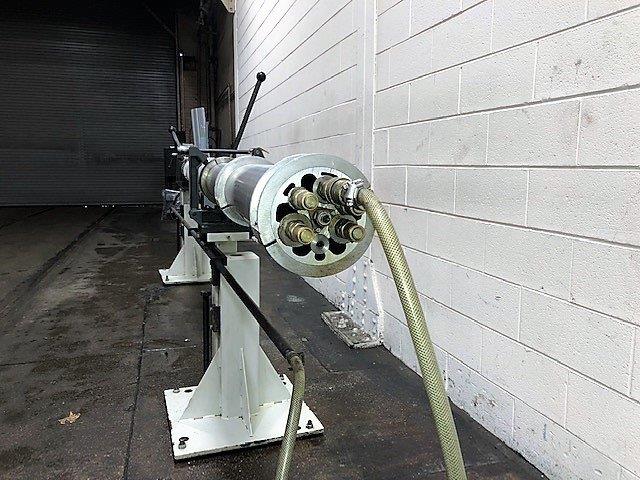

Six (6) guide tubes with internal diameters of:
  1.339" for 1-3/32" to 1-1/4"  diameter barstock
  1.181" for 1"      to 1-3/32" diameter barstock
  1.063" for 3/4"    to 1"      diameter barstock
   .827" for 1/2"    to 3/4"    diameter barstock
   .551" for 1/4"    to 1/2"    diameter barstock
   .315" for 1/16"   to 1/4"    diameter barstock

Originally configured for Tornos Deco
Barfeed:  204" x 41" x 50" 2,500 lbs

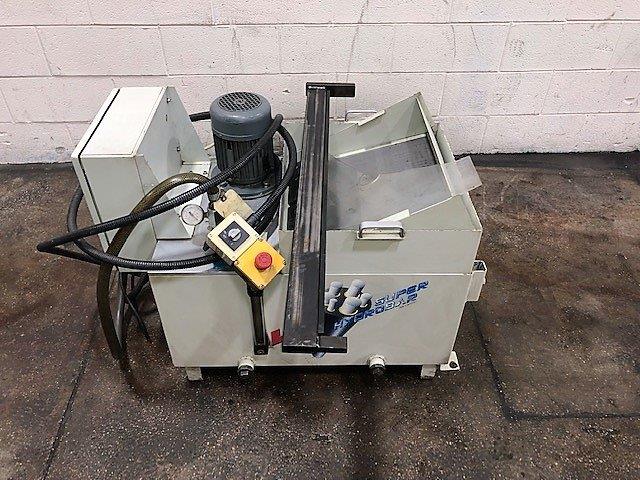

Hydraulic Tank (can fit under barfeed): 37" x 20" x 27" 150 lbs
