Lors 140AP-DV SPOT WELDERS, ALL TYPES

$5,950

Make:: Lors

Model:: 140AP-DV

Year:: 2000

Ref #:: 179410

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

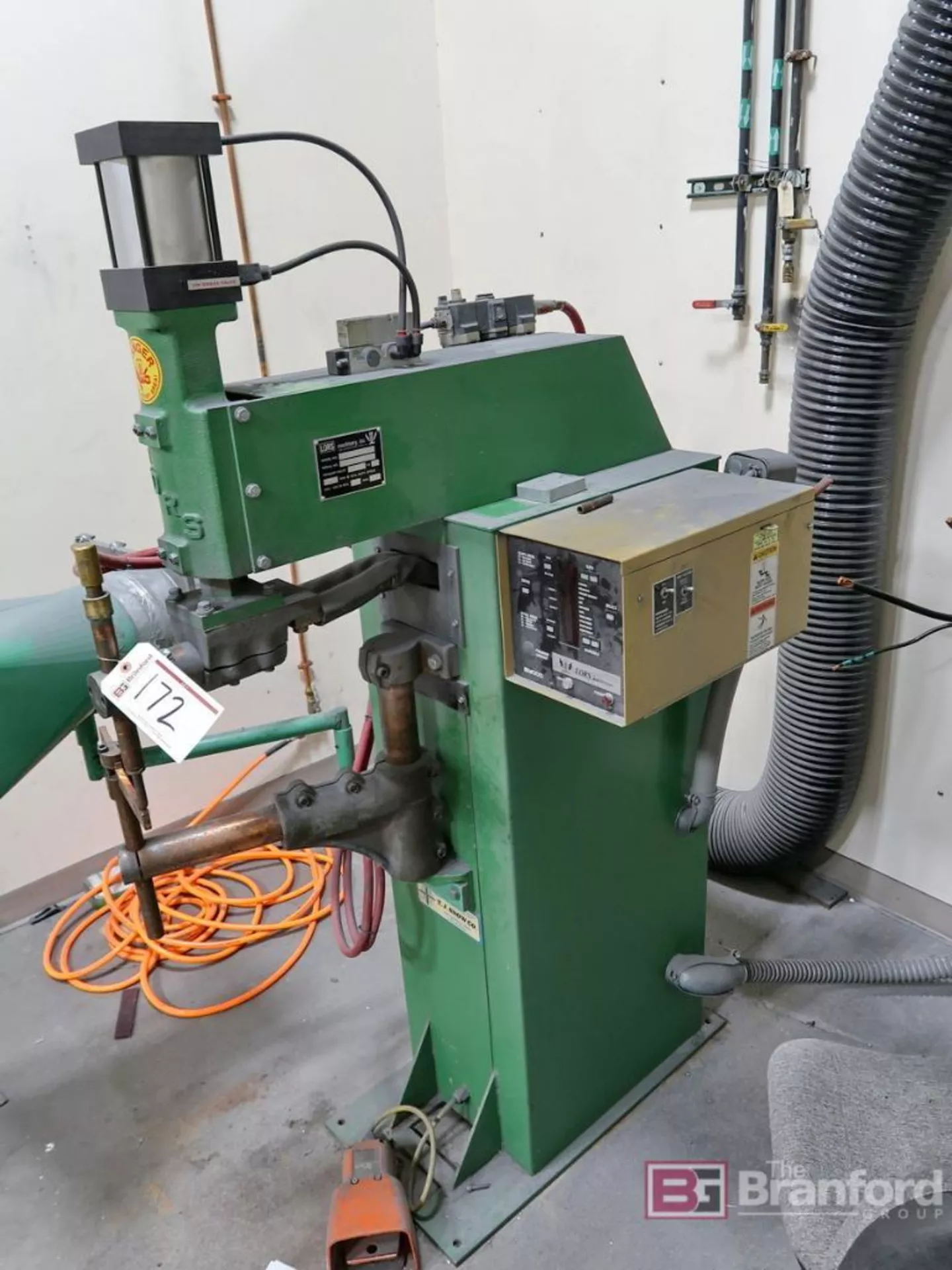

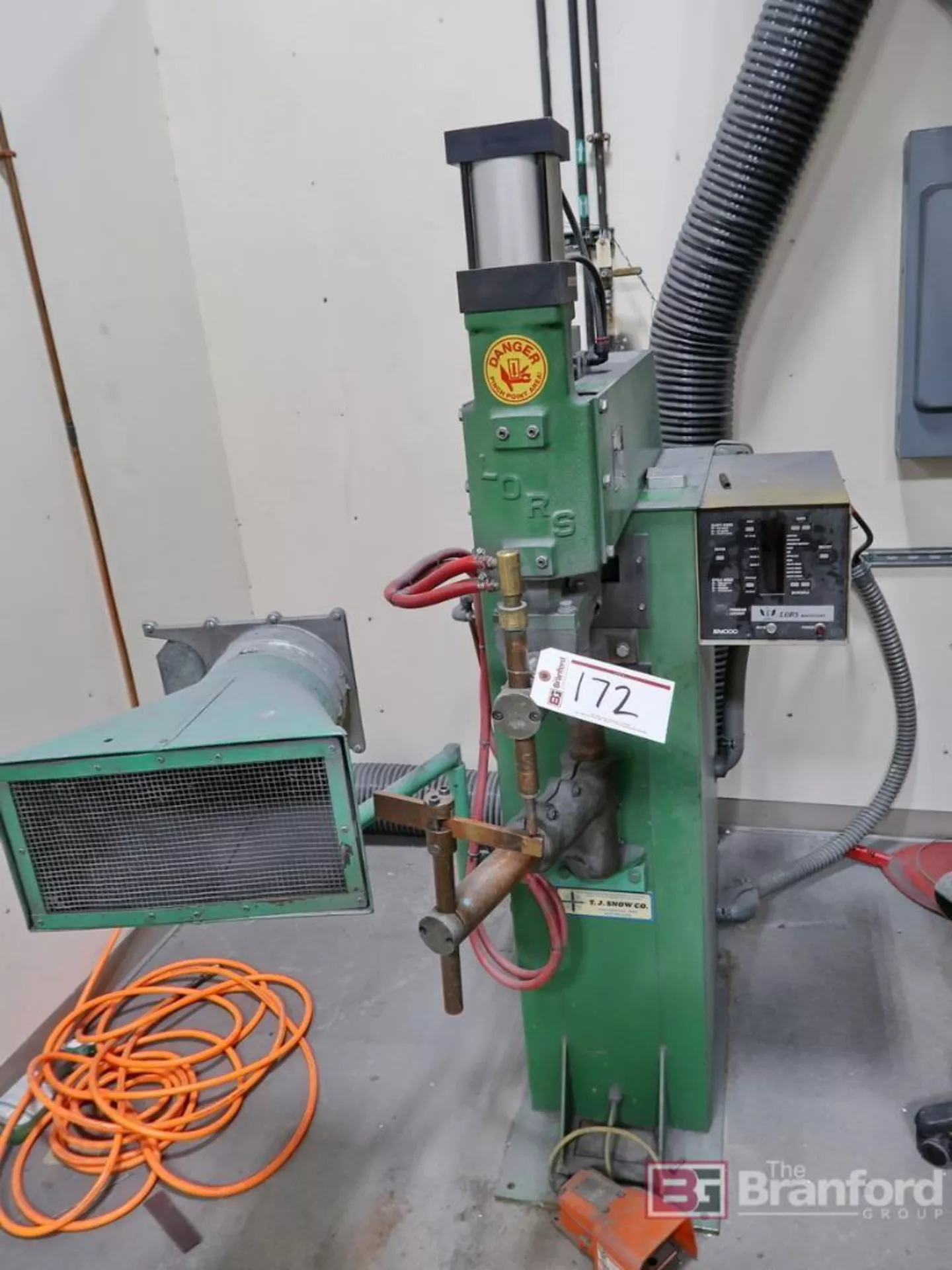

40 KVA LORS PRESS TYPE SPOT WELDER

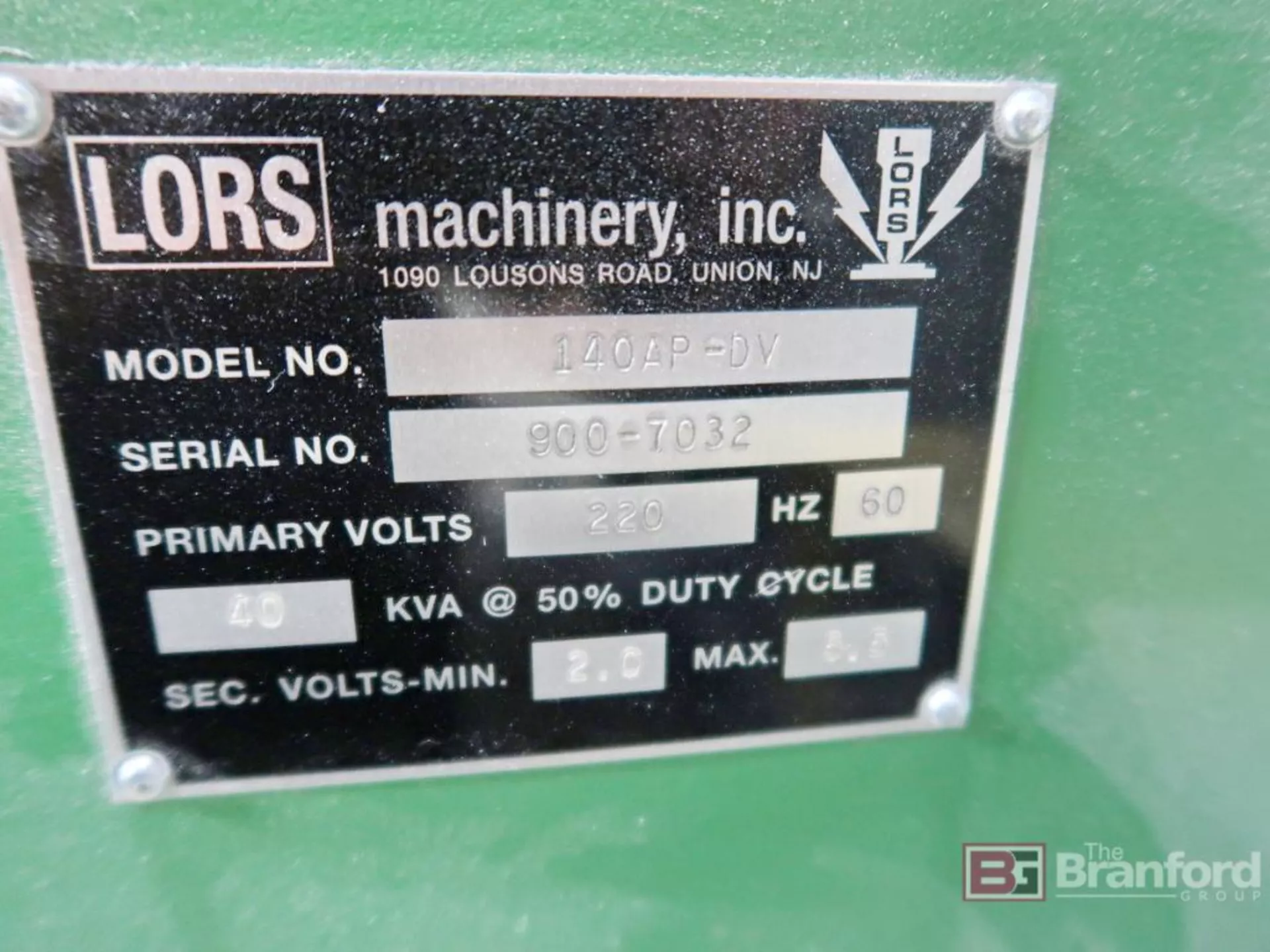

MODEL 140-AP-DV       S/N 900/1032       NEW 2000

KVA .......................................... 40
RATED CAPACITY ...(2 PIECES COLD ROLL STEEL).. .093"
RATED CAPACITY ...(2 PIECES STAINLESS STEEL).. .080"
STROKE ....................................... 3"
MAXIMUM VOLTAGE .............................. 5.5
THROAT DEPTH ................................. 18"
MAXIMUM SHORT CIRCUIT ........................ 18,400
ELECTRO FORCE @ 80 PSI ....................... 1340#
HOLDER DIAMETER .............................. 1"
ARM DIAMETER ................................. 2-1/4"

EQUIPPED WITH:
- DUAL VOLTAGE CAPABILITY

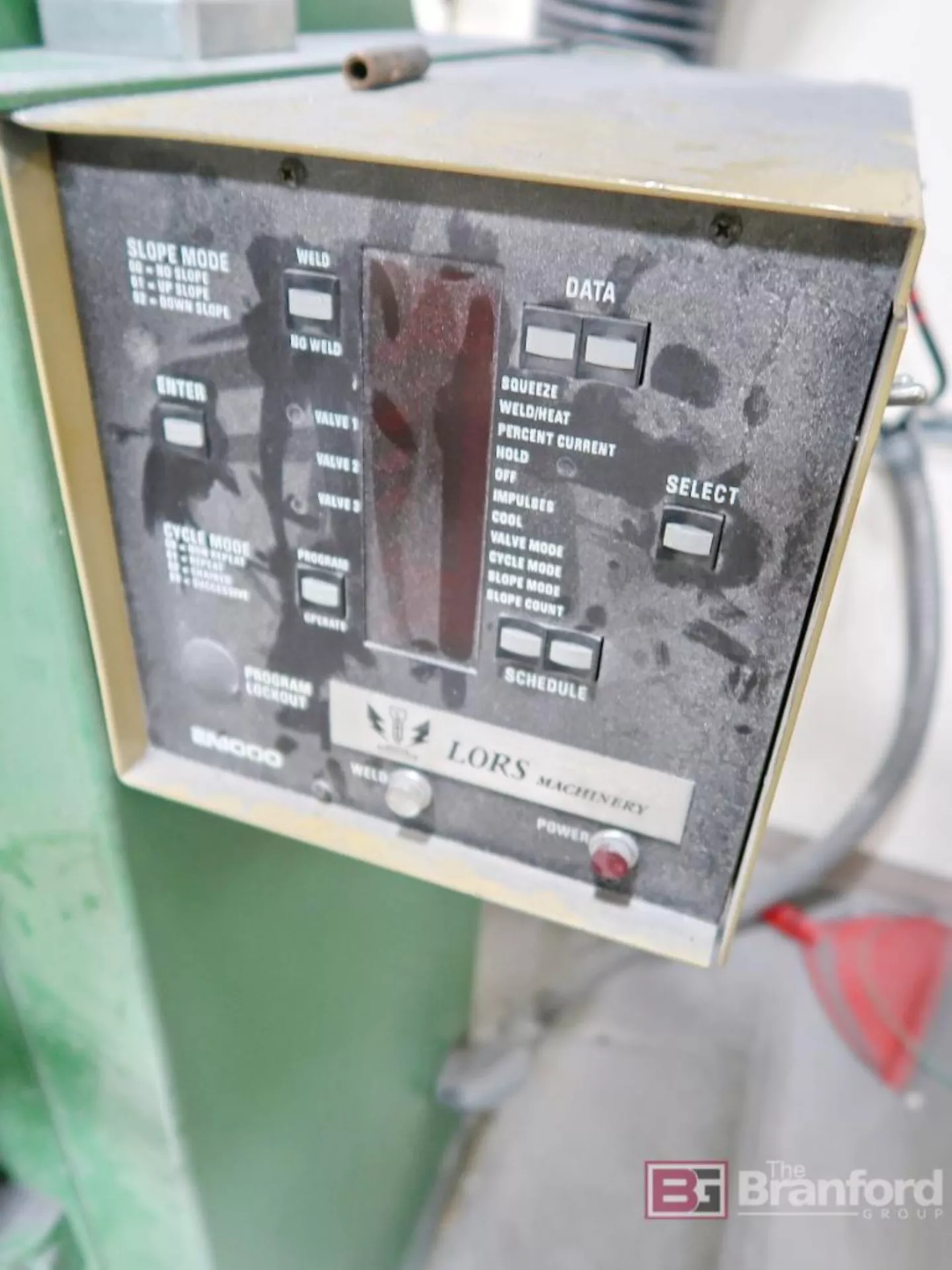

- ENTRON MODEL EN1000 CONTROL
- HEAVY DUTY WELDED STEEL FRAME
- HEAVY DUTY, SELF ALIGNING PILLOW BLOCKS W/LARGE BEARINGS
  PROVIDE POSITIVE ALIGNMENT AND LONG TROUBLE FREE LIFE
- SOLID COPPER ARMS WITH STEEL END CAPS
- MULTI-STEP TRANSFORMER TAP SWITCH
- EJECTOR-TYPE WATER COOLED TIP HOLDERS
- OPERATOR SELECTABLE SINGLE/DOUBLE STAGE FOOT SWITCH
- OPERATOR SELECTABLE SET-UP/RUN SWITCH FOR ADDED SAFETY
- CONVENIENT MANUALLY OPERATED TIP ALIGNMENT VALVE FOR
QUICK SET-UP
