Marvel E380PC3 VERTICAL BAND SAWS

Price on Request

Make:: Marvel

Model:: E380PC3

Year:: 2014

Ref #:: 179219

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

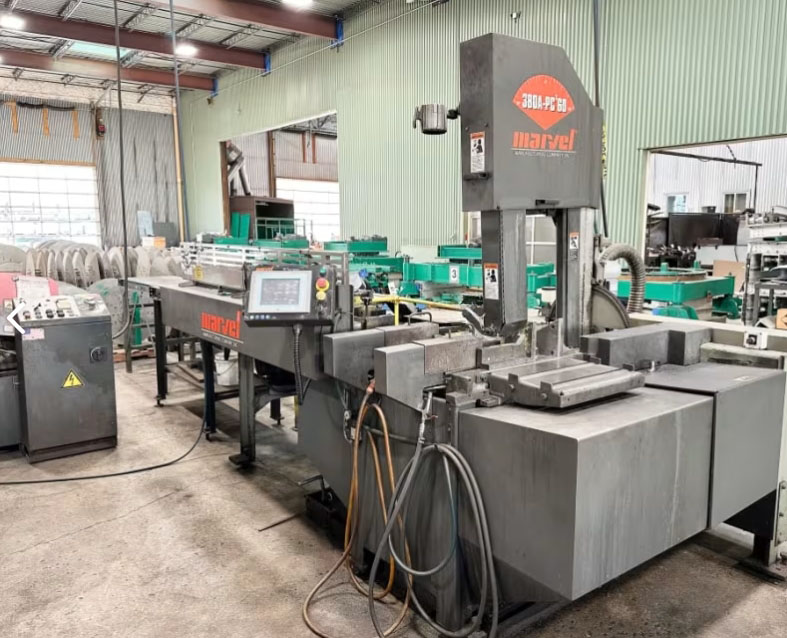

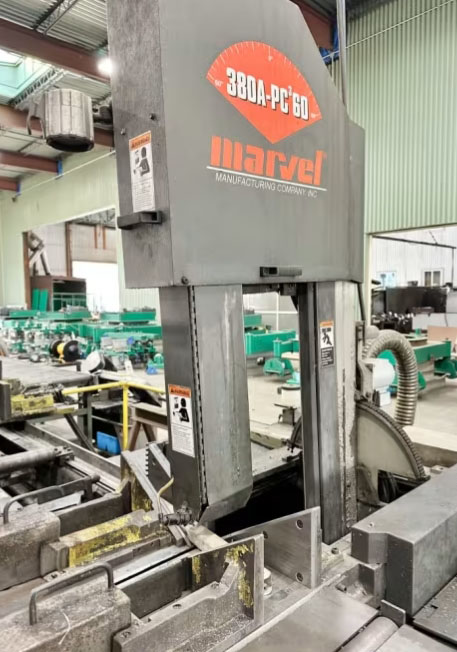

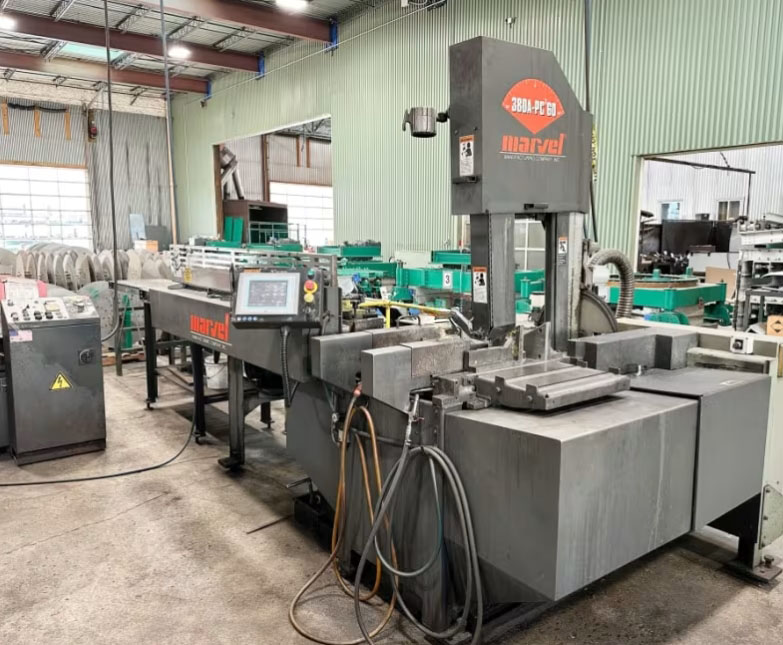

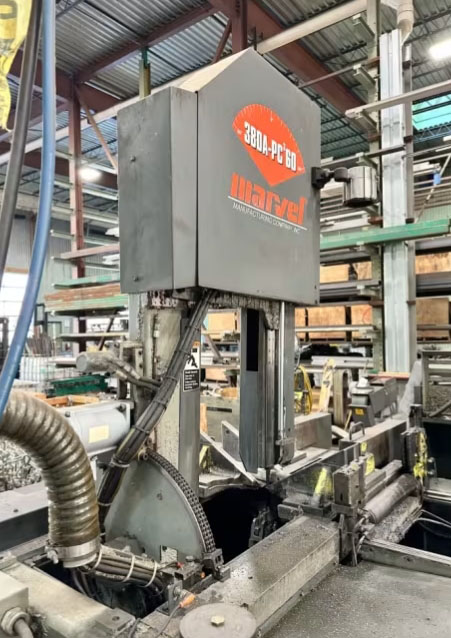

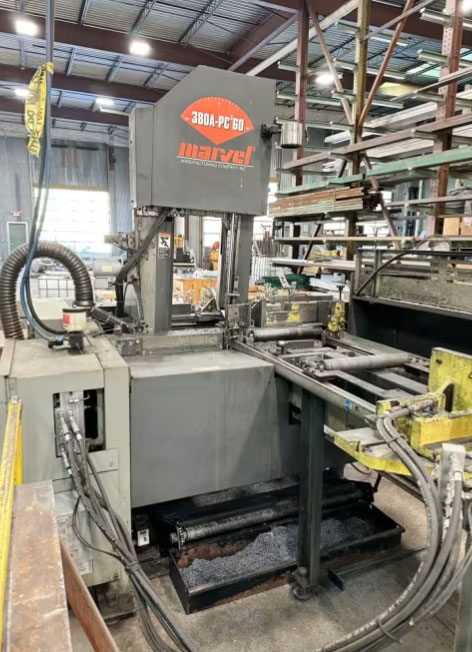

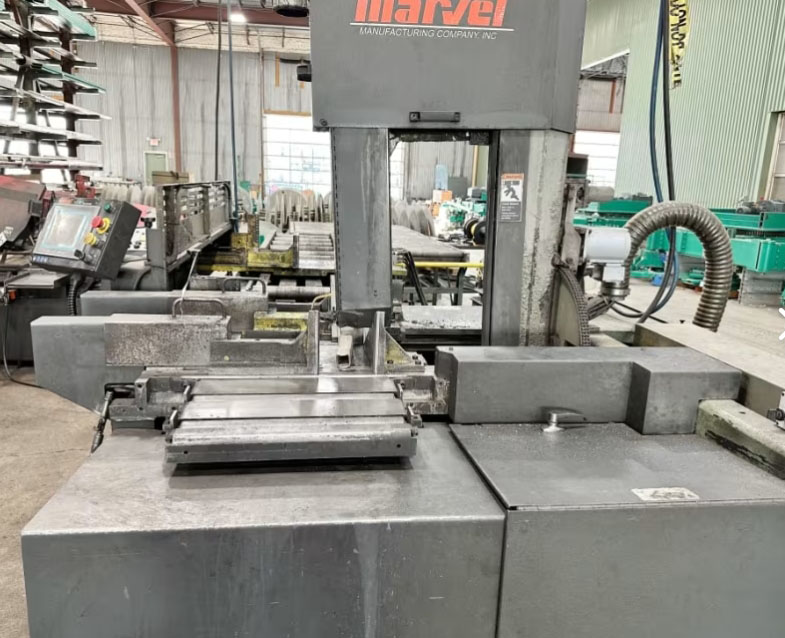

MARVEL VERTICAL BANDSAW

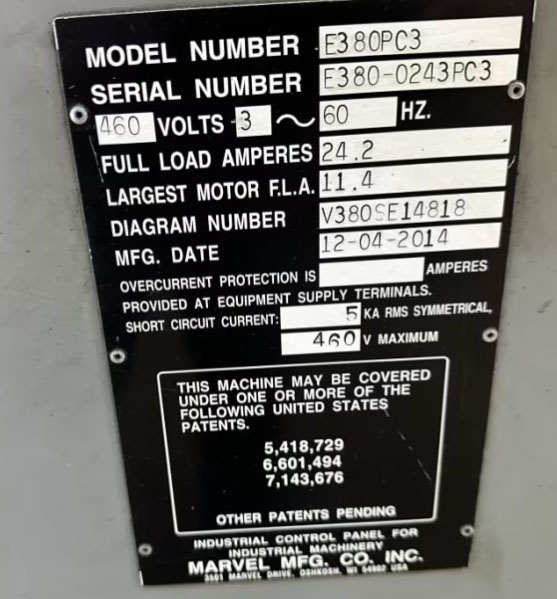

MODEL: E380-PC3, S/N: E380-0243PC3, 2014

SPECIFICATIONS:
CAPACITY:
NOMINAL AT 0° ........ 15" x 20" RECTANGULAR
                       15" ROUND
BLADE AT 45° ......... 15" x 14" RECTANGULAR
                       14" ROUND
BLADE AT 60° ......... 15" x 9.25" RECTANGULAR
                       9.25 ROUND
BLADE AT -45° ........ 15" x 13.25" RECTANGULAR
                       13.25 ROUND
BLADE AT -60° ........ 15" x 8"
                       8" ROUND
NOMINAL AT 3° ........ 14.5" x 20" RECTANGULAR
                       14.5" ROUND
BLADE AT 45° ......... 14.5" x 13.5" RECTANGULAR
                       13.5" ROUND
BLADE AT 60° ......... 14.5" x 8.75" RECTANGULAR
                       8.75" ROUND
BLADE AT -45° ........ 14.5" x 12.75" RECTANGULAR
                       12.75 ROUND
BLADE AT -60 ° ....... 14.5" x 7.75"
                       7.75" ROUND

POWER ................ 5 HORSE POWER
BLADE WIDTH .......... 1.25"
BLADE LENGTH ......... 16'
BLADE SPEED VARIABLE . 60 - 400 FPM
FEED FORCE  .......... 0 - 300 LBS
WEIGHT ............... 5900 LBS

EQUIPPED WITH:
FULLY AUTOMATIC VERTICAL TILT FRAME BAND SAW

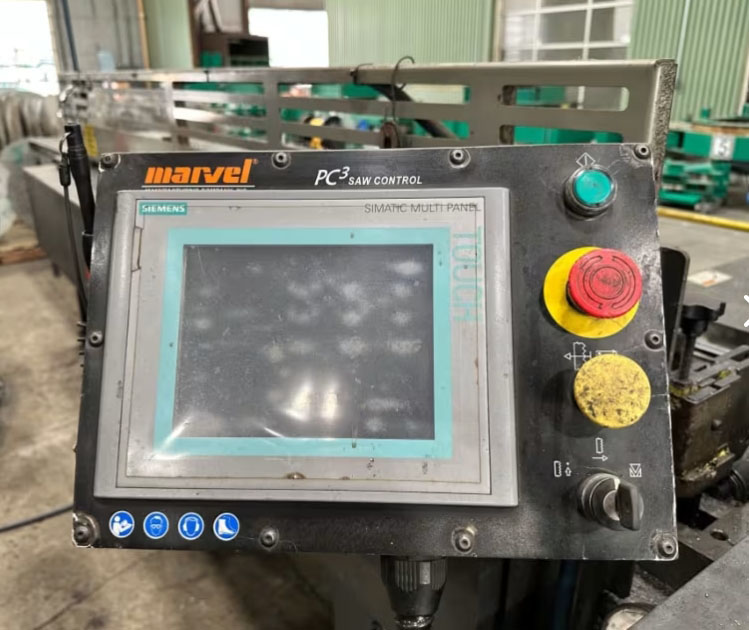

SIEMENS SIMATIC MULTI-PANEL TOUCH PLC CONTROL

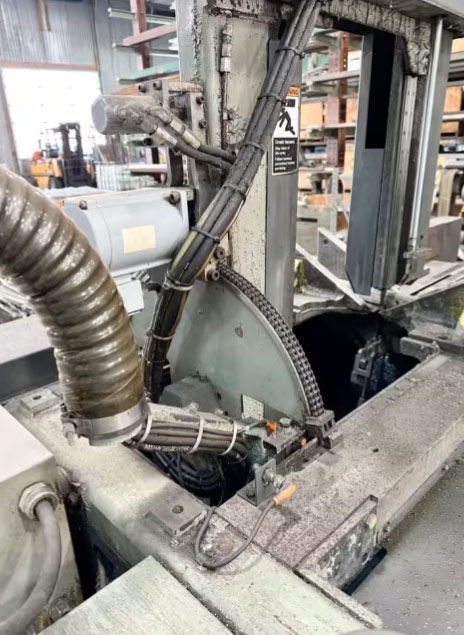

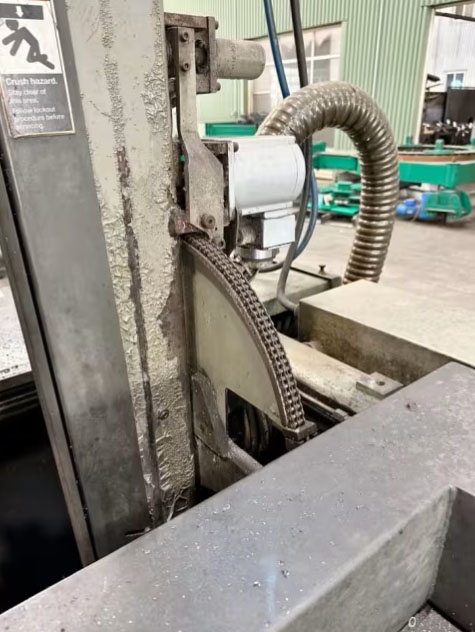

POWER TILT WITH 60 DEGREE MITERING LEFT AND RIGHT
0 - 3° CANTED COLUMN (ADJUSTABLE FORWARD APPROACH ANGLE)

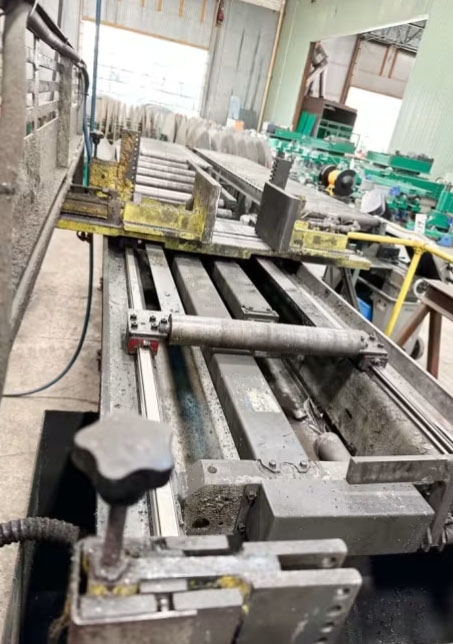

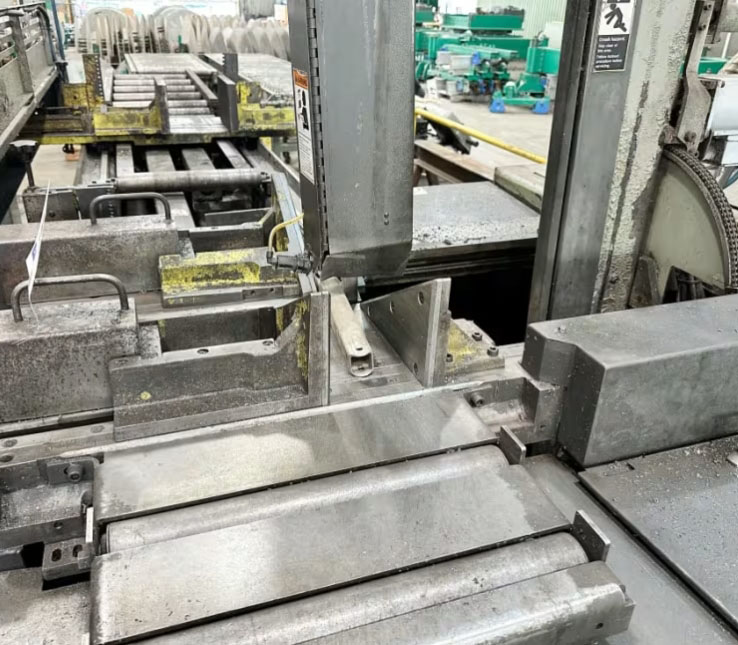

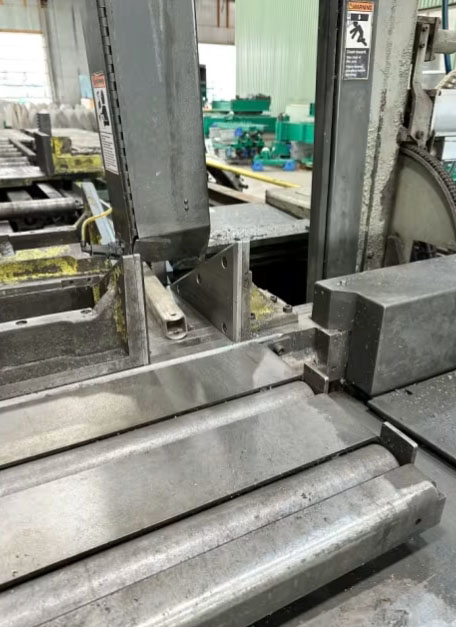

AUTOMATIC INDEXING w/SECOND STANDARD VISE
VARIABLE VISE PRESSURE
LIFT ROLLER

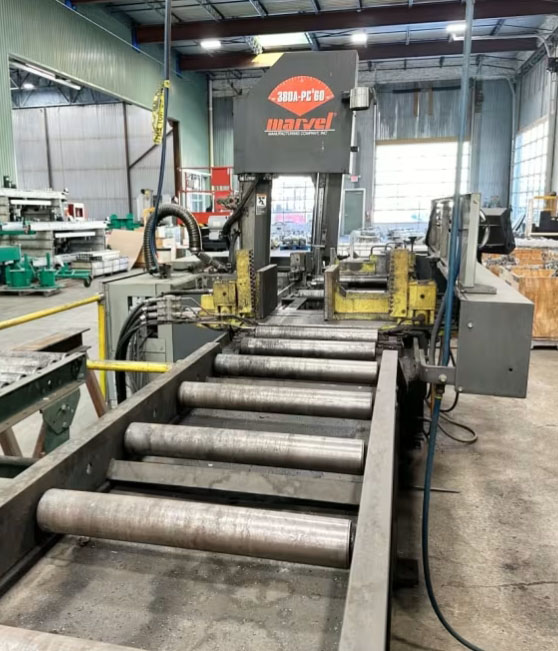

24" X 120" HYTOL ROLLER CONVEYOR

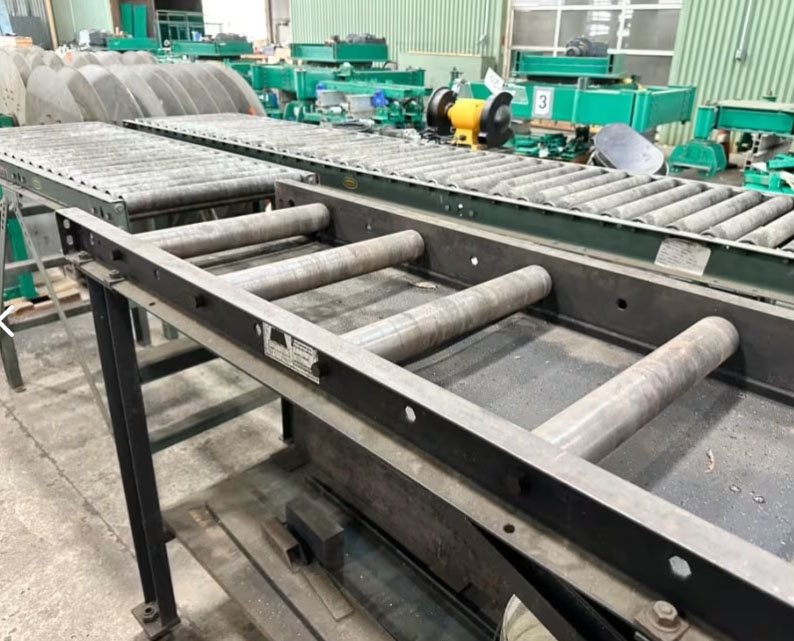

ROLLER TABLE 22" x 60"

REPLACEMENT COST FOR ABOVE SYSTEM IF PURCHASED NEW: $120,000
  AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
