Marvel V-10A VERTICAL BAND SAWS

$10,500

Make:: Marvel

Model:: V-10A

Year:: 1993

Ref #:: 161945

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

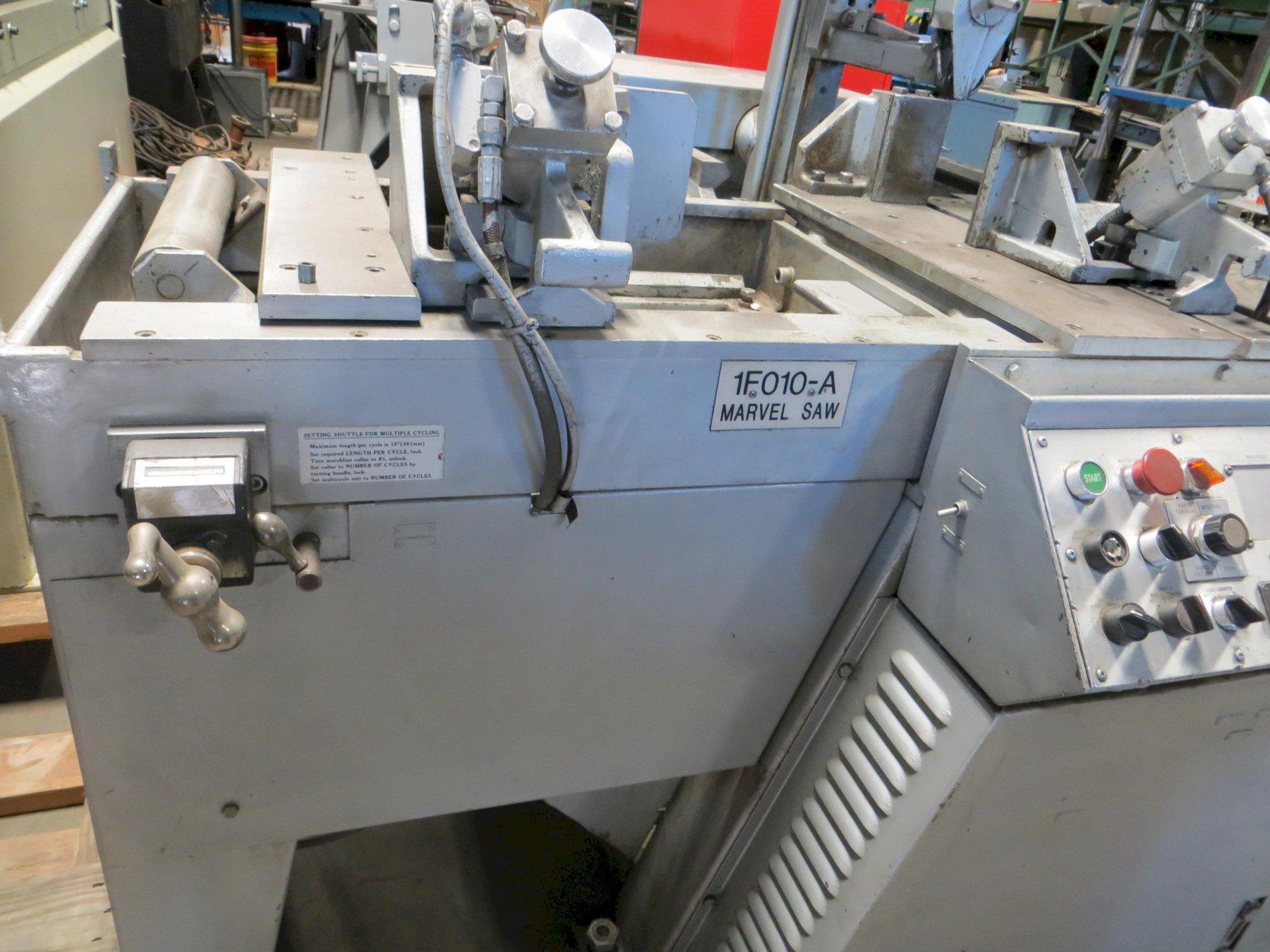

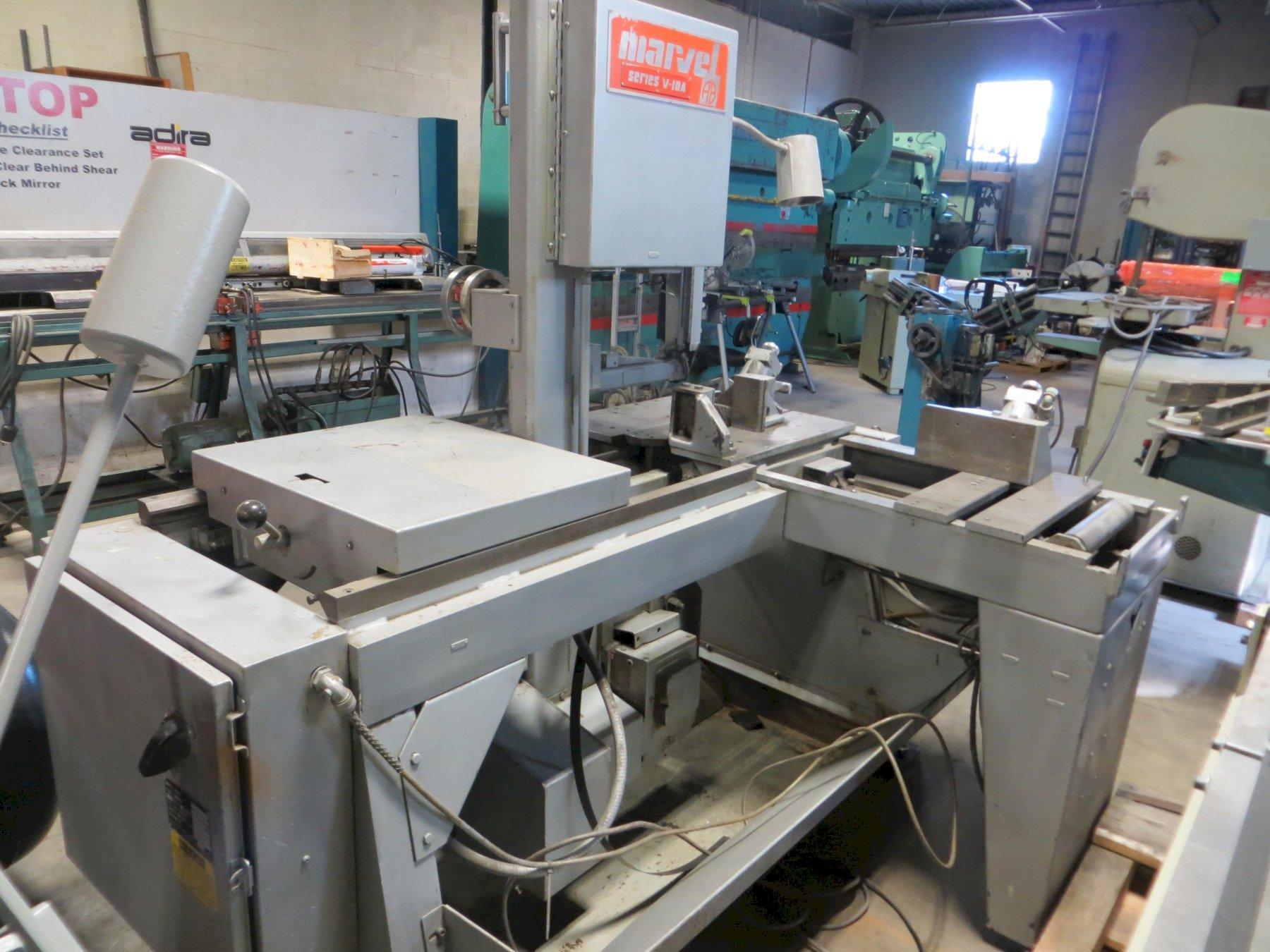

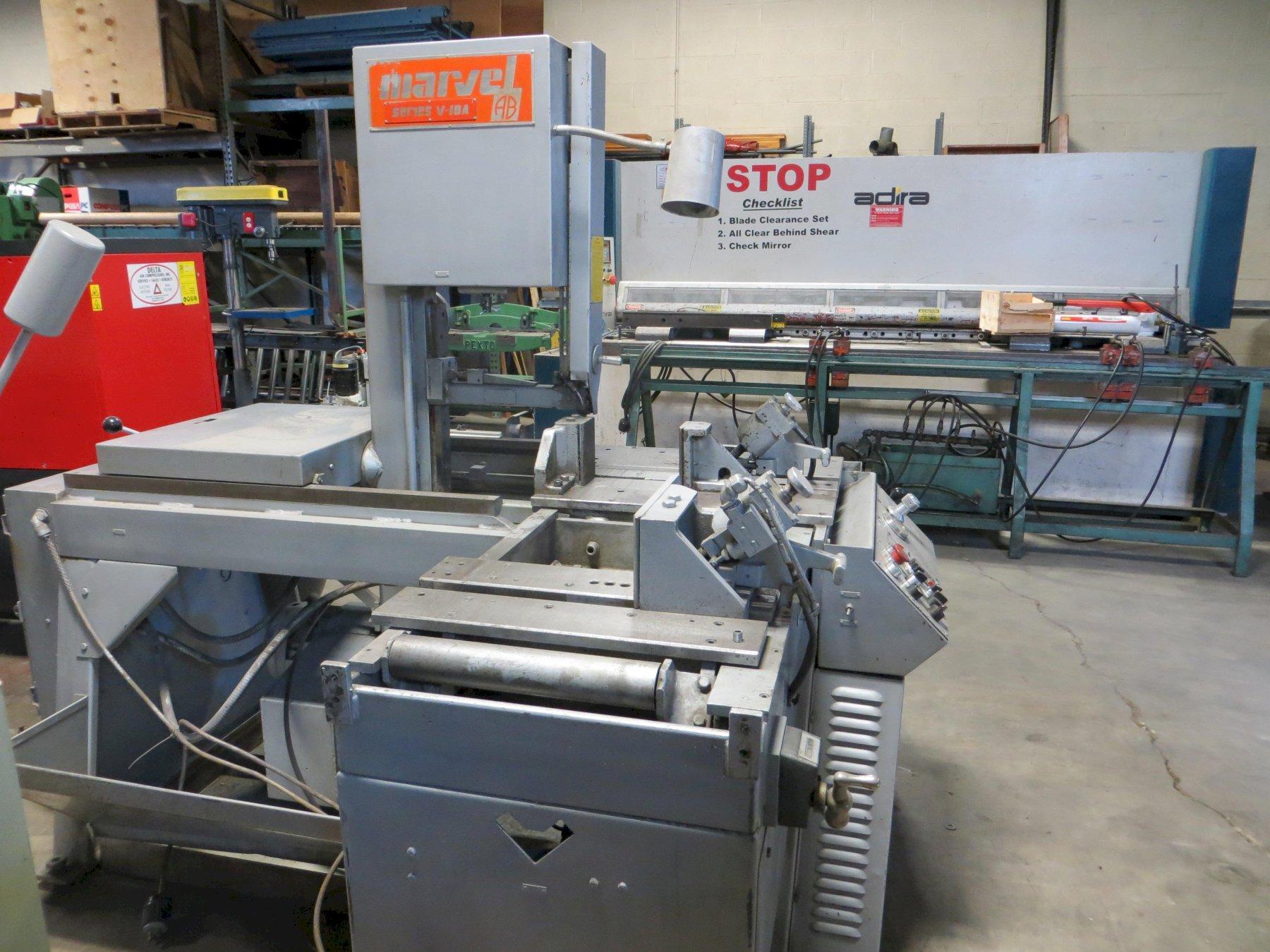

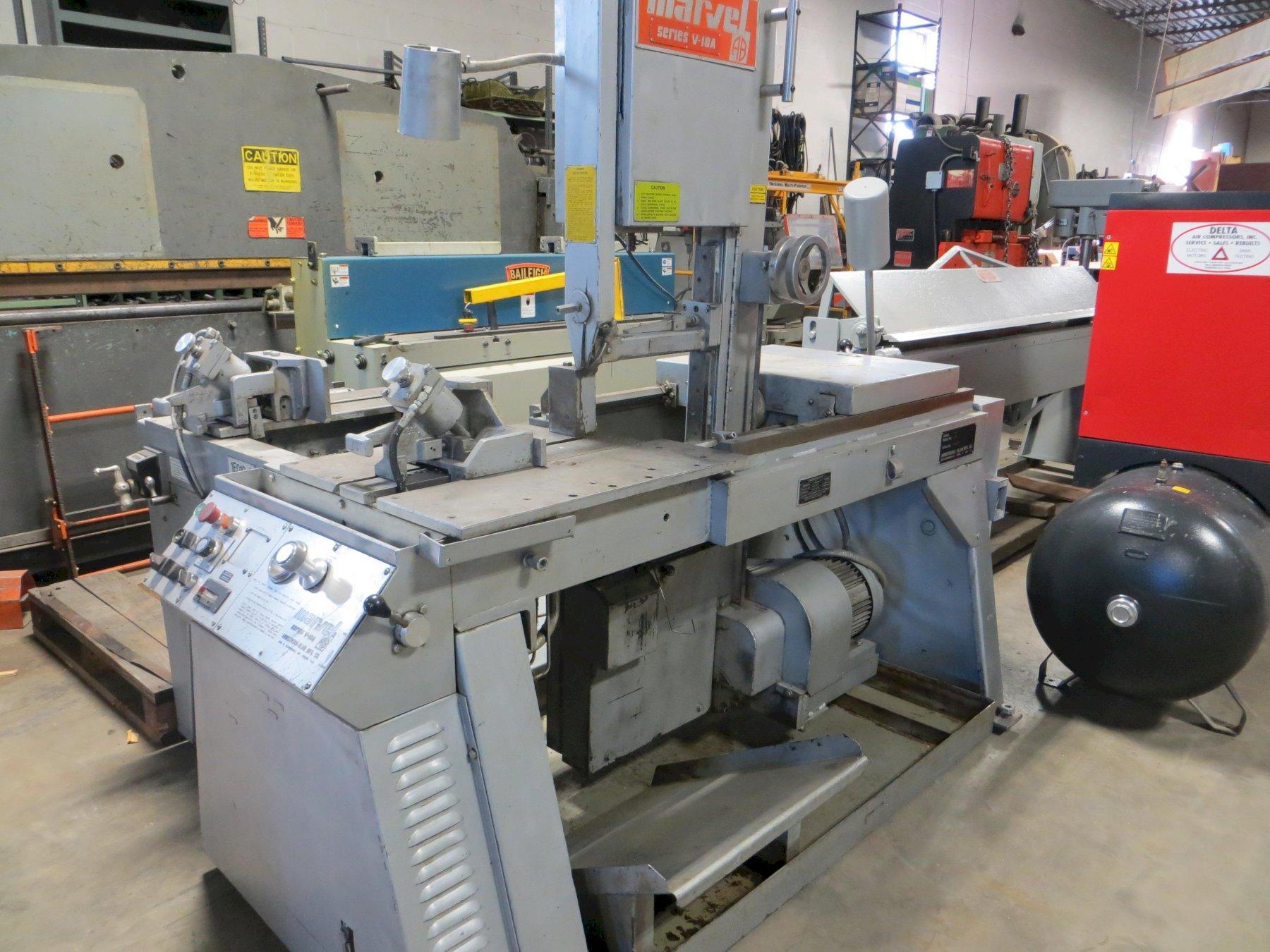

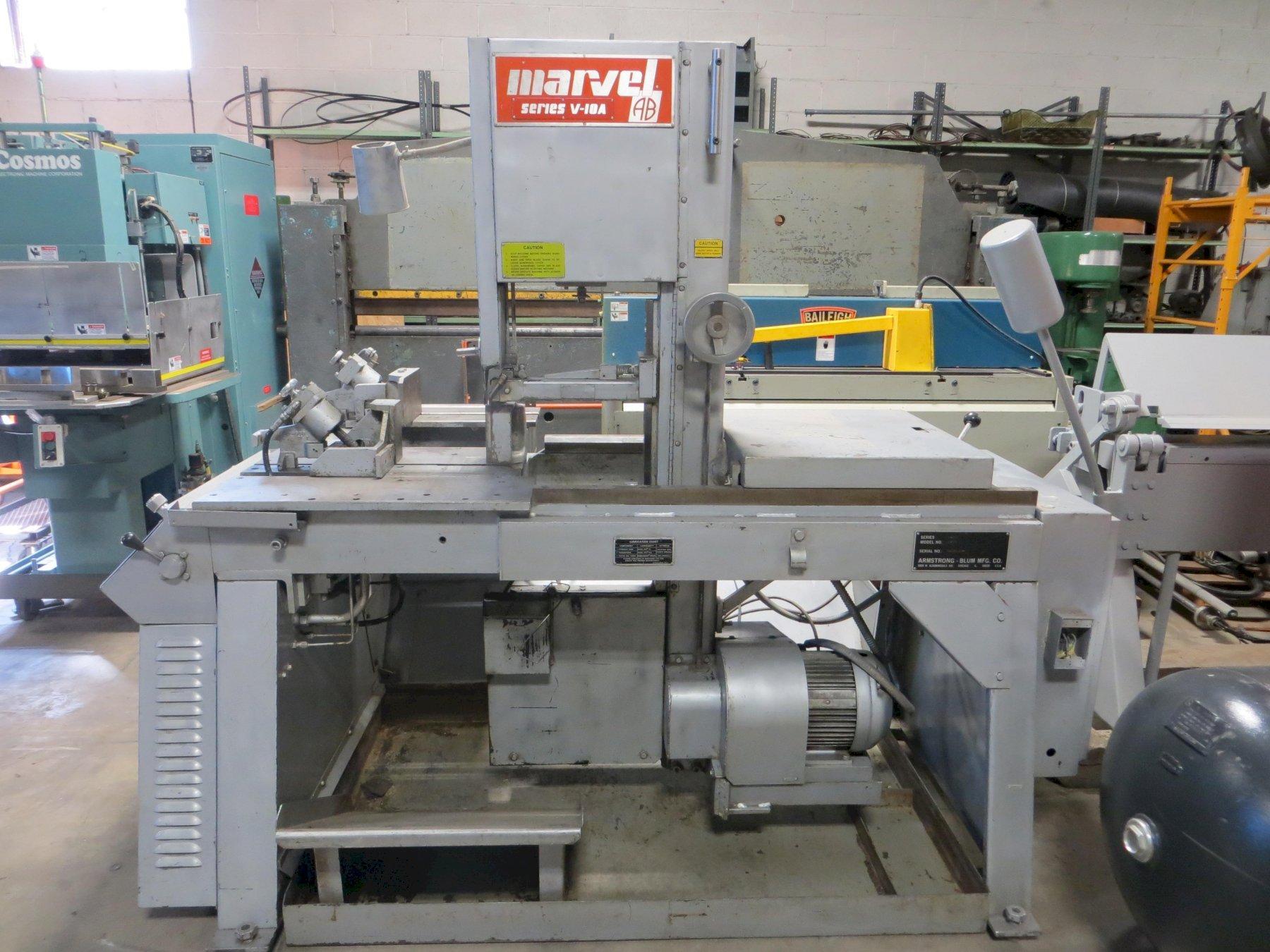

MARVEL AUTOMATIC BAR FEED SAW

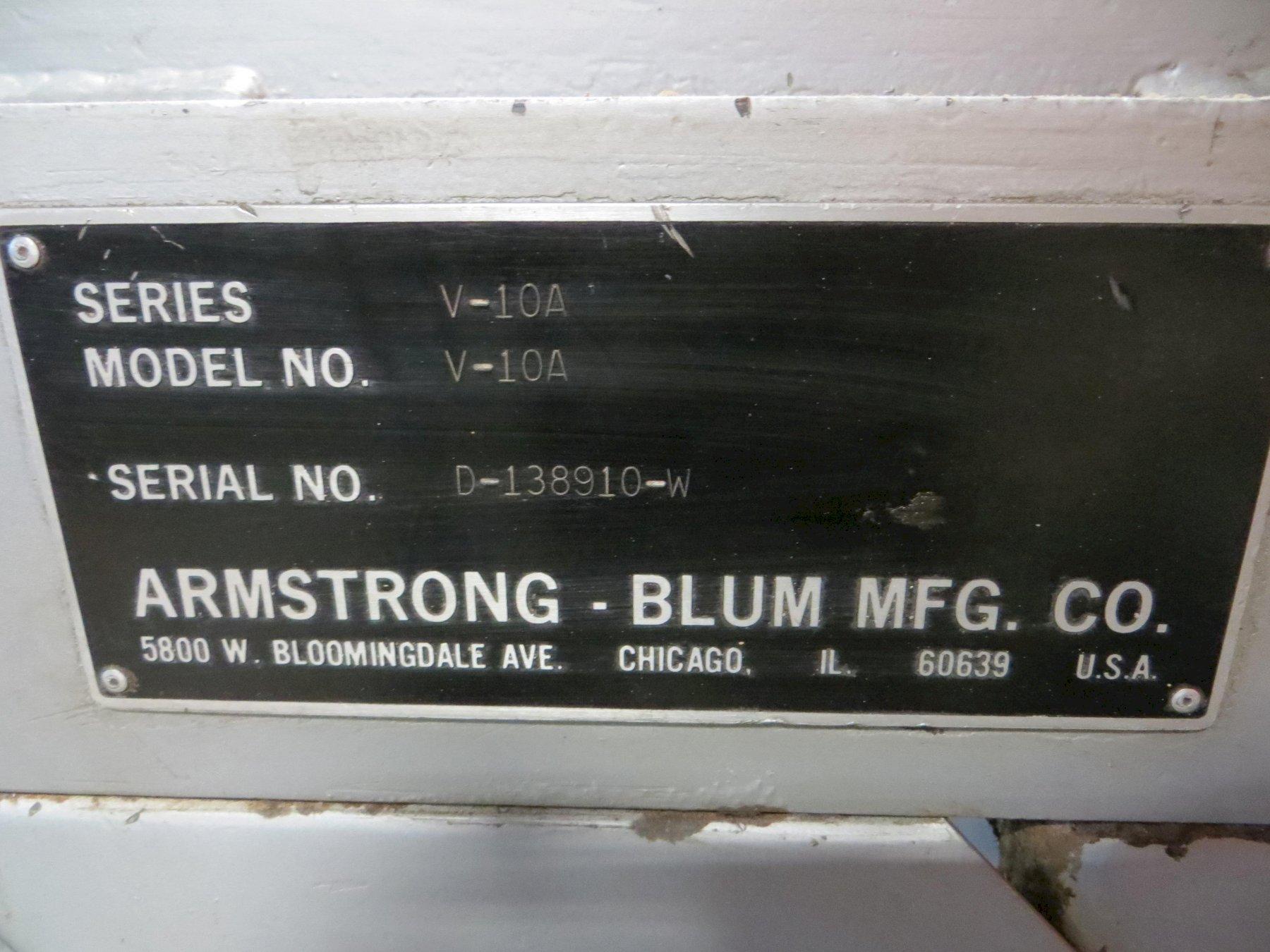

MODEL: V-10A, S/N: D 138910-W, NEW: 1993

SPECIFICATIONS:
CAPACITY:
    ROUND .................... 10"
    FLAT ..................... 10" X 10"
    AT 45 DEG FLAT ........... 10" X 7"
    AT 45 DEG ROUND .......... 7"
VISES:
    MAX OPENING .............. 10-1/2"
    HEIGHT OF JAW ............ 6"
BLADE:
    STANDARD ................. 12' X 1" X .035"
    WHEELS, DIA .............. 15"
    SPEED .................... 60 TO 400 ft/min
    DRIVE MOTOR .............. 3 HP
    FEED PRESSURE ............ 0 - 250 LBS
HYDRAULIC SYSTEM:
    MOTOR .................... 1.5 HP
    RESERVOIR CAPACITY ....... 10 GAL
    PUMP CAPACITY ............ 7 g/min
COOLANT SYSTEM:
    MOTOR .................... 1/4 hp
    RESERVOIR ................ 32 gal

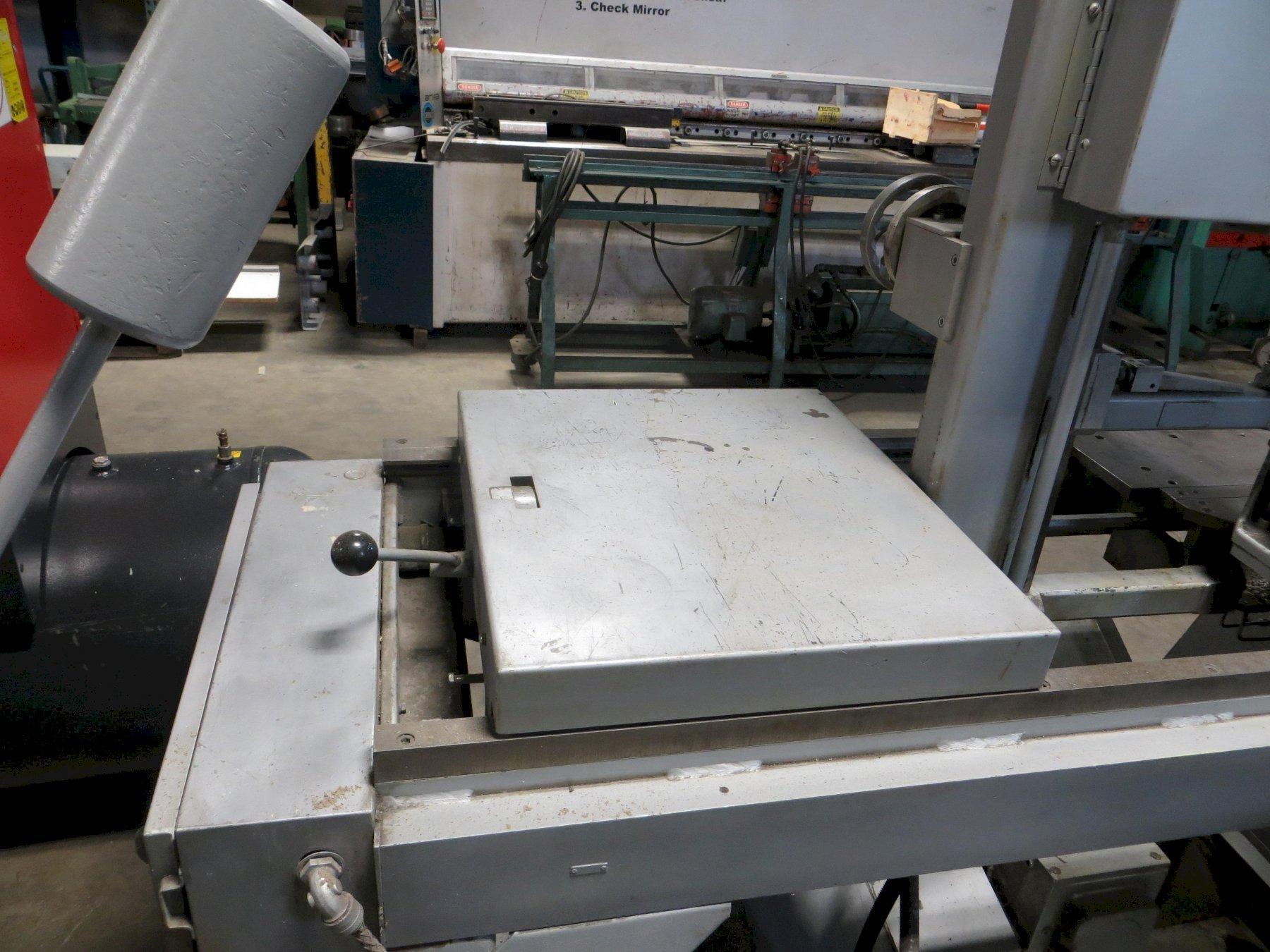

SHUTTLE TABLE:
    LENGTH ................... 36"
    CAPACITY ................. 5000 lbs
    TRAVEL (one cycle) ....... 15"
DIMENSIONS:
    WIDTH, MIN ............... 65"
        MAX ............... 76-3/8"
    LENGTH ................... 110"
    HEIGHT, MIN .............. 73"
         MAX .............. 80"
       OF WORK SURFACE .... 36"
FLOOR SPACE .................... 76-3/8" x 110"
SHIPPING WEIGHT ................ 3,100 LBS

EQUIPPED WITH:
- AUTOMATIC BAR FEED WHICH WILL INDEX STOCK UP TO 5,000 LBS.
    THE SHUTTLE VISES WILL INDEX THE WORKPIECE UP TO 15" EACH STROKE
   & MULTI-CYCLE FOR LONGER LENGTHS.
- VISE CLAMPING PRESSURE CAN BE ADJUSTED TO PREVENT DISTORTION
    OF LIGHT GAUGE WORK
- TILT FRAME
- BUILT IN PROTRACTOR FOR FRAME TILTING
- DICHARGE TABLE
- COOLANT SYSTEM
- 3 HORSE POWER BLADE DRIVE

MORE...
THE MARVEL V-10A FEATURES INCREASED CAPACITY AND MORE
CONVENIENT OPERATION TO MAKE IT ONE OF THE MOST USEFUL AND
COST EFFICIENT SAWING MACHINES MARVEL HAS EVER OFFERED. THIS
IS A VERSATILE SAW THAT WILL MAKE A WIDE RANGE OF SINGLE
CUTS; IT WILL CUT MITERS WHILE THE WORK REMAINS STATIONARY

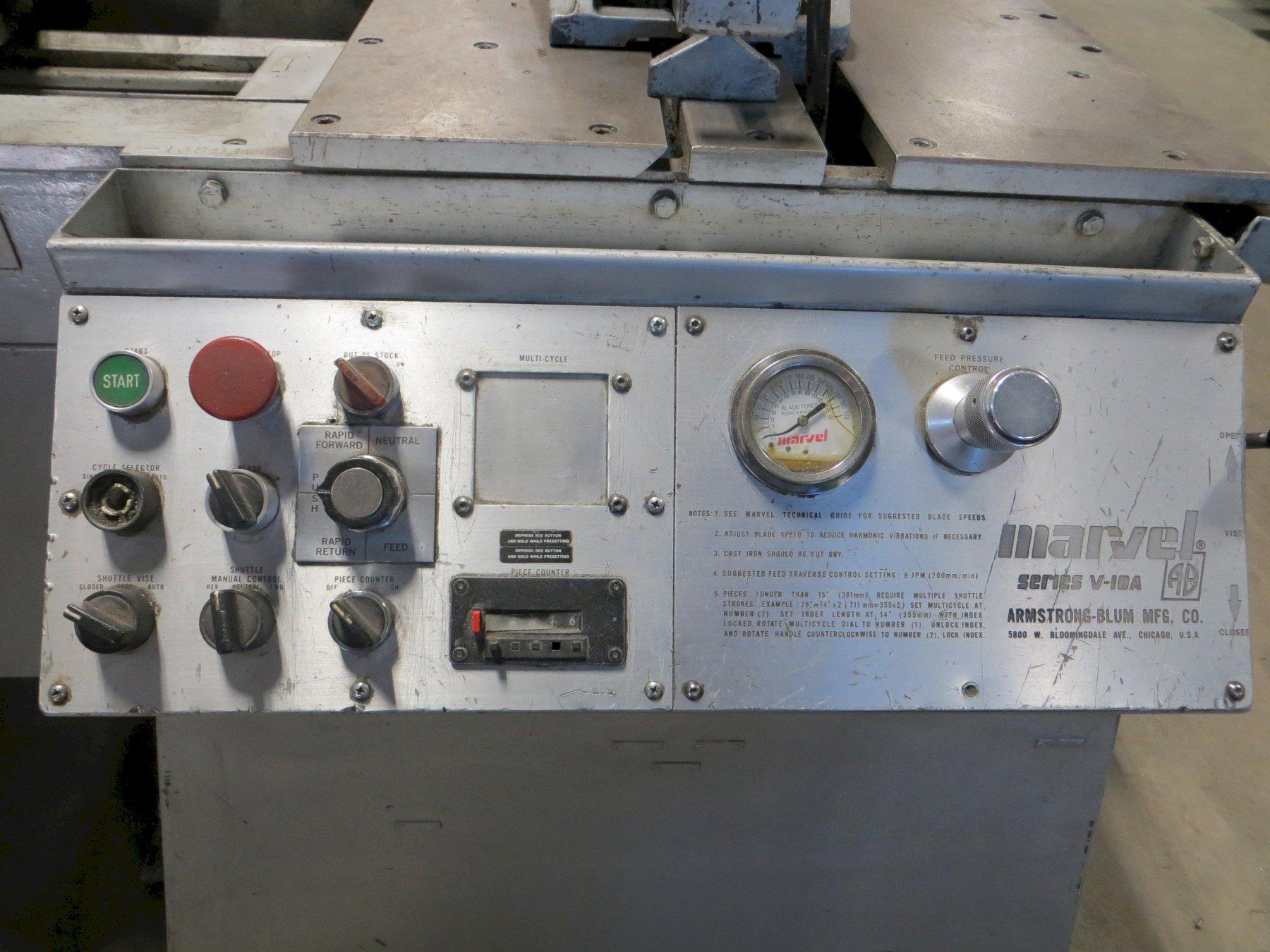

ON THE SAW TABLE; WITH THE TURN OF A CYCLE SELECTOR SWITCH,
IT BECOMES AN AUTOMATIC CUT-OFF SAW THAT WILL INDEX STOCK
WEIGHING AS MUCH AS 5,000 lbs.

IN OUR NEW JERSEY WAREHOUSE!
