Minster 6 OBI PRESSES, BACK GEARED

Price on Request

Make:: Minster

Model:: 6

Year:: 1981

Ref #:: 179320

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

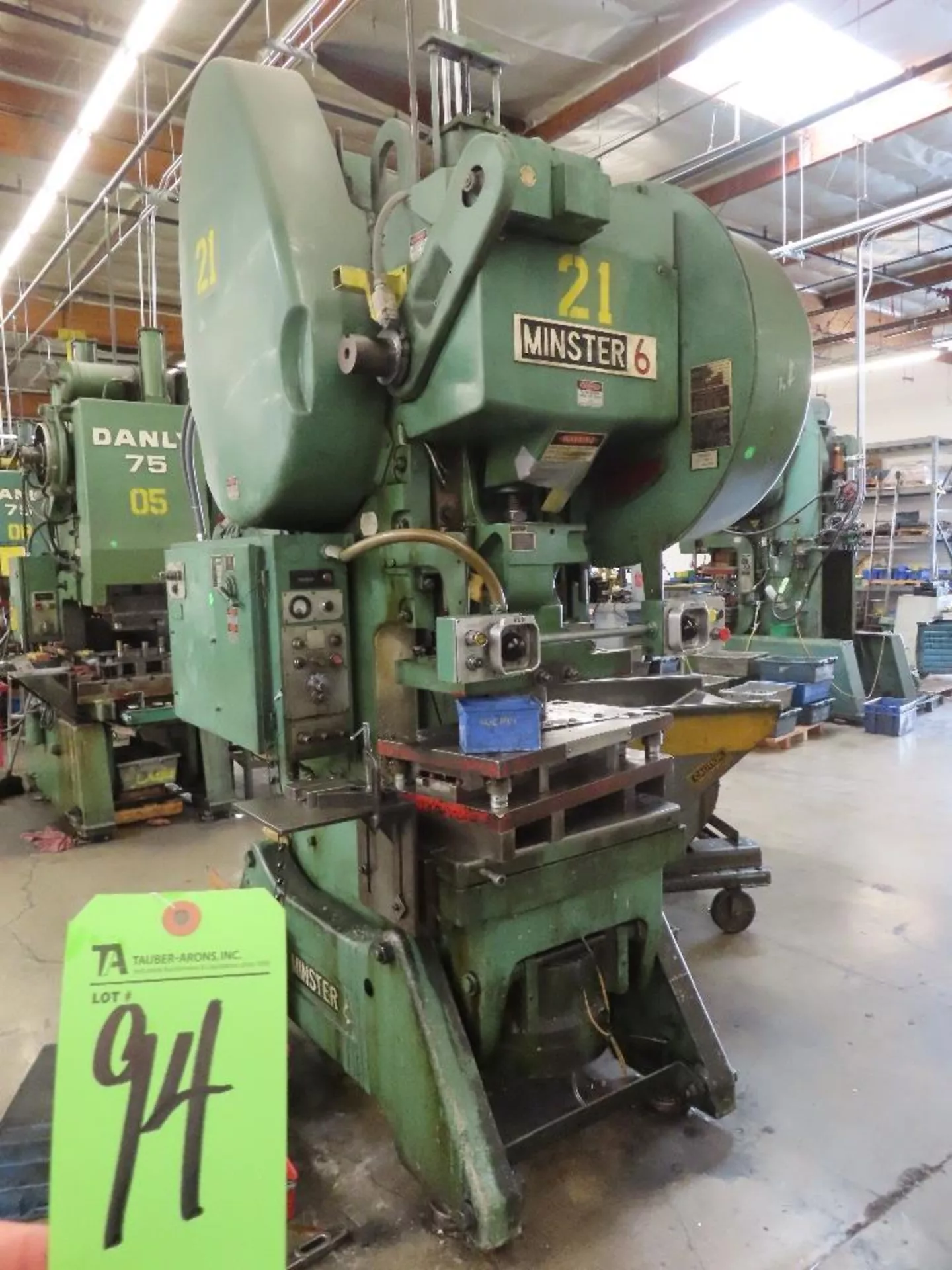

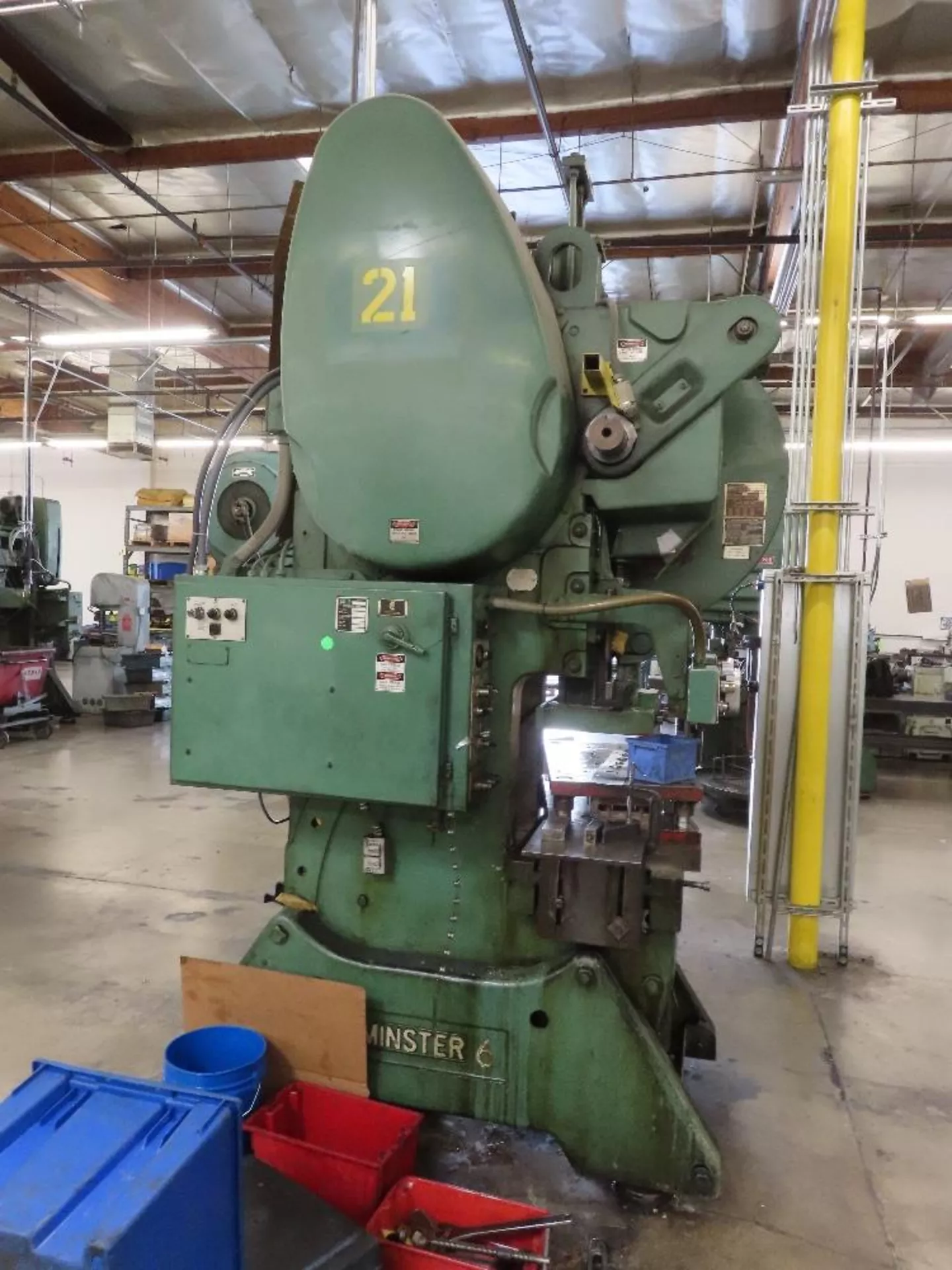

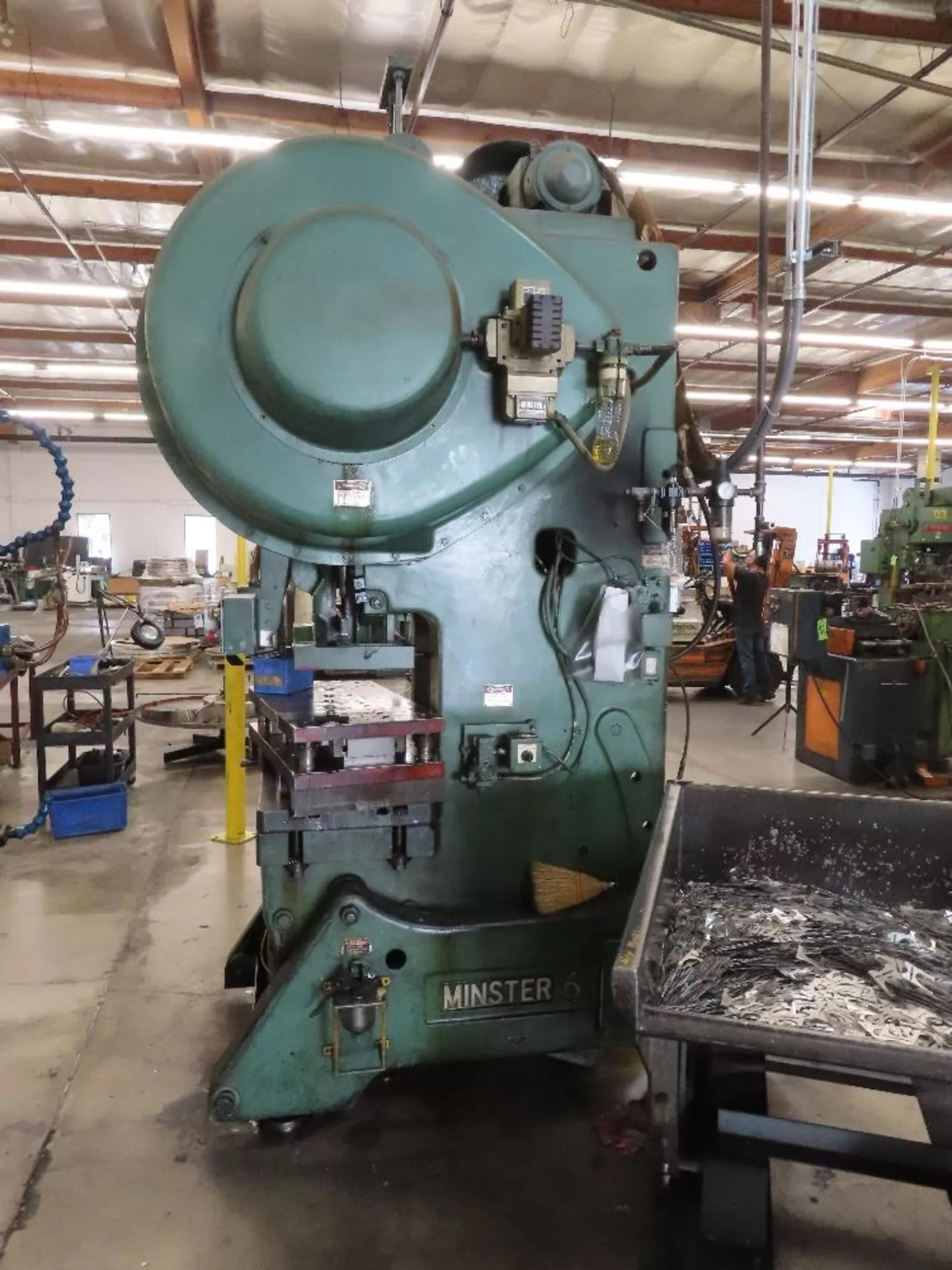

60 TON MINSTER FLYWHEEL TYPE OBI PRESS

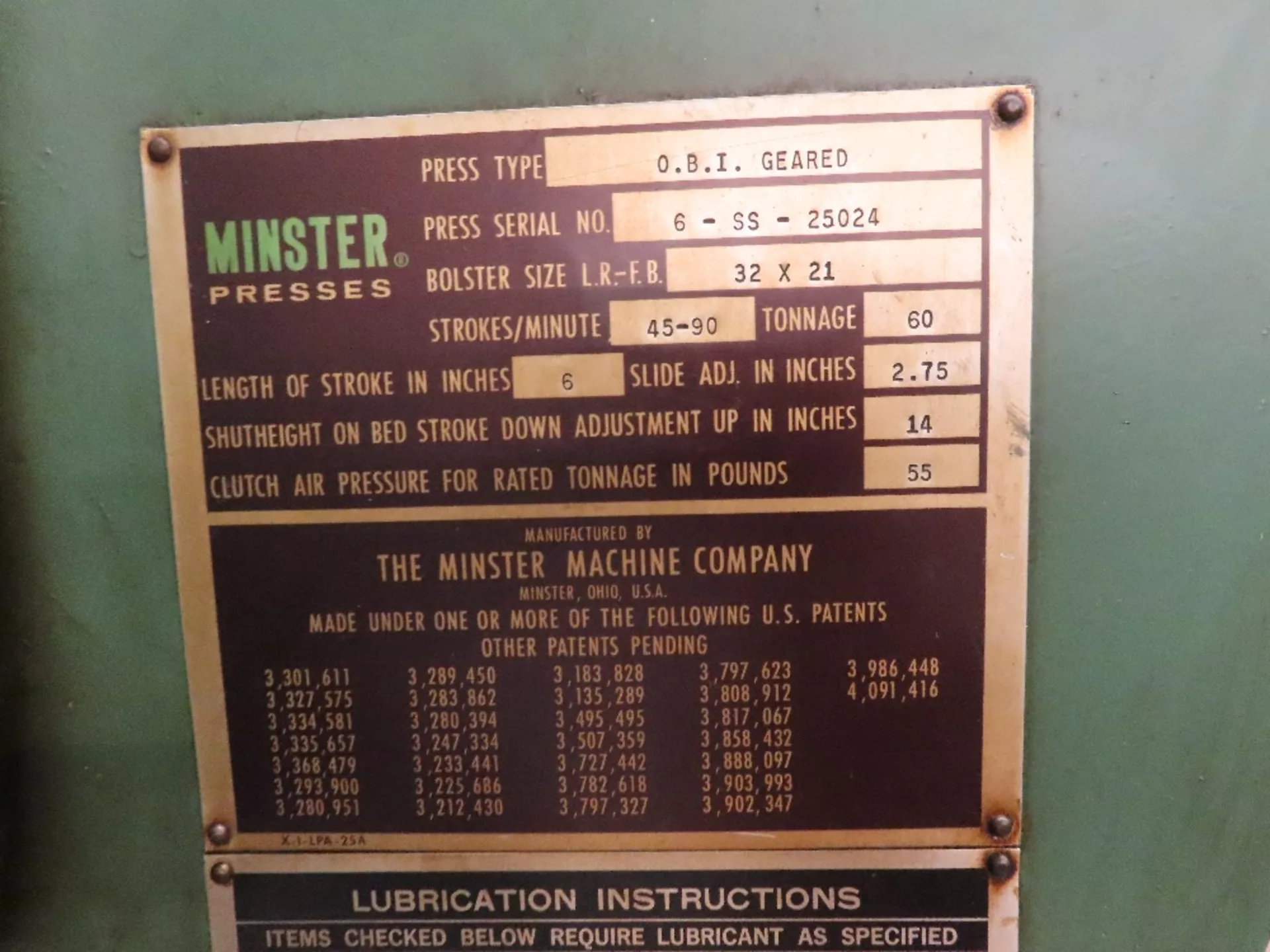

MODEL 6          S/N 6-SS-25024          NEW 1981

Capacity ........................... 60 tons
Stroke ............................. 6"
Shut height - over bed ...(SDAU).... 14"
Maximum adjustment of slide ........ 2.75"
Speed .............................. 45 - 90 spm
Bed area ........................... 32" LR x 21" FB
Ram area ........................... 24" LR x 14 1/4" FB
Bolster ............................ 2.5" thick
Hole in Bolster .................... 14" x 6"
Main drive motor ................... 10 HP

Approximate overall dimensions 4' x 5' x 10'8" H
Approximate weight 14,000 lbs.

Machine equipped with:
- Air clutch & brake
- Inch/single/continuous modes
- Dual palm buttons
- Variable speed
- Recirculating lube system
- Die Cushion

PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: RINGWOOD, NJ
