Mitsubishi EA8S, NEW 2014, C-AXIS, WITH 143 HOURS USE, CNC RAM TYPE EDM MACHINES

Price on Request

Make:

Mitsubishi

Model:

EA8S, NEW 2014, C-AXIS, WITH 143 HOURS USE,

Year:

2014

Ref #:

161545

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

---

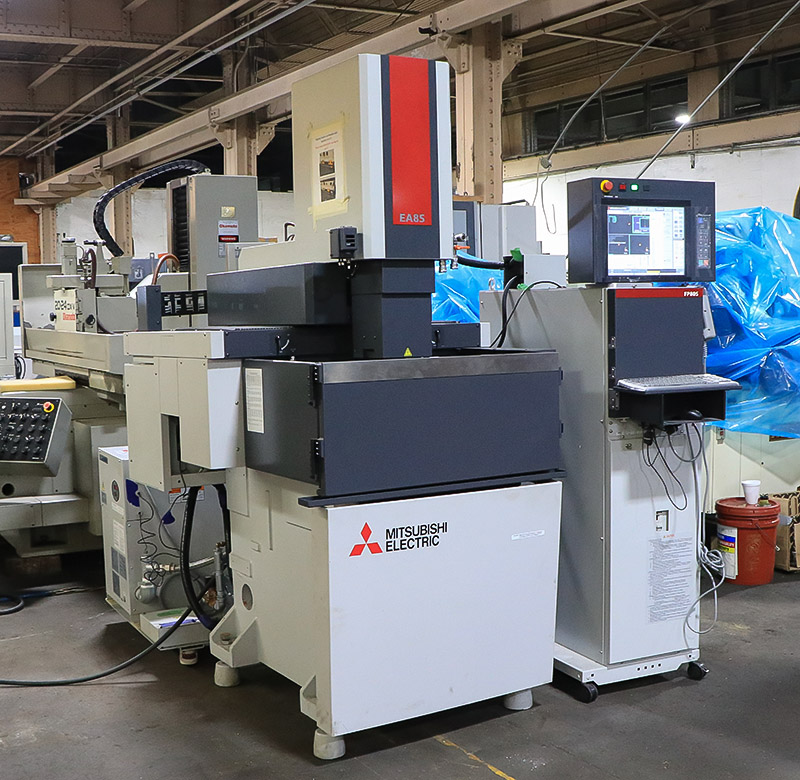

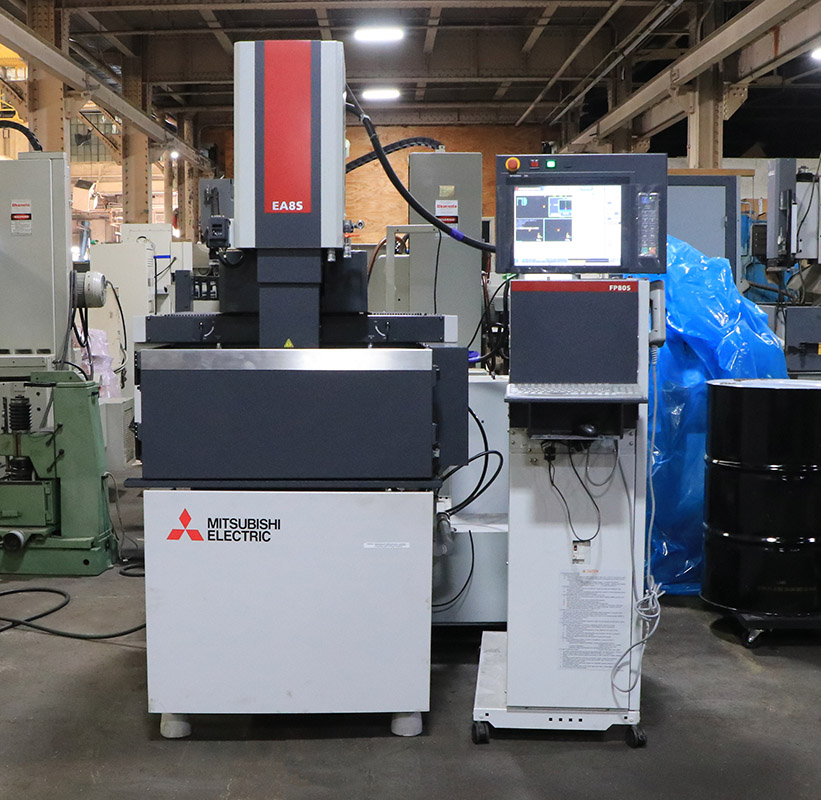

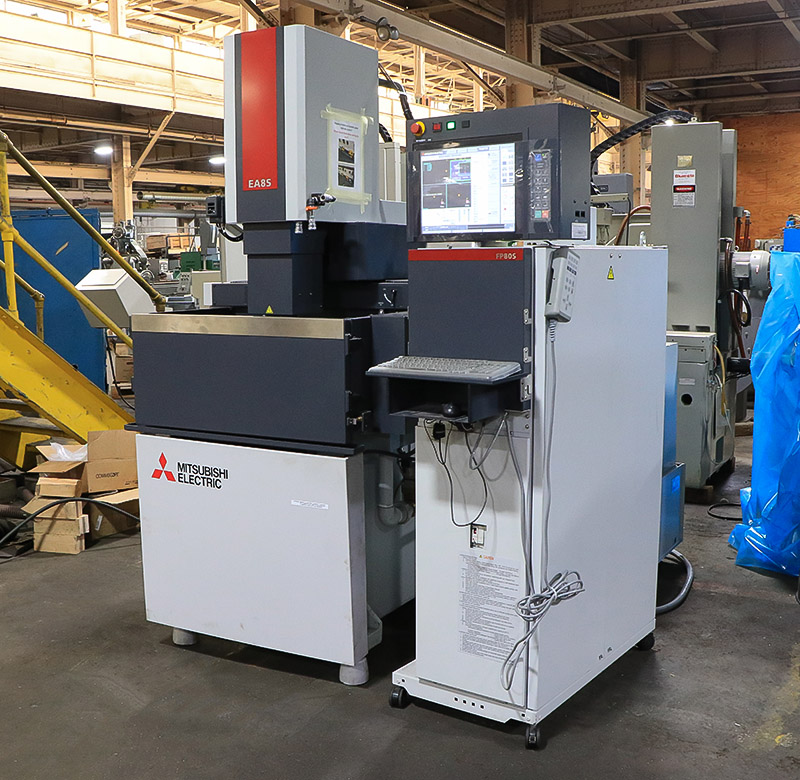

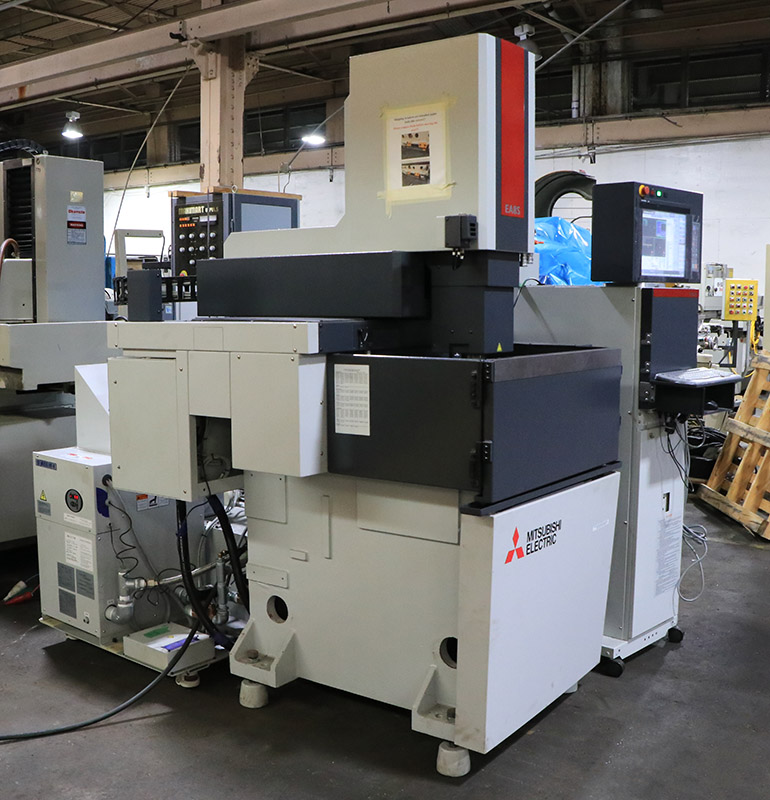

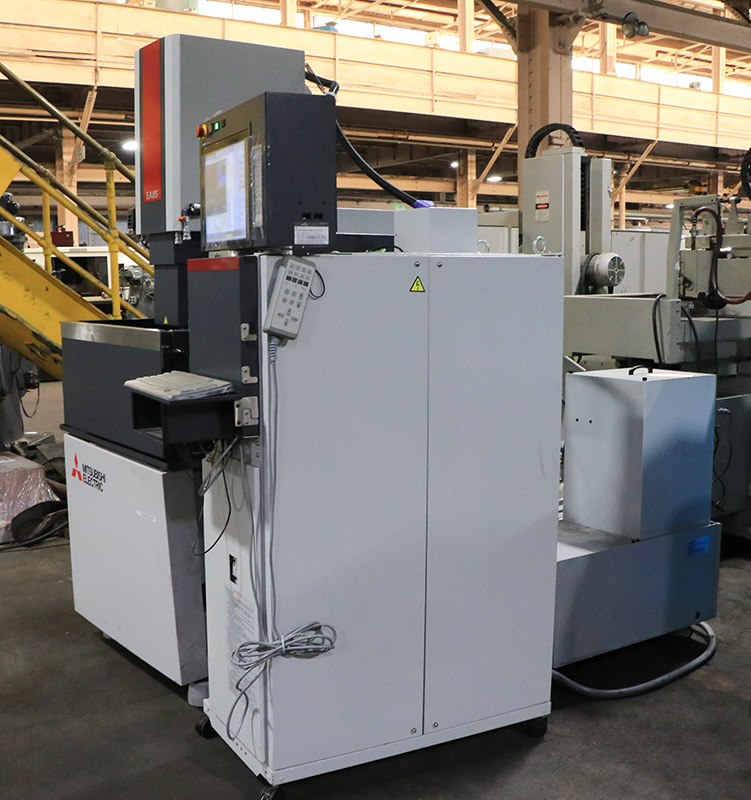

  MITSUBISHI CNC RAM TYPE/SINKER EDM MACHINE

                WITH C-AXIS



** FROM A WORLD FAMOUS RESERCH CENTER **

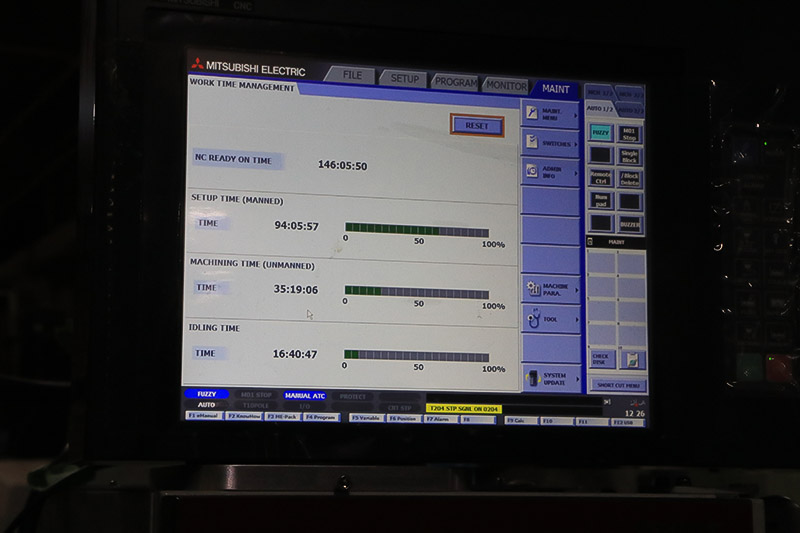

****** 143 HOURS MACHINING TIME ******

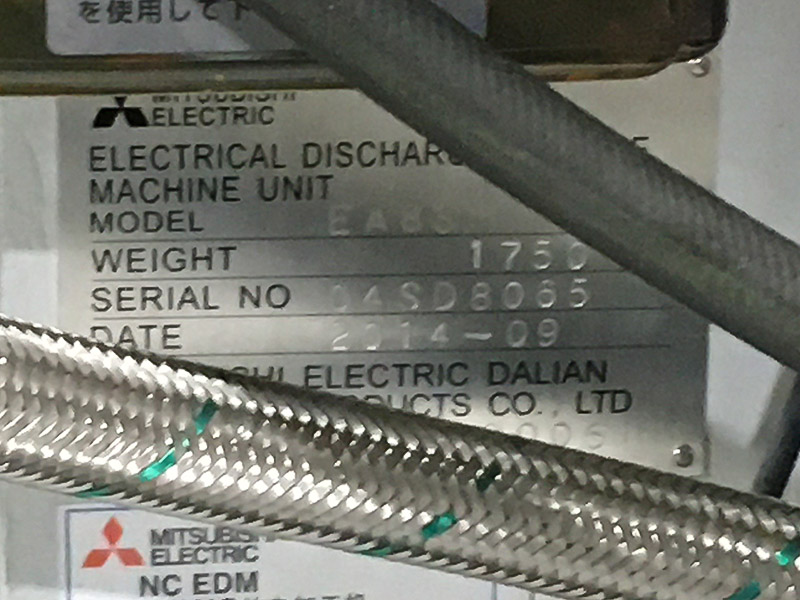

MODEL: EA8S  S/N: 04SD8065    MFG.: 2014





SPECIFICATIONS:

TRAVELS( X-Y-Z):................. 11.8” x 9.8” x 9.8”

C-AXIS .......................... YES

MAX. DIELECTRIC FLUID LEVEL ..... 3.4" TO 9.8"

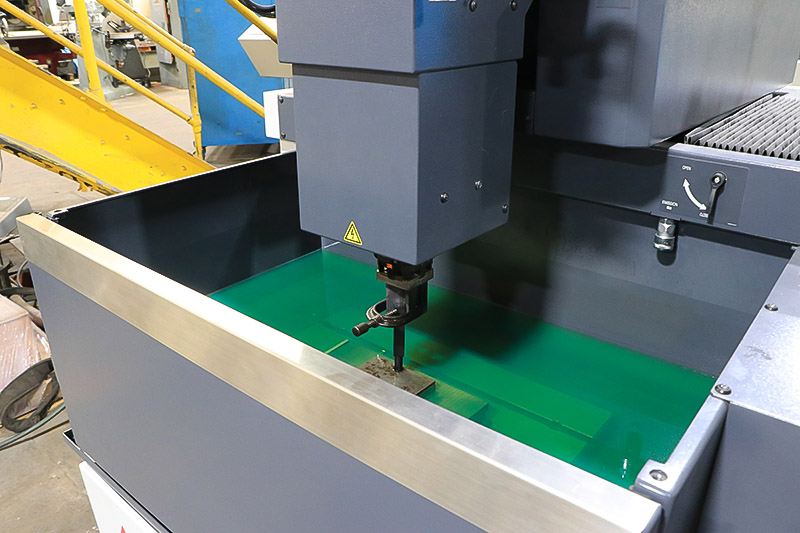

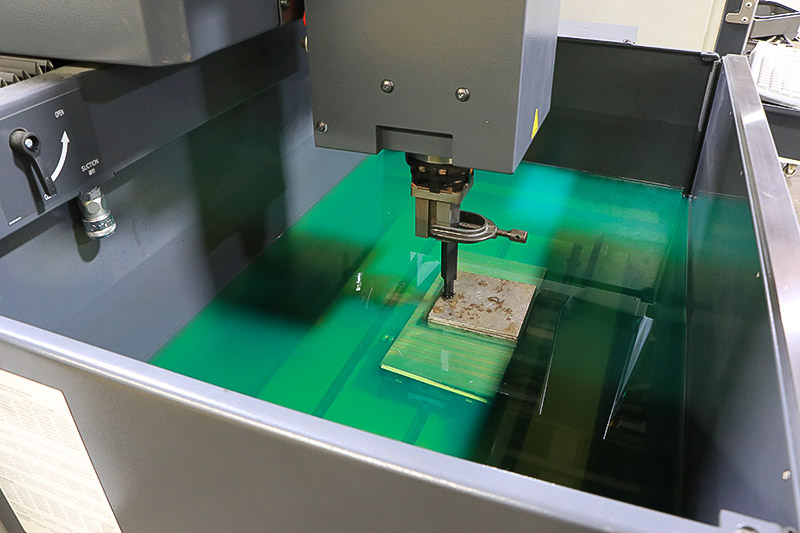

INTERNAL WORKTANK DIMS. ......... 31.5" x 20.5" x 11.8"

TABLE DIMENSIONS:................ 19.7” x 13.8”

MAXIMUM WORKPIECE WEIGHT:........ 1,214 LBS.

TABLE TO PLATEN DISTANCE ........ 5.9" TO 15.7"

MIN. COMMAND UNIT/RESOLUTION .... 0.00001”/.000002”

RAPID TRAVEL SPEED .............. 78” IPM

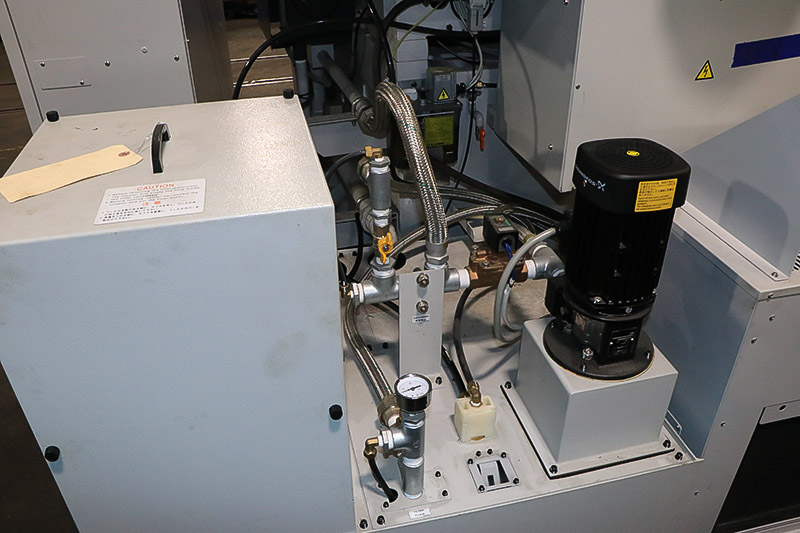

FILTERS/TYPE .................... 1 pc./PAPER CARTRIDGE

MAXIMUM ELECTRODE WEIGHT:........ 55 LBS. MANUAL CHANGE



C-AXIS MINIMUM INDEXING

 ANGLE/DRIVE ................... 0.001 DEG. / 0.001 DEG.

C-AXIS RPM RANGE ............... 1 TO 30 RPM

C-AXIS MAX. ELECTRODE WEIGHT ... 11 LBS.

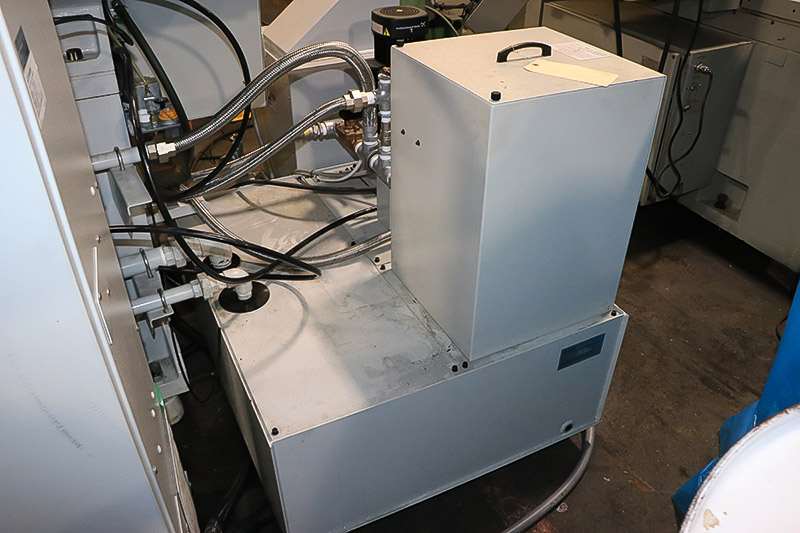

RESERVOIR CAP. ................. 69 GALLONS

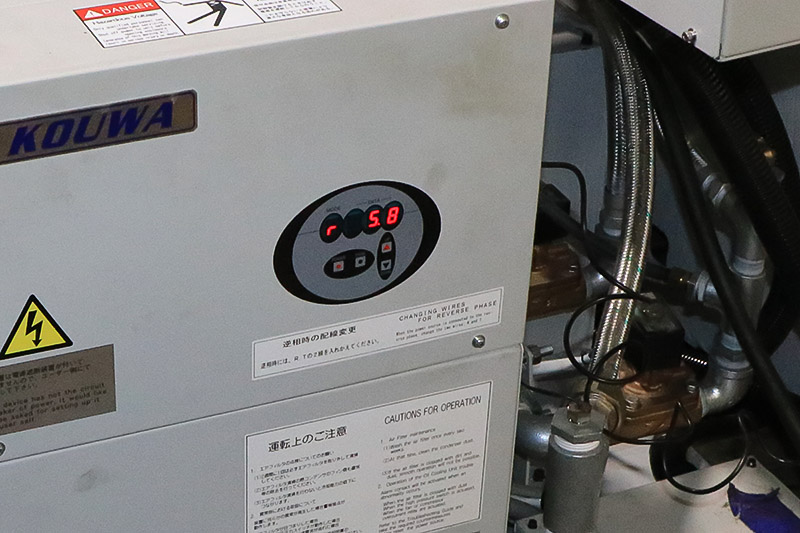

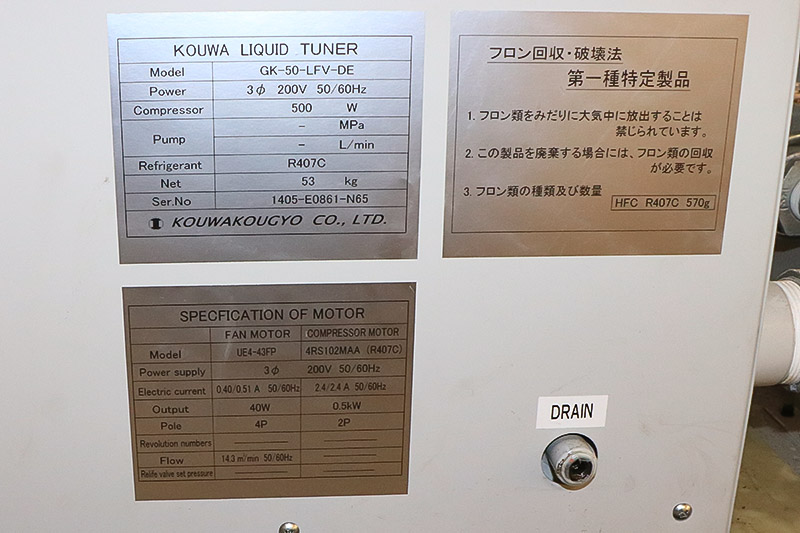

FLUID TEMP. CONTROL ............ CHILLER



APPROX. MACHINE WEIGHT ......... 4,400 LBS.

USER FLOOR DIMS ................ 84.3" x 78.7"D x 82.9"H



FEATURES:

C-AXIS OPTION

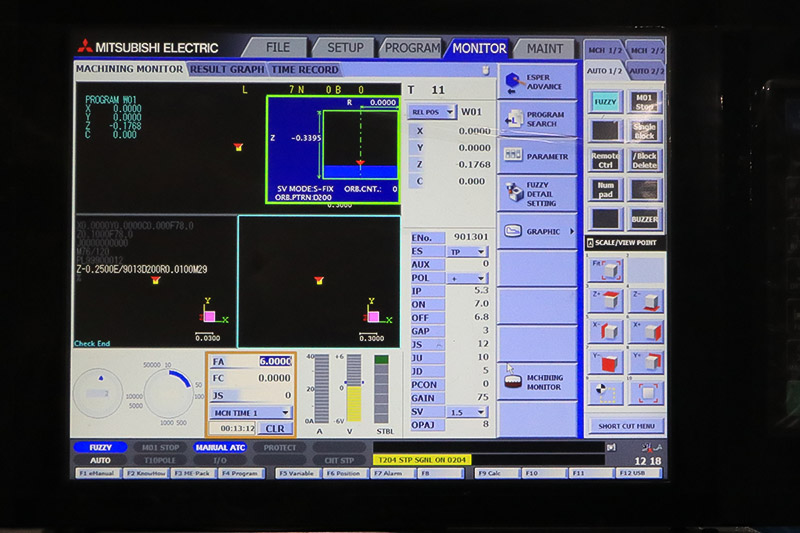

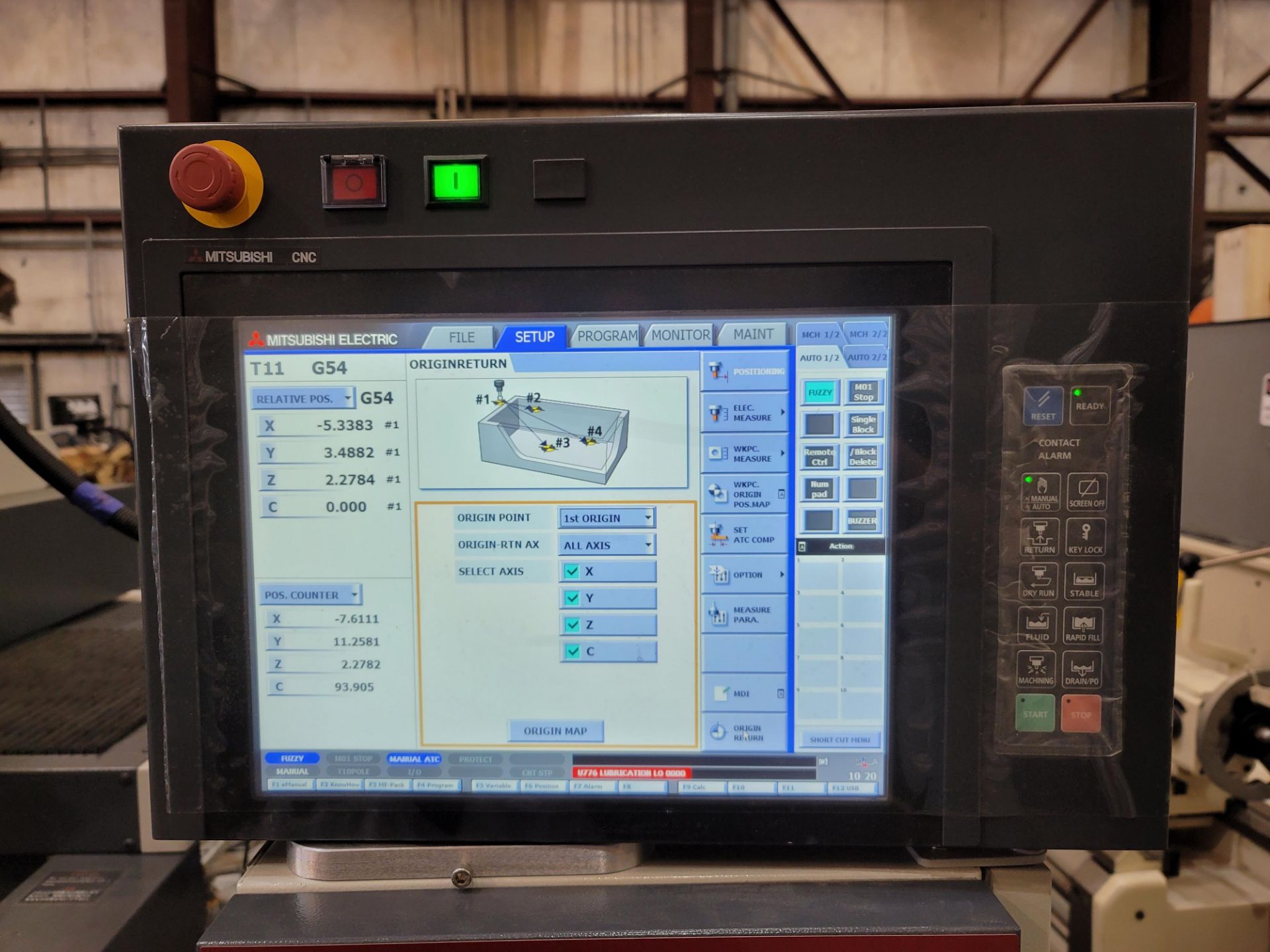

MITSUBISHI M700 CNC CONTROL

15" COLOR LCD

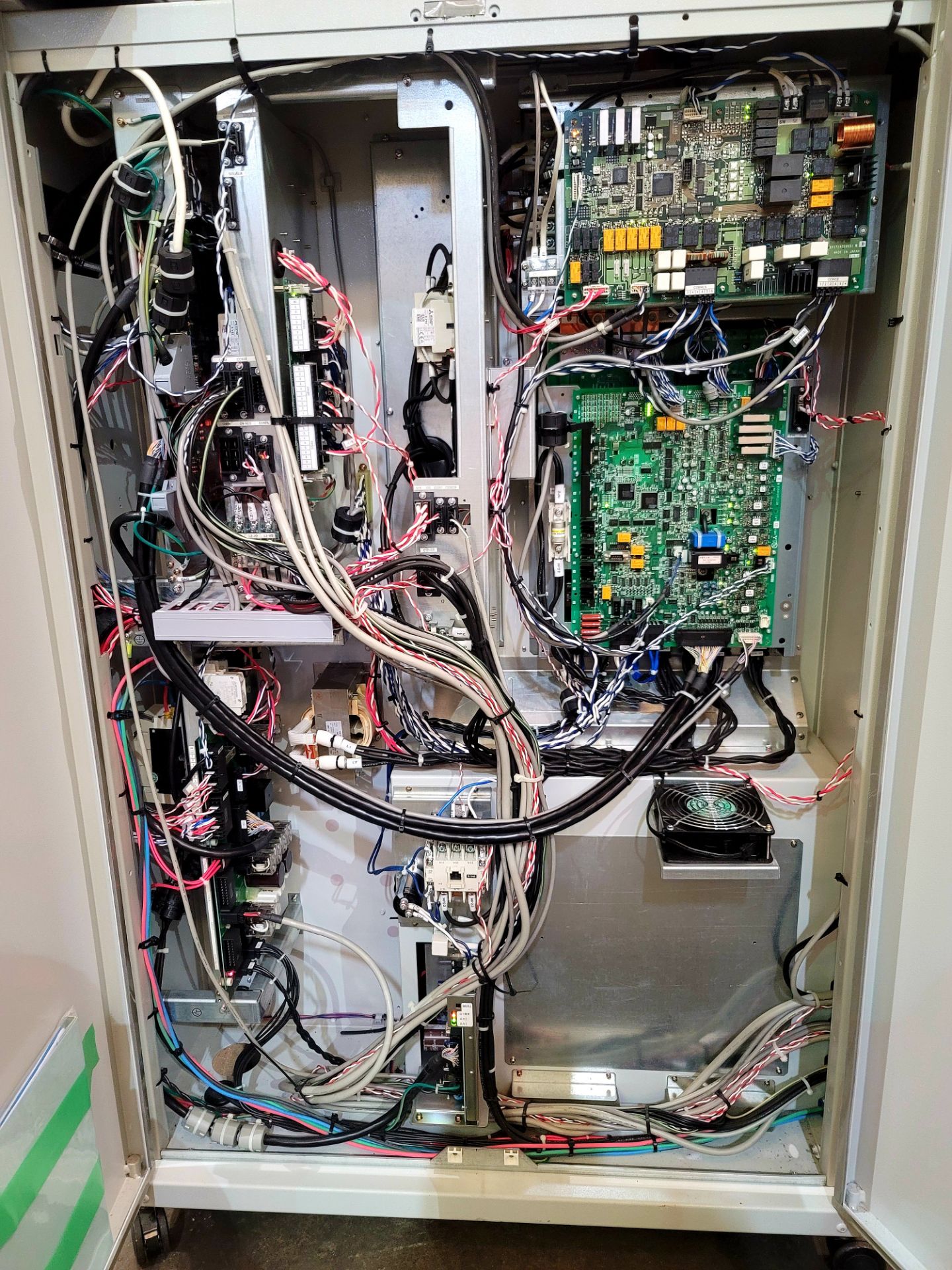

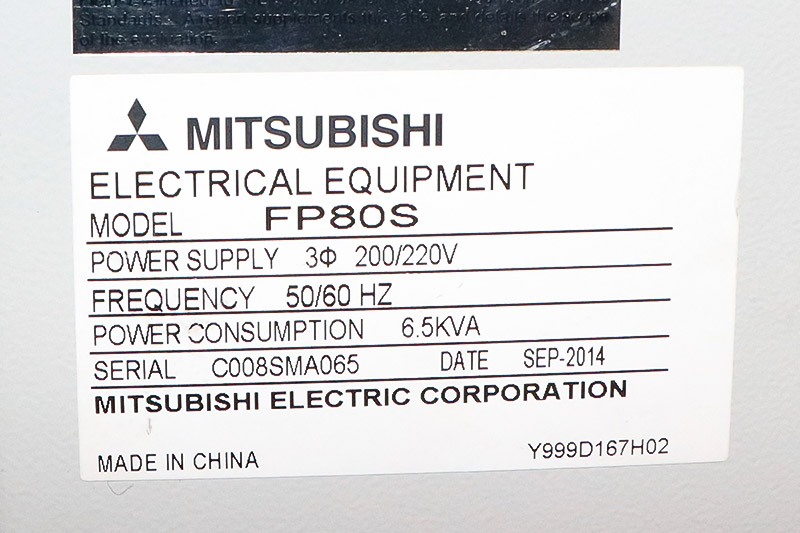

POWER SUPPLY: FP80S / 80 AMPS PEAK

3-SIDED DROP TANK

FIXED TABLE TRAVELING COLUMN CONSTRUCTION

DIRECT DRIVE AC SMART SERVO SYSTEM

3-DIMENSIONAL LATERAL SERVO SYSTEM

WINDOWS XP OPERATING SYSTEM

MANUAL VERTICAL DOOR WORK TANK ACCESS

EASY ACCESS FILTER SYSTEM

DIELECTRIC FLUID EMISSION

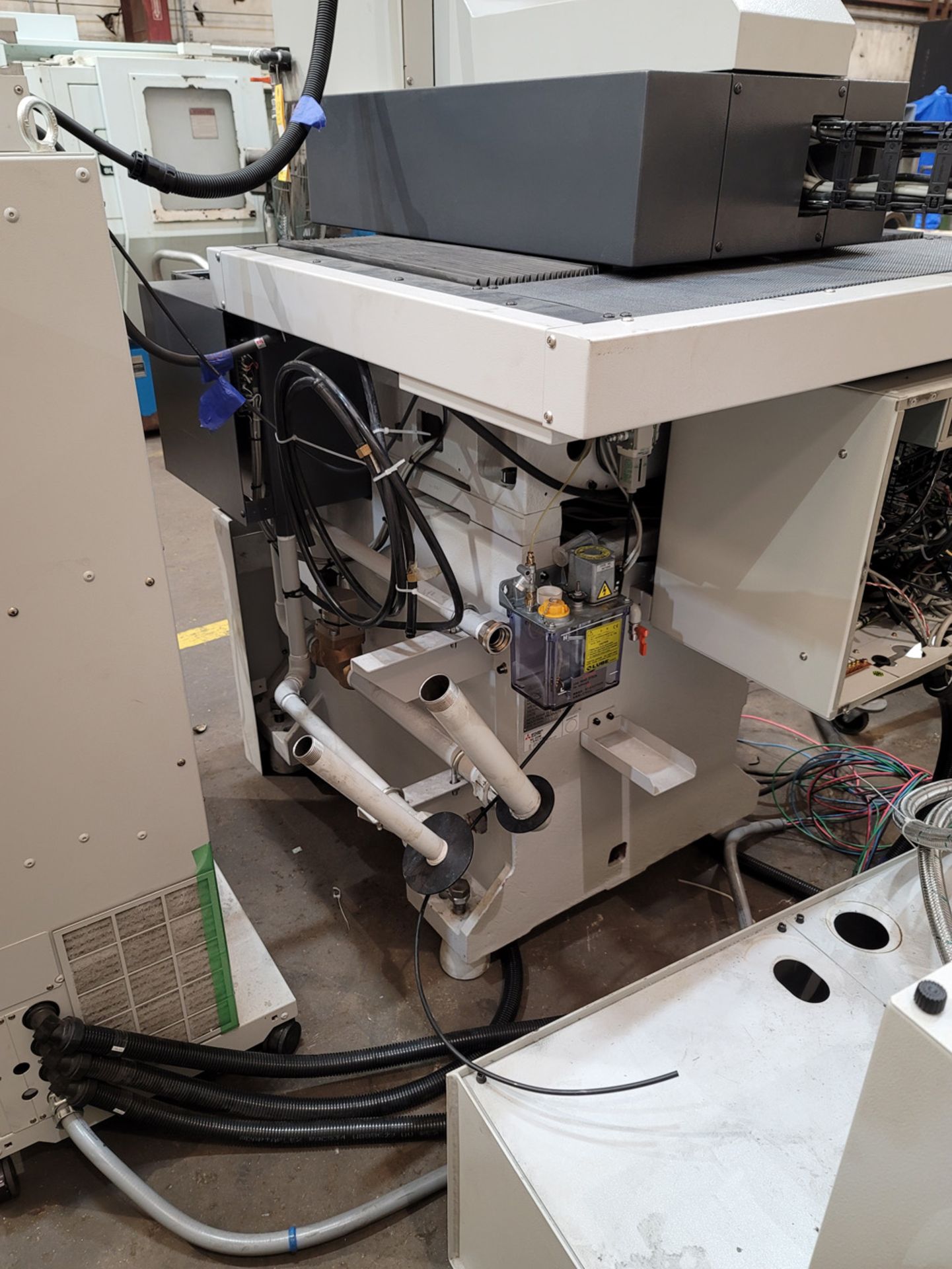

AUTO LUBRICATION SYSTEM

E.S.P.E.R. ADVANCE ON BOARD PROGRAMMING

FUZZY PRO PLUS - ENABLES HANDS OFF OPERATION





**** THIS MACHINE TOOL IS LIKE NEW! ****

****** 143 HOURS MACHINING TIME ******



** F.O.B. OUR HARRISON, NJ WAREHOUSE **

** FROM THE WORLD FAMOUS "SHELL TECHNOLOGY CENTER" **
