Mitsubishi EA8SM, 20 ATC, C-AXIS, 9.8"Z, SYSTEM 3R MACRO CNC RAM TYPE EDM MACHINES

Price on Request

Make:

Mitsubishi

Model:

EA8SM, 20 ATC, C-AXIS, 9.8"Z, SYSTEM 3R MACRO

Year:

2015

Ref #:

178764

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at edms@machineryvalues.com

---

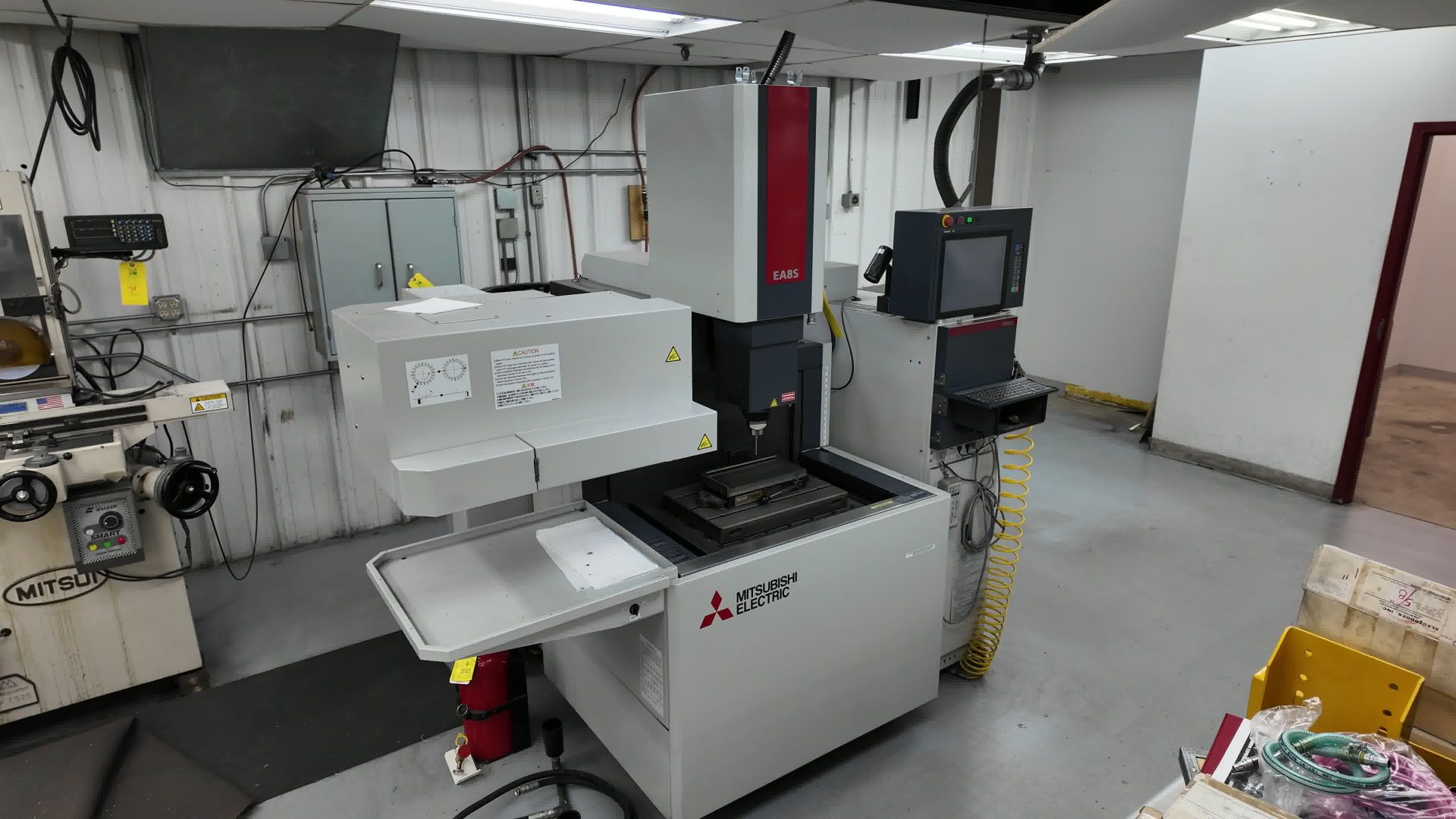

              MITSUBISHI CNC

      RAM TYPE/SINKER EDM MACHINE,

  20 STATION AUTO TOOLCHANGER (LS-ATC-20T),

           & WITH C-AXIS OPTION

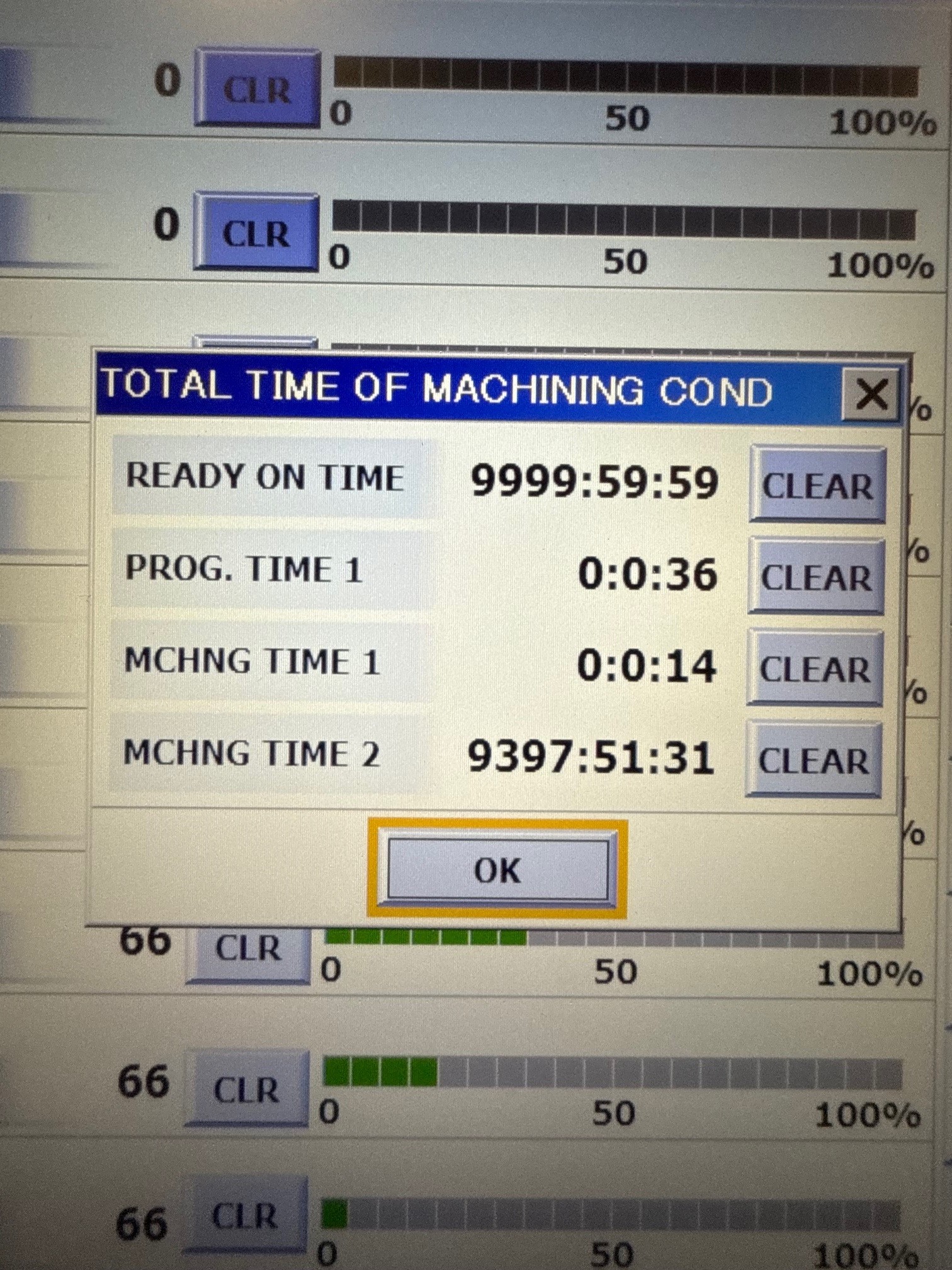

    ** 9,397 HOURS MACHINING TIME **





MODEL: EA8SM   S/N: 05SD8175    MFG.: 2015





SPECIFICATIONS:

TRAVELS( X-Y-Z):................. 11.8” x 9.8” x 9.8”

C-AXIS .......................... YES

MAX. DIELECTRIC FLUID LEVEL ..... 3.4" TO 9.8"

INTERNAL WORKTANK DIMS. ......... 31.5" x 20.5" x 11.8"

TABLE DIMENSIONS:................ 19.7” x 13.8”

MAXIMUM WORKPIECE WEIGHT:........ 1,214 LBS.

MAX. WORKPIECE DIMS. (TABLE) .... 30.3" x 19.3" X 7.9"

TABLE TO PLATEN DISTANCE ........ 5.9" TO 15.7"

MIN. COMMAND UNIT/RESOLUTION .... 0.00001”/.000002”

RAPID TRAVEL SPEED .............. 78” IPM

FILTERS/TYPE .................... 1 pc./PAPER CARTRIDGE

MAXIMUM ELECTRODE WEIGHT:........ 55 LBS.



C-AXIS MINIMUM INDEXING

 ANGLE/DRIVE ................... 0.001 DEG. / 0.001 DEG.

C-AXIS RPM RANGE ............... 1 TO 30 RPM

C-AXIS MAX. ELECTRODE WEIGHT ... 11 LBS.



RESERVOIR CAP. ................. 69 GALLONS

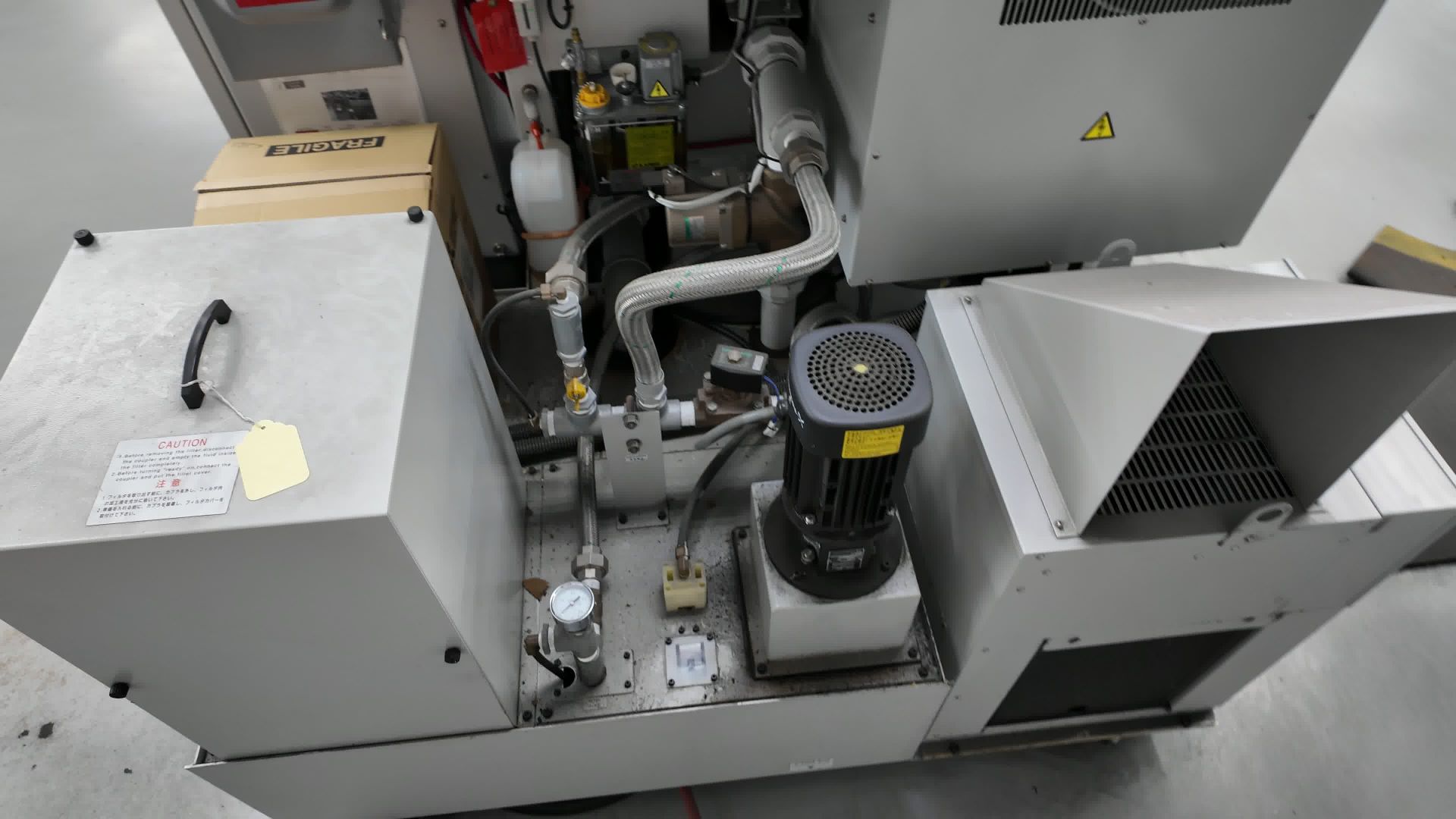

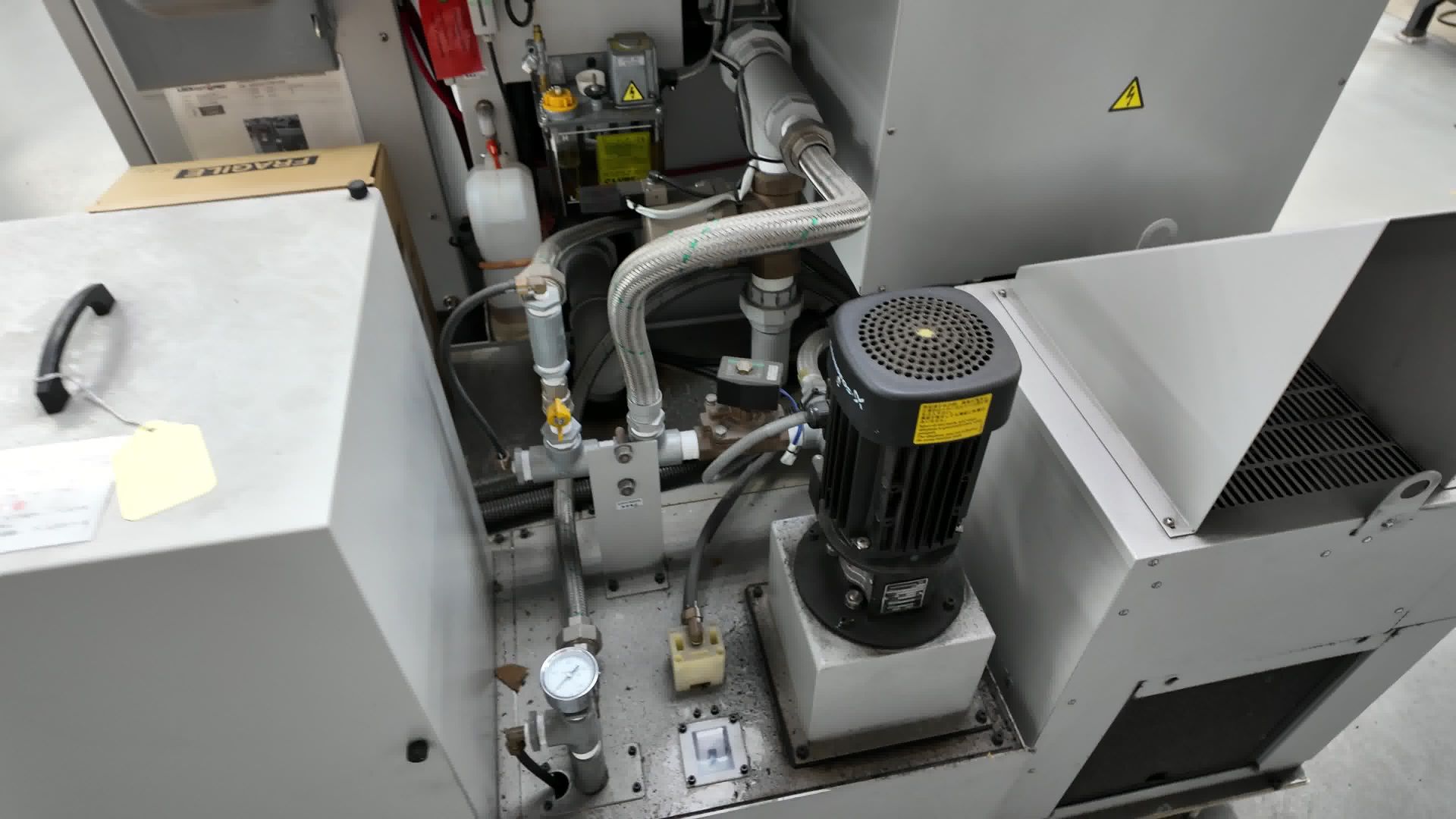

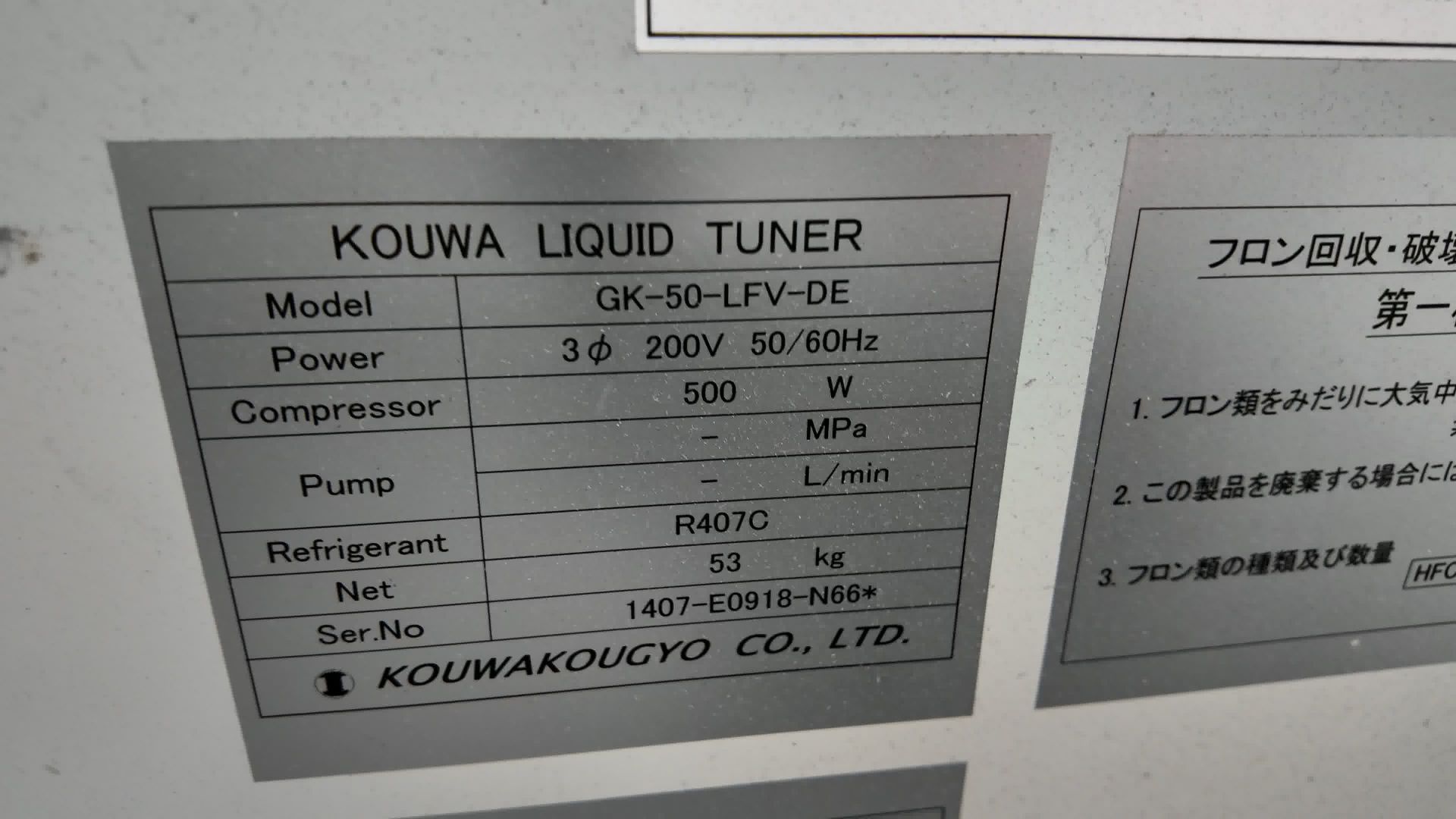

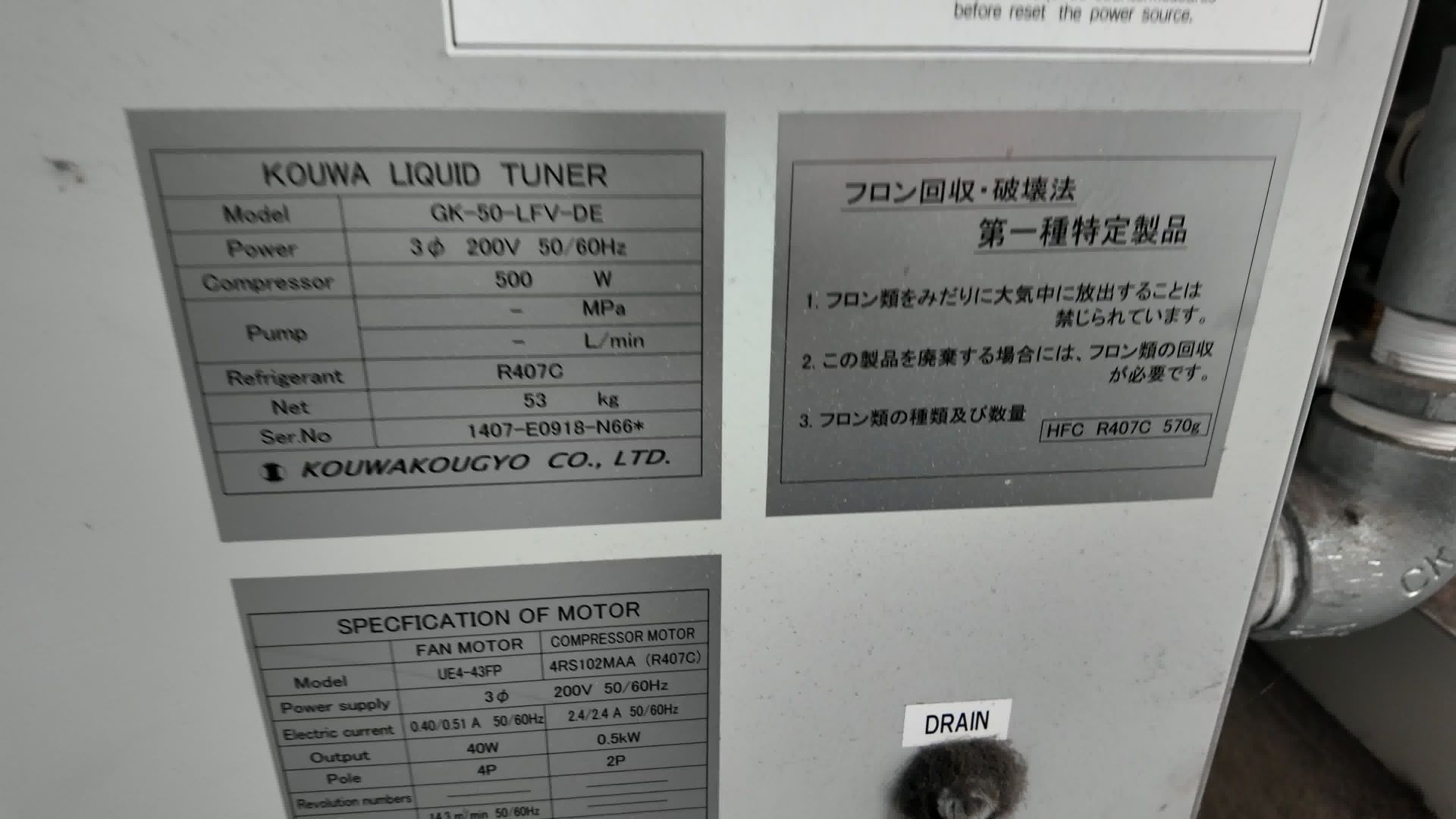

FLUID TEMP. CONTROL ............ CHILLER



APPROX. MACHINE WEIGHT ......... 4,400 LBS.

USER FLOOR DIMS ............. 84.3" x 78.7"D x 82.9"H



FEATURES:

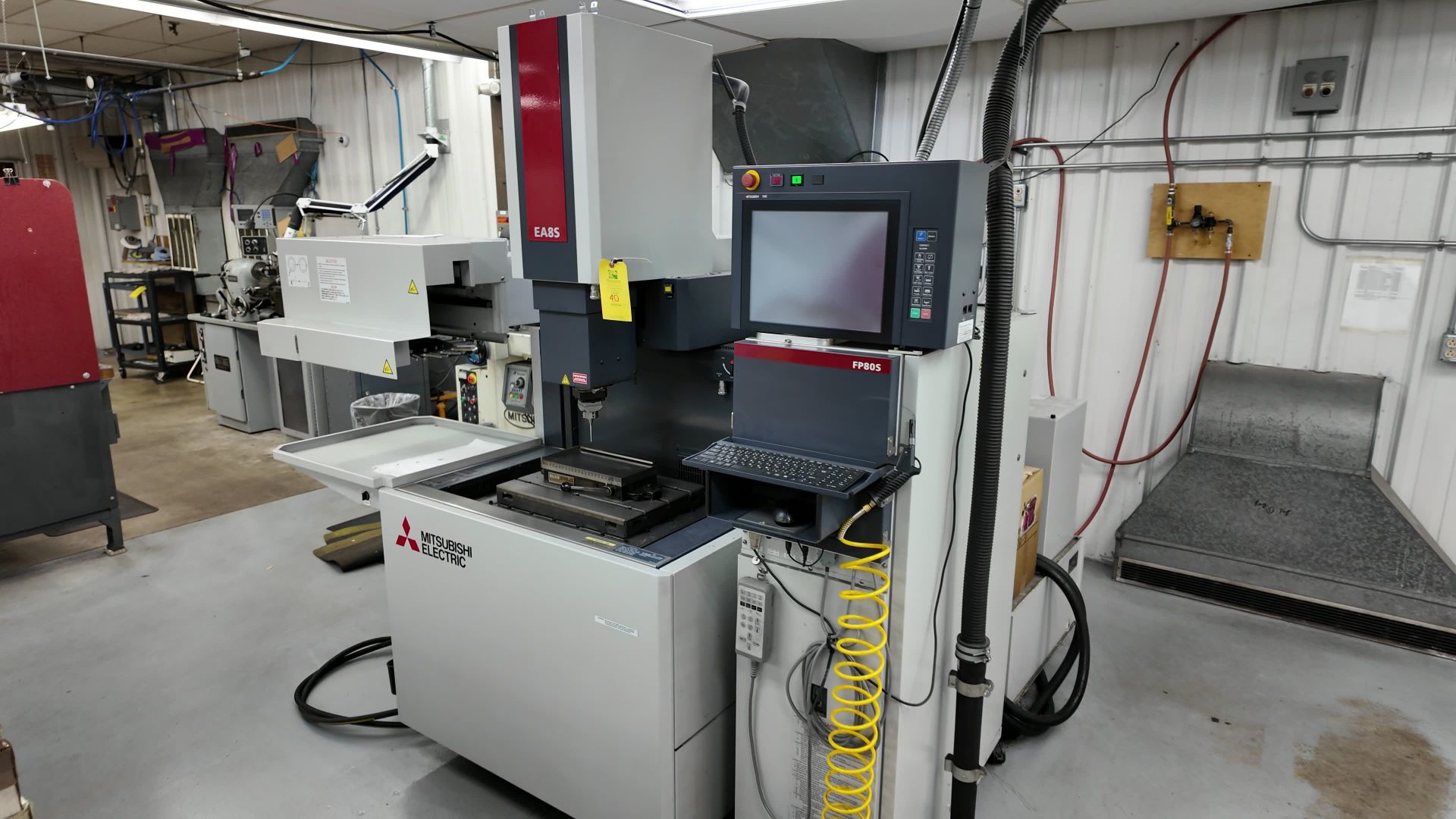

MITSUBISHI M700 CNC CONTROL

15" COLOR LCD

POWER SUPPLY: FP80S / 80 AMPS PEAK

3-SIDED DROP TANK

FIXED TABLE TRAVELING COLUMN CONSTRUCTION

DIRECT DRIVE AC SMART SERVO SYSTEM

3-DIMENSIONAL LATERAL SERVO SYSTEM

WINDOWS XP OPERATING SYSTEM

MANUAL VERTICAL DOOR WORK TANK ACCESS

EASY ACCESS FILTER SYSTEM

DIELECTRIC FLUID EMISSION

AUTO LUBRICATION SYSTEM

E.S.P.E.R. ADVANCE ON BOARD PROGRAMMING

FUZZY PRO PLUS - ENABLES HANDS OFF OPERATION



EQUIPPED WITH:

20 STATION AUTO TOOL CHANGER, TYPE "LS-ATC-20T"

C-AXIS OPTION

"AUTOMATIC ELEVATION TANK" OPTION

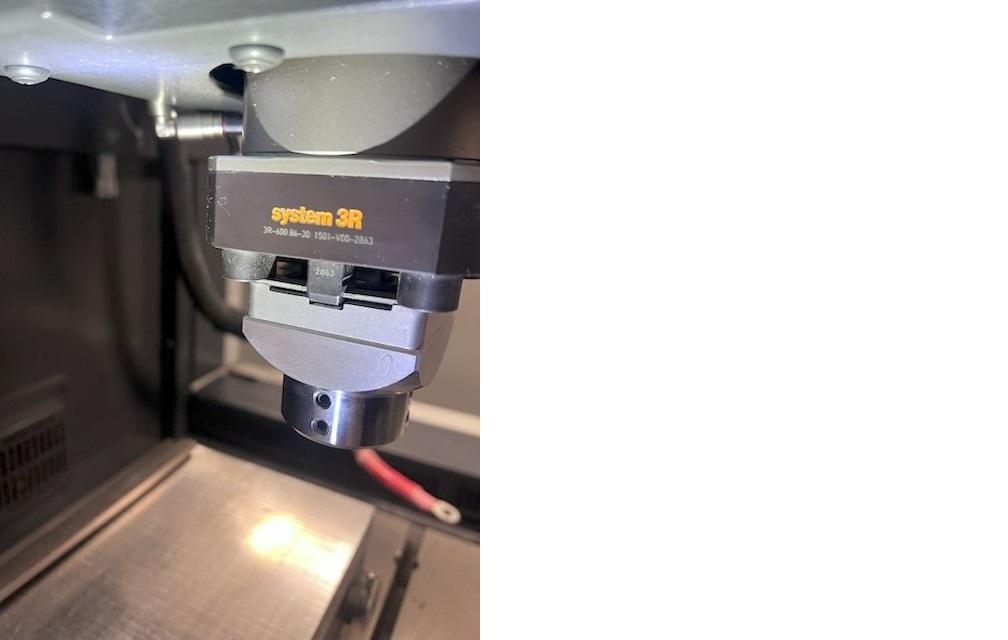

"SYSTEM 3R", MODEL 3R-600.86-30,

  PNEUMATIC CHUCK, MACRO STD.

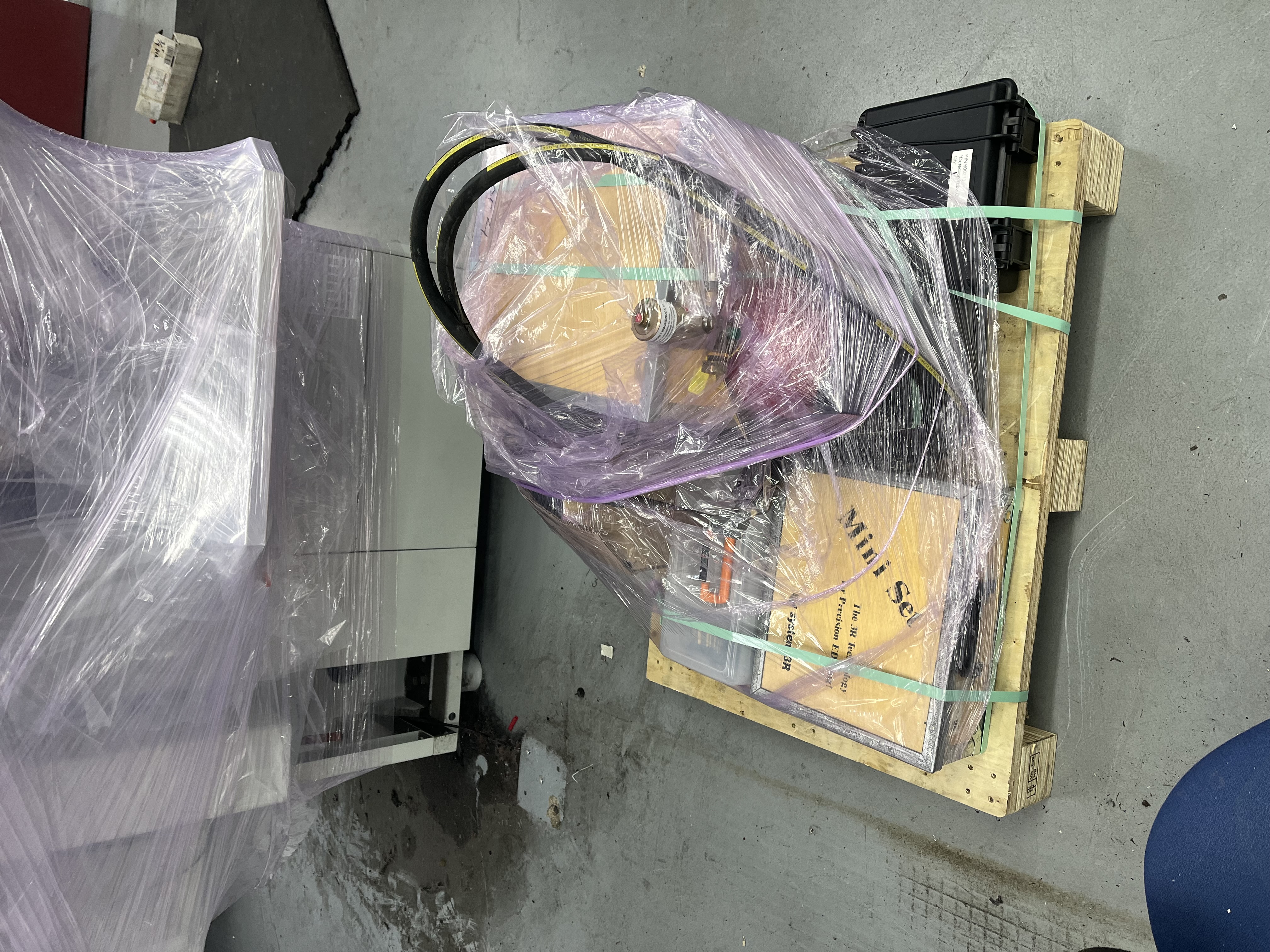

MANY "SYSTEM 3R" ELECTRODE HOLDERS

TWO SINE PLATES

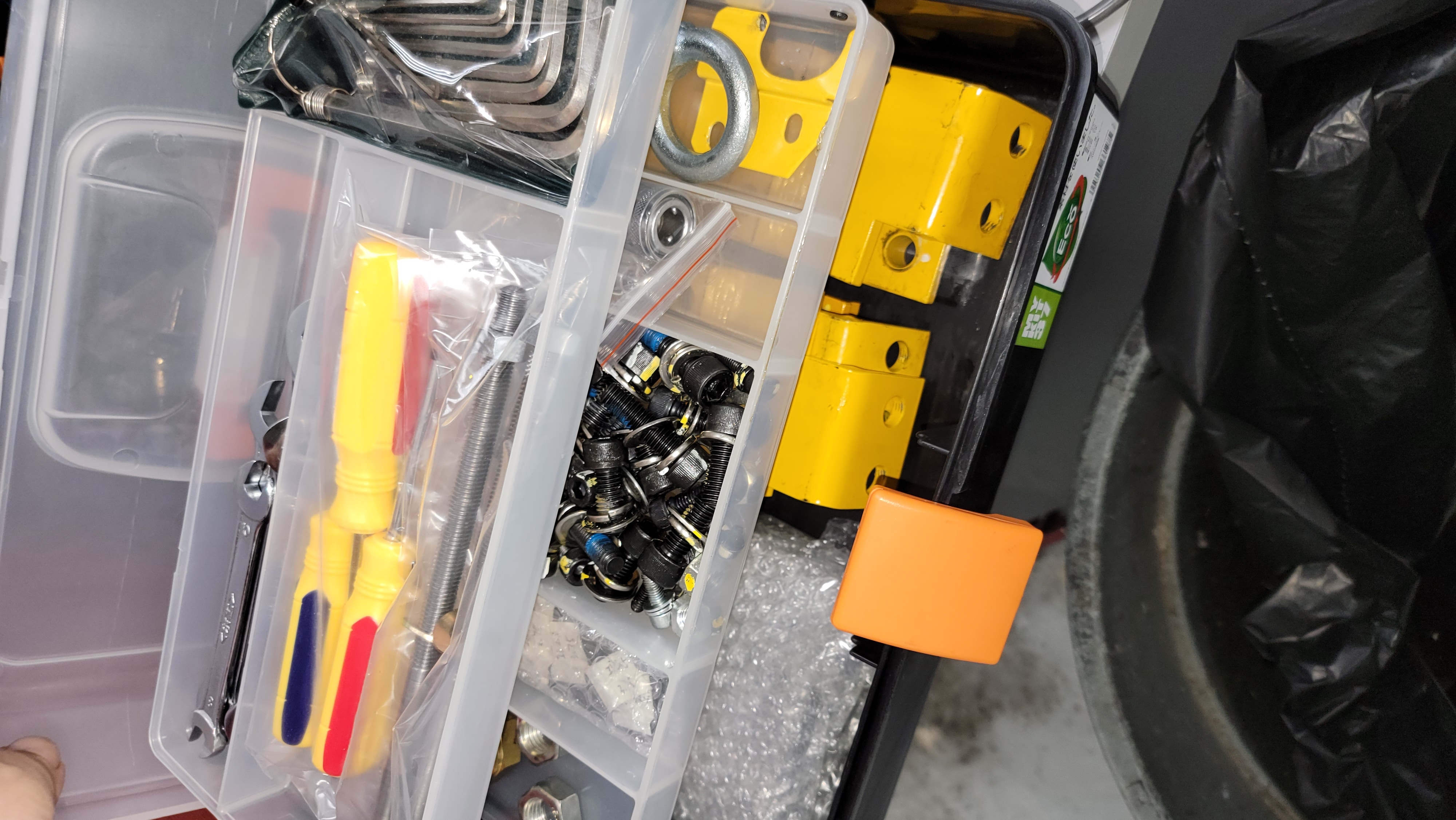

OTHER ASSORTED ACCESSORIES

STANDARD MANUAL OPERATION REMOTE PENDANT

WIRED FOR 208 VOLTS



SPECIAL NOTE:

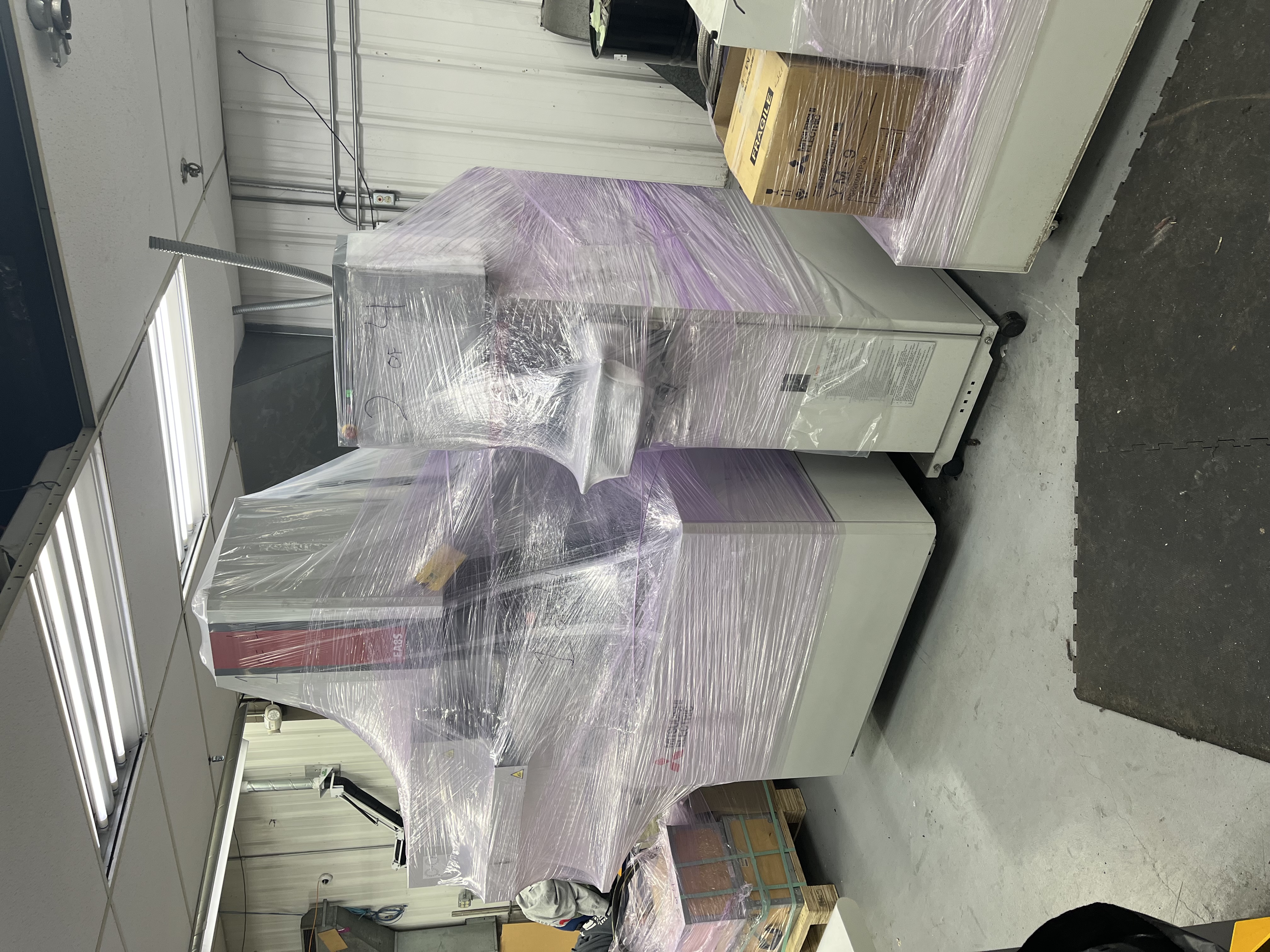

OUR MACHINE HAS BEEN PROFESSIONALLY DE-INSTALLED,

  WITH THE FACTORY SHIPPING BRACKETS, BY OUR

  FRIENDS AT "ALTERNATIVE MACHINE TOOL, LLC"





** F.O.B. OUR HARRISON, NJ WAREHOUSE **

** BEAUTIFUL APPEARANCE & CONDITION **

** LOW HOURS - 9,397 HOURS MACHINING TIME **
