Mitsubishi M-VB25-5F VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Mitsubishi

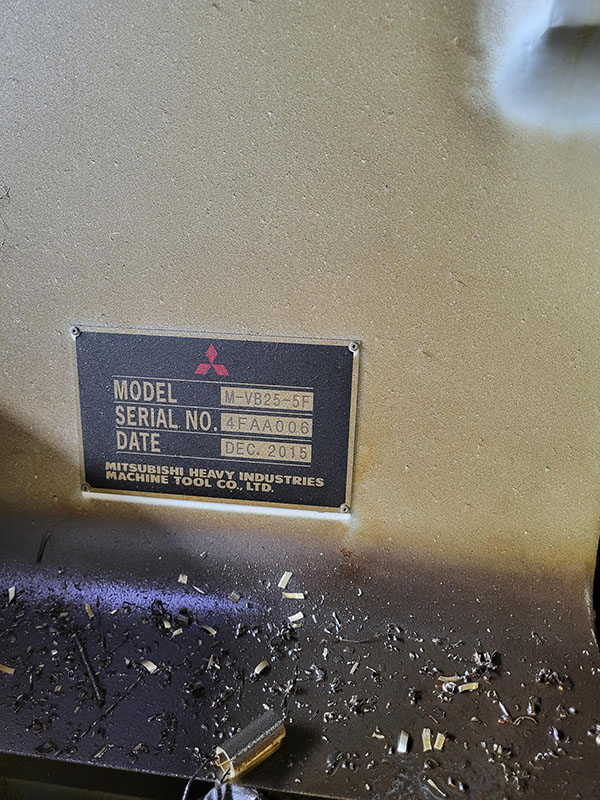

Model:: M-VB25-5F

Year:: 2015

Ref #:: 169133

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

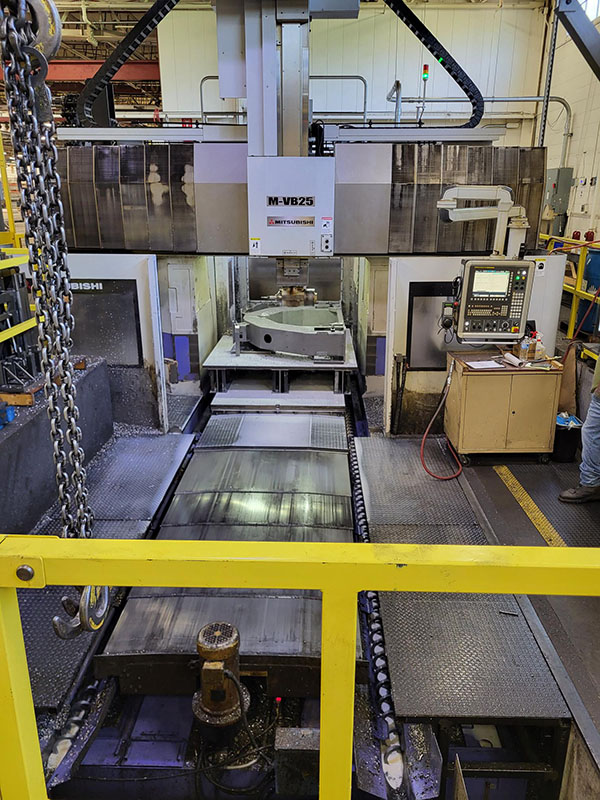

MITSUBISHI FIXED RAIL CNC BRIDGE MILL
MODEL: M-VB25-5F, NEW: 2015

SPECIFICATIONS
CAPACITY:
X-AXIS TRAVEL, TABLE ..................... 125.98"
Y-AXIS TRAVEL, HEAD ...................... 98.42"
Z-AXIS TRAVEL, RAM VERTICAL .............. 39.37"
DISTANCE BETWEEN COLUMNS ................. 80.70"
DISTANCE FROM WORK FACE TO SPINDLE ....... 47.24"
TABLE SIZE ............................... 59.05" X 118.11"
TABLE LOAD CAPACITY ...................... 26,400 LBS
RAM SIZE ................................. 13.77" X 15.74"
SPINDLE SPEEDS ........................... 20-6000 RPM
SPINDLE TAPER ............................ #50
DIAMETER OF SPINDLE ...................... 4.33"
SPINDLE DRIVE MOTOR ...................... 40 HP/30 HP
APPROXIMATE MACHINE WEIGHT ............... 81,510 LBS

EQUIPPED WITH:

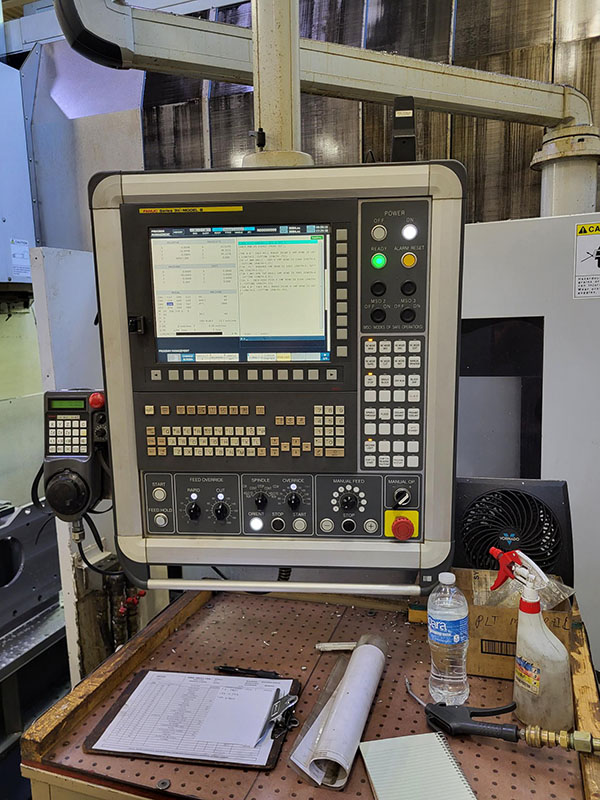

FANUC 31IB CNC CONTROLS
AUTOMATIC ATTACHEMENT CHANGER
60-STATION AUTOMATIC TOOL CHANGER
RIGHT ANGLE HEAD (1 DEG.)
THRU SPINDLE COOLANT (HIGH PRESSURE OPTION)
CHIP CONVEYOR
40 HP SPINDLE MOTOR
FIXED RAIL DESIGN

INSPECT IN PLANT UNDER POWER
