Mitsubishi PD32-B50A, 2011, FANUC 21i-TB, 20" x 4.7"W WHEEL CNC ANGLE HEAD CYLINDRICAL GRINDER

Price on Request

Make:

Mitsubishi

Model:

PD32-B50A, 2011, FANUC 21i-TB, 20" x 4.7"W WHEEL

Year:

2011

Ref #:

179051

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

           12.6" x 20"

    MITSUBISHI - NIDEC "MADE IN JAPAN"

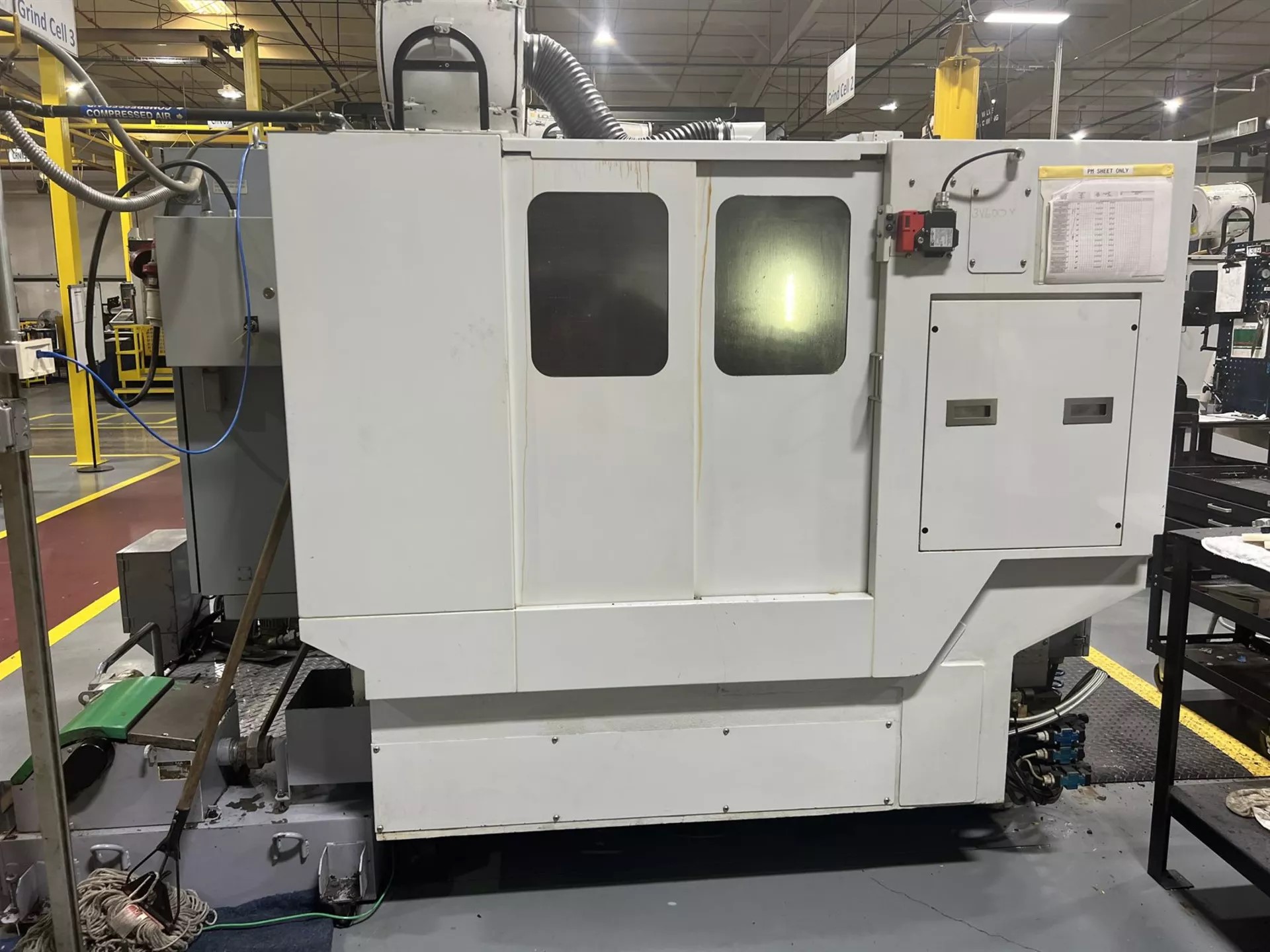

  CNC ANGLE HEAD CYLINDRICAL GRINDER

       FANUC 21i-TB CNC CONTROL

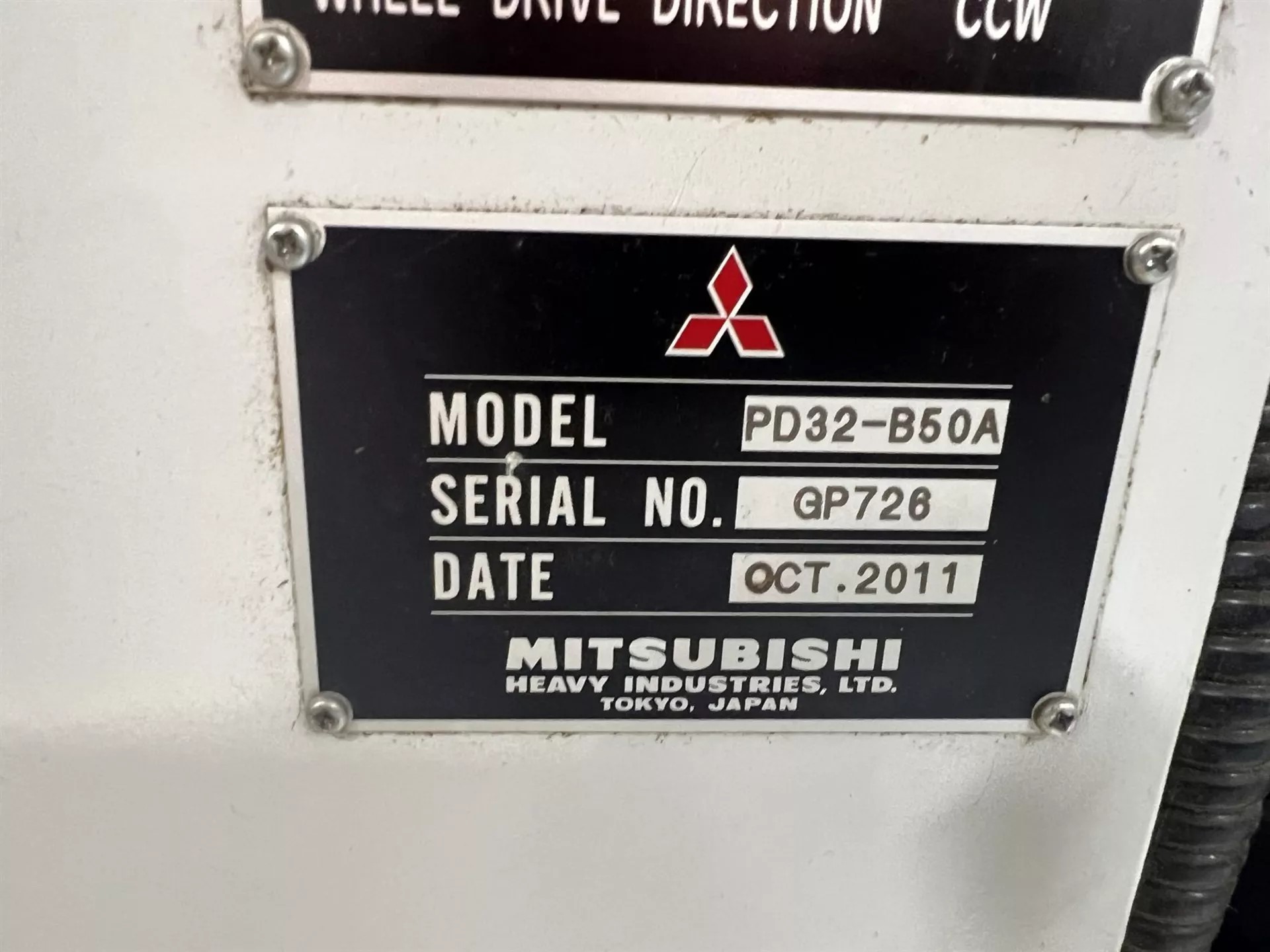

MODEL: PD32-B50A    S/N: GP726

MANUFACTURED 11/2011 - INSTALLED JANUARY 2012



The Nidec P-Series CNC Cylindrical

 Grinder is a top-tier CNC machine

 designed for high-precision

 cylindrical grinding. Ideal for

 CNC machining tasks on shafts,

 axles, and spindles, this

 cylindrical grinding machine

 delivers exceptional surface

 finishes and tight tolerances.

Perfect for industries like autos,

 aerospace, and tooling, the Nidec

 CNC machine offers versatile

 grinding patterns and user-friendly

 operation.

Maximize productivity with this

 advanced CNC machining center for

 superior cylindrical shaping.





Even Novice Operators Can Easily Program and Operate

• Optimized conditions are automatically set with the
• same degree of expertise as experienced operator.
• Adaptation control is utilized for the automatic
•  measurement device, realizing automatic setups
•  for speed switching points between the rough
•  and the fine grindings even for the first workpiece
•  model that has been time-consuming
•  in conventional machines.
• With conversational graphical programming
• software, data can be edited easily with
• minimum key commands.

High-Accuracy Grinding and Stable Quality

• The advanced fluid technology, which has been
•  developed over time in our Aircraft Division,
•  is applied to the bearings of machining tool.
• This enables highly-rigid rotation to the order
• of a submicron and results in high-accuracy
•  machining.

High Productivity

• Wheel peripheral velocity of 60 m/s
•  (or 80m/s, optional) realized
•  high-speed heavy-duty grinding. The grinding
•  wheel of 4.7"  width enables heavy-duty
•  plunge grinding in a single stroke.
• The high-speed locater has shortened
•  the measurement time.
• Measurement by longitudinal locator takes
• only 4 seconds.

Easy Automation and Incorporation Into Production Line

• Adoption of fixed-table design enabled
•  narrow-width machine
•  structure, facilitating automation and
•  incorporation into production line.
• Various autoloaders and robots are optionally
• available to meet your specific needs.

Excellent Performance and Solid Safety

• Color LCD display is equipped as standard
• for enhanced visibility
• Graphical displays of path check, machining
• area indications and so on ensures steady operations.
• Safety is ensured by the triple checking functions
• (machining program, grinding path, and
• wheel motor overload detection).



SPECIFICATIONS:

SWING .............................. 12.6"

MAX. CENTER DISTANCE ............... 19.7"

MAX. WORKPIECE DIAMETER ............ 11.8""

MAX. WORKLOAD ...................... 330 LBS.

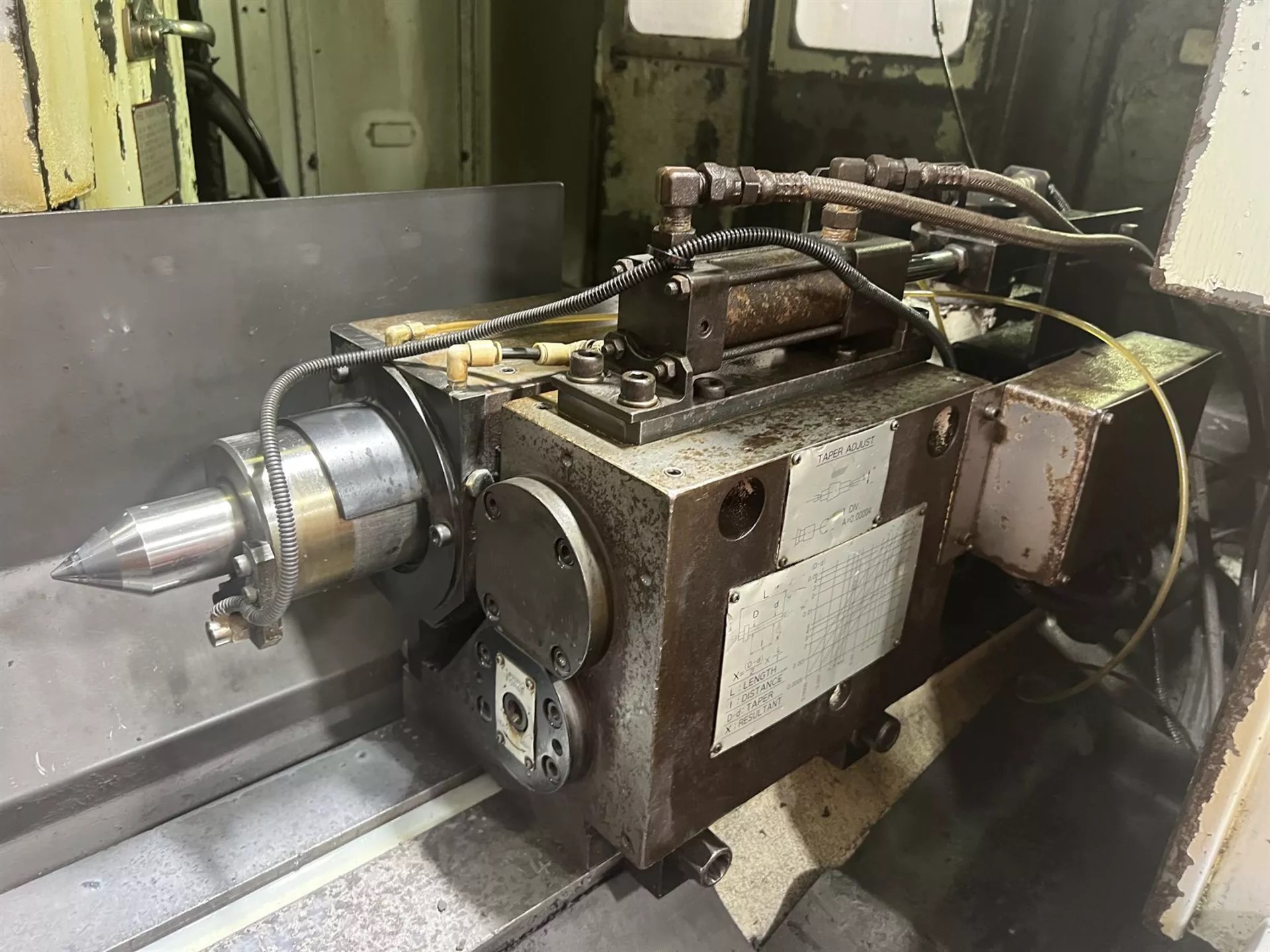

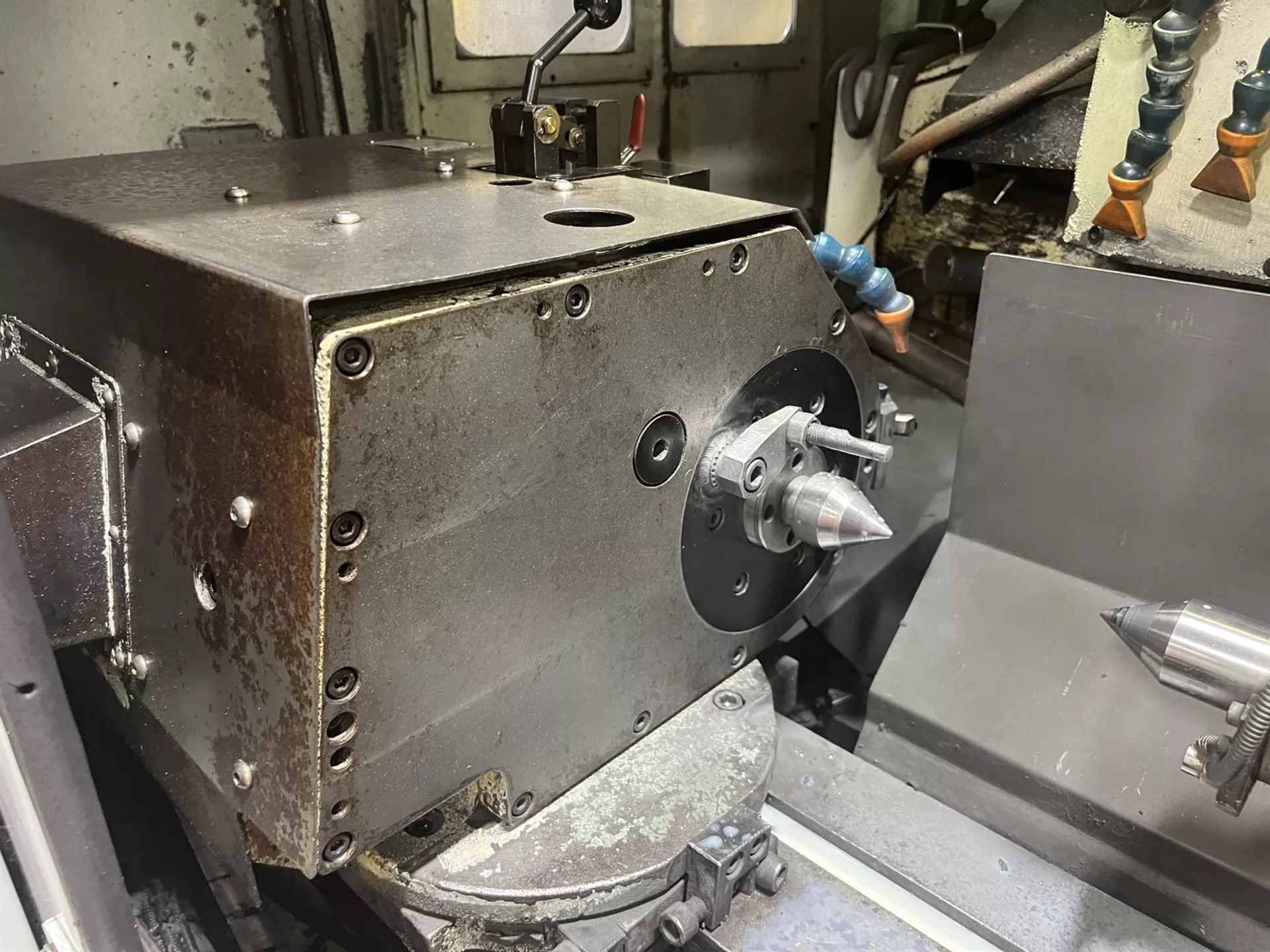

WORKHEAD CENTER TAPER .............. #4 MT

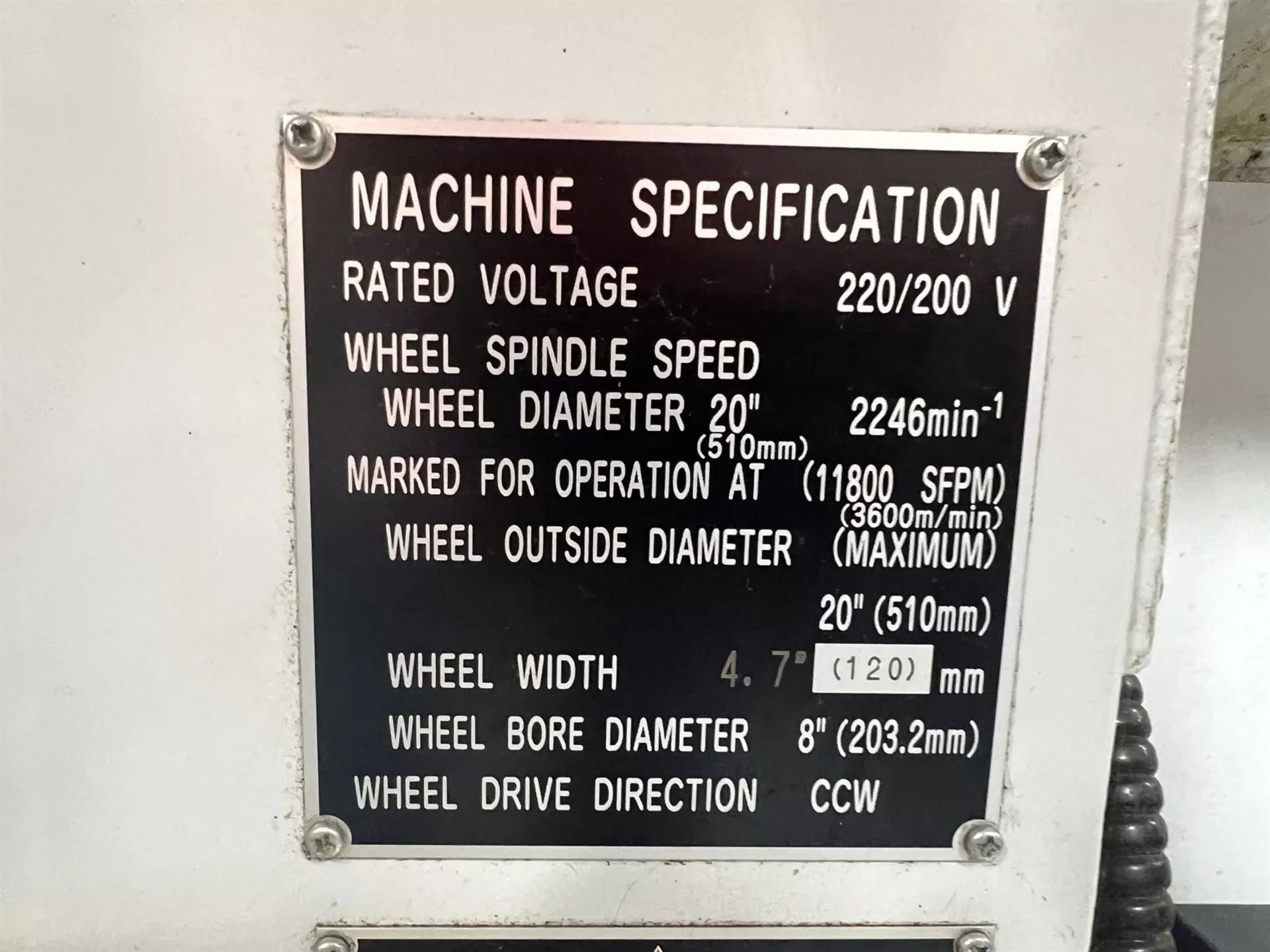

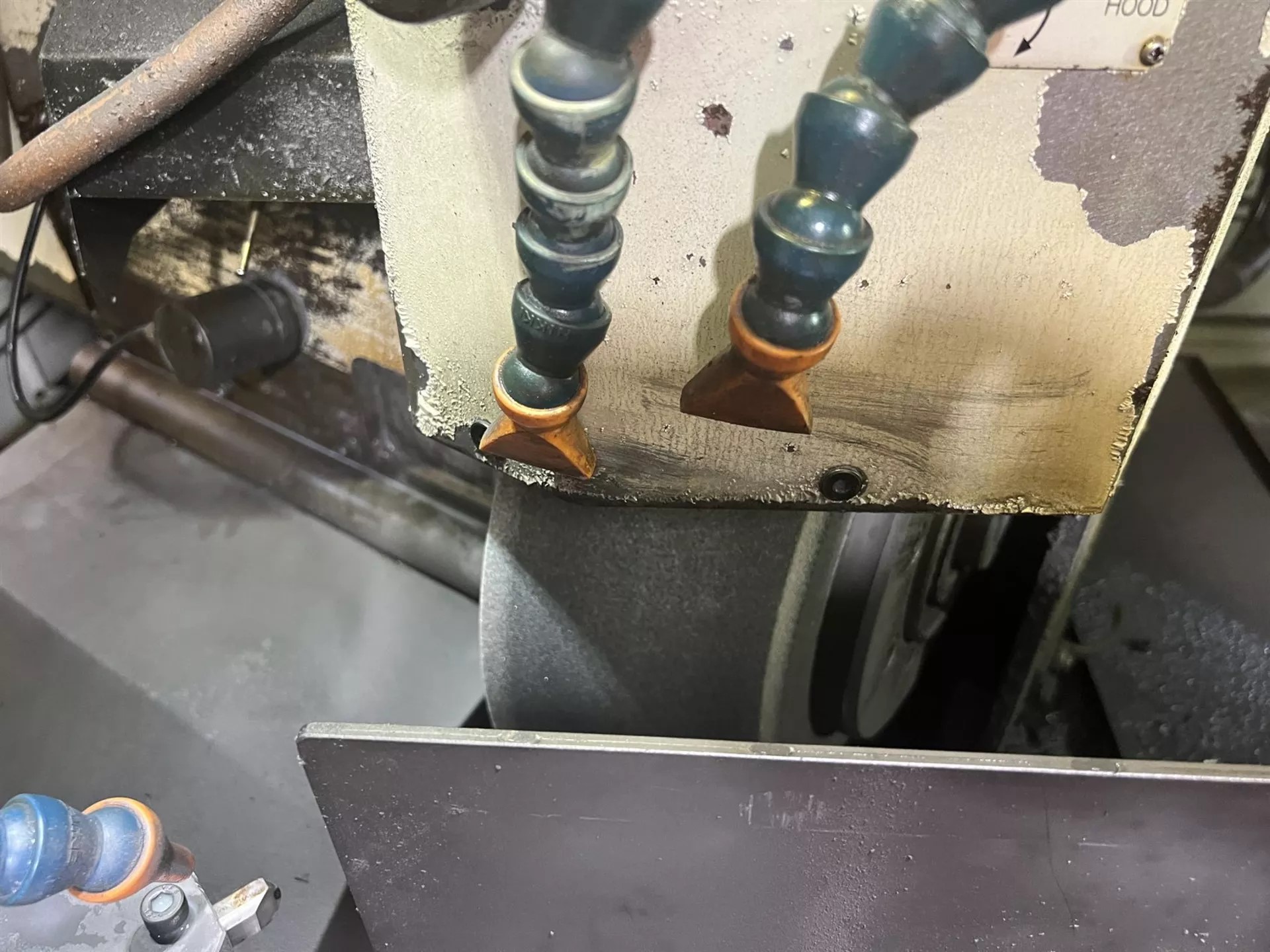

WHEEL SIZE,

  DIAMETER ......................... 20" DIA.

  MAX. WIDTH ....................... 4.7"

  BORE ............................. 8"

MARKED FOR OPERATION AT ............ 11,800 SFPM

WHEEL DIRECTION DRIVE .............. CCW

TABLE, RAPID TRAVERSE RATE ......... 66' FPM

TABLE FEED RANGE (IPM).............. 0.00004" TO 787.4"

WHEELHEAD, RAPID TRAVERSE RATE ..... 66' FPM

WHEELHEAD FEED RANGE (IPM) ......... 0.00004" TO 787.4"

COMMAND UNIT ....................... 0.000004"

WORKHEAD SPINDLE SPEEDS ............ 10 TO 500 RPM

WORKHEAD SPINDLE TAPER ............. #4 MT

TAILSTOCK STROKE ................... 5.9"

TAILSTOCK SPINDLE TAPER ............ #5 MT

WHEEL HEAD MOTOR ................... 15 H.P.

DIMENSIONS (APPROX.)................ 124"L X 106"D

APPROX. WEIGHT ..................... 15,400 LBS.



EQUIPPED WITH:

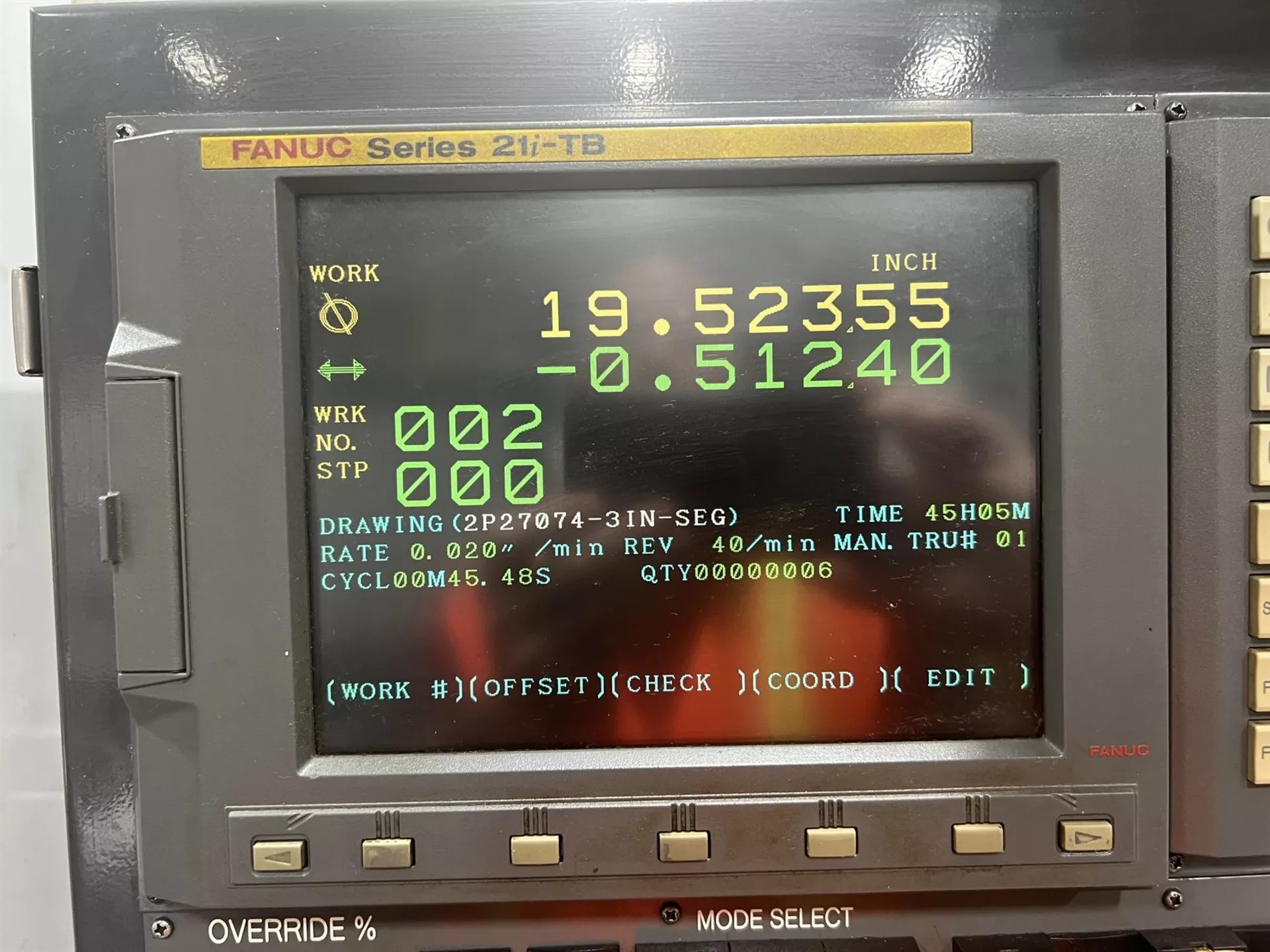

FANUC 21i-TB CNC CONTROL, WITH MITSUBISHI

  CONVERSATIONAL SOFTWARE

TABLE IS STATIONARY.  WHEELHEAD MOVES IN & OUT,

   AND SIDE TO SIDE, FOR TRAVELS

LATERAL LOCATOR

HYDRAULIC TAILSTOCK

"SBS" MODEL "SB-5500" AUTO WHEEL BALANCE SYSTEM

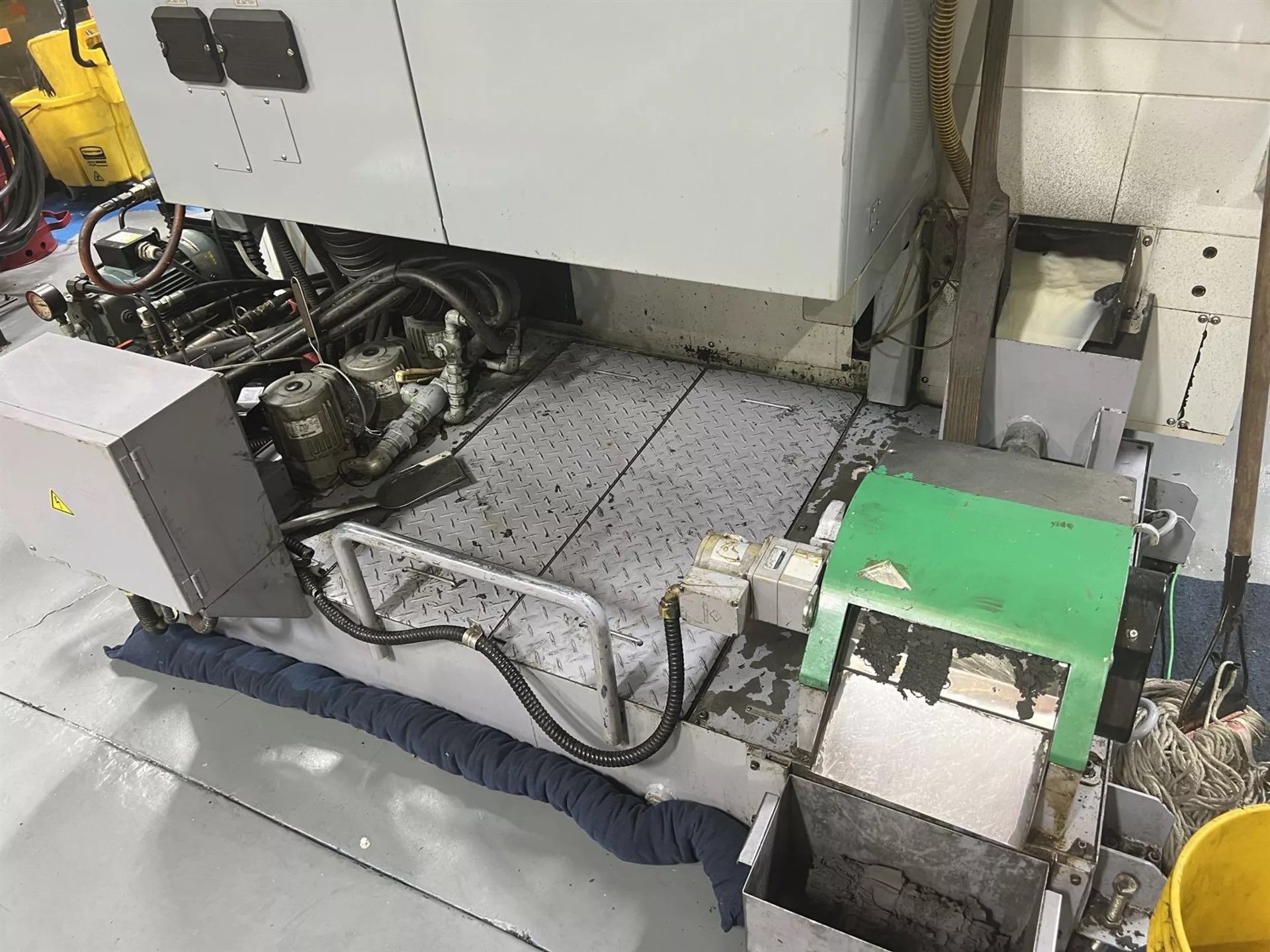

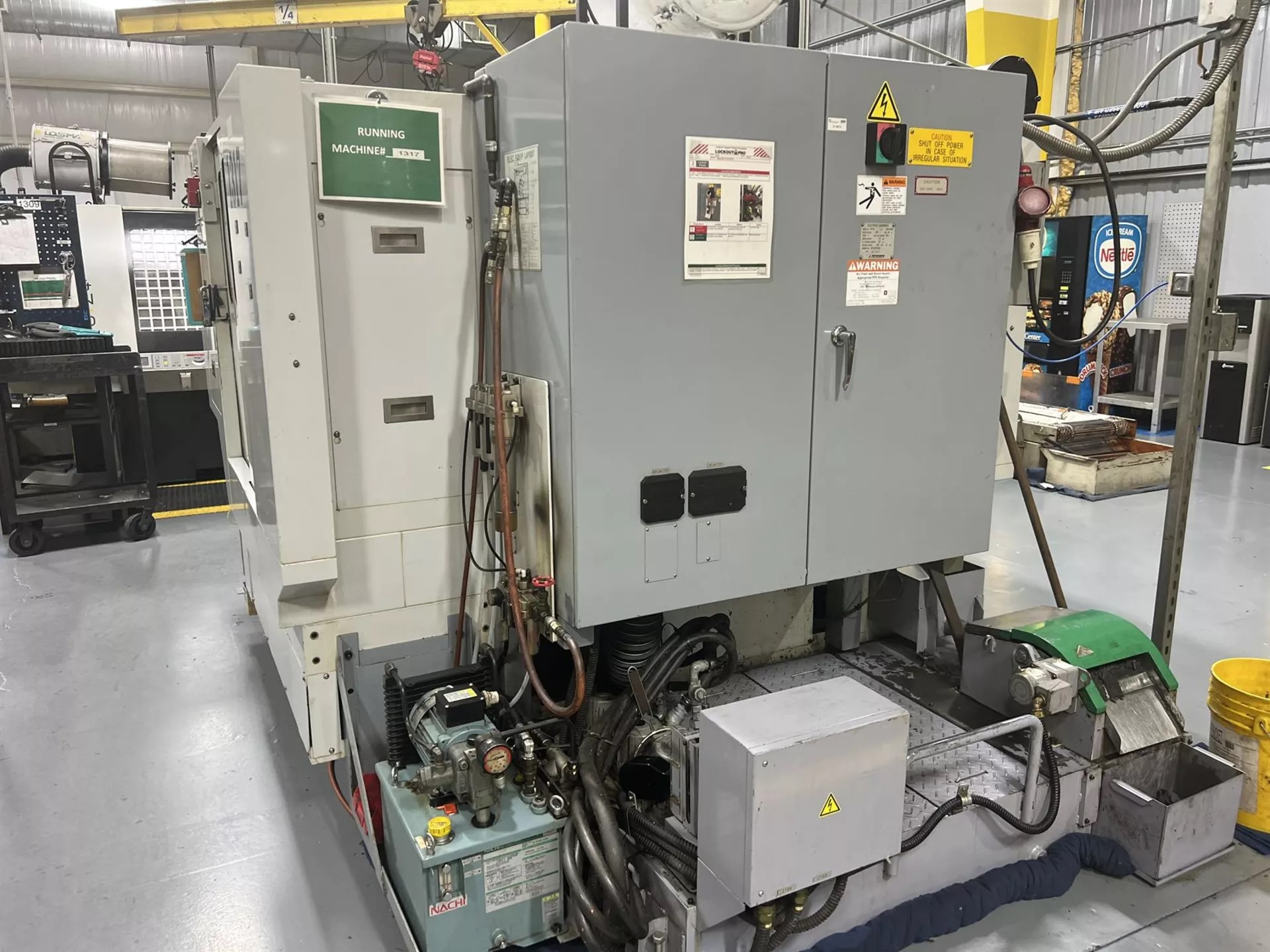

COOLANT SYSTEM WITH MAGNETIC SEPARATOR

MIST COLLECTOR

MACHINE IS WIRED FOR 3/60/220 VOLTS



LINK TO VIDEO: https://youtu.be/Jjjp366Id5U?si=4wnQE1scN_BBQfGq



** F.O.B. FORT WORTH, TEXAS **
