Mitutoyo HR-521, 2015, Code No. 810-202-03A HARDNESS TESTERS

Price on Request

Make:

Mitutoyo

Model:

HR-521, 2015, Code No. 810-202-03A

Year:

2015

Ref #:

178243

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

---

                    Mitutoyo HR-521

                Digital Rockwell Type Hardness Tester.

         Rockwell and Rockwell Superficial Hardness Tester.





Code No. 810-202-03A     S/N: 801081508      NEW: 2015



Series 810, Features:

Multiple test force generation for

Rockwell, Rockwell Superficial and Brinell

  hardness.

Dolphin-nose indenter arm for easy reach of interior

 (min. ø40mm/ø22mm*) and exterior surfaces.

 *When using an optional diamond indenter

 (19BAA292).

Real time electronic test force control for accurate

 loading. This perfectly eliminates load force

 overshooting.

Indenter escape function for continuous testing

 at fixed table position. This eliminates instability

  caused by the table retraction.

Auto-stop elevation table and automatic preliminary

 test force loading to provide stable test force

 generation.





Technical Specifications:

• Preliminary Test Force: 29.42N, 98.07N
• Test Force–
• Rockwell superficial: 147.1, 294.2, 441.3N
• Rockwell: 588.4, 980.7, 1471N
• Brinell*: 61.29, 98.07, 153.2, 245.2, 294.2,
•   306.4,  612.9, 980.7, 1226, 1839N
• Test Force Setting: By control unit
• Load Control: Automatic
•   (loading, duration, unloading)
• Load Duration: 0s – 120s (1s increments)
• Max. Specimen Height: 205mm
•   (for standard flat anvil)
• Max. Specimen Depth: 150mm
•   (from the center of indenter shaft)
• Stage Elevation: Manual or power drive
• Control Unit: Sheetswitch type or
•   touch screen type
• Data Output: RS-232C, Digimatic code
•   (SPC) and Centronics
• Power Supply: 120V AC, 50/60Hz
•

Dimensions (W x D x H)–

• Main Unit: 250 x 670 x 605mm
• Control Unit: 165 x 260 x 105mm



Equipped With:

Accessories, in Hard Portable Case

Dell PC Computer

Mitutoy Digital Display

Test Scales: Rockwell/Rockwell Superficia

Test Force Selection: By touch screen,

Force Control: Automatic control (unloading/duration/unloading)

 with spring deformation feed back with auto brake start

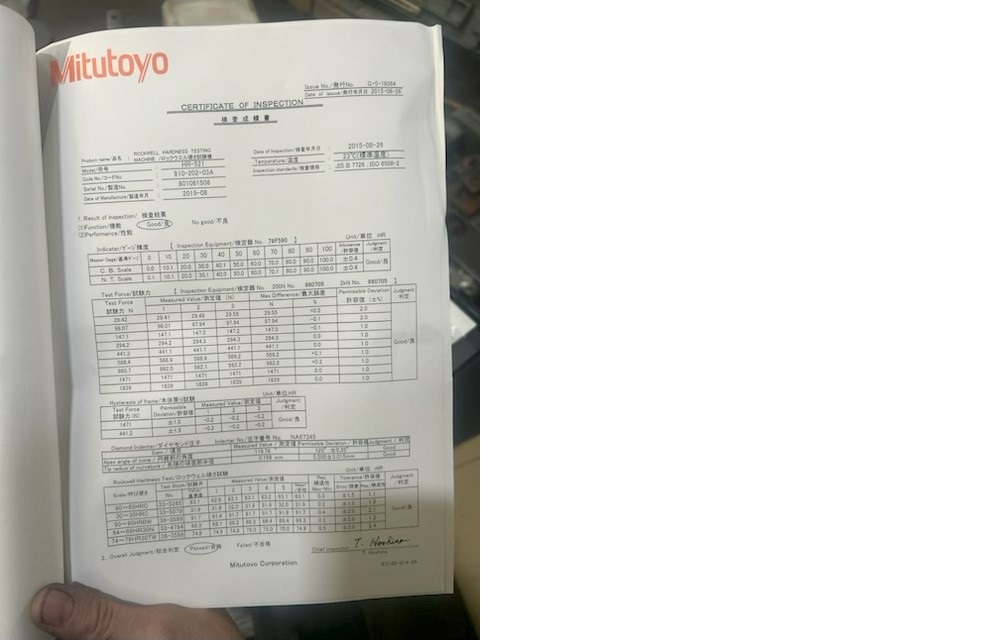

Literature:

https://www.mitutoyo.com/Images/003/316/2025_Rockwell_HR.pdf





** Superb Condition **

** Located in our Harrison, NJ Warehouse **

** Offered from our Stock, with a 30 Day Return Privilege **
