Moore #3, New 1976, S/N: B-1634 JIG BORERS

Price on Request

Make:

Moore

Model:

#3, New 1976, S/N: B-1634

Year:

1976

Ref #:

151093

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

---

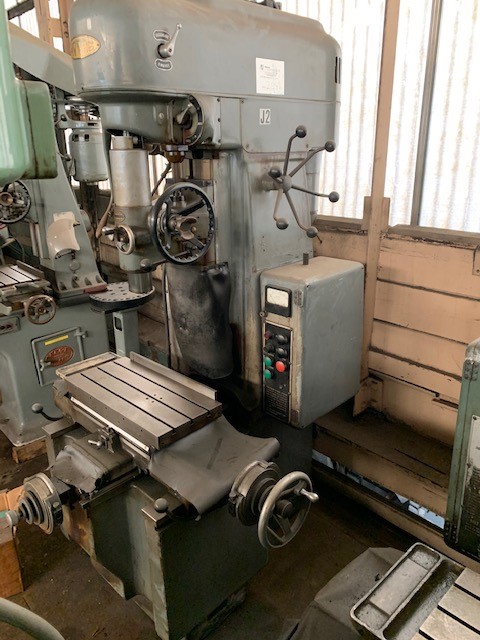

MOORE #3 JIG BORER

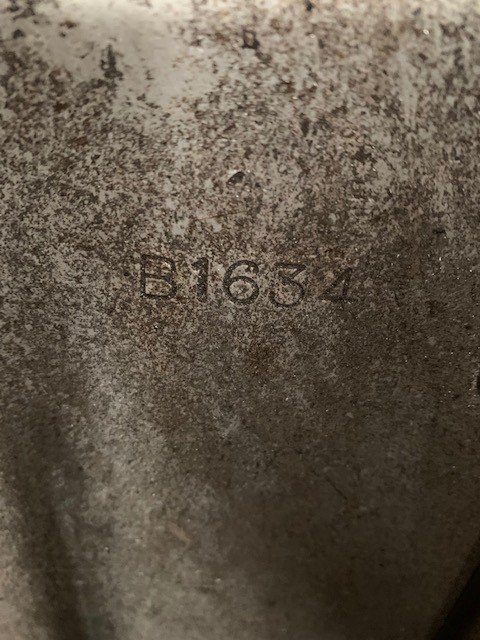

MODEl: B-18              S/N: B-1634               NEW: 1976





TABLE SIZE ............................... 11" X 24" TABLE

LONGITUDINAL TABLE TRAVEL ................ 18"

CROSS TABLE TRAVEL ....................... 11"

SPINDLE HOUSING TRAVEL ................... 12"

SPINDLE QUILL TRAVEL ..................... 5"

TABLE TOP TO SPINDLE, MIN. ............... 3- 7/8"

                      MAX. ............... 20- 13/16"

SPINDLE TO COLUMN WAYS ................... 10"

SPINDLE TO COLUMN BELOW WAYS ............. 13- 3/4"



BORING CAPACITY .......................... 5/32" TO 5"

INFINITELY VARIABLE SPINDLE SPEEDS ....... 60 TO 2,250 RPM

FEEDS PER REV. (3) .............. 0.000075", .0015" & .003"



APPROX. WEIGHT ........................... 4,000 LBS.

APPROX. DIMENSIONS ..................... 58" X 60" X 89"H



MACHINE FEATURES:

HARDENED WAYS

HARDENED, GROUND & LAPPED LEADSCREWS

TWO-SPEED MOTOR (1 H.P. & 2 H.P.)

PRESENTLY WIRED FOR 3/60/220 VOLTS





VERY GOOD CONDITION & APPEARANCE  **



** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
