Moore "STANDARD", S/N: SRT-311, 10.875" DIA., ROTARY TABLES

Price on Request

Make:

Moore

Model:

"STANDARD", S/N: SRT-311, 10.875" DIA.,

Year:

Ref #:

178673

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at sales@machineryvalues.com

---

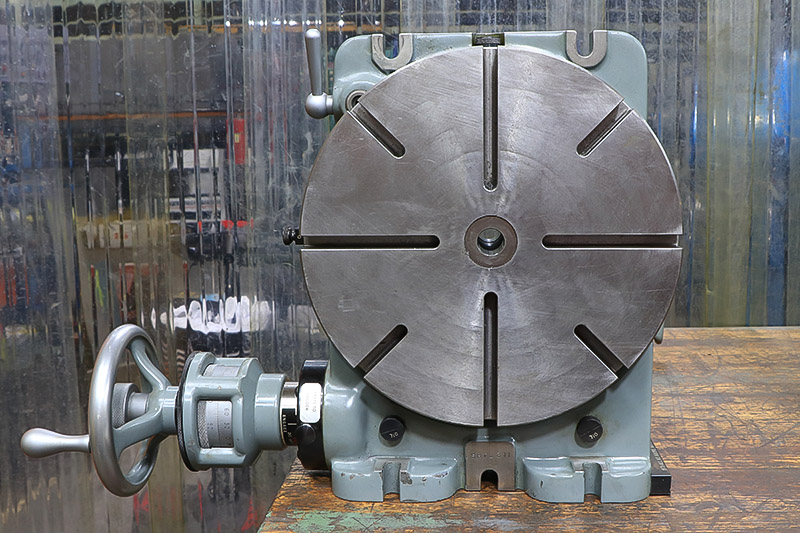

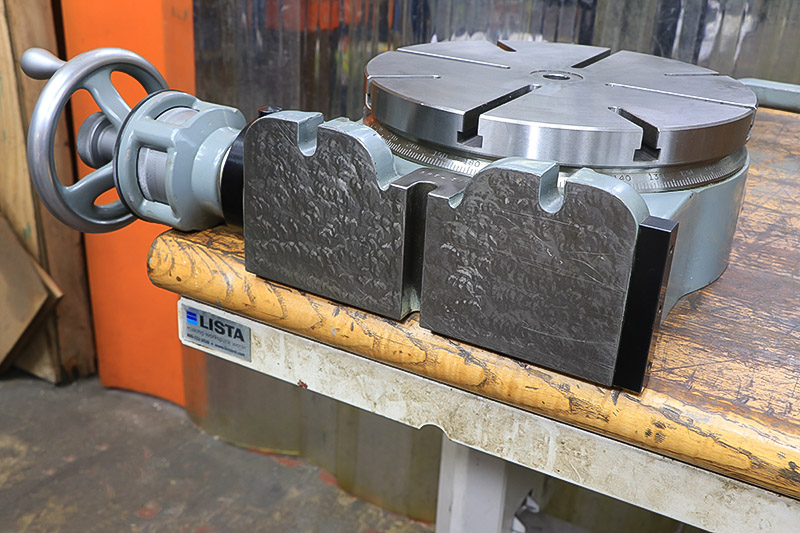

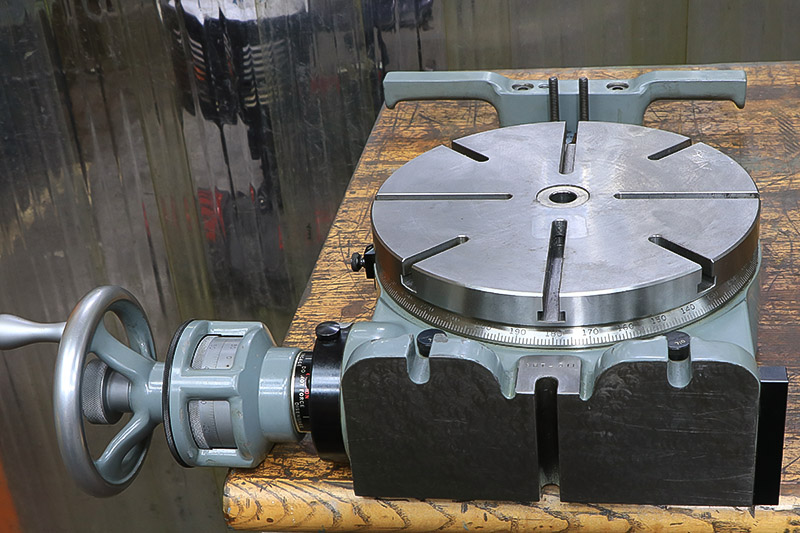

  MOORE HORIZONTAL/VERTICAL "PRECISE" ROTARY TABLE

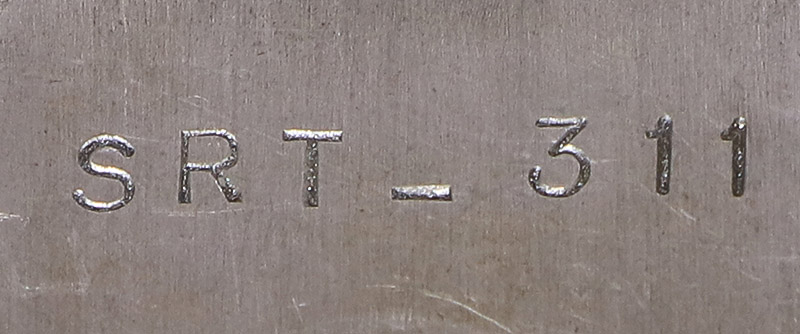

MODEL: "SRT" STANDARD ROTARY TABLE      S/N: SRT-311





SPECIFICATION:

DIAMETER OF TABLE TOP .................. 10- 7/8"

HEIGHT IN HORIZONTAL POSITION .......... 4- 1/2"

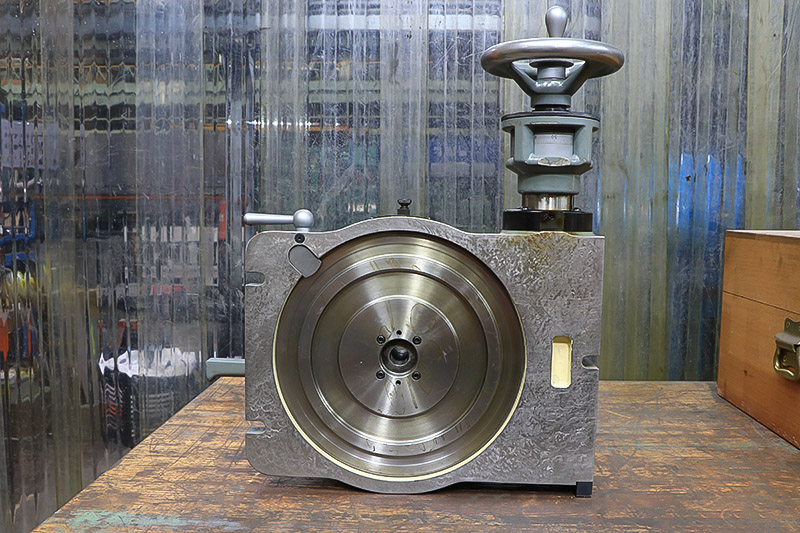

HEIGHT IN VERTIVAL POSITION ............ 14- 1/16"

HEIGHT OF AXIS OF ROTATION, TABLE IN

  VERTIVAL POSITION ..................... 7- 7/8"

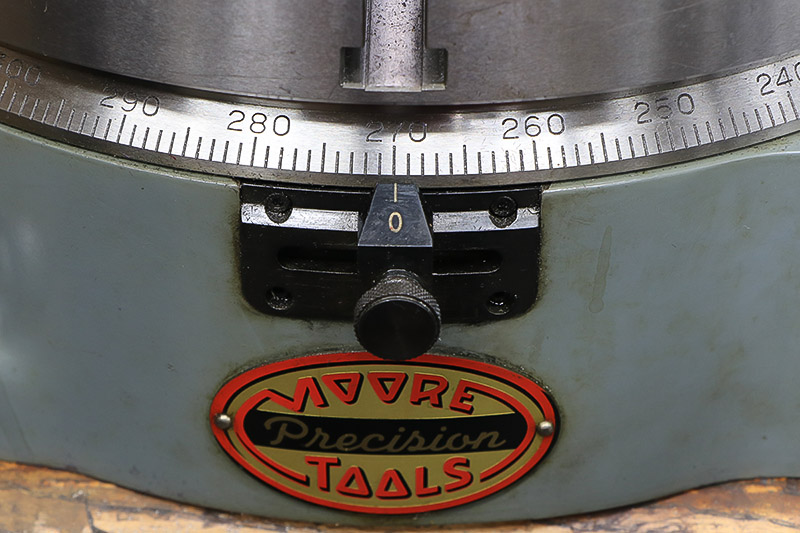

TABLE GRADUATIONS ...................... DEGREES

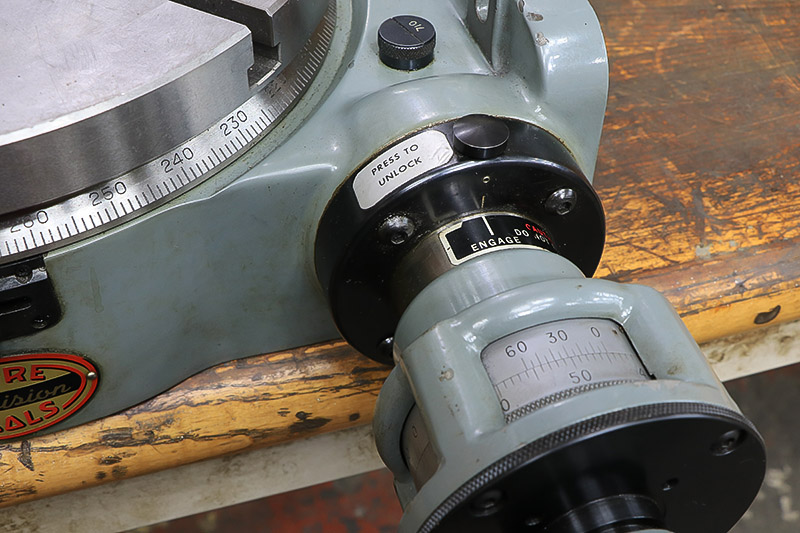

DIAL GRADUATIONS ....................... MINUTES

VERNIER GRADUATIONS .................... 5 SECONDS

DIAMETER OF DIAL ....................... 3"

SIZE OF T-SLOTS ........................ 3/8"

WEIGHT ................................. 125 LBS.

GROSS WEIGHT WITH MAHOGANY BOX ......... 240 LBS.



TOLERANCE (ACCURACY) WHEN NEW:

ANY POINT IN 360 DEGREES ............... +/- 12 SECONDS



FLATNESS OF TABLE TOP .................. 0.0002"



PARALLISM- TABLE TOP TO BASE ........... 0.0002"



CENTER HOLE BUSHING DIA. ............... 0.7500"   +.0001"

                                                   -.0000"

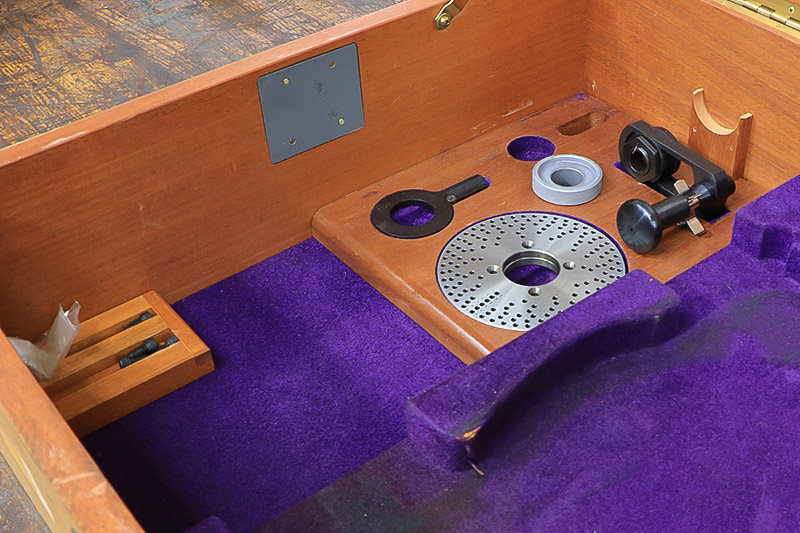

EQUIPPED WITH:

DISENGAGABLE WORM FEATURE FOR ALLOWING THE TABLE TOP TO SPIN FREELY

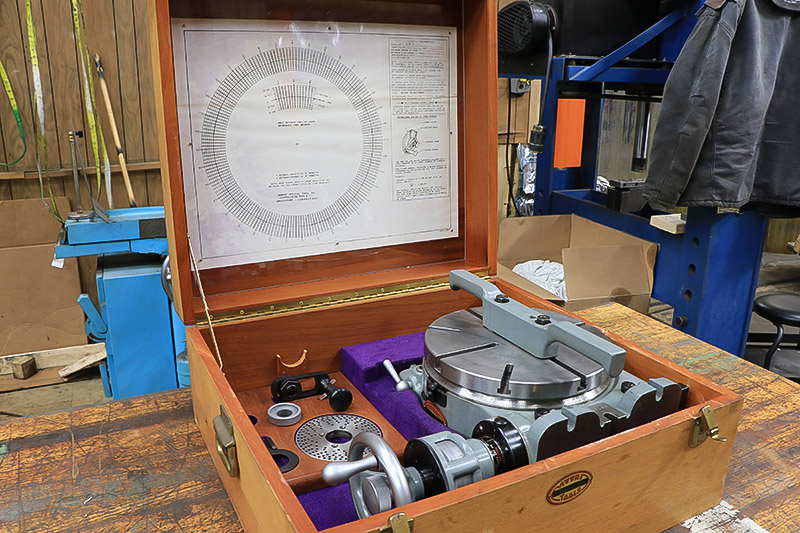

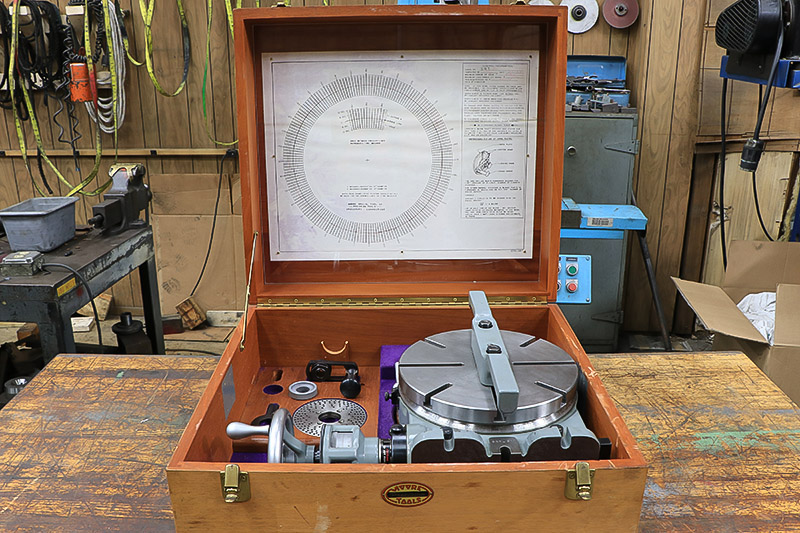

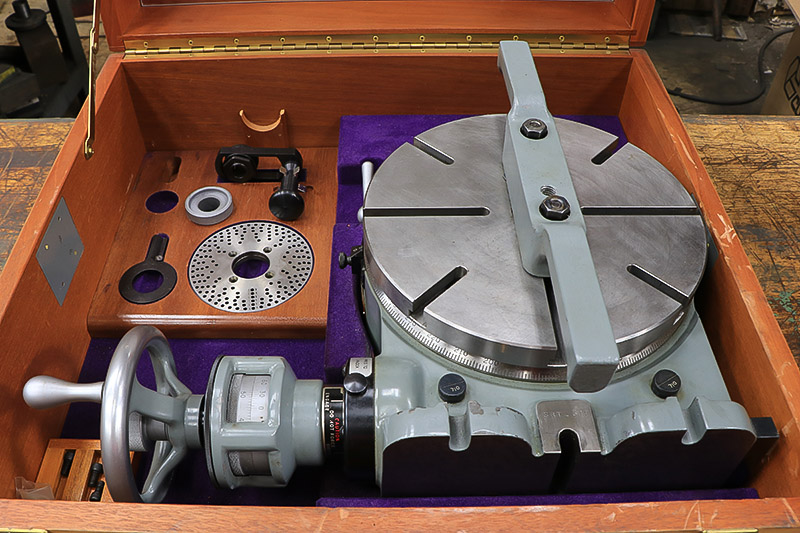

MOORE MAHOGONY FACTORY BOX

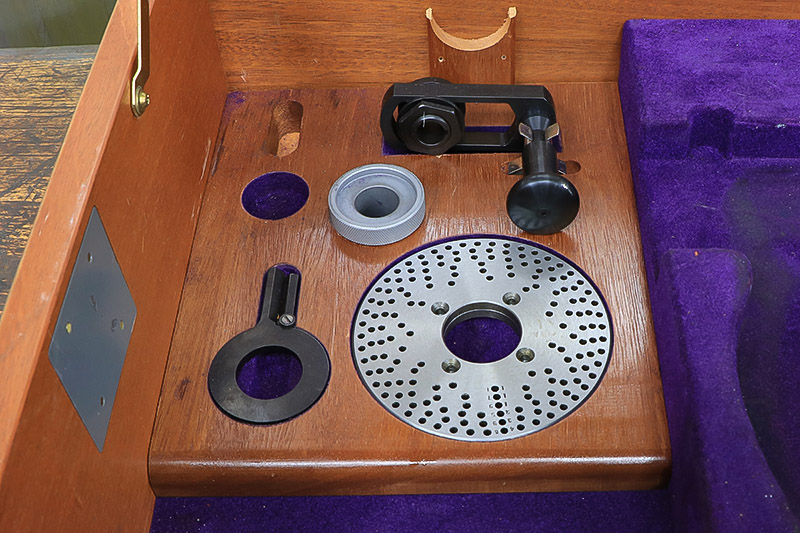

INDEX PLATE

LIFTING HANDLE



 ** LOOKS EXCELLENT **

** UNKNOWN CONDITION **
