Mori Seiki MH-503 2 Machine Cell w/18 Pallet System HORIZONTAL MACHINING CENTERS (HMC's)

Price on Request

Make:: Mori Seiki

Model:: MH-503 2 Machine Cell w/18 Pallet System

Year:: 2005

Ref #:: 179169

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

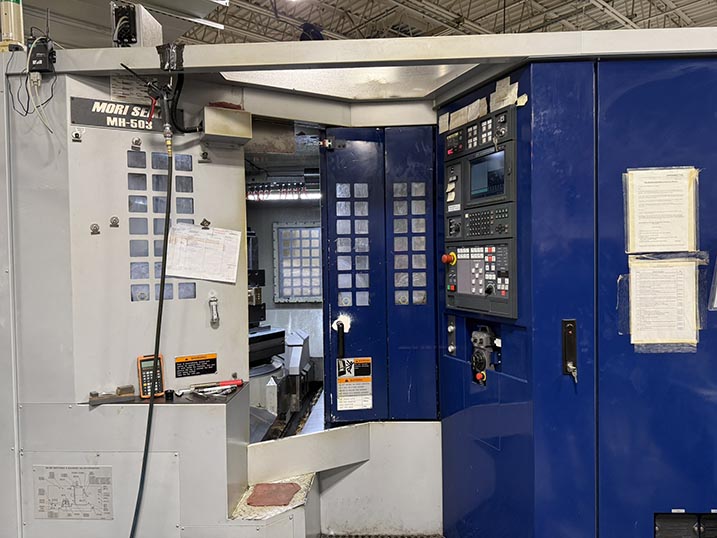

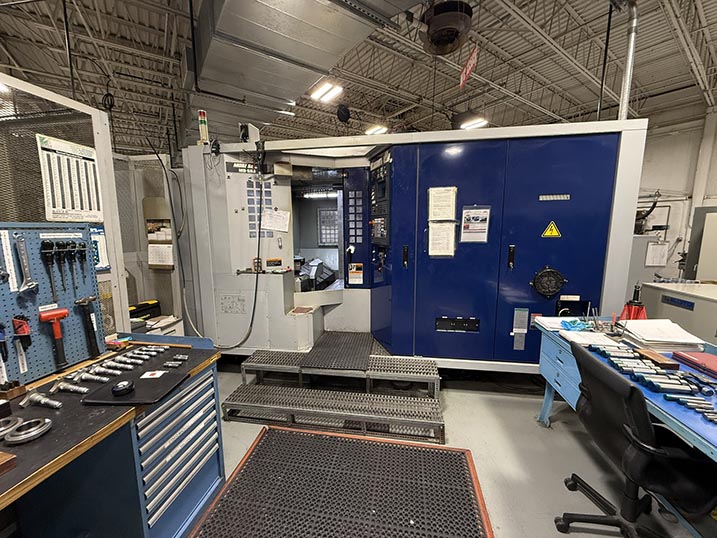

MORI-SEIKI MACHINING CELL
TWO HORIZONTAL MACHINING CENTERS
W/18 PALLET SYSTEM
MODEL: (2) MH503, MFG: 2005

SPECIFICATIONS:

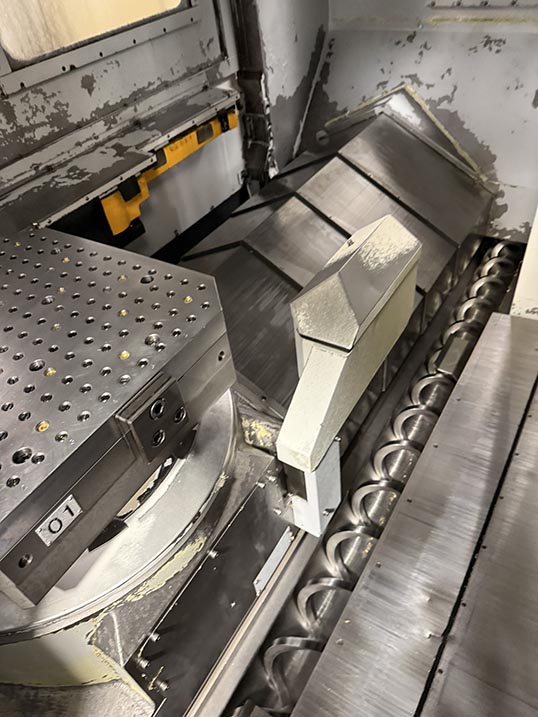

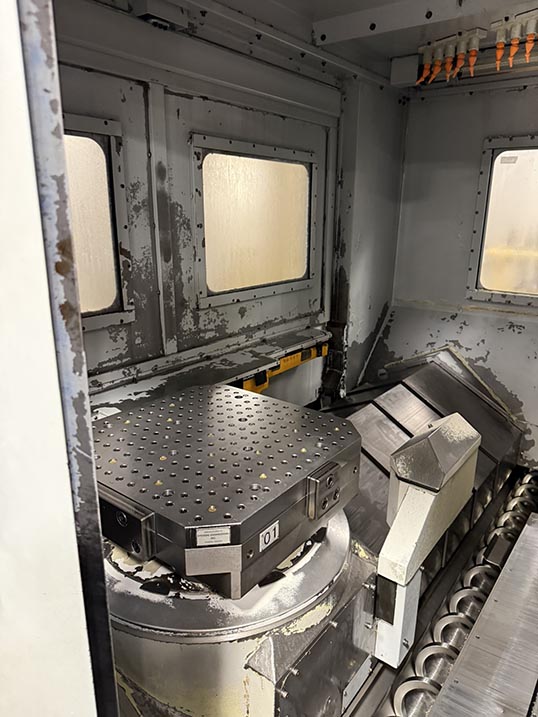

PALLET SIZE ....................... 19.7" X 19.7"
MAX WORKPIECE SWING DIA. HEIGHT ... 35.4" X 35.4"
TABLE SURFACE TO SPINDLE CENTER ... 2.0" - 27.6"
TABLE CENTER TO SPINDLE GAGE PLANE  5.9" - 35.4"
NUMBER OF PALLETS EACH MACHINE .... 2 PALLETS
PALLET SYSTEM ..................... 18 PALLETS
TABLE LOAD CAPACITY ............... 2,200 LBS.
AXIS TRAVEL X - AXIS .............. 31.5"
Y - AXIS .......................... 25.6"
Z - AXIS .......................... 29.5"
TABLE INDEXING .................... 001 INDEX
SPINDLE DRIVE MOTOR ............... 25 HP AC (2 GEAR RANGE)

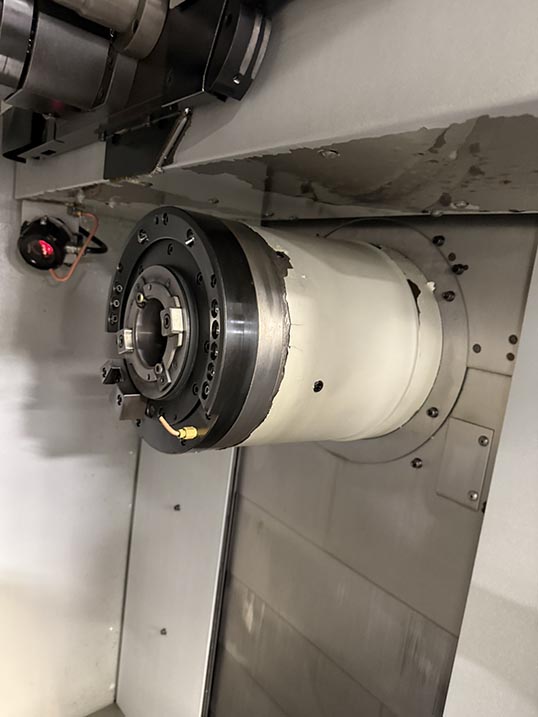

SPINDLE TAPER ..................... #50 CAT

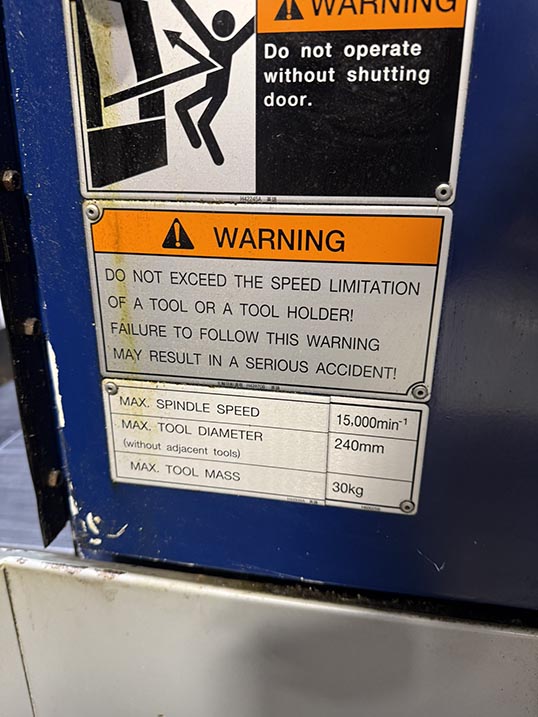

MAX SPINDLE SPEED OF MACHINE ONE .. 15,000 RPM
MAX SPINDLE SPEED OF MACHINE TWO .. 6,000 RPM

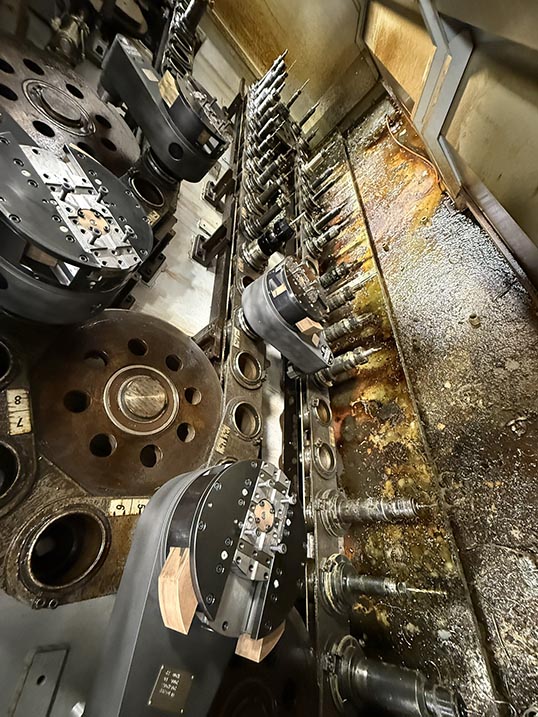

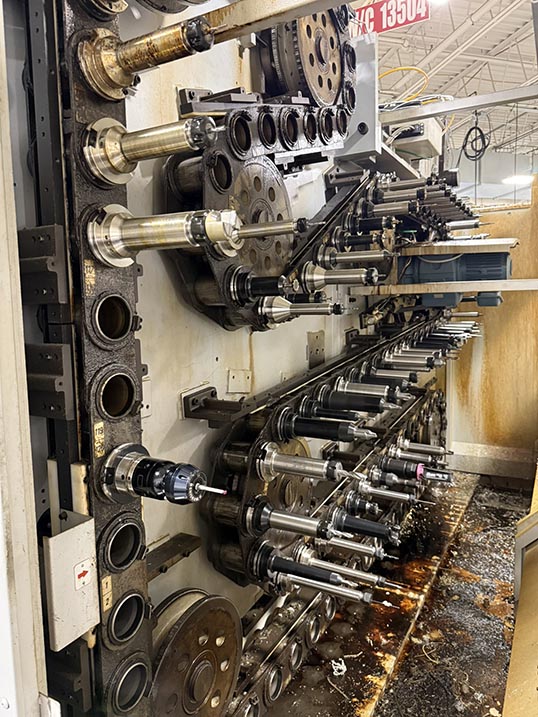

AUTO TOOL CHANGE CAPACITY ......... 120 ATC EACH MACHINE

EQUIPPED WITH:

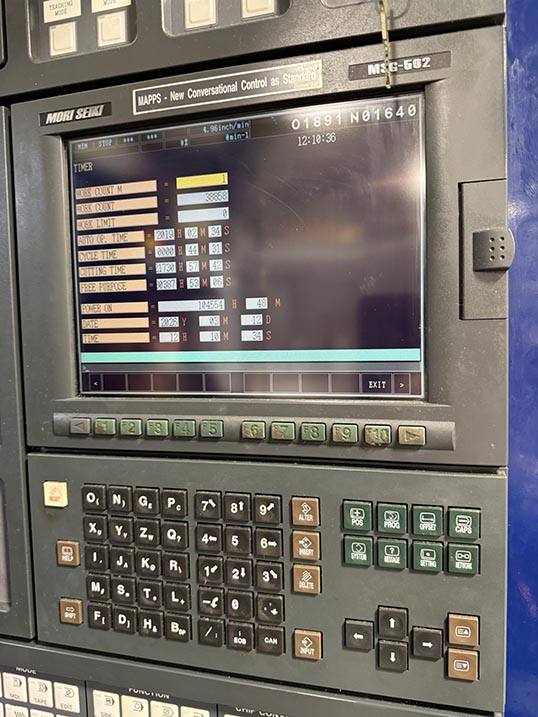

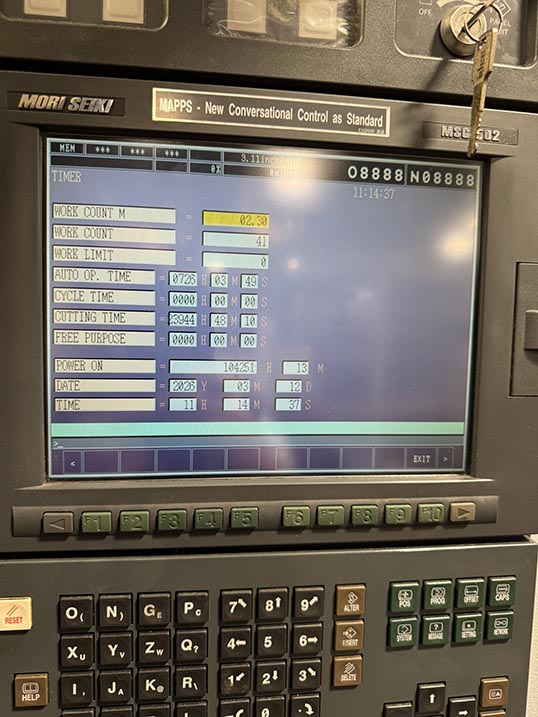

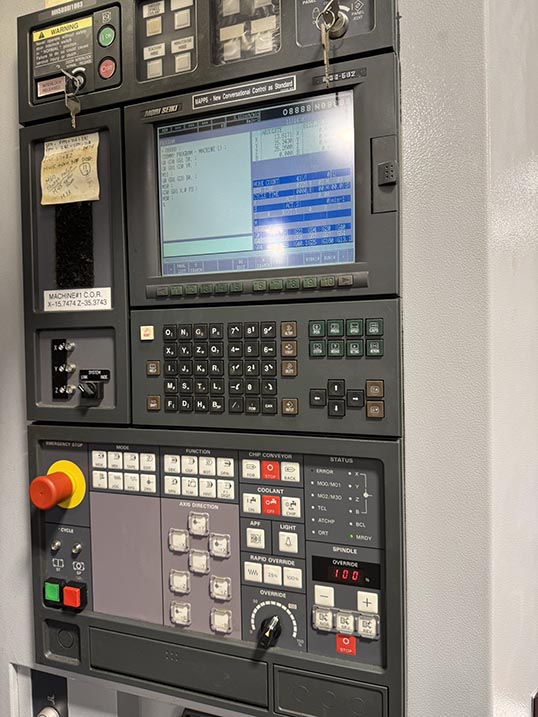

FANUC MSC502 CNC CONTROLS ON EACH MACHINE

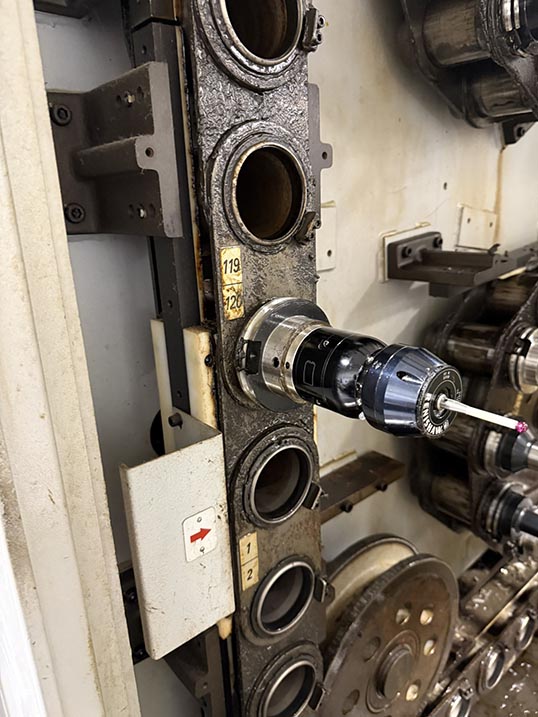

RENISHAW PART & TOOL PROBE FOR EACH MACHINE
THRU SPINDLE COOLANT
TWO CHIP BLASTER HIGH PRESSURE COOLANT SYSTEMS

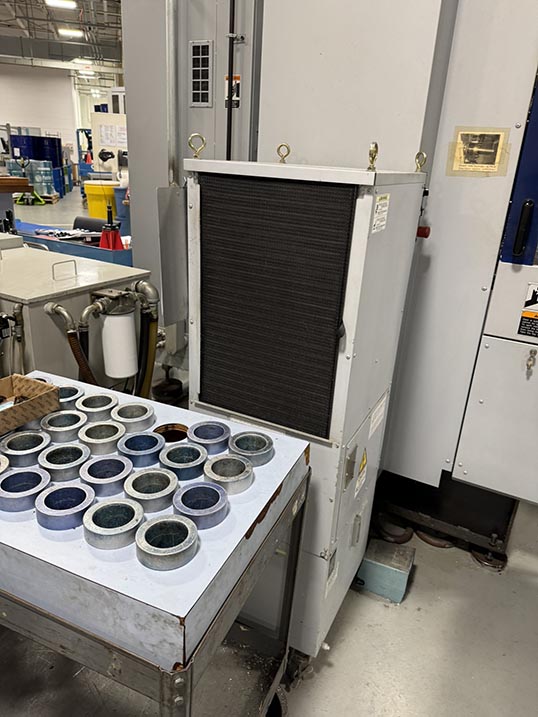

SPINDLE CHILLERS FOR EACH MACHINE
FULL ENCLOSURE

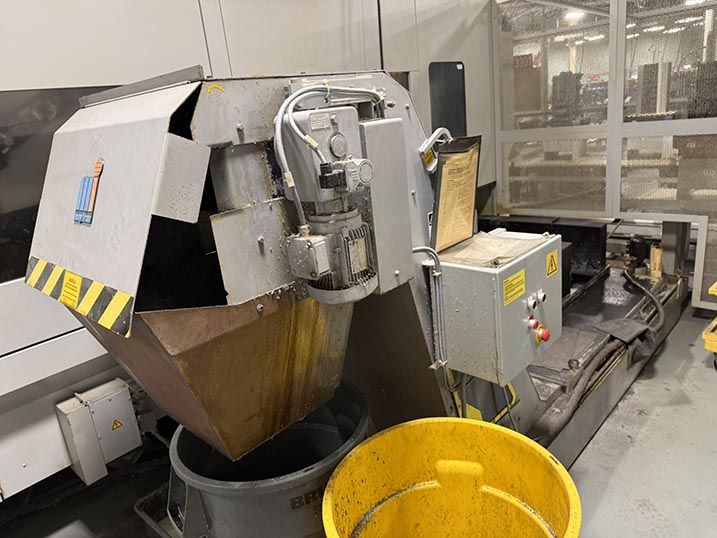

EXTERNAL CHIP CONVEYORS FOR EACH MACHINE
240 OVERALL TOOL CAPACITY BETWEEN THE TWO MACHINES
PREPARATION FOR D'ANDREA ATTACHMENTS ON ONE MACHINE
WITH MULTIPLE D'ANDREA HEADS

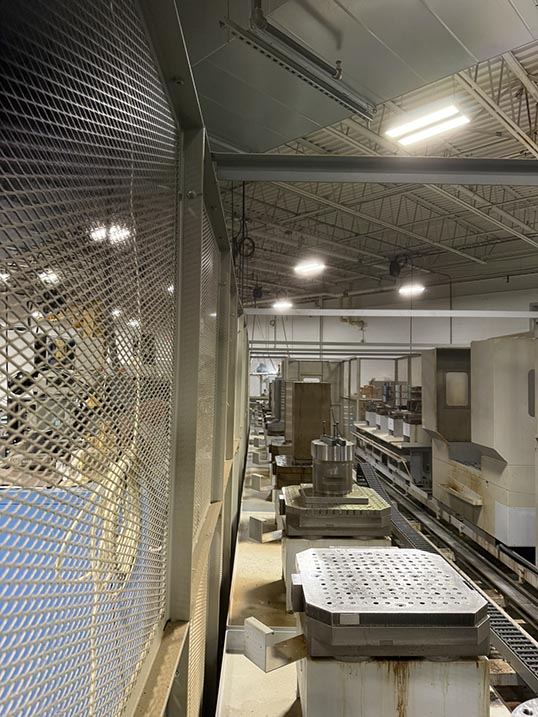

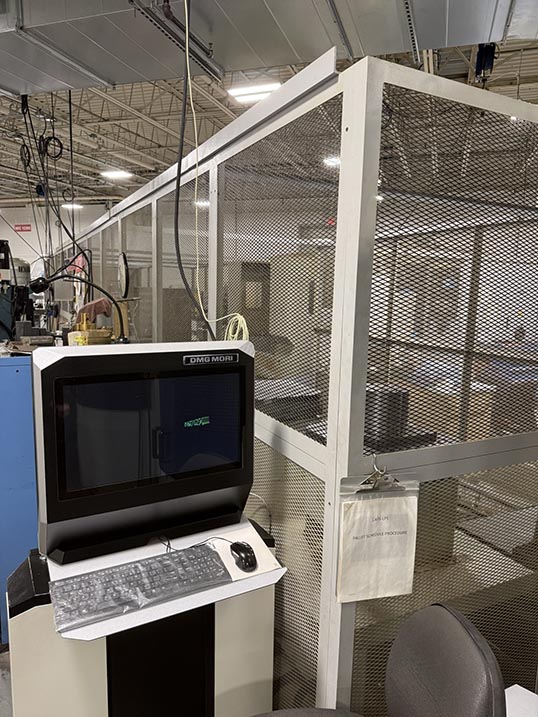

18 STATION PALLET POOL MODEL: MH503LPP W/FANUC POWER MATE

THE CELL IS CURRENTLY UNDER POWER
IN A NORTH AMERICAN PLANT!
