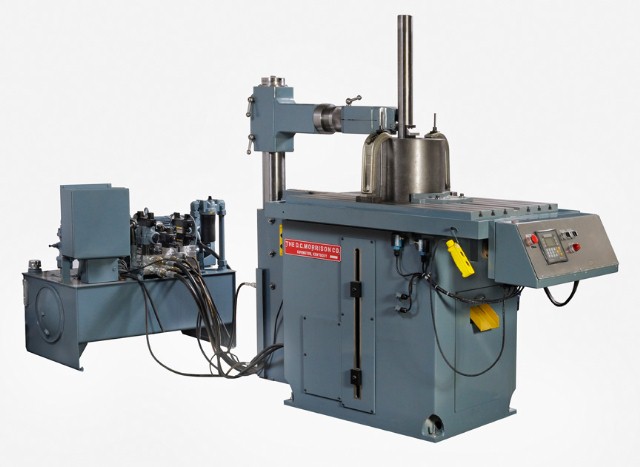

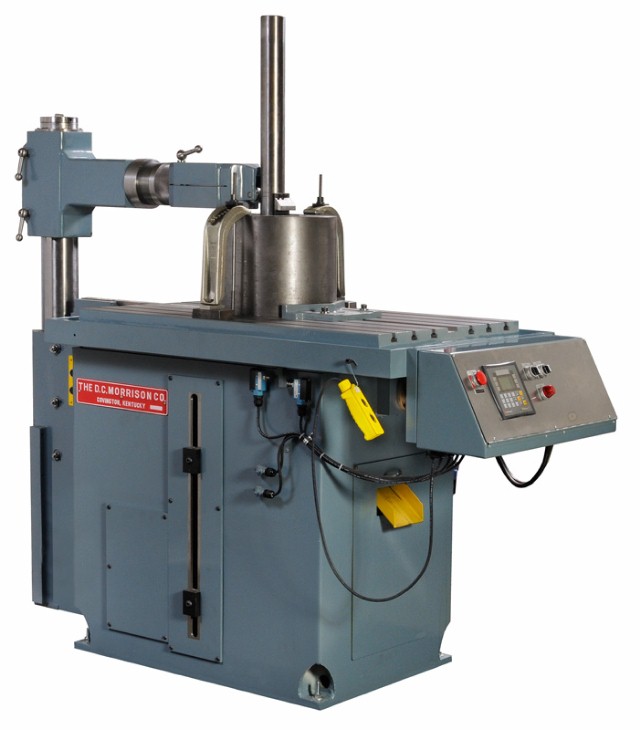

Brand New D.C. Morrison 3" Keyseater
The newly redesigned Morrison 3" Keyseater has been
physically modified and is more rigid than ever! The back
support bracket is twice the length of the older models,
enabling more accurate keyways in various material.
The overhead support is now easily raised and lowered by
hydraulics with the push of a button. The programming is
now extremely user friendly with the use of a programmable
logic controller and human machine interface. (HMI)
As in the past,the Morrison Keyseater does not require to
be positoned in a pit, and needs no bushings to center the
keyways. Cuts from 1\8" to 3" wide and 14" high.
AUTOMATIC FEED: (.001"through.006") eliminates pushing a
feed bar, eliminates the human error of feeding too much
or too little. The automatic feed insures accuracy and
enables the operator to get ready for the nextset-up.
Automatic Stop: automatically cuts off the feed for any
given depth and this also frees the operator for other
duties.
Automatic Relief: backs the work away from the cutter on
the up stroke eliminating drag and insuring a clean
keyseat.
Quick Set-Up: is one of the most important features. The
operator has all control handles built into the machine
and to change from one piece to another is very simple,
and requires the least amount of time. Also different
cutter bits are interchangeable. The cutter bar does not
need to be changed in order to cut different size
keyseats.
Single Tooth Cutters: are not only for accuracy but
eliminate time and trouble in sharpening. All cutters are
of the finest HighSpeed Tool Steel.
Adjustable Stroke: The stroke is infinitely adjustable.
This is very desirable when slower cutting speeds are
required.
Automatic Centering: centers up the work quickly and
easily. lt can be set for multiple jobs of two or more
pieces, automatically centering the next work piece.
Automatic Lubrication: feeds oil to all necessary moving
parts by the means of a "one shot" system convenient for
the operator.
Uses No Bushings: and this feature not only simplifies the
operation but no extra equipment needs to be ordered to
cut a keyseating any size bore . The cutter bar is
supported close to the actual cut by a quick acting
adjustable cutter bar support, both above and below the
work.
Hydraulic System: with the hydraulic set on maximum
pressure cylinder size is 3-1/4" diameter. The machine
will develop approximately 8 tons of cutting pressure at
cutting edge of cutter.
SPECIFICATIONS:
Cut Keyways: 1-1/8" - 3"
Maximum length of cut: 14"
Number of feeds (6): .001" thru .006"
Distance from 2" cutter to column: 34-1/2"
Table Size: 50" x 36-1/2"
Table Height from floor: 41-1/2"
Floor space hydraulic system: 41" x 43"
Floor space keyseater: 84" x 36"
Motor: 20hp 220 / 440 volt
STANDARD:
Start, Stop, magnetic starter with over and under voltage
protection, variable speeds, automatic luberication,
automatic table feed, hydraulic unit, centering vee and 2"
cutter bar.
*** CALL FOR PRICING FOR ADDITIONAL CUTTERS AND CUTTER BAR
ADAPTOR (for small cuts).
