OGP TOP BENCH, 1995, CALIBRATED ON 10/24/2024 COMPARATORS

Price on Request

Make:: OGP

Model:: TOP BENCH, 1995, CALIBRATED ON 10/24/2024

Year:: 1995

Ref #:: 178595

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

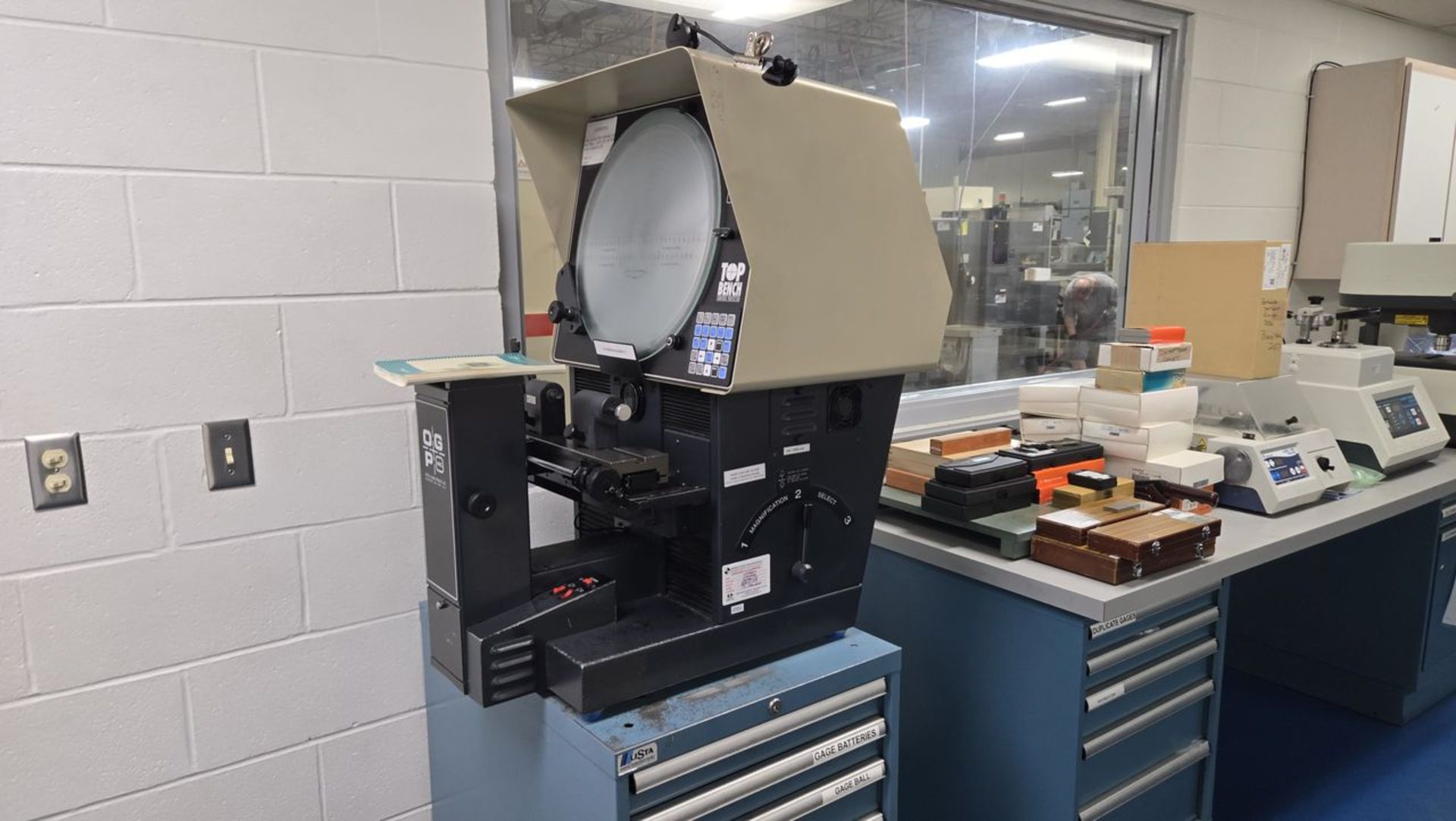

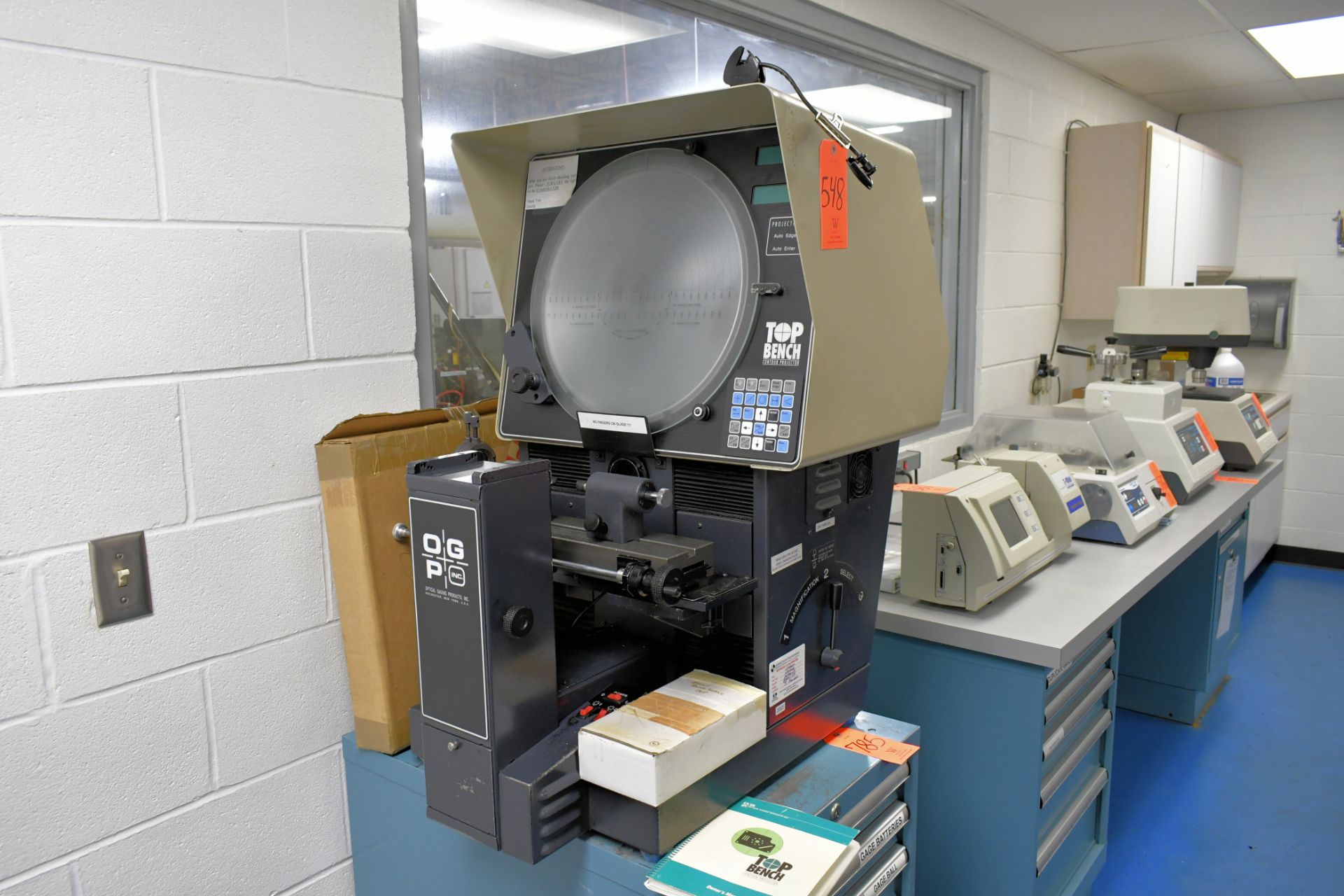

       14" OPTICAL GAGING PRODUCTS (OGP)
     OPTICAL COMPARATOR WITH DIGITAL READOUT
       (PROGRAMMABLE GEOMETRIC FUNCTIONS)
       & "PROJECTRON IV" EDGE DETECTION

MODEL: TOP BENCH

S/N: B08061133

MFG. APRIL, 1995


SPECIFICATIONS:
SCREEN DIAMETER .................. 14"
TABLE SIZE: ...................... 4-3/8" X 17-3/4"
MEASURING CAPACITY
-LONGITUDINAL TABLE TRAVEL ....... 8"
-VERT. TABLE TRAVEL .............. 6"
TABLE LOAD CAPACITY .............. 55 LBS.
ANGULAR MEASURING CAPACITY ...... 360 DEG. CHART ROTATION
IMAGE TYPE ...................... FULLY CORRECTED/ERECT
FLOOR SPACE .............. 24" L-R x 36" F-B x 41" HIGH
APPROX. WEIGHT ................... 450 LBS


EQUIPMENT:
BUILT IN "OGP" GEOMETRIC DIGITAL READOUT
  SYSTEM w/PROGRAMMABLE GEOMETRIC FUNCTIONS
OGP "PROJECTRON IV" EDGE DETECTION
BUILT IN SURFACE ILLUMINATION
MANUAL TABLE TRAVERSE
DIGITAL ANGLE DISPLAY
THREE POSITION LENS TURRET
COMES WITH 10X, 20X & 50X LENSES
TUNGSTEN HALOGEN PROJECTION
  1,200 PEAK WATTS
  350 CONTINUOUS WATTS

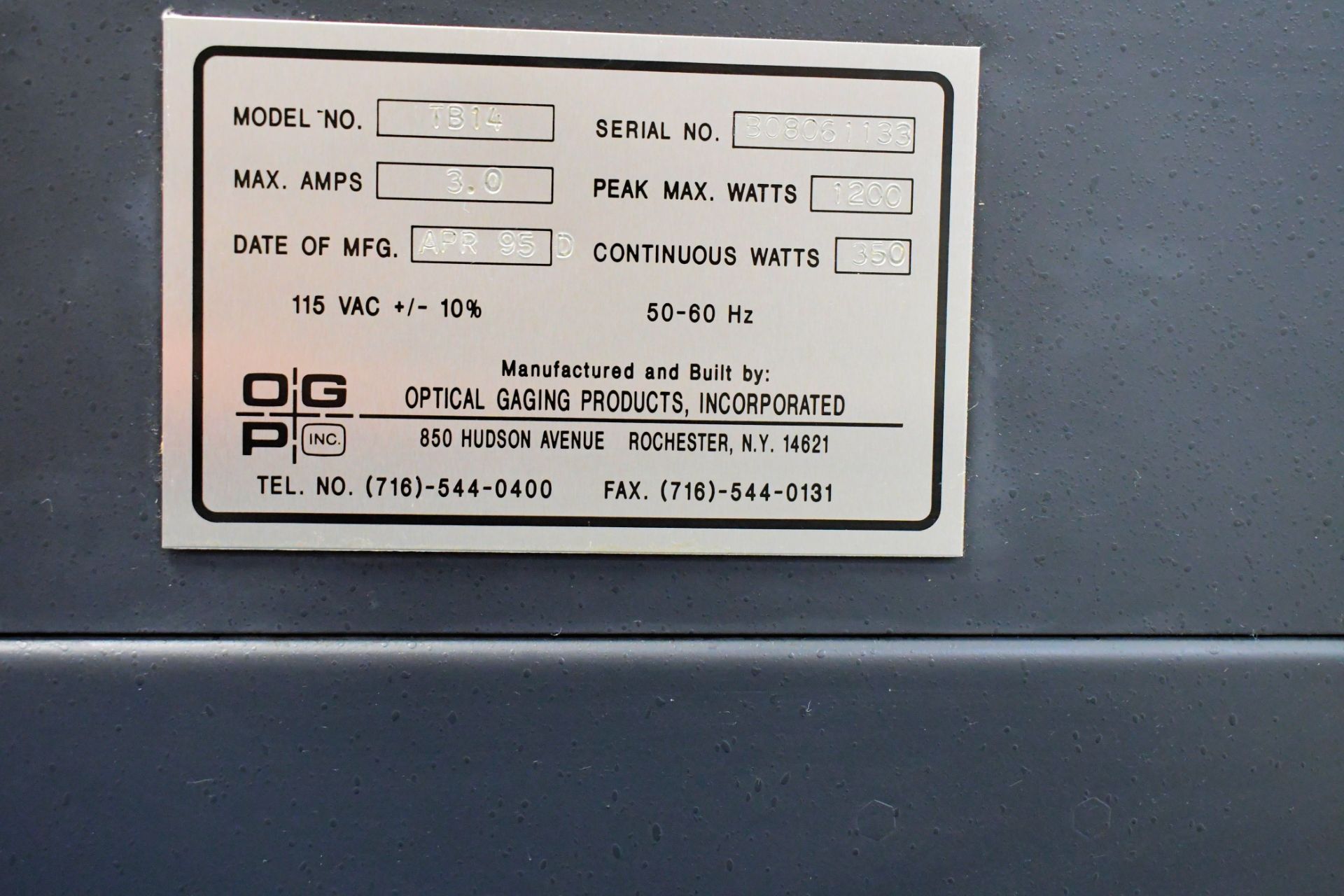

ELECTRICAL - 1/60/115 VOLTS, 3.0 AMPS

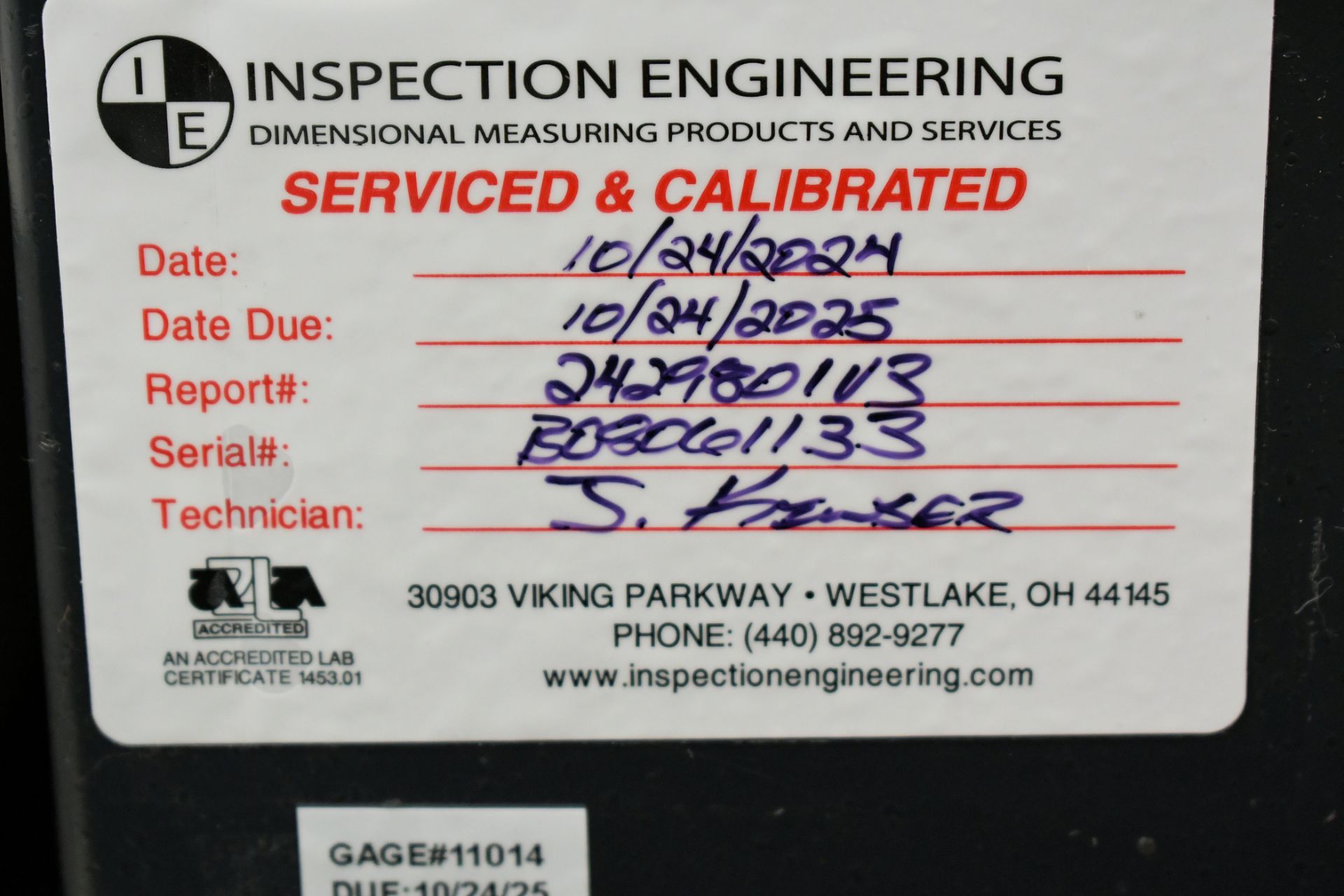

SPECIAL NOTE, CALIBRATED
 LAST ON 10/24/2024 BY:
INSPECTION ENGINEERING
WESTLAKE, OH
(440) 892-9277
REPORT #2429801V3



FANATSTIC DESCRIPTION FROM OGP,
OF THIS MODEL'S UNIQUE DESIGN:

REVOLUTIONARY ACCUCENTRIC LENS SYSTEM",
(PATENTED):
"THE ACCUCENTRIC OPTICS IN TOP BENCH PRESENT
 A FULLY CORRECTED, ERECT AND UNREVERSED IMAGE
 OF THE HIGHEST QUALITY.  THE IMAGE ON THE
 SCREEN APPEARS EXACTLY THE SAME WAY AS YOU
 SEE THE PART STAGED ON THE WORKTABLE.
 SO THERE'S NO WONDERING WHICH WAY TO MOVE
 THE TABLETO MEASURE A DIMENSION.  YOUR
 HAND-EYE COORDINATION IS NATURAL, FATIGUE
 IS MINIMIZED, AND PRODUCTIVITY IMPROVED.

THE ACCUCENTRIC OPTICS IN TOP BENCH ARE FULLY
 TELECENTRIC.  THIS ENSURES THAT THE
 MAGNIFICATION OF THE IMAGE REMAINS ACCURATE
 EVEN WHEN DIFFERENT OPERATORS FOCUS THE
 SYSTEM AT DIFFERENT POSITIONS.  IT ALSO MEANS
 A CONSTANT WORKING DISTANCE, OUTSTANDING
 DEPTH OF FIELD, SHARP IMAGE DEFINITION AND
 NEGLIGIBLE DISTORTION.

ONLY TRUE TELECENTRIC SYSTEMS CAN MAKE
 THIS CLAIM.  DON'T BE FOOLED BY THOSE SYSTEMS
 WITH SIMPLE OPTICS THAT PROMISE "TELECENTRIC
 ILLUMINATION". TO RECEIVE THE BENEFITS
 OF TELECENTRICITY, THE ENTIRE OPTICAL SYSTEM
 MUST BE DESIGNED ACCORDINGLY. OGP, WHO
 INTRODUCED THE TELECENTRIC RELAY LENS
 PRINCIPLE IN 1945, IS UNIQUELY QUALIFIED TO
 PROVIDE THE UNSURPASSED OPTICAL QUALITY YOU
 DESERVE IN A CONTOUR PROJECTOR.

OGP'S EXCLUSIVE FRESNEL LENS TECHNOLOGY
 REDIRECTS ALL LIGHT TOWARDS THE NORMAL
 VIEWING POSITION.  NO LIGHT IS WASTED,
 AND YOU GET THE BRIGHTEST, MOST EVENLY
 ILLUMINATED IMAGE IN THE INDUSTRY.

THROUGH-THE-LENS SURFACE ILLUMINATION
 DELIVERS BRIGHTER, MORE EVENLY ILLUMINATED
 IMAGES THAN THE "HIGH INTENSITY" FIBER OPTICS
 FOUND ON OTHER SYSTEMS. AND YOU WON'T HAVE
 TO ADJUST UNWIELDY FIBER OPTIC CABLES

TOP BENCH USES A UNIQUE OPTICAL FOCUSING
 METHOD THAT REMOVES THE REQUIREMENT FOR A
 THIRD AXIS OF MOTION FOR THE WORKTABLE AND
 INCREASES THE ACCURACY OF HORIZONTAL AND

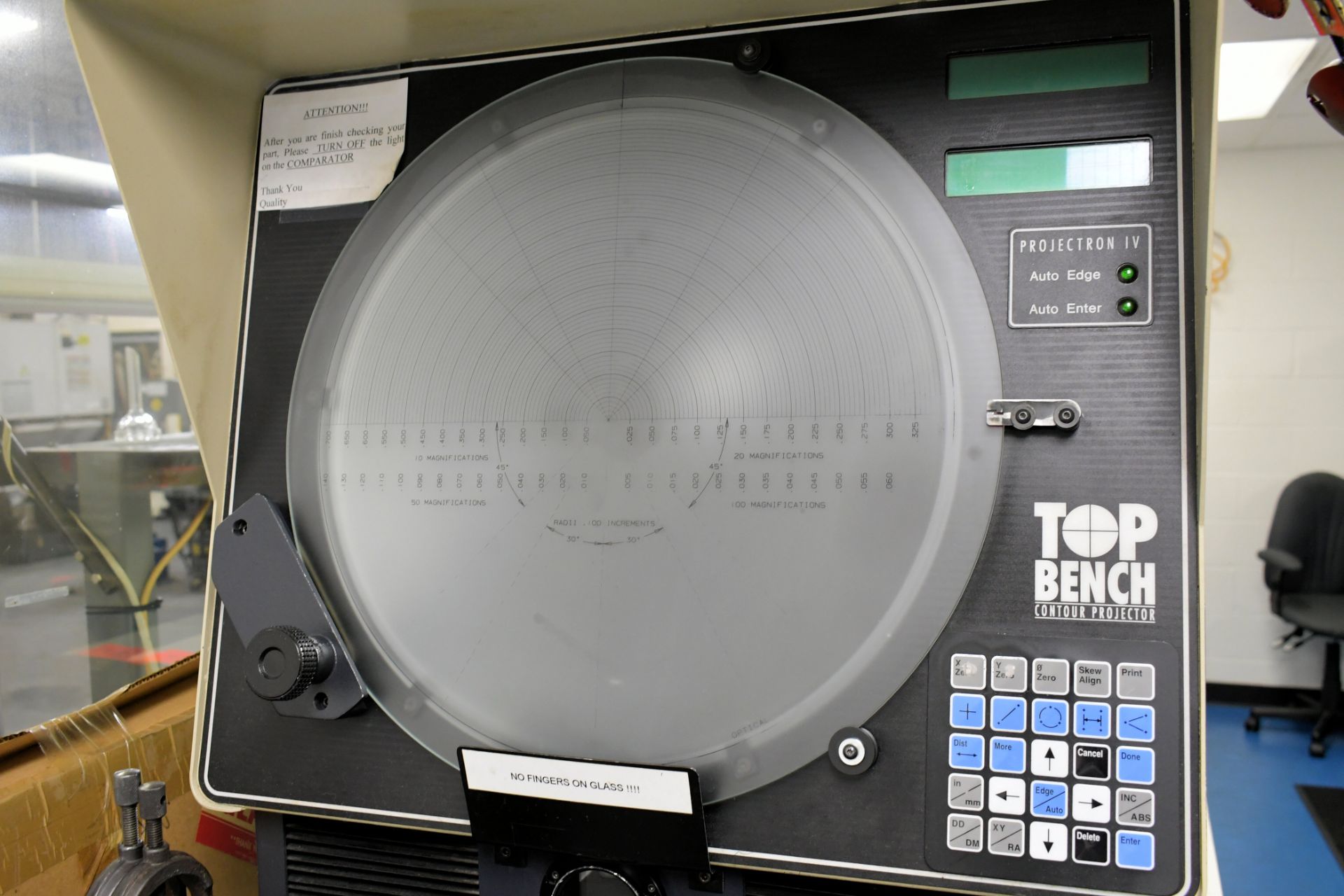

 VERTICAL MOTIONDUAL LCD DISPLAYS PROVIDE
 BRIGHT, EASY TO READ COORDINATE AND GEOMETRIC
 INFORMATION AND A WIDER VIEWING ANGLE THAN
 LED DISPLAYS OGP'S EXCLUSIVE "PROJECTRON IV"
 AUTOMATIC EDGE DETECTION IS INTERNALLY
 MOUNTED AND PERMANENTLY CALIBRATED.  YOU
 WON'T HAVE TO WORRY ANYMORE ABOUT THOSE
 FLIMSY OVER-SCREEN UNITS YOU FIND ON OTHER
 SYSTEMS.

HELIX MOTION IS INCORPORATED WHERE IT
 BELONGS, THROUGH A PIVOTING WORKTABLE.
 SAY GOOD-BYE TO THE IMPROPER ILLUMINATION
 YOU GET WITH A PIVOTING LAMPHOUSE

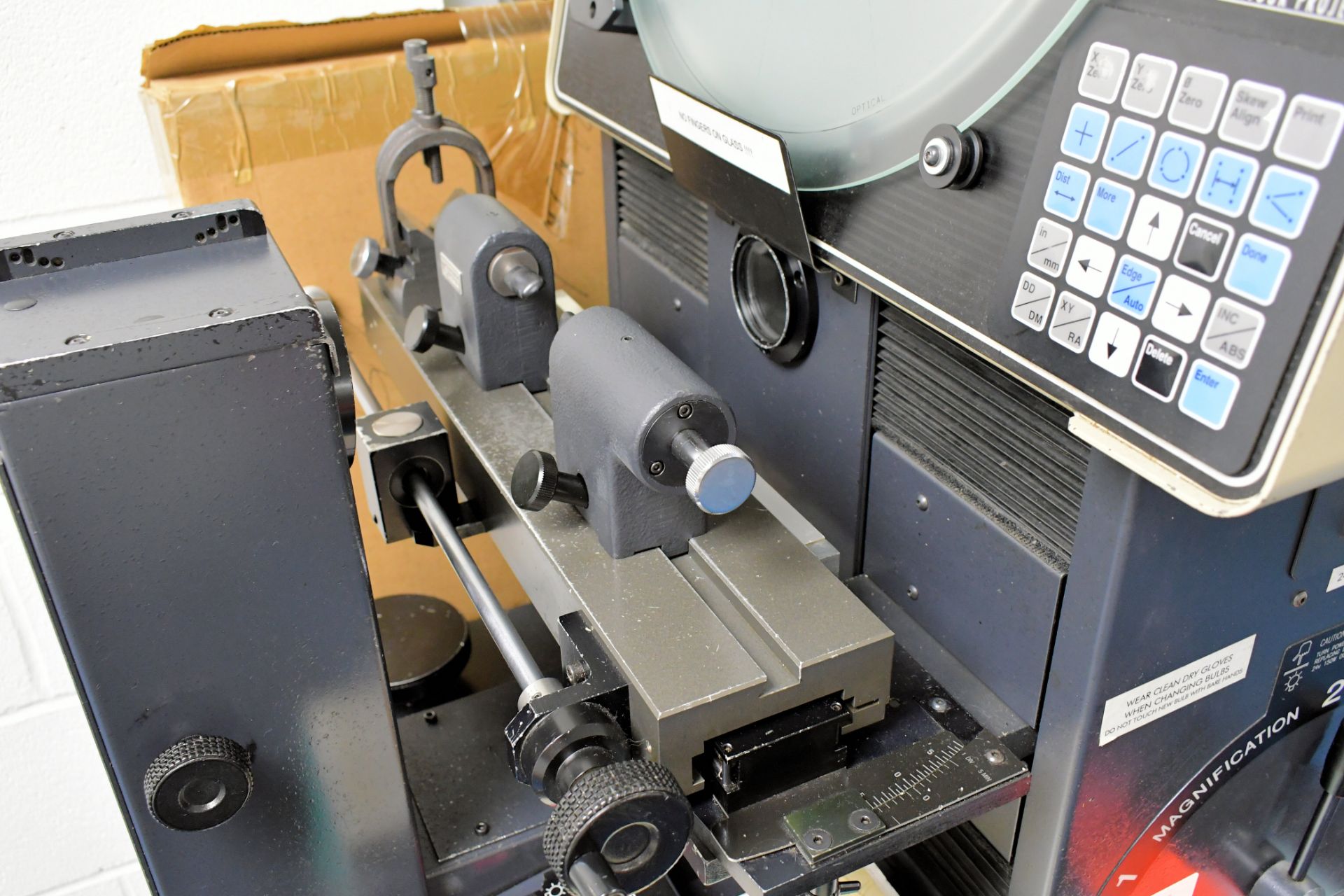

THE HARD COATED WORKTABLE ON TOP BENCH
 FEATURES 8" OR 12" OF TRAVEL AND AN INTEGRAL
 DOVETAIL SLOT FOR EASY MOUNTING OF FIXTURING
 ACCESSORIES.  PATENTED BEARING CONSTRUCTION
 ENSURES YOU OF STRAIGHT LINEAR MOTION,
 HIGH ACCURACY, AND LONG LIFE.

THE TOP BENCH SYSTEM CAN BE EQUIPPED WITH
 A THREE POSITION INTERNAL LENS TURRET FOR
 FAST CHANGING OF MAGNIFICATION.  THE TURRET
 SENSES AND DISPLAYS WHICH MAGNIFICATION LENS
 IS IN USE AND AUTOMATICALLY SETS THE CORRECT
 EDGE DETECTION PARAMETERS.

THE EXCLUSIVE ACCUCENTRIC LENS SYSTEM (PATENTED)
 PROVIDES AN UNPRECEDENTED 5" OF WORKING
 CLEARANCE, REGARDLESS OF MAGNIFICATION.
 MAXIMUM WORKPIECE DIAMETER IS A STAGGERING
 8", EVEN AT 100x!  AND SINCE ALL LENSES ARE
 ENCLOSED, THERE'S NO CHANCE OF EXPENSIVE
 COLLISIONS."

** EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
