Okamoto PRG-6, NEW 1993, AUTO CYCLE, AUTO IDF ROTARY SURFACE GRINDERS, HZ SPDL (ARTER TYPE)

Price on Request

Make:: Okamoto

Model:: PRG-6, NEW 1993, AUTO CYCLE, AUTO IDF

Year:: 1993

Ref #:: 161600

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

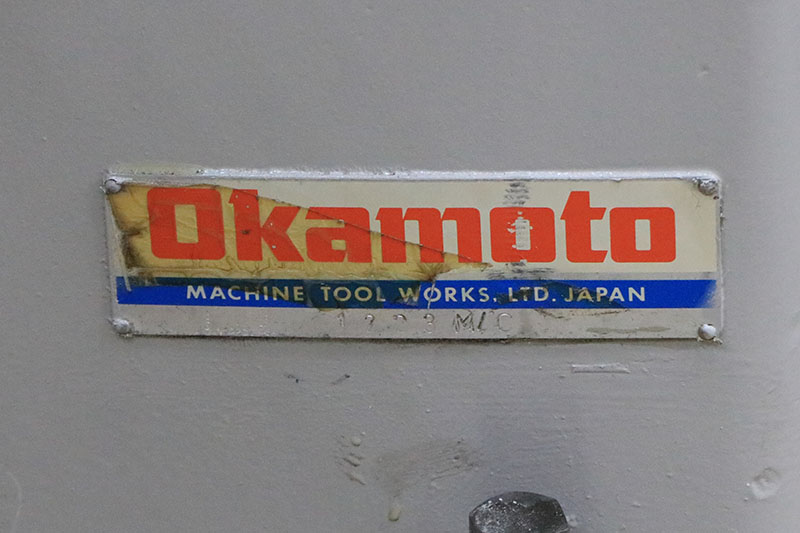

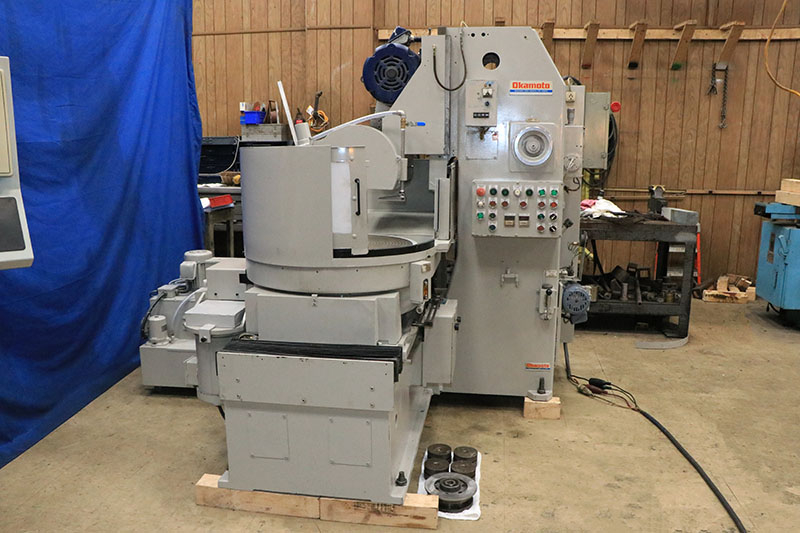

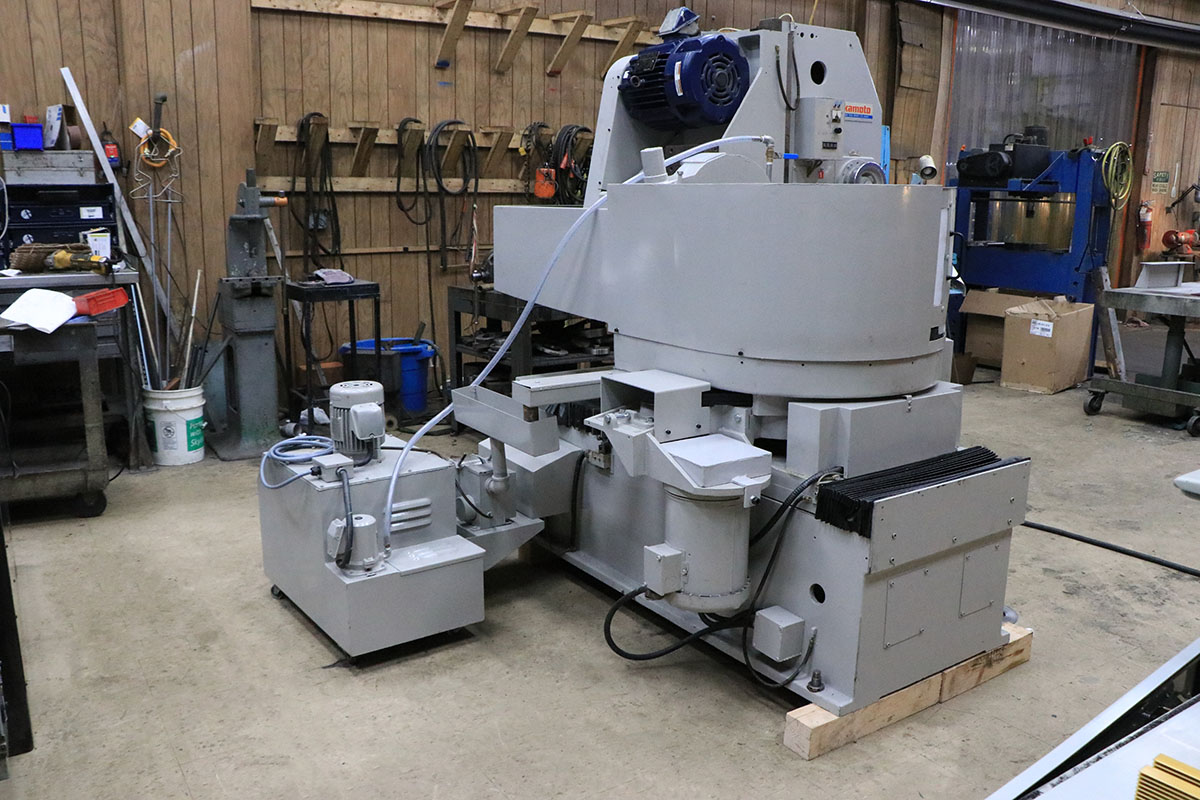

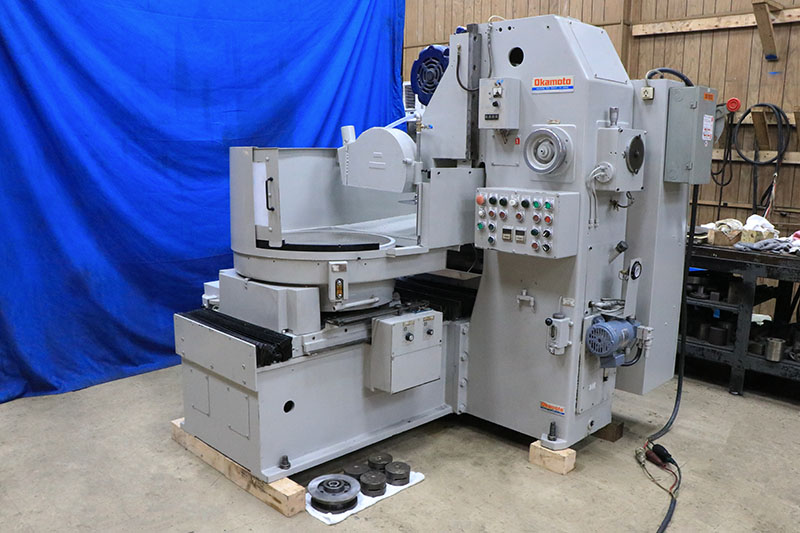

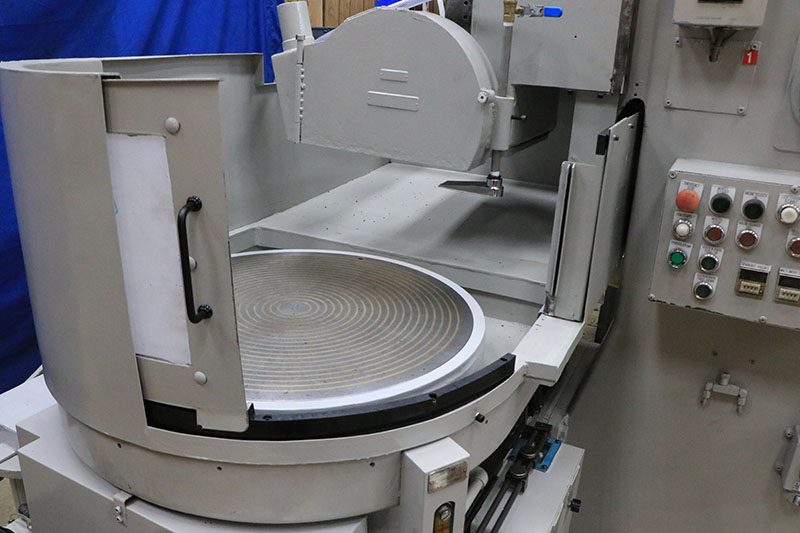

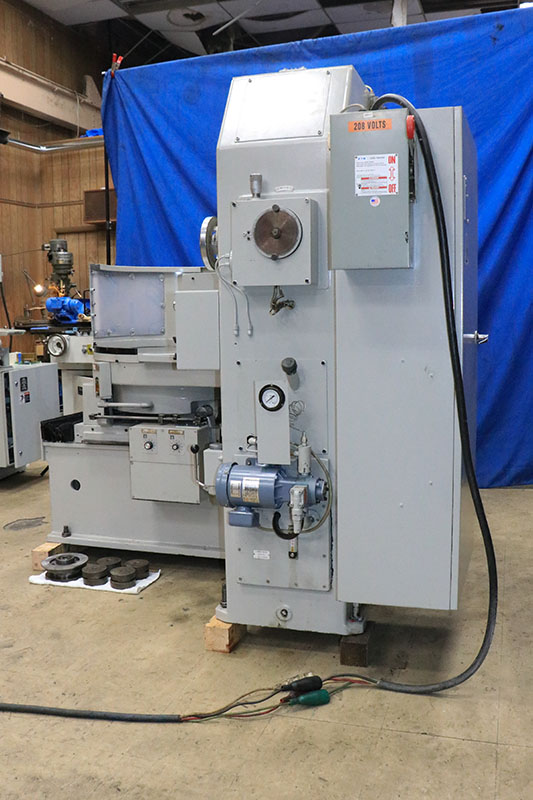

OKAMOTO "PRECISION" (MADE IN JAPAN) ROTARY SURFACE GRINDER

MODEL: PRG-6     S/N: 1223      MFG.: 1993

DIAMETER OF MAGNETIC CHUCK....... 23.6"
MAX. SWING (COOLANT GUARD)....... 29.5"
MAX. HEIGHT, UNDER 14" WHEEL .... 7.87"

STANDARD WHEEL SIZE.............. 14"DIA.
                                  1.5" TO 2""W
                                  5" BORE
GRINDING WHEEL MOTOR ............ 10 H.P.
AUTO SPINDLE DOWNFEED............ 0.0001"-.001"
RAPID FEED ...................... 11.2" IPM
HAND FEED PER REV. .............. 0.02"
ONE GRADUATION OF DIAL .......... 0.0001"

MAX. ANGLE (CONVEX/CONCAVE ...... 3 DEGREES
CHUCK SPEEDS, INF. VARIABLE ..... 20 TO 150 RPM
TABLE TRAVEL (MAX) .............. 15.7"
TABLE TRAVERSE RATE ............. 0-15 FPM

SPINDLE MOTOR ................... 10 HP

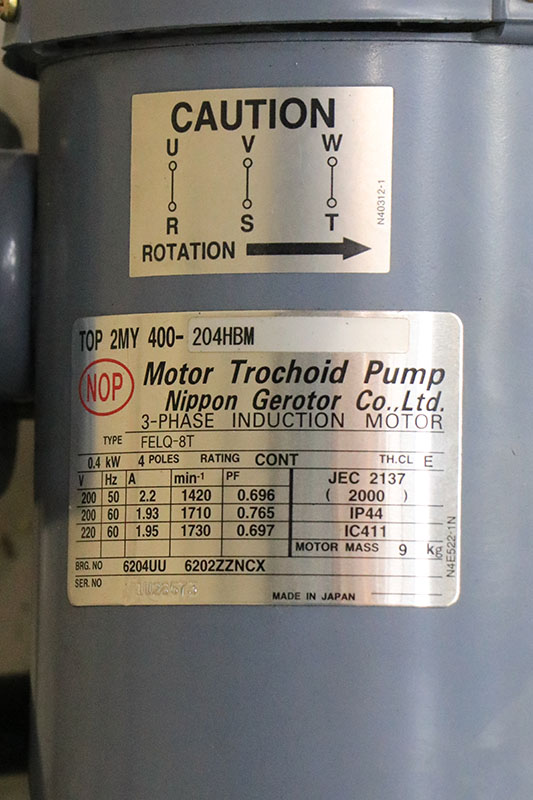

HYDRAULIC SYSTEM MOTOR .......... 3 HP

APPROXIMATE MACHINE WEIGHT ...... 7,780 LBS.
MACHINE TOOL DIMS. ........... 86"L-R x 106"F-B x 79"H


EQUIPPED WITH:

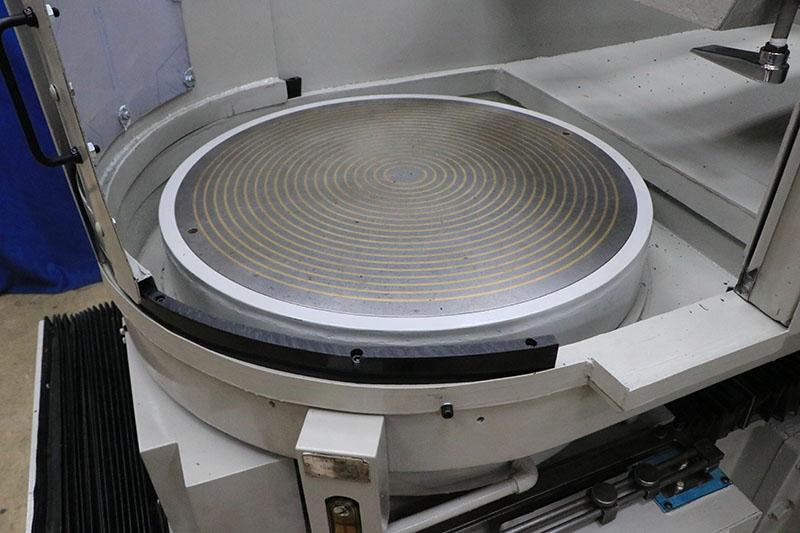

23.6" DIAMETER "CONCENTRIC POLE" FINE-DIVISION
 ELECTRO-MAGNETIC CHUCK

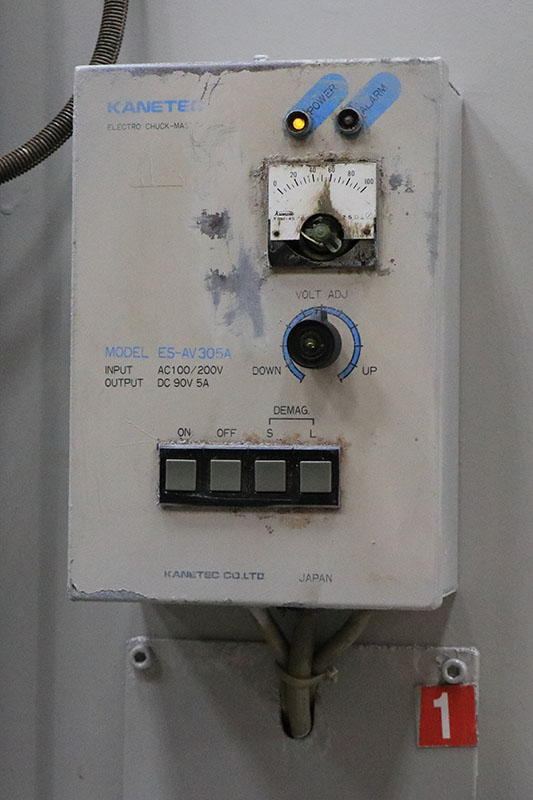

VARIABLE HOLD NEUTROFIER CONTROL FOR THE ELECTRO-MAGNETIC CHUCK

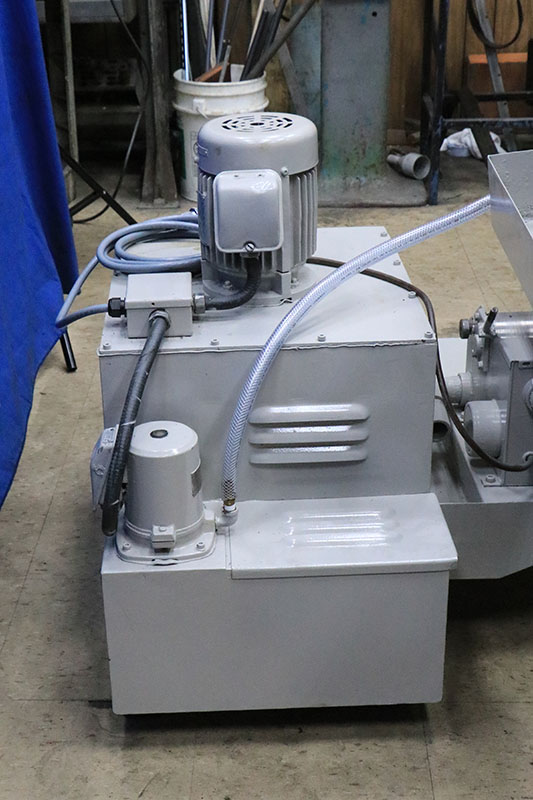

COOLANT SYSTEM

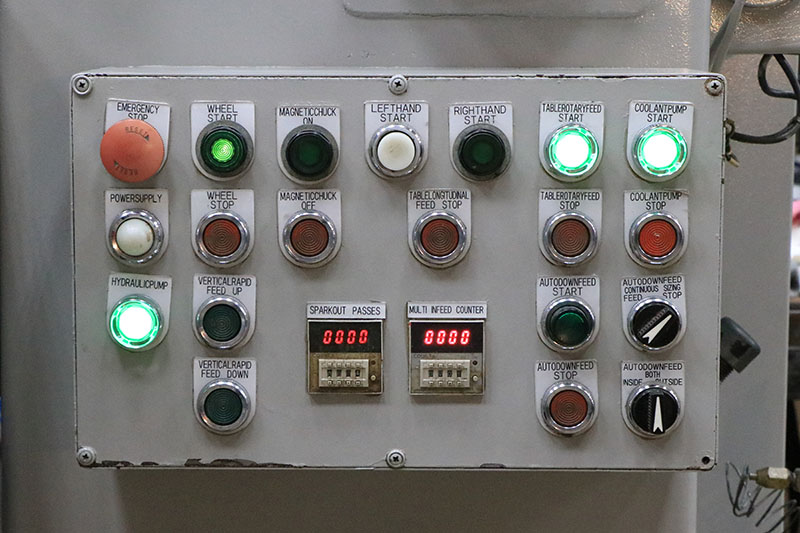

DIGITAL SPARKOUT COUNTER
DIGITAL MULTI INFEED COUNTER

MACHINE FEATURES:

AUTOMATIC GRINDING CYCLE WITH SPARKOUT TIMER
SETTING KNOB FOR AUTOMATIC INCREMENTAL DOWNFEED

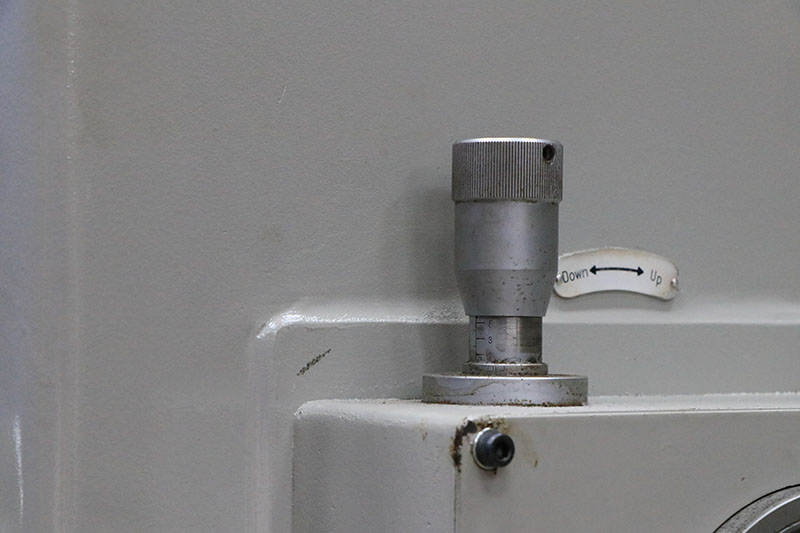

HANDWHEEL FOR MANUAL VERTICAL FEED
THE TABLE ON THE SADDLE MOVES LONGITUDINALLY ON THE WAYS
 OF THE BED
SELECTOR SWITCH

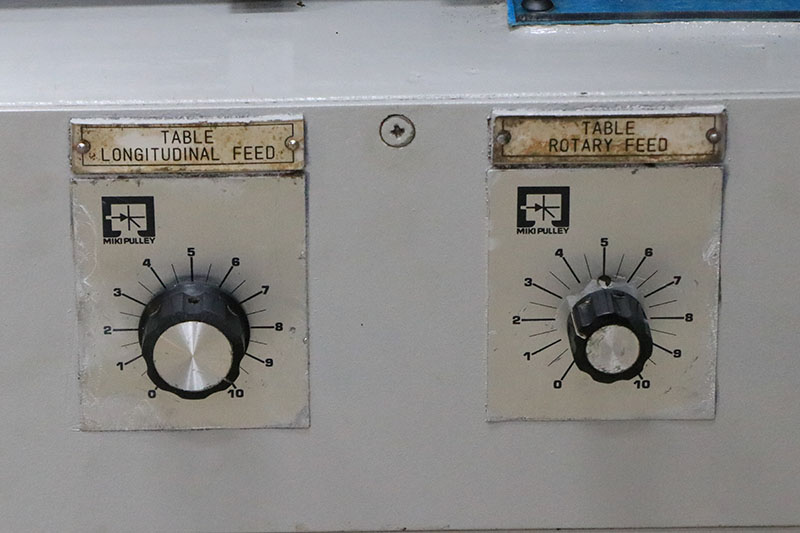

INFINITELY VARIABLE CHUCK SPEEDS, BY TURNING A DIAL
INFINITELY VARIABLE LONGITUDINAL SPEED SETTING,
  BY TURN OF A DIAL ROTARY & LONGITUDINAL SPEEDS
  OF THE TABLE ARE EACH ACTUATED  BY DC DRIVE MOTORS
TABLE TILTS, PLUS/MINUS 3 DEGRESS OF CENTER
POWER RAPID TRAVERSE FOR WHEEL ELEVATION BY PUSHBUTTON

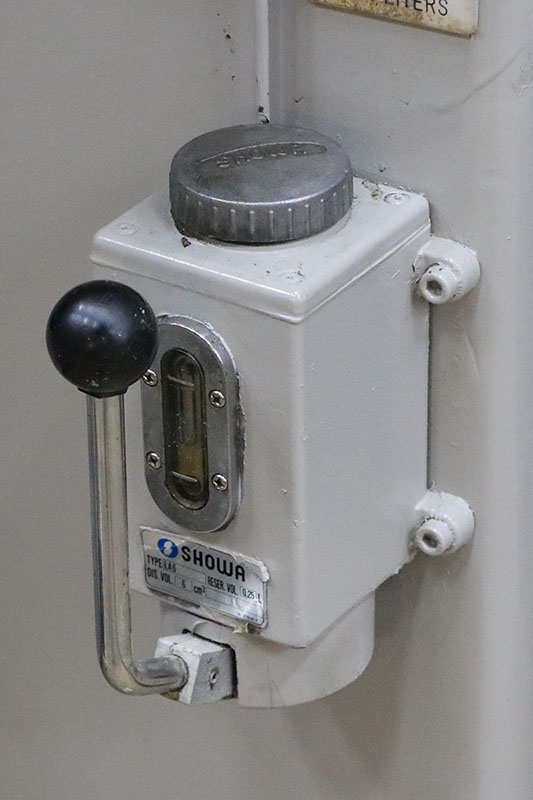

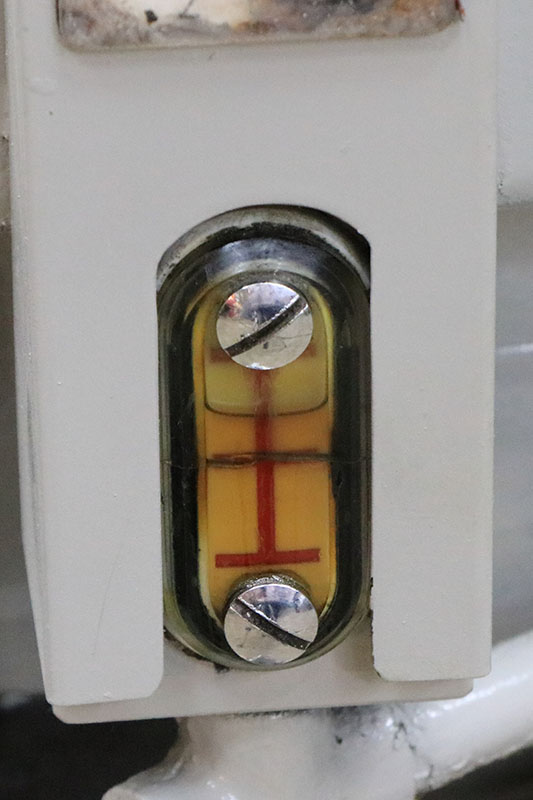

SEPARATE LUBRICATOR FOR VERTICAL WAYS

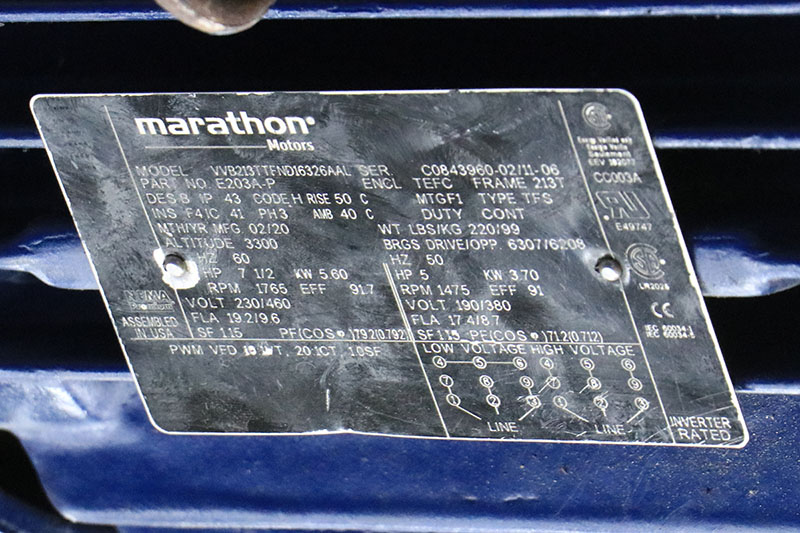

10 H.P. SPINDLE MOTOR, 3/60/220-440 VOLTS
3 H.P. DC MOTOR TABLE DRIVE
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS


SPECIAL NOTE:

** MACHINE WILL BE CHECKED OUT, REFURBISHED WHERE
    NECESSARY, AND REPAINTED "OKAMOTO WHITE"
    WITH EPOXY PAINT.  WORK TO BE PERFORMED
    IS EXTENSIVE, THE MACHINE WILL BE
    DISASSEMBLED, THIS IS A COMPREHENSIVE JOB.

   MACHINE WILL BE READY FOR DELIVERY 6 TO 9
    WEEKS AFTER ORDER WITH DEPOSIT IS RECEIVED.
    MACHINE IS SOLD WITH A 30 DAY
    RETURN PRIVILEGE.  DEPOSIT IS REFUNDABLE
    IF CLIENT DECIDES NOT TO PURCHASE
    THE MACHINE. **

LINK TO VIDEO: https://youtu.be/b-B88vvpsk0?si=mNx3hwYgTS8sgg_I
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
